Features:
- Lifting Capacity: 4000KG for 4 wheels; 2800KG for 3 wheels.
- Creative bridge-type structure allows a low profile entrance.
- Adjustable width, widely application, suitable for most 2 post lifts.
No.20805

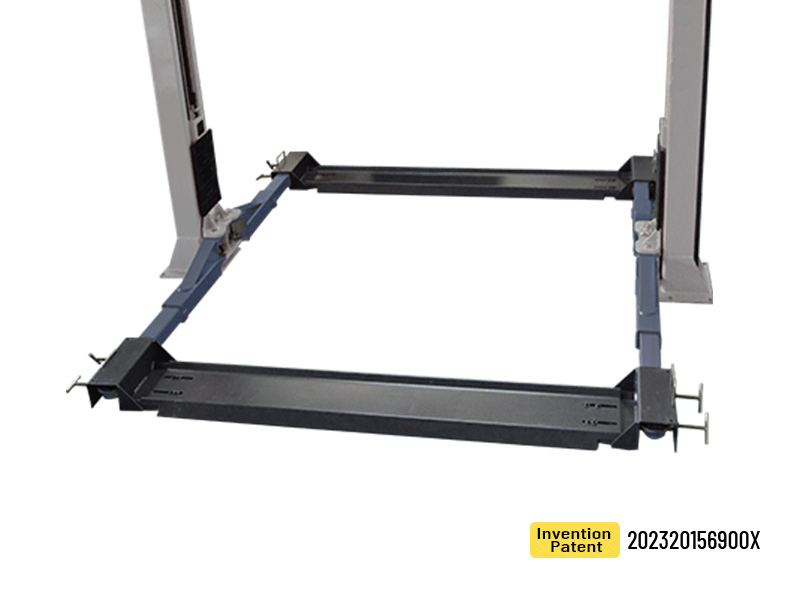

A perfect accessory for your 2 post lift. It's structured as a bridge-type low profile platform, can easily service lawn mower, golf cart, snowmobile, ATV and low-chassis vehicles. Very easy to install, and width is adjustable.
Features:
| Used with models |
A240 |
E240X,A245LX,E245CHX | ES245SAC | A240C | E240SAC | |

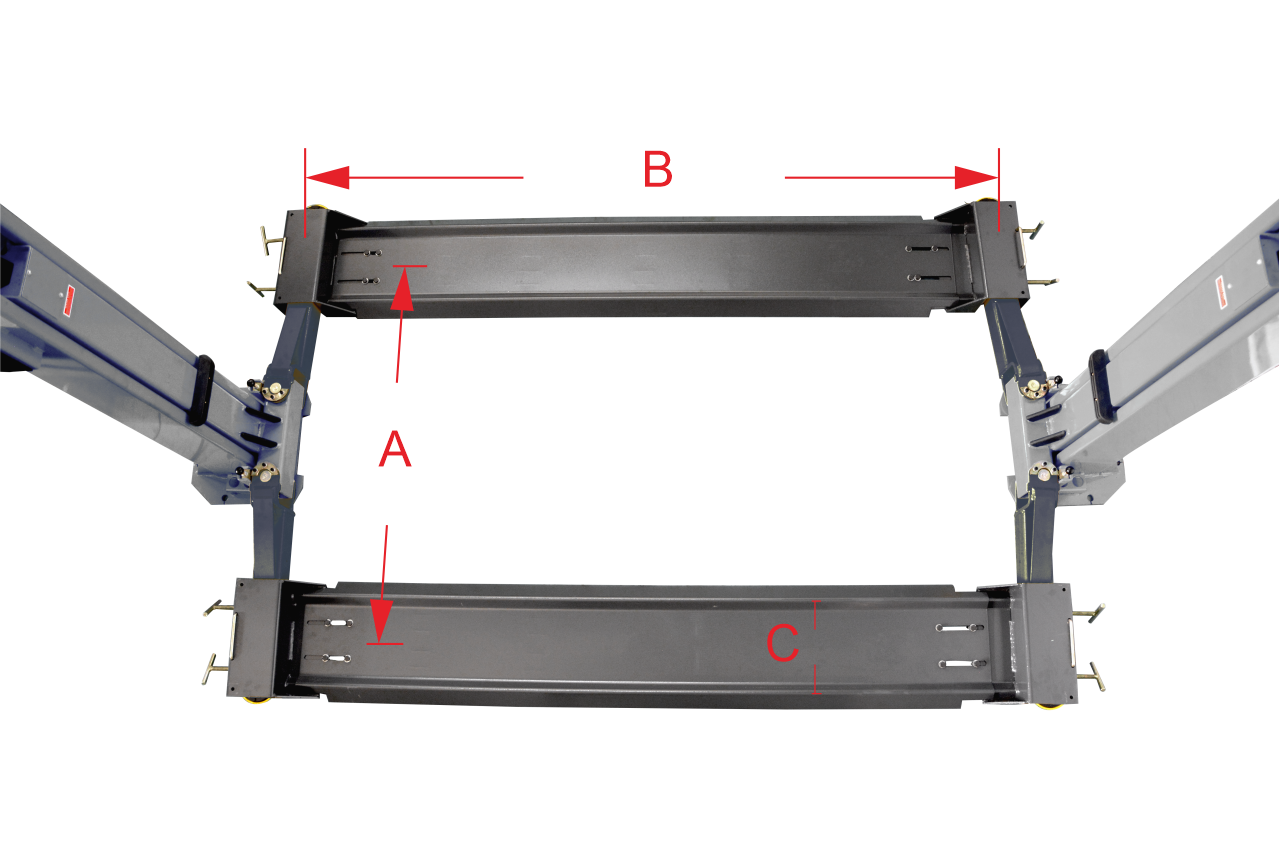

| A | Max. Wheel Base | 2350mm |
2600mm |
2560mm | 2555mm | 2515mm |
| Min. Wheel Base | 1420mm | 1530mm | 1605mm | 1485mm | 1560mm | |
| B | Width(Adjustable) | 2560~3020mm | ||||
| C | Width of Support Platform | 308mm | ||||
| Gross Weight | 194kg | |||||
| Single unit package dimension | 2800x400x355mm | |||||
