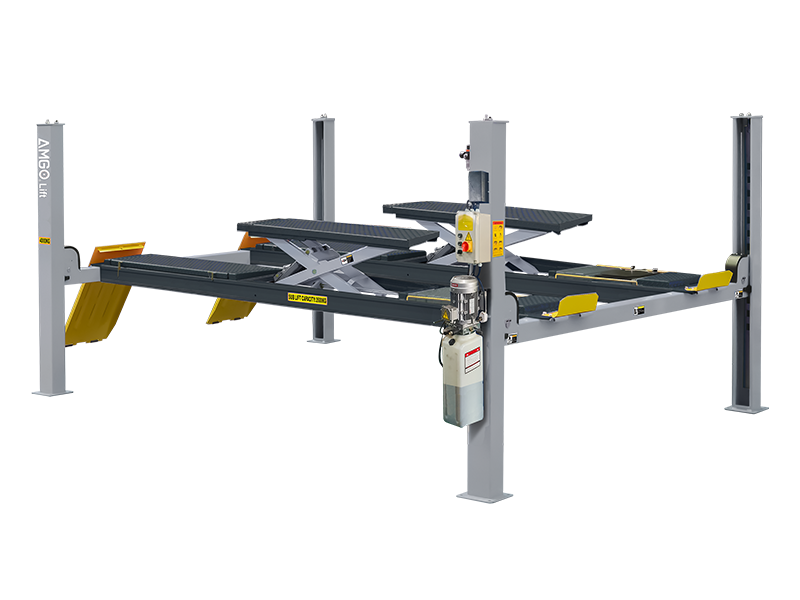

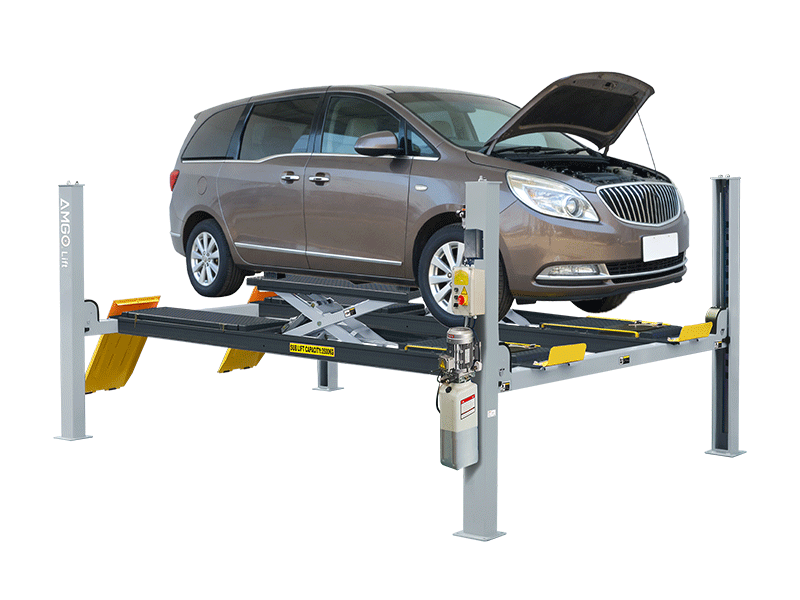

410AWX

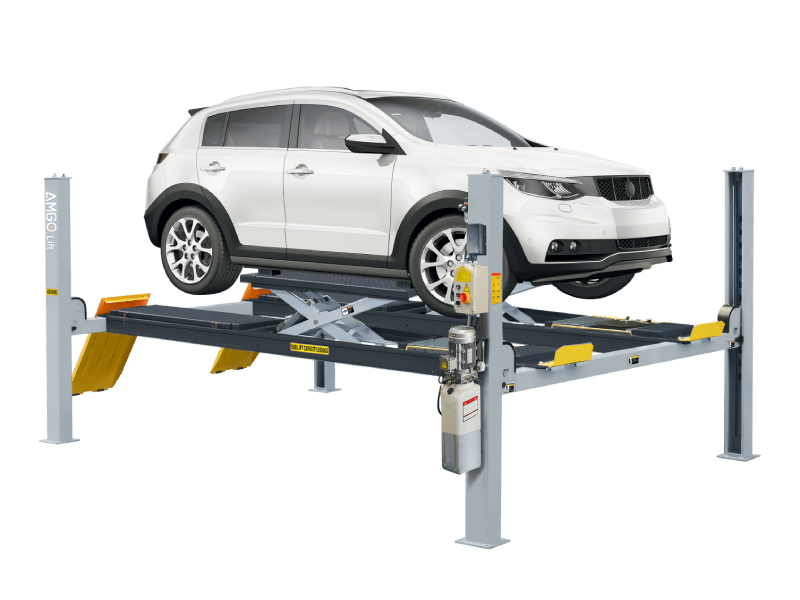

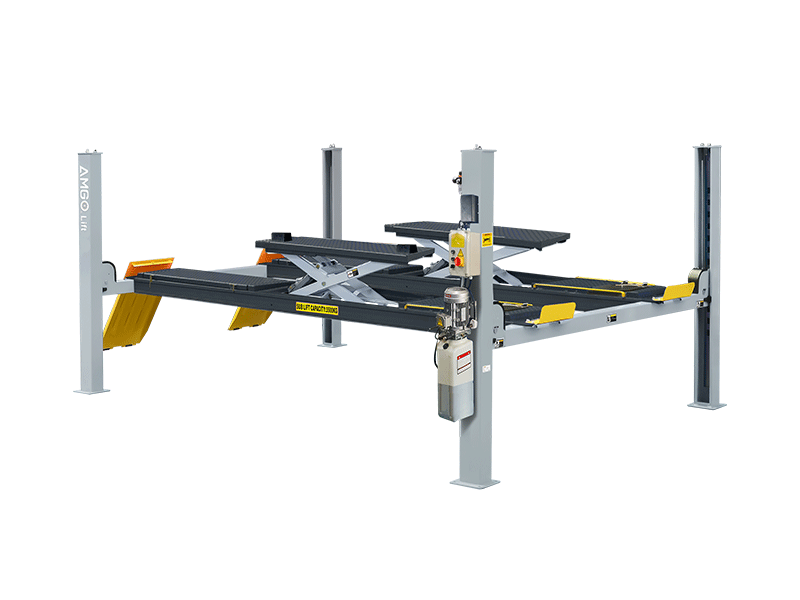

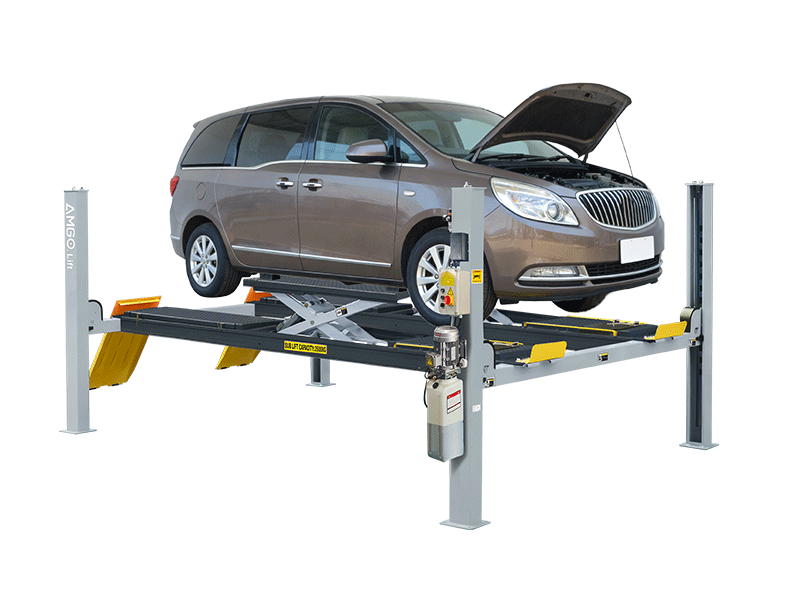

FOUR POST LIFT WITH AUXILIARY SCISSORS


With a robust 4500KG capacity, extra-wide design, and innovative built-in scissors, the AMGO 410AWX is your ultimate all-in-one powerhouse—seamlessly handling general service, precision alignment, and wheel service for a wide range of vehicles.

Detailed Product Information

  • Lifting capacity: 4500KG;
  • Alignment design allows for alignment service;
  • 3000mm oversized width between columns, accommodates more vehicles;
  • Auxiliary lifting scissors (3500KG capacity) with extendable platforms;
  • 24V safe electrical operation system;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • Adjustable turnplate positions accommodate various vehicles with differing wheelbases;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model



410AWX

Lifting Capacity



4500kg

Auxiliary lifting scissors capacity



3500kg

Lifting Time



45s

Overall Length (Inc Ramps)

A

5910mm

Runway Length

B

4640mm

Overal Width

C

3356mm

Width Between Columns

D

3000mm

Max. Lifting Height

E

1940mm

Max. Lock Height to top of runway

1850mm

Overall Height

F

2185mm

Minimum Height

G

220mm

Max. Underneath Height

H

1750mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2646mm

Width Between Runways

J

1063mm

Outside Edge of Runways

K

2153mm

Min. Four Wheel Align

L

2087mm

Max. Four Wheel Align

M

4060mm

Max. Two Wheel Align

N

4094mm

Scissors Lifting Height

O

420mm

Scissors Runway Lenght

P

1592 - 1917mm

Gross Weight



1728kg

Motor



3.0HP

QTY of Container



12 Units /20'GP









  •

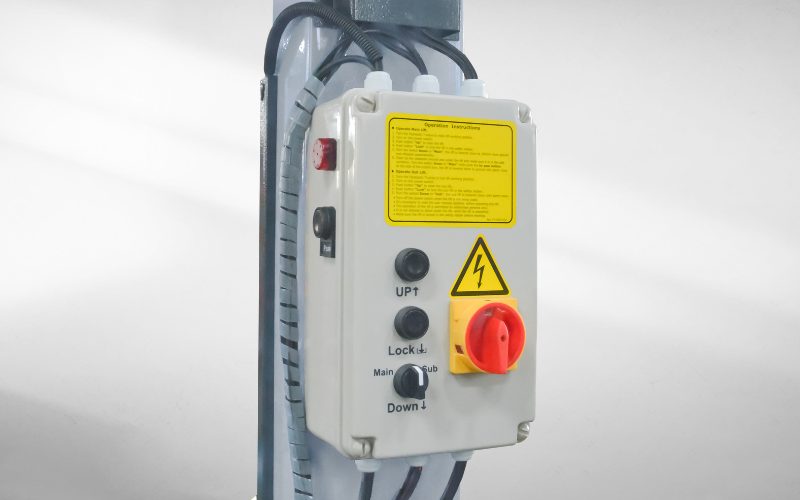

    Electric control device with UP, LOCK and DOWN buttons.

  •

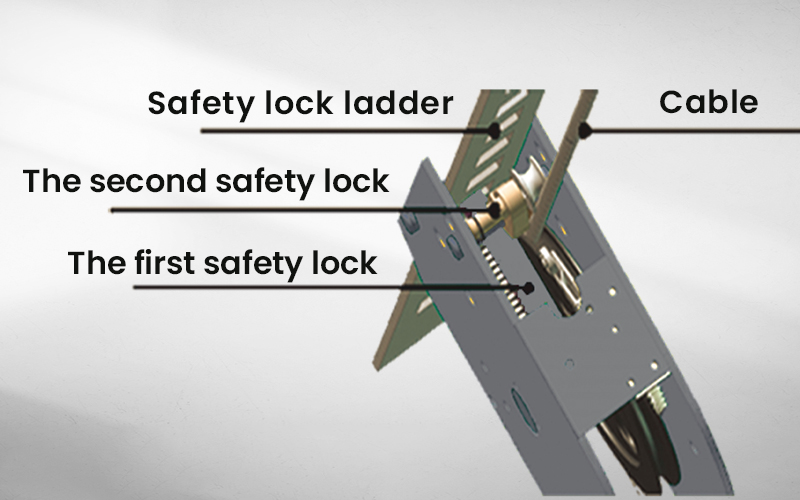

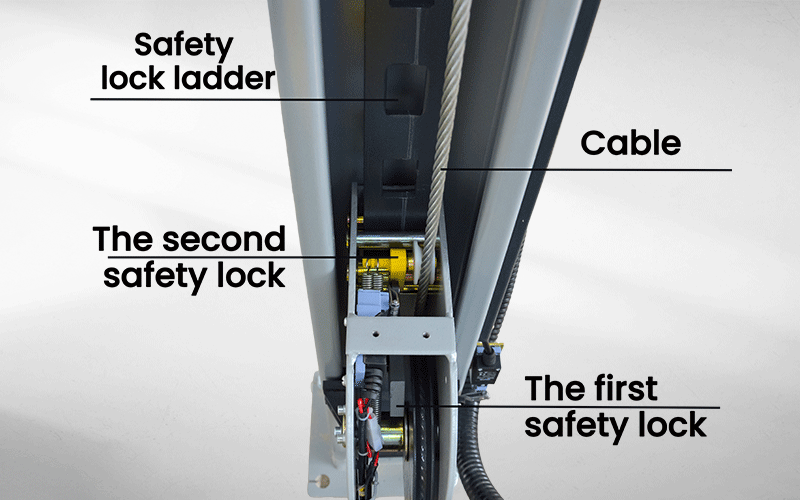

    Double safety locks provide additional safety.

  •

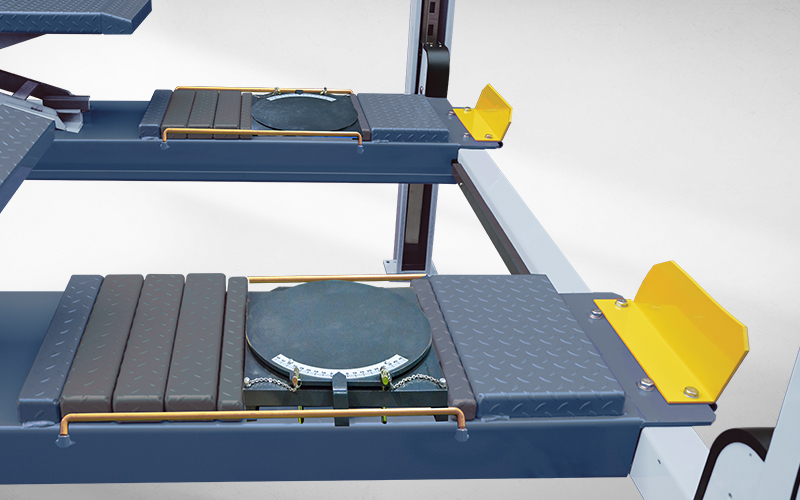

    Adjustable turnplate blocks to fit various wheel bases vehicles.

  •

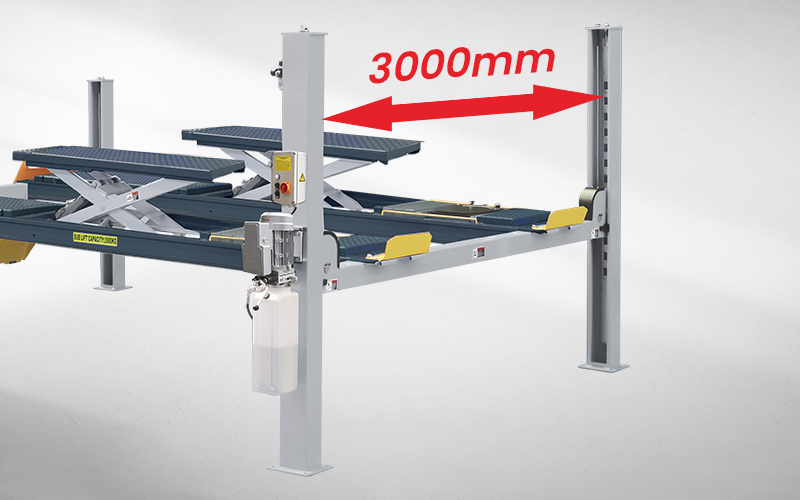

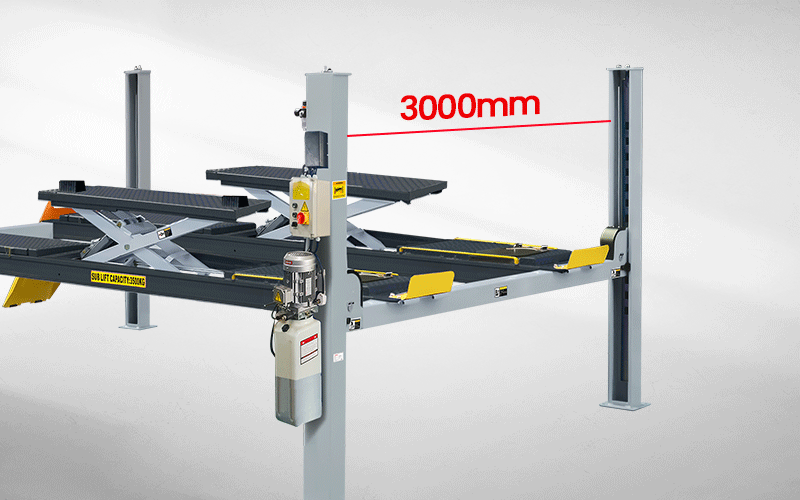

    3000mm oversized width between columns, accommodates more vehicles.

  •

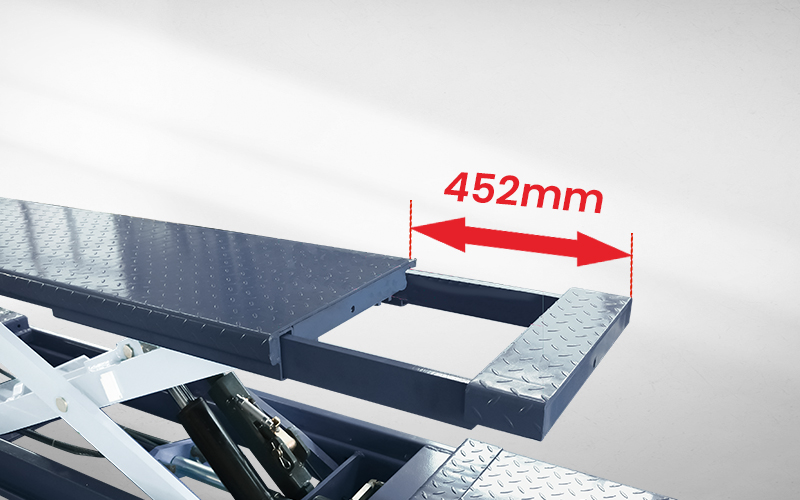

    Built-in auxiliary lifting scissors with extendable platforms for various wheelbases.

  •

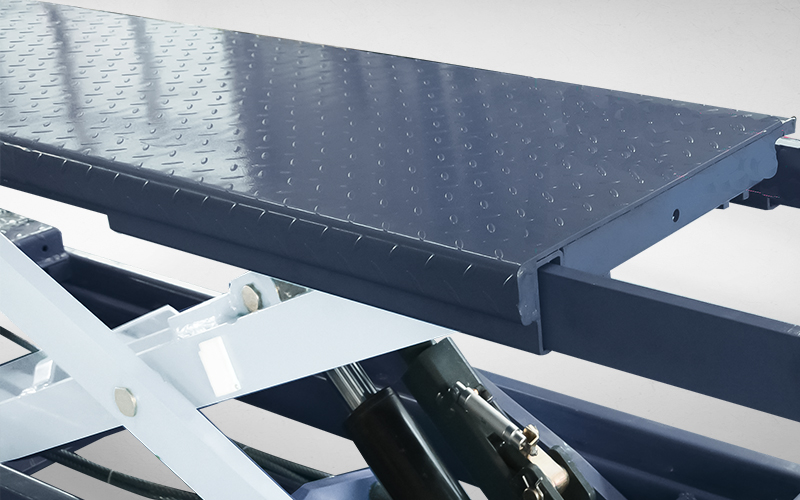

    Non-slip diamond platforms come as standard.

  •

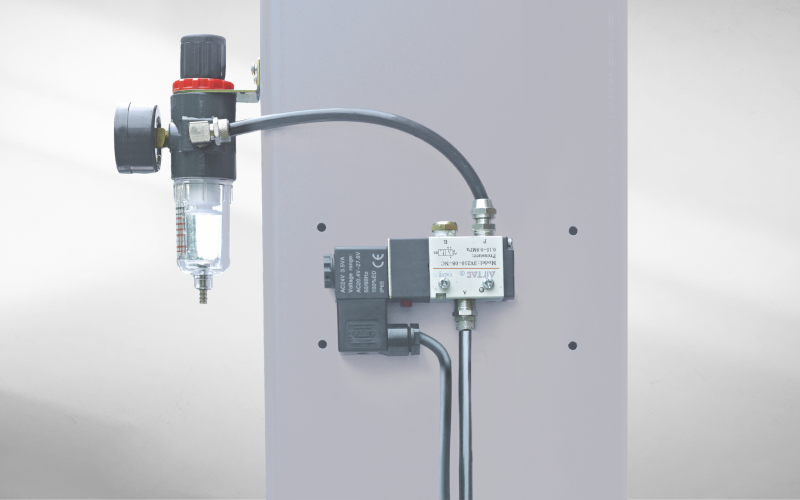

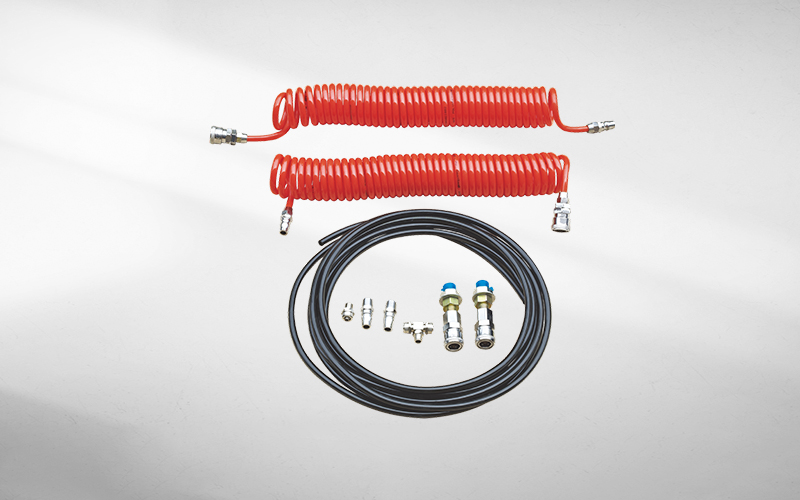

    Optional Air Kits
    All AMGO four post lifts are designed to use the air line kits for rolling jack.
    Kits No.: 40102

  •

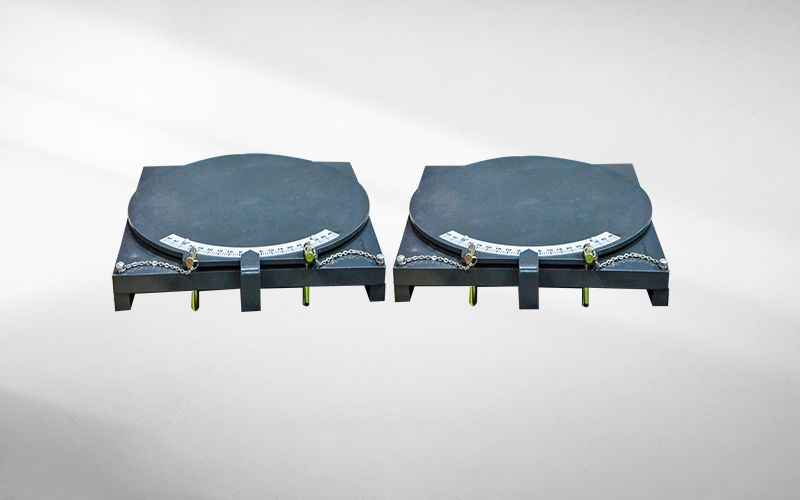

    Optional Turnplate (1 PC)
    Kits No.: 40101

  •

    Optional extension platform ( 1 unit) adds an extra 660mm length to the platform.
    Kits No.: 40903

  •

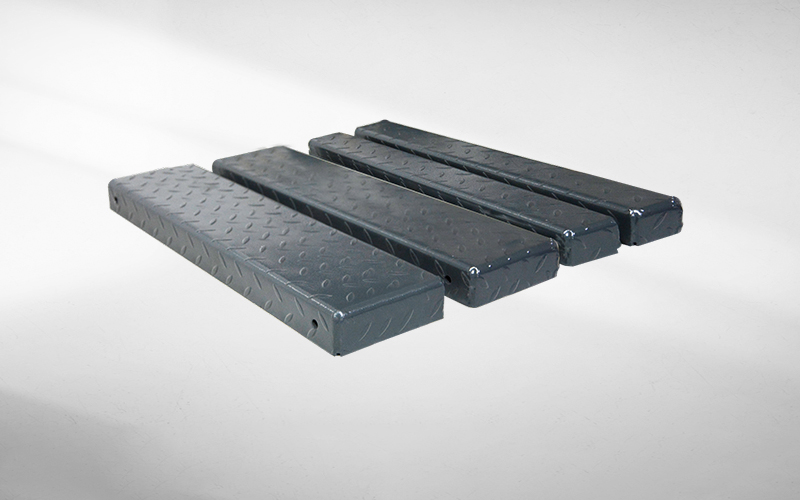

    Optional turnplate adjustment blocks ( 1 set), used with extension platform, Kits No.: 40905

  •

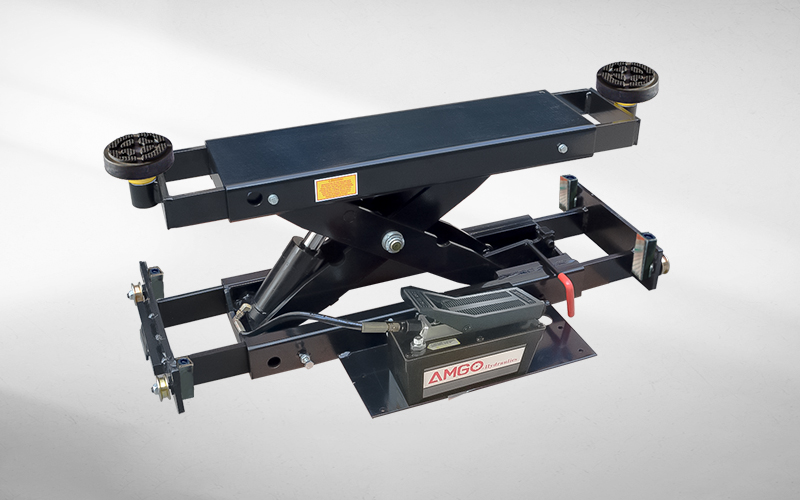

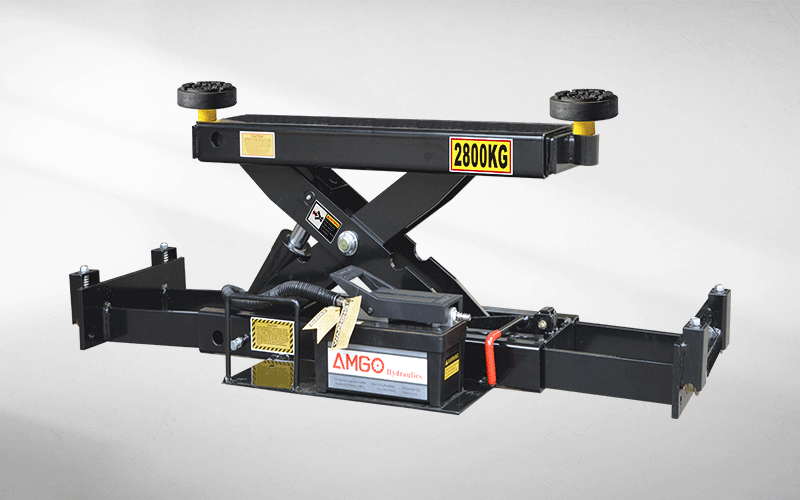

    Optional rolling jacks
    J6A: pneumatic hydraulic type 2.8T
