430

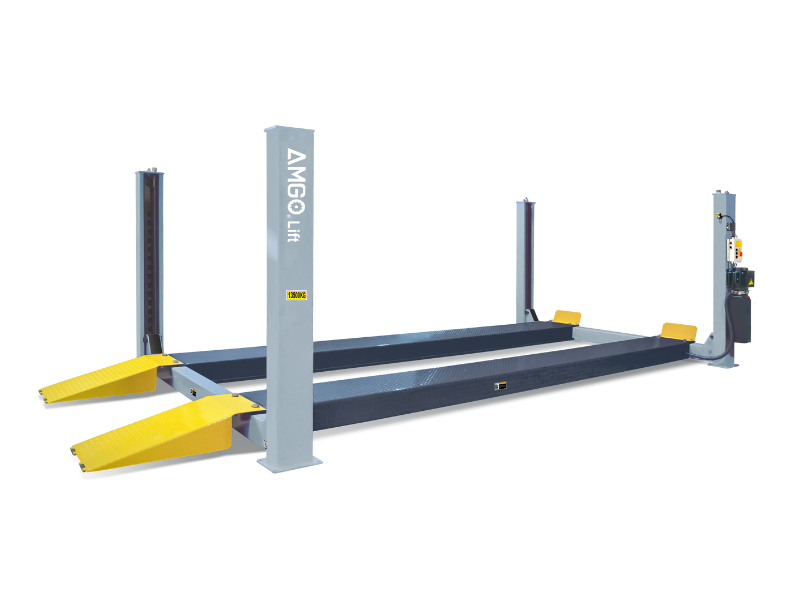

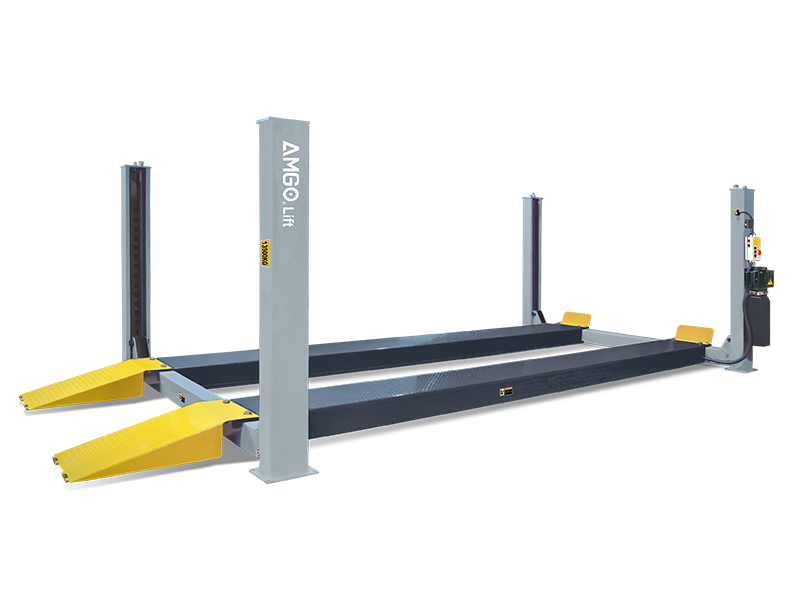

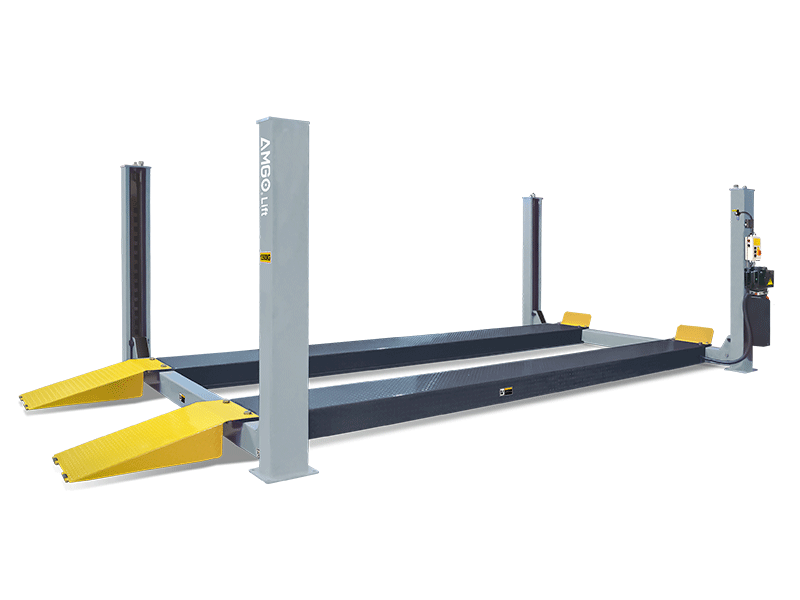

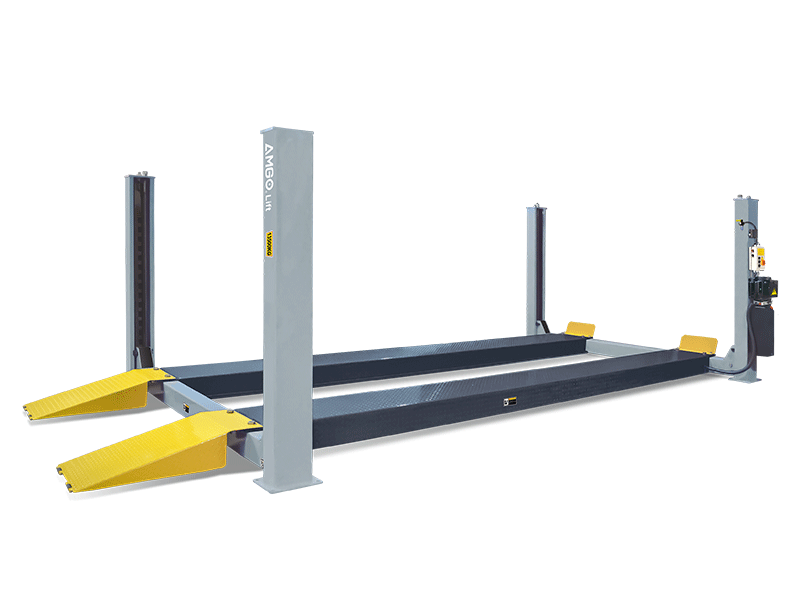

SUPER DUTY GENERAL SERVICE FOUR POST LIFT

The AMGO 430，with a capacity of 13500kg, is engineered specifically for the maintenance of super-duty, large-scale vehicles, including construction, municipal, and commercial fleets. Its heavy-duty construction incorporates reinforced columns and large platforms, supported by a dual safety-lock mechanism to ensure uncompromising stability. The system is further enhanced by an advanced electro-hydraulic control system, delivering both operational precision and enhanced safety for the user.

Detailed Product Information

• Super duty design, lifting capacity: 13500KG;

• General service design, accommodate various vehicles;

• 24V safe electrical operation system;

• Two options of widths between platforms provided to fit various vehicles;

• Integrated non-skid diamond platforms;

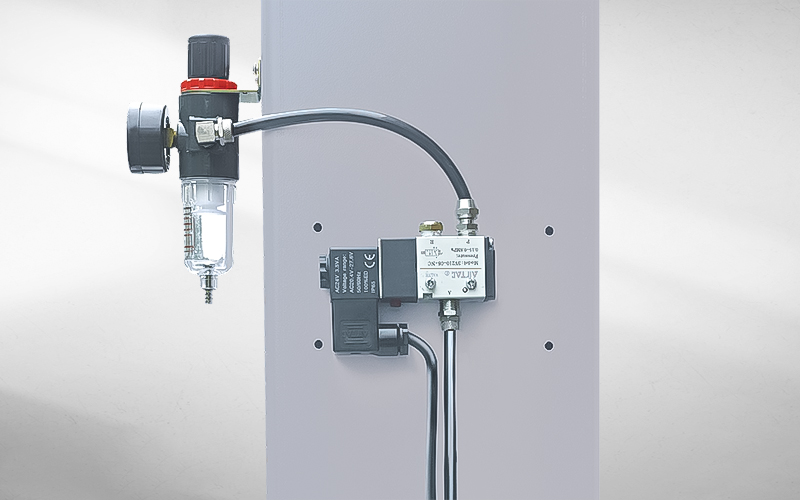

• Both auto-activating mechanical lock and air-release safety lock mechanisms;

• Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;

• High quality hydraulic cylinder design and manufactured at high standard.

Model		430
Lifting Capacity		13500kg
Lifting Time		116s
Overall Length(Inc Ramps)	A	7800mm
Outside Edge of Crossbeams	B	6300mm
Overal Width	C	3748mm
Width Between Columns	D	3302mm
Max. Lifting Height	E	1910mm
Max. Lock Height to top of runway	E	1820mm
Overall Height	F	2336mm
Minimum Height	G	260mm
Max. Underneath Height	H	1685mm
Max. Lock Underneath Runway	H	1595mm
Drive-Thru Clearance	I	2944mm
Width Between Runways	J	1168/1374mm
Outside Edge of Runways	K	2388/2594mm
Gross Weight		2558kg
Motor		4.0HP
QTY of Container		6 Units / 40' GP

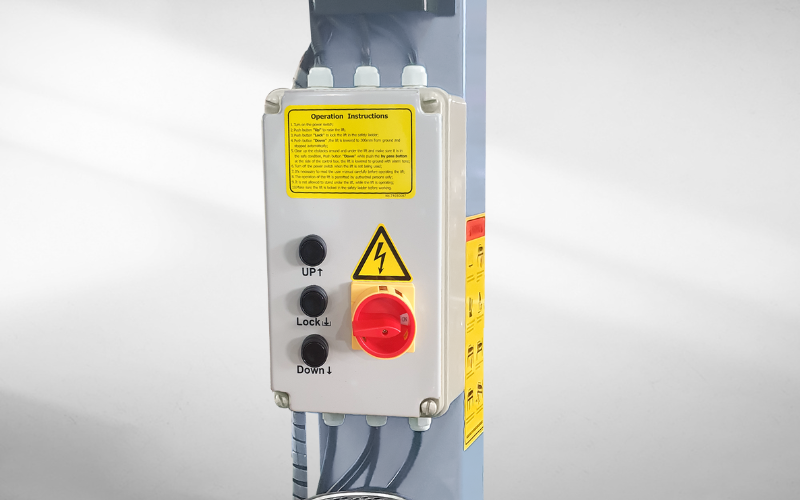

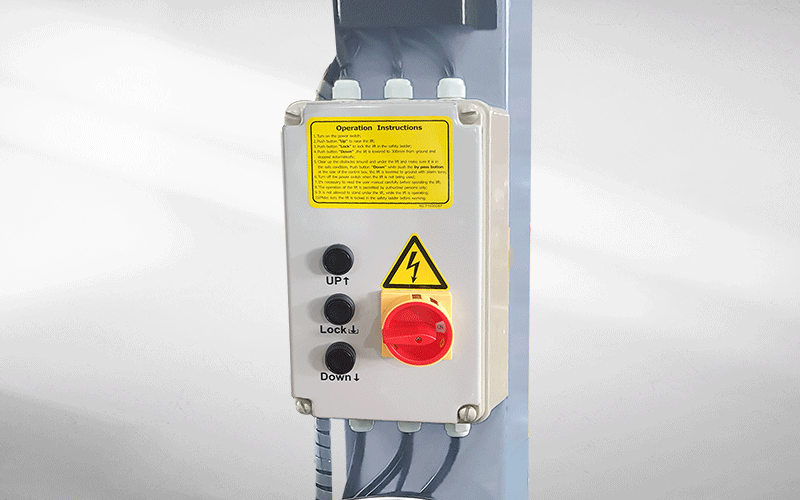

Electric control device with UP,LOCK and DOWN buttons.

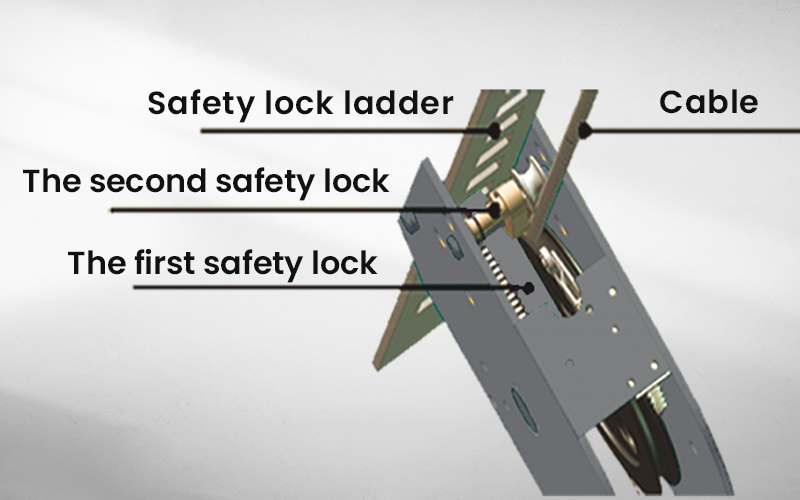

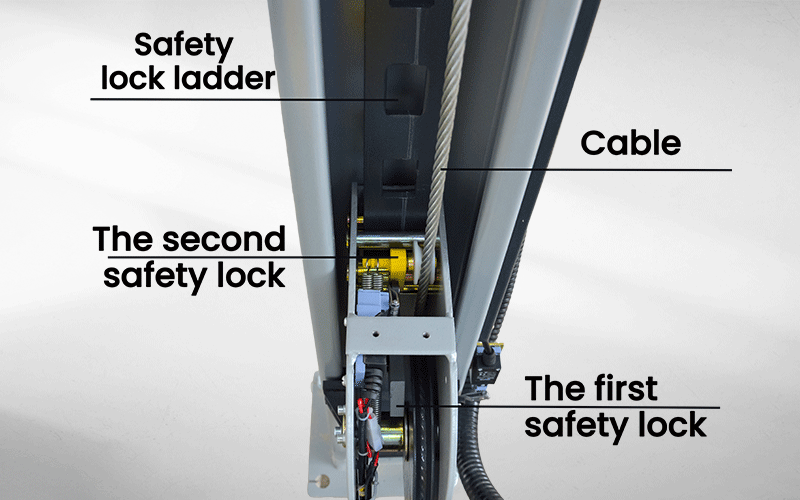

Double safety locks provide additional safety.

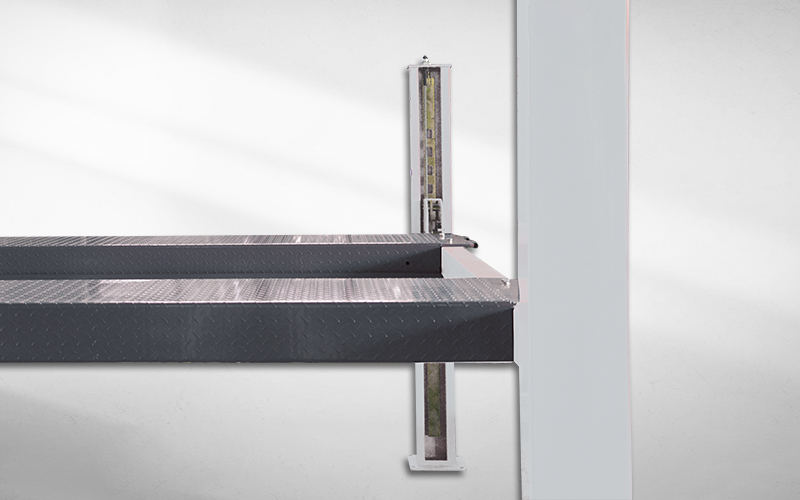

Two options of widths between platforms provided to fit various vehicles.

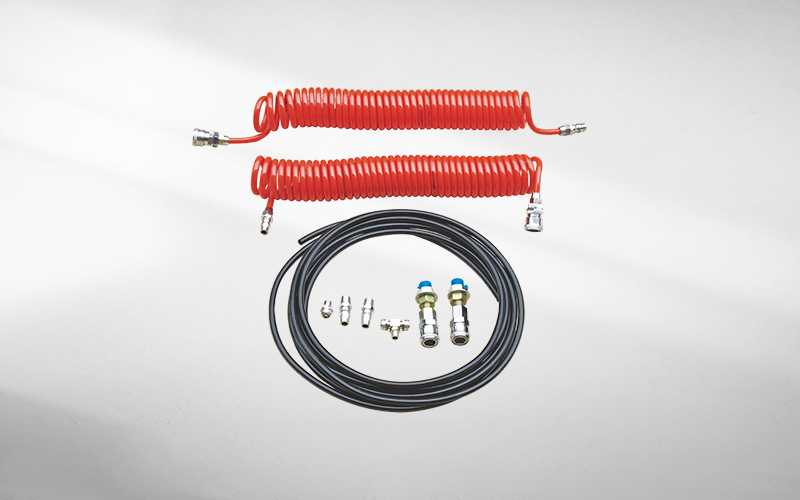

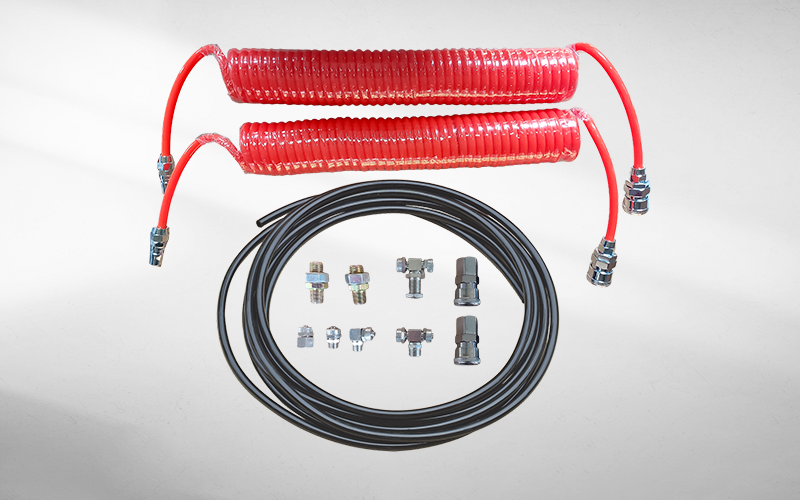

Optional Air Line Kits
All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.: 40106

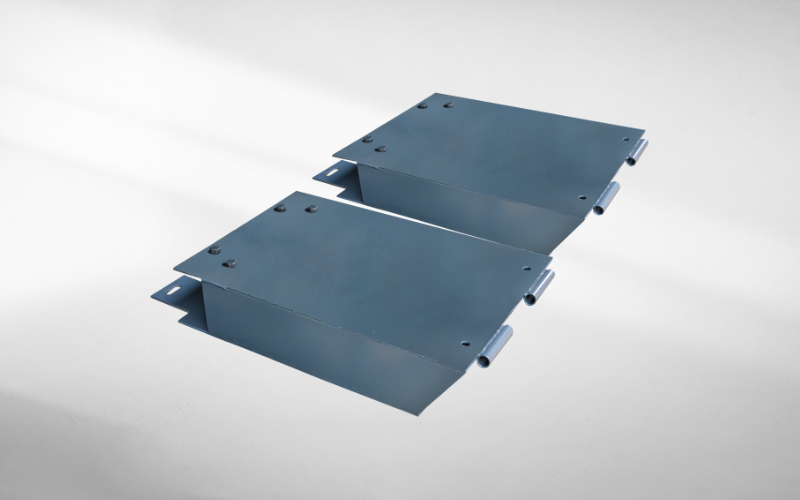

Optional extension platform adds an extra 737mm length to the platform. Kits No.:43001

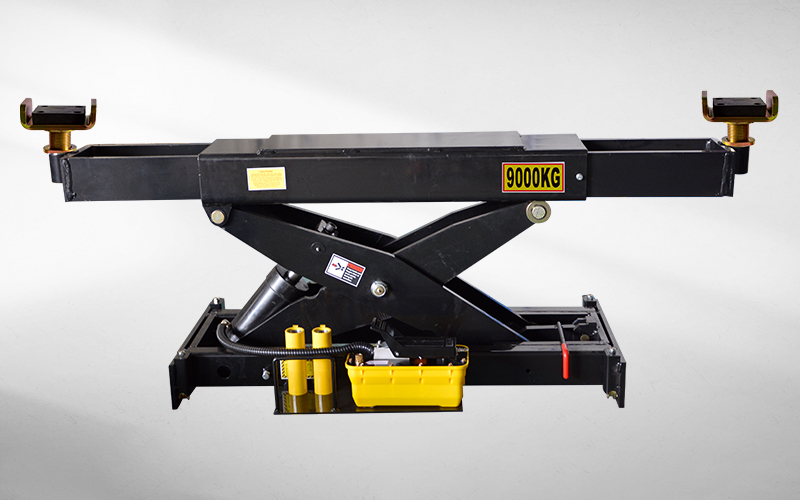

Optional Rolling Jacks
RJ-20A: manual hydraulic type 9000kg.
