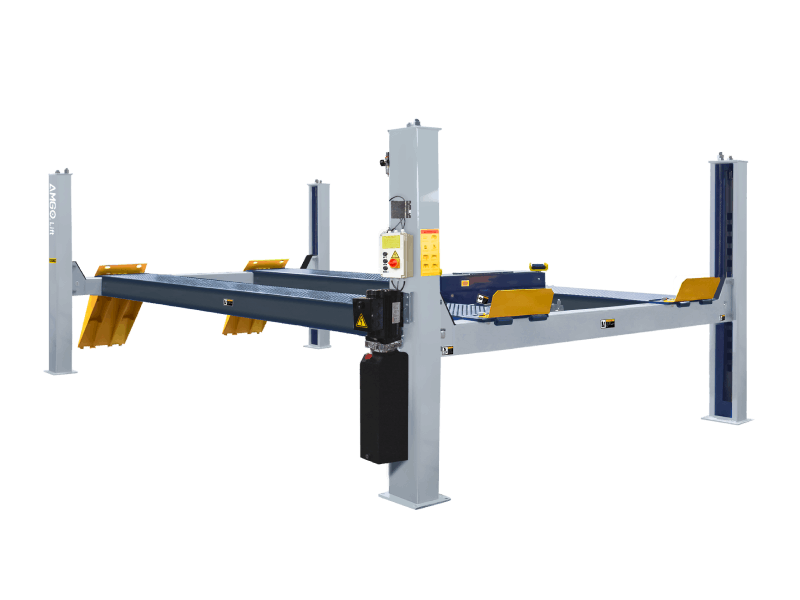

430E

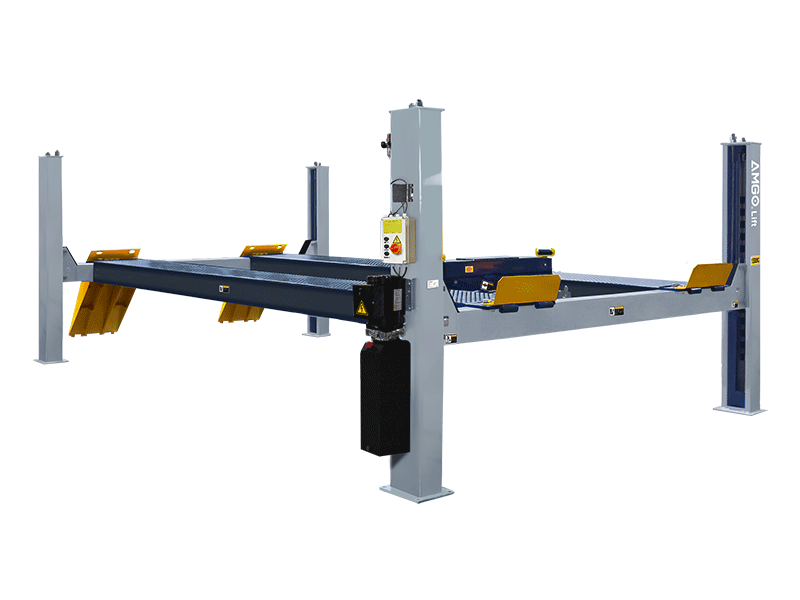

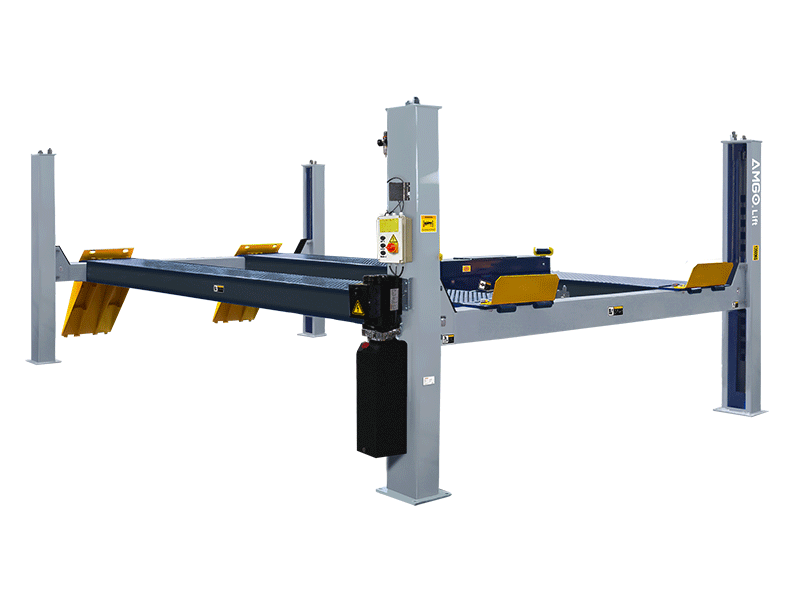

 SUPER DUTY GENERAL SERVICE FOUR POST LIFT


The AMGO 430E features a reinforced universal beam construction, providing an additional 1500mm in length over the standard 430 model. This structural enhancement facilitates the handling of longer super-duty vehicles while improving overall operational comfort.

Detailed Product Information

  • Super duty design, lifting capacity: 13500KG;
  • General service design, accommodate various vehicles;
  • Features extreme long platforms, 1500mm longer than 430;
  • 24V safe electrical operation system;
  • Two options of widths between platforms provided to fit various vehicles;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model 430E



Super Duty General Service Four Post Lift

Lifting Capacity



13500kg

Lifting Time



116s

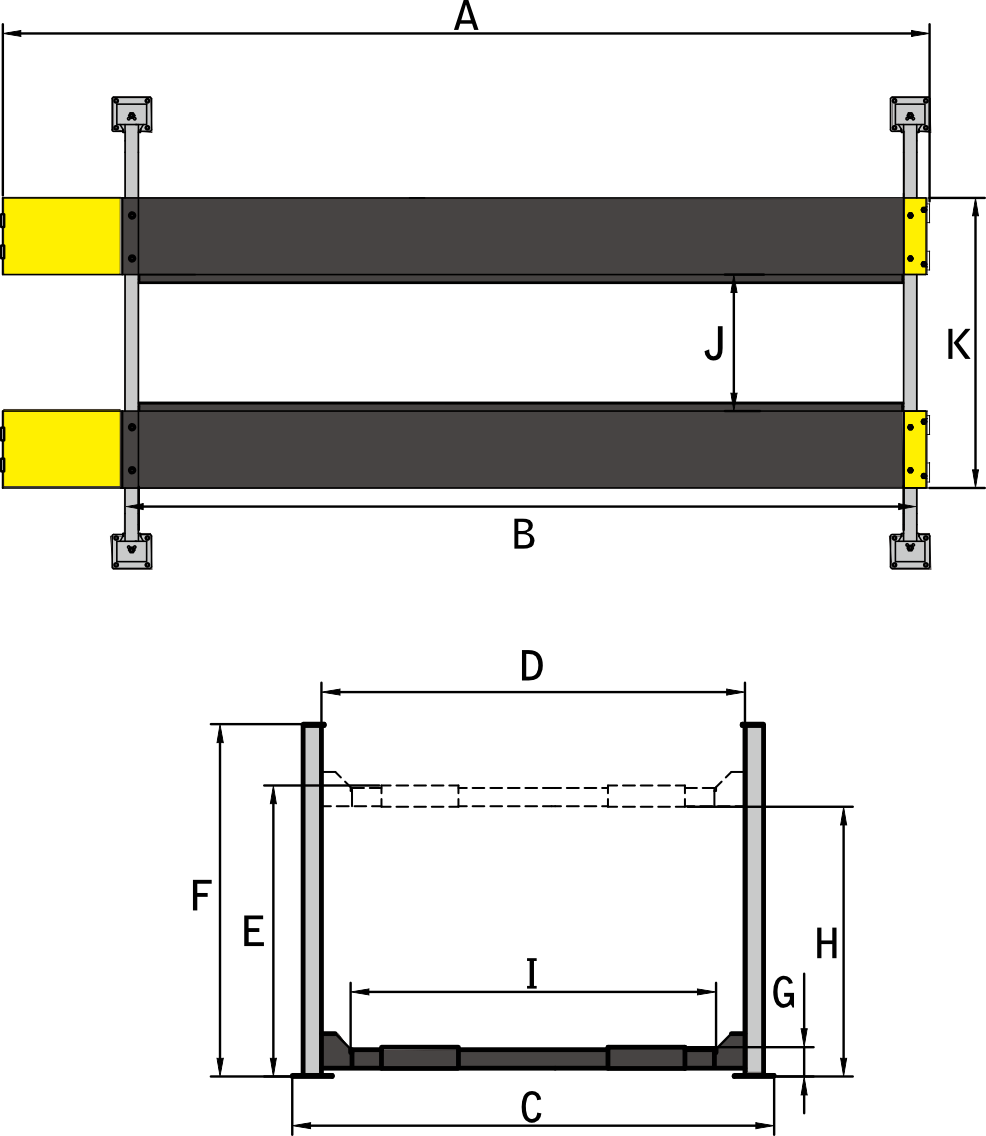

Overall Length(Inc Ramps)

A

9300mm

Runway Length

B

7800mm

Overal Width

C

3748mm

Width Between Columns

D

3302mm

Max. Lifting Height

E

1890mm

Max. Lock Height to top of runway

1820mm

Overall Height

F

2332mm

Minimum Height

G

265mm

Max. Underneath Height

H

1664mm

Max. Lock Underneath Runway

1595mm

Drive-Thru Clearance

I

2944mm

Width Between Runways

J

1150/1372mm

Outside Edge of Runways

K

2370/2592mm

Gross Weight



3040kg

Motor



4.0HP

Packing Dimension



8060 x 620 x 1000 mm









140x140

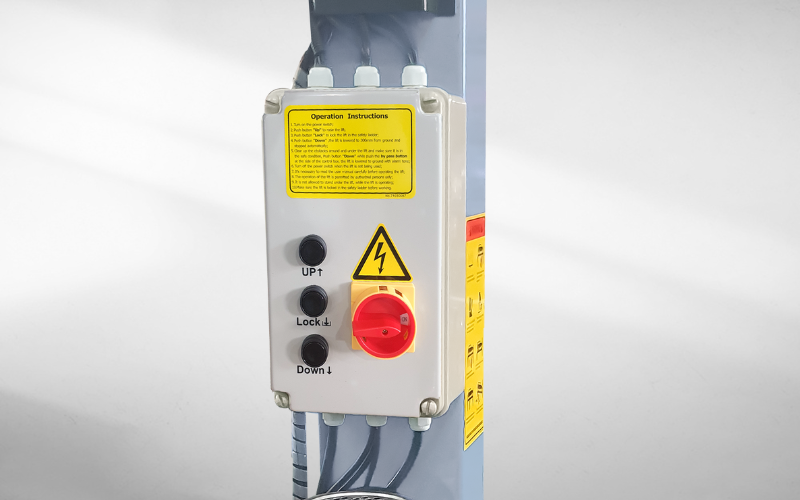

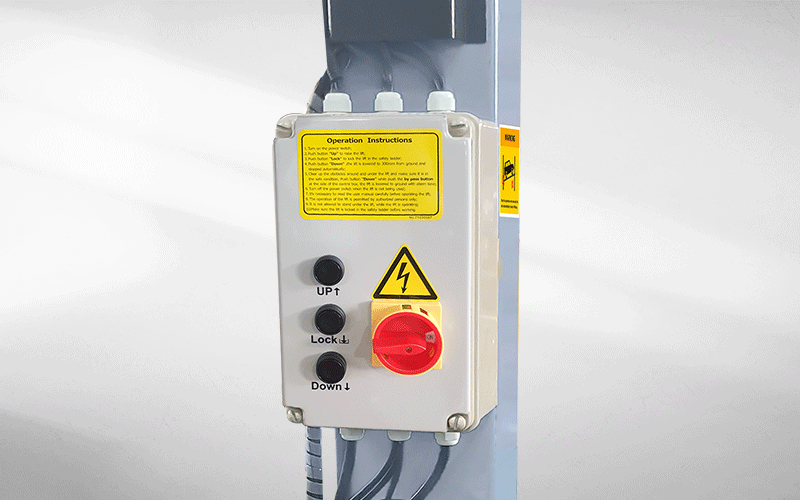

Electric control device with UP,LOCK and DOWN buttons.

140x140

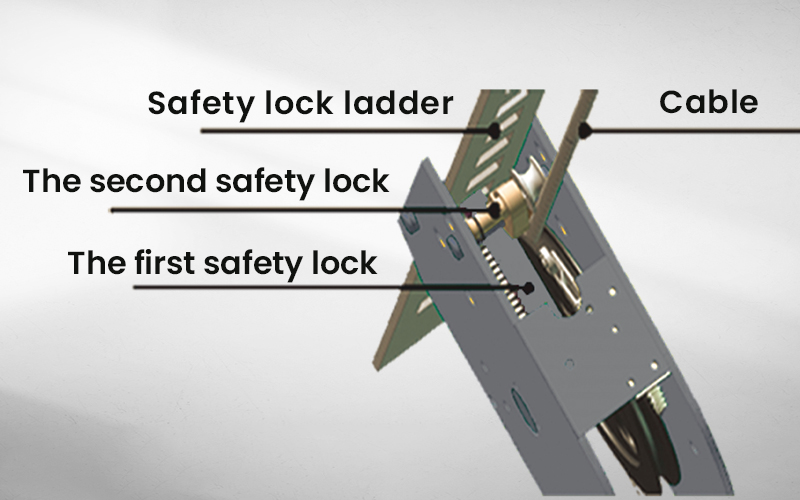

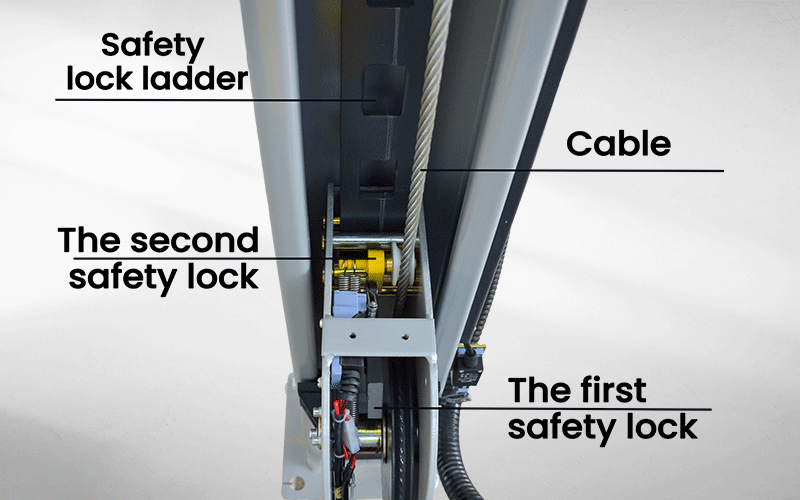

Double safety locks provide additional safety.

140x140

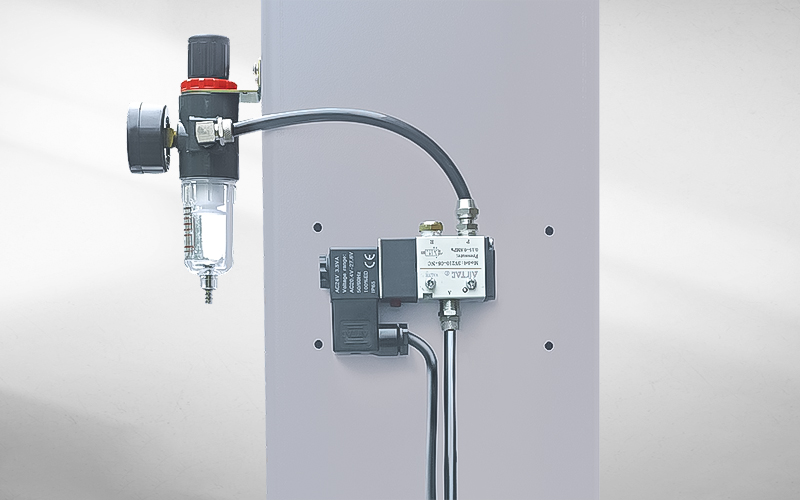

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

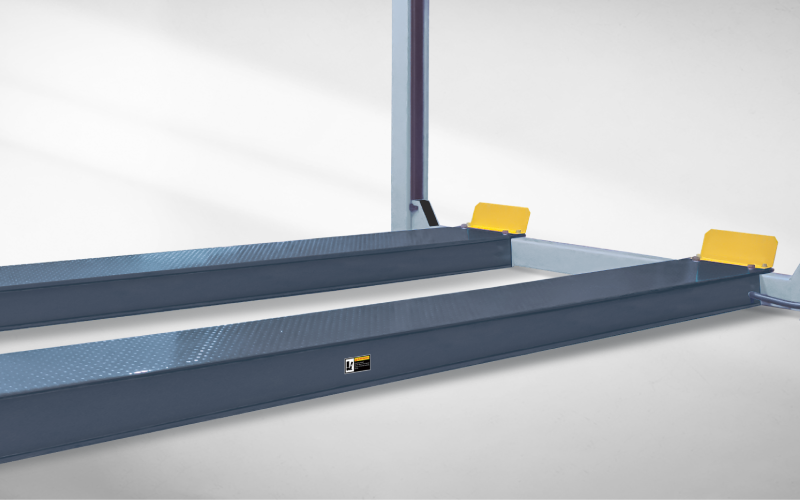

Two options of widths between platforms provided to fit various vehicles.

140x140

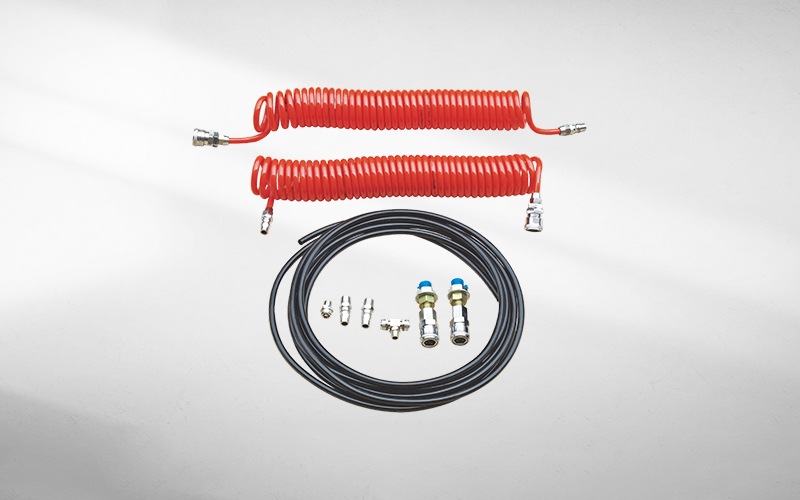

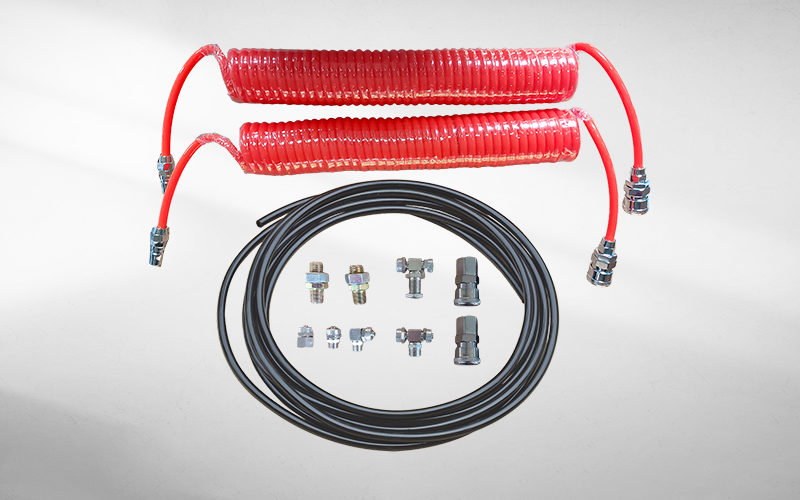

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.: 40106

140x140

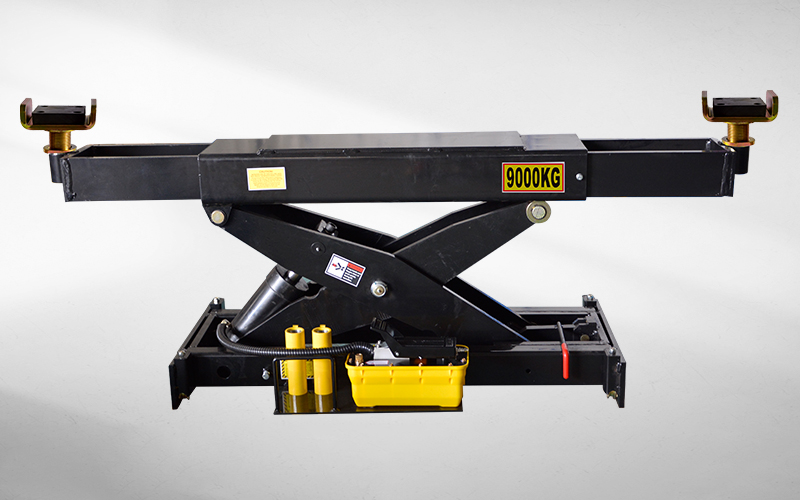

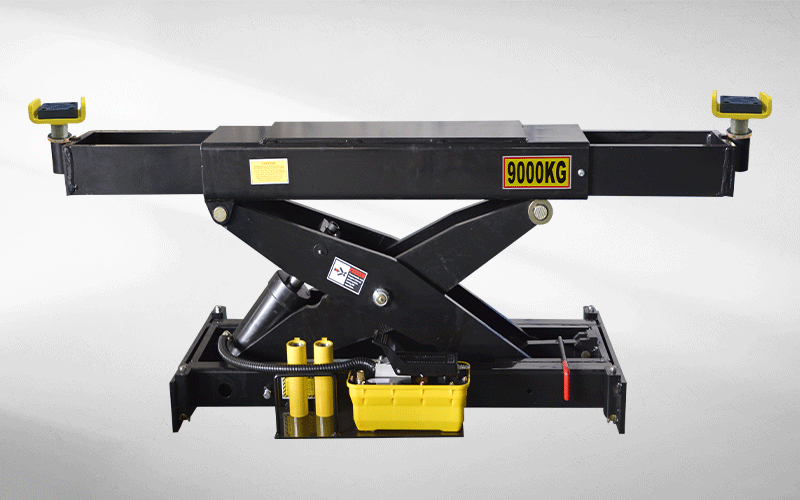

Optional Rolling Jacks

RJ-20A: manual hydraulic type 9000kg.
