440

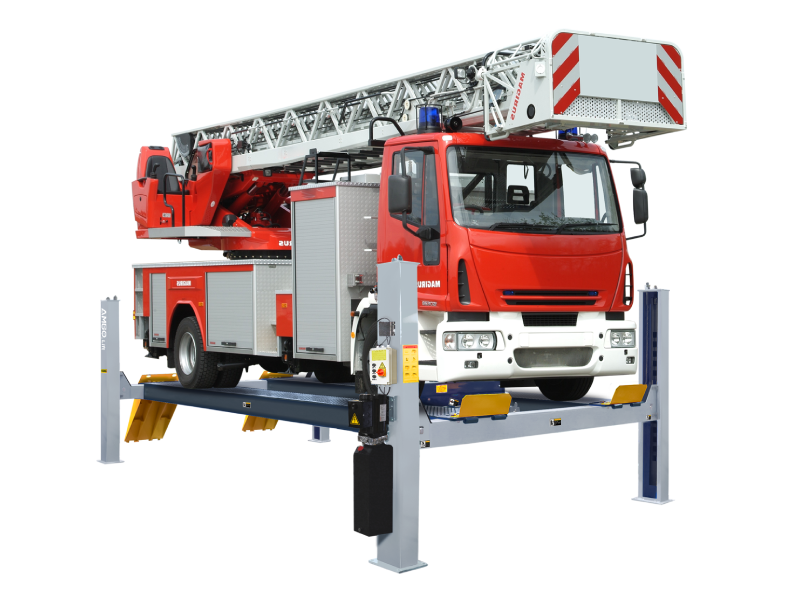

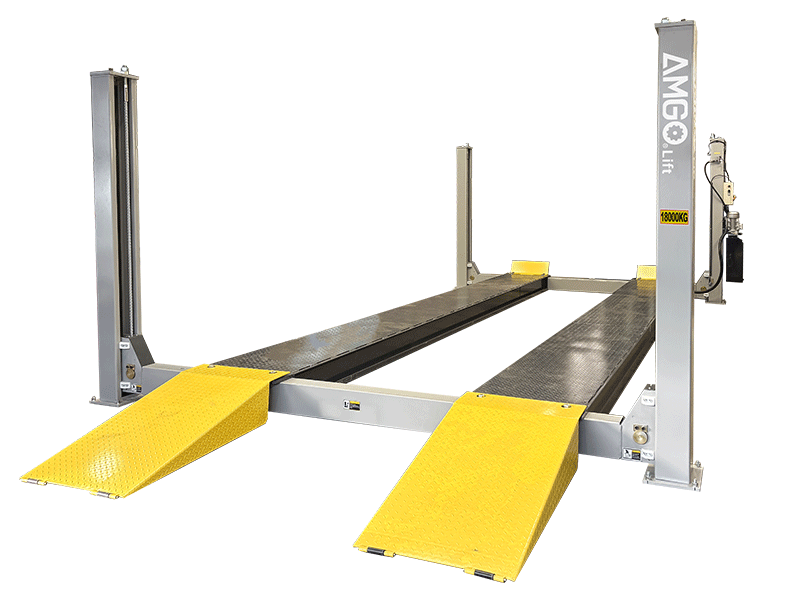

 SUPER DUTY GENERAL SERVICE FOUR POST LIFT


With an exceptional lifting capacity of 18,500 kg, the AMGO 440 epitomizes AMGO’s engineering excellence—delivering uncompromising safety, superior performance, and intuitive operation. Designed to handle even the most demanding heavy-duty vehicles with effortless precision, it sets the benchmark for professional-grade lifting solutions.

Detailed Product Information

  • Super duty design, lifting capacity: 18000KG ;
  • General service design, accommodate various vehicles;
  • 24V safe electrical operation system;
  • Two options of widths between platforms provided to fit various vehicles;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • High quality hydraulic cylinder design and manufactured at high standard.

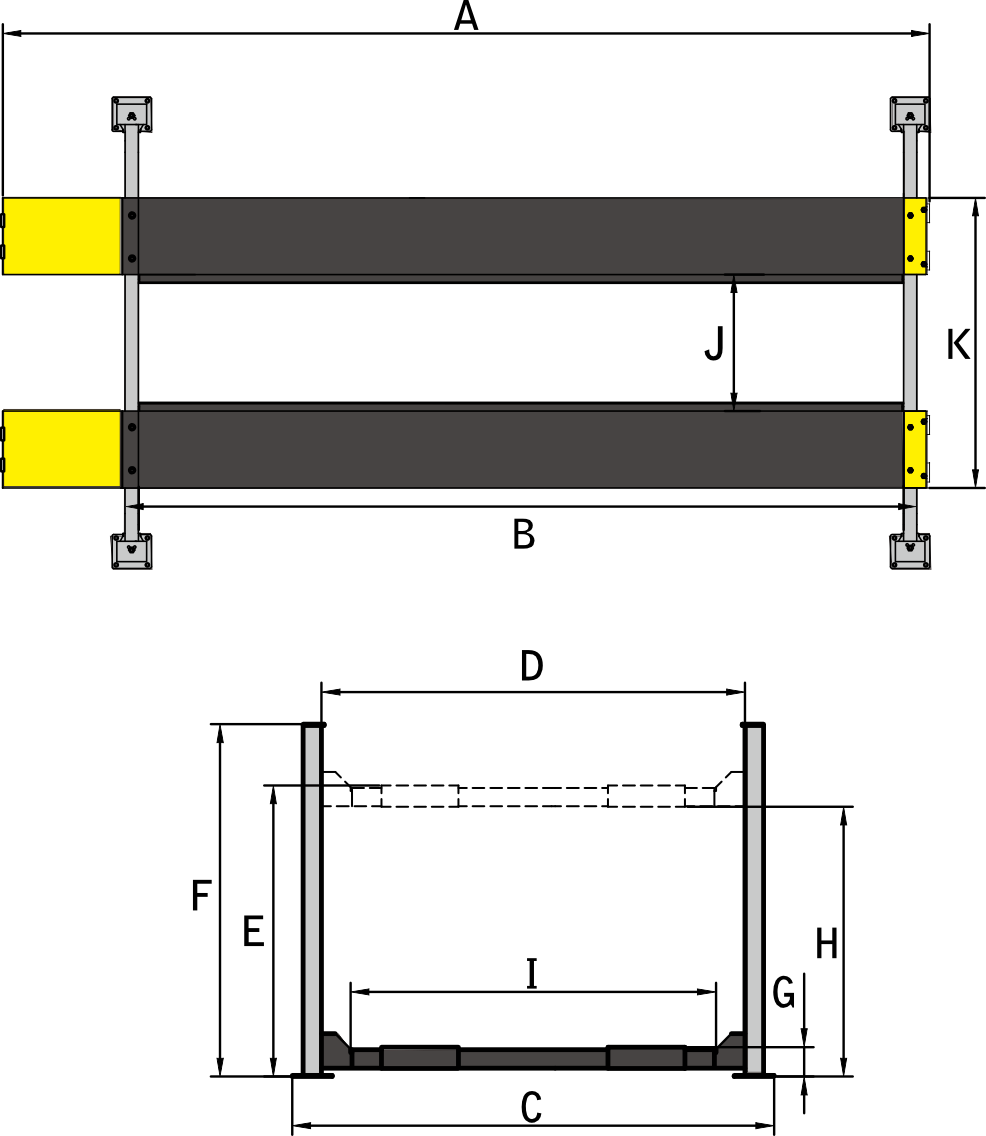

Model 440



Super Duty General Service Four Post Lift

Lifting Capacity



18000kg

Lifting Time



160s

Overall Length(Inc Ramps)

A

9300mm

Runway Length

B

7800mm

Overal Width

C

3878mm

Width Between Columns

D

3432mm

Max. Lifting Height

E

1890mm

Max. Lock Height to top of runway

1820mm

Overall Height

F

2332mm

Minimum Height

G

265mm

Max. Underneath Height

H

1664mm

Max. Lock Underneath Runway

1595mm

Drive-Thru Clearance

I

3074mm

Width Between Runways

J

1168/1390mm

Outside Edge of Runways

K

2588/2810mm

Gross Weight



3784kg

Motor



4.0HP

Packing Dimension



8060 x 720 x 1000 mm









140x140

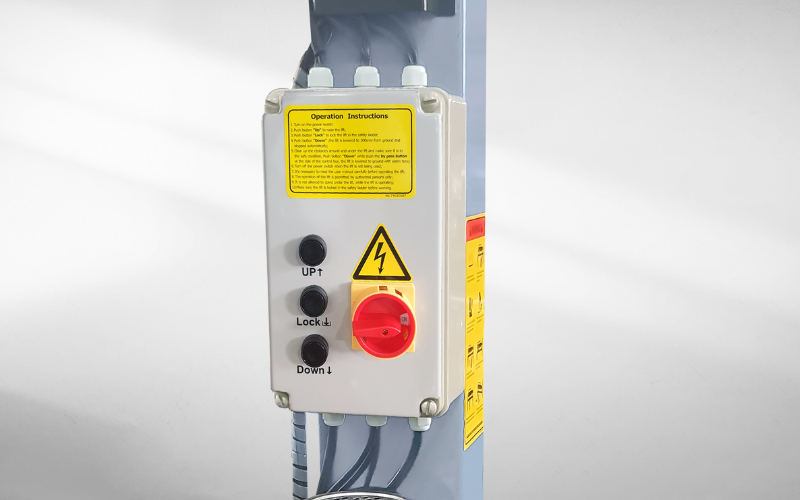

Electric control device with UP,LOCK and DOWN buttons.

140x140

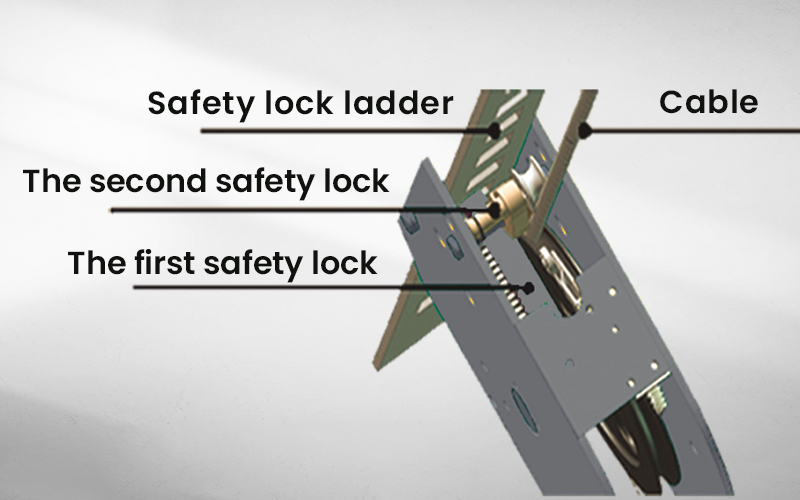

Double safety locks provide additional safety.

140x140

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

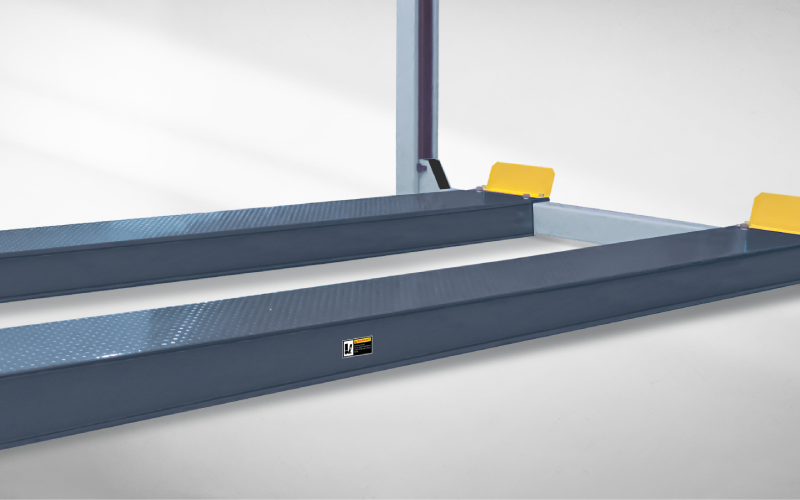

Two options of widths between platforms provided to fit various vehicles.

140x140

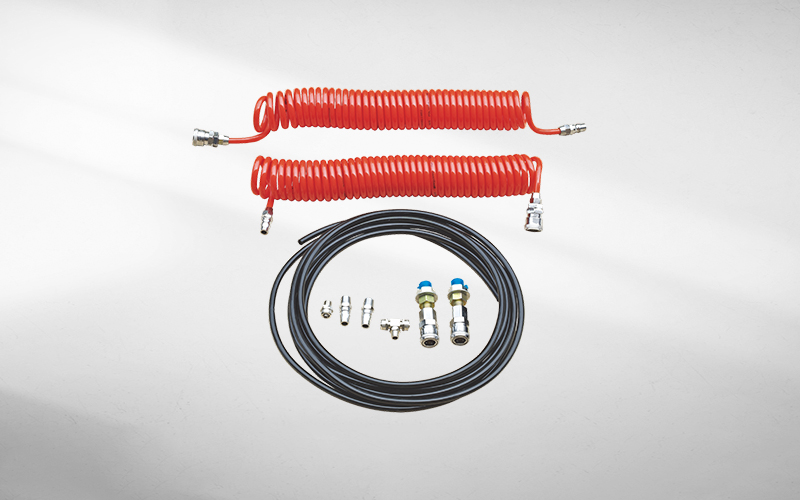

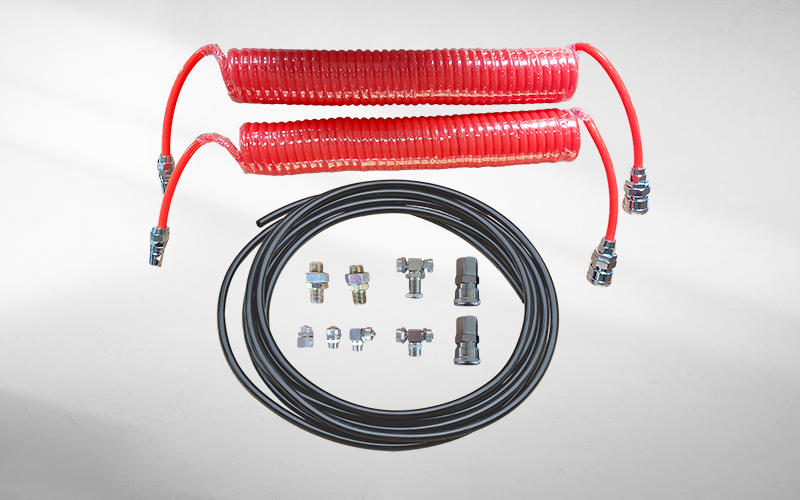

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.: 40106

140x140

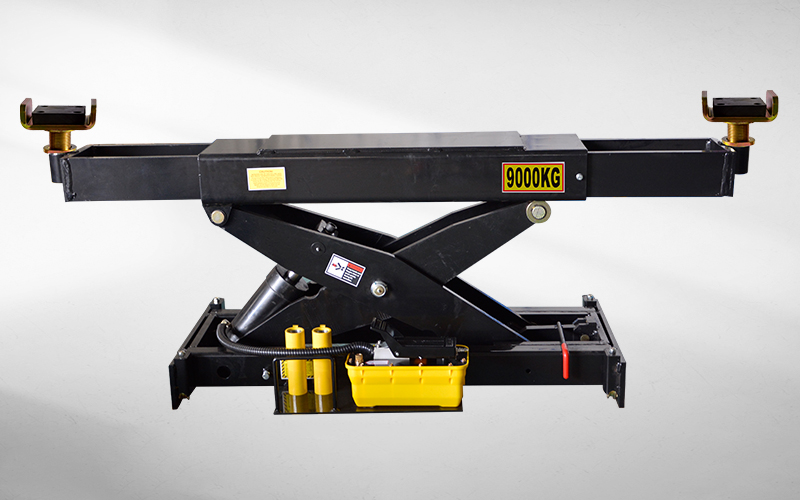

Optional Rolling Jacks

RJ-20A: manual hydraulic type 9000kg.
