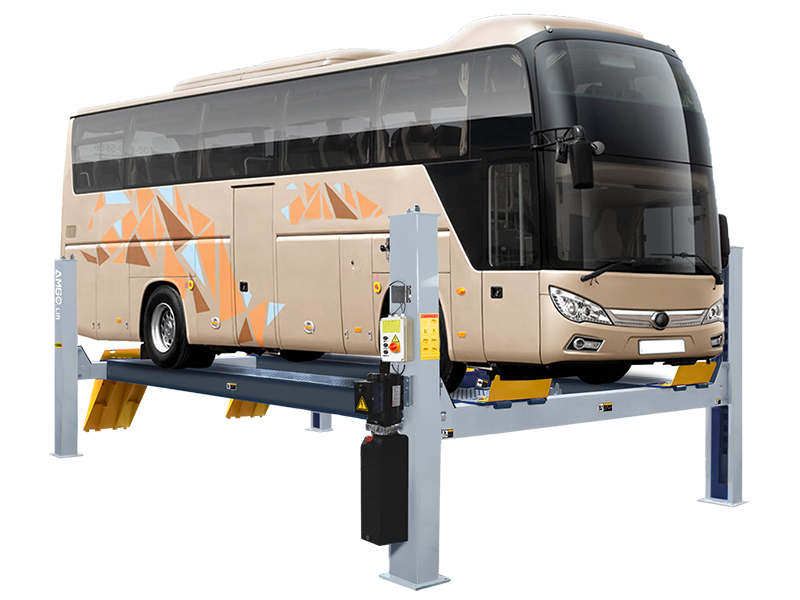

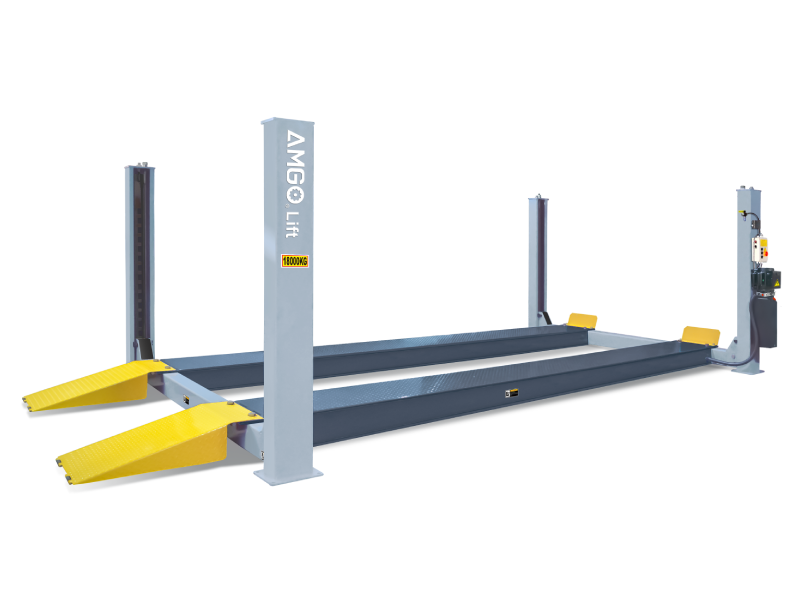

440E

 SUPER DUTY GENERAL SERVICE FOUR POST LIFT


With an extended length of 1500mm over the 440, the 440E is the most powerful system available for professionally servicing the longest and heaviest vehicles on the road. It delivers the ultimate solution for massive commercial vehicles, heavy-duty lorries, and other large professional vehicles

Detailed Product Information

  • Super duty design, lifting capacity: 18000KG;
  • General service design, accommodate various vehicles;
  • Features extreme long platforms, 1500mm longer than 440;
  • 24V safe electrical operation system;
  • Two options of widths between platforms provided to fit various vehicles;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model 440E



Super Duty General

Service Four Post Lift

Lifting Capacity



18000kg

Lifting Time



160s

Overall Length(Inc Ramps)

A

10800mm

Runway Length

B

9300mm

Overal Width

C

3848mm

Width Between Columns

D

3402mm

Max. Lifting Height

E

1914mm

Max. Lock Height to top of runway

1824mm

Overall Height

F

2336mm

Minimum Height

G

264mm

Max. Underneath Height

H

1688mm

Max. Lock Underneath Runway

1598mm

Drive-Thru Clearance

I

3044mm

Width Between Runways

J

1168/1374mm

Outside Edge of Runways

K

2588/2794mm

Gross Weight



4234kg

Motor



4.0HP

Packing Dimension



9560 x 720 x 1000 mm









140x140

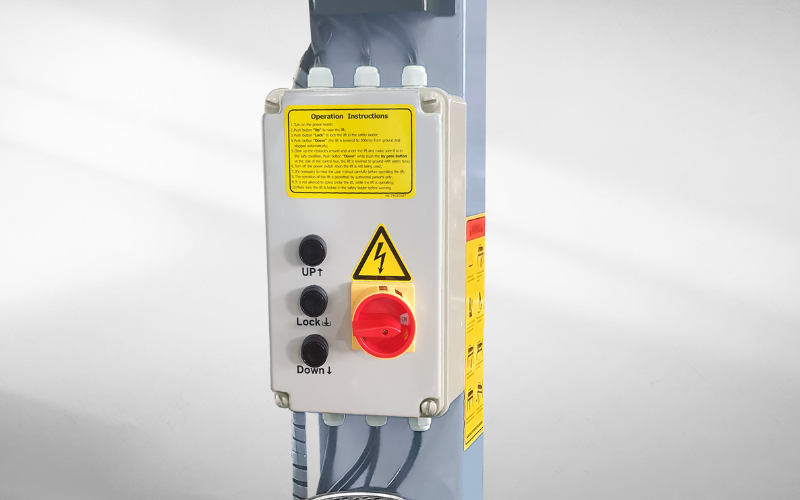

Electric control device with UP,LOCK and DOWN buttons.

140x140

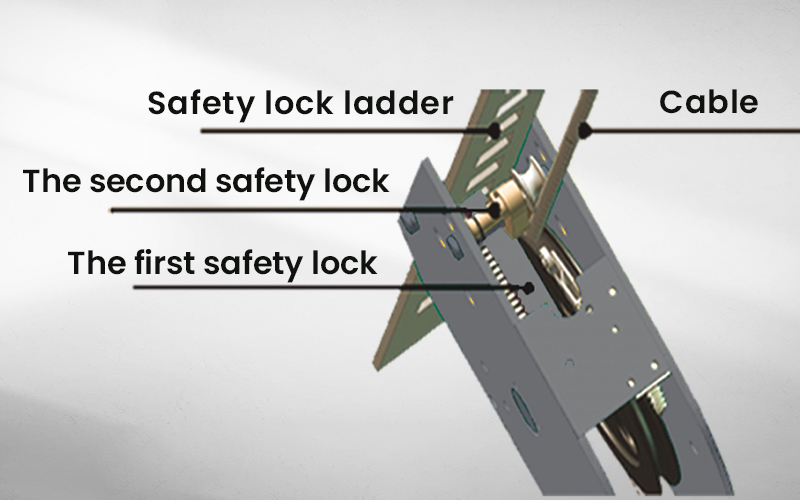

Double safety locks provide additional safety.

140x140

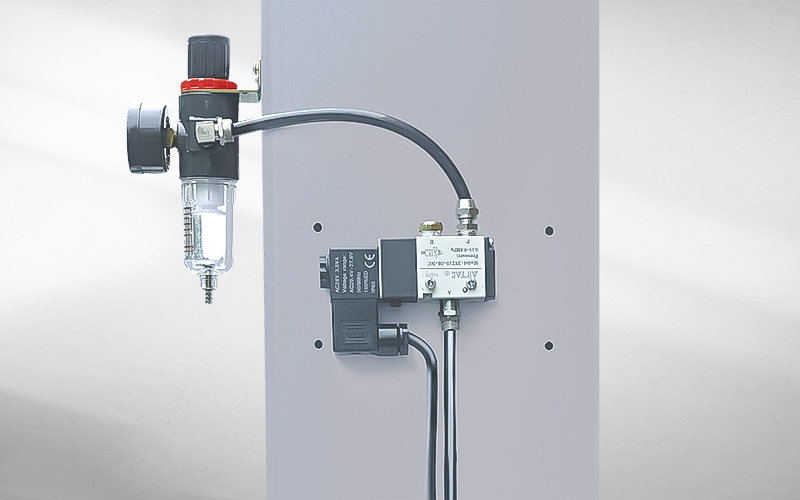

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

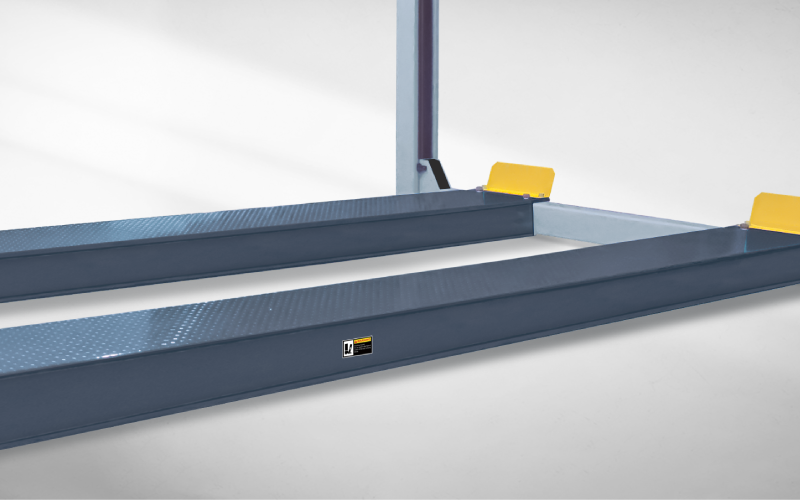

Two options of widths between platforms provided to fit various vehicles.

140x140

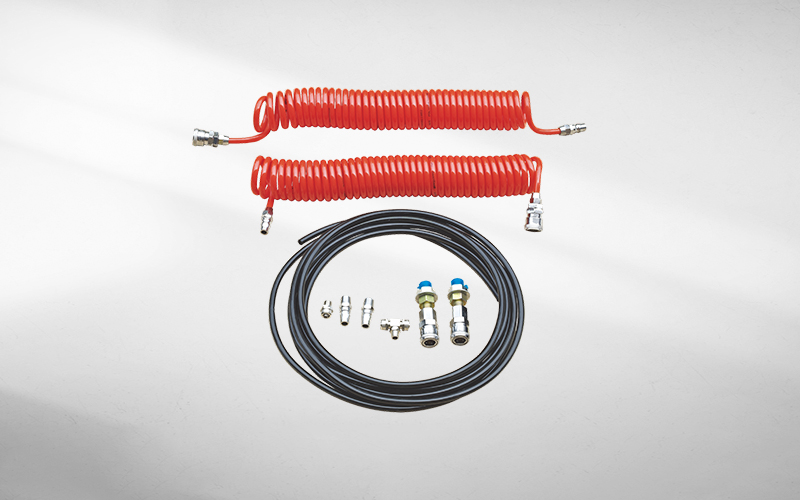

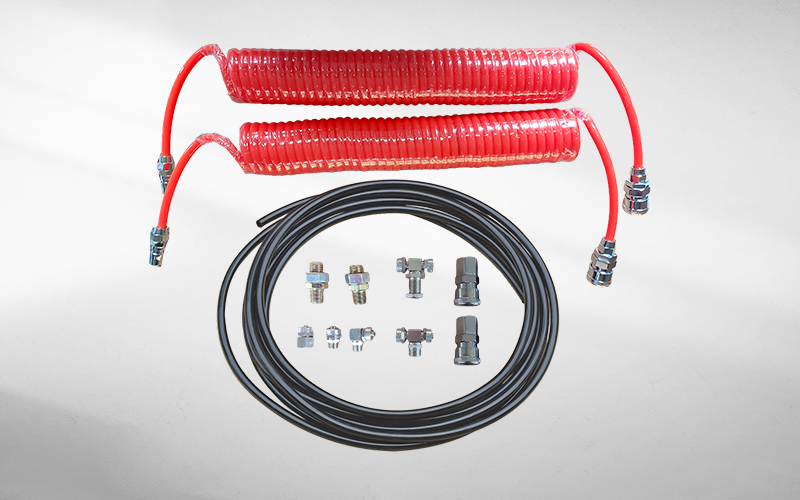

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.: 40106

140x140

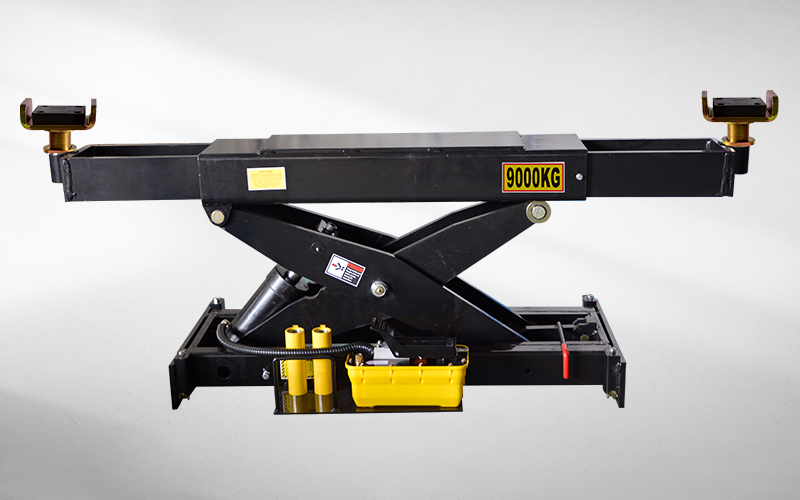

Optional Rolling Jacks

RJ-20A: manual hydraulic type 9000kg.
