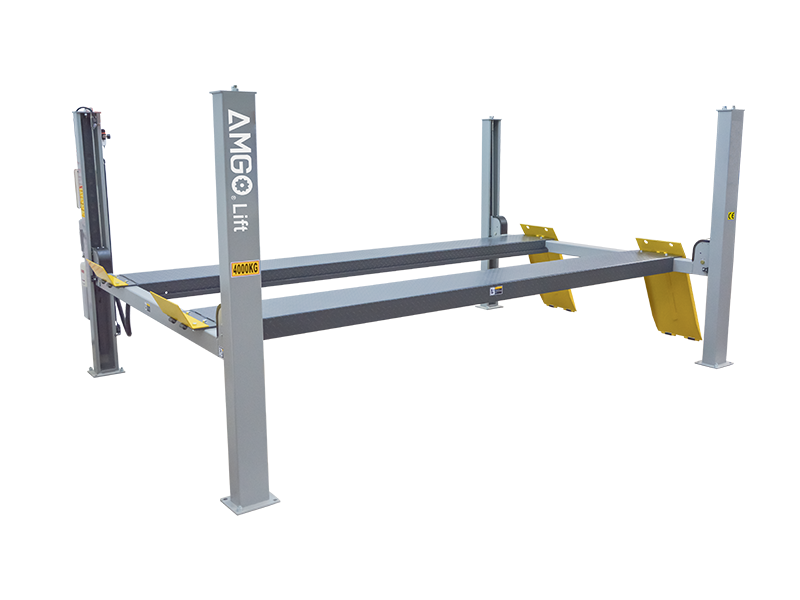

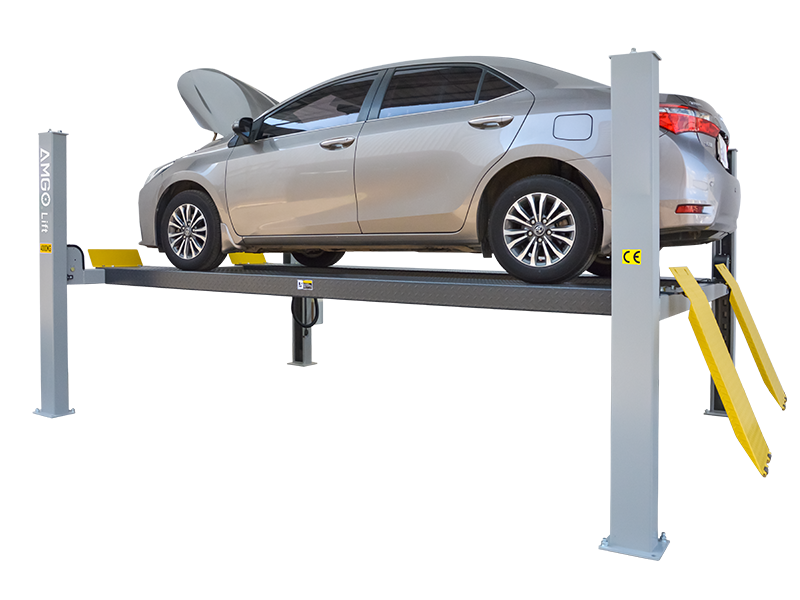

A440

GENERAL SERVICE FOUR POST LIFT

The precision engineered A440 combines several advanced technologies to meet the diverse needs of your daily general maintenance operations, including a dual safety mechanism for increased safety and stepless adjustable platforms to accommodate a wide range of vehicles - ensuring seamless adaptability to varying wheel tracks.

four post lift

Detailed Product Information

Lifting capacity: 4000KG;
General service model;

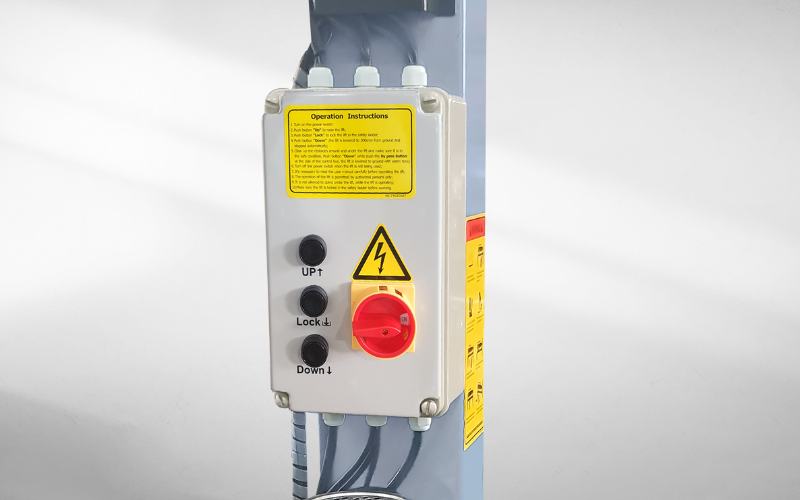

24V safe electrical operation system;

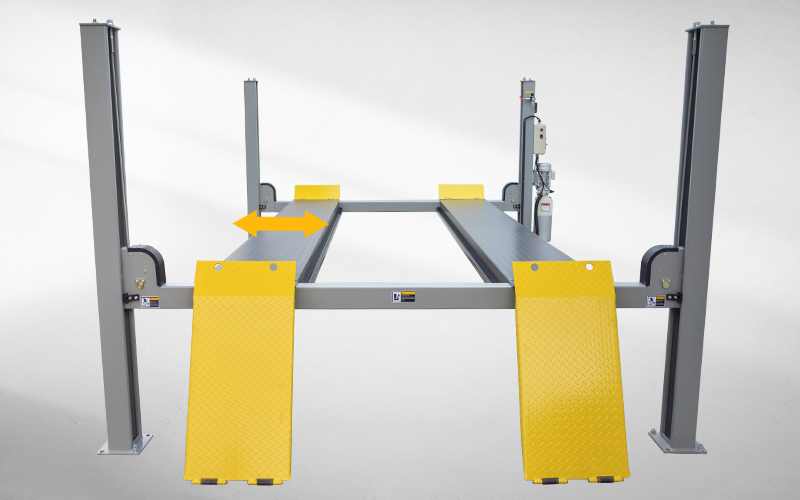

Stelpless adjustable width between platforms;

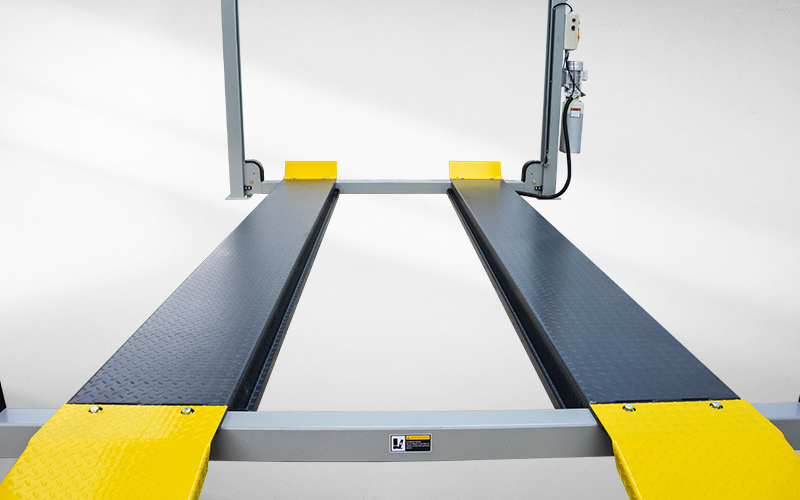

Integrated non-skid diamond platforms;
Both auto-activating mechanical lock and air-release safety lock mechanisms;

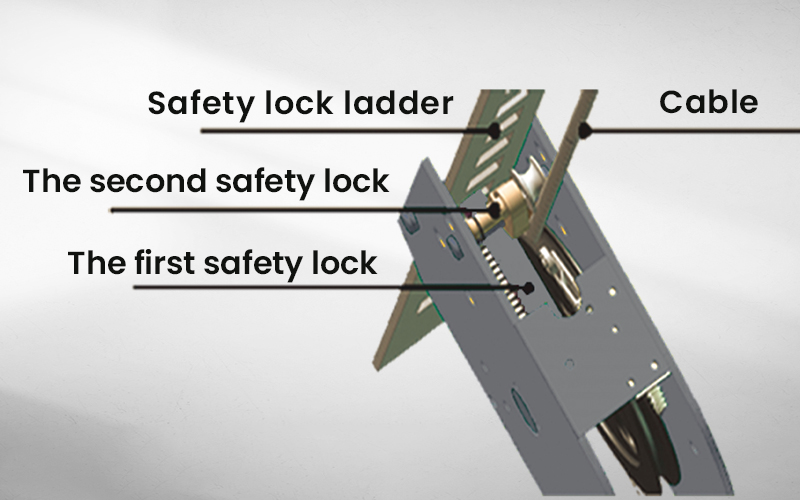

Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
High quality hydraulic cylinder design and manufactured at high standard.

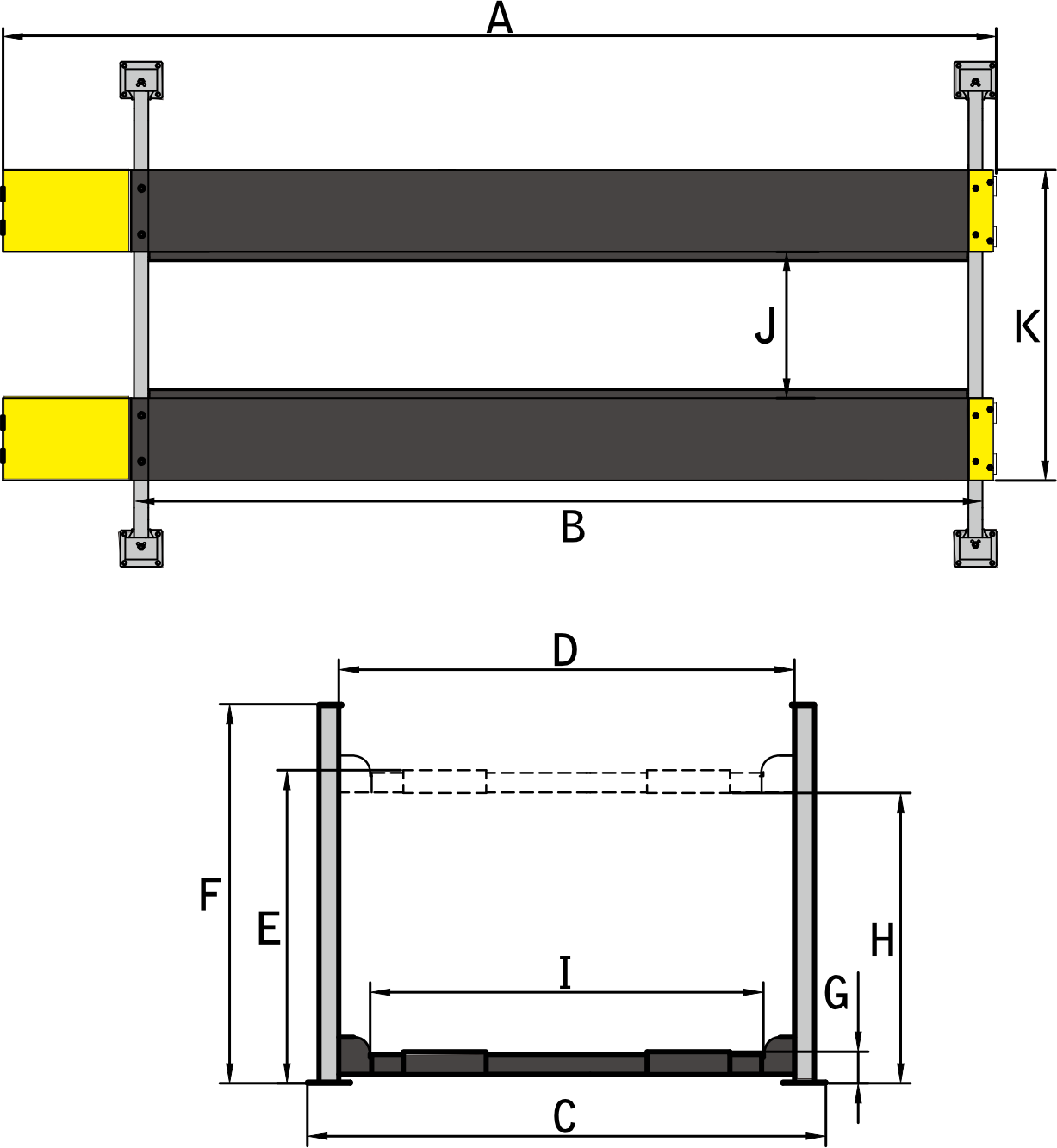

Model A440		General Service Four Post Lift
Lifting Capacity		4000kg
Lifting Time		45s

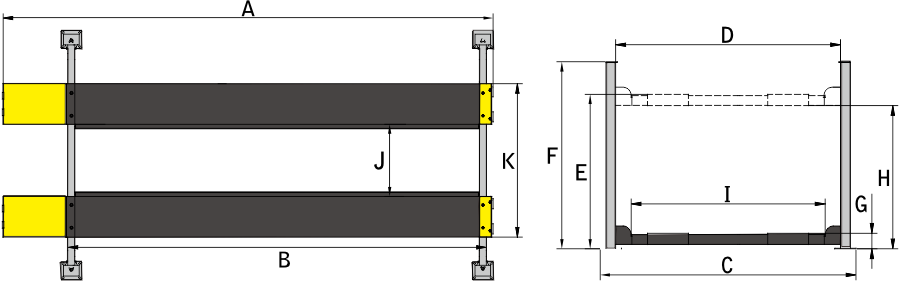

Overall Length(Inc Ramps)	A	5512mm
Runway Length	B	4442mm
Overal Width	C	3208mm
Width Between Columns	D	2852mm
Max. Lifting Height	E	1870mm
Max. Lock Height to top of runway	E	1800mm
Overall Height	F	2185mm
Minimum Height	G	170mm
Max. Underneath Height	H	1730mm
Max. Lock Underneath Runway	H	1660mm
Drive-Thru Clearance	I	2498mm
Width Between Runways	J	Standard installed: 1100mm Adj. range: 800~1292mm
Outside Edge of Runways	K	Standard installed: 2116mm Adj. range: 1816~2308mm
Gross Weight		921kg
Motor		3.0HP
QTY of Container		12 Units/20'GP
Packing Dimension		4680 x 560 x 720 mm
