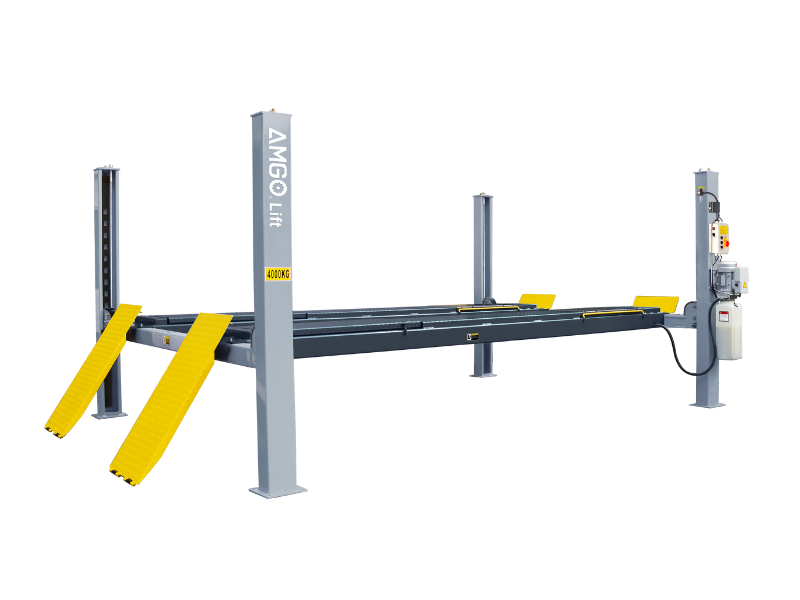

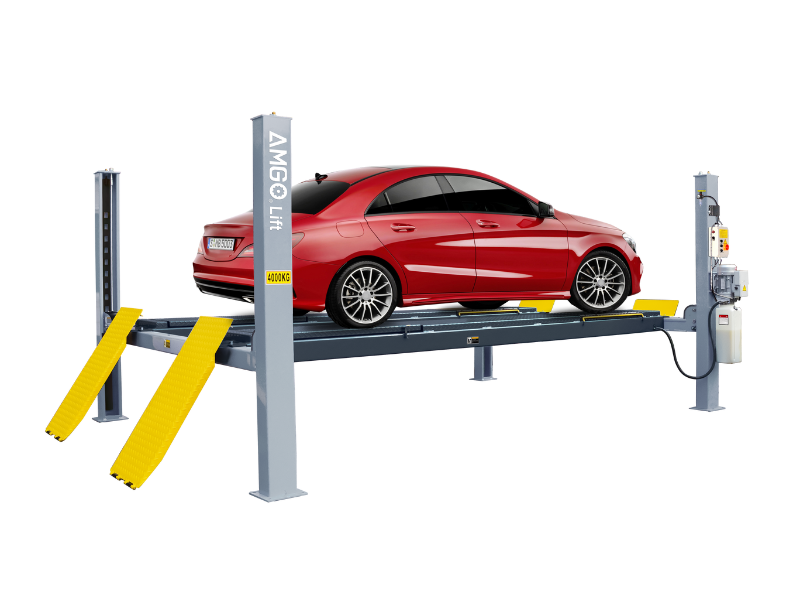

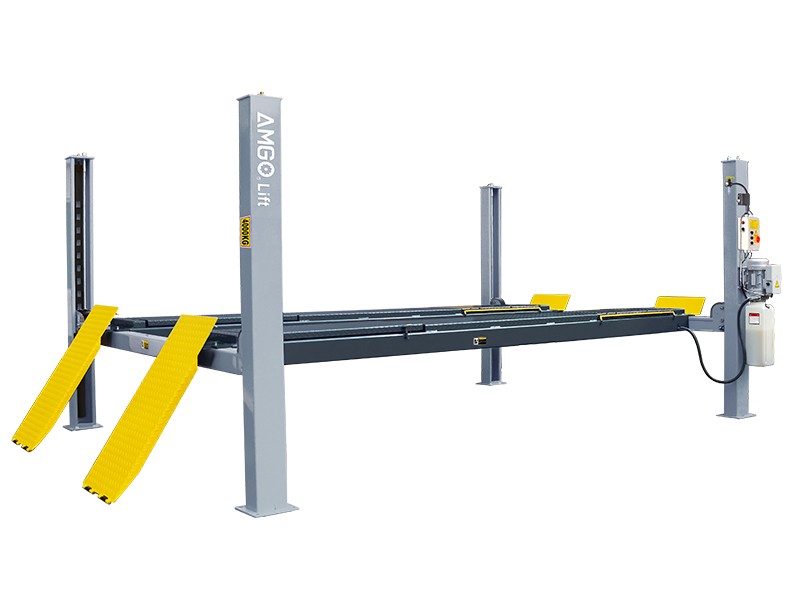

A440A

 ALIGNMENT FOUR POST LIFT


Building upon the exacting standards of the A440, the AMGO A440A incorporates an advanced alignment function to broaden your service capabilities and drive business profitability. The stepless adjustable wide platforms ensure great adaptability, allowing seamless servicing across a diverse range of vehicles.

Detailed Product Information

  • Lifting capacity: 4000KG;
  • Alignment design allows for alignment service;
  • 24V safe electrical operation system;
  • Stepless adjustable width between platforms;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • Adjustable turnplate positions accommodate various vehicles with differing wheelbases.;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model A440A



Alignment Four post Lift

Lifting Capacity



4000kg

Lifting Time



45s

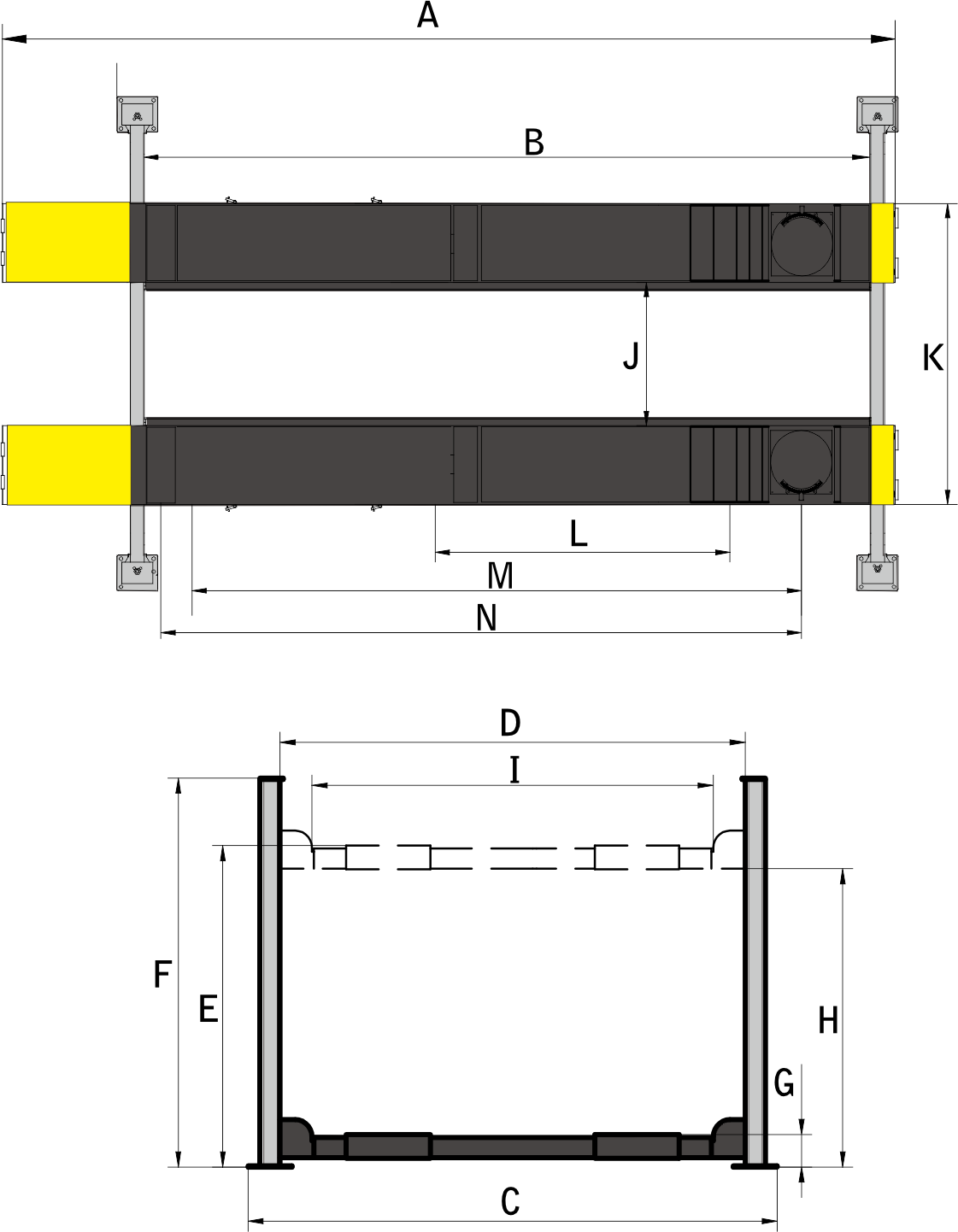

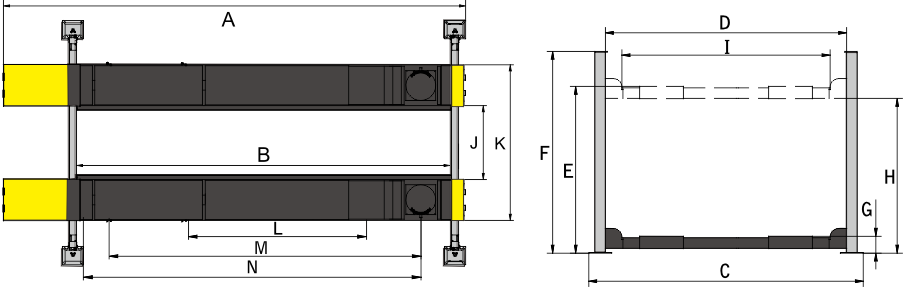

Overall Length(Inc Ramps)

A

5512mm

Runway Length

B

4242mm

Overal Width

C

3208mm

Width Between Columns

D

2852mm

Max. Lifting Height

E

1920mm

Max. Lock Height to top of runway

1850mm

Overall Height

F

2185mm

Minimum Height

G

220mm

Max. Underneath Height

H

1730mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2498mm

Width Between Runways

J

Standard installed: 1100mm

Adj. range: 800~1292mm

Outside Edge of Runways

K

Standard installed: 2116mm

Adj range: 1816~2308mm

Min. Four Wheel Align

L

2000mm

Max. Four Wheel Align

M

3460mm

Max. Two Wheel Align

N

3600mm

Gross Weight



1149kg

Motor



3.0HP

QTY of Container



12 Units/20'GP

Packing Dimension



4680 x 560 x 720 mm









140x140

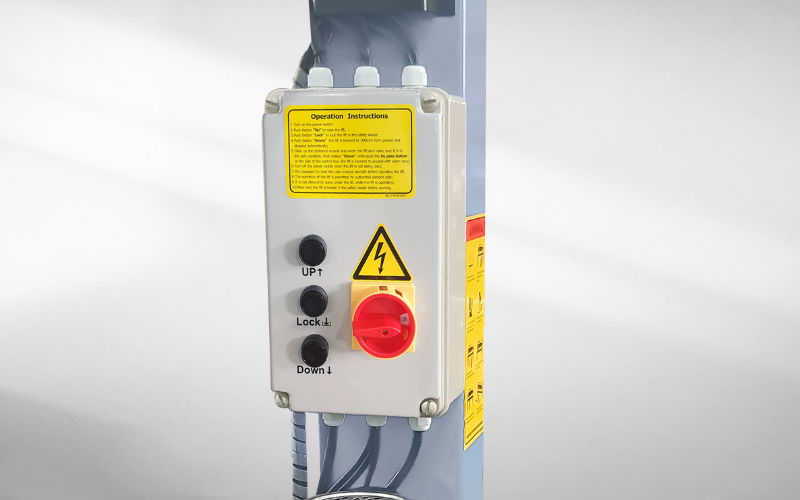

Electric control device with UP,LOCK and DOWN buttons.

140x140

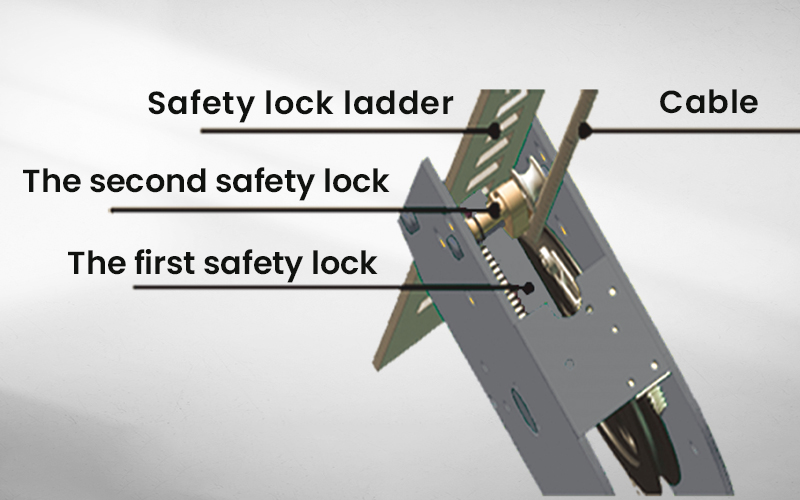

Double safety locks provide additional safety.

140x140

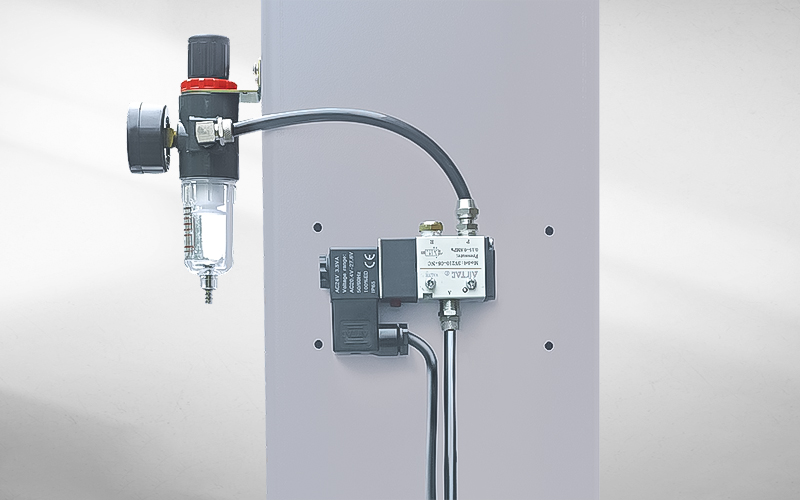

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

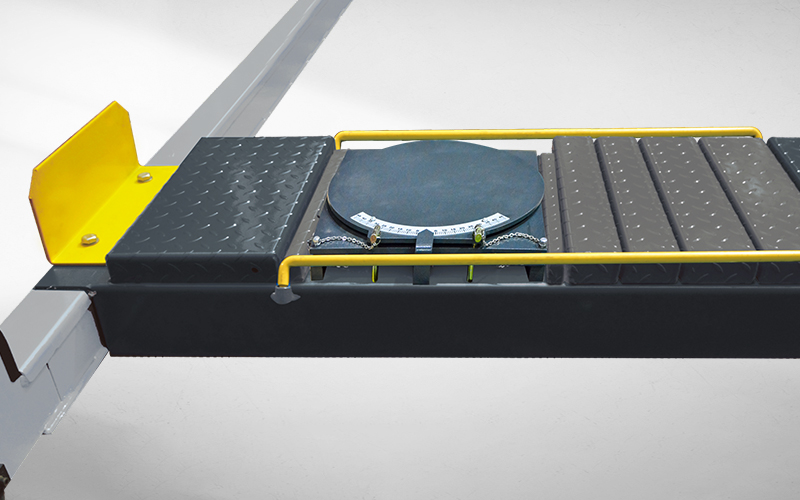

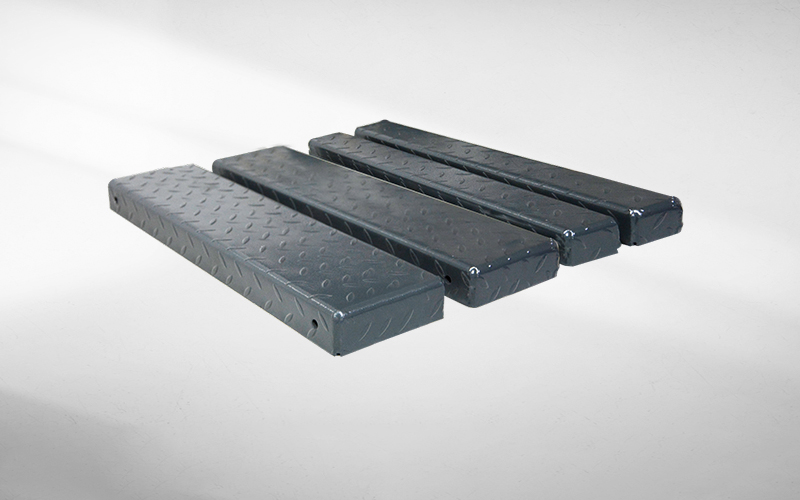

Adjustable turnplate blocks to fit various wheel bases vehicles.

140x140

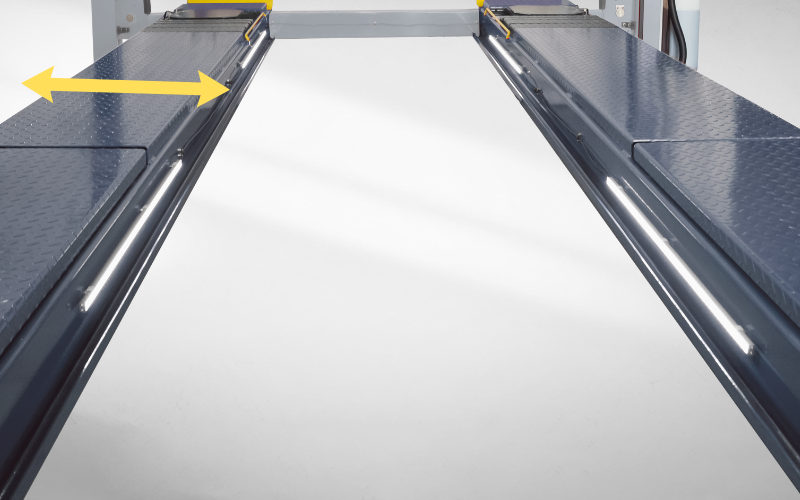

Off-side platform can be adjusted the mounting position left or right.



140x140

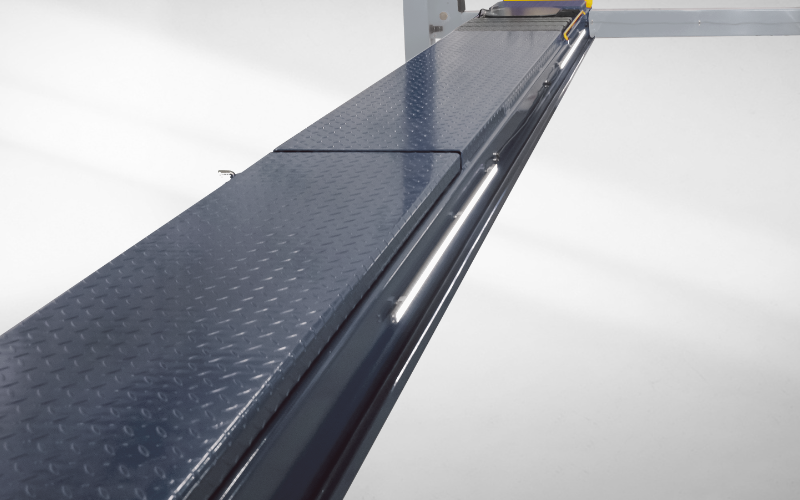

Non-slip diamond platforms come as standard.

140x140

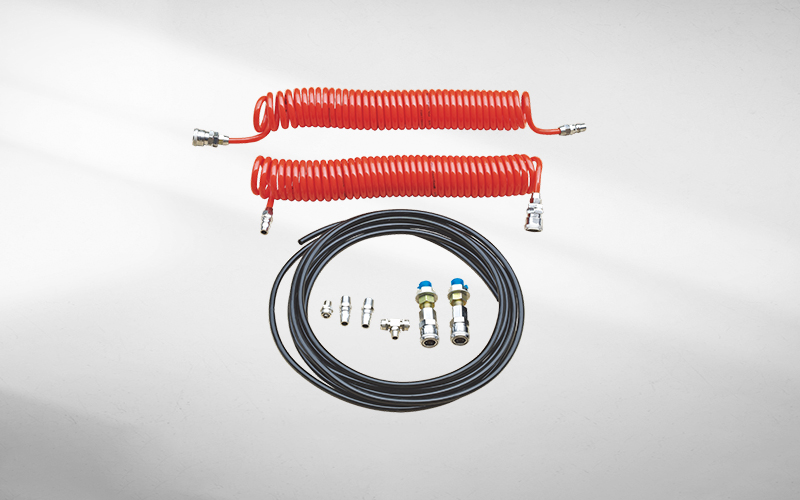

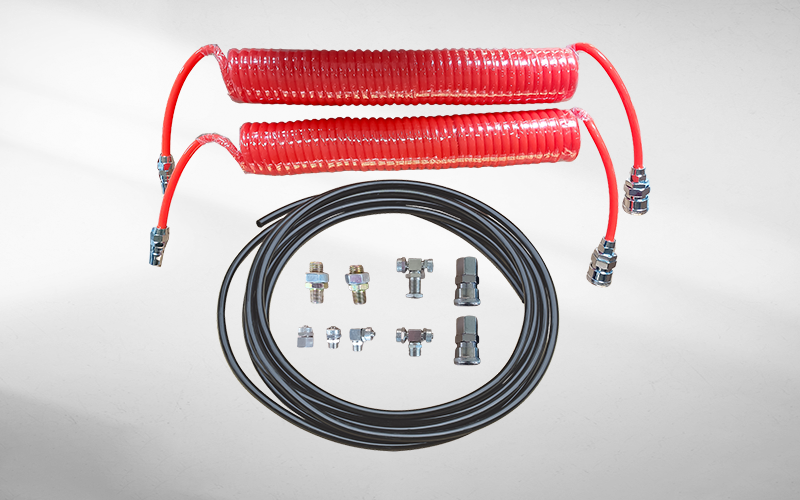

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.:40102



140x140

Optional extension platform ( 1 unit) adds an extra 660mm length to the platform.Kits No.:40903

140x140

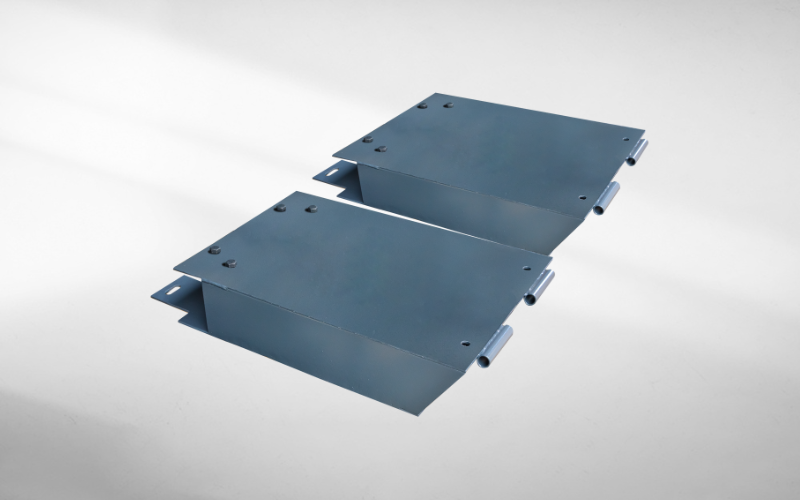

Optional turnplate adjustment blocks (1 set), used with extension platform,Kits No.:40905

140x140

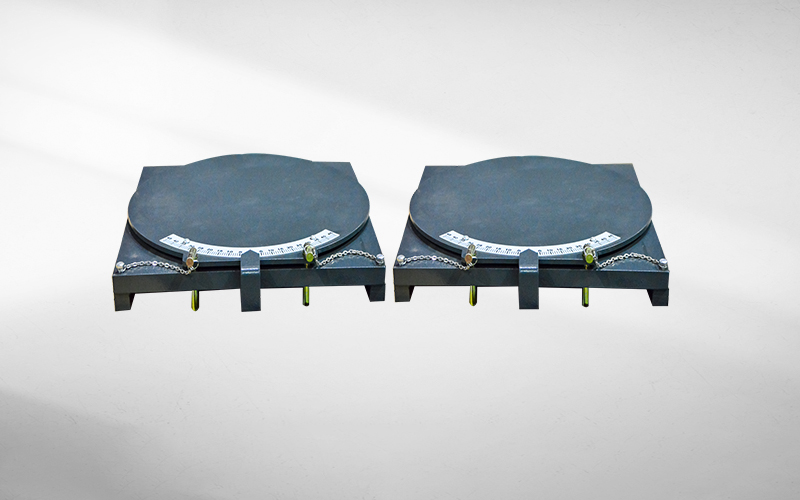

Optional Turnplate (1 PC).  Kits No.:40101

140x140

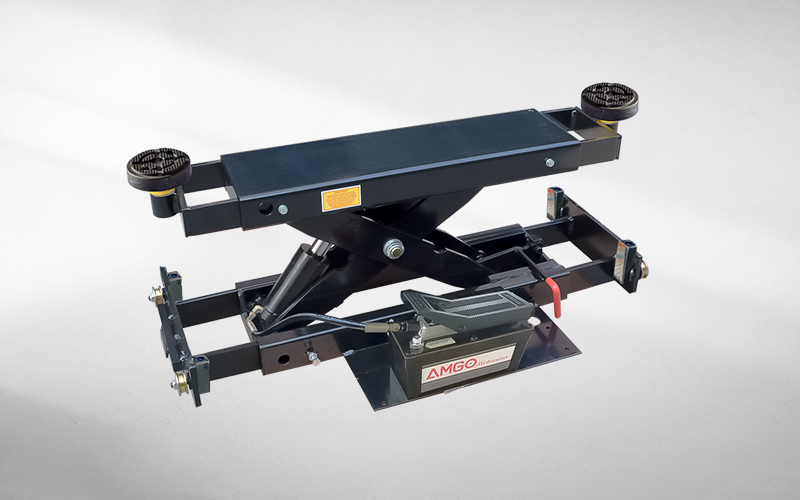

Optional Rolling Jacks

J6H:manual hydraulic type 2,800kg.

J6A:pneumatic hydraulic type 2,800kg.
