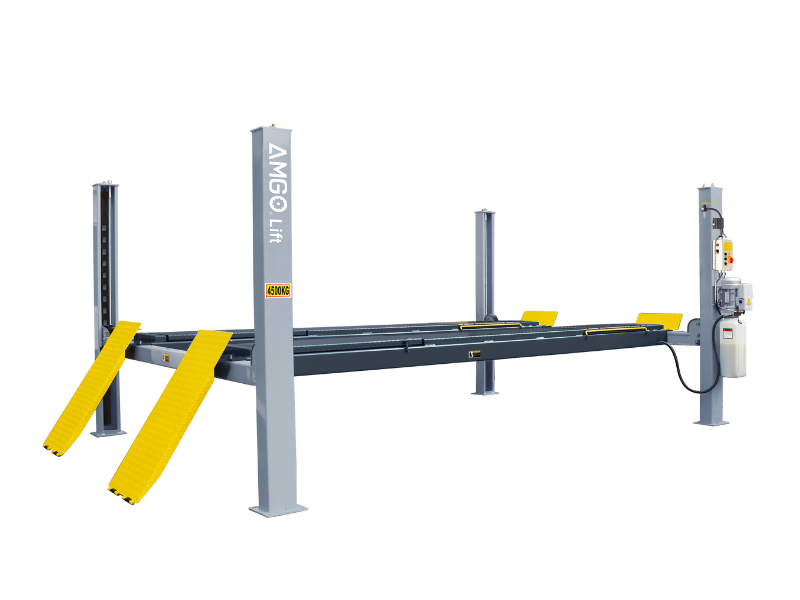

A445A

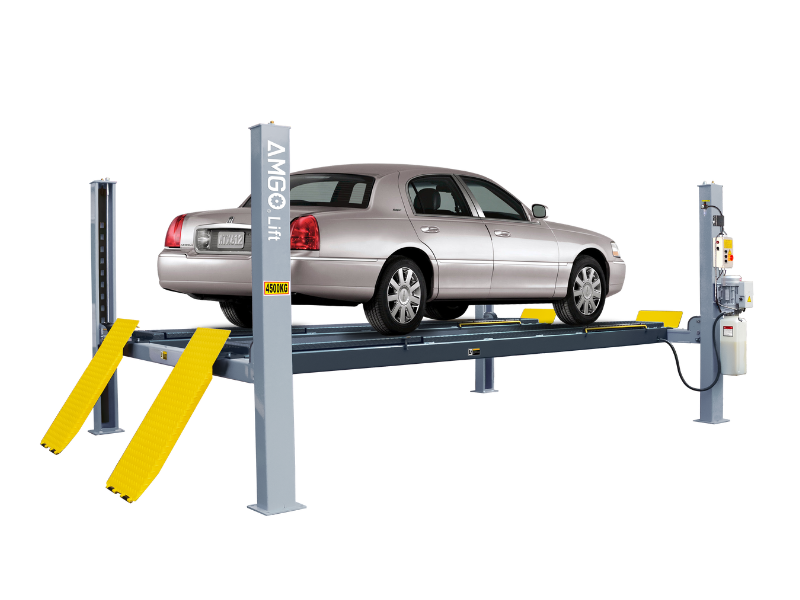

 ALIGNMENT FOUR POST LIFT


The A445A features an extra-wide frame, providing versatile servicing capabilities for a broad range of vehicles—from passenger cars to full-size pickups. Boasting a 4,500kg load capacity, it ensures reliable performance for both general maintenance and precision alignment tasks.

Detailed Product Information



  • Lifting capacity: 4500KG;
  • Alignment design allows for alignment service;
  • 3000mm oversized width between columns, accommodates more vehicles;
  • 24V safe electrical operation system;
  • Stelpless adjustable width between platforms;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • Adjustable turnplate positions accommodate various vehicles with differing wheelbases.;
  • High quality hydraulic cylinder design and manufactured at high standard.

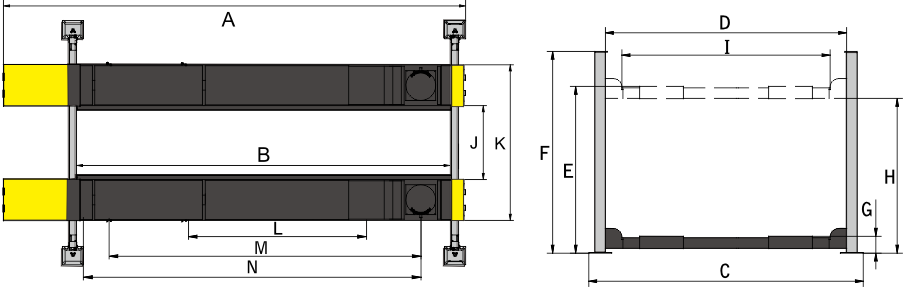

Model A445A



Alignment Four post Lift

Lifting Capacity



4500kg

Lifting Time



45s

Overall Length(Inc Ramps)

A

5910mm

Runway Length

B

4640mm

Overal Width

C

3356mm

Width Between Columns

D

3000mm

Max. Lifting Height

E

1920mm

Max. Lock Height to top of runway

1850mm

Overall Height

F

2185mm

Minimum Height

G

220mm

Max. Underneath Height

H

1730mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2646mm

Width Between Runways

J

Standard installed: 1100mm

Adj. range: 800~1366mm

Outside Edge of Runways

K

Standard installed: 2116mm

Adj. range: 1816~2382mm

Min. Four Wheel Align

L

2080mm

Max. Four Wheel Align

M

3850mm

Max. Two Wheel Align

N

4000mm

Gross Weight



1282kg

Motor



3.0HP









140x140

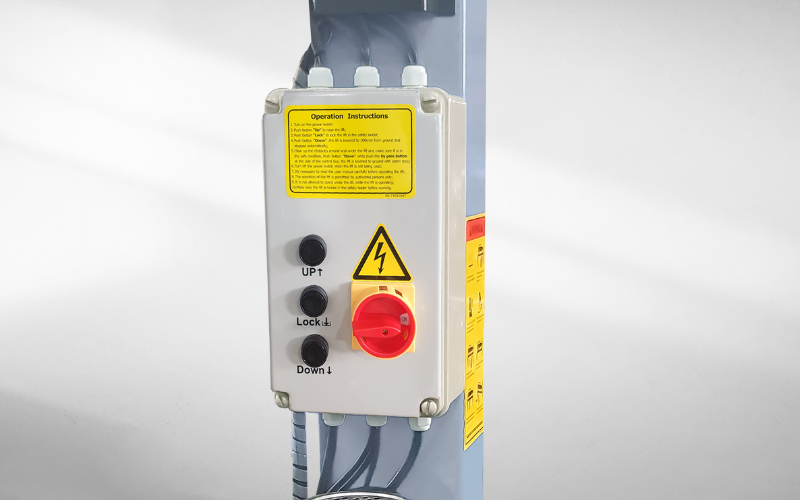

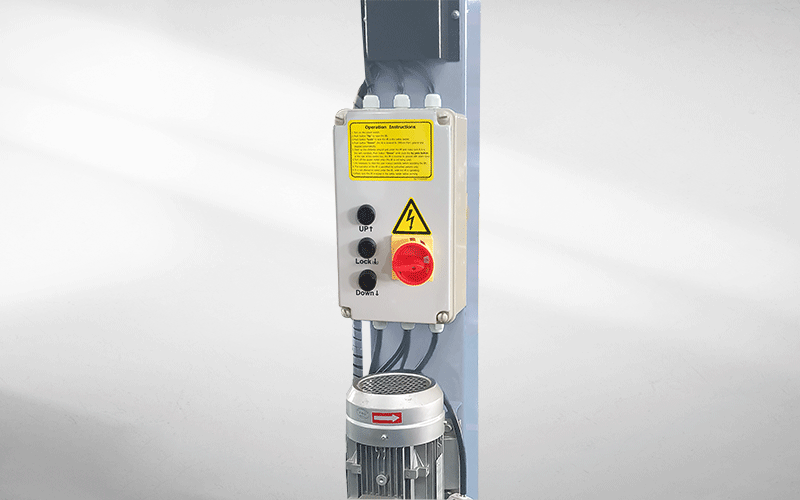

Electric control device with UP,LOCK and DOWN buttons.

140x140

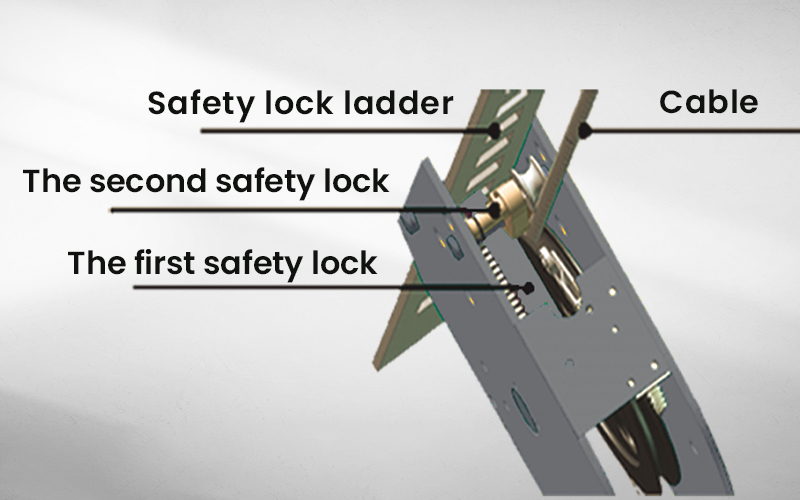

Double safety locks provide additional safety.

140x140

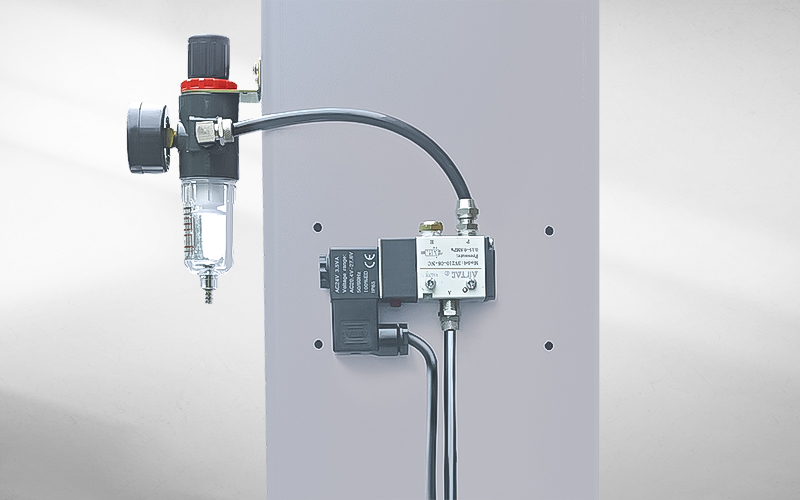

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

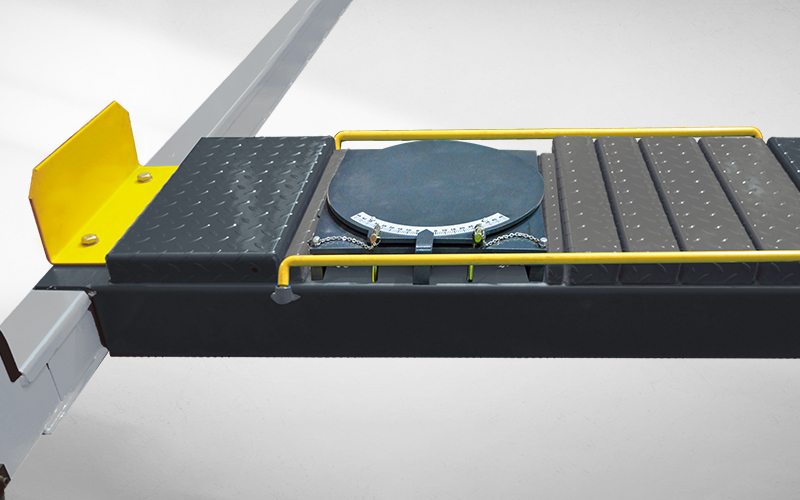

Adjustable turnplate blocks to fit various wheel bases vehicles.

140x140

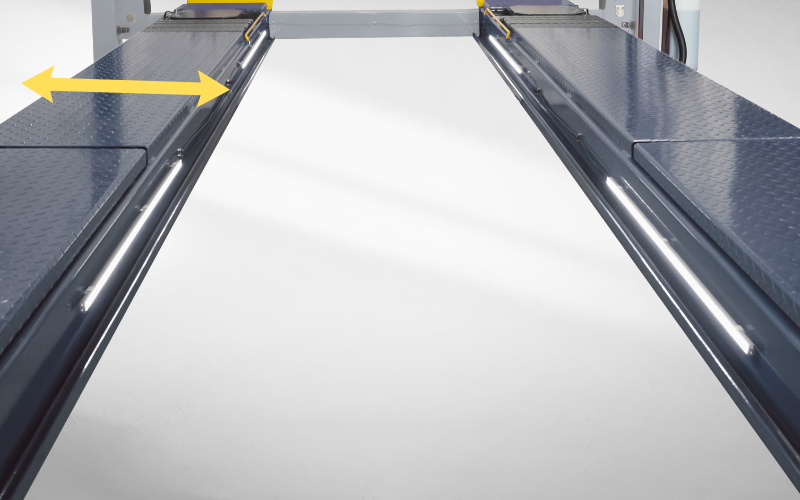

Off-side platform can be adjusted the mounting position left or right.



140x140

Non-slip diamond platforms come as standard.

140x140

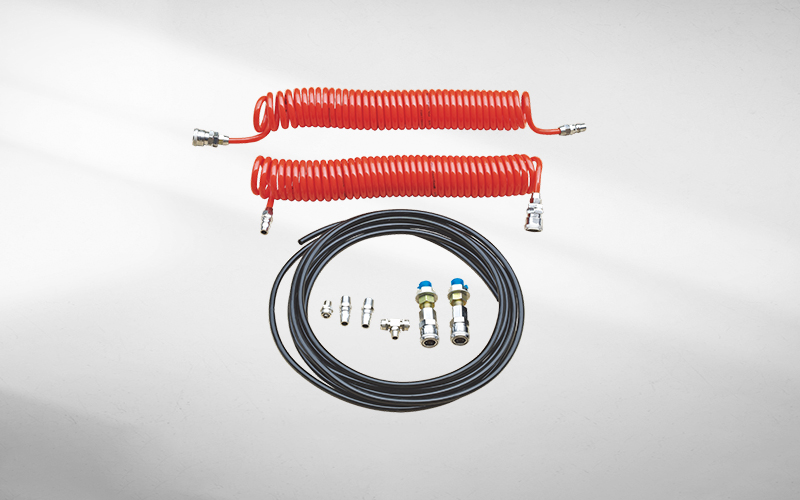

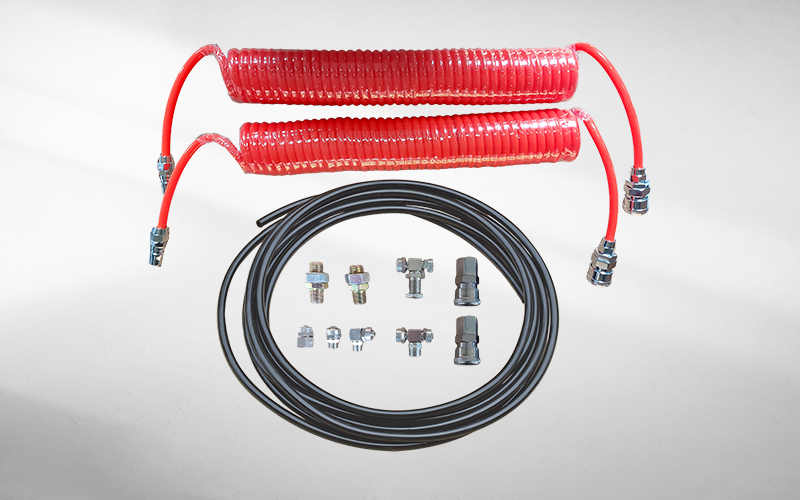

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.:40102



140x140

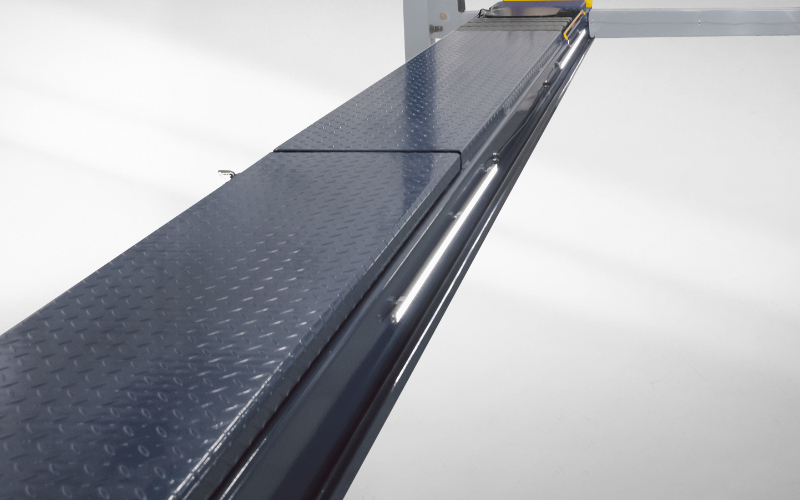

Optional extension platform ( 1 unit) adds an extra 660mm length to the platform.Kits No.:40903

140x140

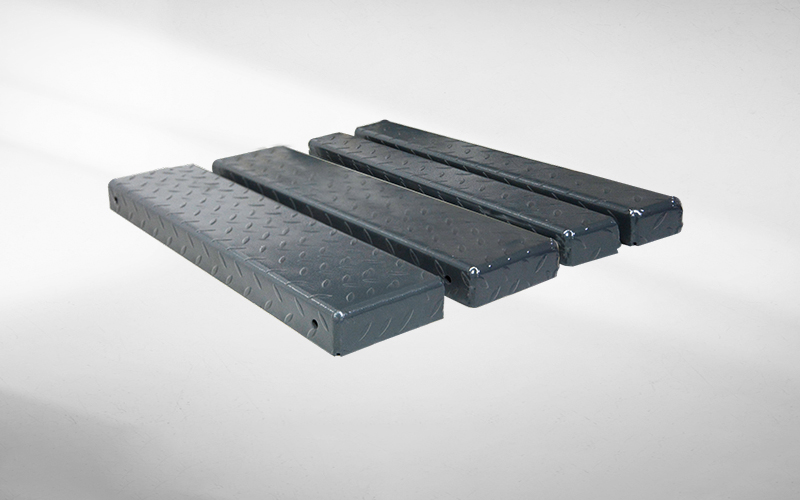

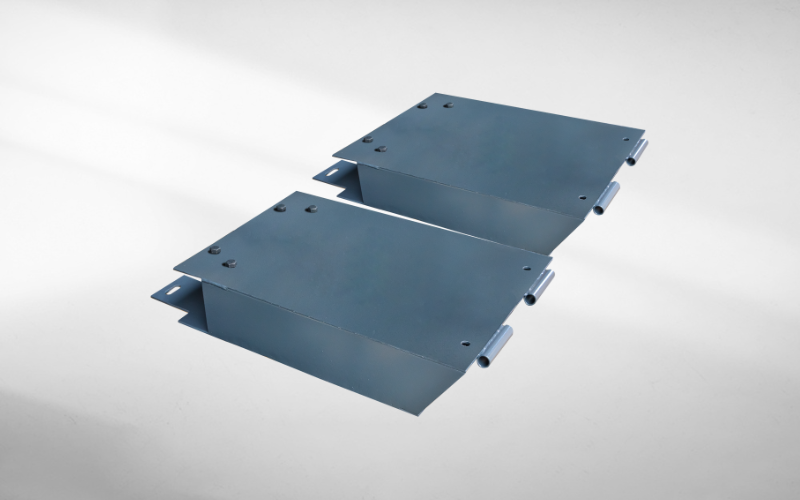

Optional turnplate adjustment blocks ( 1 set), used with extension platform,Kits No.:40905

140x140

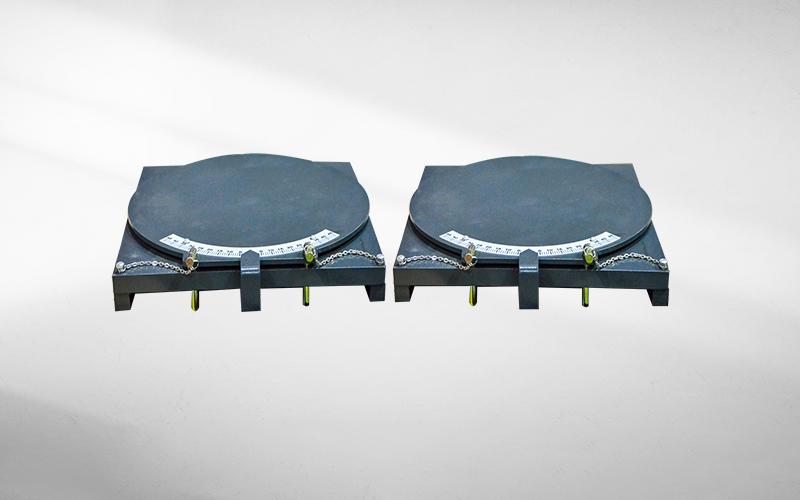

Optional Turnplate ( 1 PC),  Kits No.:40101

140x140

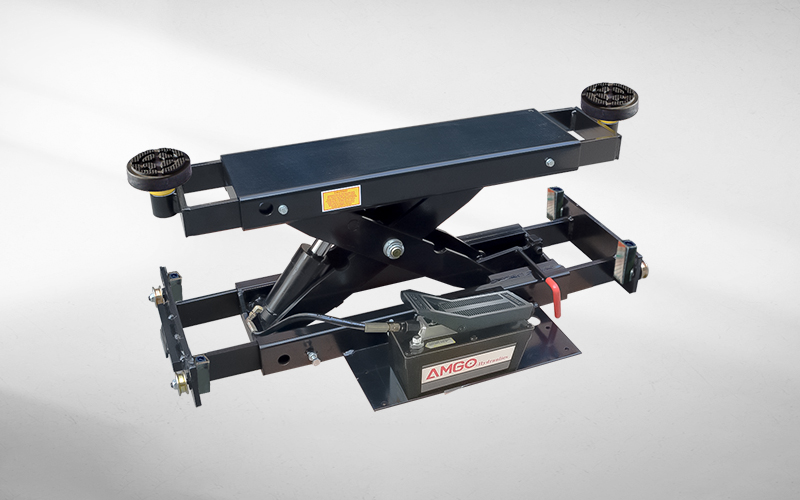

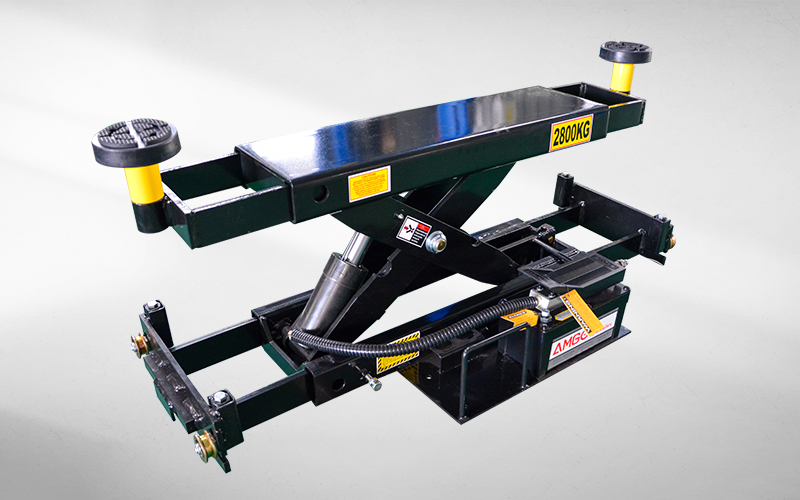

Optional Rolling Jacks

J6H:manual hydraulic type 2,800kg.

J6A:pneumatic hydraulic type 2,800kg.
