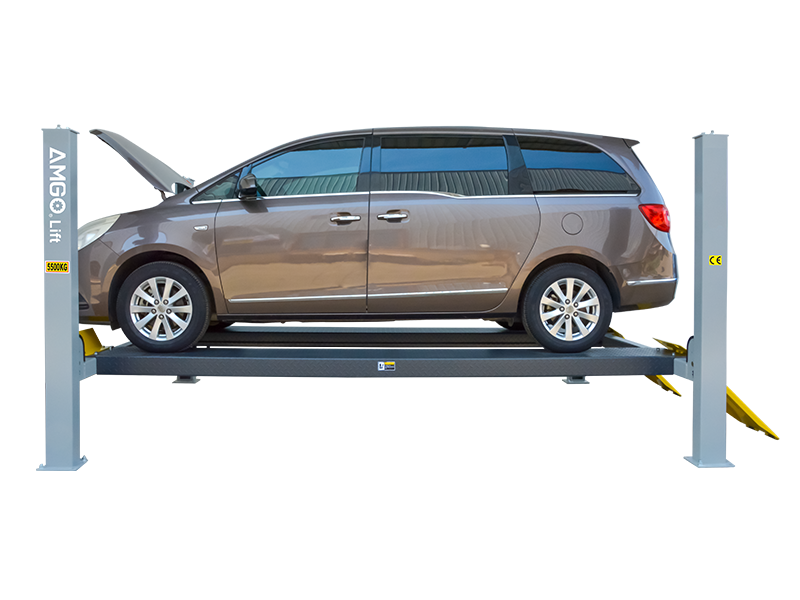

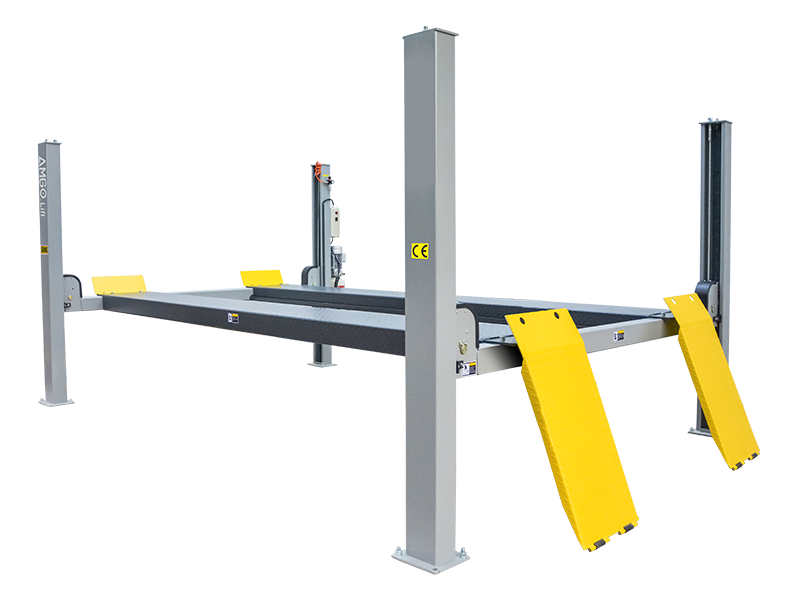

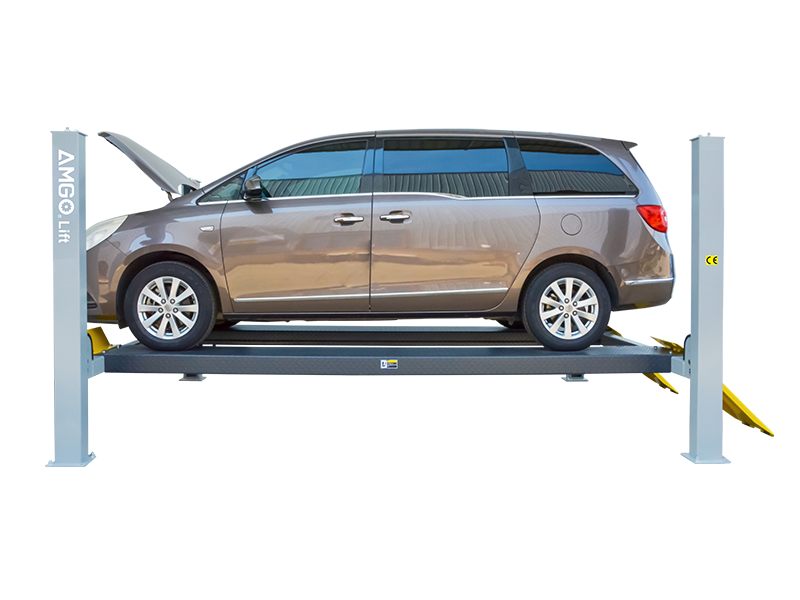

A455

HEAVY DUTY GENERAL SERVICE FOUR POST LIFT


The AMGO A455 delivers exceptional performance beyond expectations. With an impressive lifting capacity of 5500KG, it offer an ideal solution for full-service commercial workshops and automotive service centers seeking to enhance their operational versatility and expand vehicle coverage.

Detailed Product Information

• Lifting capacity: 4500KG;

• Heavy duty design, general service model, suitable for more vehicles;

• 24V safe electrical operation system;

• Stelpless adjustable width between platforms;

• Integrated non-skid diamond platforms;

• Both auto-activating mechanical lock and air-release safety lock mechanisms;

• Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;

• High quality hydraulic cylinder design and manufactured at high standard.

Model



A455

Lifting Capacity



5500kg

Lifting Time



63s

Overall Length (Inc Ramps)

A

6092mm

Outside Edge of Crossbeams

B

5022mm

Overal Width

C

3208mm

Width Between Columns

D

2852mm

Max. Lifting Height

E

1890mm

Max. Lock Height to top of runway

1810mm

Overall Height

F

2185mm

Minimum Height

G

170mm

Max. Underneath Height

H

1750mm

Max. Lock Underneath Runway

1670mm

Drive-Thru Clearance

I

2498mm

Width Between Runways

J

Standard installed: 1100mm

Adj. range: 965~1292mm

Outside Edge of Runways

K

Standard installed: 2116mm

Adj. range: 1981~2308mm

Gross Weight



1082kg

Motor



3.0HP

QTY of Container



12 Units /20'GP









  •

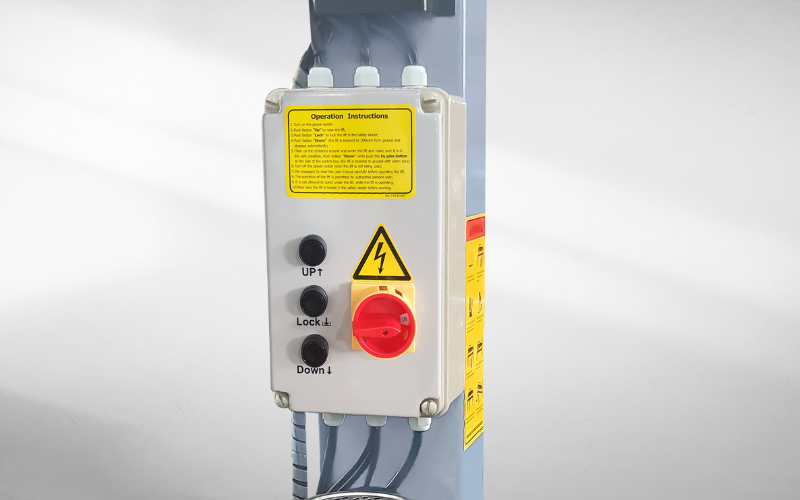

    Electric control device with UP,LOCK and DOWN buttons.

  •

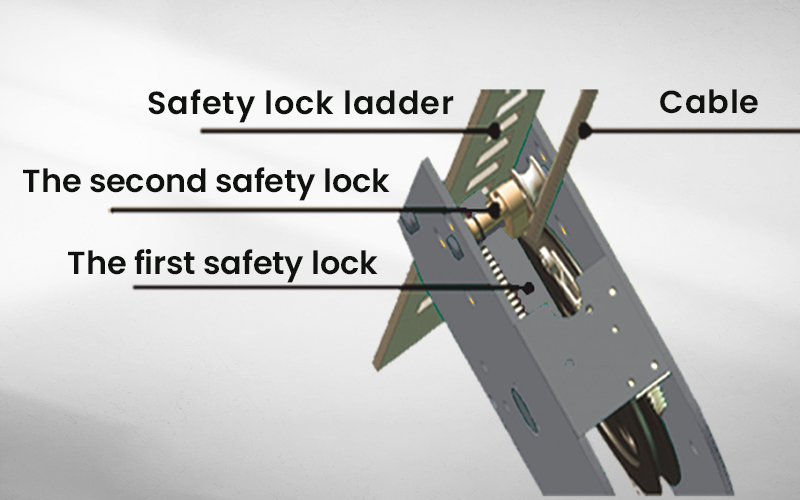

    Double safety locks provide additional safety.

  •

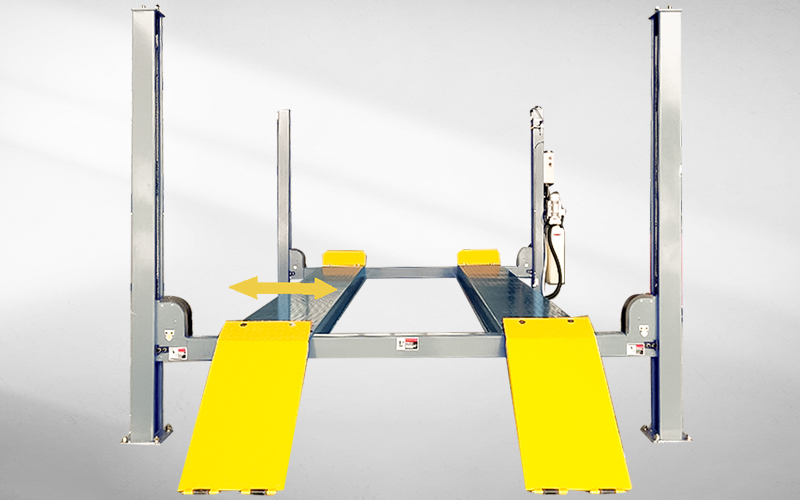

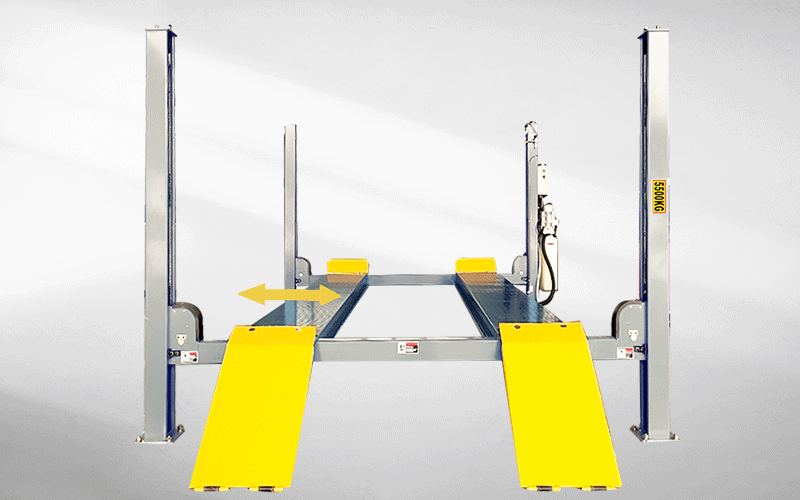

    Stelpless adjustable width between non-skid diamond platforms

  •

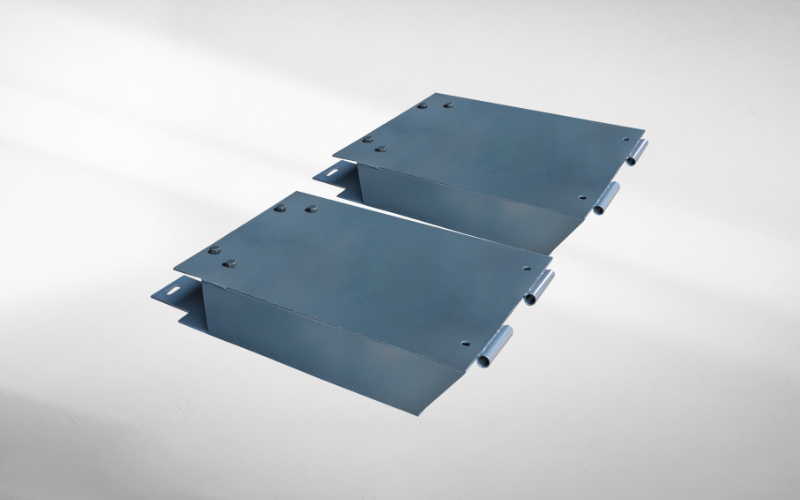

    Optional extension platform adds an extra 660mm length to the platform.Kits No.:41203

  •

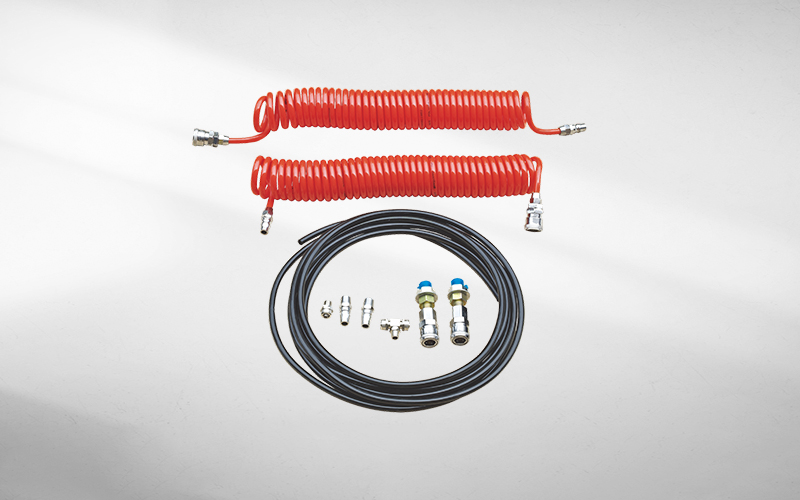

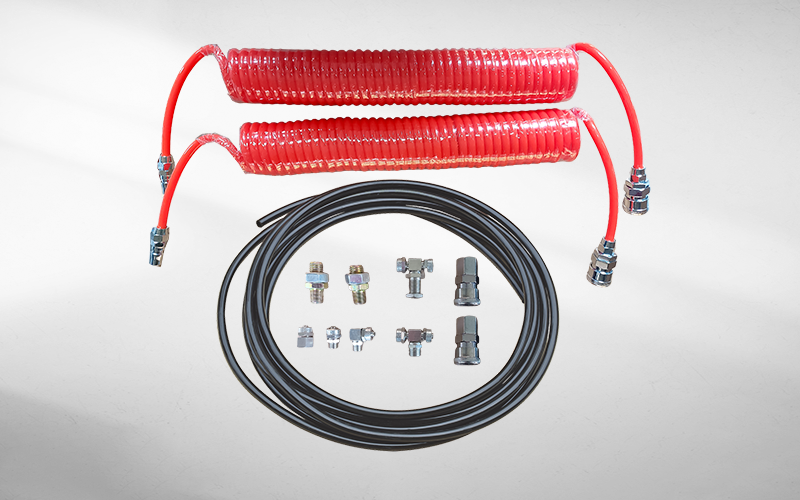

    Optional Air Line Kits
    All AMGO four post lifts are designed to use the air line kits for rolling jack. Kit No.:40102

  •

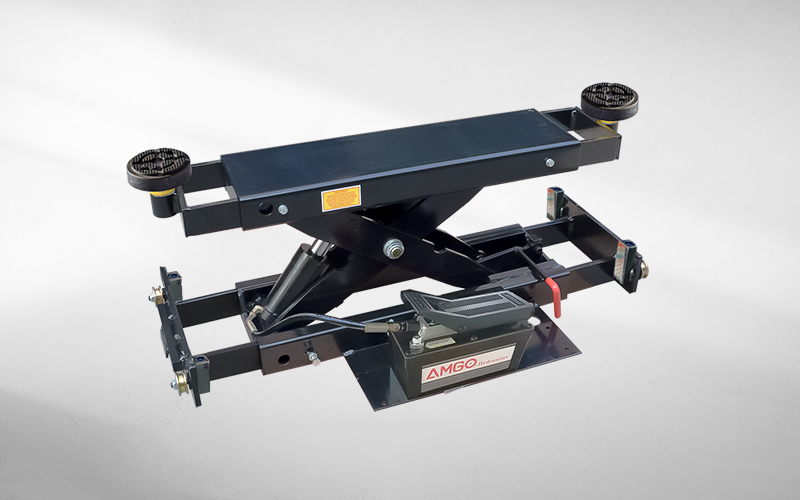

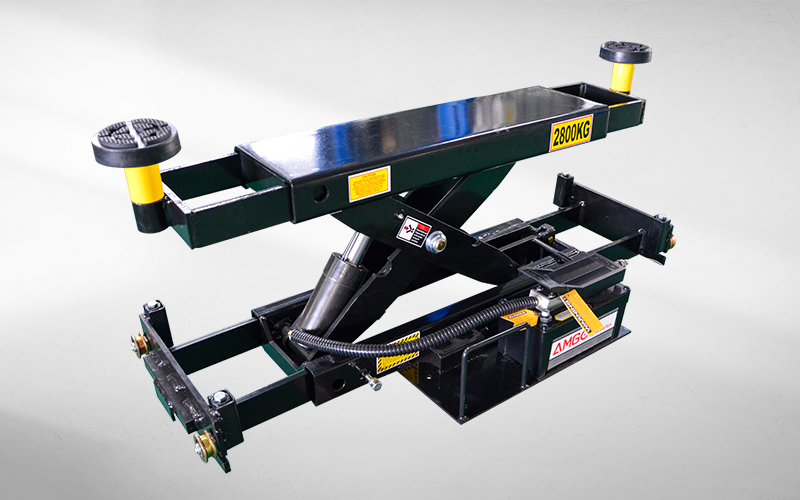

    Optional Rolling Jacks
    J6H: manual hydraulic type 2,800Kg.
    J6A: pneumatic hydraulic type 2,800Kg.
