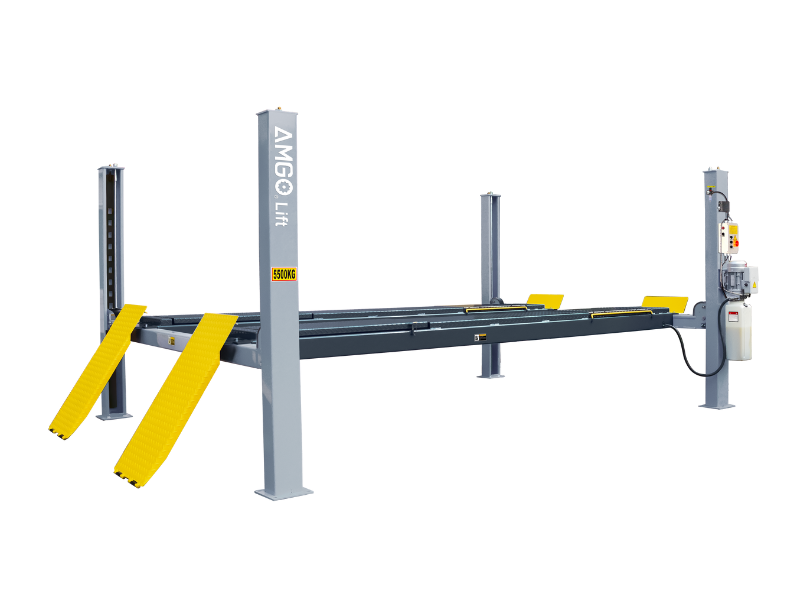

A455A

 ALIGNMENT FOUR POST LIFT


The A455A is a highly engineered solution with a robust 5,500kg capacity, making it an excellent choice for challenging commercial applications. Designed to accommodate a wide range of vehicles, from passenger cars to trucks, it delivers the formidable reliability for your business needs.

Detailed Product Information

  • Heavy duty design, lifting capacity: 5500KG;
  • Alignment design allows for alignment service;
  • 24V safe electrical operation system;
  • Stelpless adjustable width between platforms;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • Adjustable turnplate positions accommodate various vehicles with differing wheelbases.;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model A455A



Alignment Four post Lift

Lifting Capacity



5500kg

Lifting Time



63s

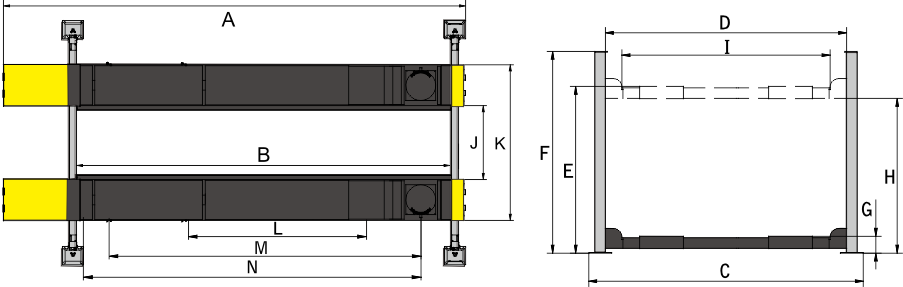

Overall Length(Inc Ramps)

A

6092mm

Runway Length

B

4822mm

Overal Width

C

3208mm

Width Between Columns

D

2852mm

Max. Lifting Height

E

1920mm

Max. Lock Height to top of runway

1850mm

Overall Height

F

2185mm

Minimum Height

G

220mm

Max. Underneath Height

H

1730mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2498mm

Width Between Runways

J

Standard installed: 1100mm

Adj. range: 965~1292mm

Outside Edge of Runways

K

Standard installed: 2116mm

Adj. range:  1981~2308mm

Min. Four Wheel Align

L

2080mm

Max. Four Wheel Align

M

4080mm

Max. Two Wheel Align

N

4230mm

Gross Weight



1334kg

Motor



3.0HP

QTY of Container



12 Units/20'GP

Packing Dimension



5200 x 560 x 790 mm











140x140

Electric control device with UP,LOCK and DOWN buttons.

140x140

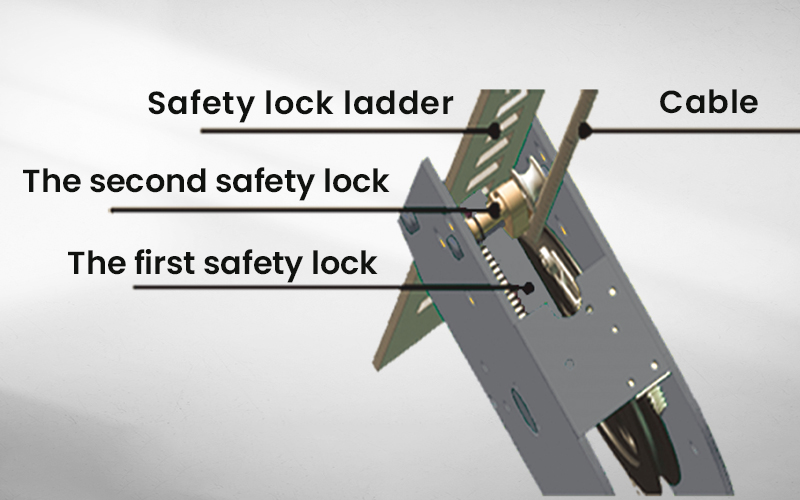

Double safety locks provide additional safety.

140x140

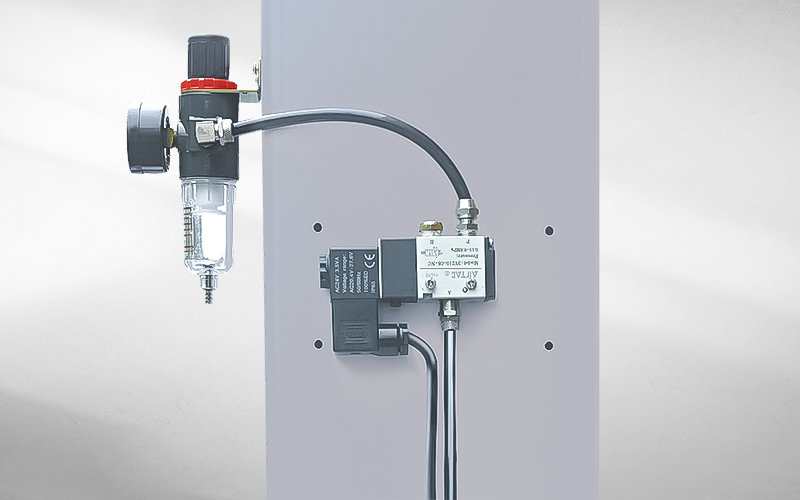

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

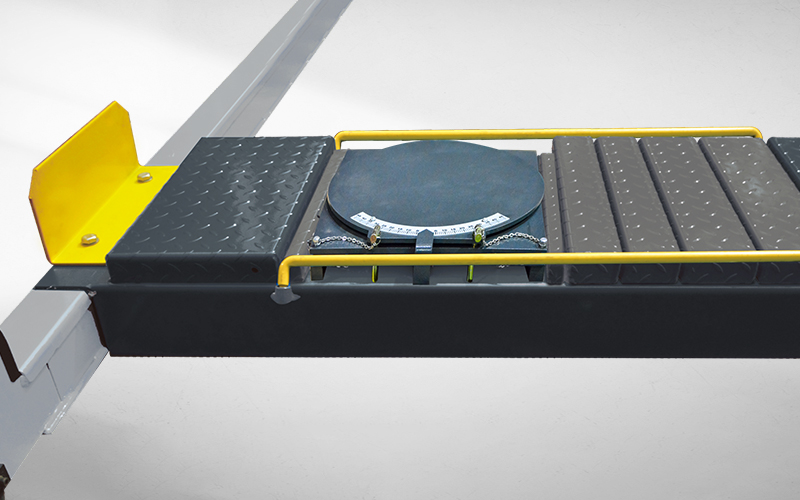

Adjustable turnplate blocks to fit various wheel bases vehicles.

140x140

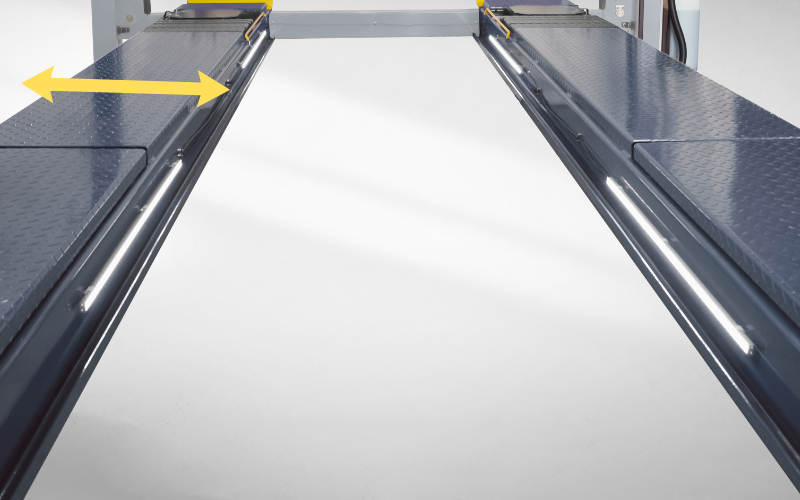

Off-side platform can be adjusted the mounting position left or right.



140x140

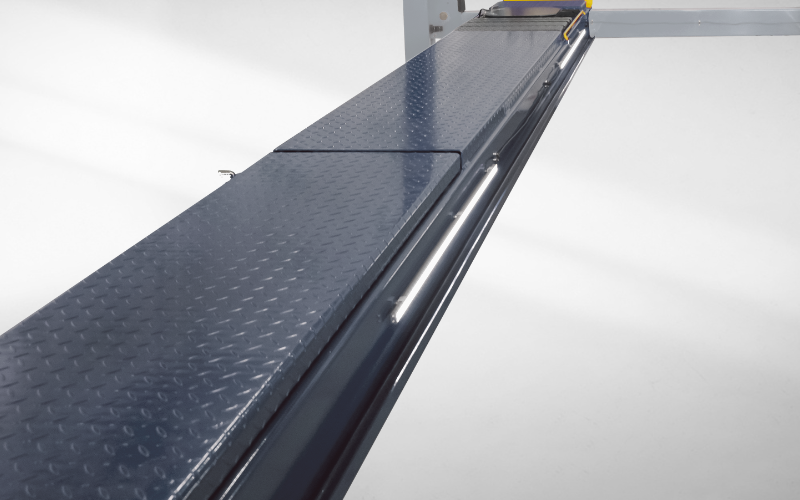

Non-slip diamond platforms come as standard.

140x140

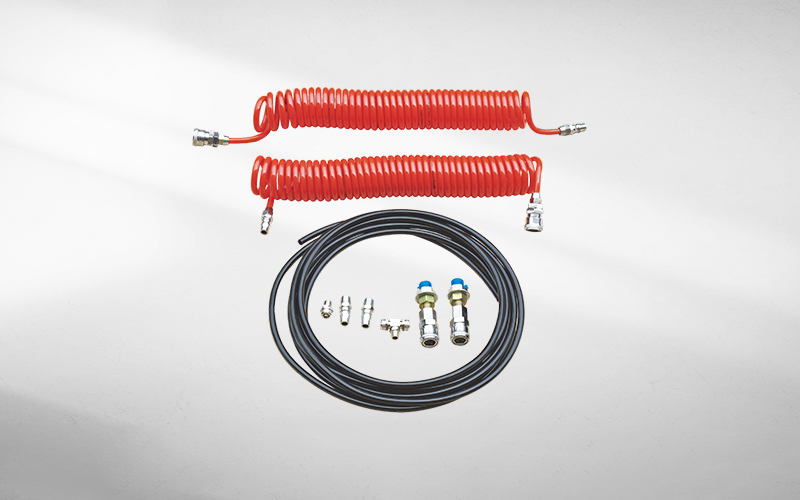

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.:40102



140x140

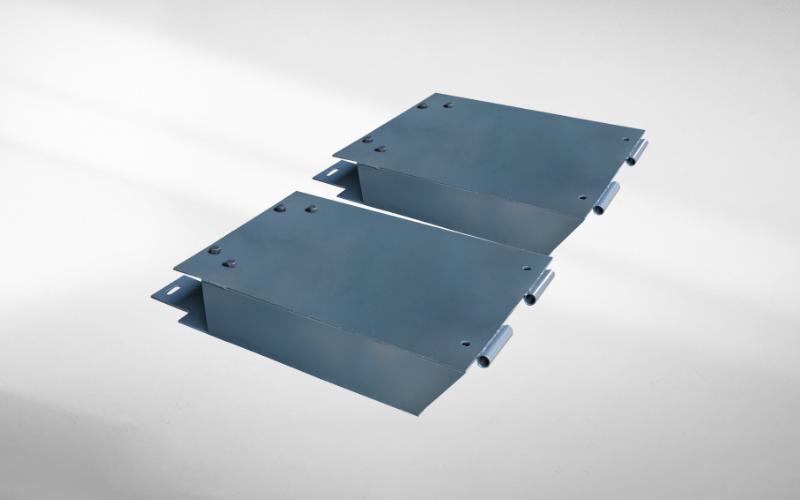

Optional extension platform ( 1 unit) adds an extra 660mm length to the platform.Kits No.:41203

140x140

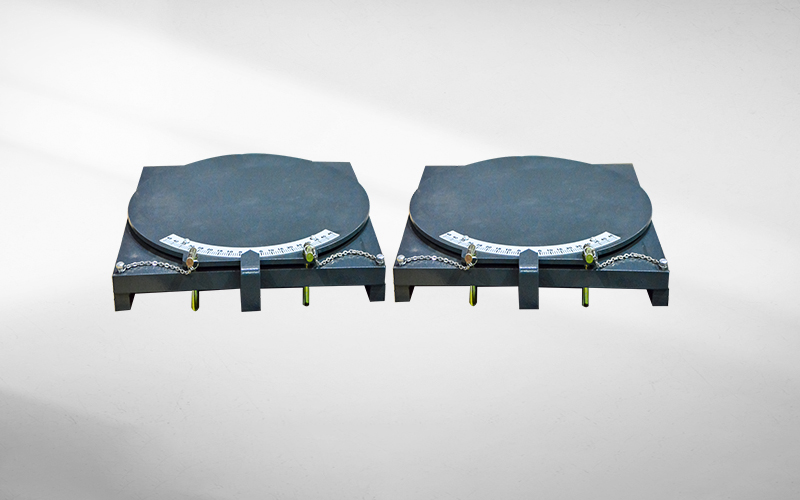

Optional turnplate (1 PC), Kits No.:40101

140x140

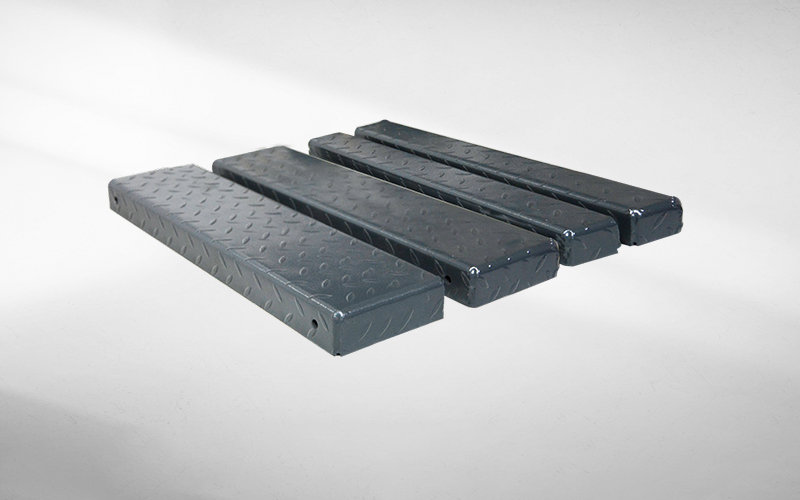

Optional turnplate adjustment blocks ( 1 set),used with extension platform,Kits No.:40905

140x140

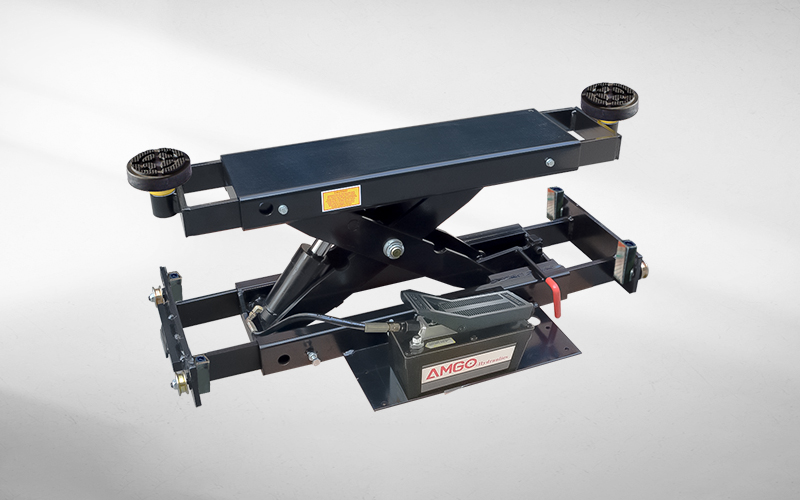

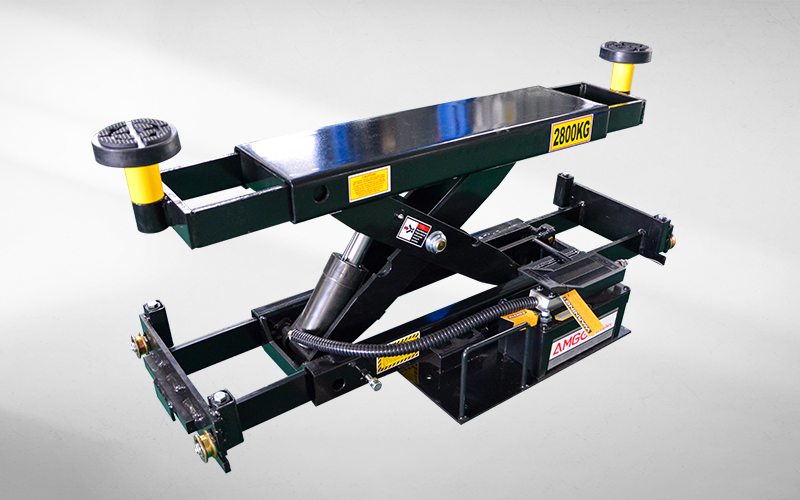

Optional Rolling Jacks

J6H:manual hydraulic type 2,800kg.

J6A:pneumatic hydraulic type 2,800kg.
