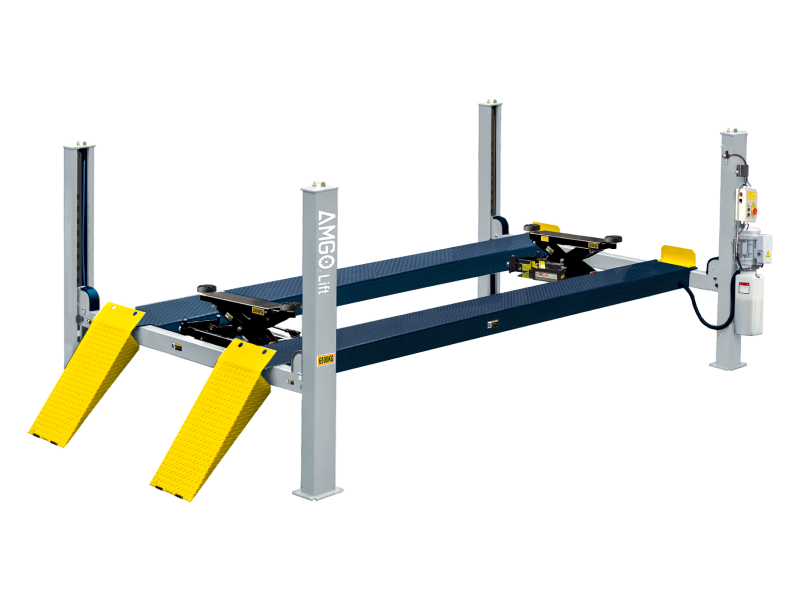

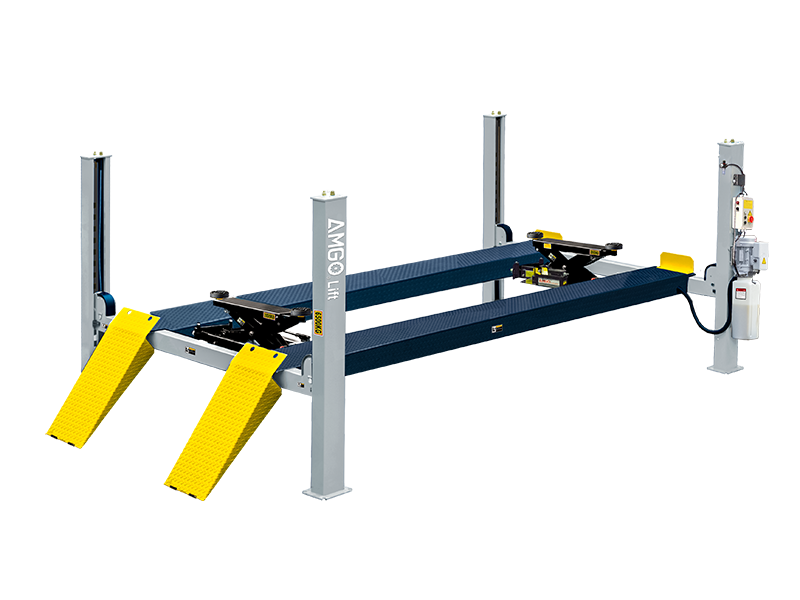

A465

HEAVY DUTY GENERAL SERVICE FOUR POST LIFT

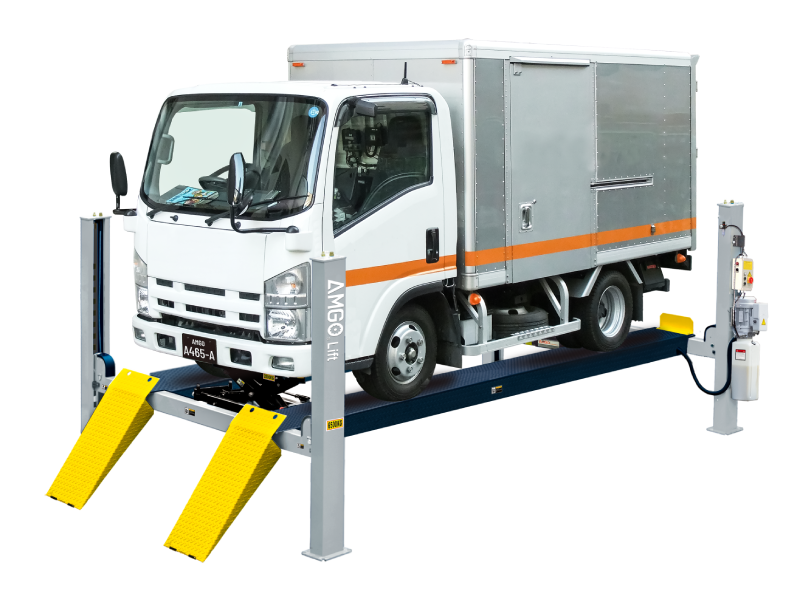

The A465 heavy duty model exemplifies engineering excellence, delivering robust performance for multifaceted workshop applications. Boasting an 6,500 kg capacity, this versatile solution seamlessly accommodates diverse vehicle categories—from passenger cars and commercial vans to heavy-duty trucks and recreational motorhomes. Its superior load-bearing capability ensures optimal performance across the complete spectrum of automotive service requirements.

Detailed Product Information

Lifting capacity: 6500KG;
Heavy duty design, general service model, suitable for more vehicles;
24V safe electrical operation system;
Robust structure offers enhanced stability;
Integrated non-skid diamond platforms;
Both auto-activating mechanical lock and air-release safety lock mechanisms;
Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
High quality hydraulic cylinder design and manufactured at high standard.

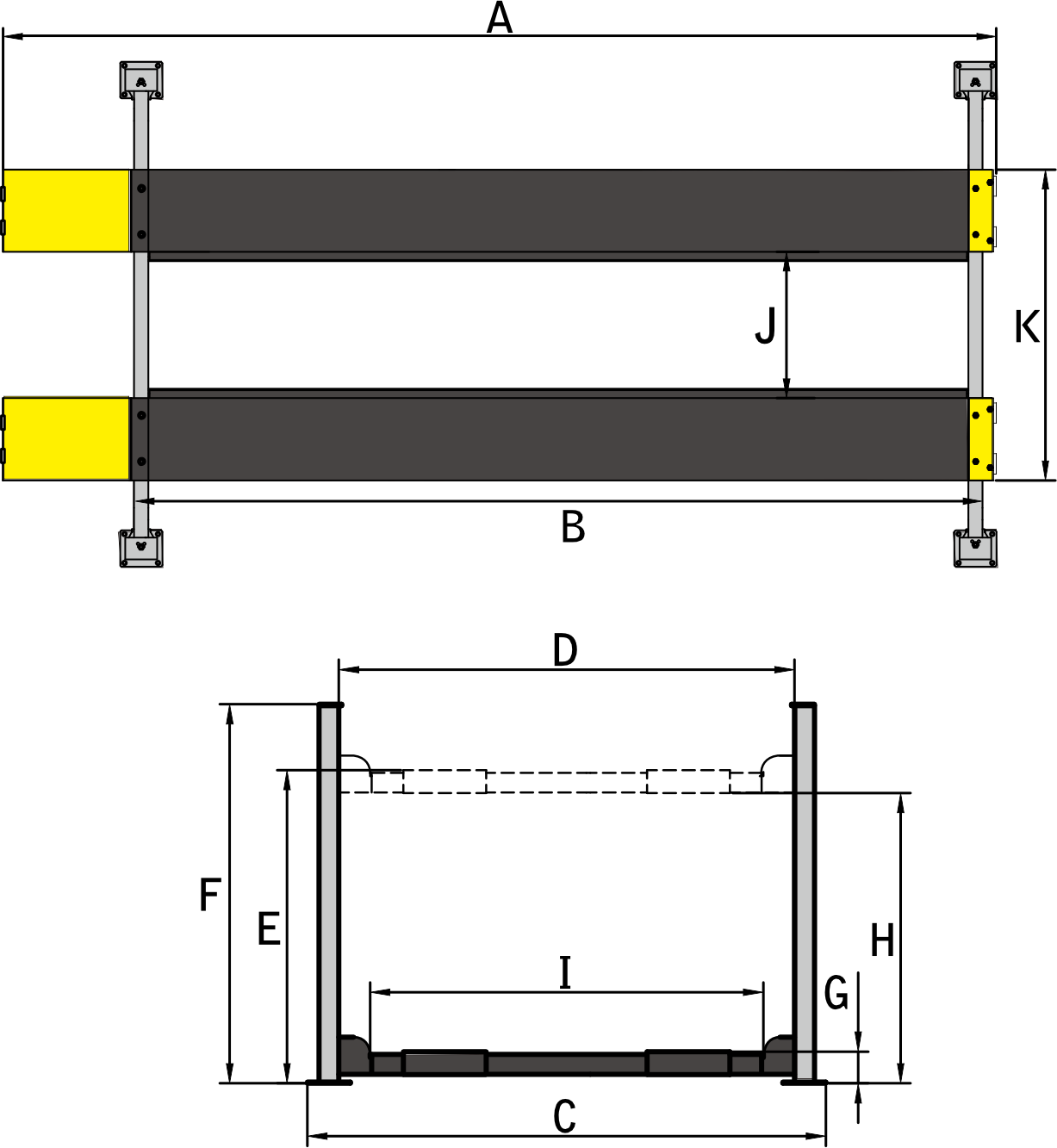

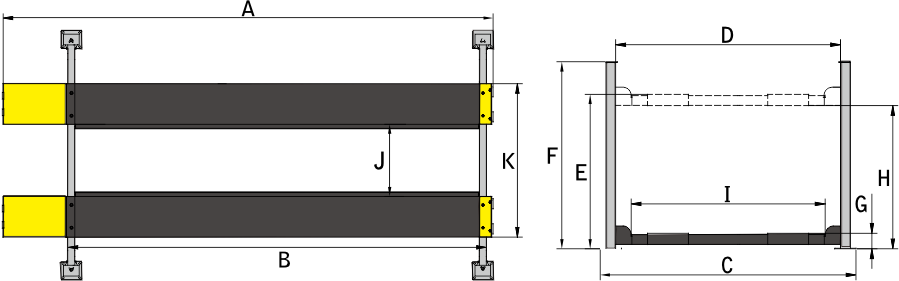

Model A465		General Service Four Post Lift
Lifting Capacity		6500kg
Lifting Time		79s
Overall Length(Inc Ramps)	A	6554mm
Outside Edge of Crossbeams	B	5292mm
Overal Width	C	3324mm
Width Between Columns	D	2946mm
Max. Lifting Height	E	1920mm
Max. Lock Height to top of runway	E	1830mm
Overall Height	F	2189mm
Minimum Height	G	200mm
Max. Underneath Height	H	1750mm
Max. Lock Underneath Runway	H	1660mm
Drive-Thru Clearance	I	2592mm
Width Between Runways	J	Standard installed: 1168mm
Outside Edge of Runways	K	Standard installed: 2184mm
Gross Weight		1356kg
Motor		3.0HP
Packing Dimension		5550 x 560 x 830 mm

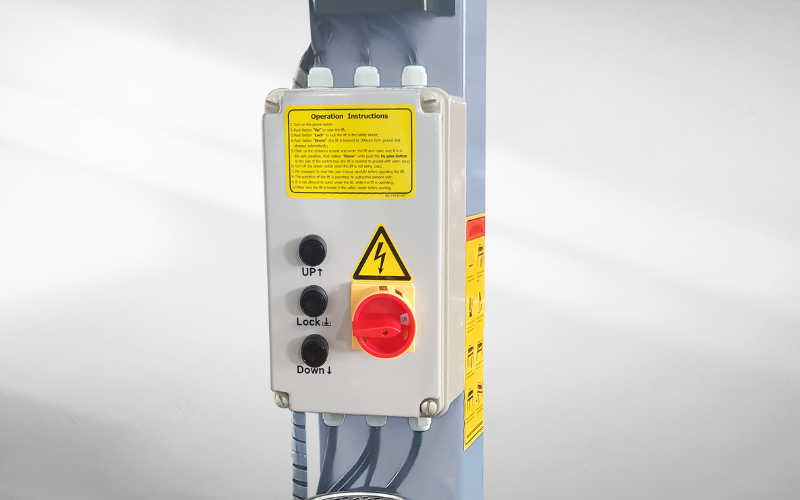

Electric control device with UP,LOCK and DOWN buttons.

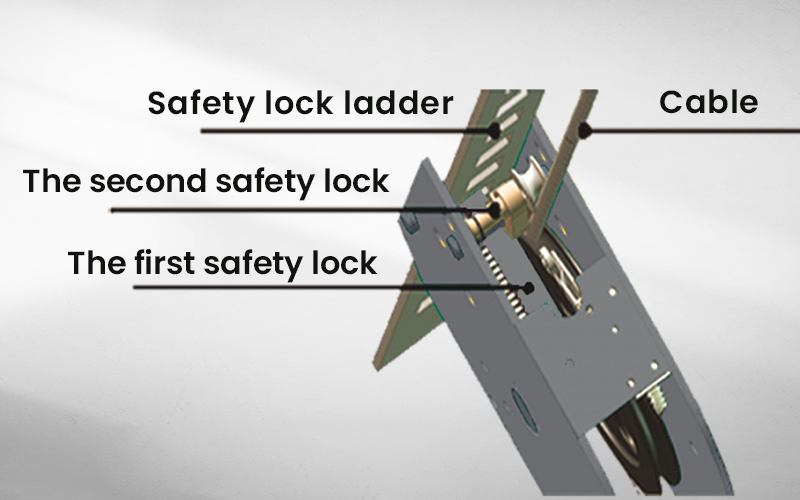

Double safety locks provide additional safety.

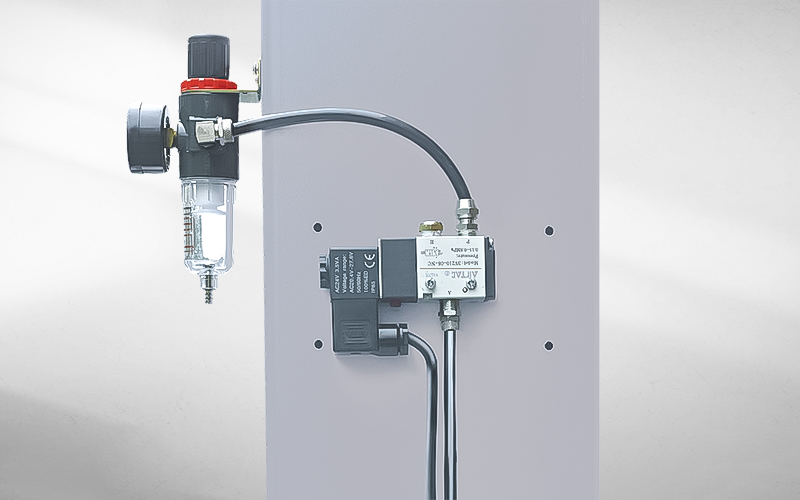

Oil-water separator and solenoid air valve are installed on the power side column.

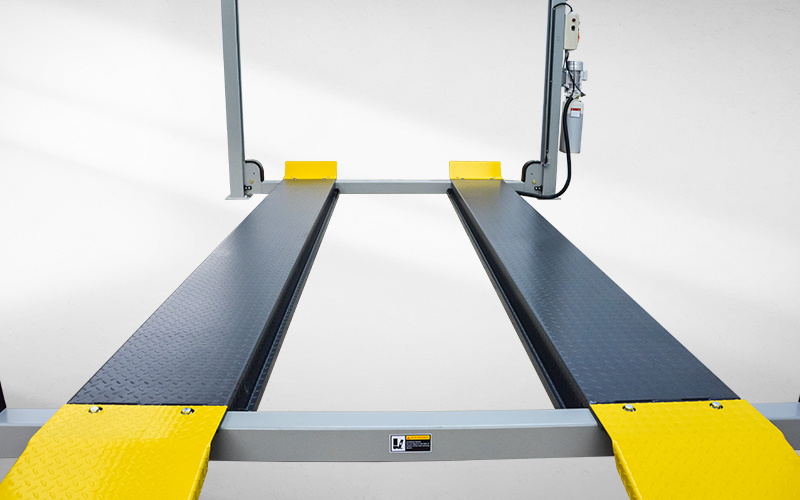

Non-slip diamond platforms come as standard.

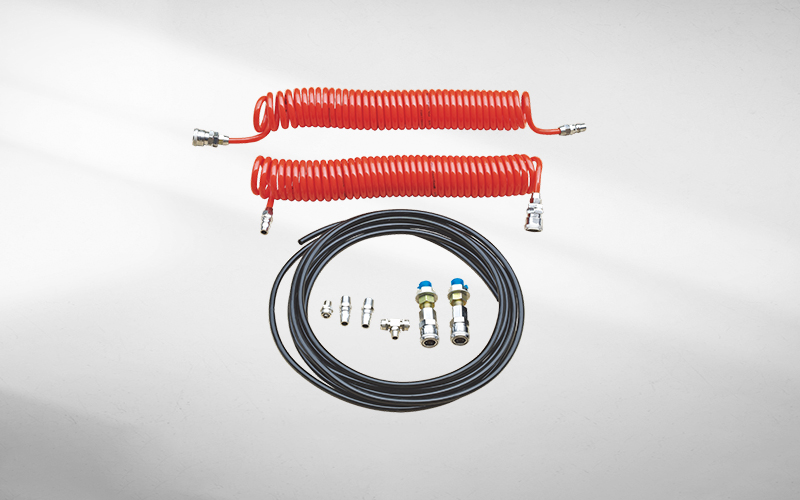

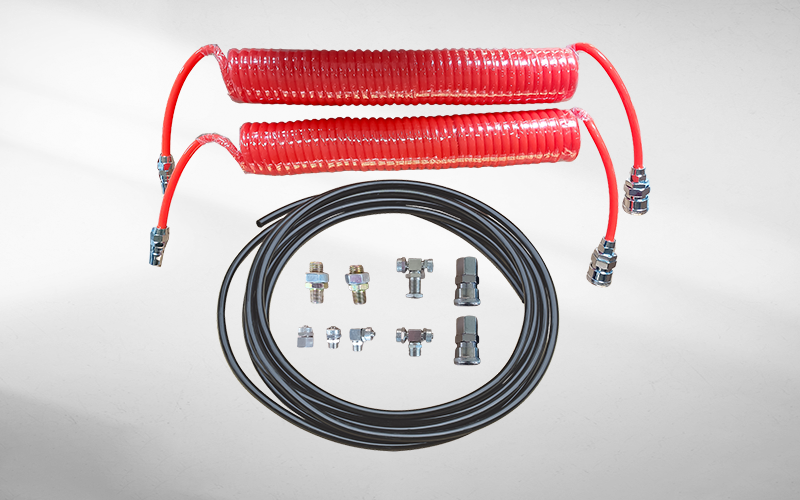

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kit No.:40102

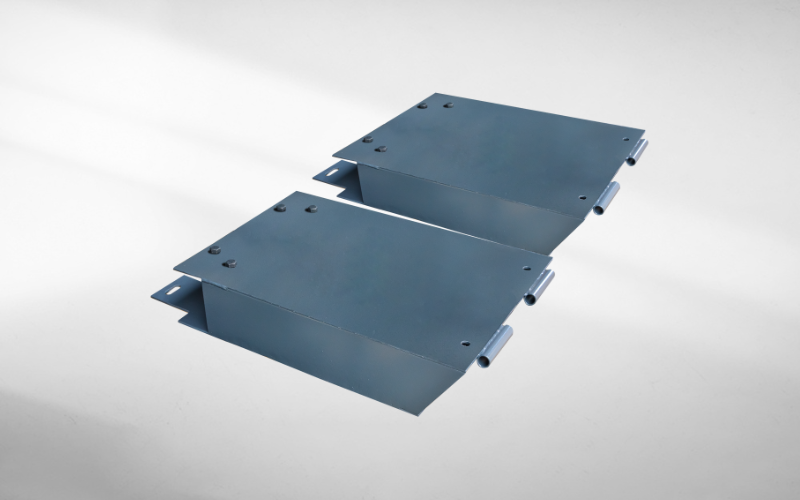

Optional extension platform adds an extra 660mm length to the platform.Kits No.:41403

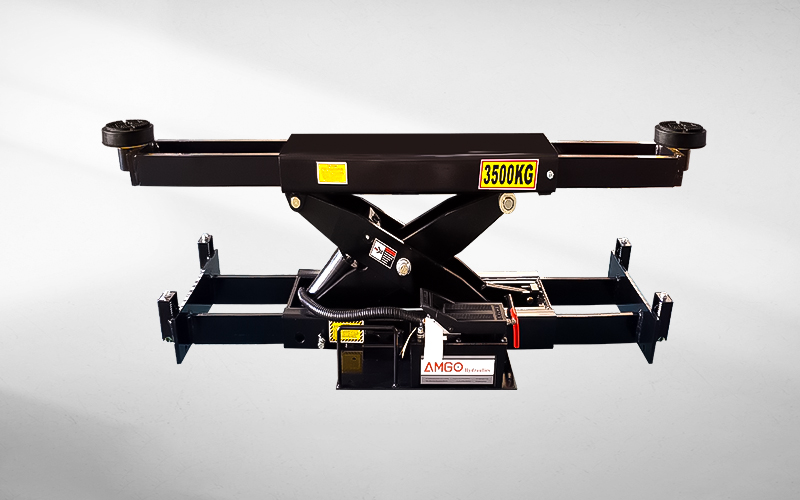

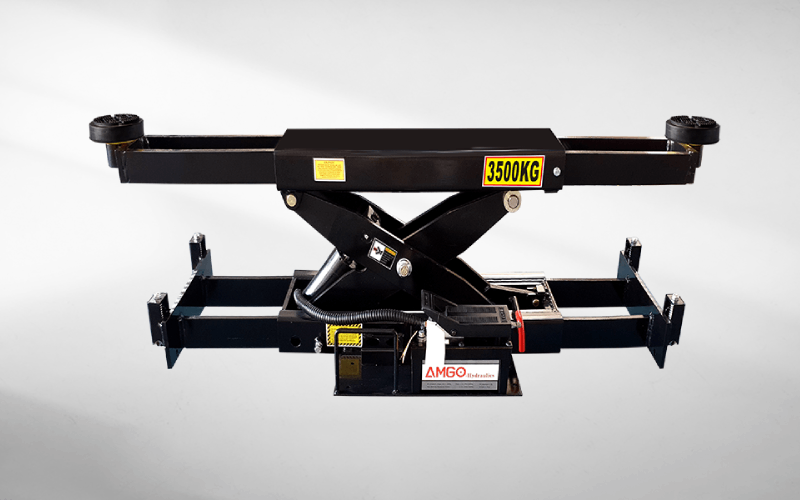

Optional Rolling Jacks

RJ-8A:manual hydraulic type 3,500kg.
