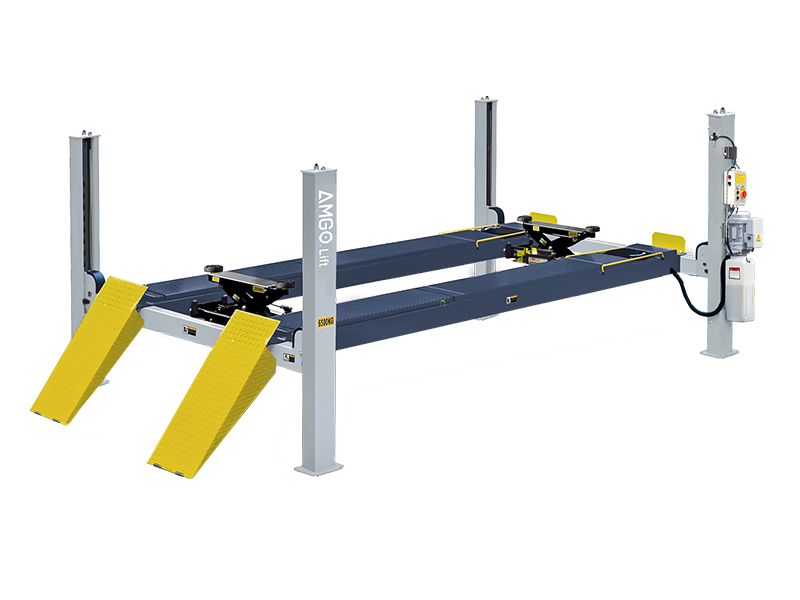

A465A

 HEAVY-DUTY ALIGNMENT FOUR POST LIFT

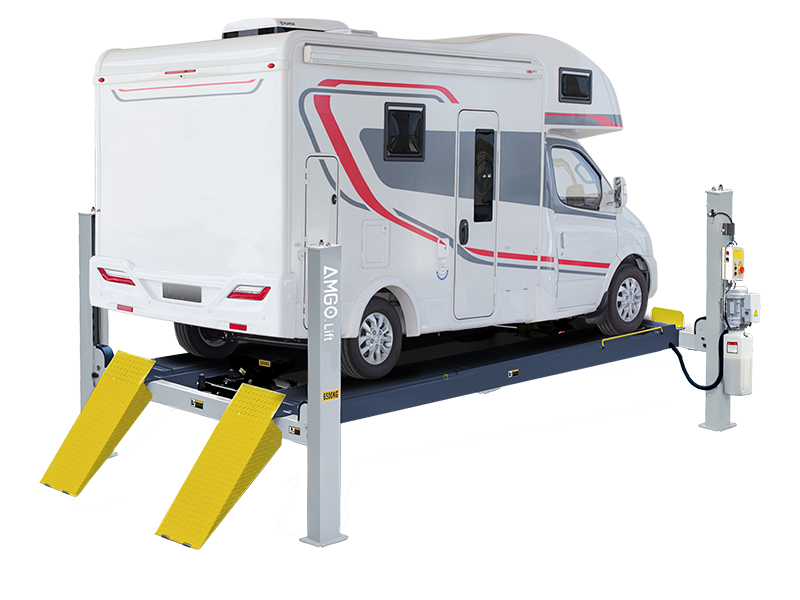

Boasting a heavy-duty 6,500kg capacity, the A465A features a robust, large-scale construction designed to accommodate a full spectrum of vehicles—from passenger cars and vans to trucks and motorhomes. Ideal for both general servicing and alignment work, it delivers a complete all-in-one solution for professional workshops.

Detailed Product Information

  • Heavy duty design, lifting capacity: 6500KG;
  • Alignment design allows for alignment service;
  • 24V safe electrical operation system;
  • Stelpless adjustable width between platforms;
  • Integrated non-skid diamond platforms;
  • Both auto-activating mechanical lock and air-release safety lock mechanisms;
  • Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;
  • Adjustable turnplate positions accommodate various vehicles with differing wheelbases.;
  • High quality hydraulic cylinder design and manufactured at high standard.

Model A465A



Alignment Four post Lift

Lifting Capacity



6500kg

Lifting Time



79s

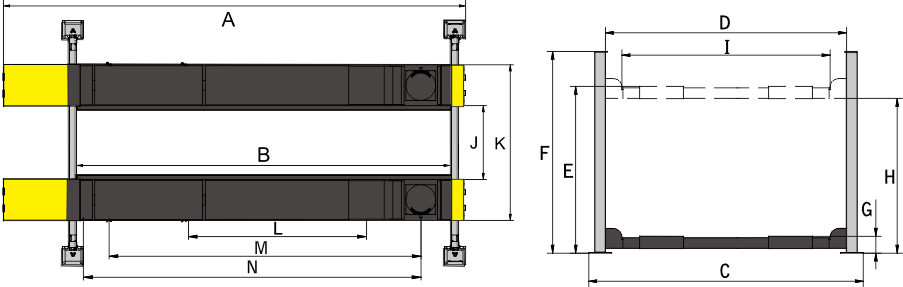

Overall Length(Inc Ramps)

A

6528mm

Runway Length

B

5092mm

Overal Width

C

3324mm

Width Between Columns

D

2946mm

Max. Lifting Height

E

1950mm

Max. Lock Height to top of runway

1880mm

Overall Height

F

2189mm

Minimum Height

G

250mm

Max. Underneath Height

H

1730mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2592mm

Width Between Runways

J

Standard installed: 1168mm

Adj. range: 965~1372mm

Outside Edge of Runways

K

Standard installed: 2184mm

Adj. range: 1981~ 2388mm

Min. Four Wheel Align

L

2396mm

Max. Four Wheel Align

M

4310mm

Max. Two Wheel Align

N

4472mm

Gross Weight



1544kg

Motor



3.0HP

Packing Dimension



5550 x 560 x 830 mm









140x140

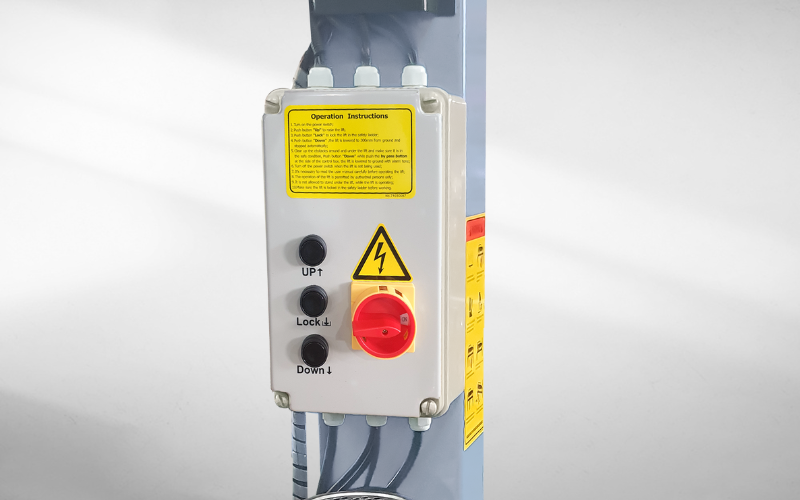

Electric control device with UP,LOCK and DOWN buttons.

140x140

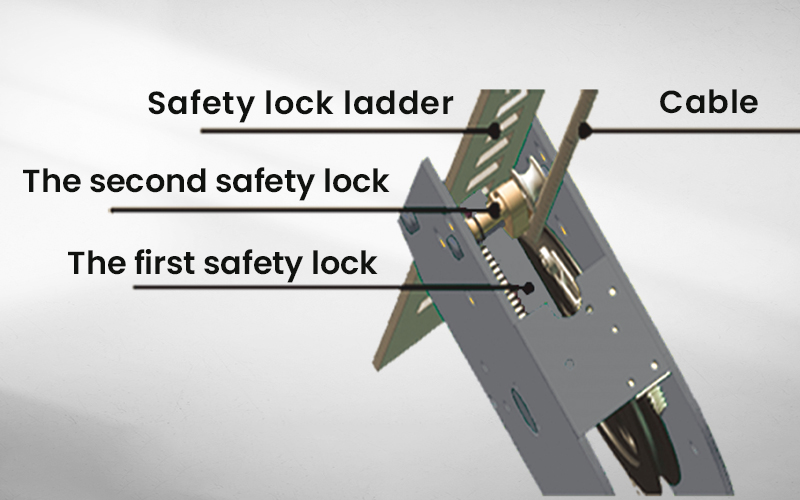

Double safety locks provide additional safety.

140x140

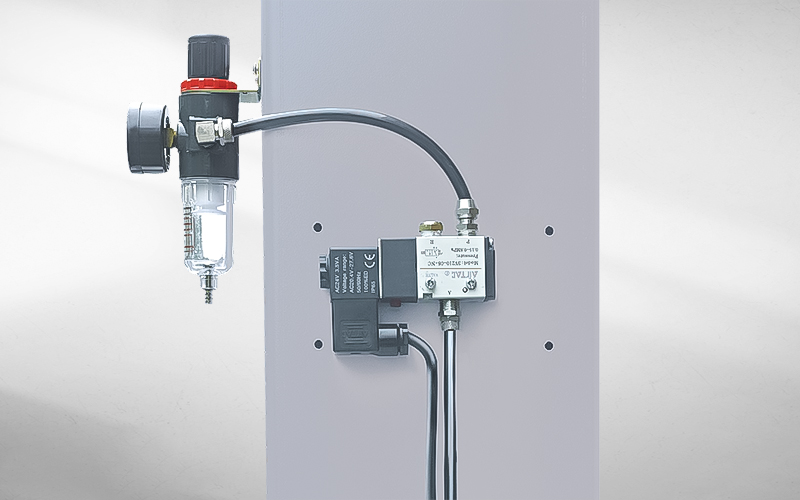

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

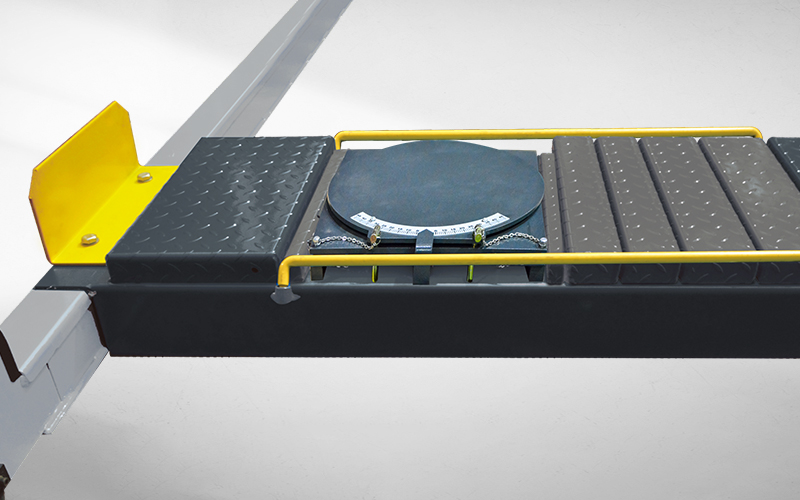

Adjustable turnplate blocks to fit various wheel bases vehicles.

140x140

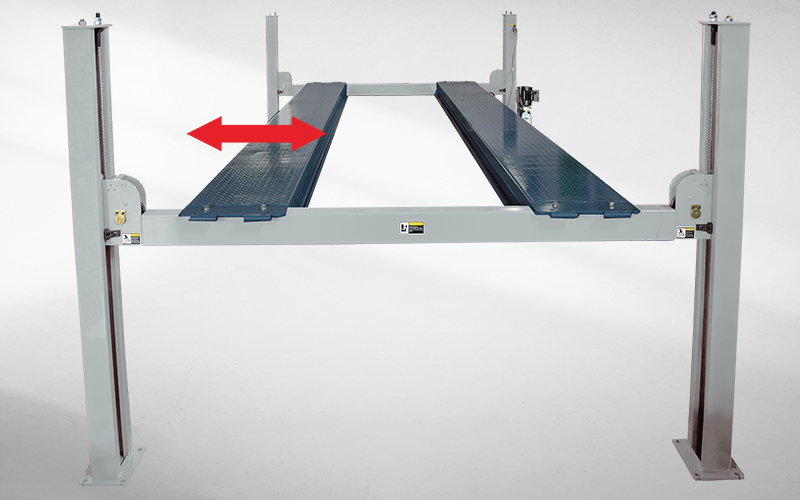

Off-side platform can be adjusted the mounting position left or right.



140x140

Non-slip diamond platforms come as standard.

140x140

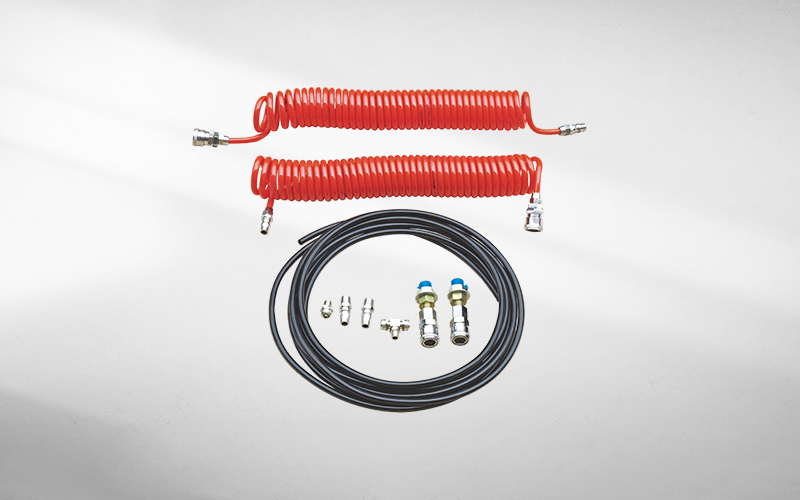

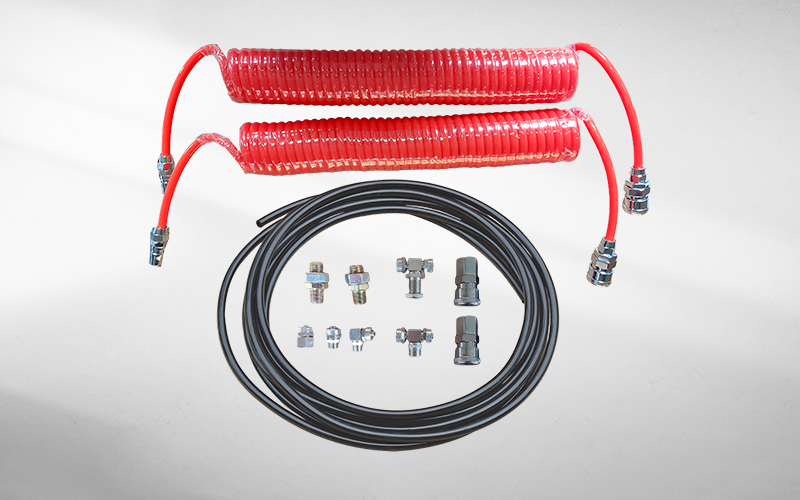

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.:40102



140x140

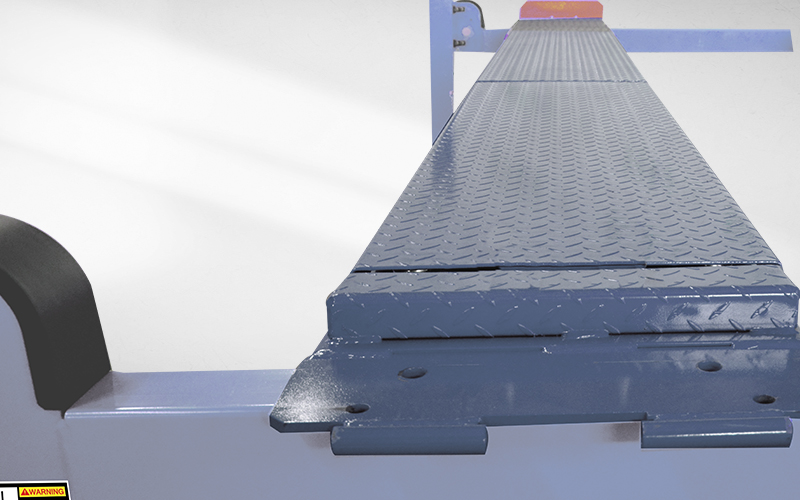

Optional extension platform ( 1 unit) adds an extra 660mm length to the platform.Kits No.:41403-01

140x140

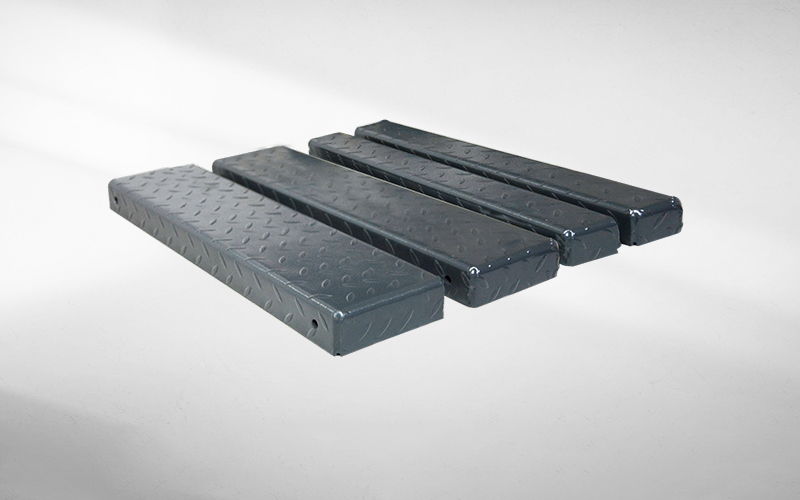

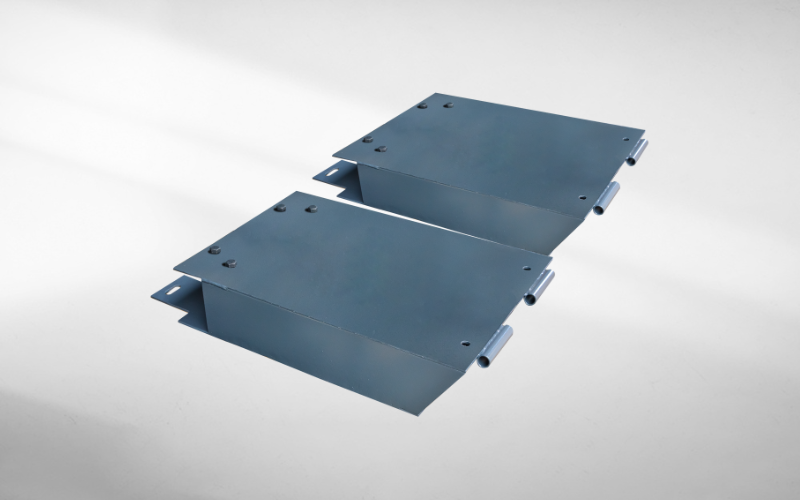

Optional turnplate adjustment blocks ( 1 set), used with extension platform ,Kits No.:40905

140x140

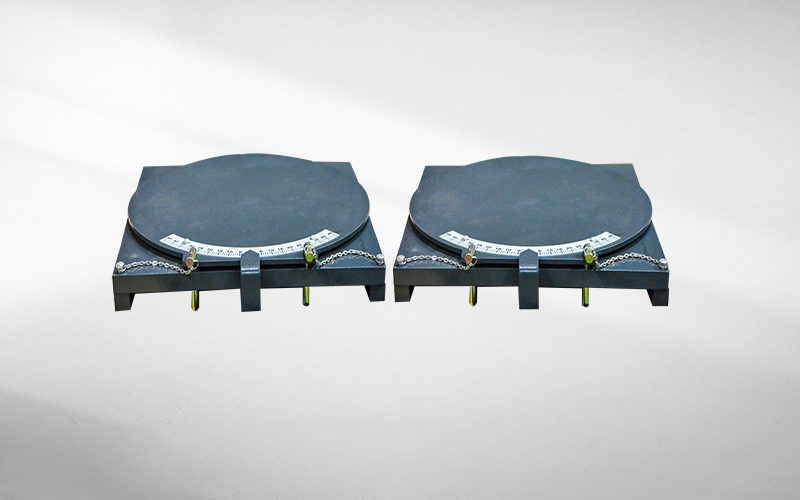

Optional Turnplate ( 1 PC) Kits No.:40101

140x140

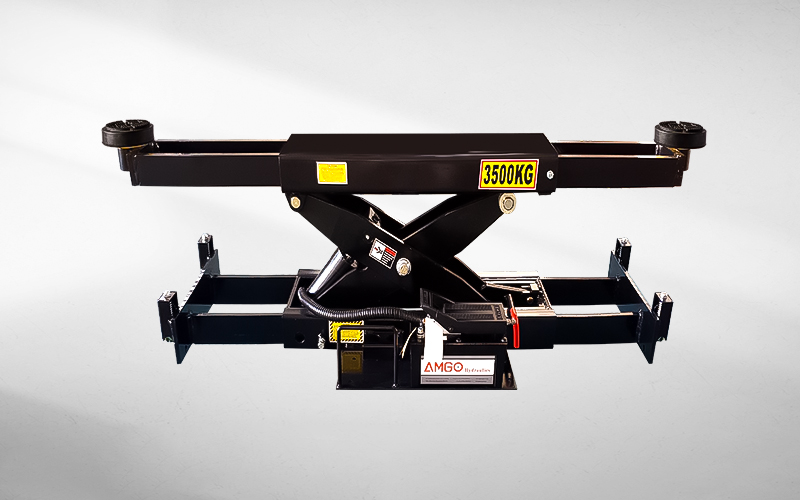

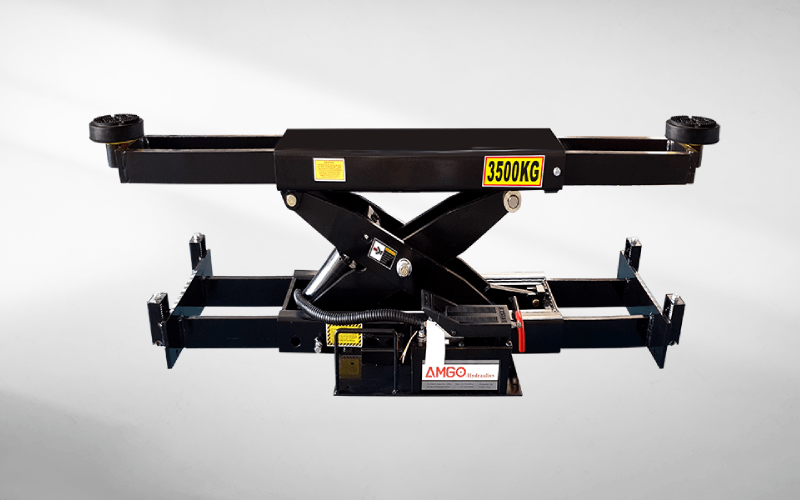

Optional Rolling Jacks

RJ-8A: manual hydraulic type 3,500kg.
