A480A

 HEAVY DUTY ALIGNMENT FOUR POST LIFT


Building upon the proven robustness of the A480, this enhanced model introduces precision alignment functionality,a strategic advancement designed to expand your operational versatility and lifting efficiency.

Detailed Product Information

• Heavy duty design, lifting capacity: 8000KG;

• Alignment design allows for alignment service;

• Oversized long platforms accommodate to service more vehicles;

• 24V safe electrical operation system;

• Stelpless adjustable width between platforms;

• Integrated non-skid diamond platforms;

• Both auto-activating mechanical lock and air-release safety lock mechanisms;

• Dual safety devices mechanisms: both primary safety locks and cable-slack protection mechanism;

• Adjustable turnplate positions accommodate various vehicles with differing wheelbases.;

• High quality hydraulic cylinder design and manufactured at high standard.

Model A480A



Alignment Four Post Lift

Lifting Capacity



8000kg

Lifting Time



81s

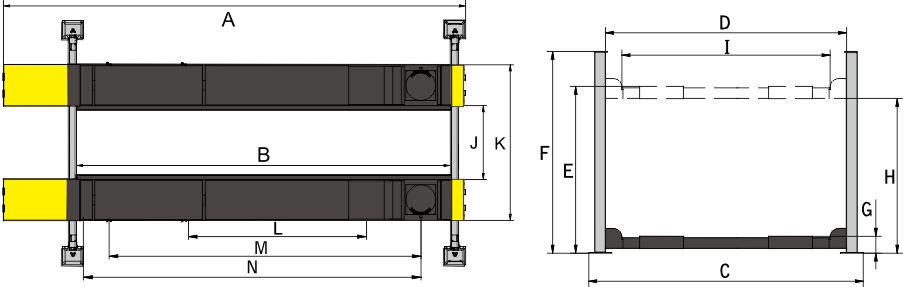

Overall Length(Inc Ramps)

A

7436mm

Runway Length

B

6000mm

Overal Width

C

3482mm

Width Between Columns

D

3108mm

Max. Lifting Height

E

1950mm

Max. Lock Height to top of runway

1880mm

Overall Height

F

2189mm

Minimum Height

G

250mm

Max. Underneath Height

H

1730mm

Max. Lock Underneath Runway

1660mm

Drive-Thru Clearance

I

2750mm

Width Between Runways

J

Standard  installed: 1168mm

Adj. range: 965~1401mm

Outside Edge of Runways

K

standard installed: 2284mm

Adj. range: 2081~2517mm

Min. Four Wheel Align

L

2530mm

Max. Four Wheel Align

M

4640mm

Max. Two Wheel Align

N

5310mm

Gross Weight



2019kg

Motor



3.0HP

Packing Dimension



6460 x 610 x 860 mm









140x140

Electric control device with UP,LOCK and DOWN buttons.

140x140

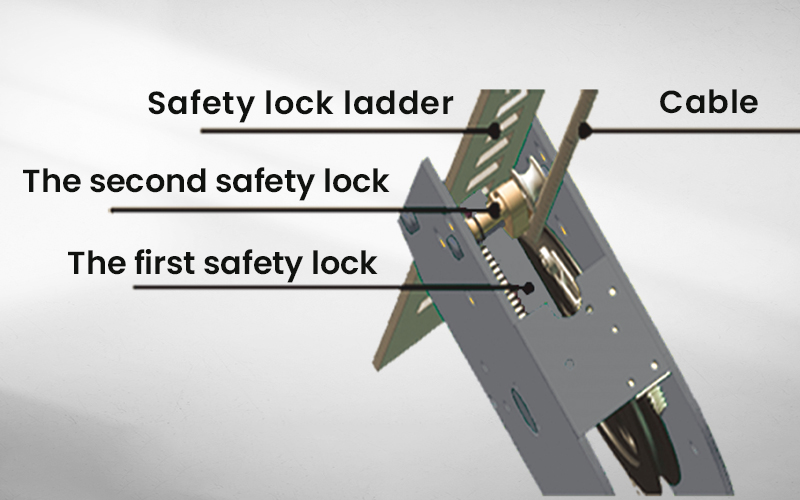

Double safety locks provide additional safety.

140x140

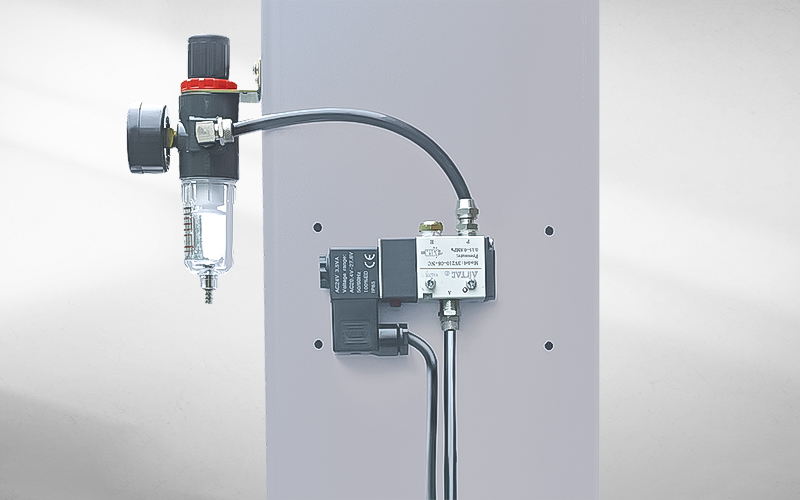

Oil-water separator and solenoid air valve are installed on the power side column.



140x140

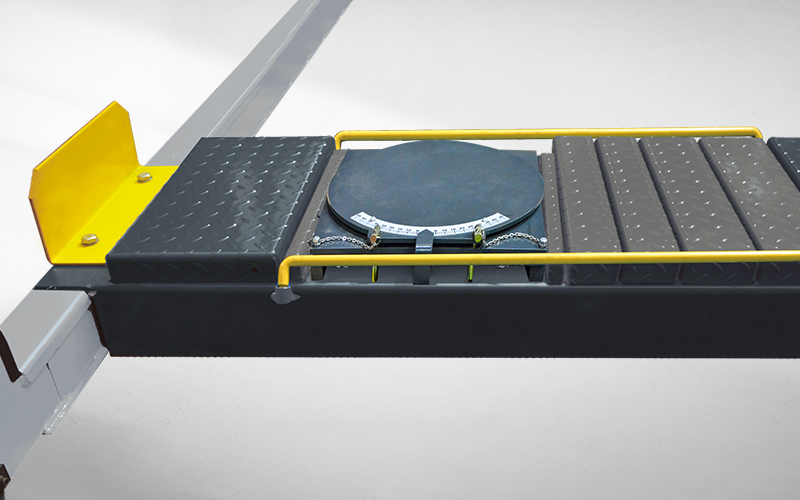

Adjustable turnplate blocks to fit various wheel bases vehicles.

140x140

Non-slip diamond platforms come as standard.

140x140

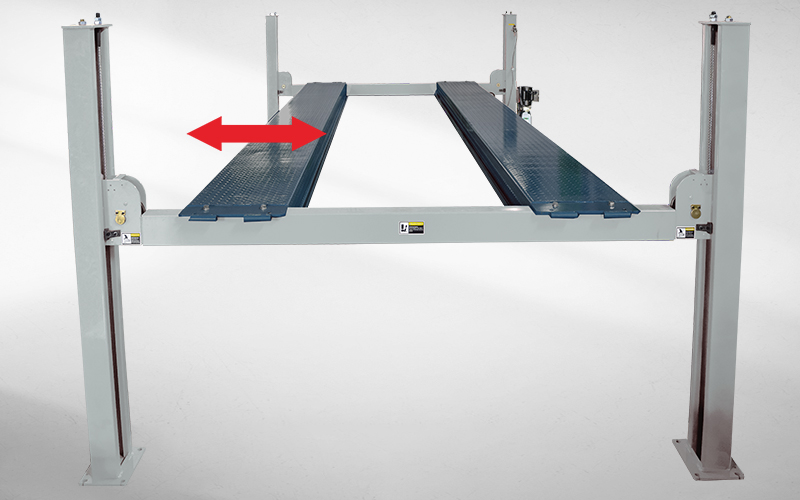

Off-side platform can be adjusted the mounting position left or right.



140x140

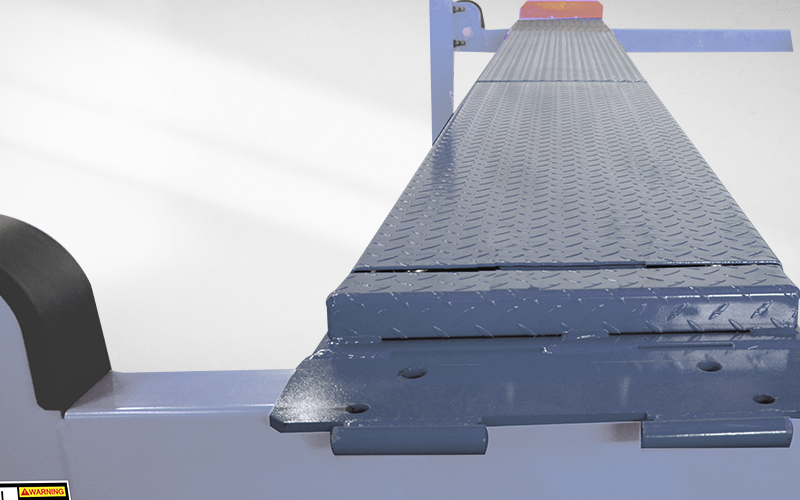

Optional extension platform s adds an extra 737mm length to the platform.Kits No.:41801-01

140x140

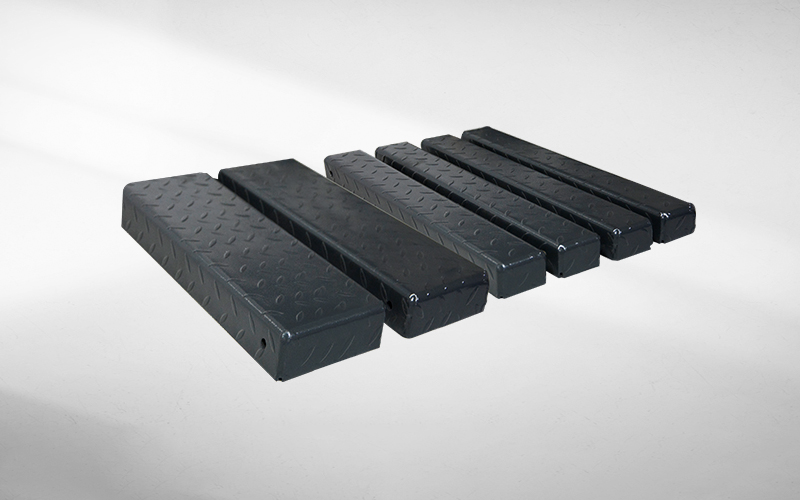

Optional turnplate adjustment blocks ( 1 set) , used with extension platform ,Kits No.:41803

140x140

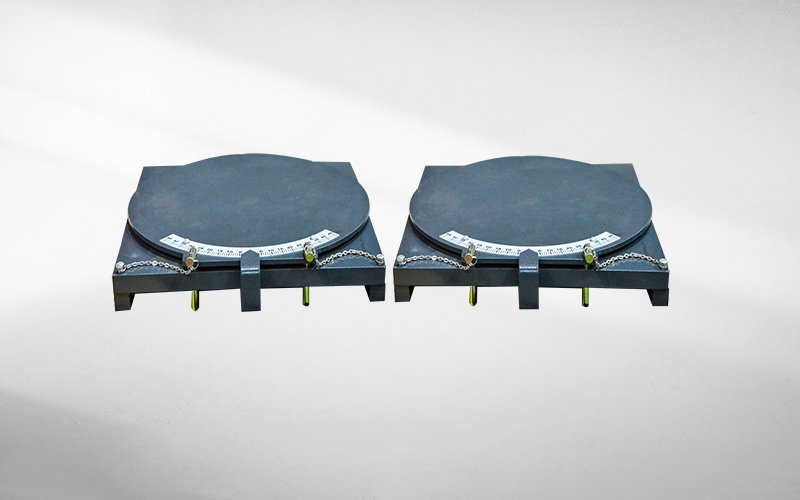

Optional Turnplate (1PC), Kits No.:40101





140x140

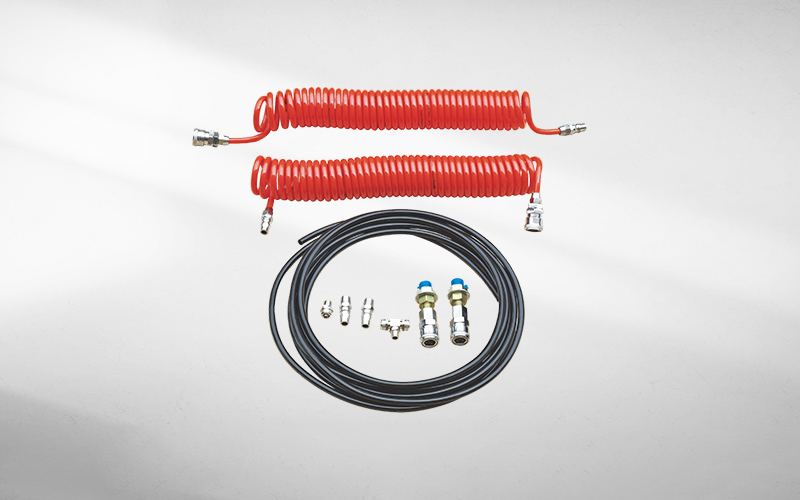

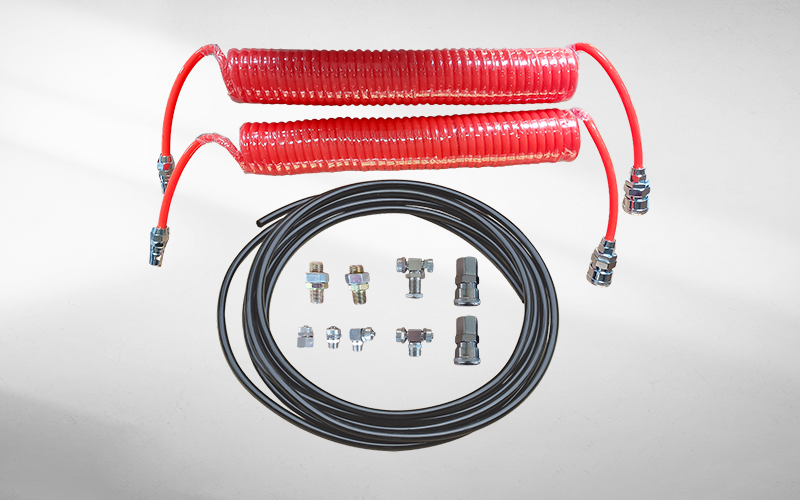

Optional Air Line Kits

All AMGO four post lifts are designed to use the air line kits for rolling jack.Kits No.:40102

140x140

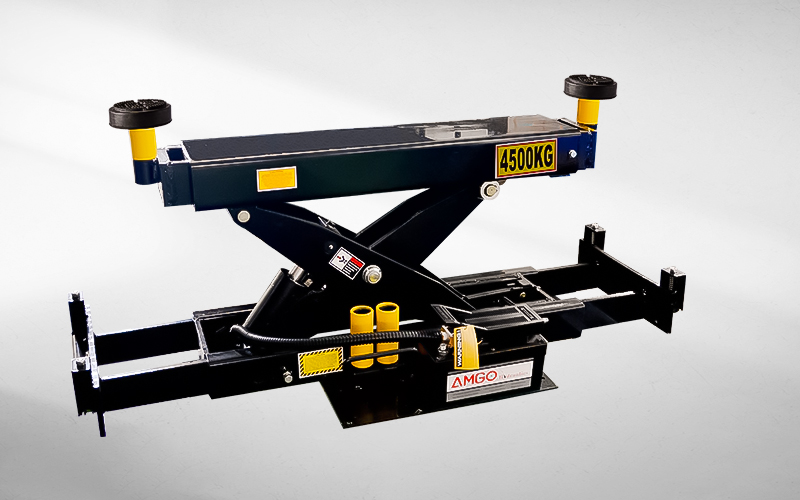

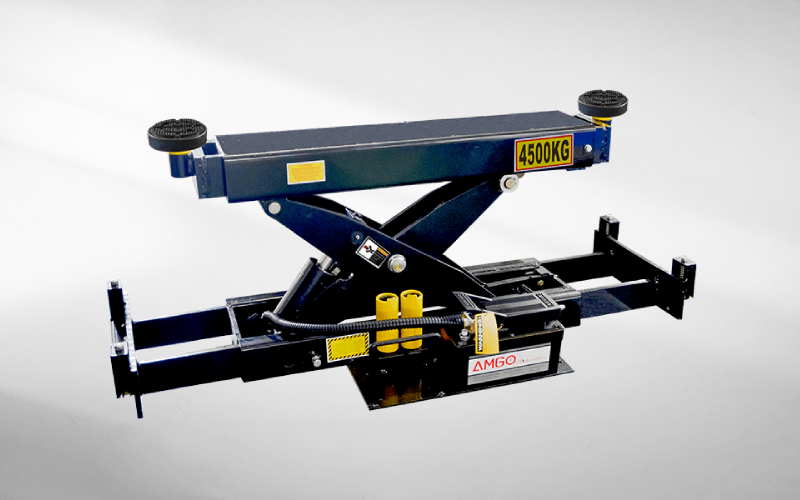

Optional Rolling Jacks

RJ-10A: manual hydraulic type 4500kg
