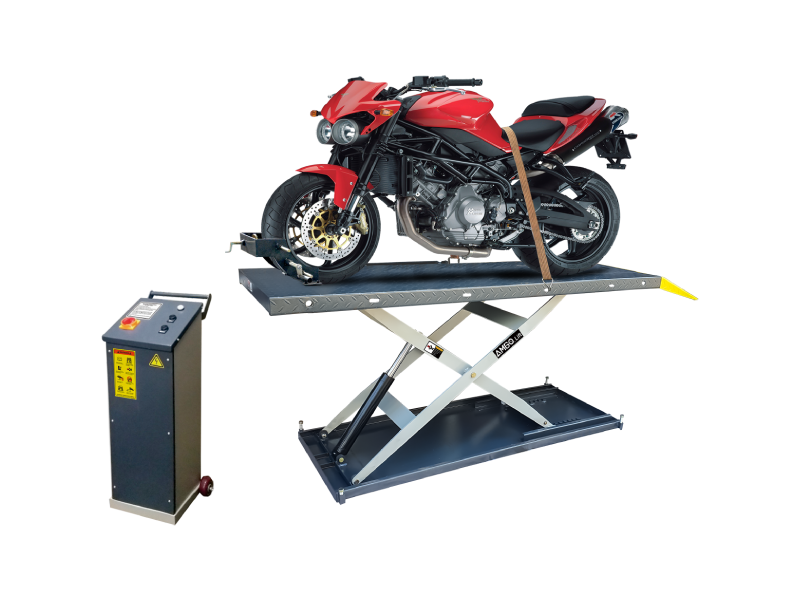

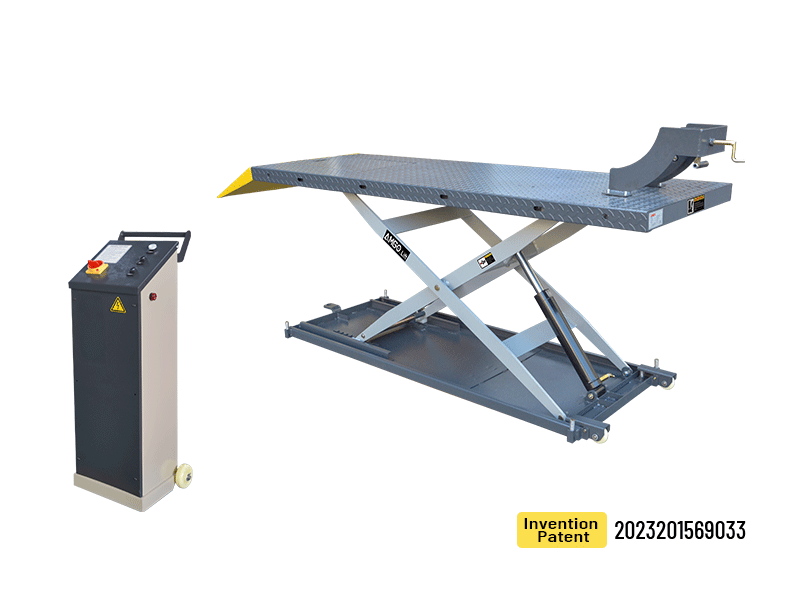

MC-600

 MOTORCYCLE LIFT

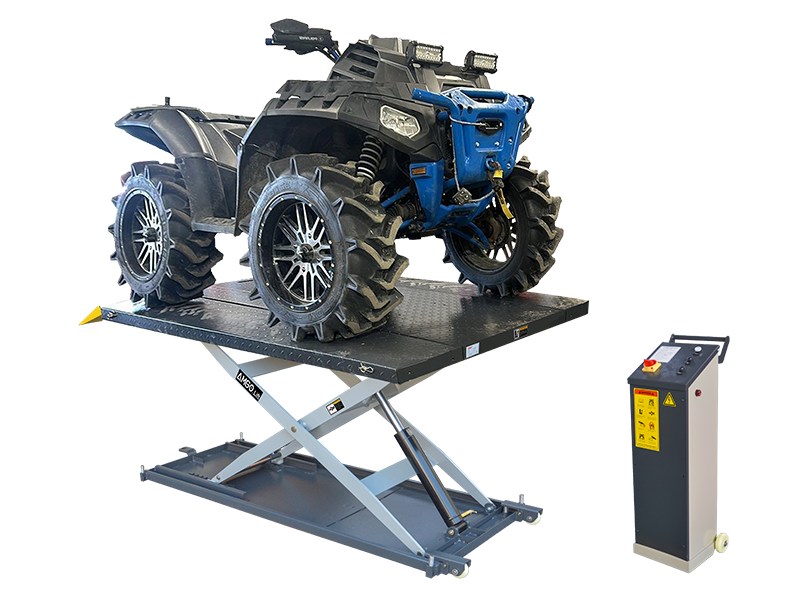

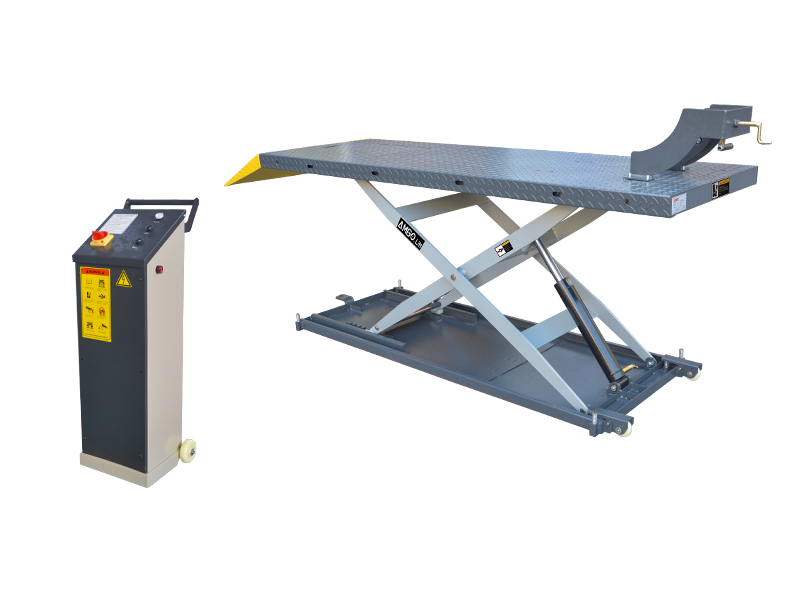

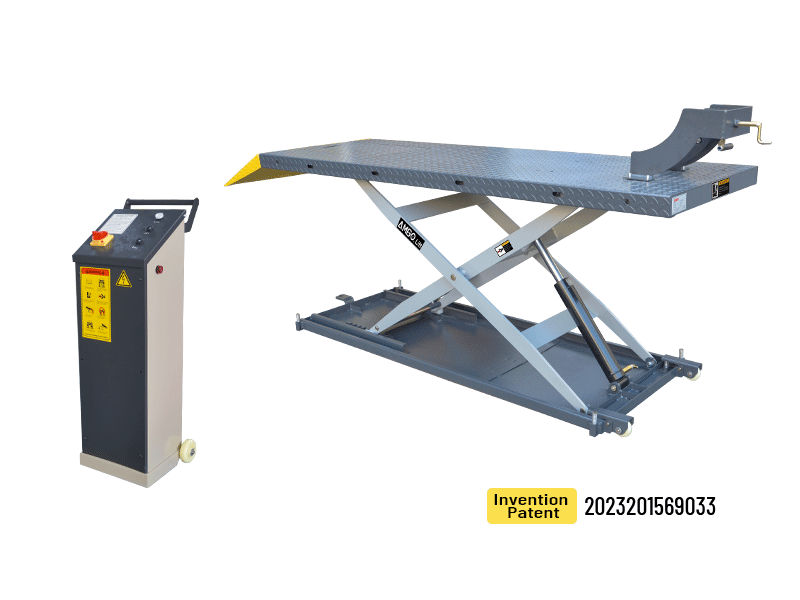

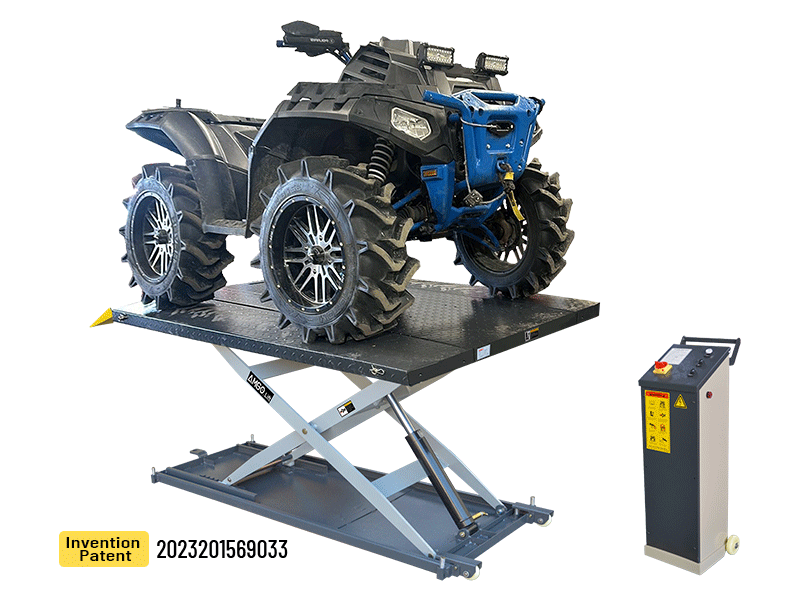

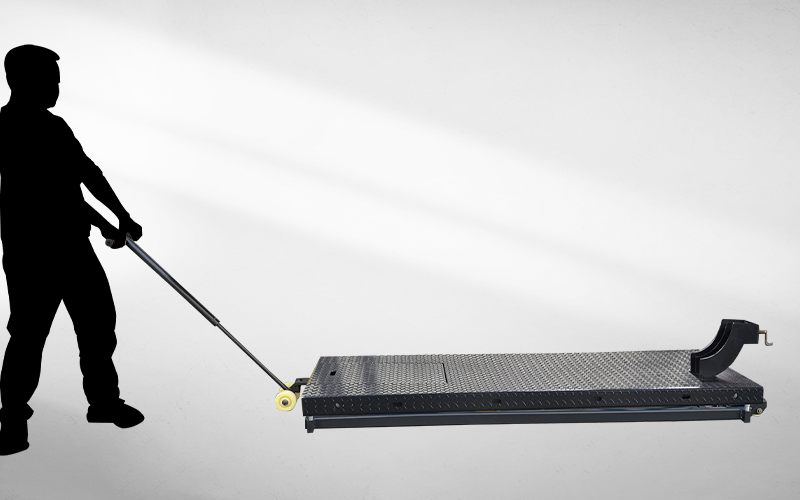

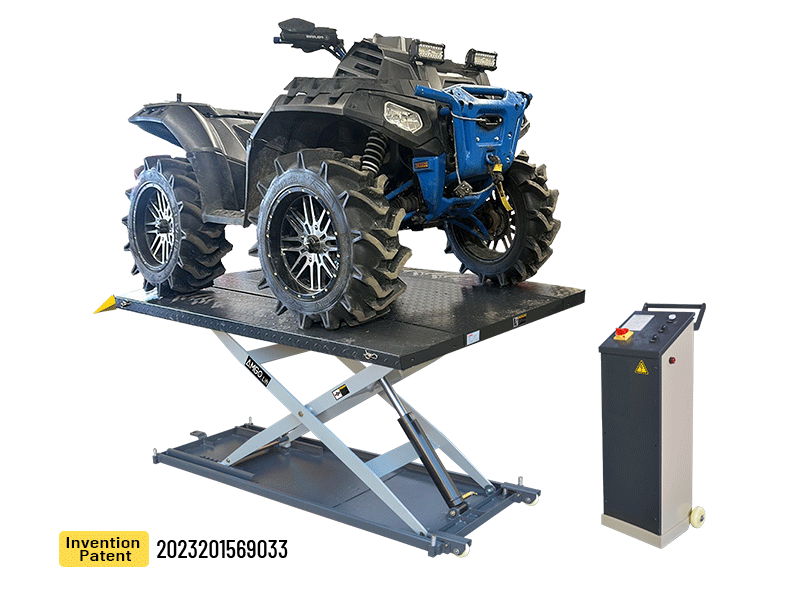

The MC-600 is engineered for professional versatility, delivering robust performance across a range of all-terrain utility vehicles, including motorcycles, snowmobiles, and ATVs. Its mobile design facilitates convenient movement between service bays. Furthermore, the adjustable wheel vise and optional width/length extension kits provide extensive adaptability to accommodate various models, making it the ultimate choice for both workshops and discerning enthusiasts.

Detailed Product Information



  • Electric power hydraulic control;

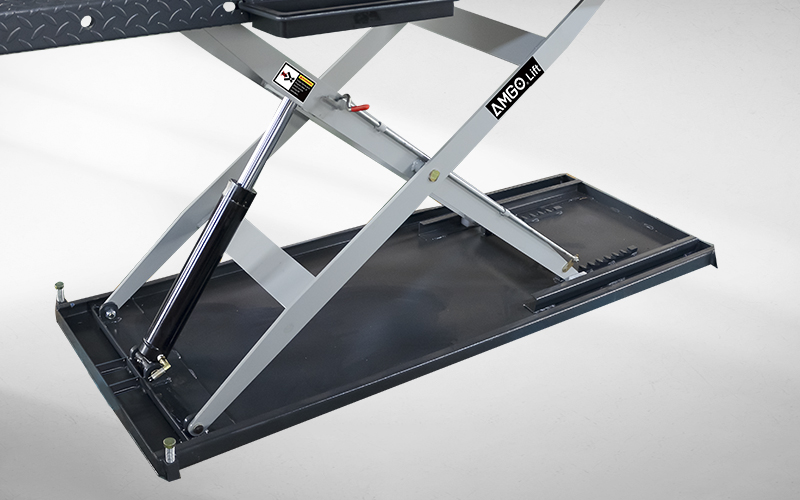

  • Full-area steel base pedestal design combination of solid construction scissors supports powerful lifting ability;
  • Reinforced steel-plate platform with non-skid diamond-plate surface as well;
  • Built-in Self-lubricating UHMW Polyethylene sliders improve running smoothly and are maintenance  free;
  • Manual release safety lock with auto activation;
  • Seven level automatic locking system provides friendly working height;
  • Ergonomic wheel vise with rubber pad for wheel protection,which can be installed on two positions and services for both long or short axle motorcycles;
  • Removable rear cover for rear wheel changing;
  • User-conveniently tool and parts tray;
  • Optional lifting jack: Works well in secondary lifting;
  • Optional width extension kit: With 600mm(23 5/8″) extra widen platform;
  • Optional length extension kit: Add 400mm(15 3/4″) extra lengthen the platform for the long-axle motorcycle.

Model

MC-600

Lifting Capacity

600kg

Lifting Time

23s

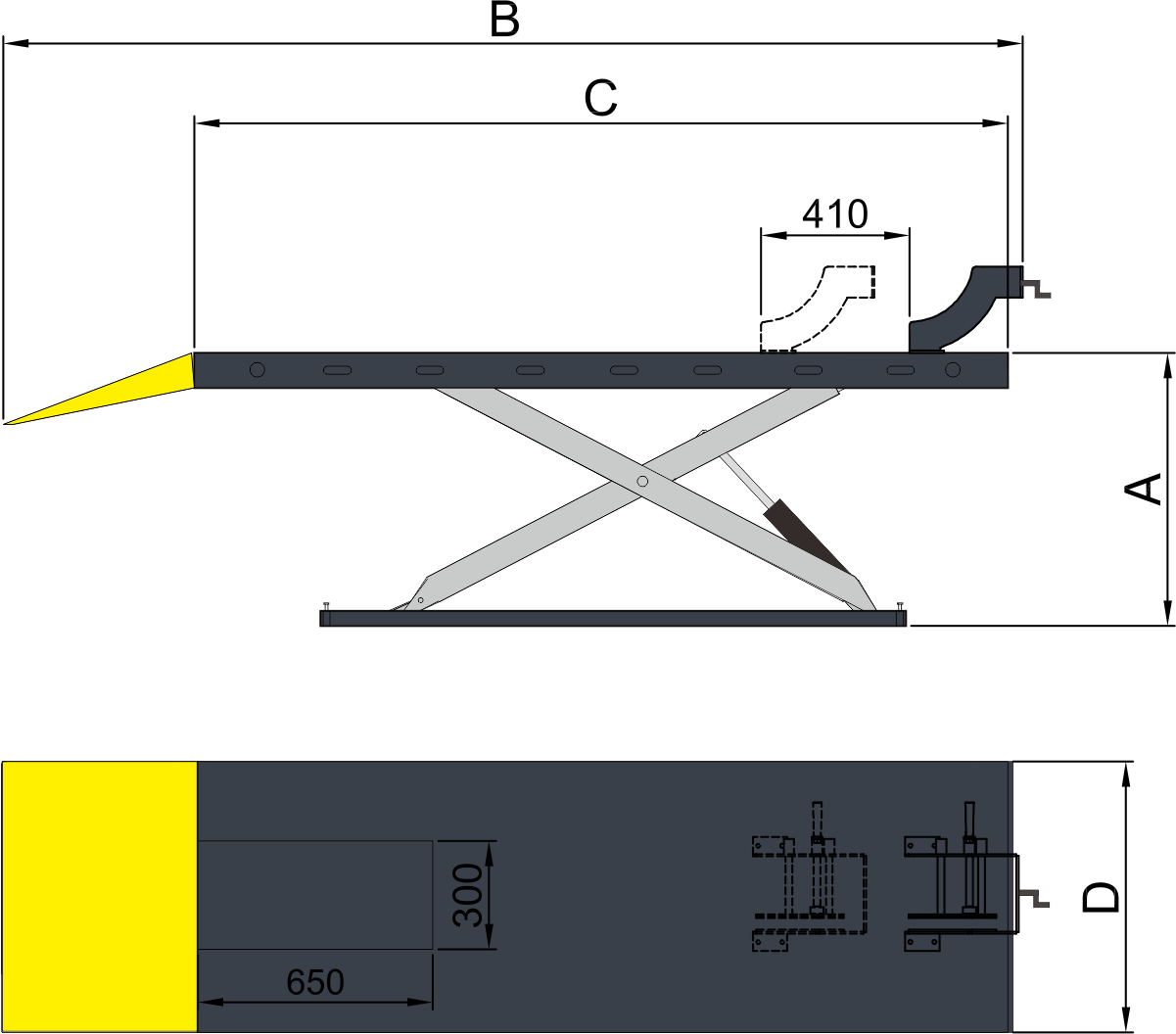

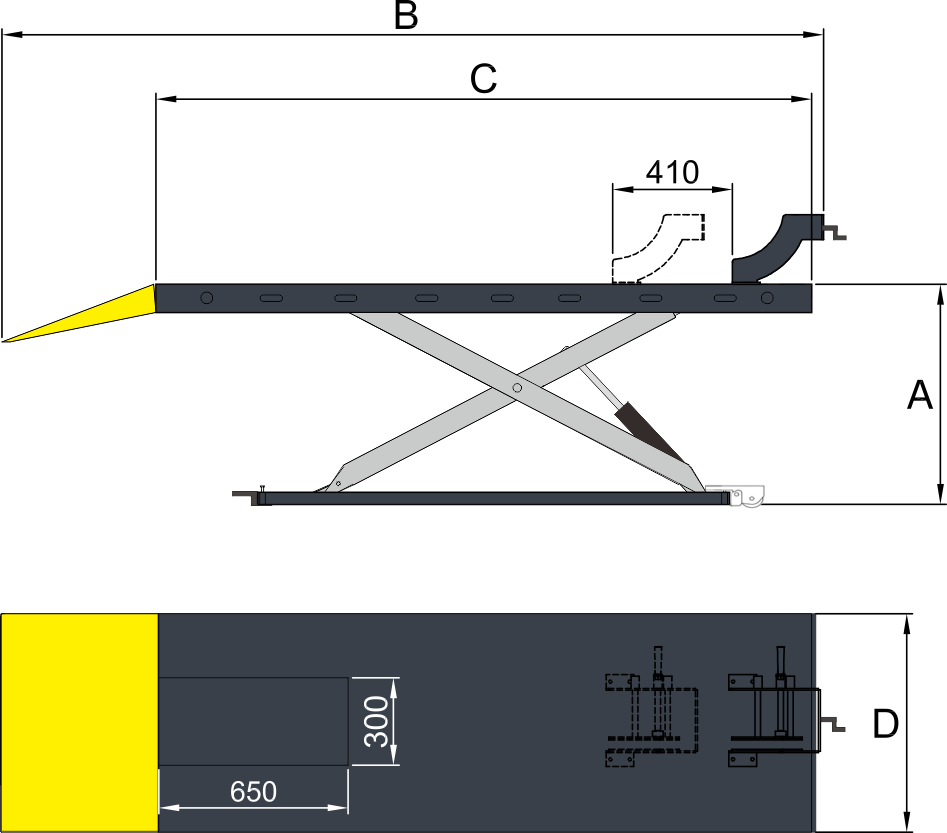

A1: Lifting Height

1090mm

A2: Minimum Height

155mm

B: Overall Length(Inc. Ramp)

2700mm

C: Runway Length

2250mm

D: Overall Width

750mm

Gross Weight

289kg

Motor

1.0HP







  •

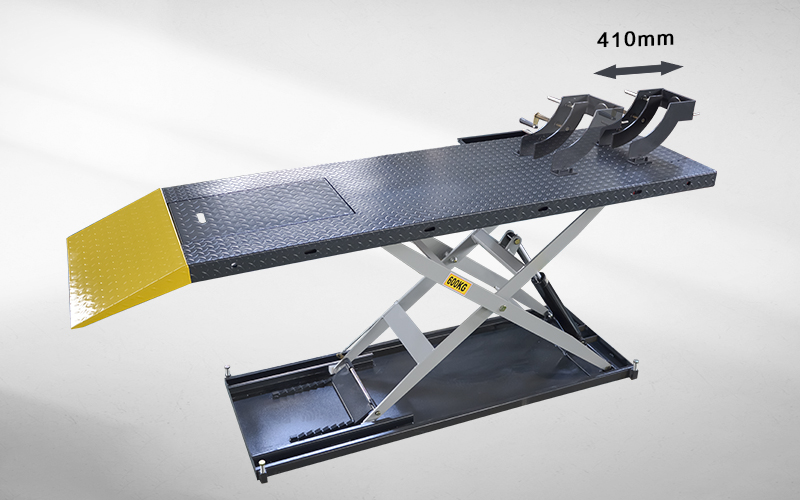

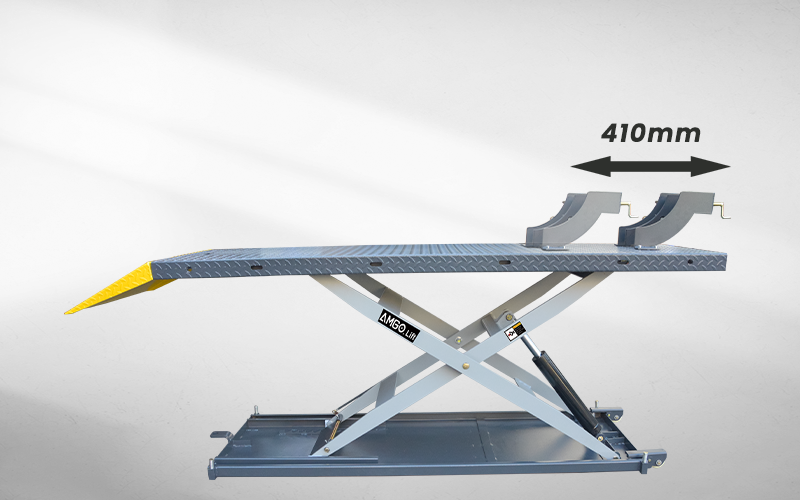

    Front wheel vise
    With adjustable distance 410mm
    Kits No.:86010782

  •

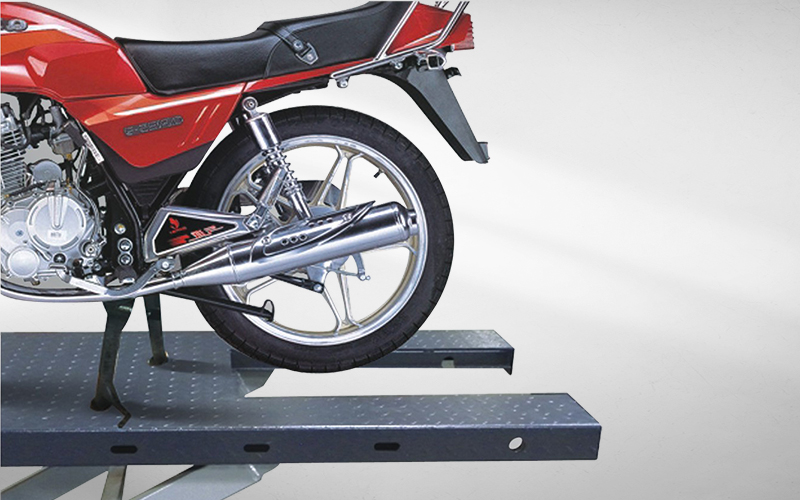

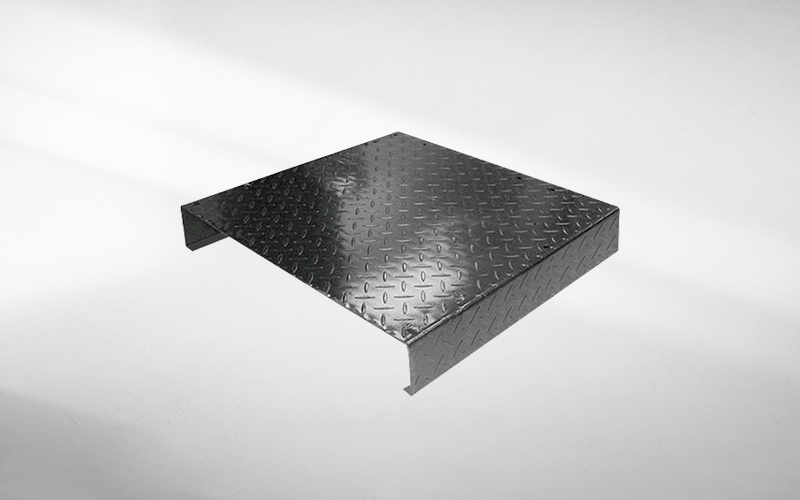

    Rear Tire removal cover
    Removable platform cover is convenient for rear wheel changing and suspension work.

  •

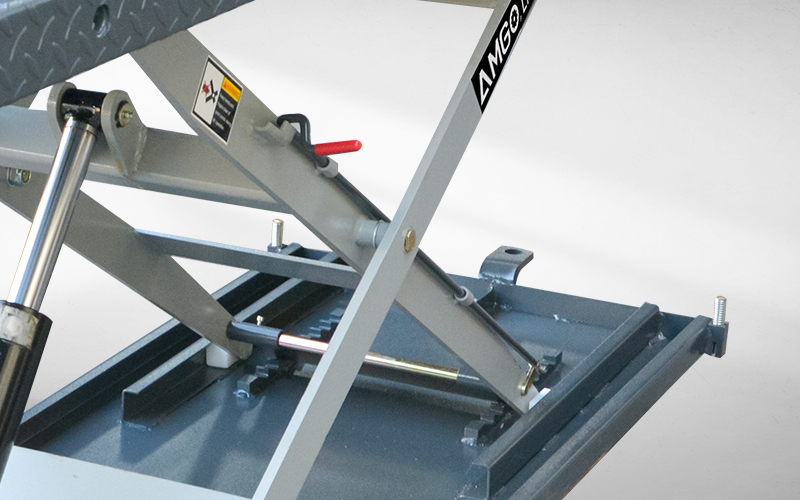

    Manual safety release device.Only available by AMGO.

  •

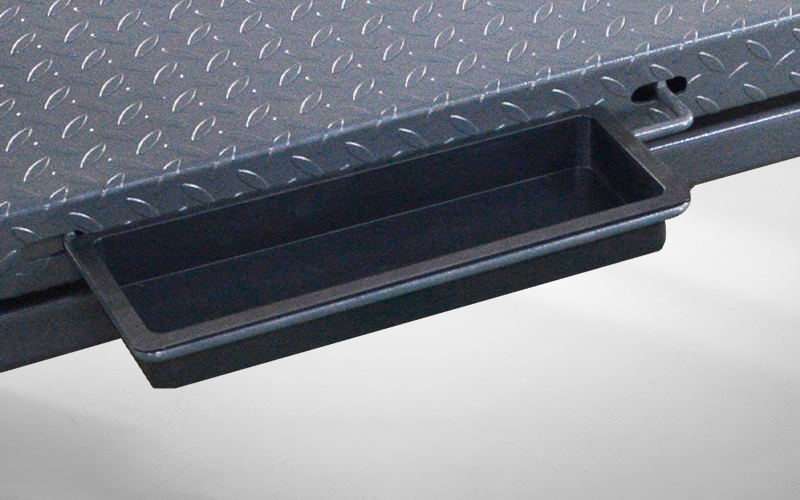

    Tools and parts tray as standard
    Part No.: 10206156

  •

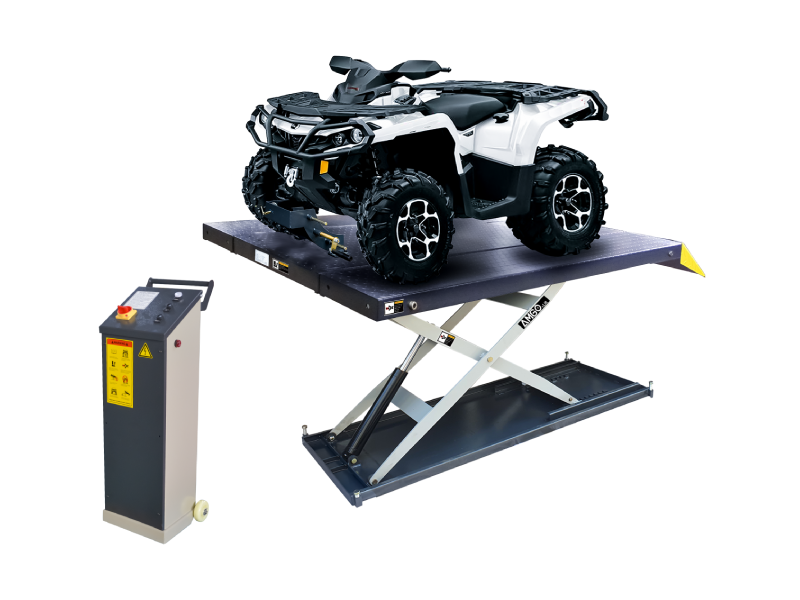

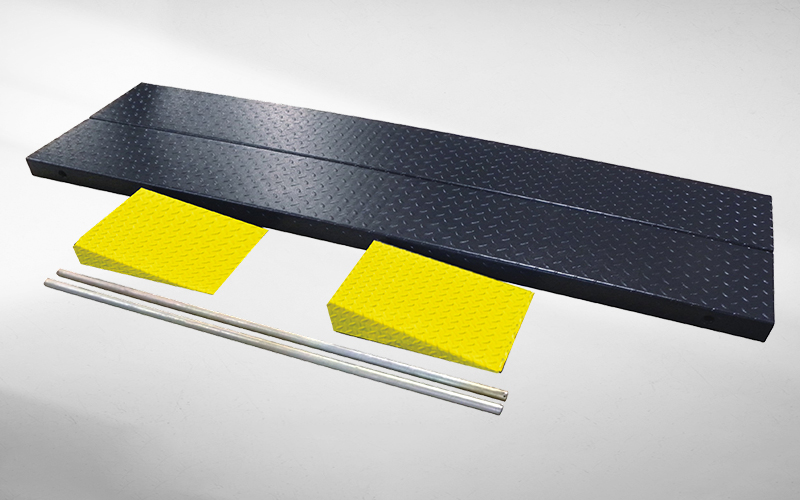

    Optional width extension kit
    Adding 600mm extra width on platform to be suitable for three or four-wheel motorcycle.
    Kits No.:MC001

  •

    Optional length extension kit
    Add 400mm extra length on the platform for the long axle motorcycle.
    Kits No.: MC002

  •

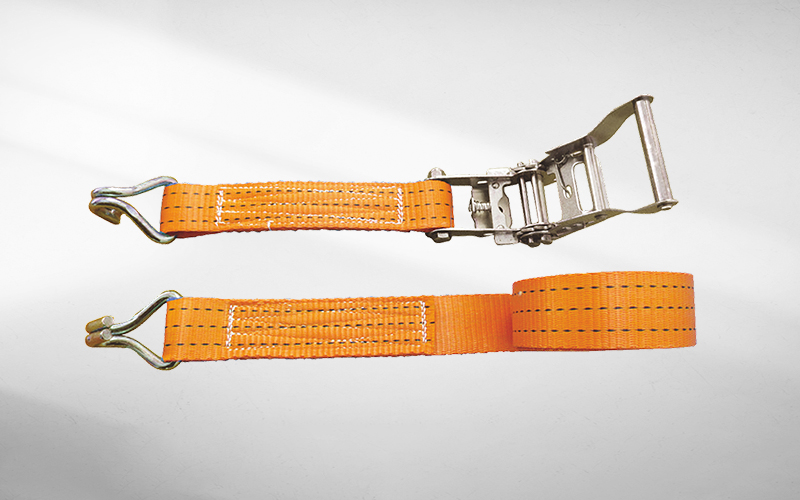

    Vehicle safety belt
    Tighten vehicle before lifting.Optional part Kits No.:MC006

  •

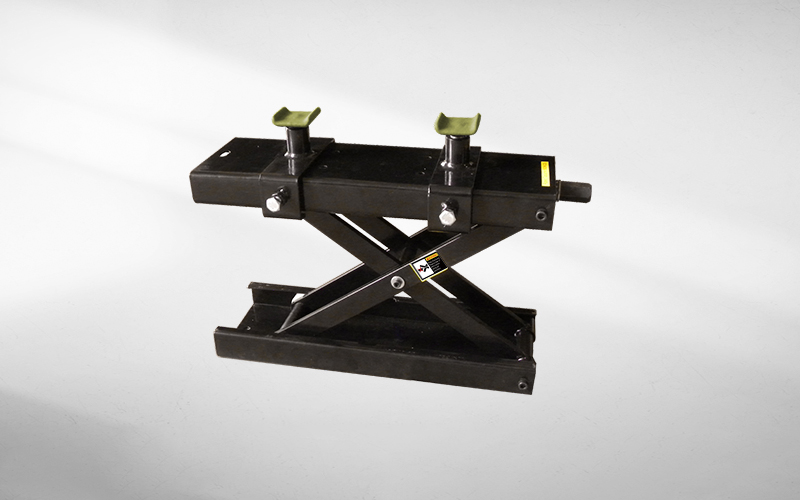

    Optional lifting jack
    Lifting capacity: 500kg perfect for wheel removal.
    Kits No.:MC005

  •

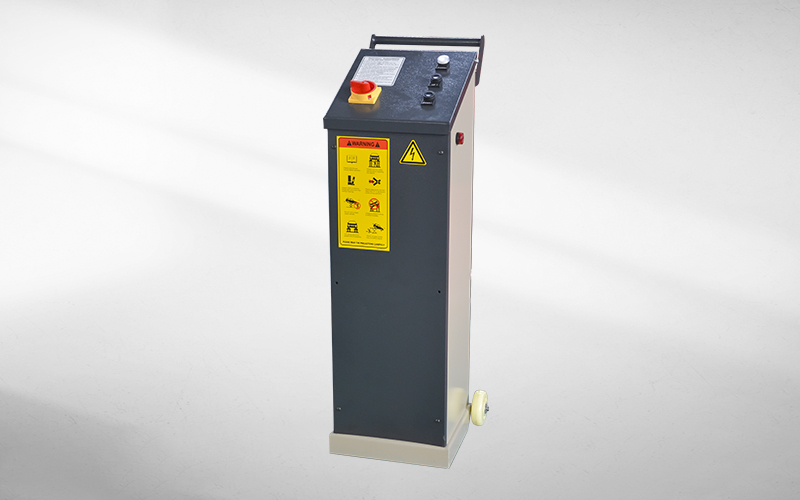

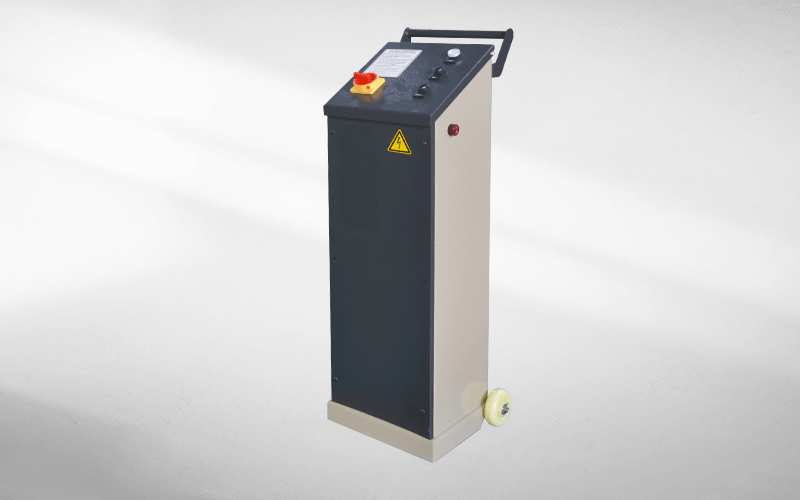

    Mobile control cabinet.

  •

    Portable design, easily roll into any servicebay.
