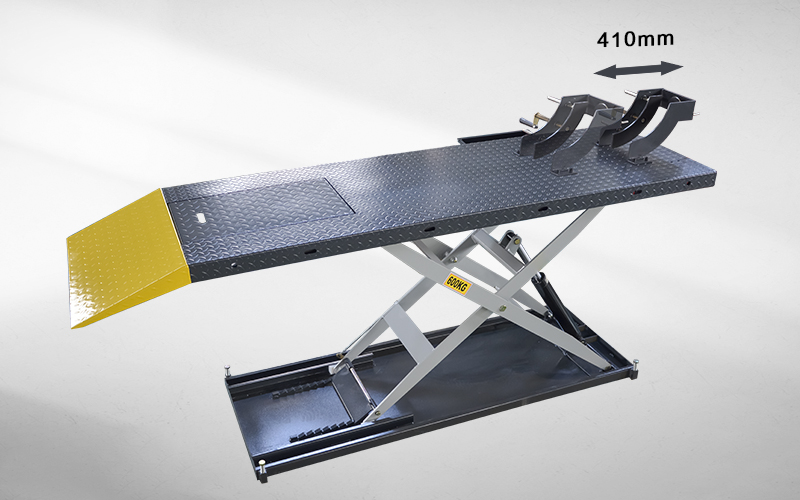

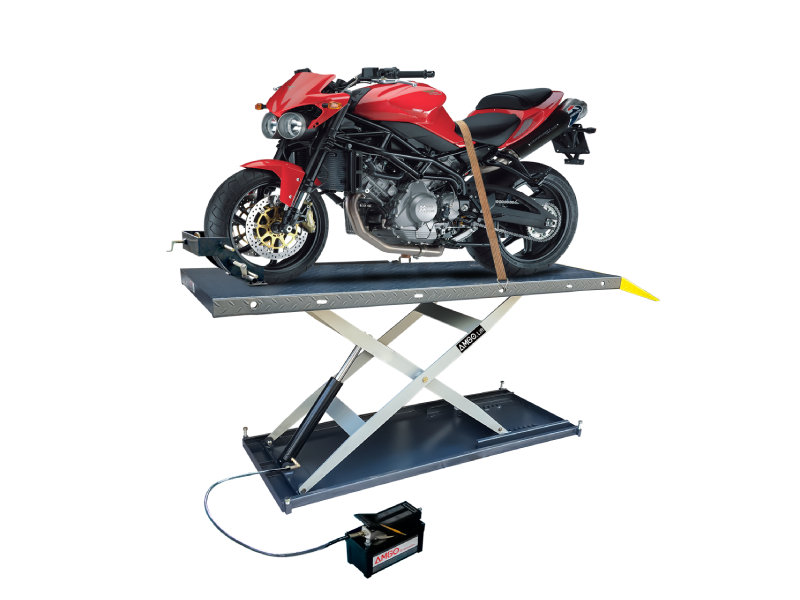

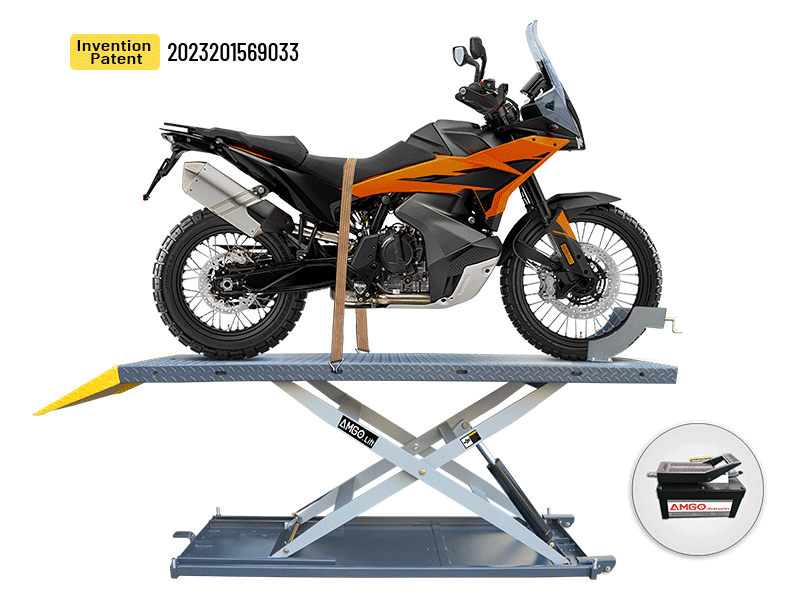

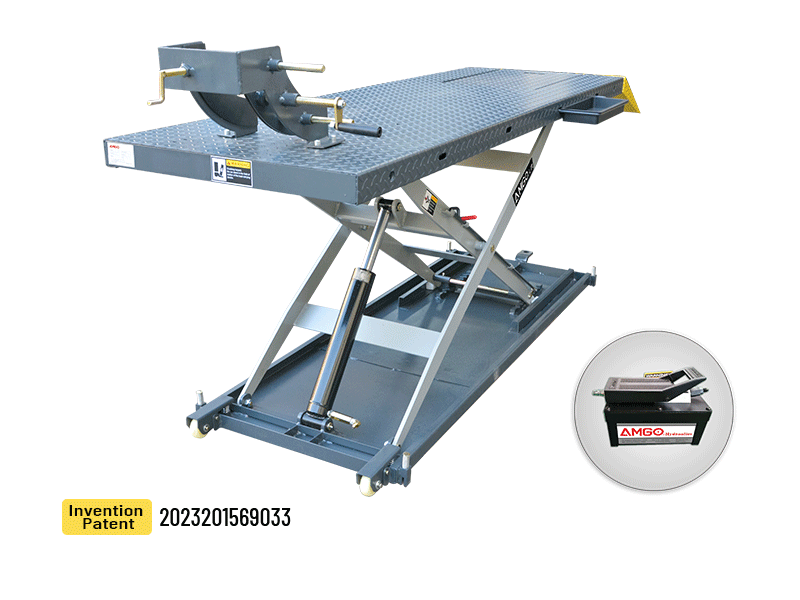

MC-600P

 MOTORCYCLE LIFT

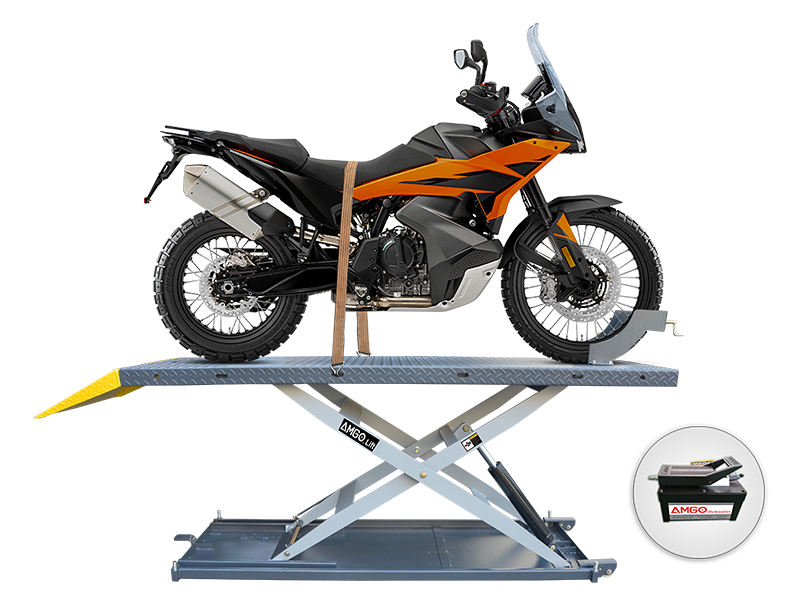

The MC-600P operates on a pneumatic hydraulic system, eliminating any reliance on a mains electrical supply.  Its superior manoeuvrability establishes it the definitive solution for rapid and efficient servicing between workshop bays for motorcycles, ATVs, snowmobiles, and jet skis.

Detailed Product Information

  • Pneumatic hydraulic pump control;

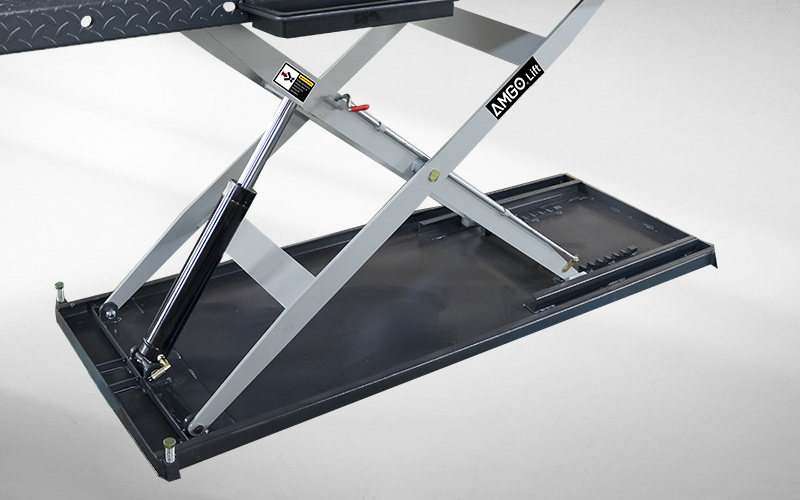

  • Full-area steel base pedestal design combination of solid construction scissors supports powerful lifting ability;
  • Reinforced steel-plate platform with non-skid diamond-plate surface as well;
  • Built-in Self-lubricating UHMW Polyethylene sliders improve running smoothly and are maintenance free;

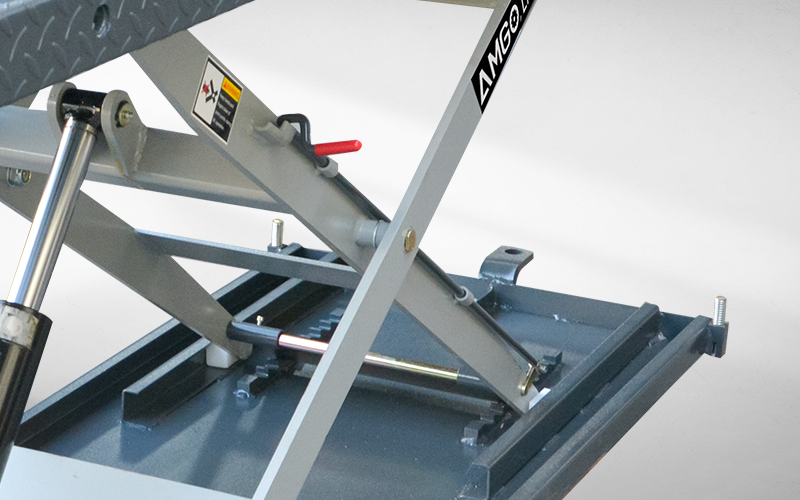

  • Manual release safety lock with auto activation;
  • Multipoints automatic lock provides friendly working height;

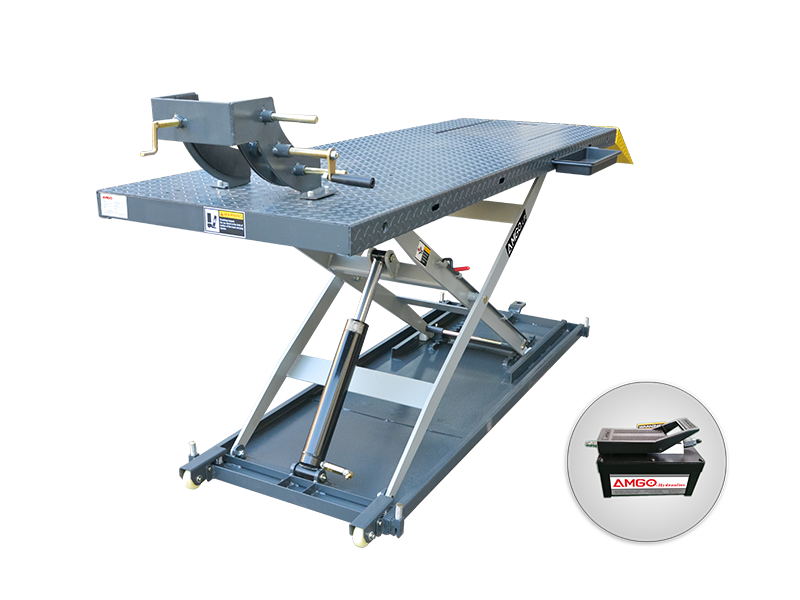

  • Ergonomic wheel vise with rubber pad for wheel protection,which can be installed on two positions and services for both long or short axle motorcycles;
  • Removable rear cover for rear wheel changing;
  • User-conveniently tool and parts tray;
  • Optional lifting jack: Works well in secondary lifting;
  • Width extension kit and length extension kit come optional.

Model

MC-600P

Lifting Capacity

600kg

Lifting Time

23s

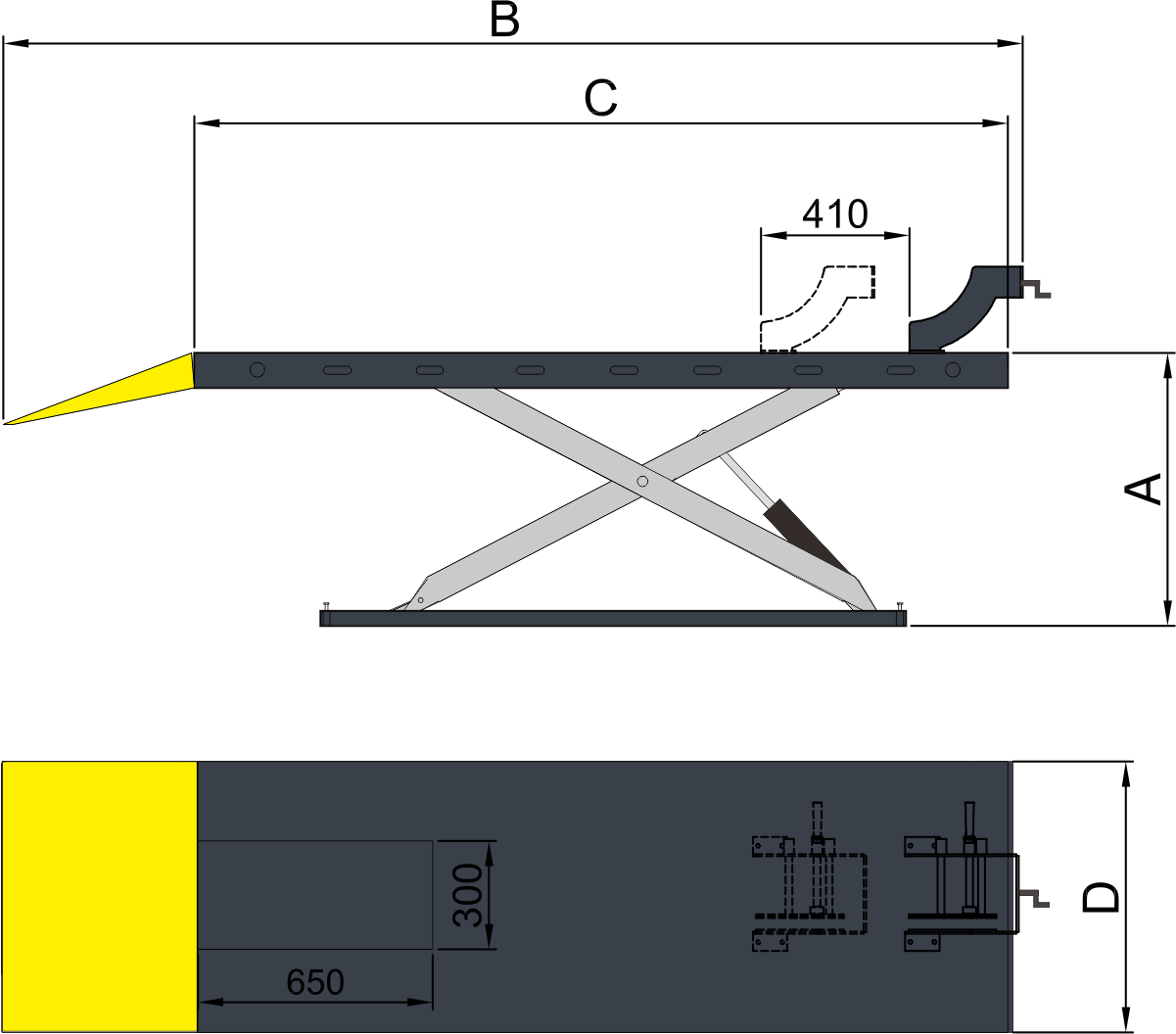

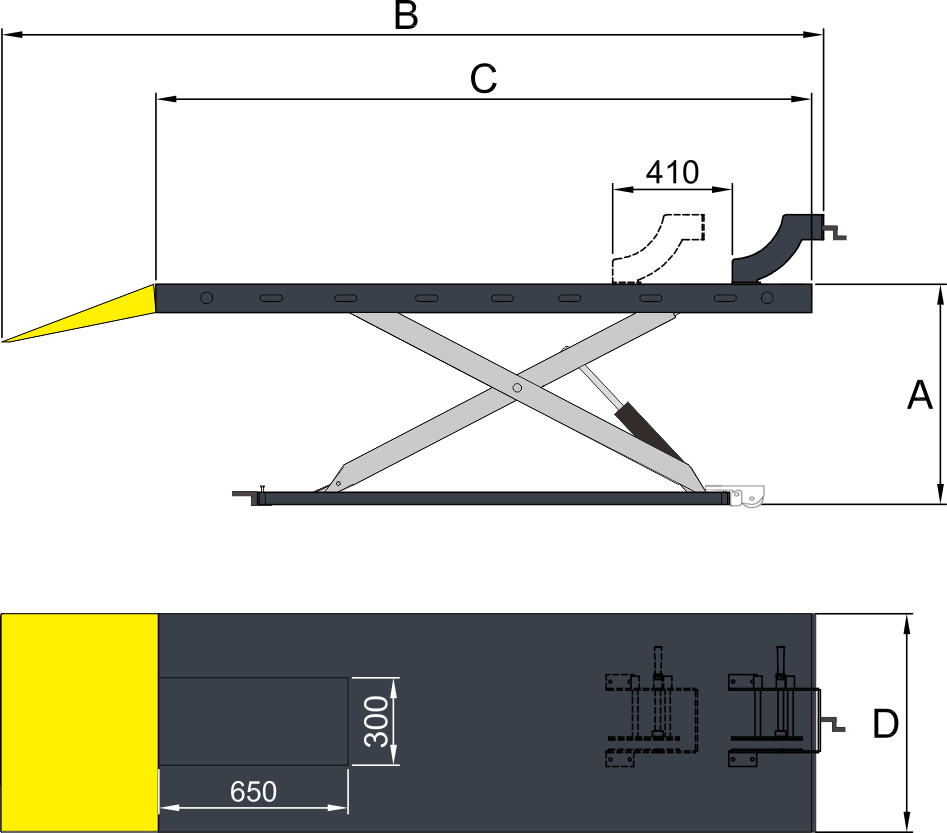

A1: Lifting Height

1090mm

A2: Minimum Height

155mm

B: Overall Length(Inc. Ramp)

2700mm

C: Runway Length

2250mm

D: Overall Width

750mm

Gross Weight

241kg

Air Pressure

0.6MPa







  •

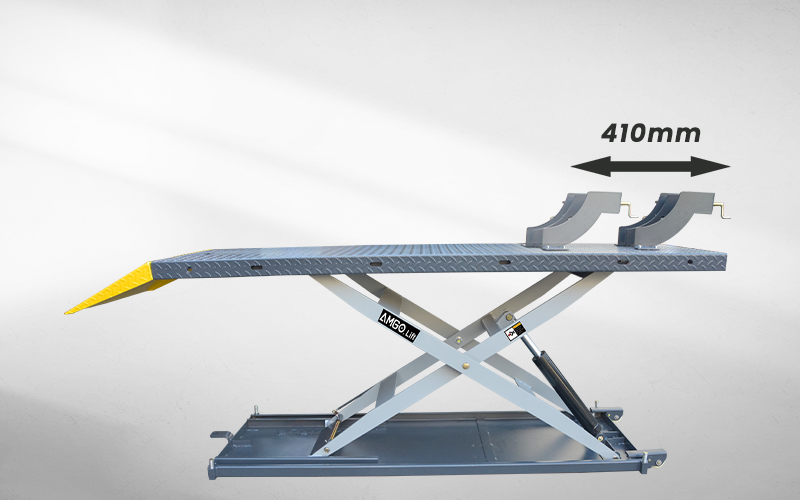

    Front wheel vise
    With adjustable distance 410mm
    Kits No.:86010782

  •

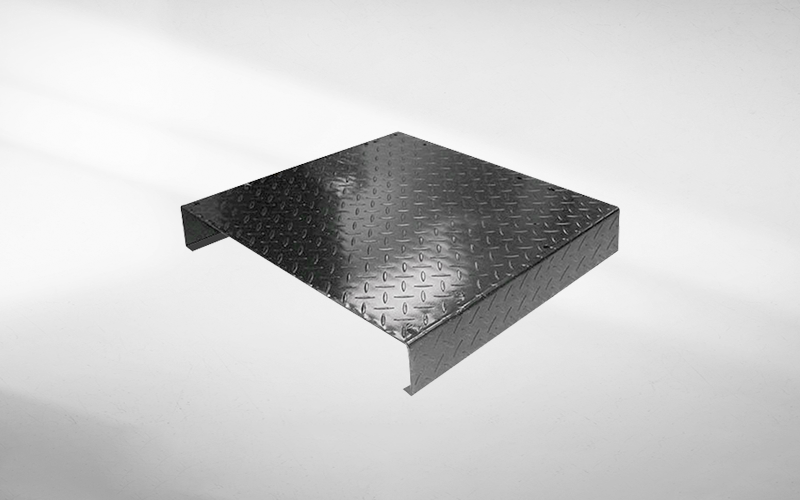

    Rear Tire removal cover
    Removable platform cover is convenient for rear wheel changing and suspension work.

  •

    Manual safety release device.Only available by AMGO.

  •

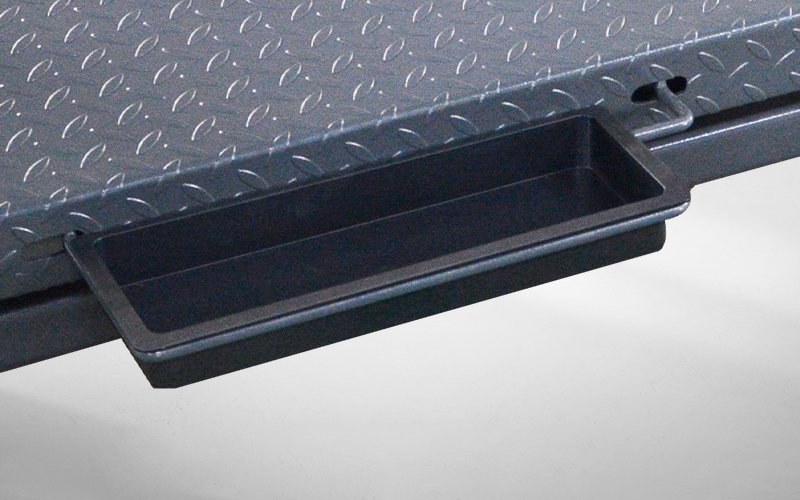

    Tools and parts tray as standard
    Part No.: 10206156

  •

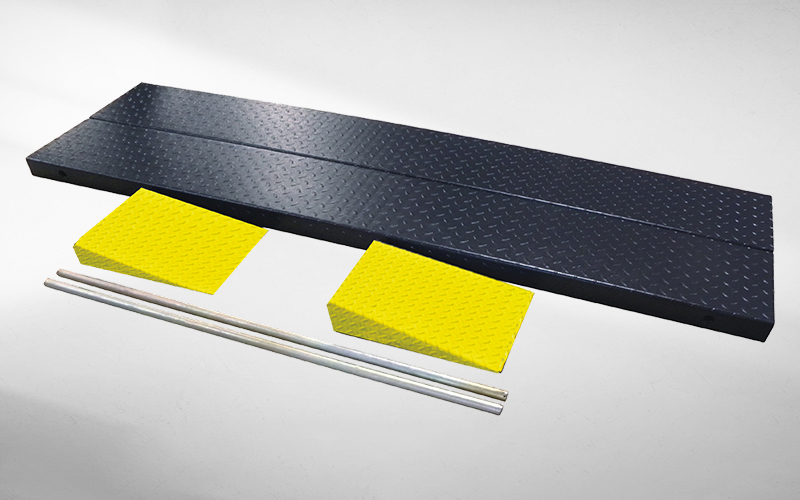

    Optional width extension kit
    Adding 600mm extra width on platform to be suitable for three or four-wheel motorcycle.
    Kits No.:MC001

  •

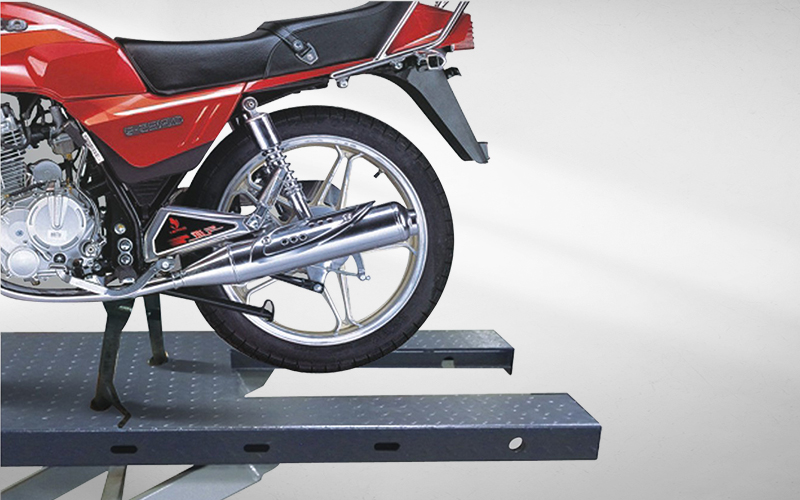

    Optional length extension kit
    Add 400mm extra length on the platform for the long axle motorcycle.
    Kits No.: MC002

  •

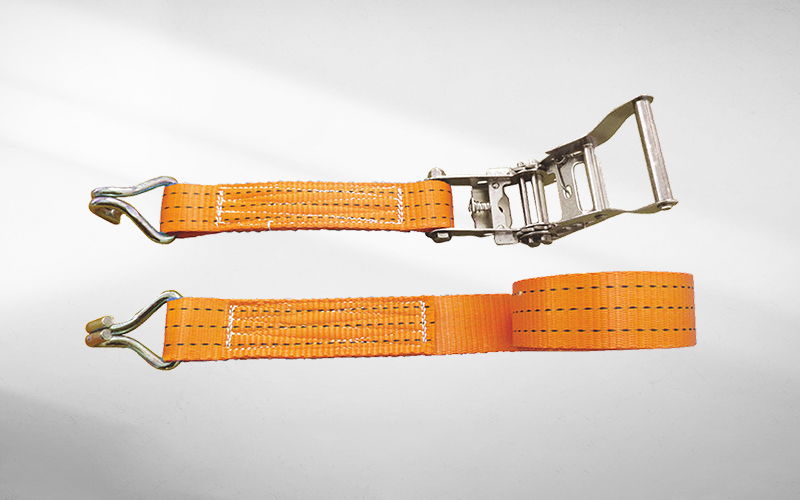

    Vehicle safety belt
    Tighten vehicle before lifting.Optional part. Kits No.:MC006

  •

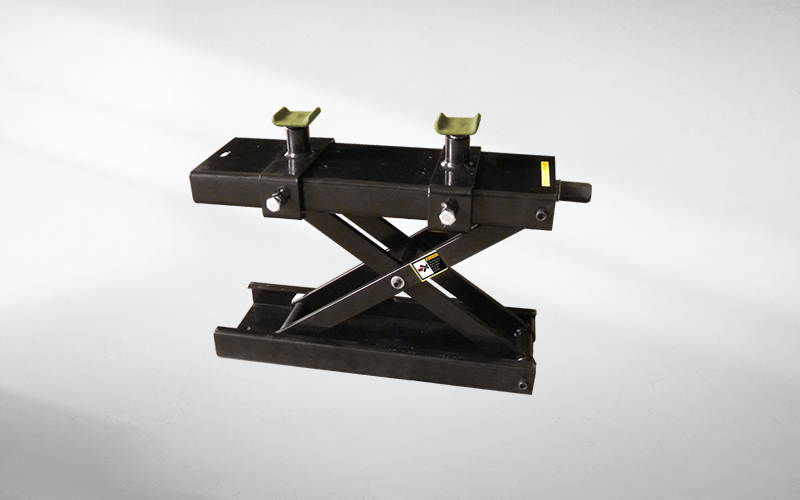

    Optional lifting jack
    Lifting capacity: 500kg perfect for wheel removal.
    Kits No.:MC005

  •

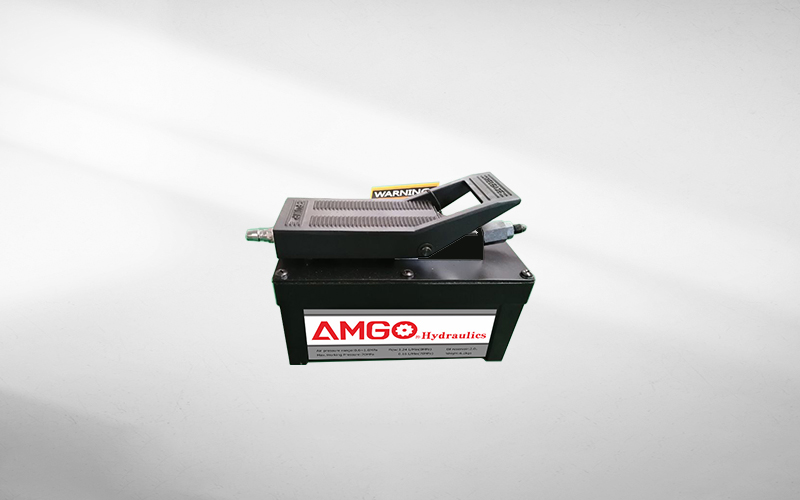

    AMGO Pneumatic hydraulic pump
    Part No.:C803002

  •

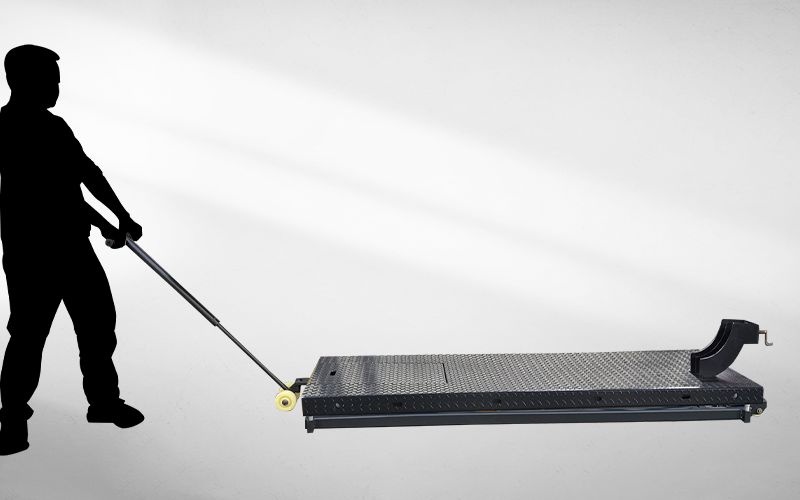

    Portable design, easily roll into any servicebay.
