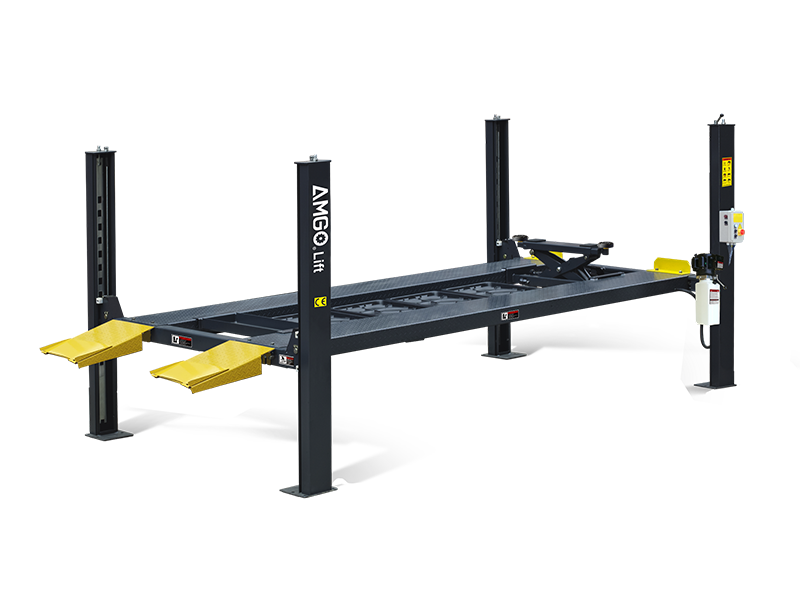

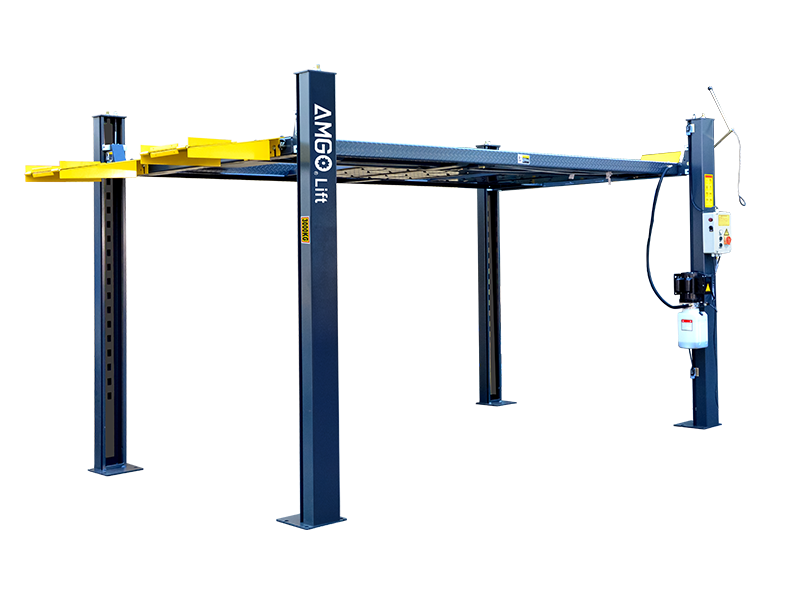

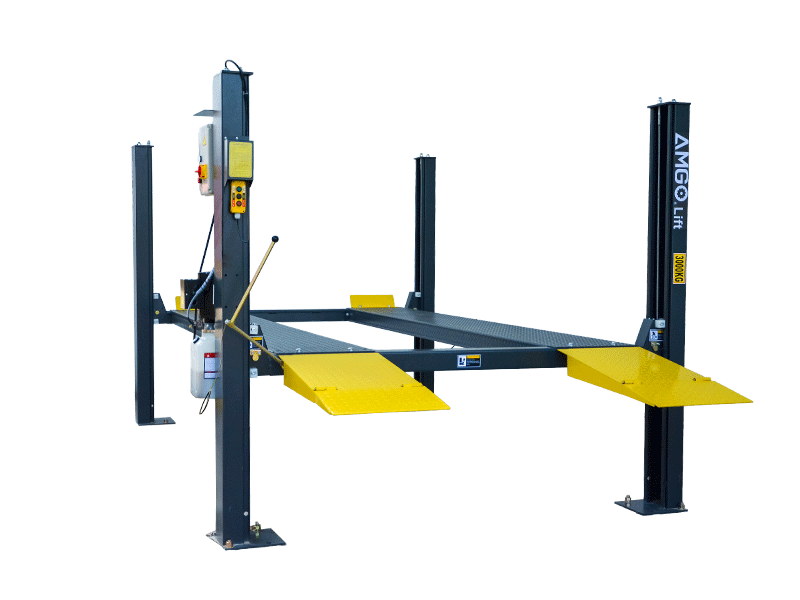

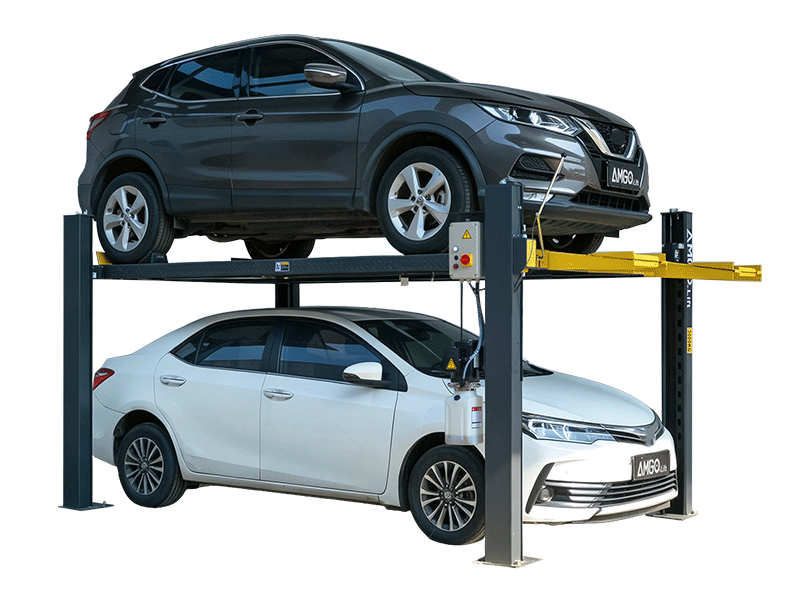

A430-HP

FOUR POST PARKING LIFT

The A430-HP model offers an improved parking experience thanks to its increased clearance height, allowing it to effortlessly accommodate taller vehicles of over 2 meters, a feature not offered by the standard A430-P model.

Detailed Product Information

3000KG capacity;
Compact, commercial-grade design;

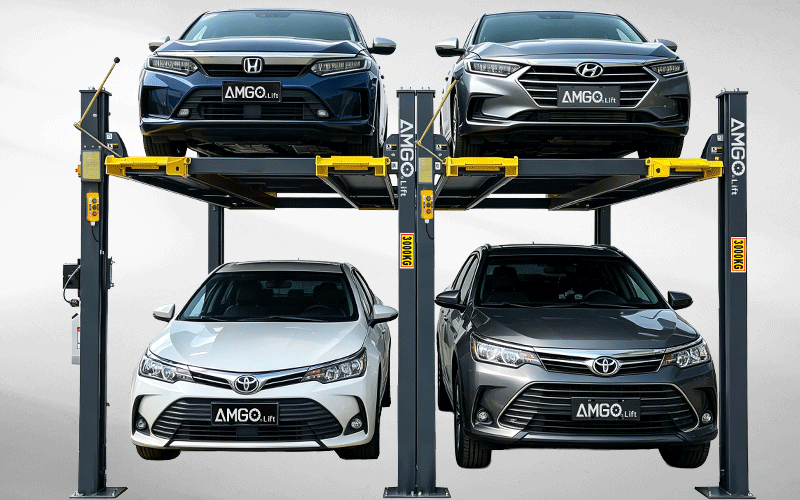

Support back-to-back installation;
330mm taller than the A430-P, maximum lifting height exceeding 2200mm;

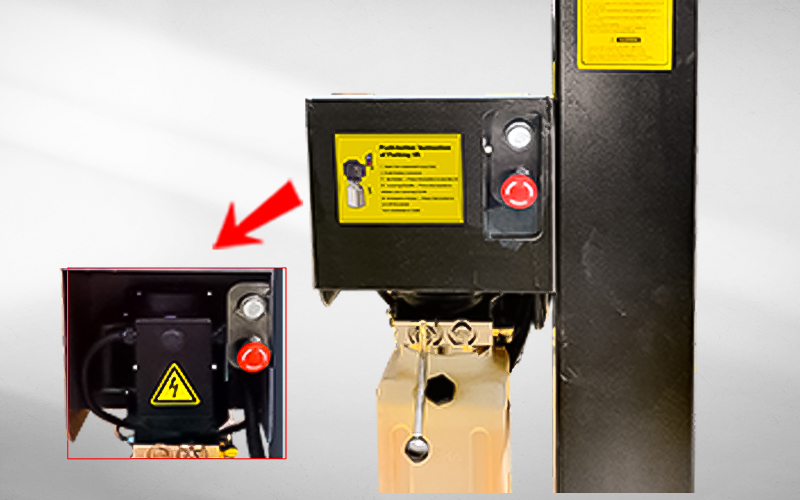

24V safe electrical operation system;

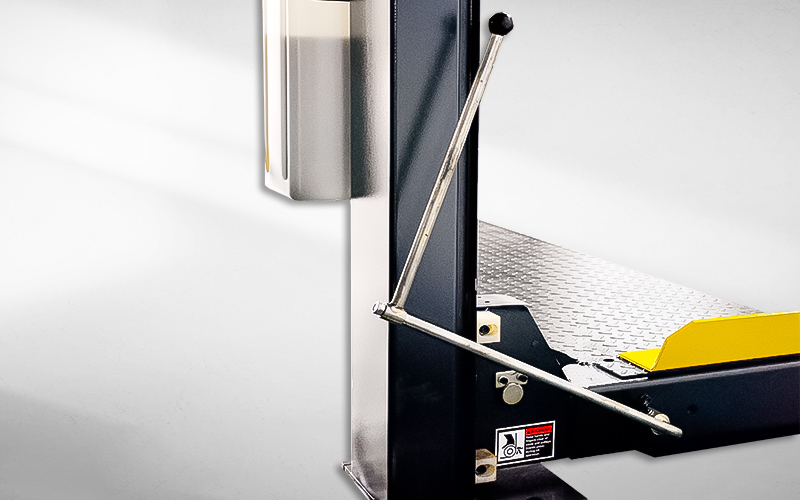

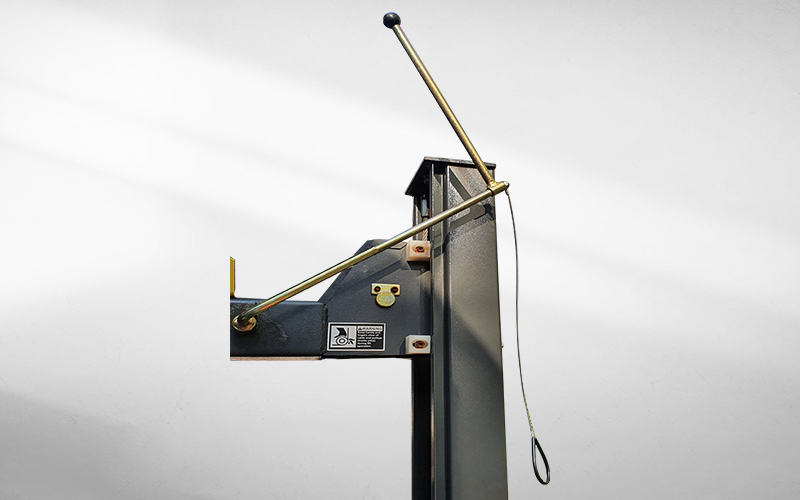

Patented concealed safety lock control with single-point manual release;

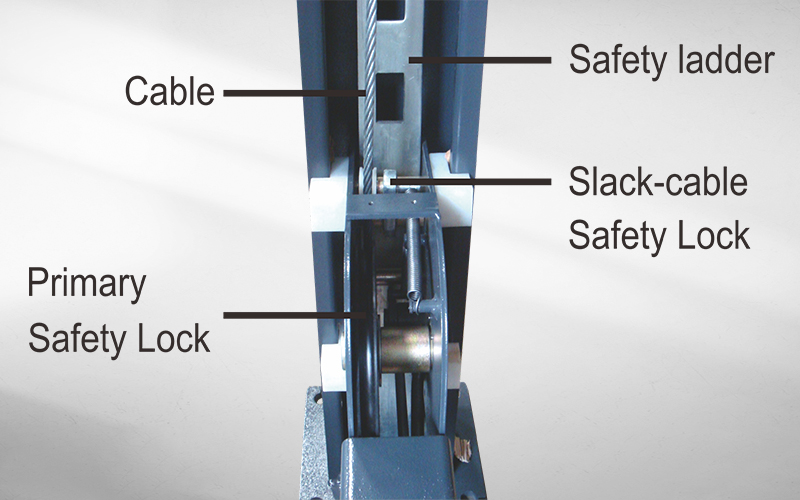

Both primary safety locks and cable-slack protection come standard;

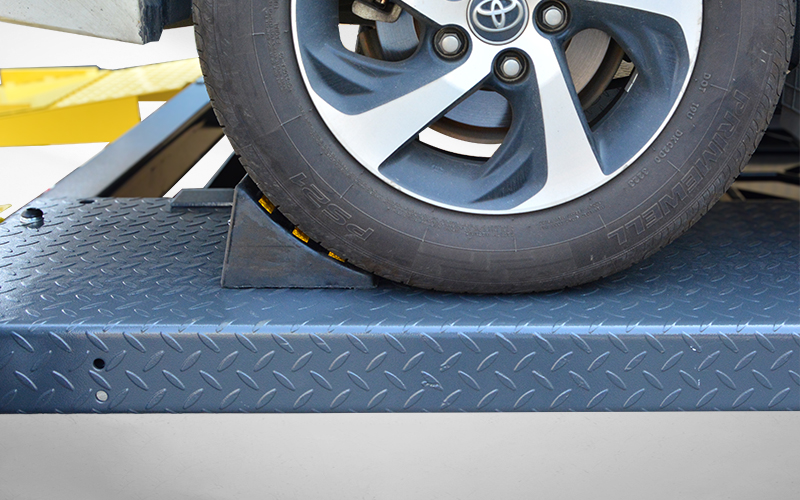

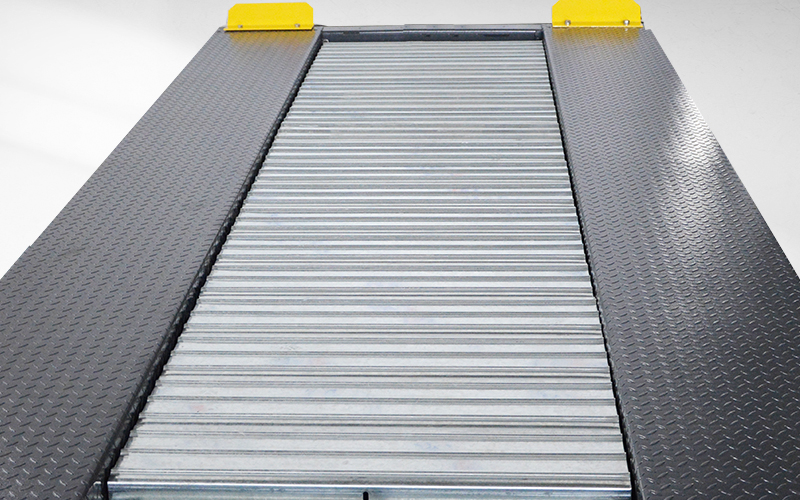

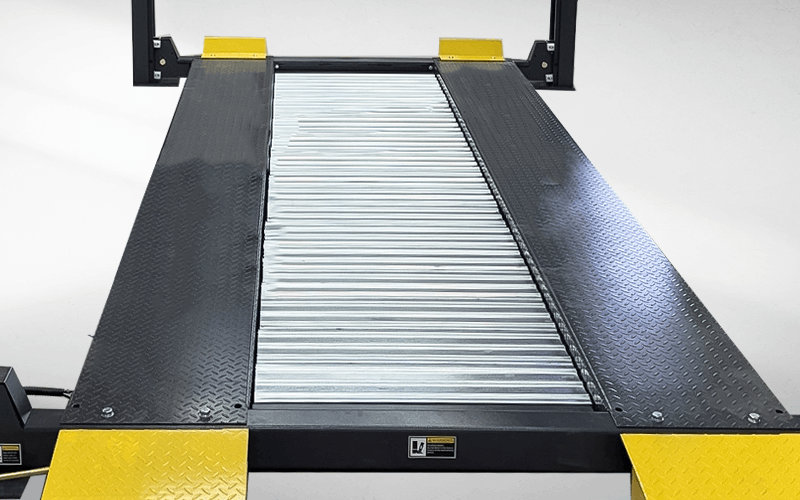

Integrated non-skid diamond platforms;

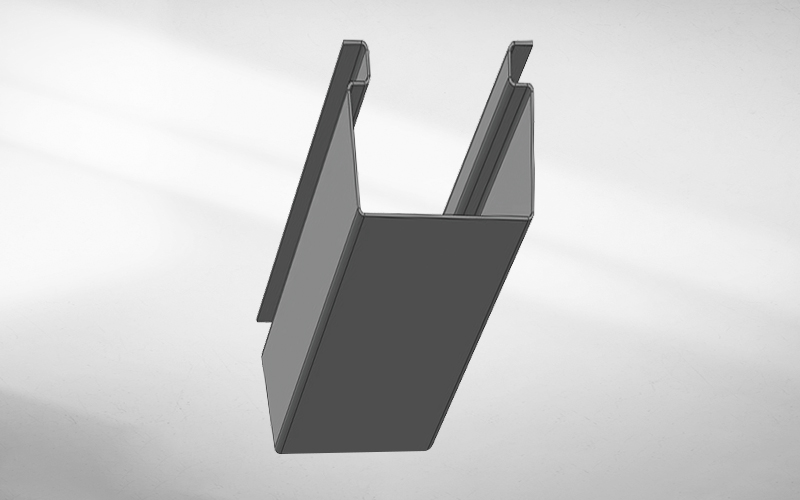

Double-S shaped columns for added strength;

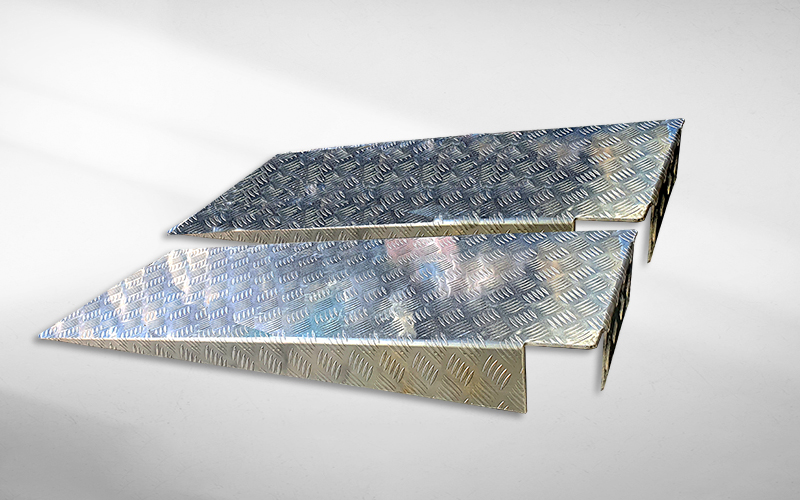

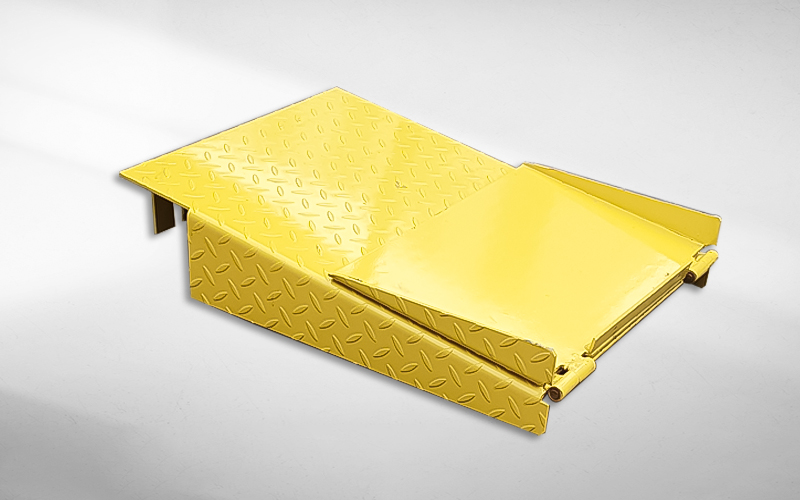

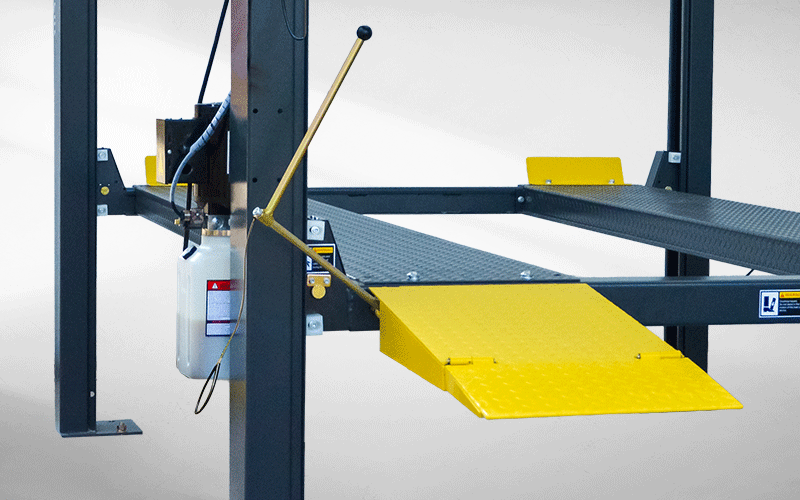

Foldable drive-on ramps;

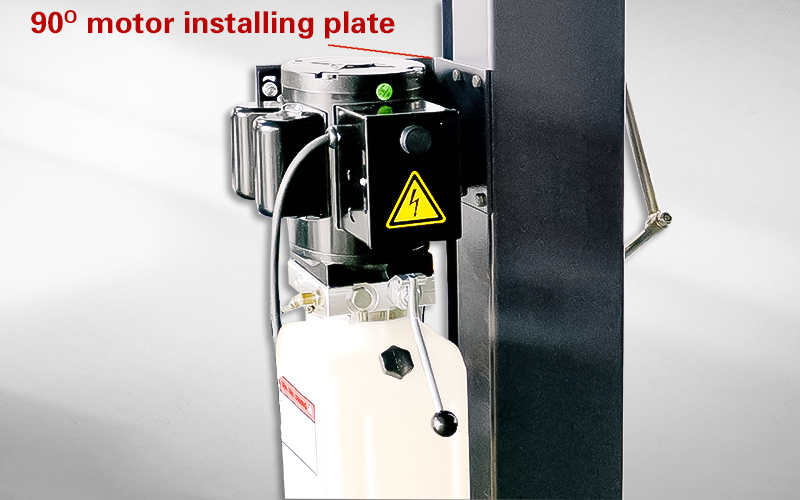

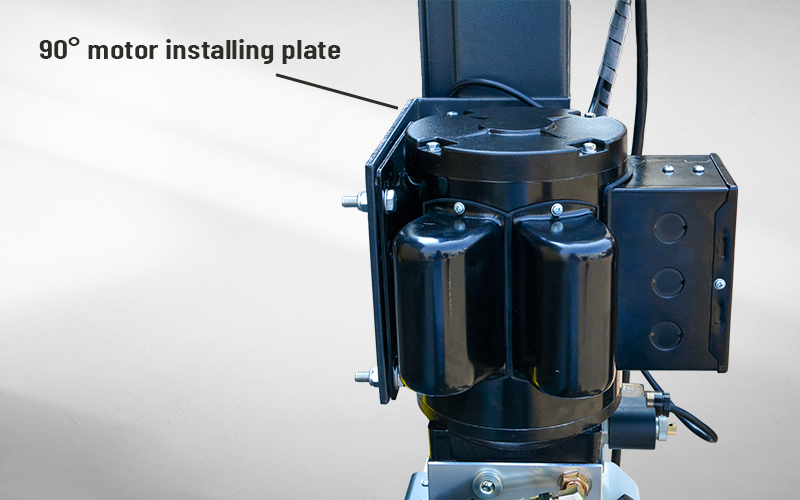

Power side column installable at any corner;
High-quality hydraulic cylinder designed and manufactured to high standards.

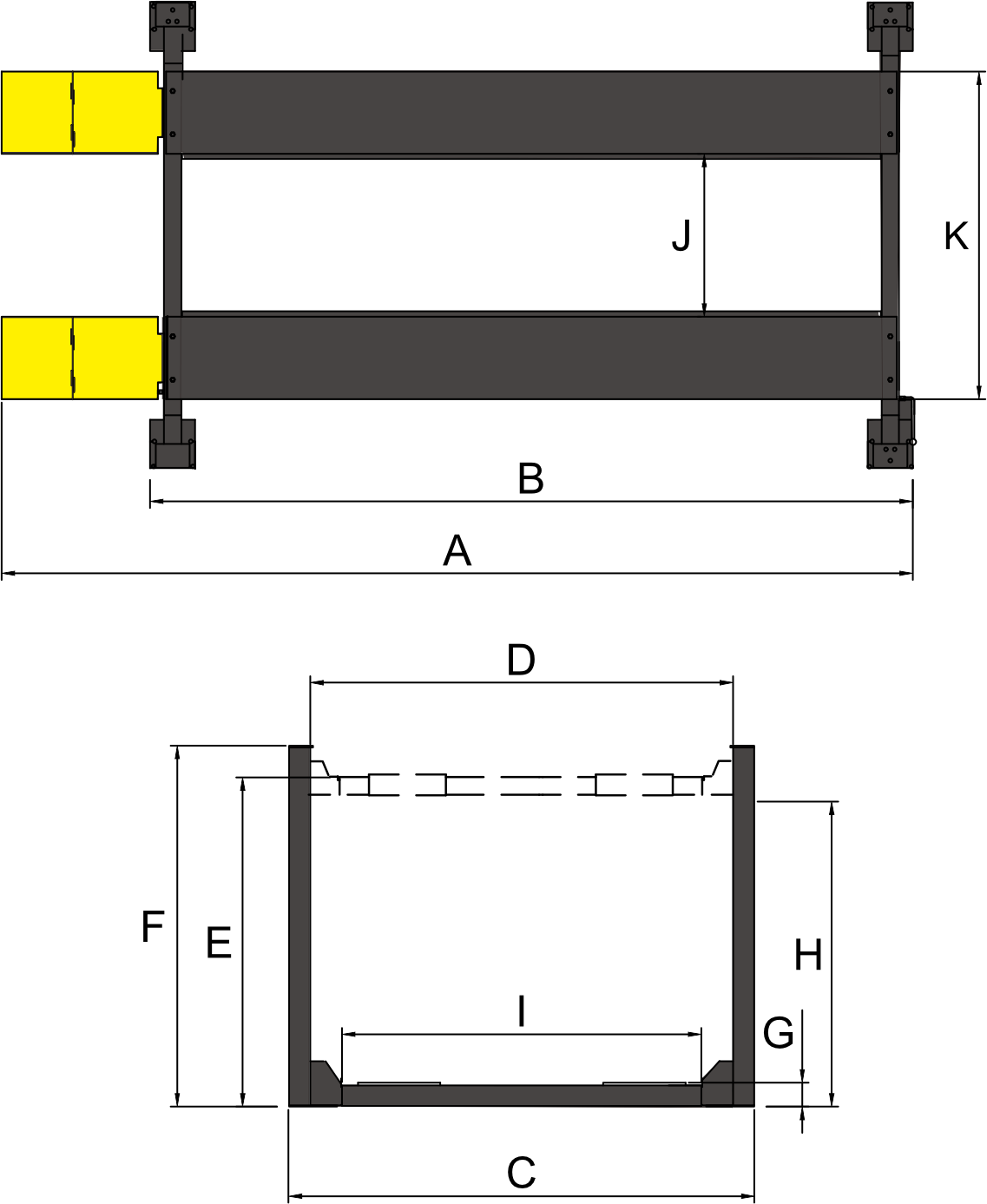

Model A430-HP		4-Post Parking Lift
Lifting Capacity		3000kg
Lifting Time		35s
Overall length(Inc Ramps)	A	5008mm
Outside edge of crossbeams	B	3987mm
Overall Width	C	2409mm
Width between Posts	D	2167mm
Max. Lifting Height	E	2190mm
Max. Locking Height	E	2110mm
Overall Height	F	2455mm
Minimum Height	G	120mm
Max. Underneath Height	H	2090mm
Max. Lock Underneath runway	H	2010mm
Drive-Thru Clearance	I	1956mm
Width Between Runways	J	940mm
Outside Edge of Runways	K	1890mm
Gross Weight		690kg
Motor		3.0HP
