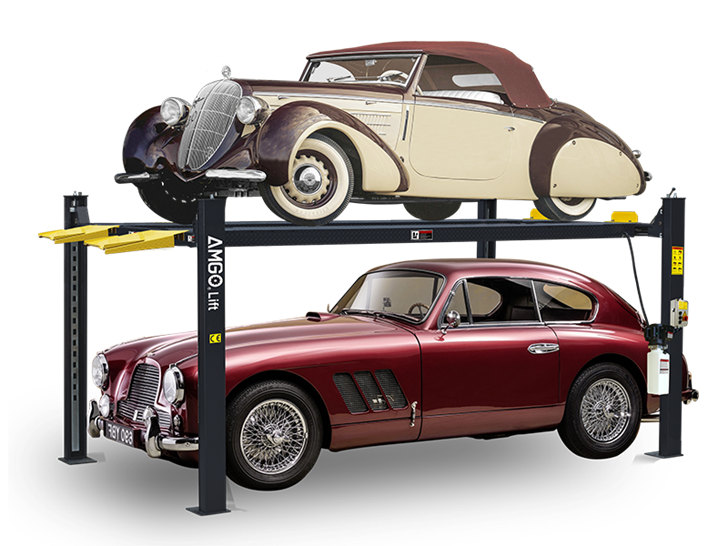

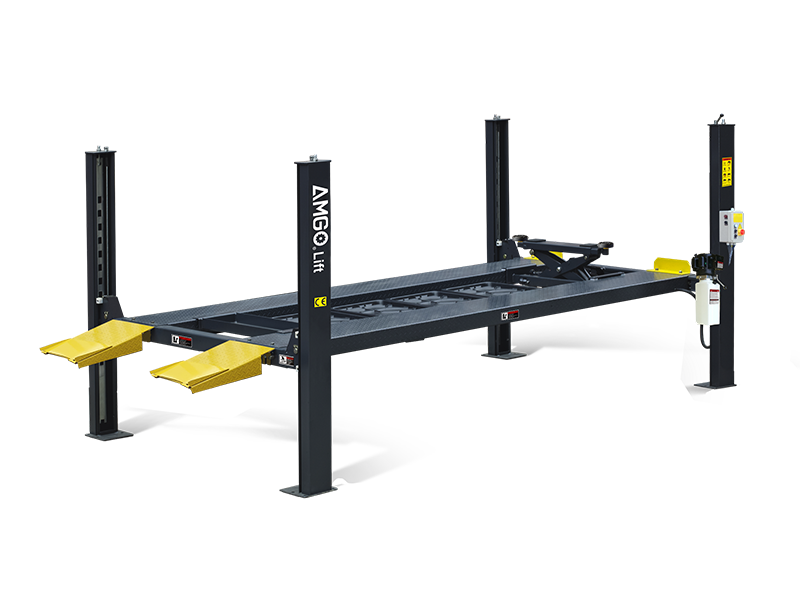

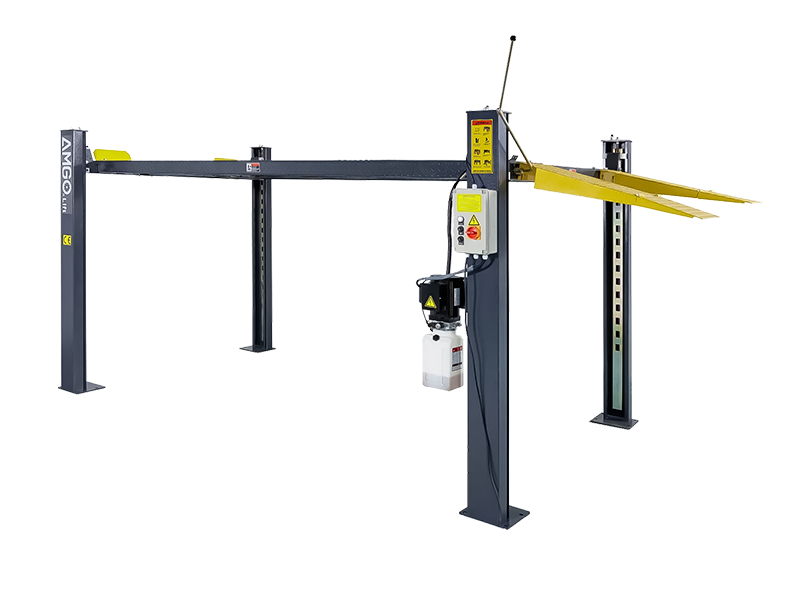

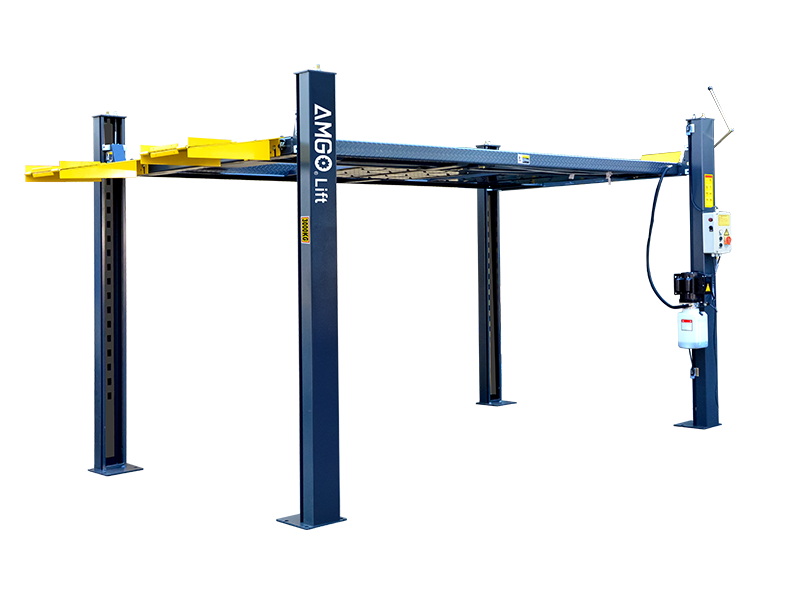

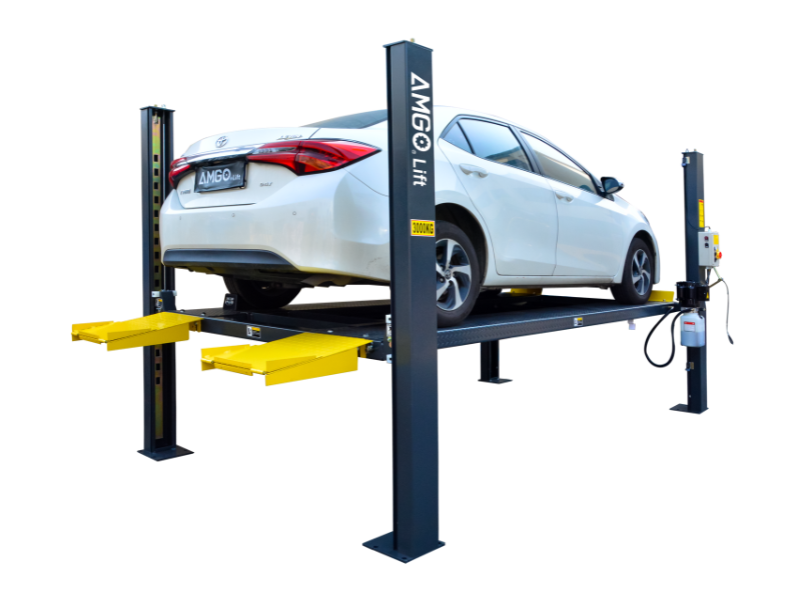

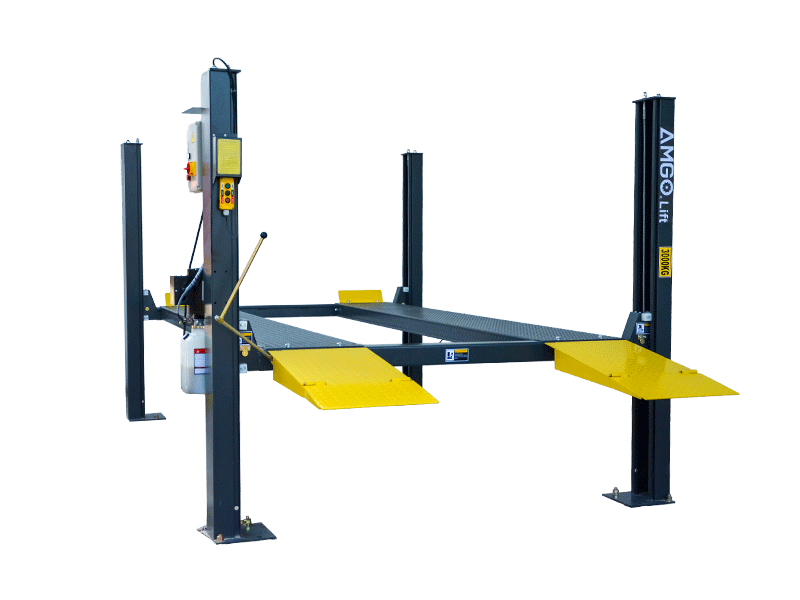

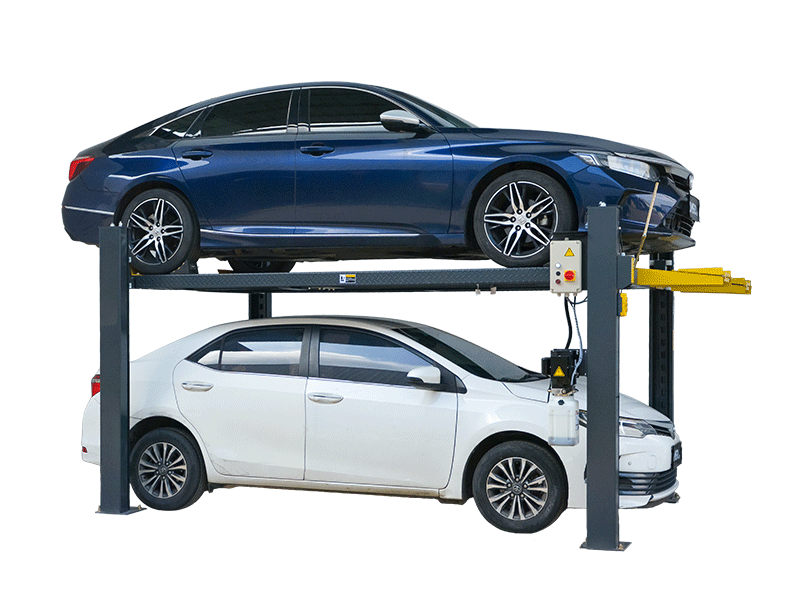

A430-P

FOUR POST PARKING LIFT

This low profile parking lift is an perfect solution for home garages and shops with limited space. With an ingenious structure,A430-P improves your space efficiency and ensures the great accommodation for a wide range of vehicles weighing up to 3000KG.

Detailed Product Information

3000KG capacity;
Compact, commercial-grade design;

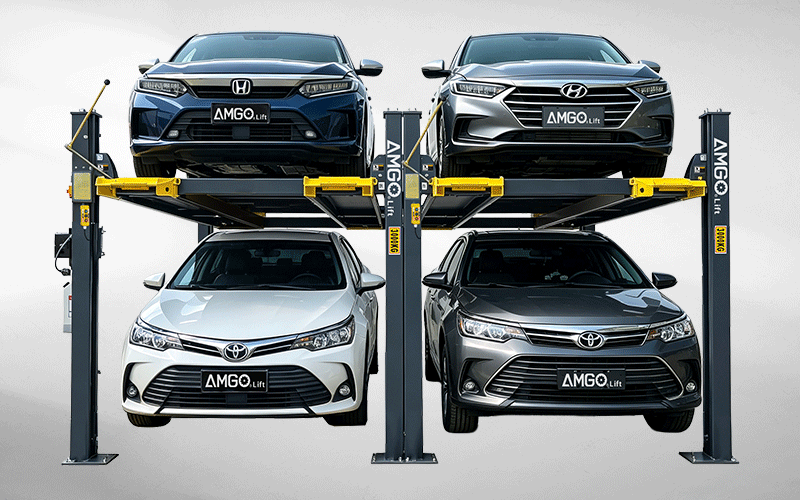

Support back-to-back installation;

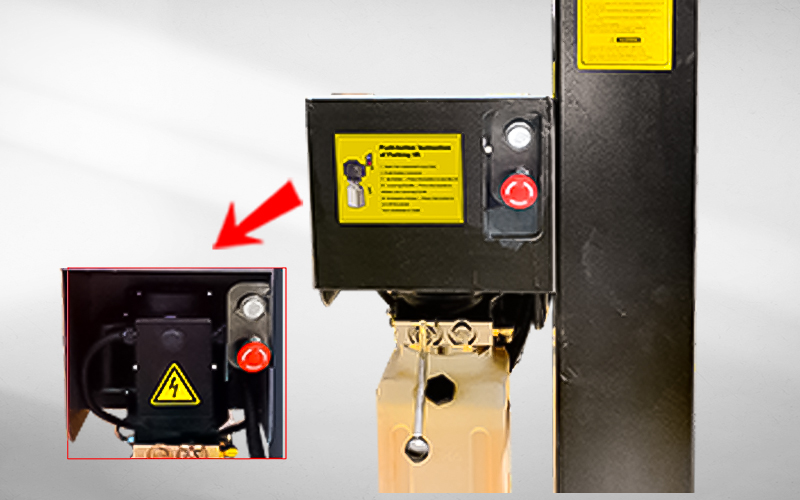

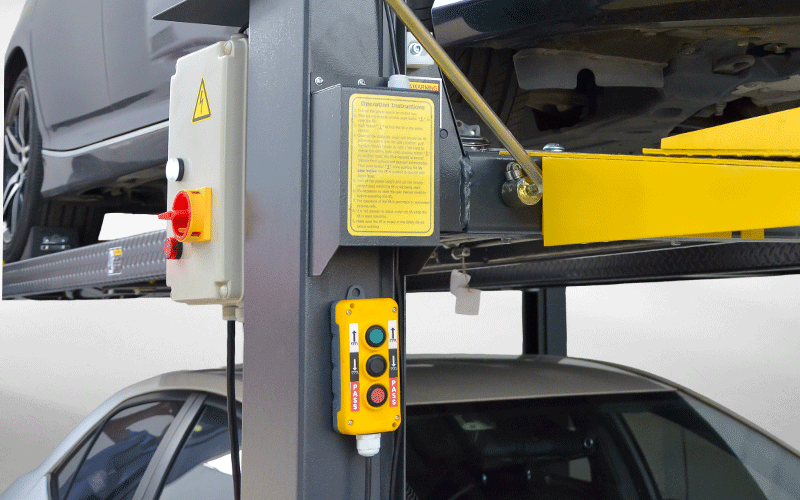

24V safe electrical operation system;
Patented concealed safety lock control with single-point manual release;
Both primary safety locks and cable-slack protection come standard;
Integrated non-skid diamond platforms;

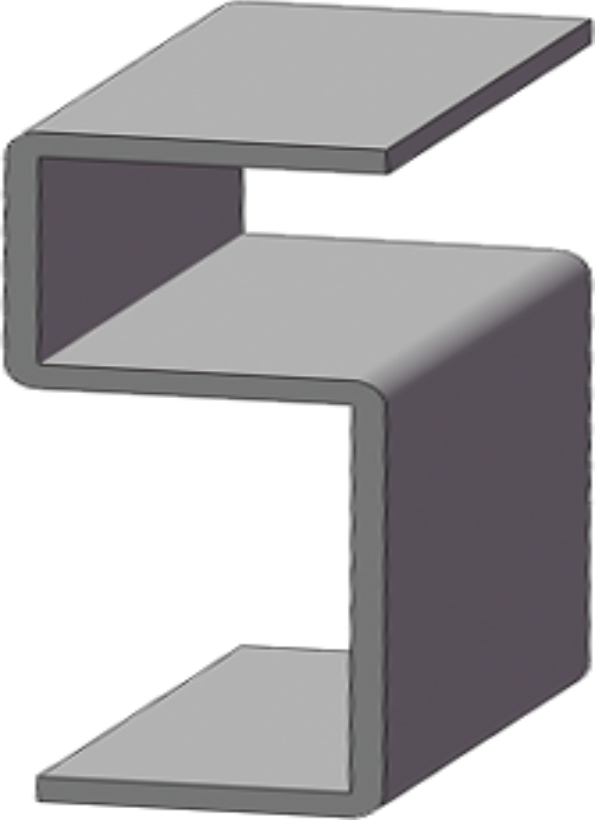

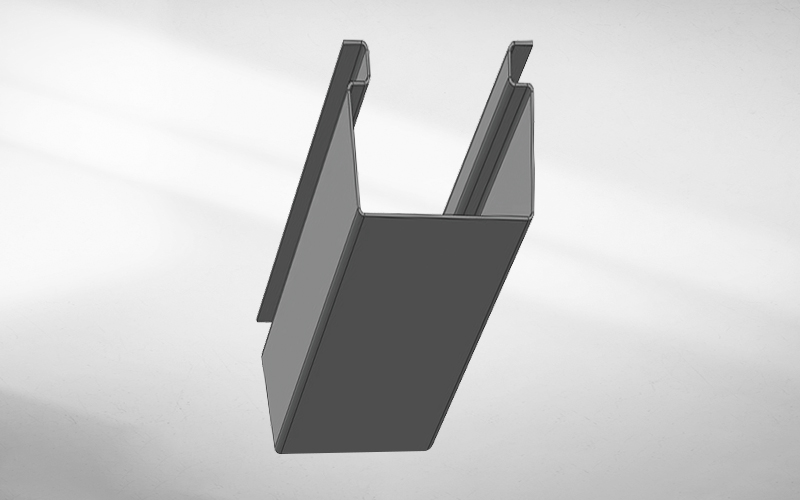

Double-S shaped columns for added strength;
Foldable drive-on ramps;
Power side column installable at any corner;
High-quality hydraulic cylinder designed and manufactured to high standards.

Model		A430-P
Lifting Capacity		3000kg
Lifting Time		31s
Overall length (Inc Ramps)	A	4720mm
Outside edge of crossbeams	B	3700mm
Overall Width	C	2409mm
Width between Posts	D	2167mm
Max. Lifting Height	E	1865mm
Max. Locking Height	E	1795mm
Overall Height	F	2105mm
Minimum Height	G	125mm
Max. Underneath Height	H	1765mm
Max. Lock Underneath runway	H	1695mm
Drive-Thru Clearance	I	1956mm
Width Between Runways	J	940mm
Outside Edge of Runways	K	1890mm
Gross Weight		658kg
Motor		3.0HP

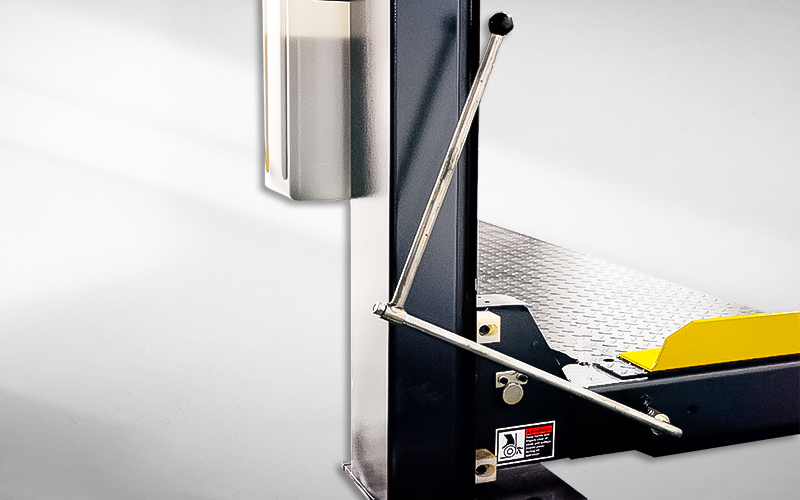

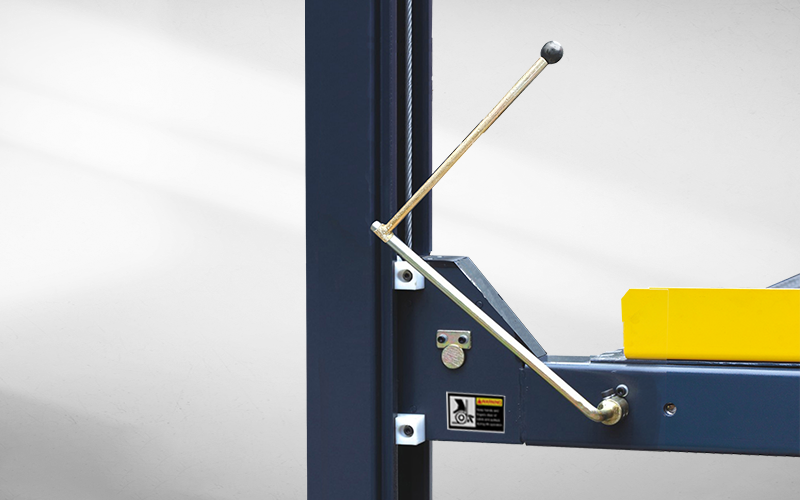

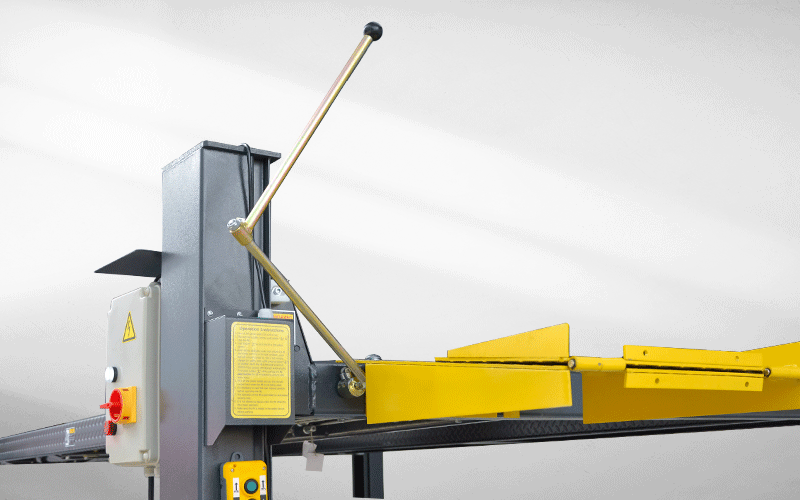

Patented concealed safety lock control with single-point manual release.

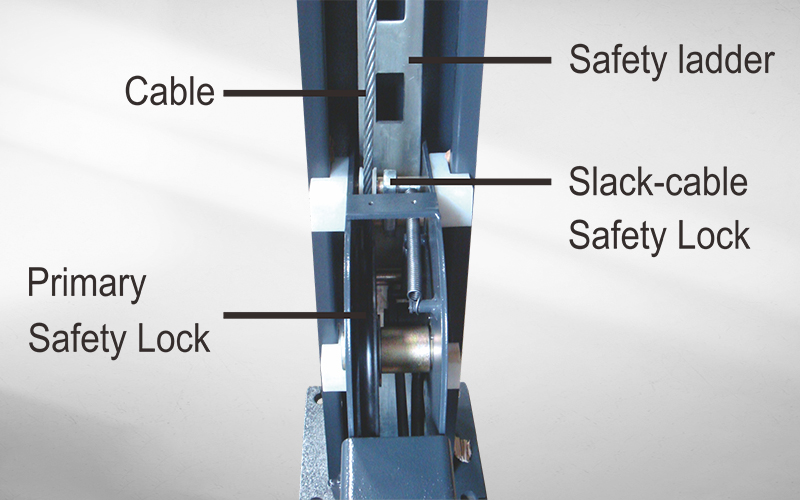

Double safety locks provide additional safety.

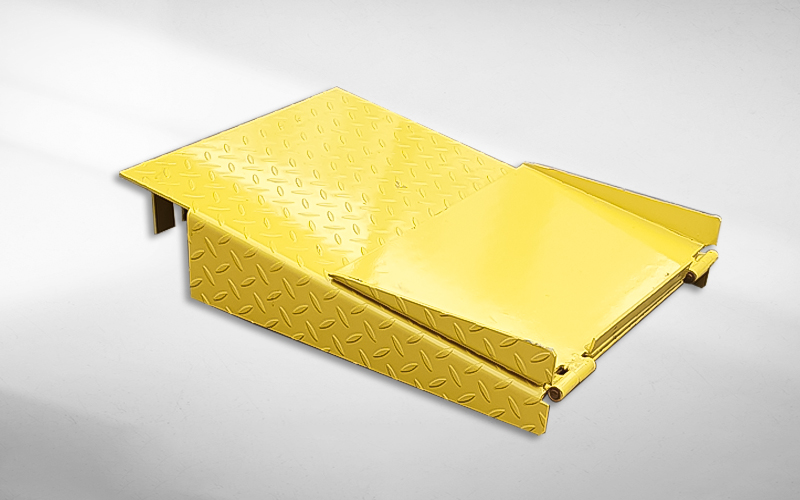

Foldable drive-on ramps.(each lift needs 2 units).

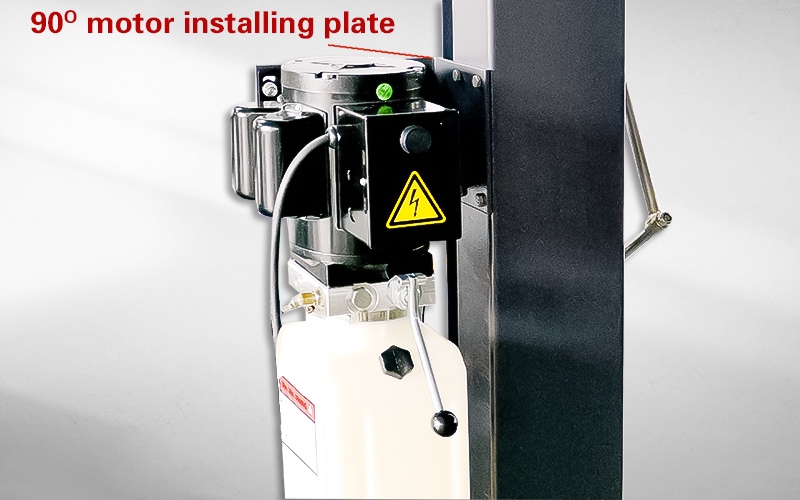

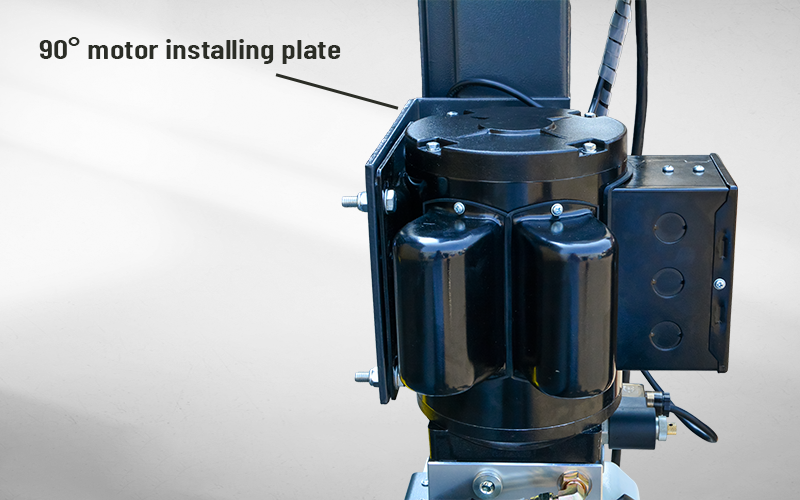

90° installation plate for installing the power unit at the side of a column.

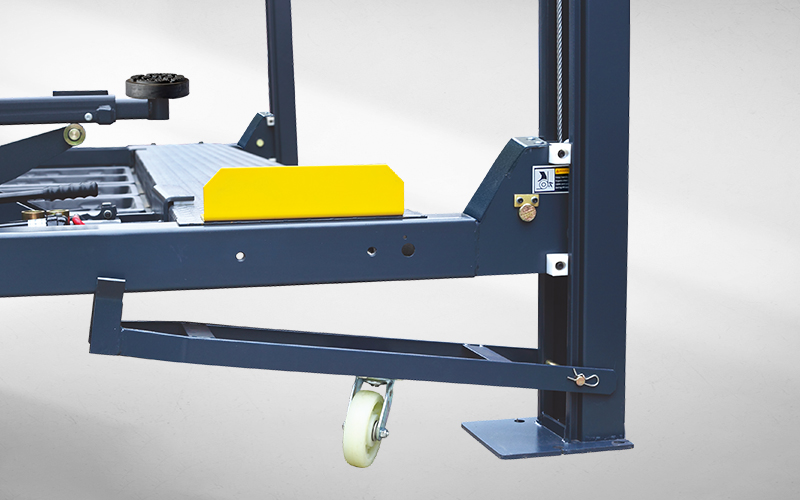

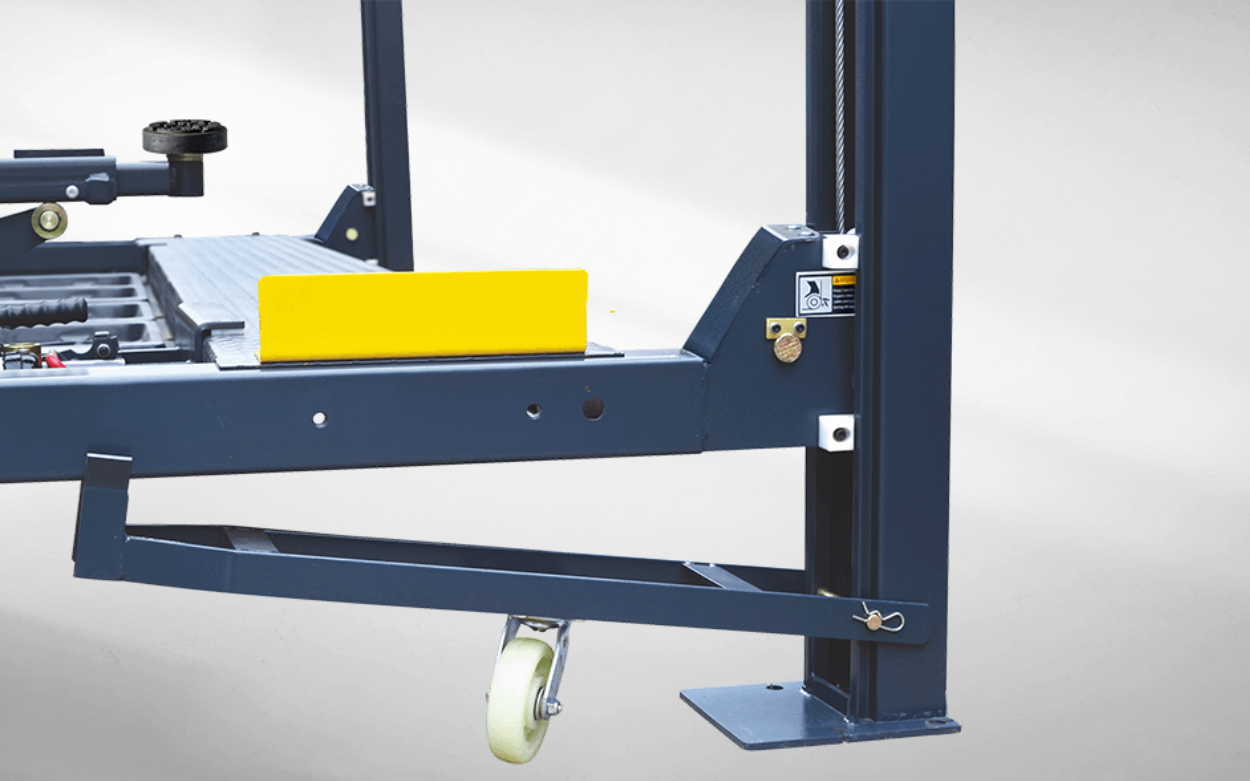

Optional Caster Kits (1 set,4pcs) help easily maneuver the parking lift.
Kits No.: 40801

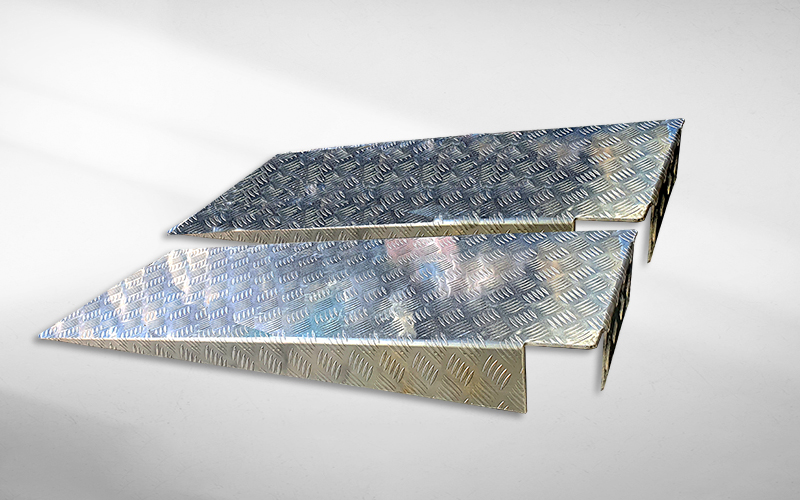

Optional extended aluminum drive-in ramps (1PC). Kits No.: 40814

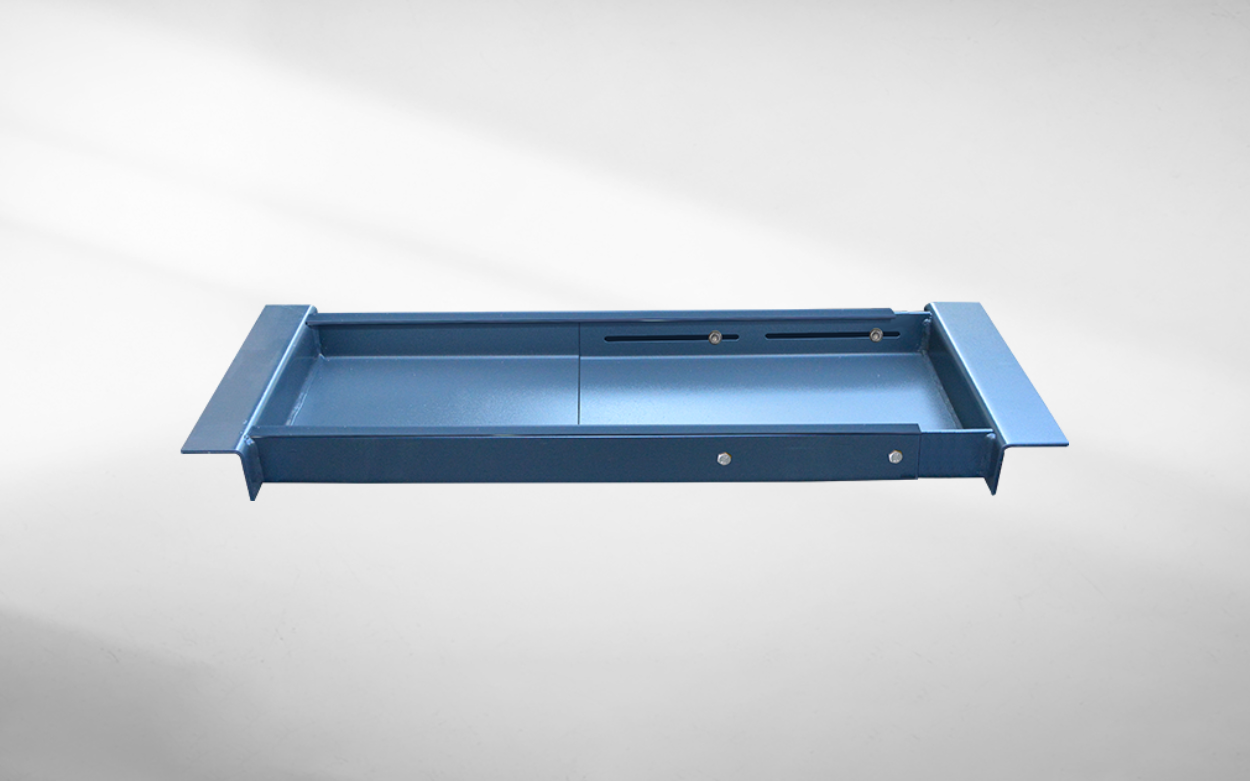

Optional Jack Tray
Kits No.: 40816

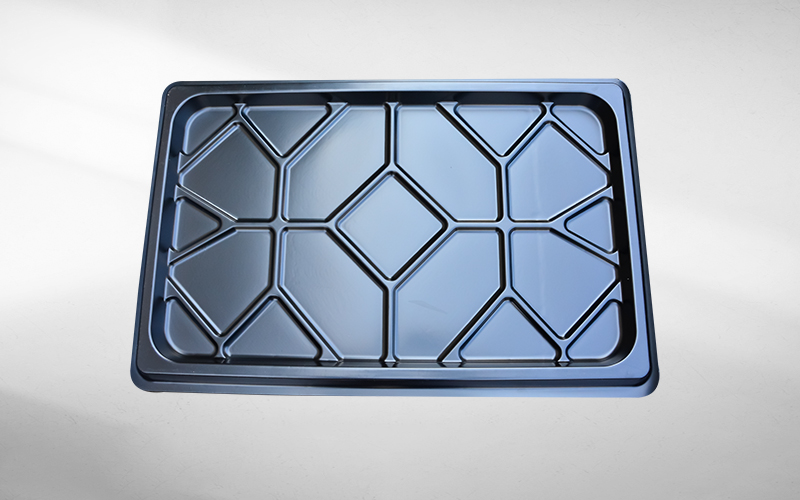

Optional plastic oil tray (1 set,4pcs)
Kits No.: 40806

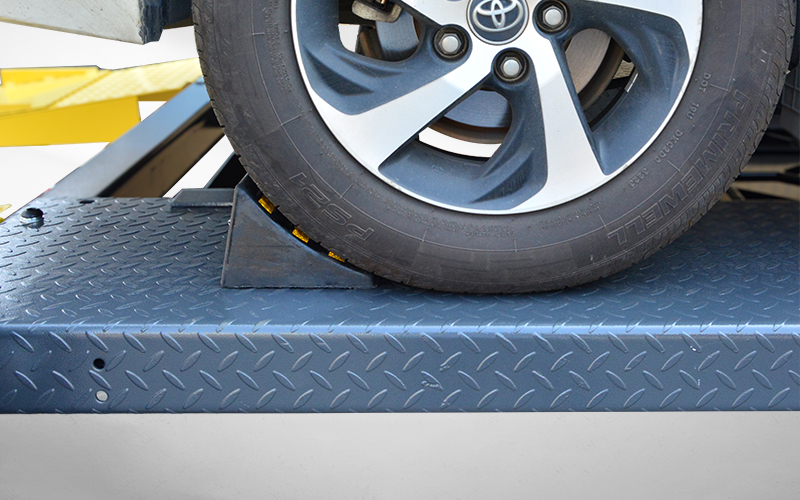

Optional rubber wheel chock (1PC)
P/N: 40811.

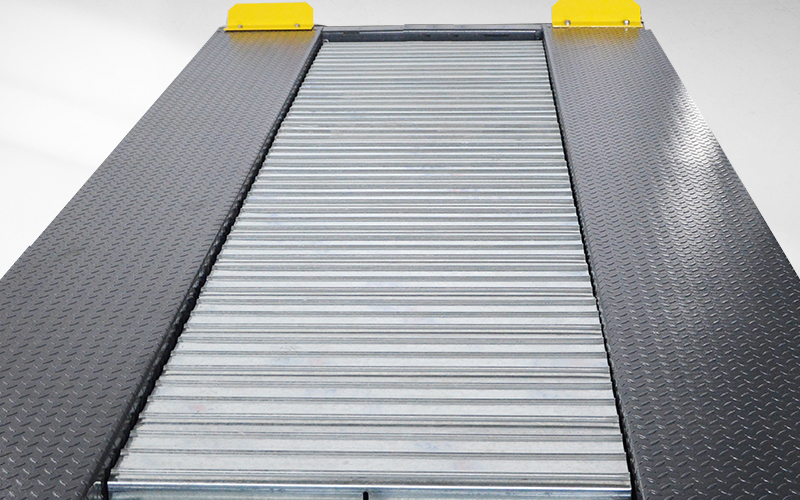

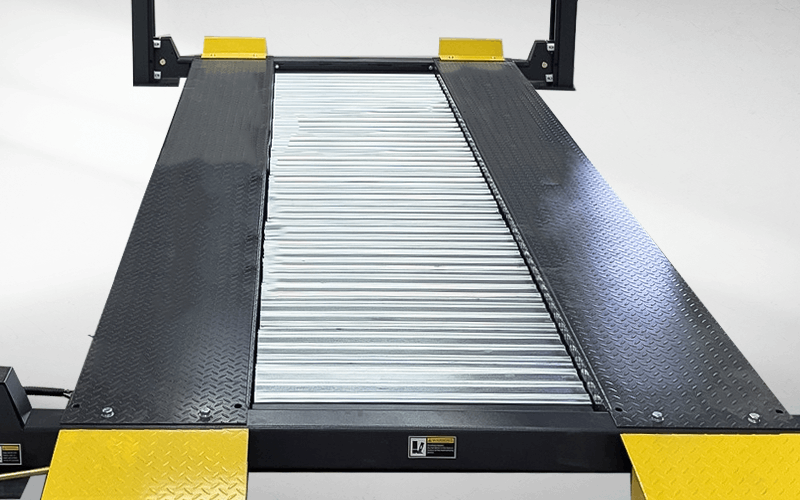

Optional storage wave panels
Kits No.: 40812

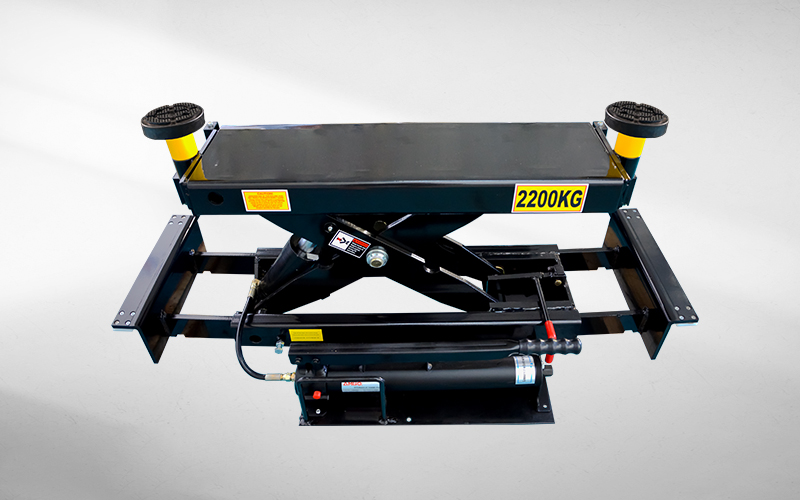

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg.
