A435-HP

FOUR POST PARKING LIFT

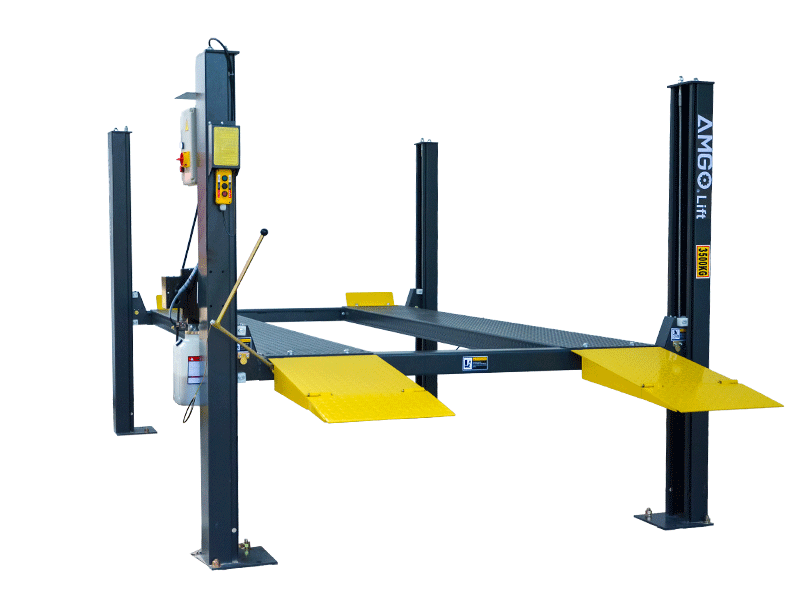

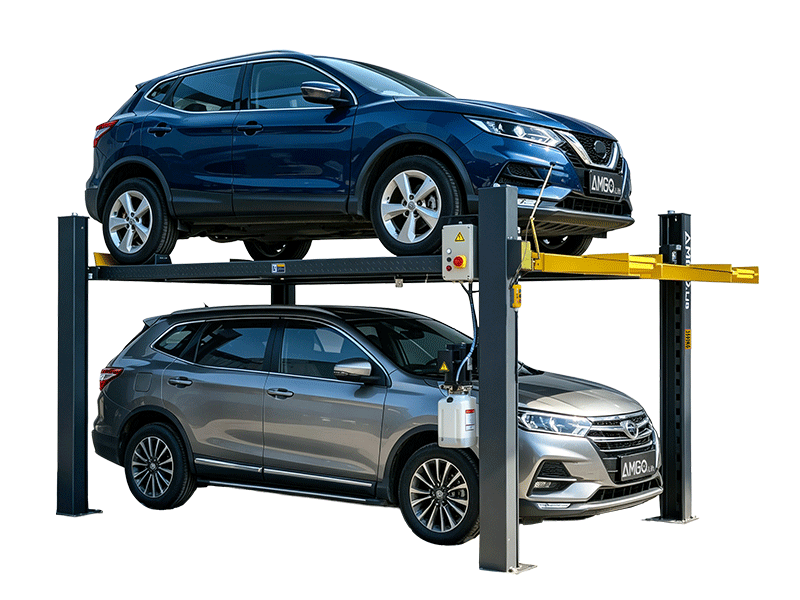

The A435-HP incorporates all the core features of the A435-P, whilst setting itself apart with an additional high-lifting function. Engineered for superior comfort and performance, it specialises in the effortless parking of taller vehicles, accommodating heights of over 2 metres with ease. As with other models in the range, it also supports back-to-back installation and remote-controlled operation.

Detailed Product Information

  • 3500KG capacity;
  • Professional grade of comfort design;
  • 24V safe electrical operation system;
  • Patented concealed safety lock control with single-point manual release;
  • Standard remote control operation ensures conveninent use;
  • Support back to back installation to improve space efficiency;
  • Both primary safety locks and cable-slack protection come standard;
  • Integrated non-skid diamond platforms;
  • Double-S shaped columns for added strength;
  • Foldable drive-on ramps;
  • A limit switch is fitted as standard to enhance safety;
  • High-quality hydraulic cylinder designed and manufactured to high standards.

Model



A435-HP

Lifting Capacity



3500kg

Lifting Time



46s

Overall length (Inc Ramps)

A

5285mm

Outside edge of crossbeams

B

4258mm

Overall Width

C

2604mm

Width between Posts

D

2358mm

Max. Lifting Height

E

2227mm

Max. Locking Height

2157mm

Overall Height

F

2455mm

Minimum Height

G

145mm

Max. Underneath Height

H

2107mm

Max. Lock Underneath runway

2037mm

Drive-Thru Clearance

I

2074mm

Width Between Runways

J

940mm

Outside Edge of Runways

K

1890mm

Gross Weight



757kg

Motor



3.0HP









  •

    Patented concealed safety lock control with single-point manual release.

  •

    Double safety locks provide additional safety.

  •

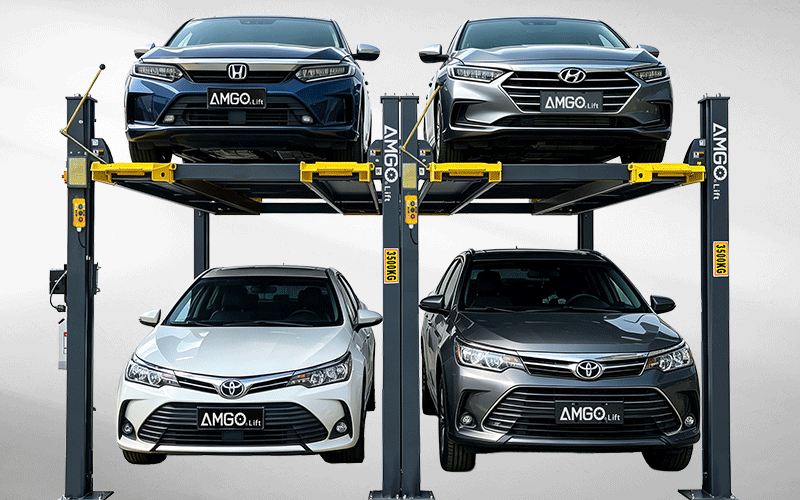

    Support back to back installation to improve space efficiency.

  •

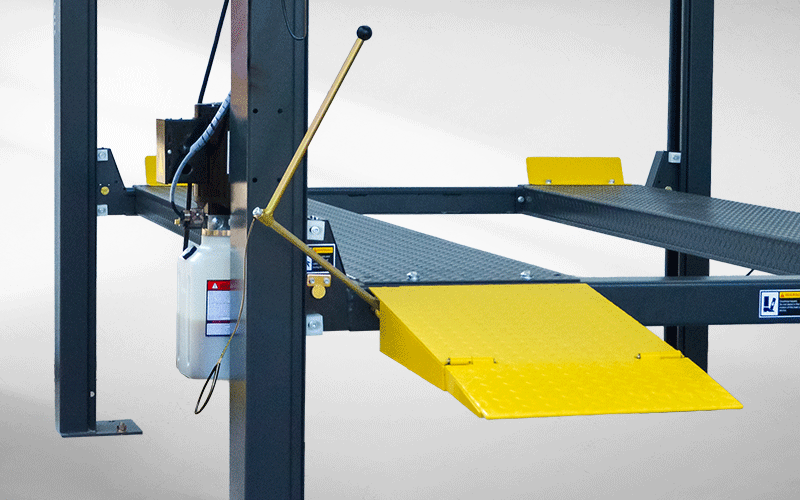

    Foldable drive-on ramps.(each lift needs 2 units).

  •

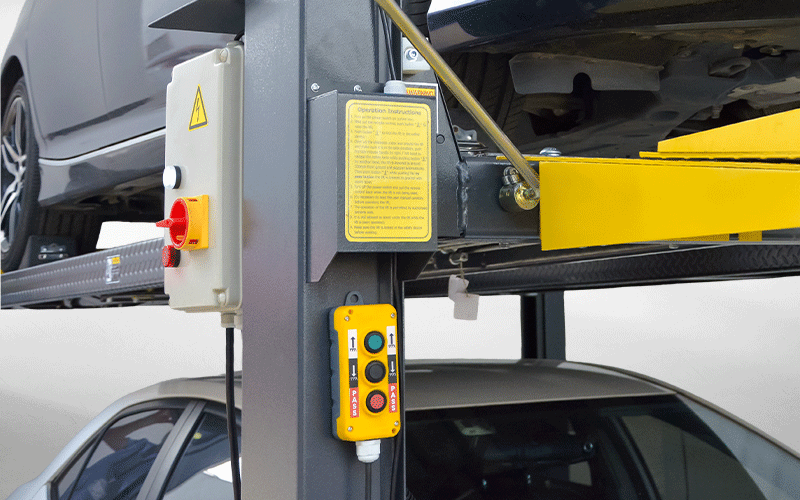

    Standard remote control operation ensures conveninent use.

  •

    Optional Caster Kits (1 set, 4pcs) help easily maneuver the parking lift. Kits No.: 40801

  •

    Optional extended aluminum alloy drive-in ramps (1PC).Kits No.: 40815

  •

    Optional Jack Tray
    Kits No.: 40816

  •

    Optional plastic oil tray (1 set,4pcs), Kits No.: 40806

  •

    Optional rubber wheel chock (1PC), P/N: 40811.

  •

    Optional storage wave panels
    Kits No.: 40812

  •

    Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg.
