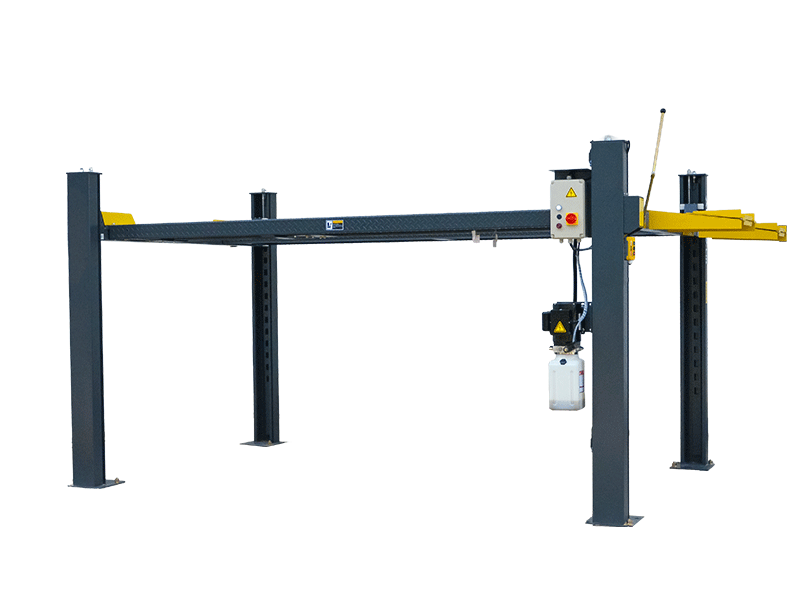

A435-P

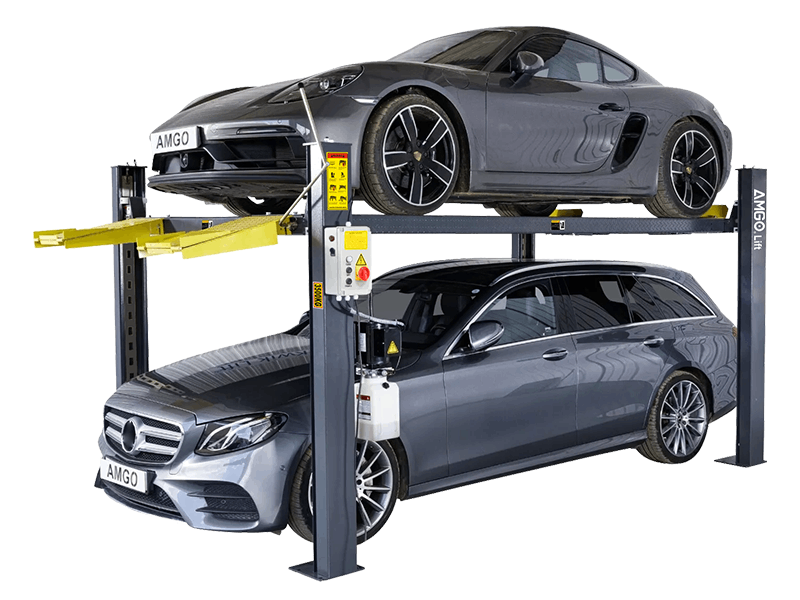

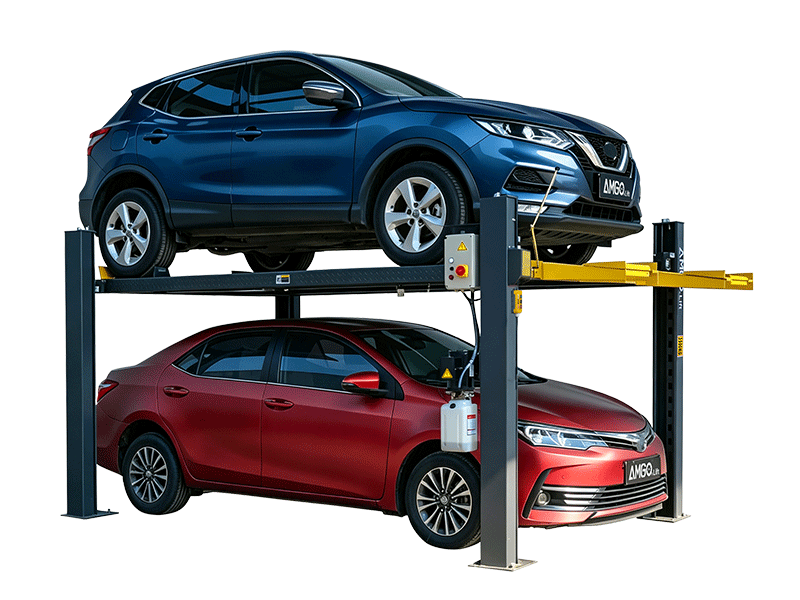

FOUR POST PARKING LIFT


The premium A435-P is another masterpiece in the AMGO range of commercial parking lifts. It boasts a 3500KG lifting capacity, featuring a wider built to enhance the versatility to suit more vehicles. Same as others in the range, It also features double locks and patented concealed lock control to ensure stability and durability.

Detailed Product Information

  • 3500KG capacity;
  • Professional grade of comfort design;
  • Support back-to-back installation;
  • 24V safe electrical operation system;
  • Patented concealed safety lock control with single-point manual release;
  • Both primary safety locks and cable-slack protection come standard;
  • Integrated non-skid diamond platforms;

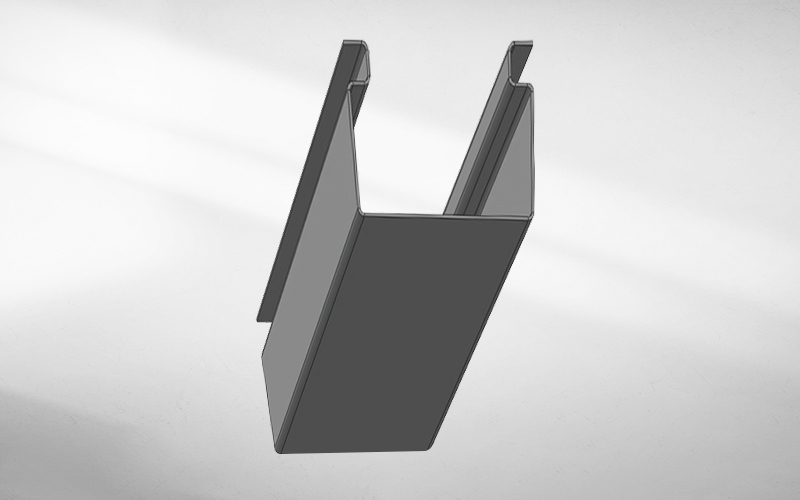

  • Double-S shaped columns for added strength;
  • Foldable drive-on ramps;
  • Power side column installable at any corner;
  • High-quality hydraulic cylinder designed and manufactured to high standards.

Model



A435-P

Lifting Capacity



3500kg

Lifting Time



40s

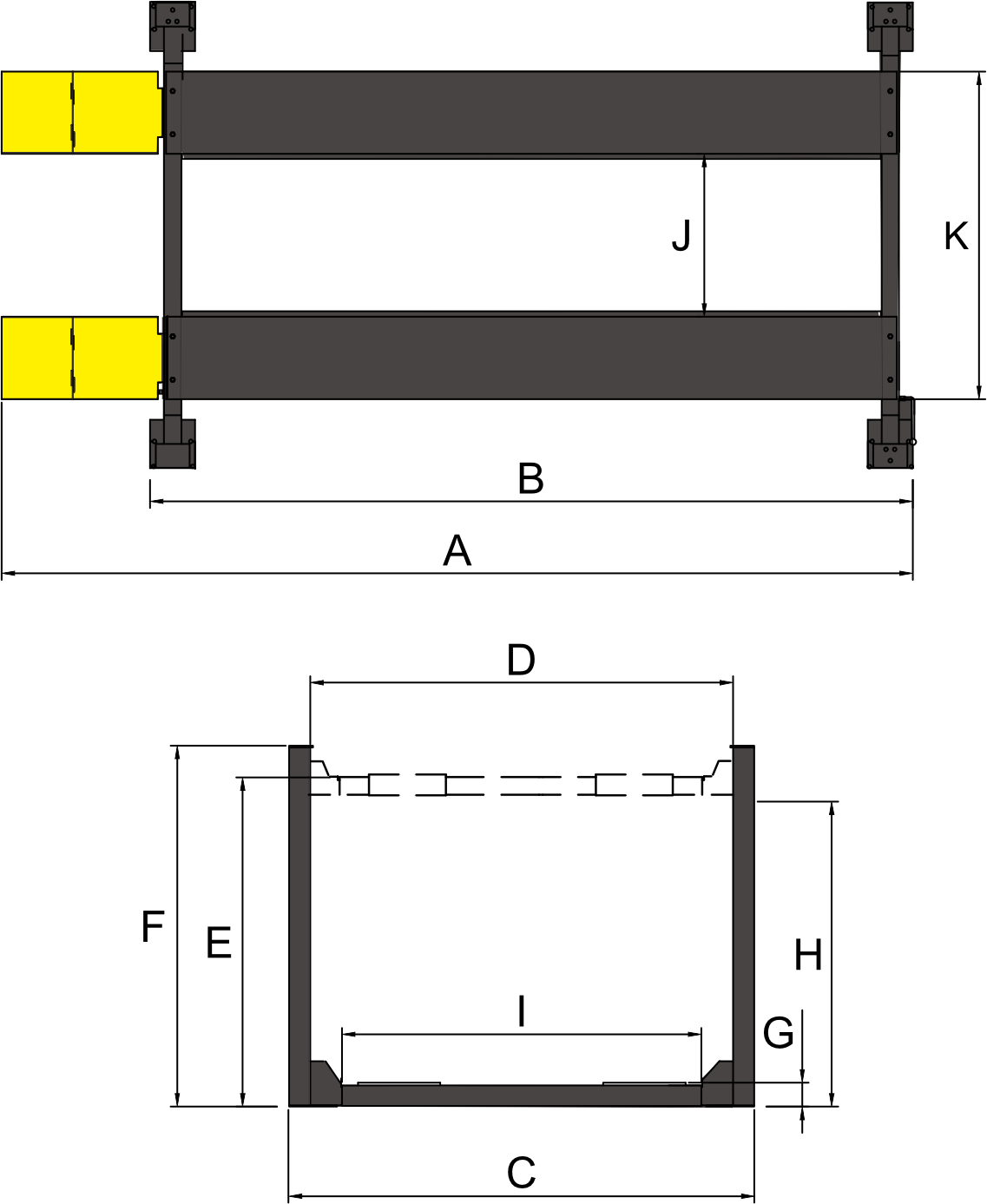

Overall length (Inc Ramps)

A

5285mm

Outside edge of crossbeams

B

4258mm

Overall Width

C

2604mm

Width between Posts

D

2358mm

Max. Lifting Height

E

1872mm

Max. Locking Height

1802mm

Overall Height

F

2105mm

Minimum Height

G

145mm

Max. Underneath Height

H

1752mm

Max. Lock Underneath runway

1682mm

Drive-Thru Clearance

I

2074mm

Width Between Runways

J

940mm

Outside Edge of Runways

K

1890mm

Gross Weight



715kg

Motor



3.0HP









  •

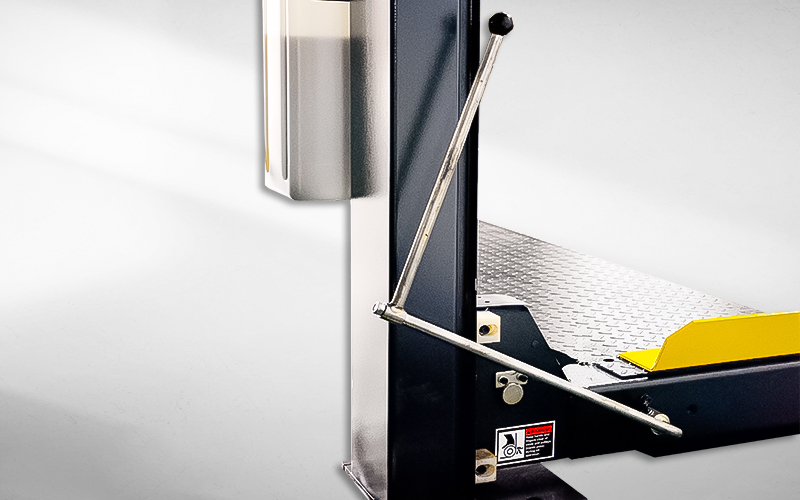

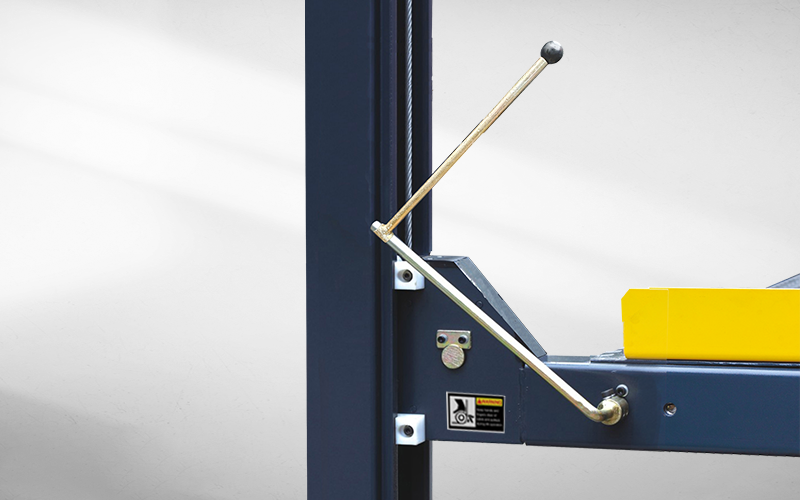

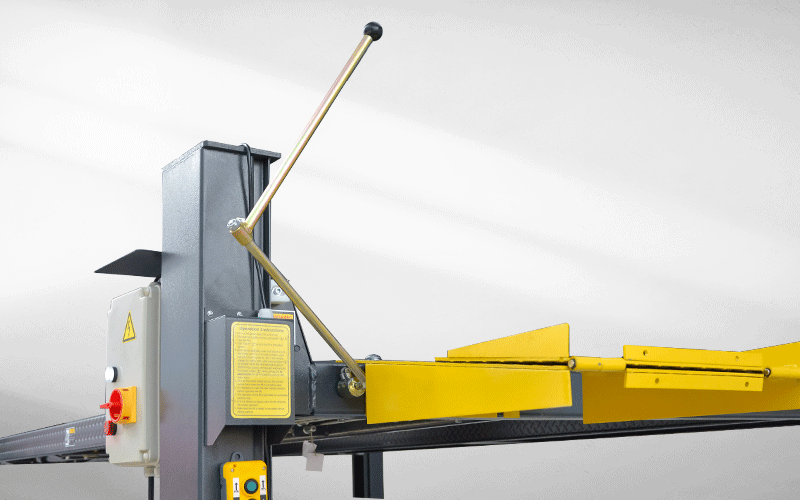

    Patented concealed safety lock control with single-point manual release.

  •

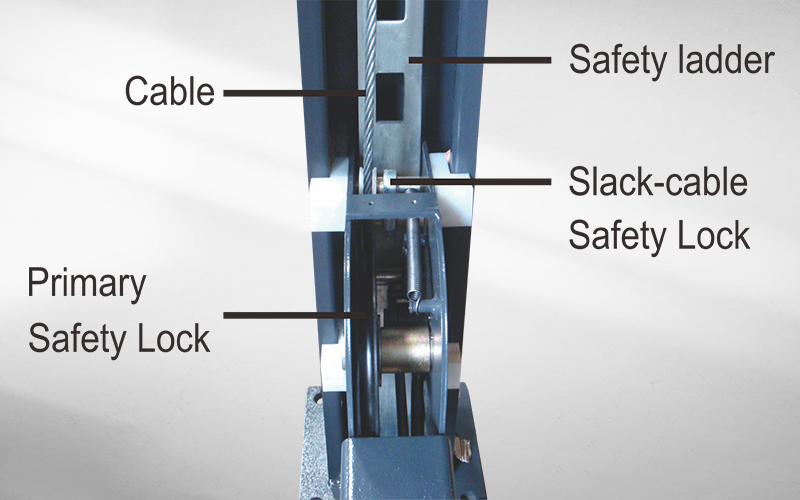

    Double safety locks provide additional safety.

  •

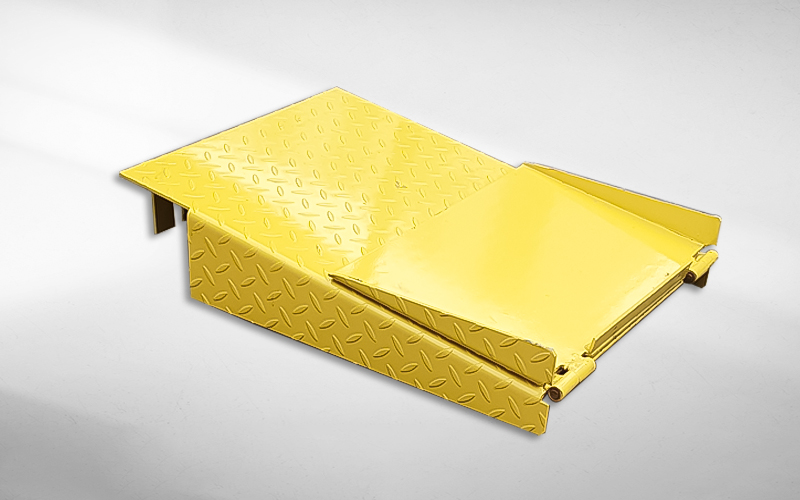

    Foldable drive-on ramps.(each lift needs 2 units).

  •

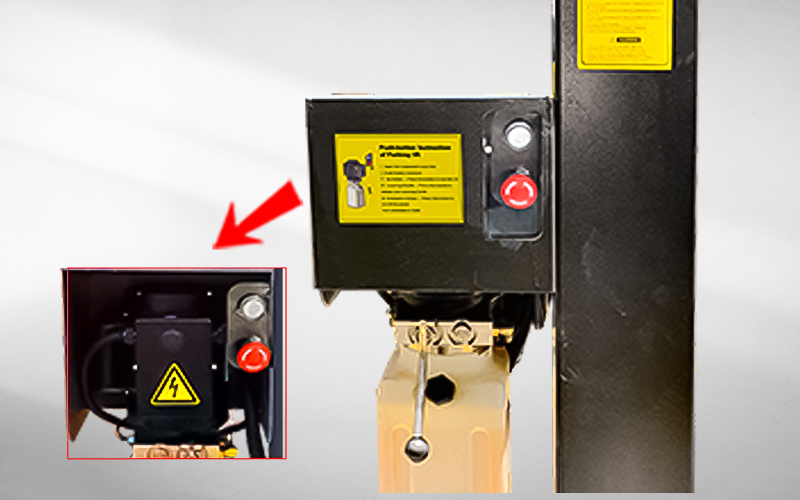

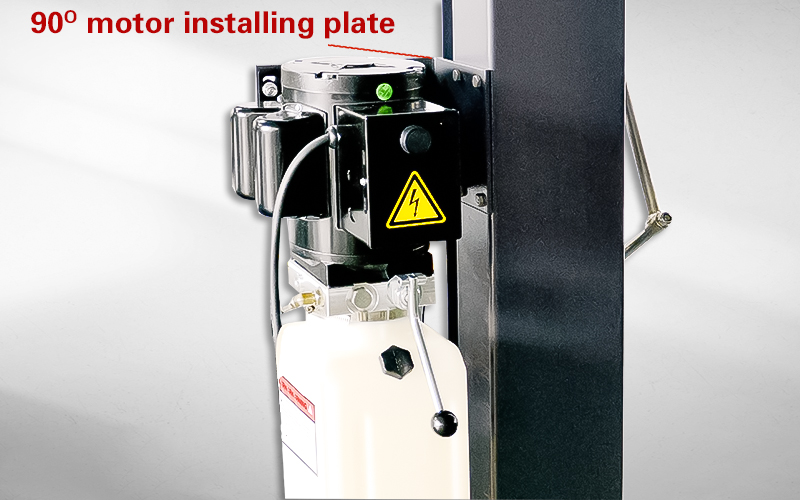

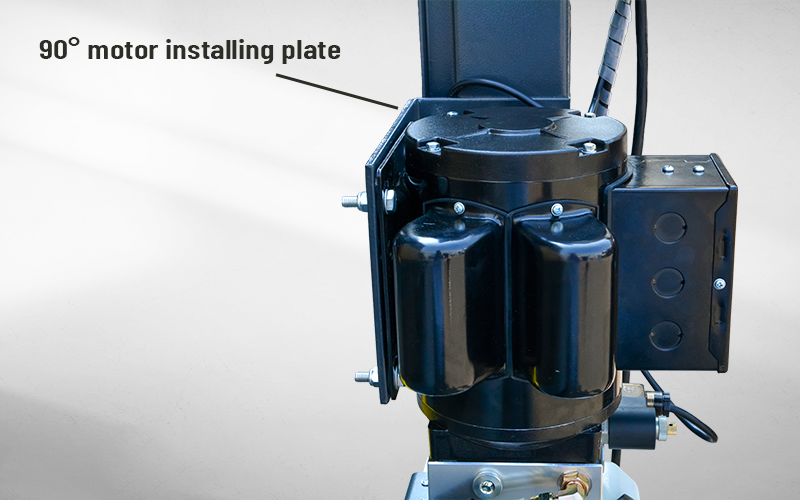

    90° installation plate for installing the power unit at the side of a column.

  •

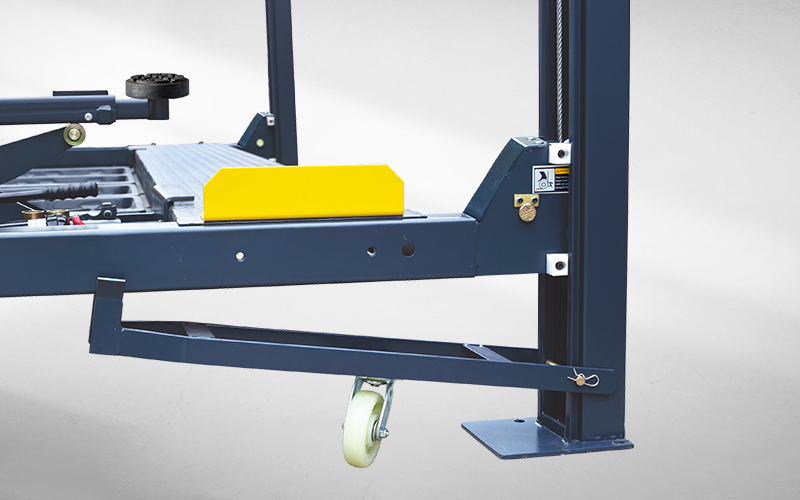

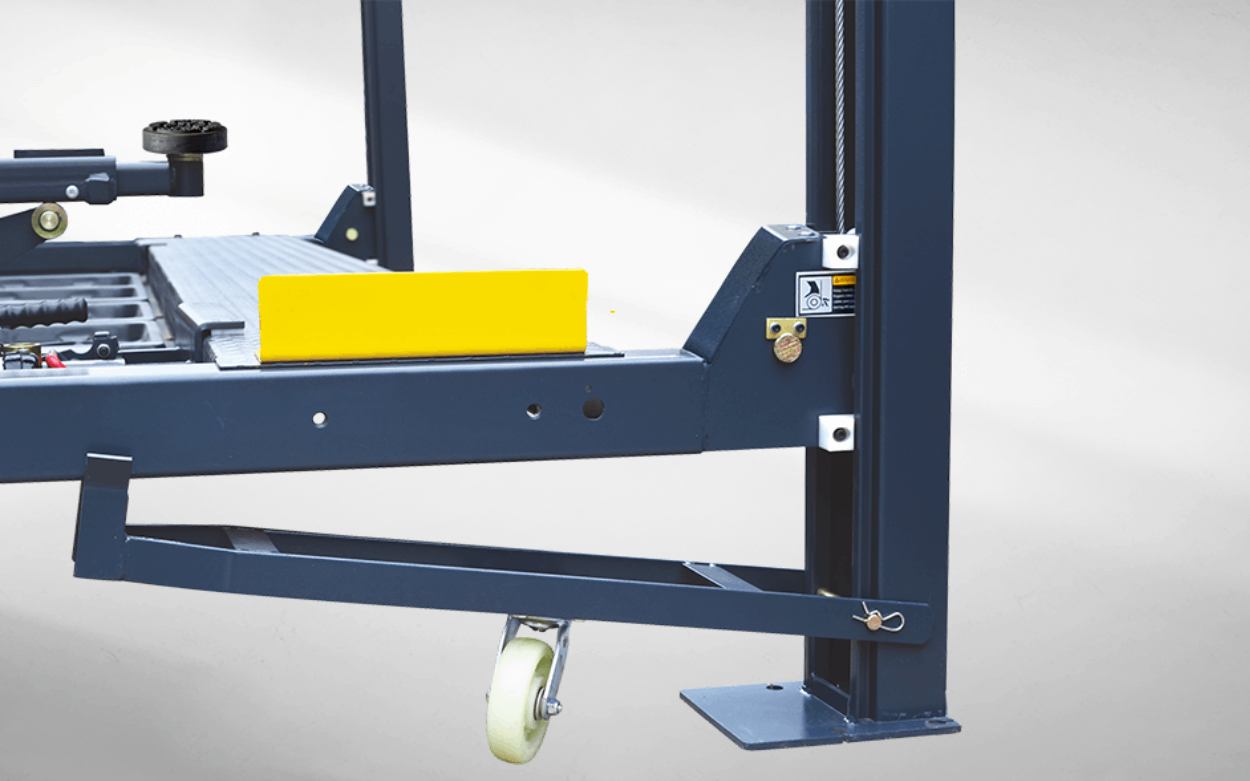

    Optional Caster Kits (1 set, 4pcs) help easily maneuver the parking lift. Kits No.: 40801

  •

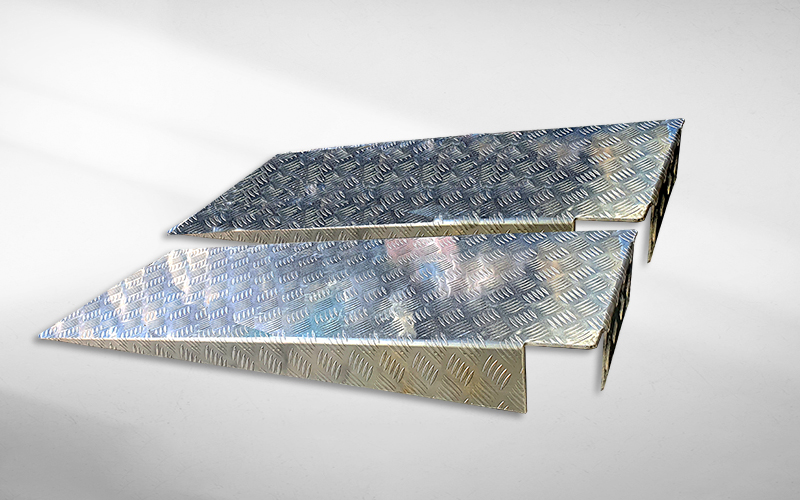

    Optional extended aluminum alloy drive-in ramps (1PC).Kits No.: 40815

  •

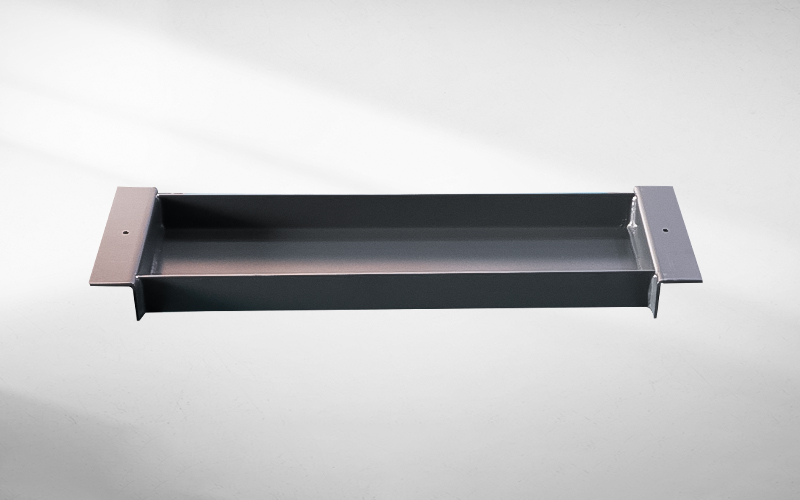

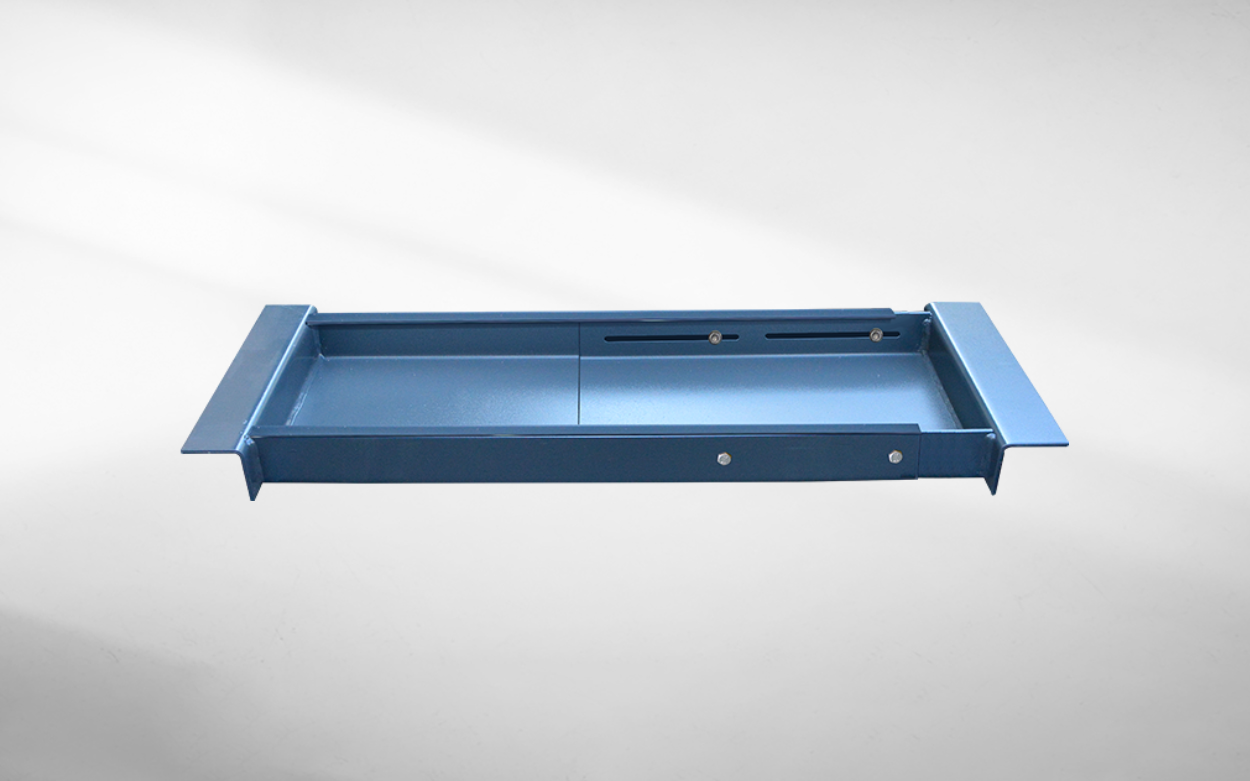

    Optional Jack Tray
    Kits No.: 40816

  •

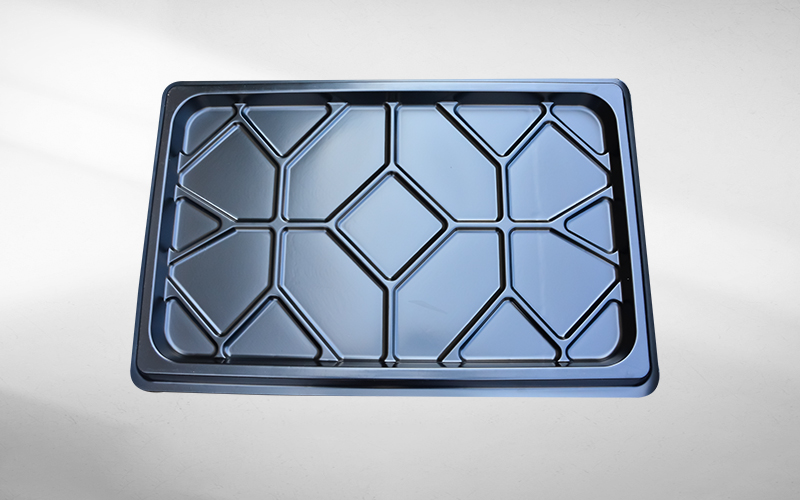

    Optional plastic oil tray (1 set,4pcs), Kits No.: 40806

  •

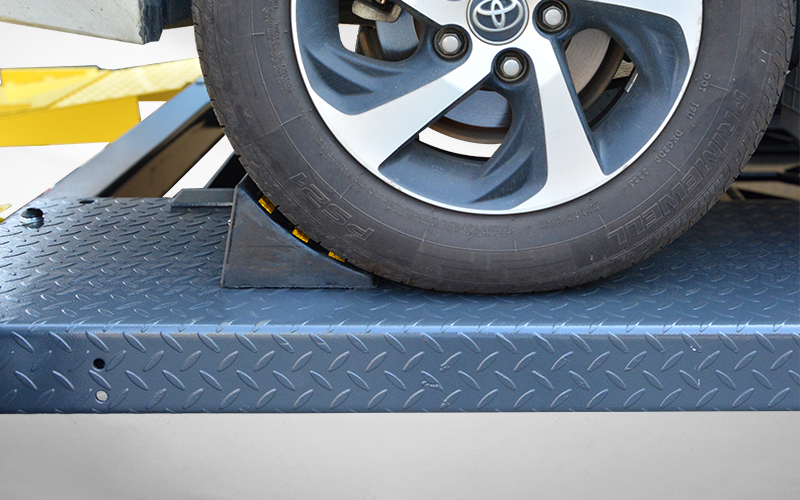

    Optional rubber wheel chock (1PC), P/N: 40811.

  •

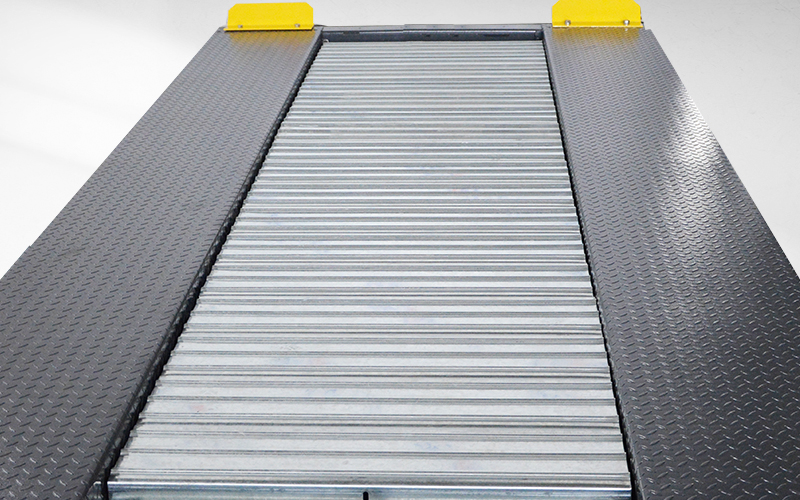

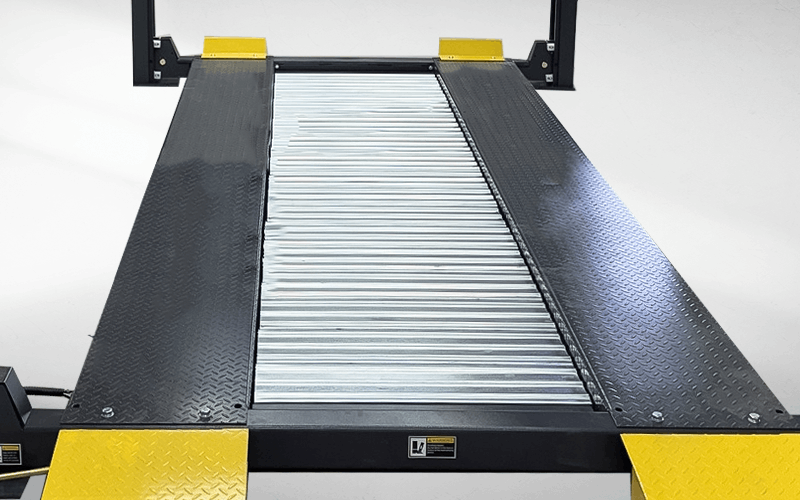

    Optional storage wave panels
    Kits No.: 40812

  •

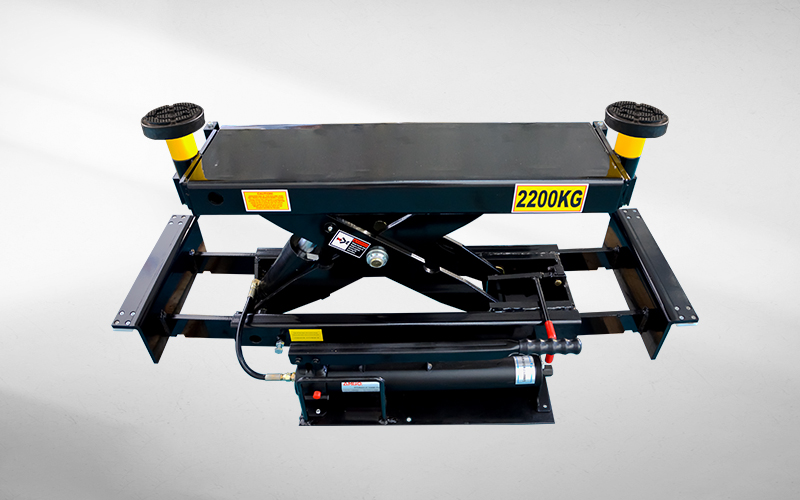

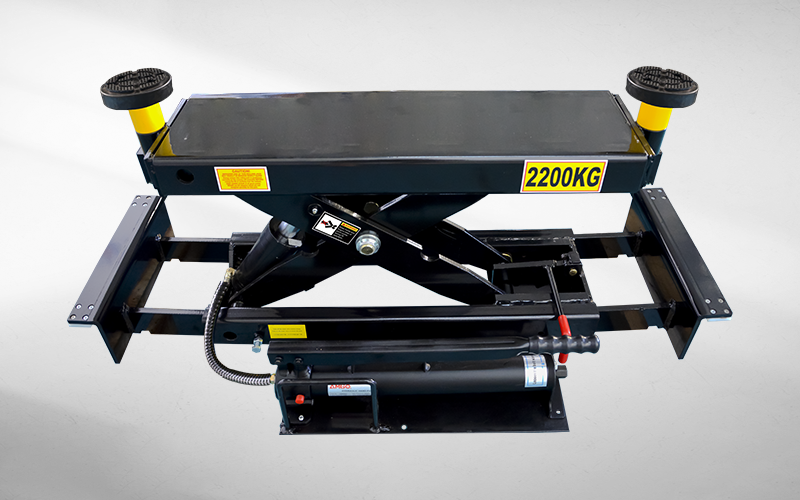

    Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg.
