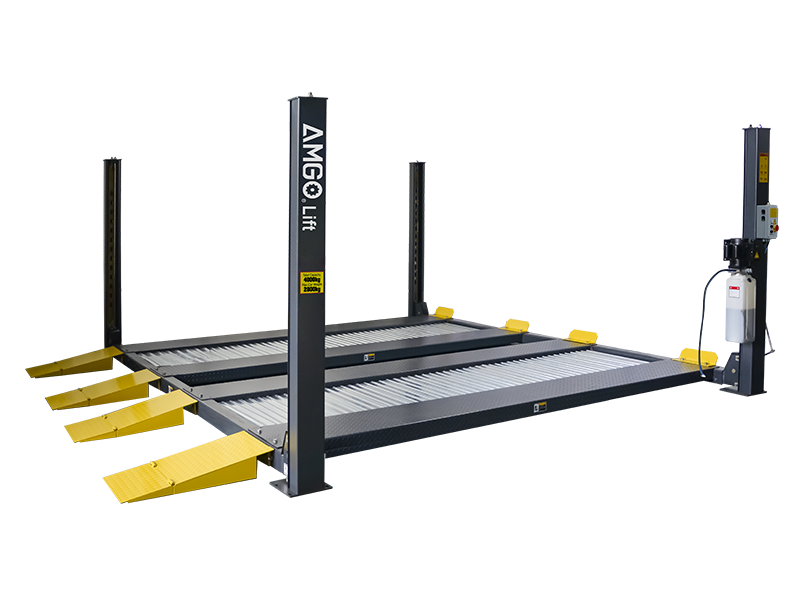

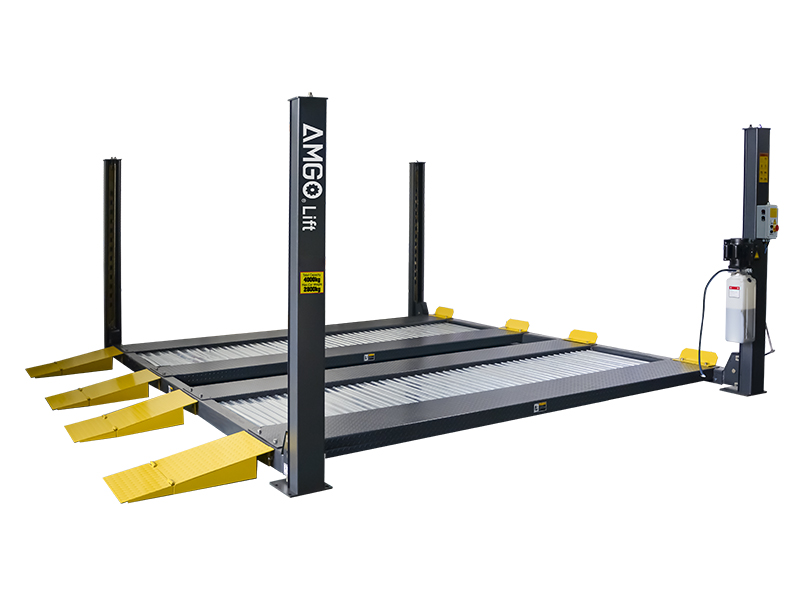

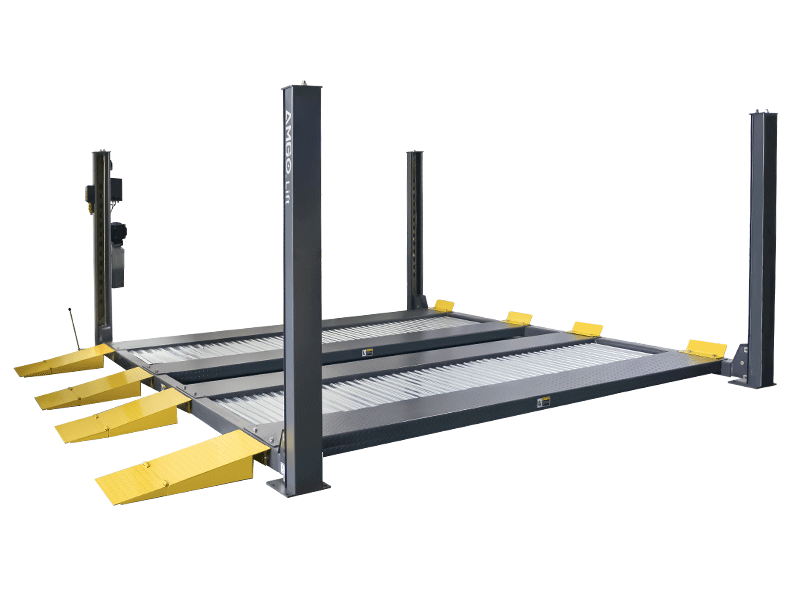

A440-DP

DOUBLE PARKING FOUR POST LIFT

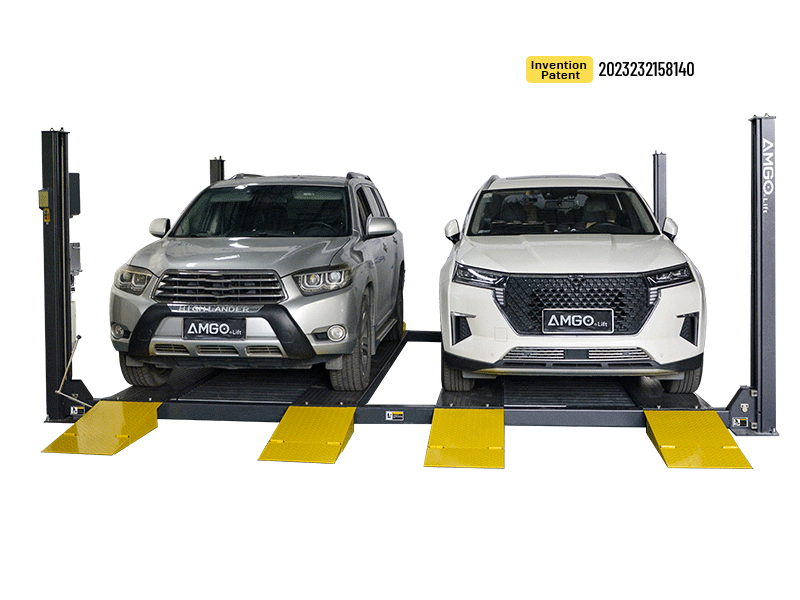

With its compact footprint, the A440-DP maximizes space efficiency by accommodating four generous parking bays. It incorporates AMGO's exclusive concealed lock control system (patent no.: ZL 2023 2 3215814.0), featuring a dual-lock mechanism designed to deliver enhanced security and comfort. Plus, it requires no additional air supply—making it both practical and ready to use.

Detailed Product Information

4000KG capacity, max single car weight: 2800kg;
Double Parking design, 1 lift, 4 parking seats;

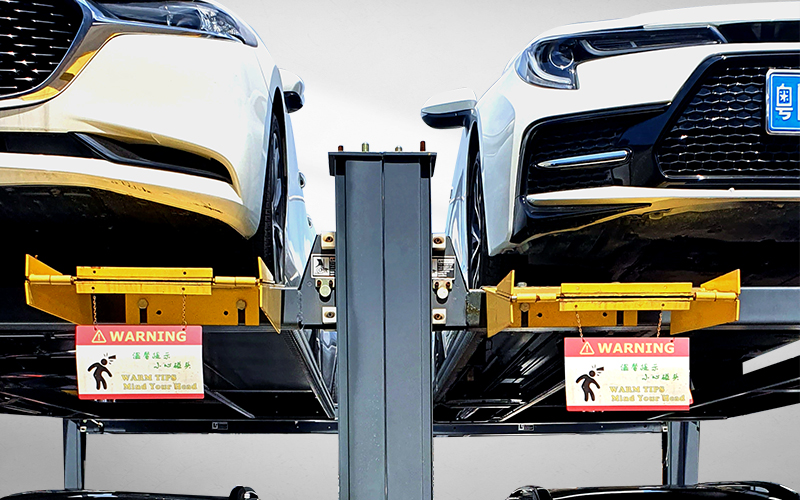

Support back2back installation;
AMGO's exclusive concealed lock control system with manual release (patent no.: ZL 2023 2 3215814.0);
Dual-lock mechanism equipped as standard for enhanced security and comfort;
Minimum height only 150mm, easy access for various vehicles;
Integrated anti-slippy platforms;
Double-S shaped columns for added strength;
Foldable drive-on ramps come standard;
Power side can be at any corner;
No need for additional air supply.

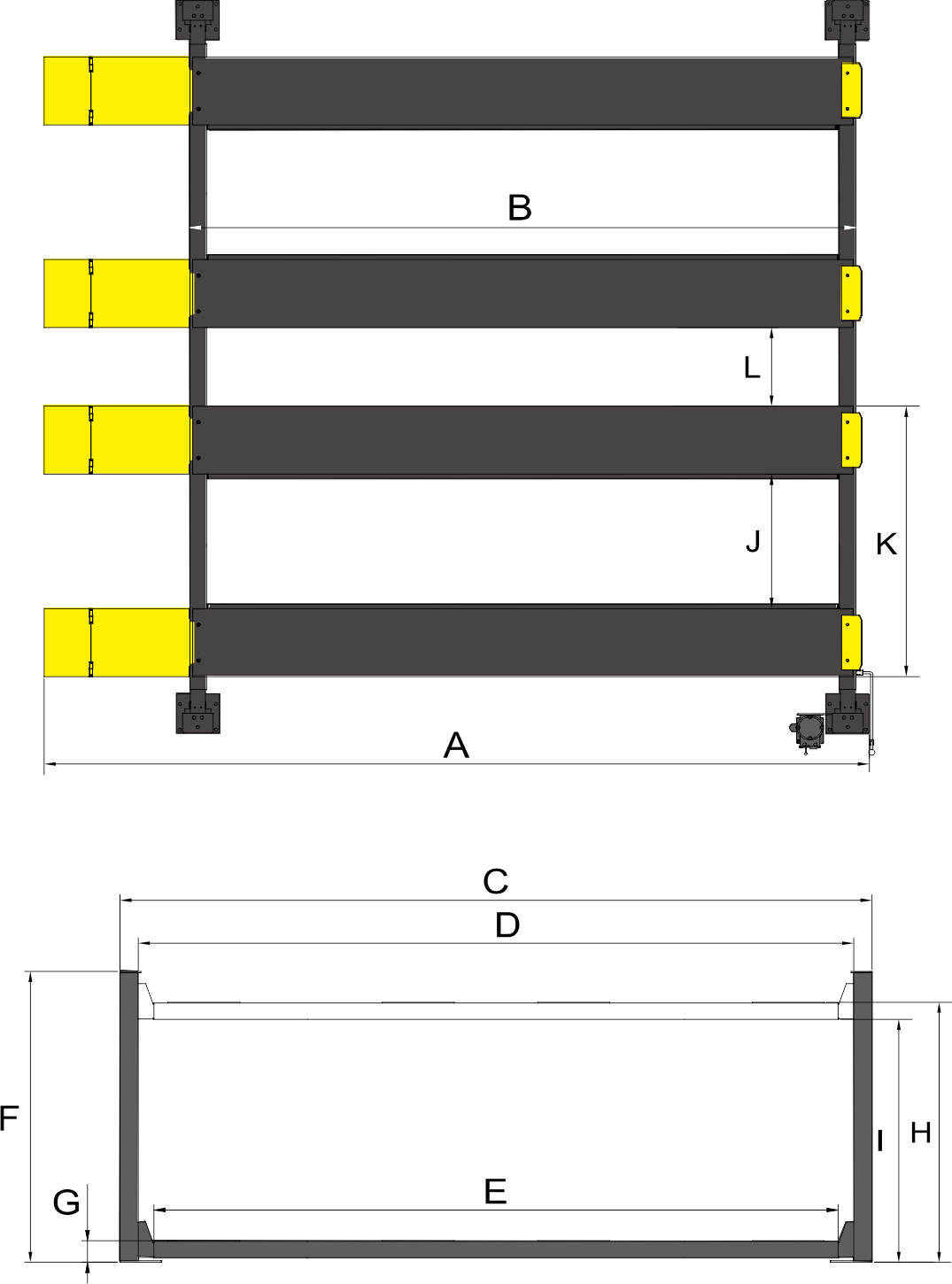

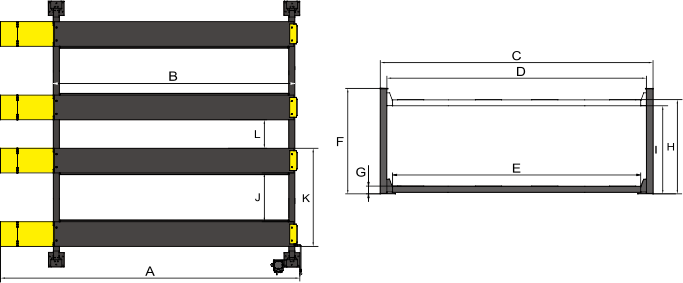

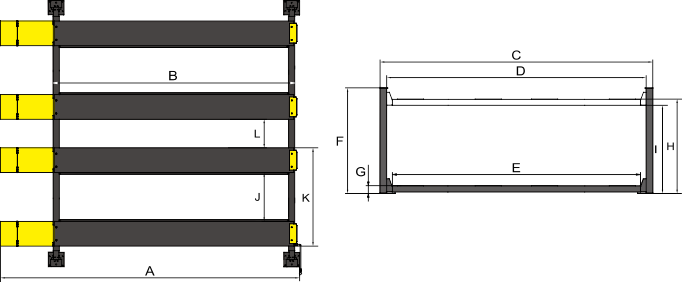

Model		A440-DP
Lifting Capacity		4000kg
Lifting Time		47s
Overall length (Inc Ramps)	A	5285mm
Overall length (No Rmaps)	B	4258mm
Overall Width	C	4840mm
Width Between Columns	D	4598mm
Drive Through Width	E	4314mm
Overall Height	F	2105mm
Minimum Height	G	150mm
Lifting Height	H	1870mm
Max. Lock Height to Top of Runway	H	1800mm
Max. Height Underneath Runway	I	1750mm
Max. Lock Height Underneath Runway	I	1680mm
Width Between Runways	J	940mm
Overall Width of Single Parking Unit	K	1890mm
Width Between Two Parking Units	L	350mm
Gross Weight		1262kg
Motor		3.0HP

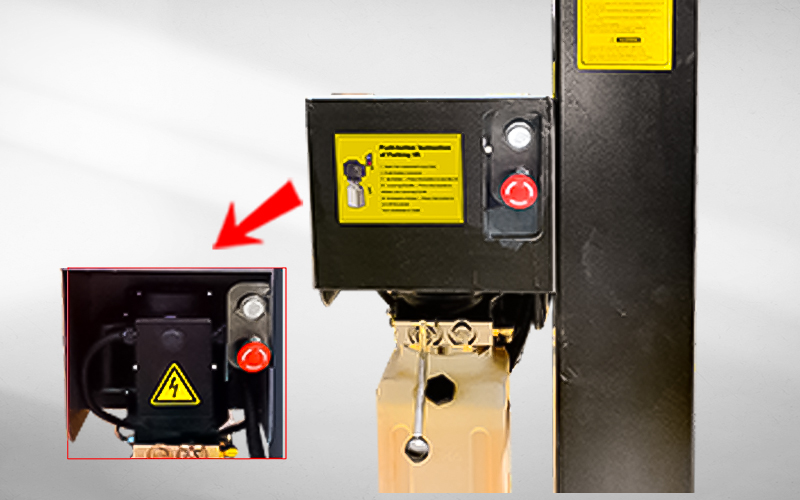

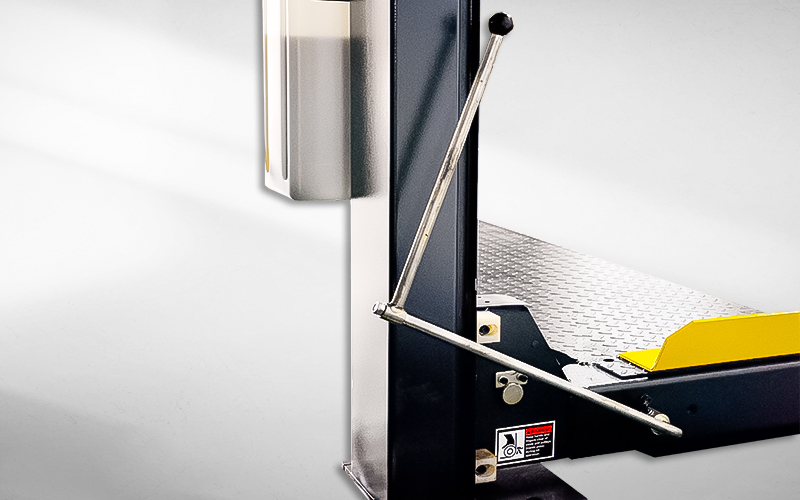

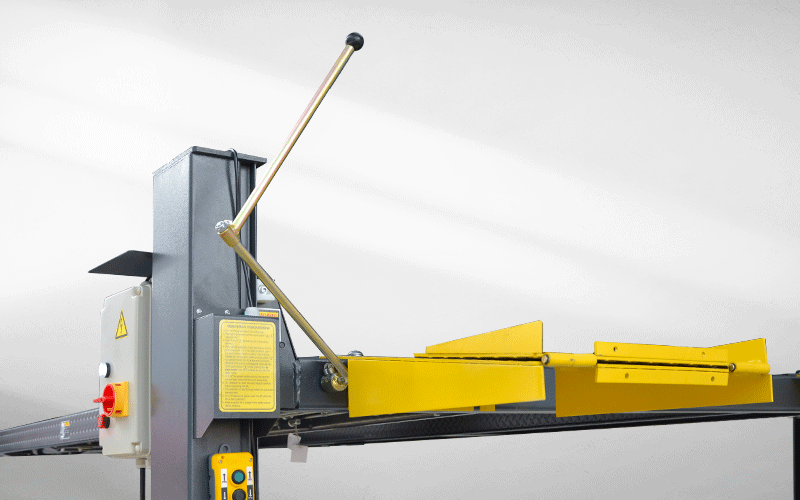

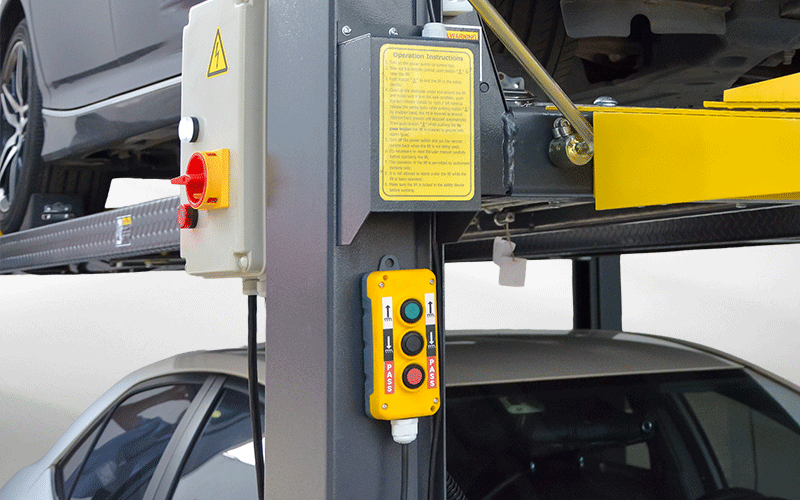

Exclusive concealed lock control system with manual release.

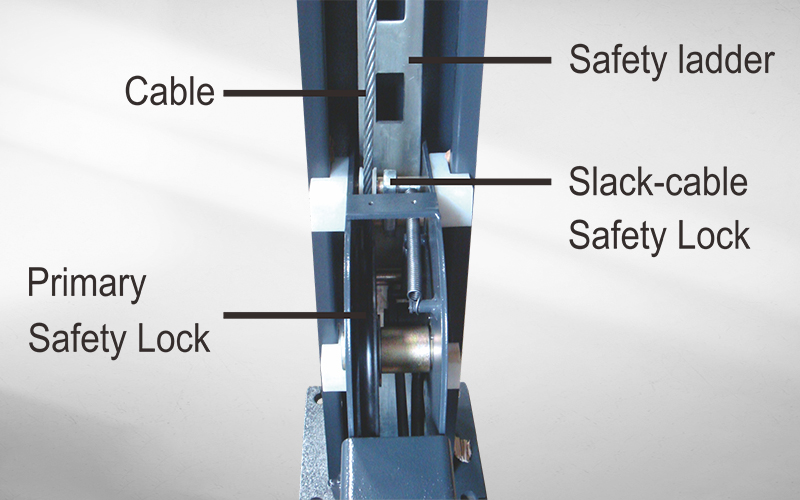

Double-lock mechanism equipped as standard.

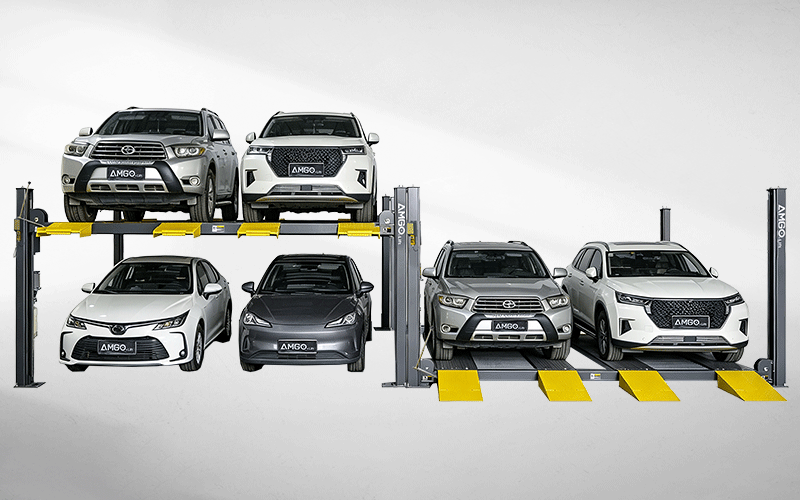

Support back2back installation.

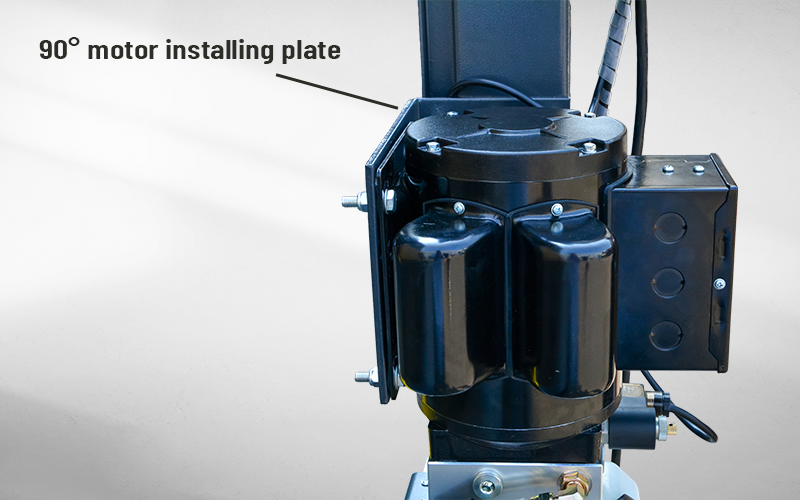

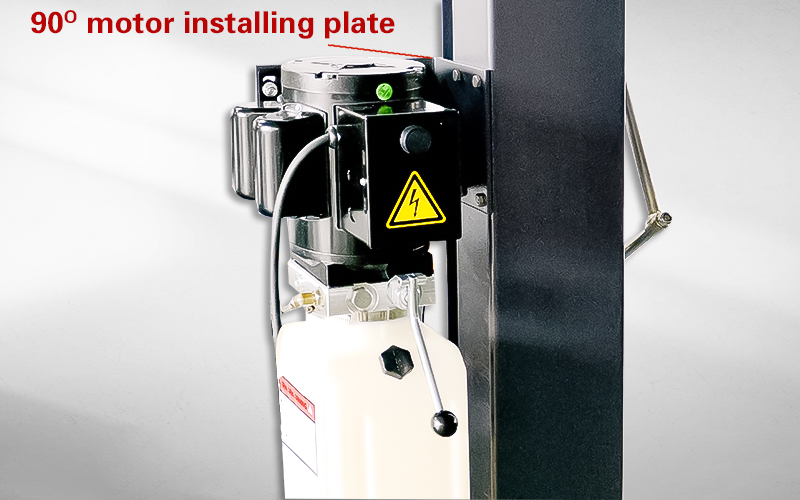

90° installation plate equipped as standard.

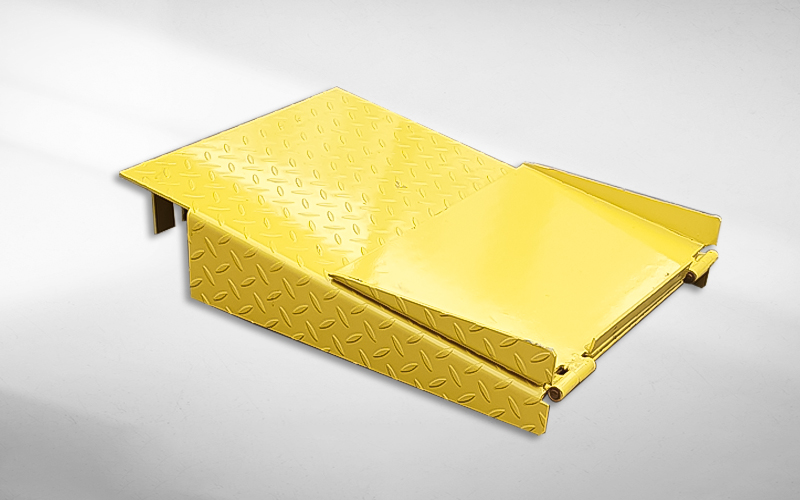

Foldable drive-on ramp equipped as standard.

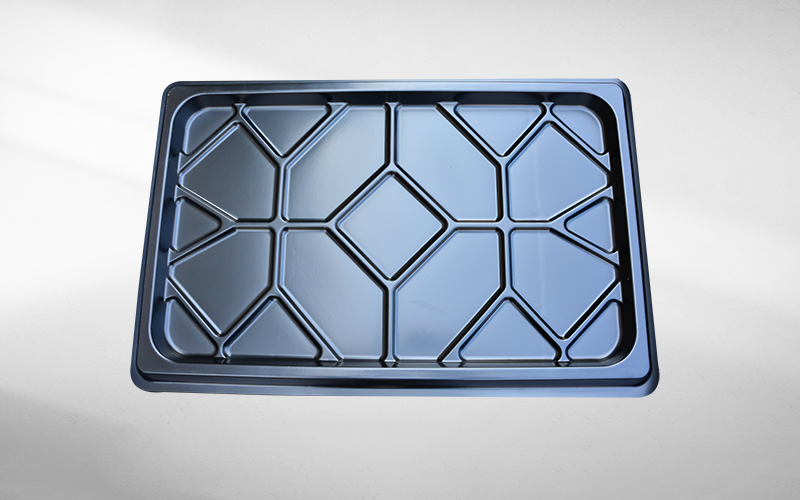

Optional Plastic oil tray (1 set,4pcs), Kits No.: 40806

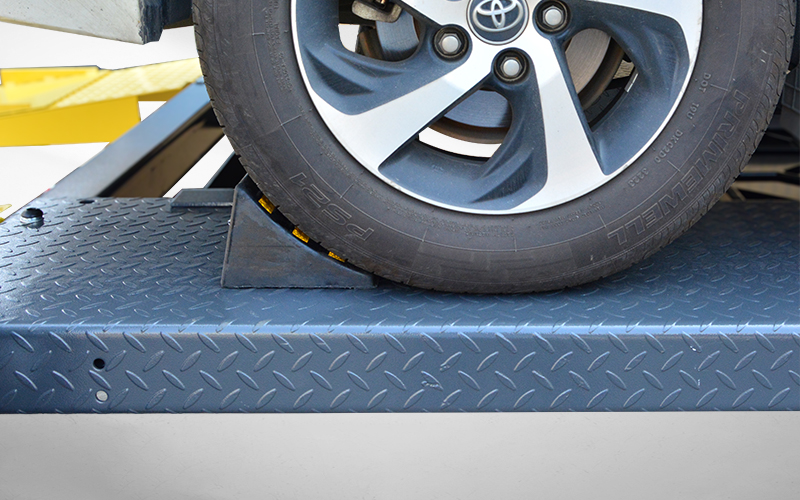

Optional Rubber wheel chock (1PC), P/N: 40811.

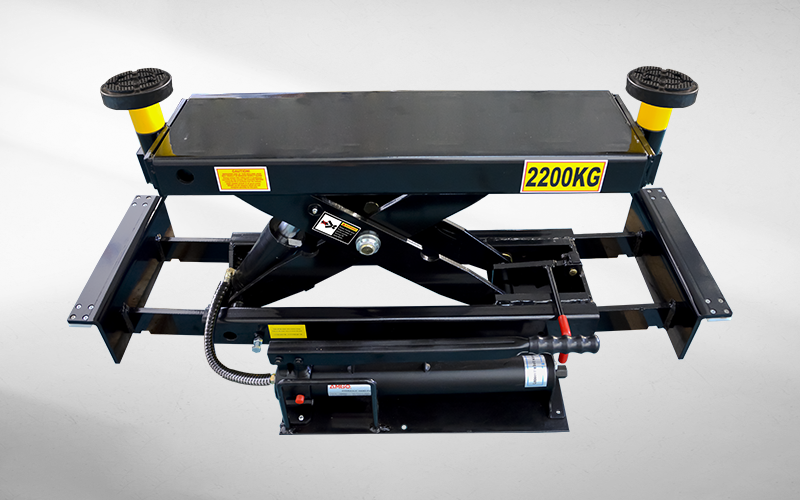

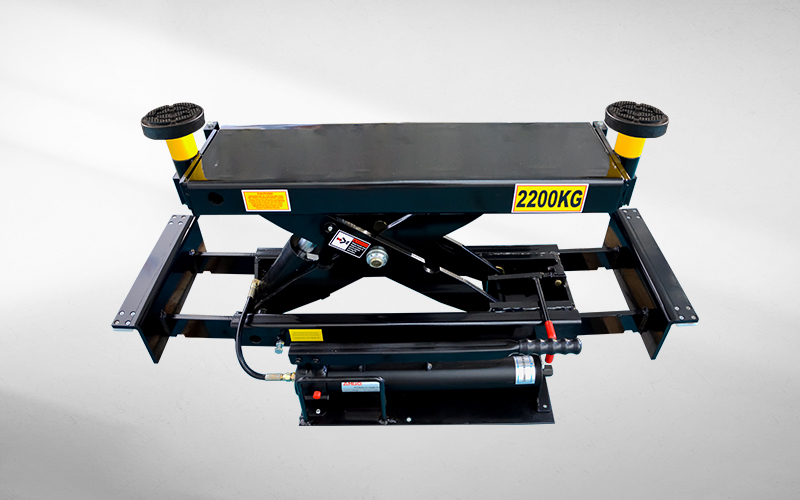

Optional J5H sliding jack (capacity: 2200kg), with hand pump. 2.5" extension adapters included.

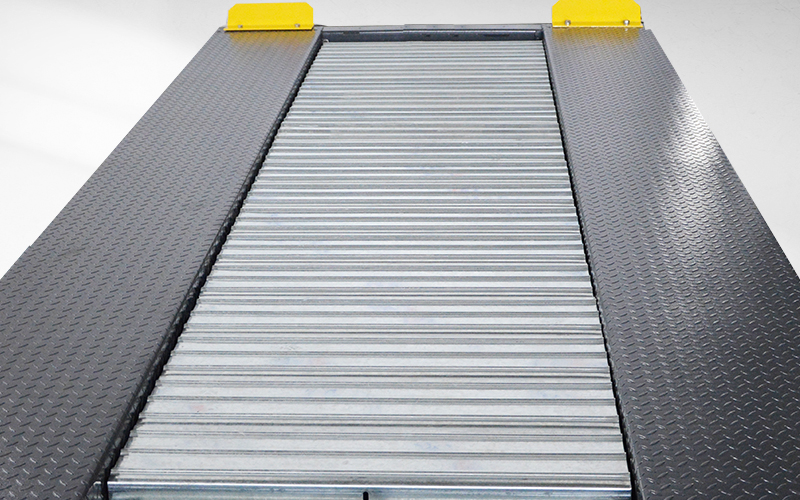

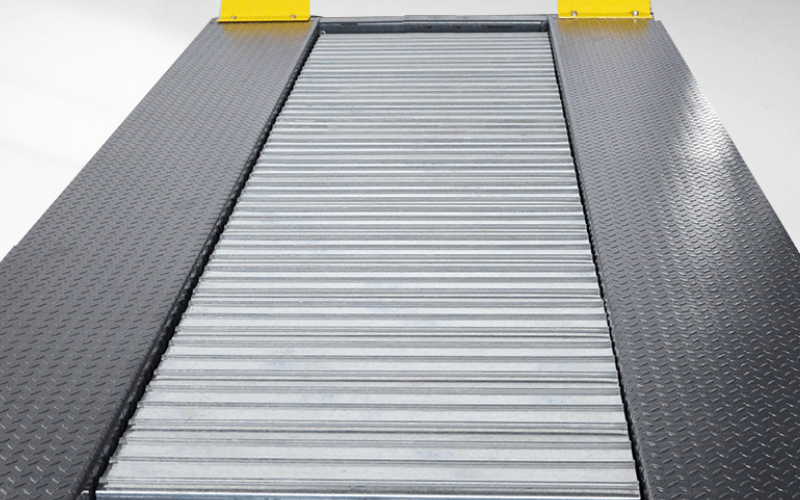

Optional Storage wave panels, Kit No.: 40812. (1 set for each parking unit).
