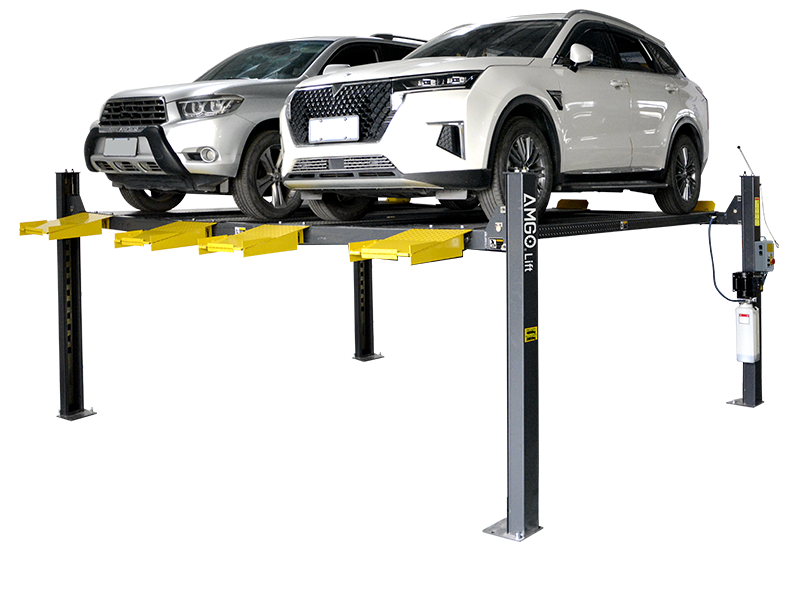

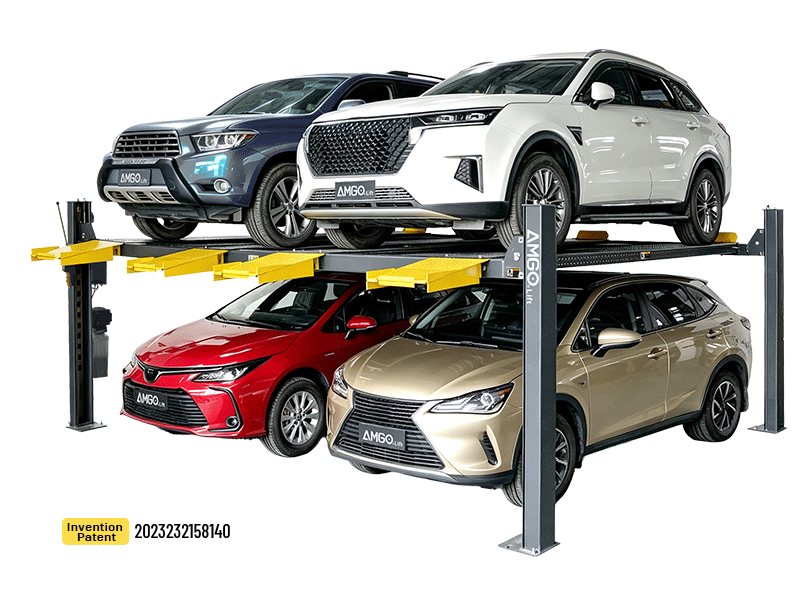

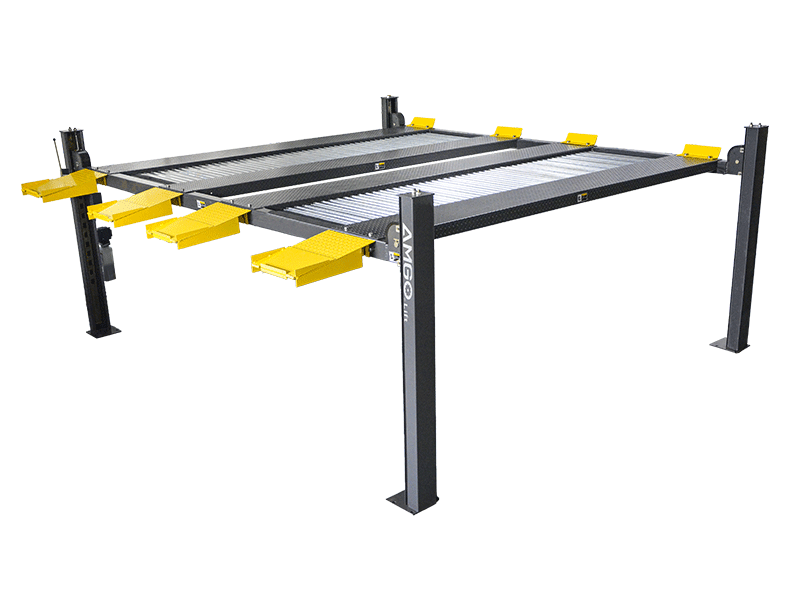

A440-DPX

DOUBLE PARKING FOUR POST LIFT

Building on the proven heritage of the A440‑DP, the A440‑DPX offers an extended platform length and an exceptional lifting height in excess of 2 metres, accommodating a wider spectrum of vehicles. Like its predecessor, it remains highly practical, requiring no external air supply.

Detailed Product Information

4000KG capacity, max single car weight: 2800kg;
Double Parking design, 1 lift, 4 parking seats;
AMGO's exclusive concealed control system with manual release ;
Dual-lock mechanism equipped as standard for enhanced security and comfort;
Minimum height only 150mm, easy access for various vehicles;
Integrated anti-slippy platforms;
Standard remote control operation ensures conveninent use；
Support back to back installation to improve space efficiency;
Double-S shaped columns for added strength;
Foldable drive-on ramps come standard;
A limit switch is fitted as standard to enhance safety;
No need for additional air supply.

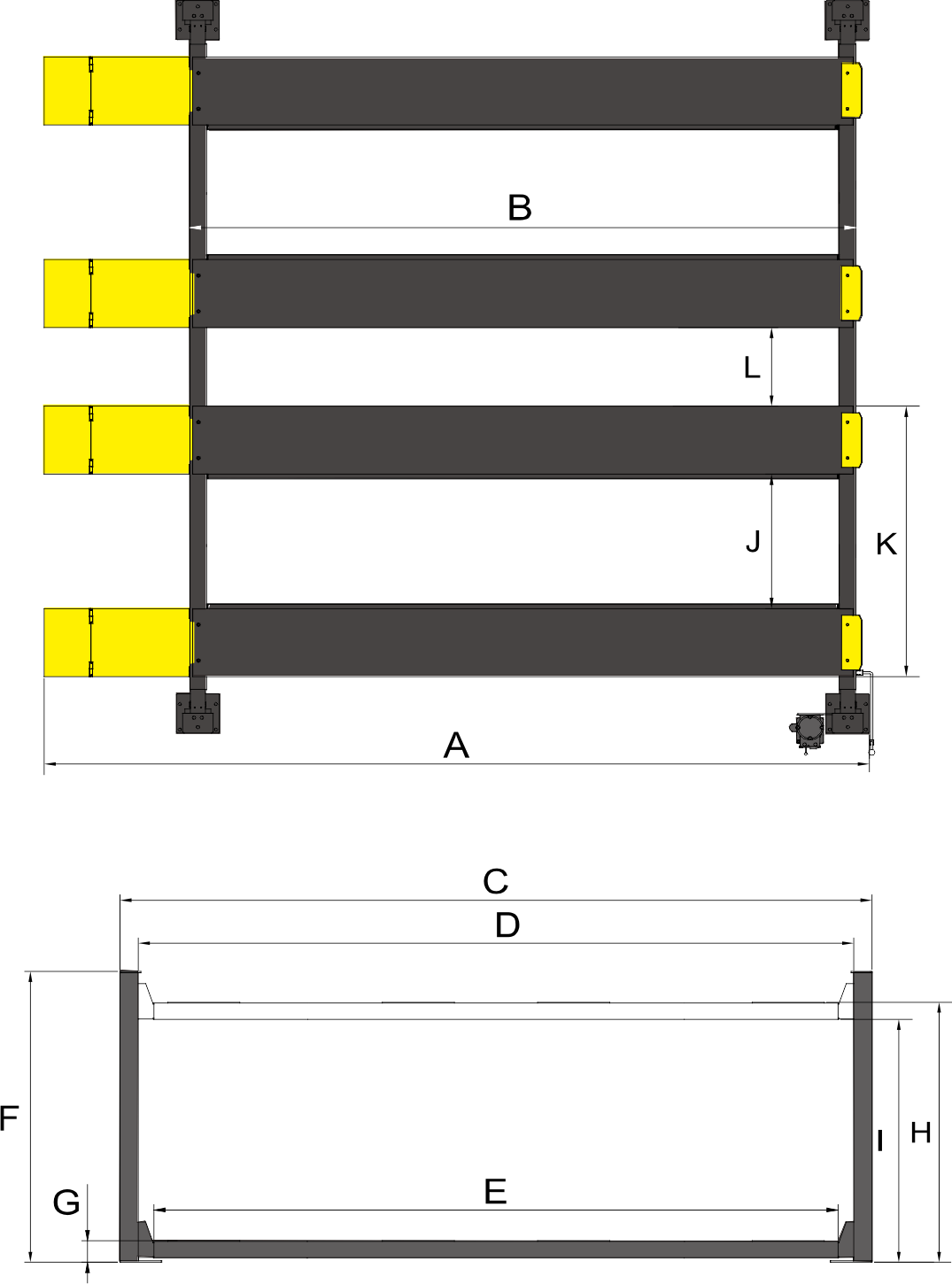

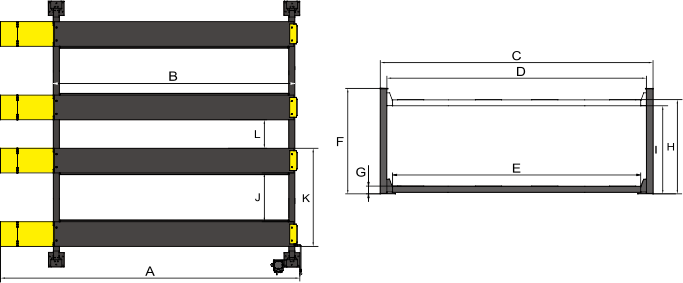

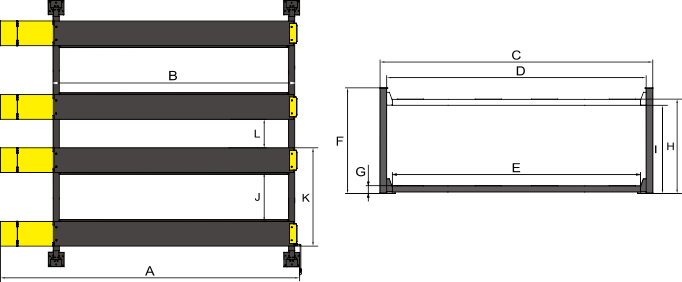

Model		A440-DPX
Lifting Capacity		4000kg
Lifting Time		57s
Overall length (Inc Ramps)	A	6061mm
Outside Edge of Crossbeams	B	5032mm
Overall Width	C	4840mm
Width Between Columns	D	4598mm
Drive Through Width	E	4314mm
Overall Height	F	2455mm
Minimum Height	G	150mm
Max. Lifting Height	H	2232mm
Max. Lock Height	H	2162mm
Max. Underneath Height	I	2112mm
Max. Underneath Lock Height	I	2042mm
Width Between Runways	J	940mm
Overall Width of Single Parking Unit	K	1890mm
Width Between Two Parking Units	L	350mm
Gross Weight		1372kg
Motor		3.0HP

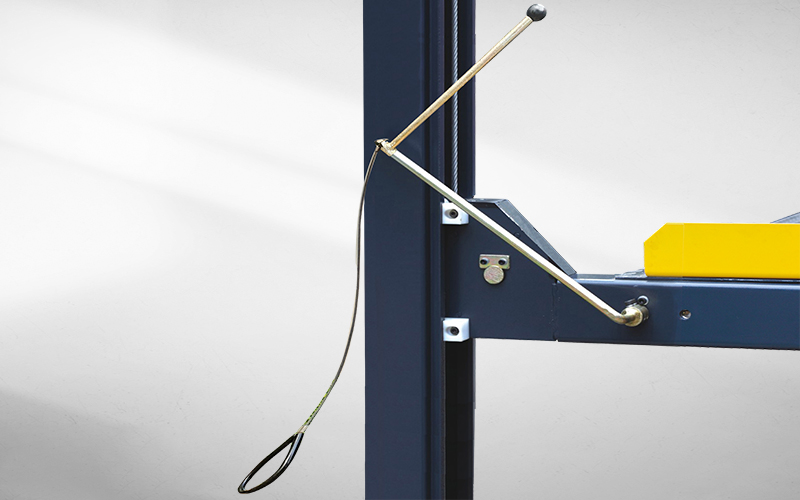

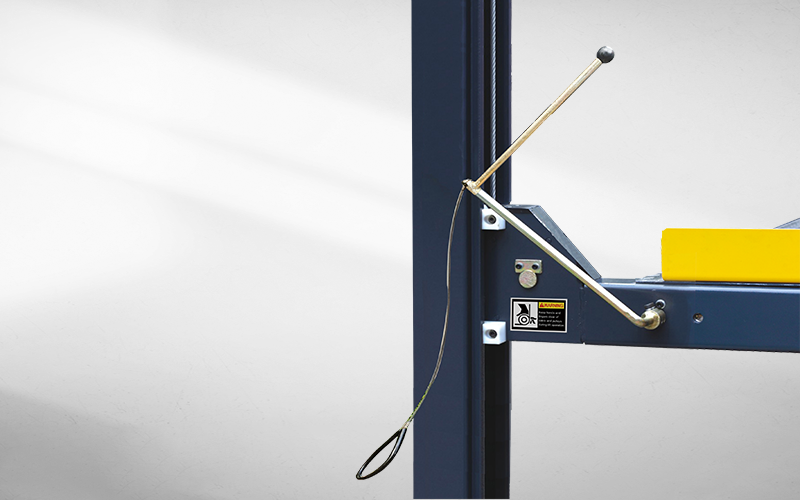

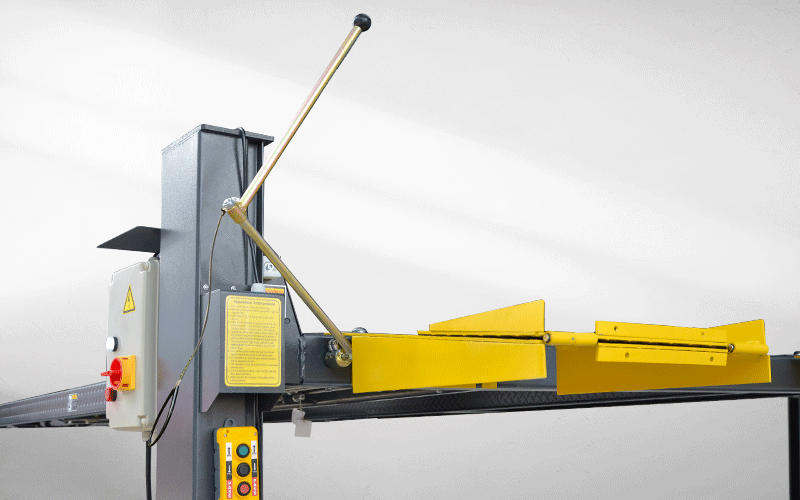

Patented concealed safety lock control with single-point manual release.

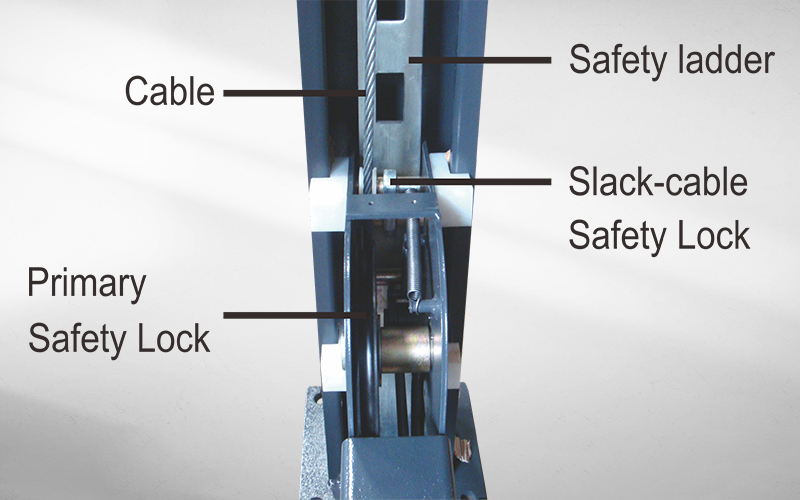

Double-lock mechanism equipped as standard.

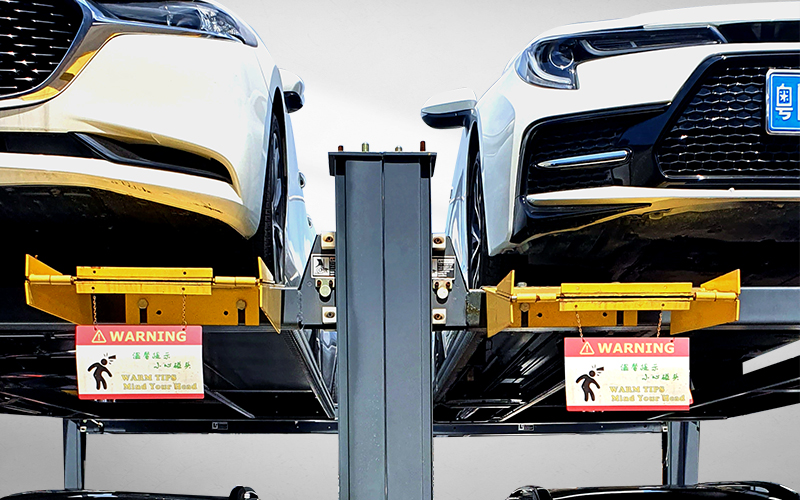

Support back to back installation to improve space efficiency.

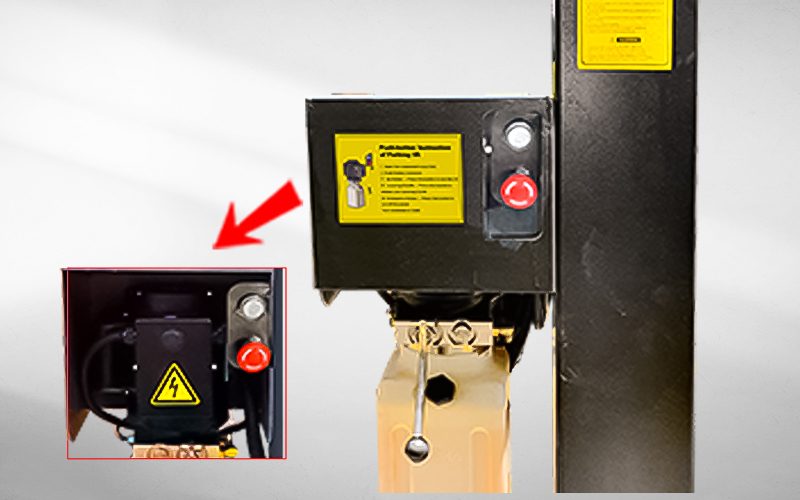

Standard remote control operation ensures conveninent use.

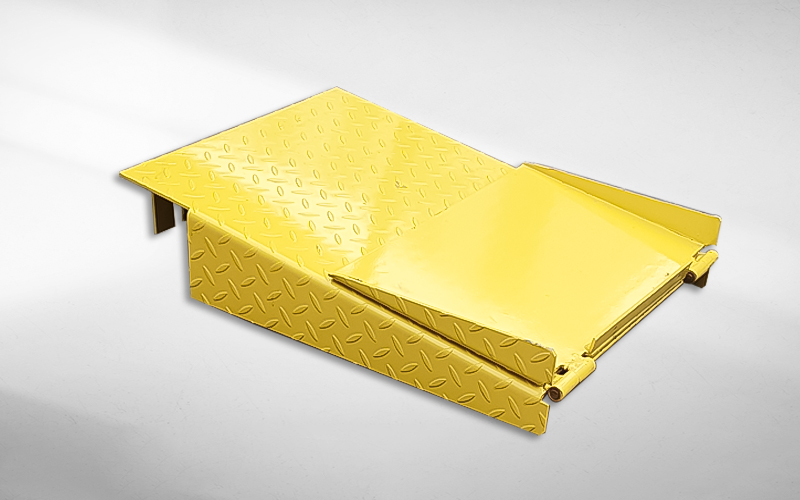

Foldable drive-on ramp equipped as standard.

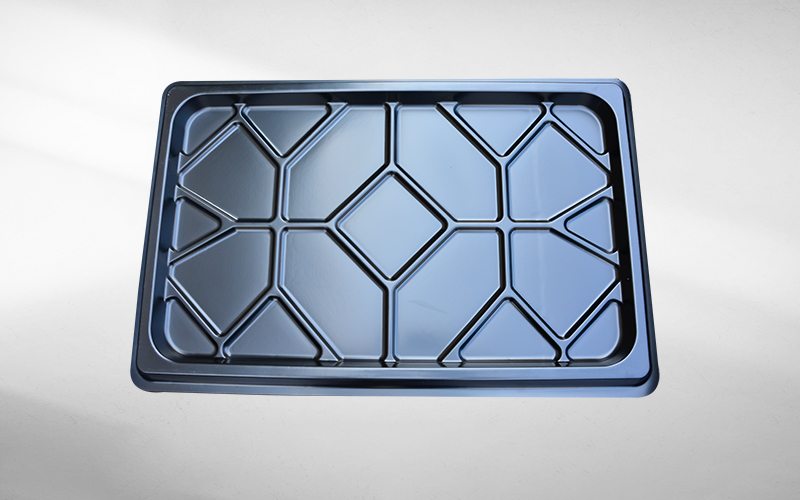

Optional Plastic oil tray (1 set,4pcs), Kits No.: 40806

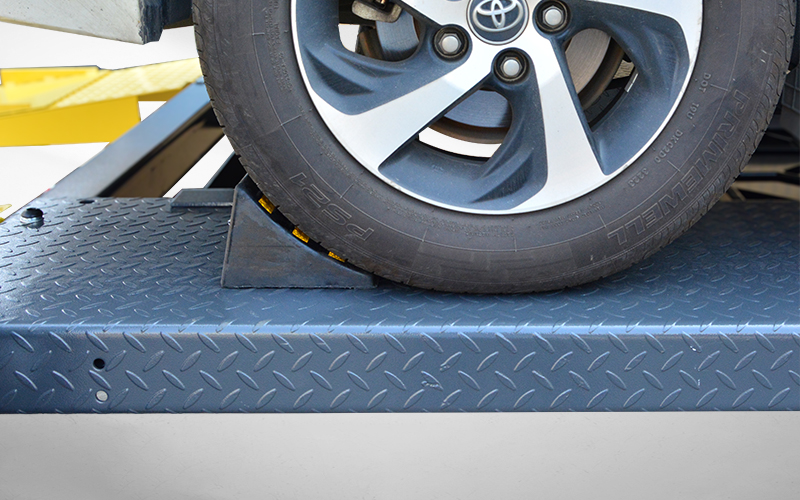

Optional Rubber wheel chock (1PC), P/N: 40811.

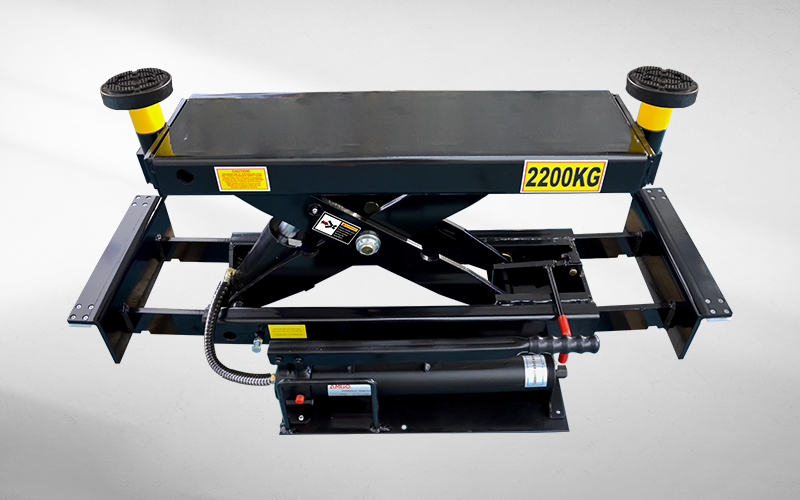

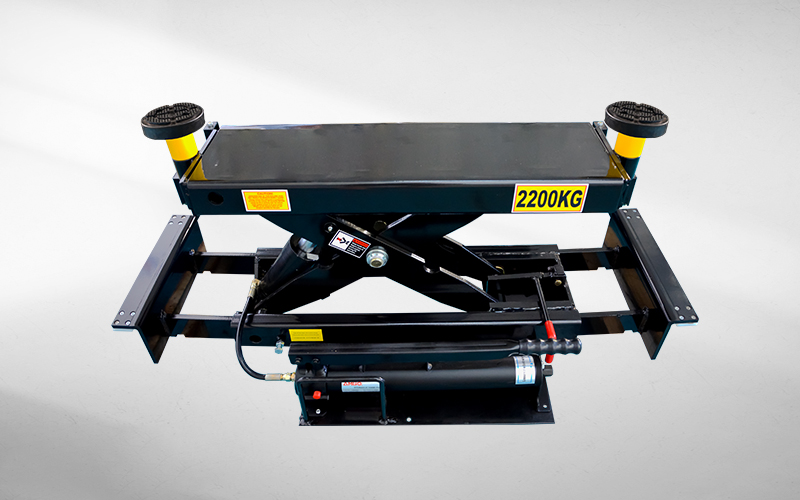

Optional J5H sliding jack (capacity: 2200kg), with hand pump. 2.5" extension adapters included.

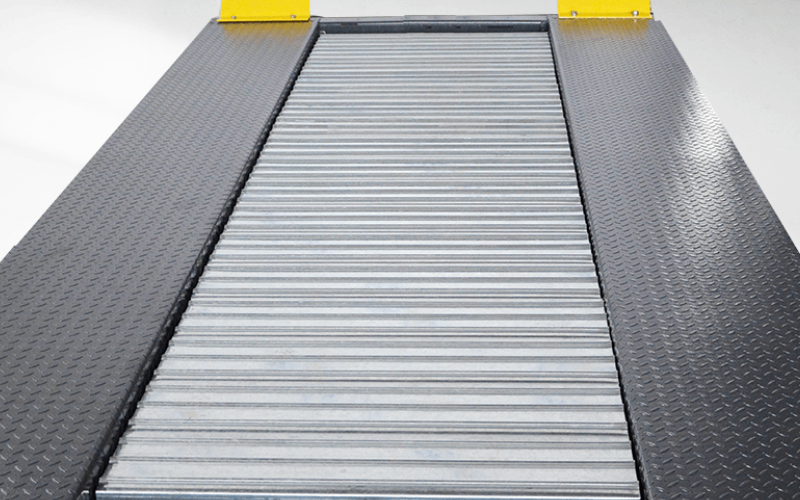

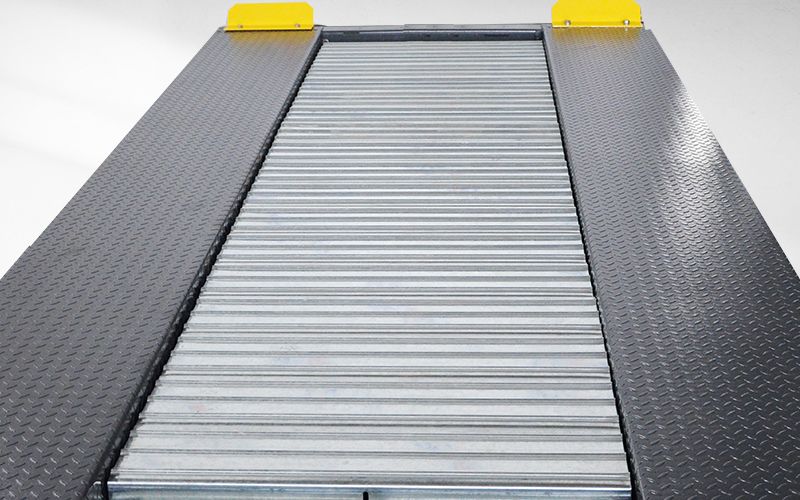

Optional Storage wave panels, Kit No.: 40812. (1 set for each parking unit).
