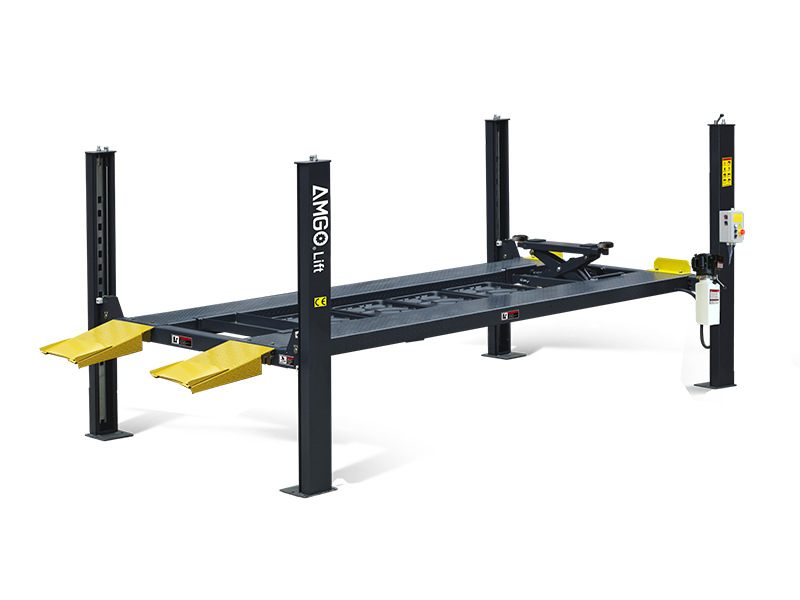

A440-HP

FOUR POST PARKING LIFT

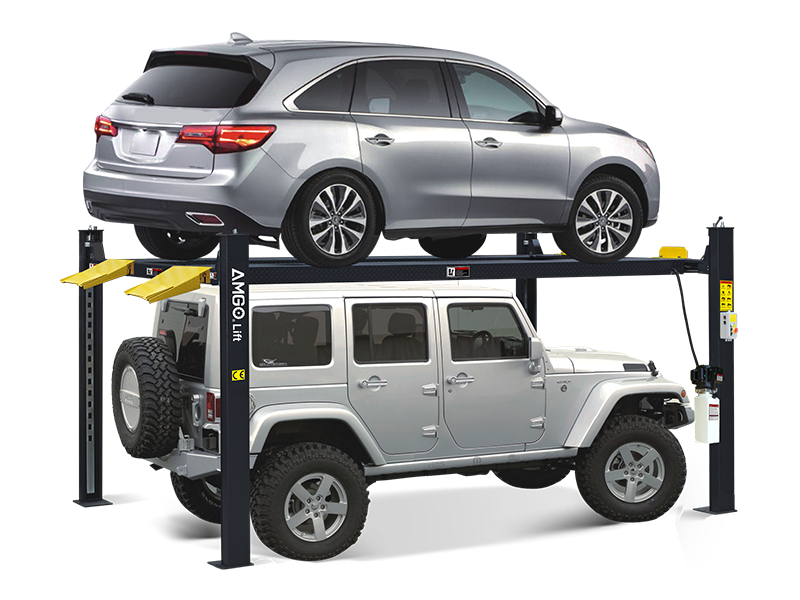

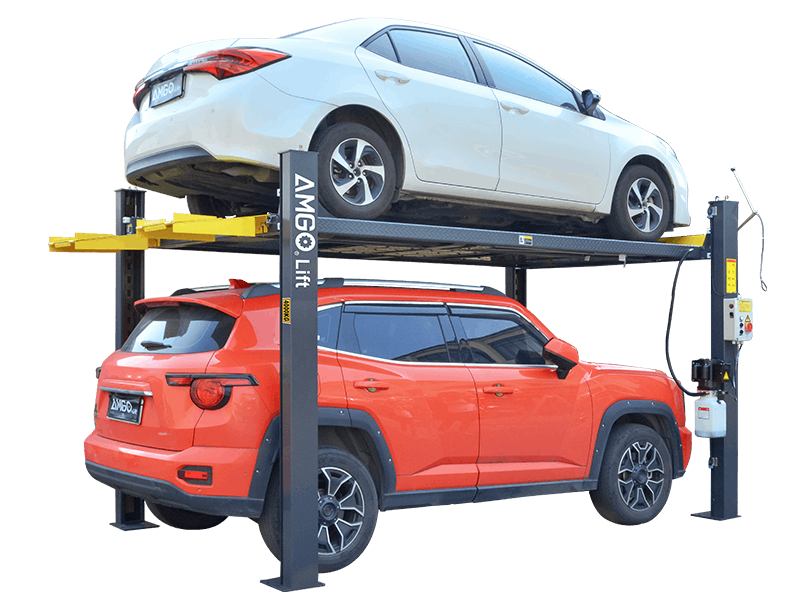

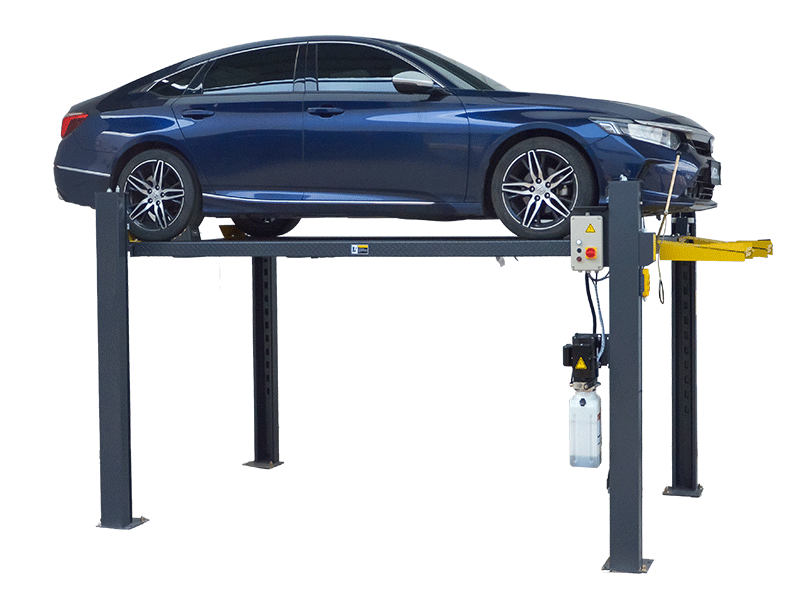

The A440-HP is the deluxe model in the AMGO range of commercial parking lifts. Its extra-tall design features extra-long platforms and boasts an impressive 4000KG lifting capacity to meet the most demanding requirements, making it ideal for a wide range of vehicles including cars, SUVs, pick-ups and light trucks.

Detailed Product Information

  • 4000KG capacity;
  • Deluxe design offers an unparalleled parking experience;

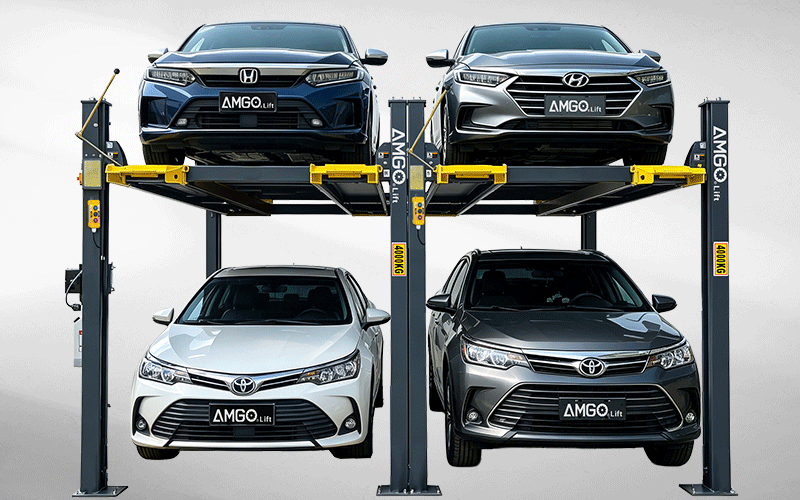

  • Support back-to-back installation;
  • Max lifting to exceed 2200mm, ideal for large vans and light trucks;
  • 24V safe electrical operation system;
  • Patented concealed safety lock control with single-point manual release;
  • Both primary safety locks and cable-slack protection come standard;
  • Integrated non-skid diamond platforms;

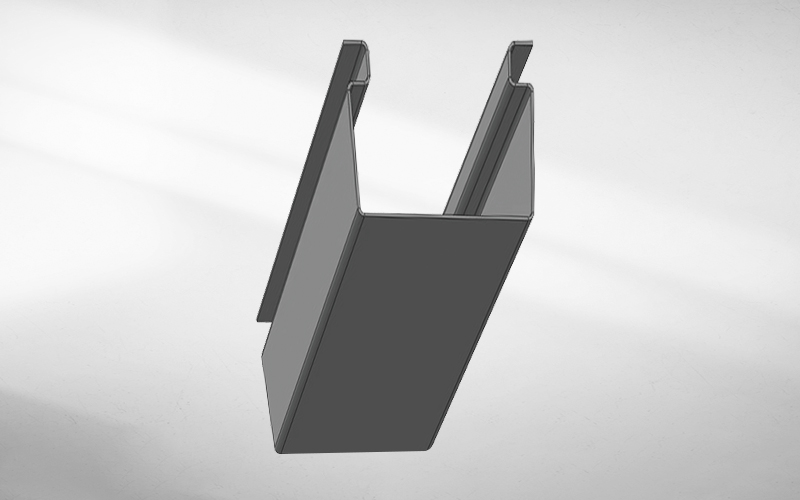

  • Double-S shaped columns for added strength;
  • Foldable drive-on ramps;
  • Power side column installable at any corner;
  • High-quality hydraulic cylinder designed and manufactured to high standards.

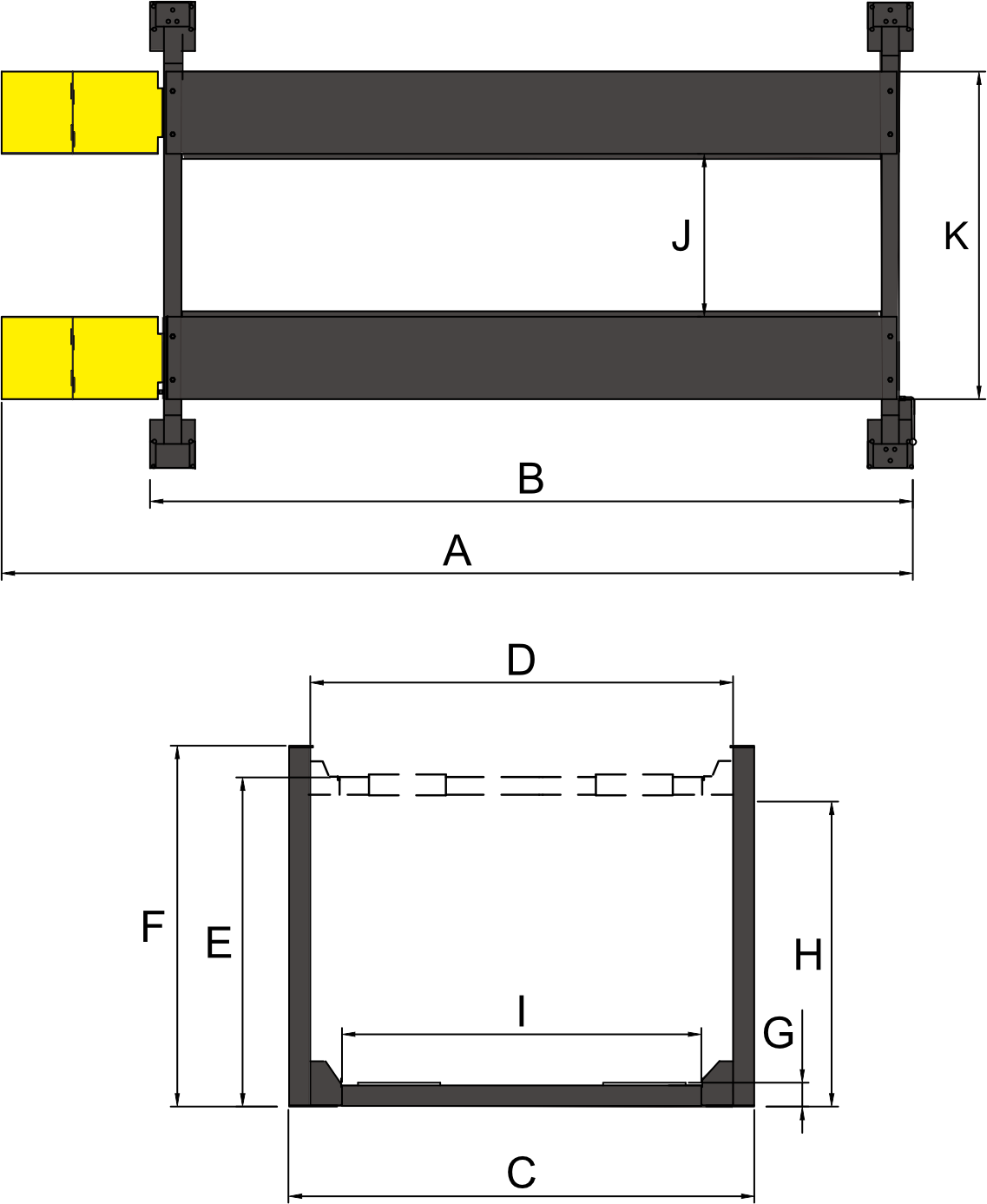

Model



A440-HP

Lifting Capacity



4000kg

Lifting Time



67s

Overall length (Inc Ramps)

A

6049mm

Outside edge of crossbeams

B

5022mm

Overall Width

C

2777mm

Width between Posts

D

2531mm

Max. Lifting Height

E

2237mm

Max. Locking Height

2167mm

Overall Height

F

2455mm

Minimum Height

G

155mm

Max. Underneath Height

H

2097mm

Max. Lock Underneath runway

2027mm

Drive-Thru Clearance

I

2247mm

Width Between Runways

J

1077mm

Outside Edge of Runways

K

2093mm

Gross Weight



894kg

Motor



3.0HP/220V







  •

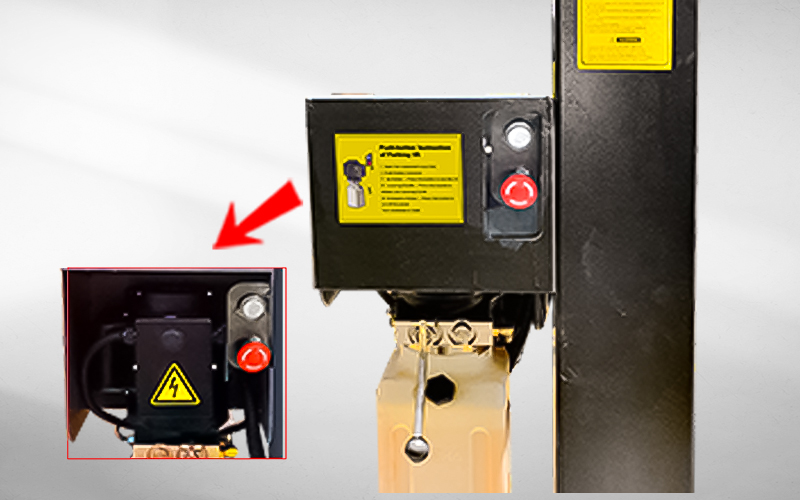

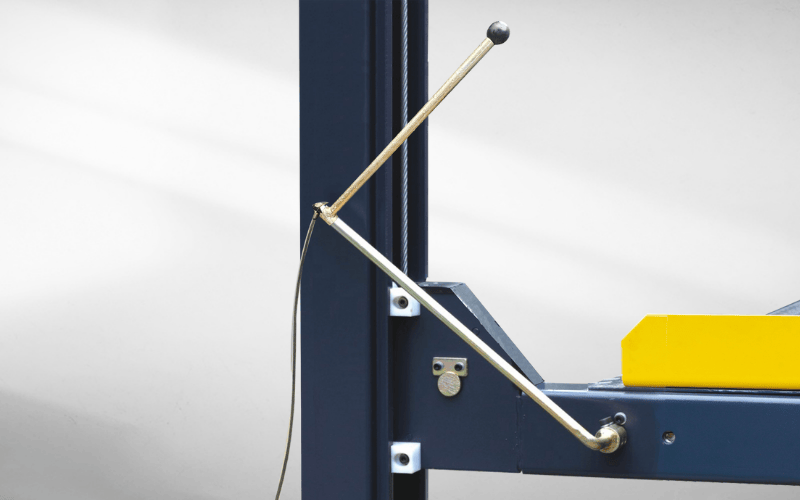

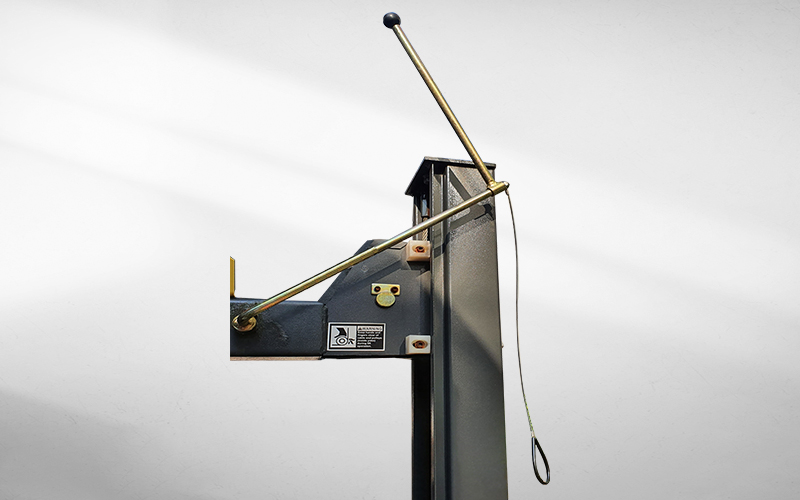

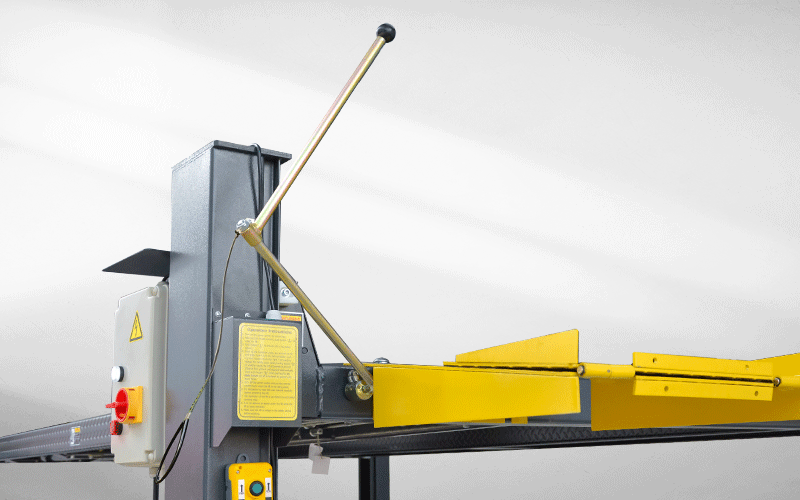

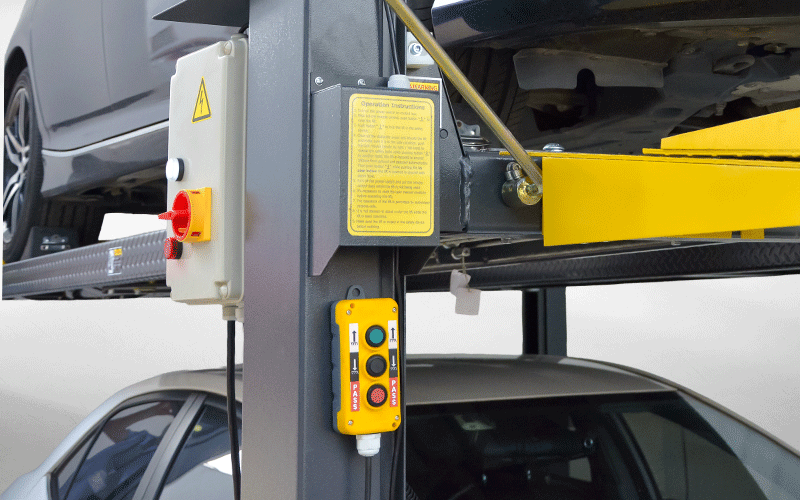

    Patented concealed safety lock control with single-point manual release.

  •

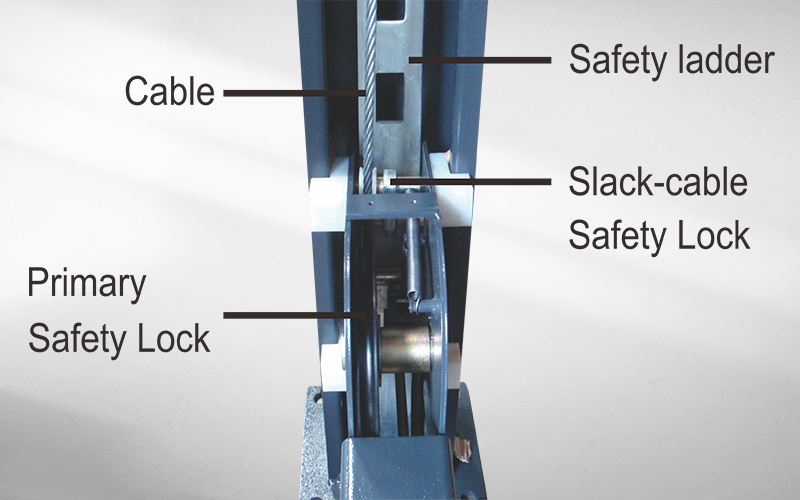

    Double safety locks provide additional safety.

  •

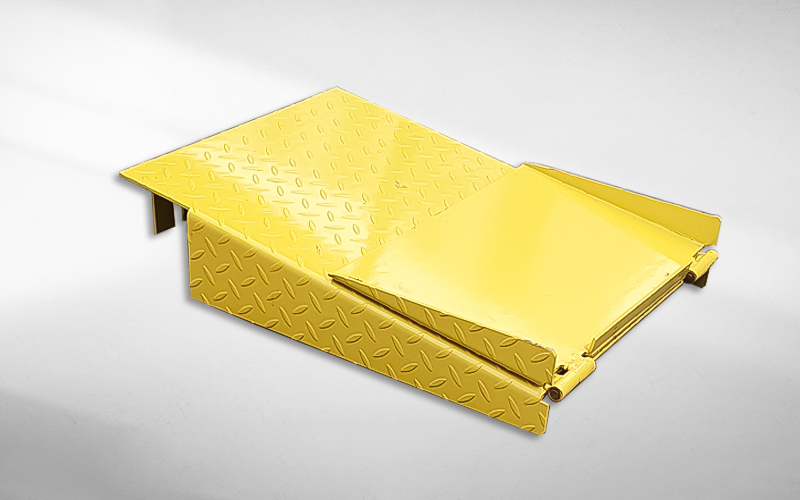

    Foldable drive-on ramps.(each lift needs 2 units).

  •

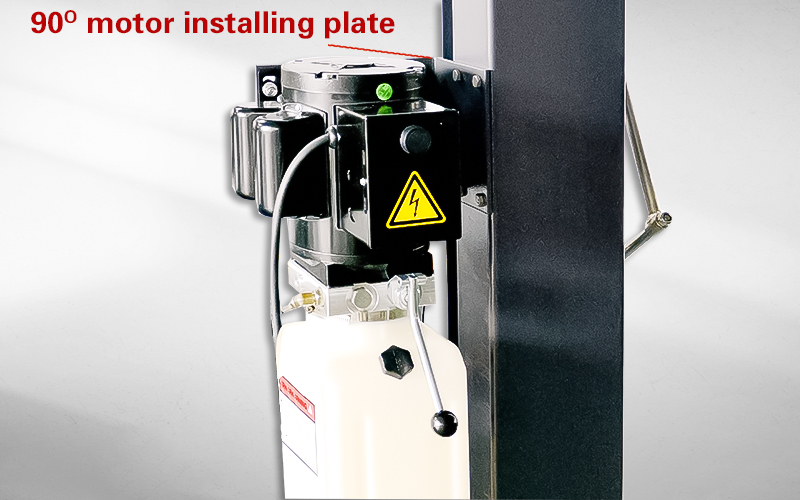

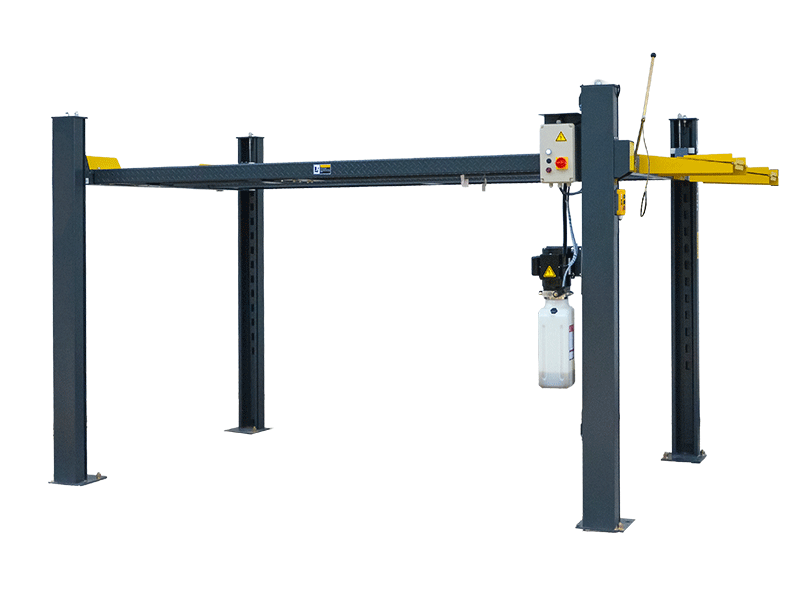

    90° installation plate for installing the power unit at the side of a column.

  •

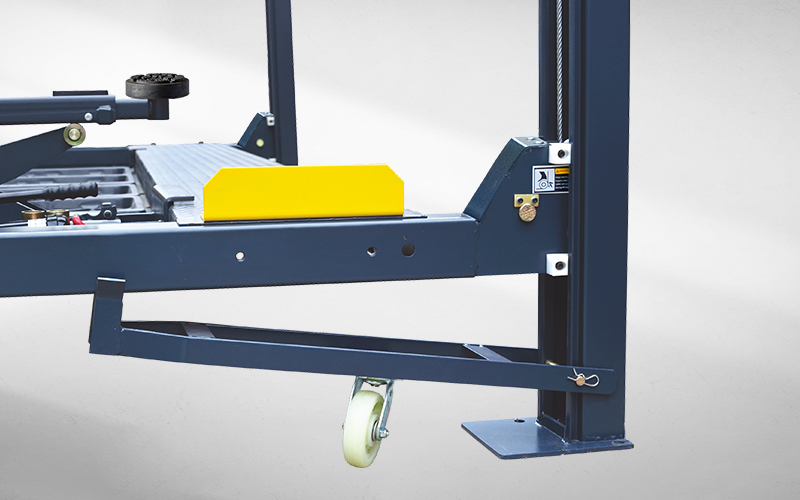

    Optional Caster Kits (1 set, 4pcs) help easily maneuver the parking lift. Kits No.: 40801

  •

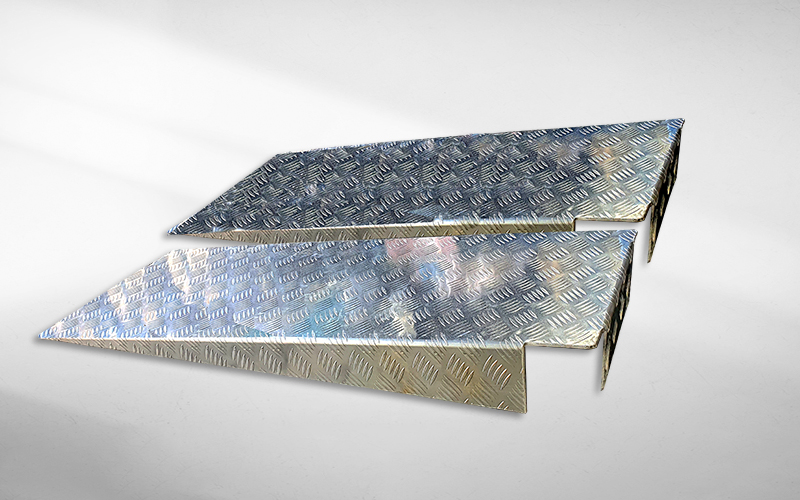

    Optional extended aluminum drive-in ramps (1PC). Kits No.: 40815

  •

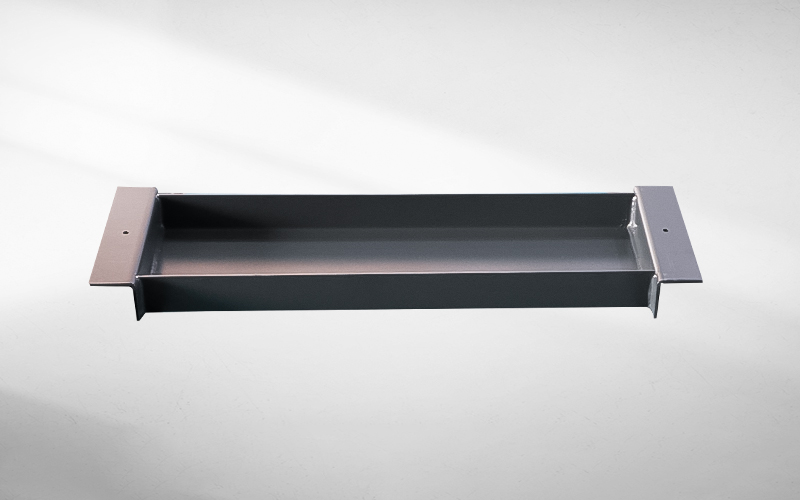

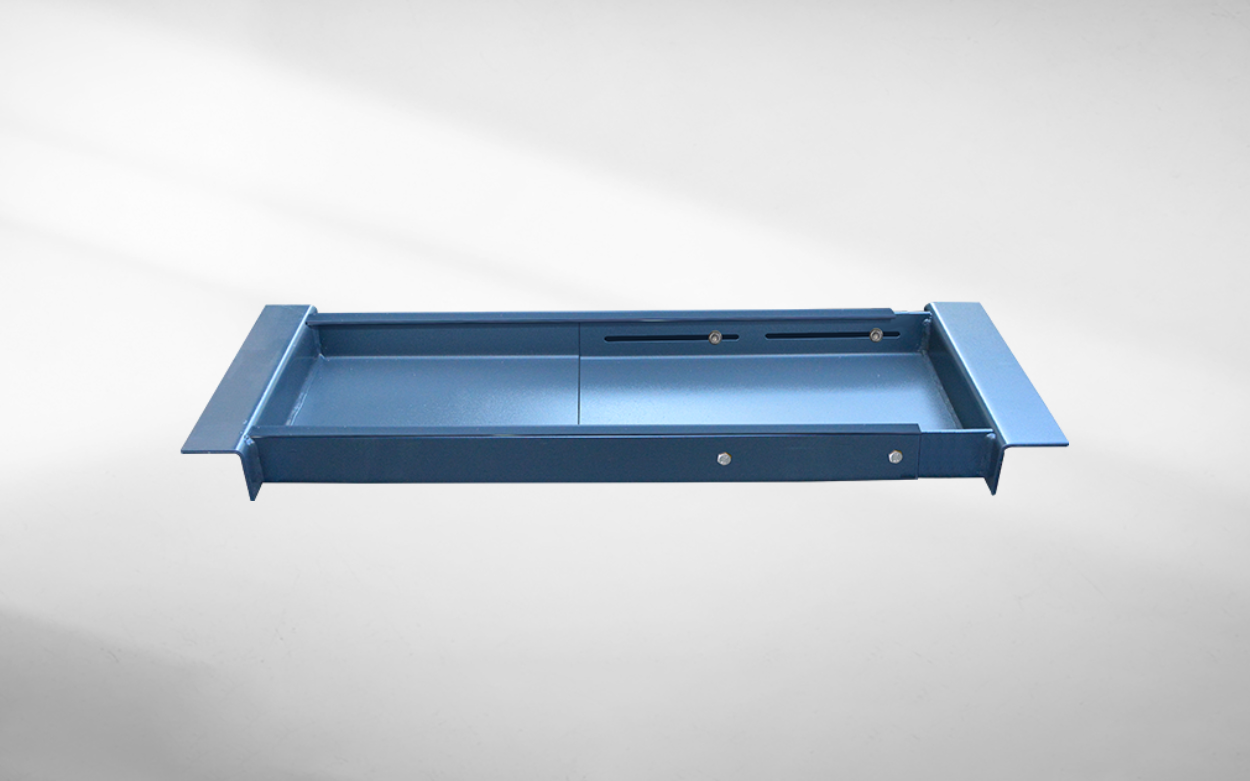

    Optional Jack Tray
    Kits No.: 40816

  •

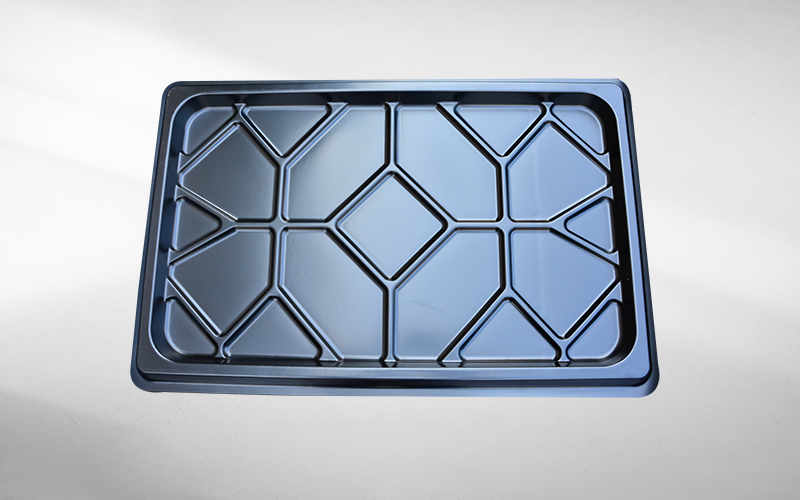

    Optional plastic oil tray (1 set,4pcs), Kits No.: 40807

  •

    Optional rubber wheel chock (1PC), P/N: 40811.

  •

    Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg.

  •

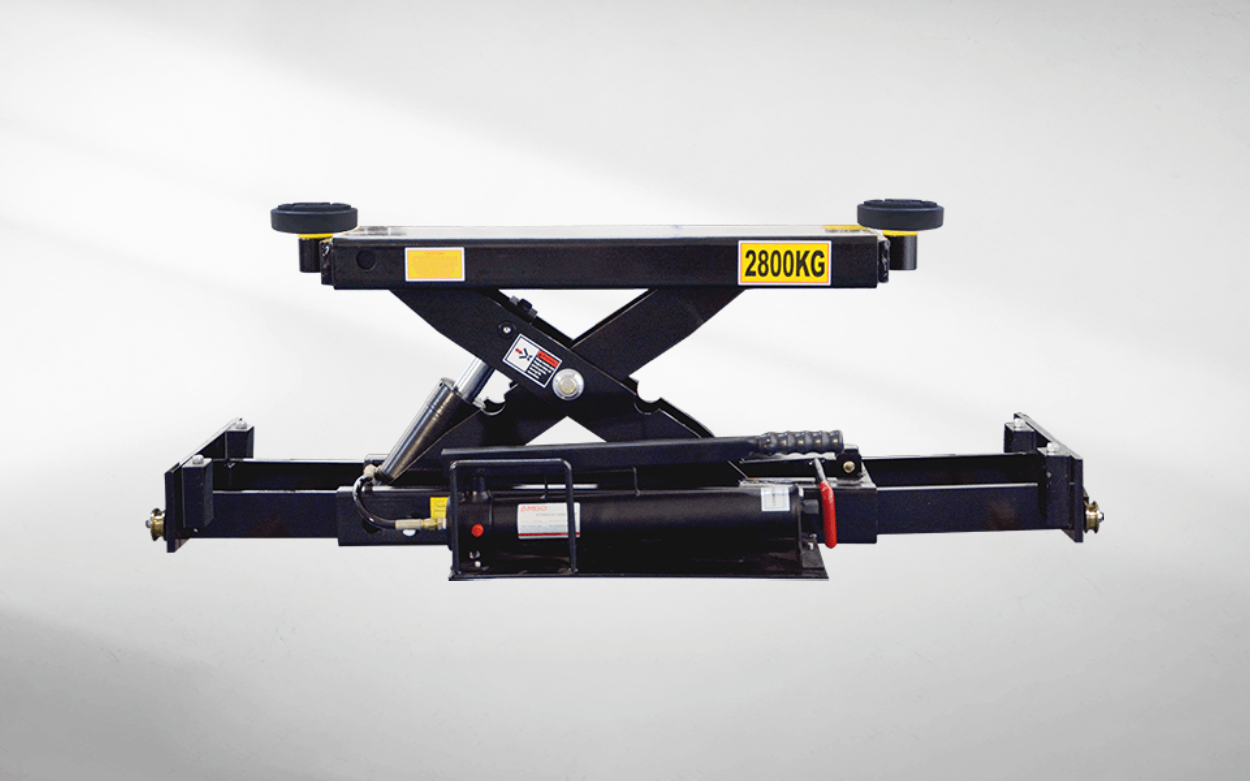

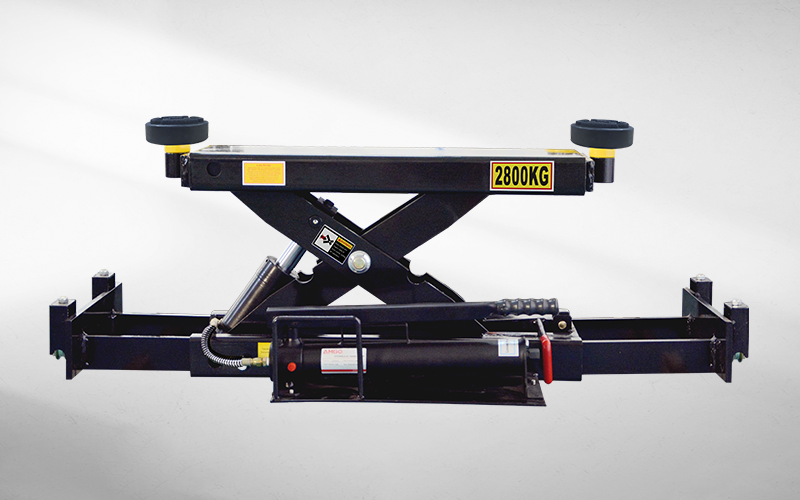

    Optional J6H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2800kg.
