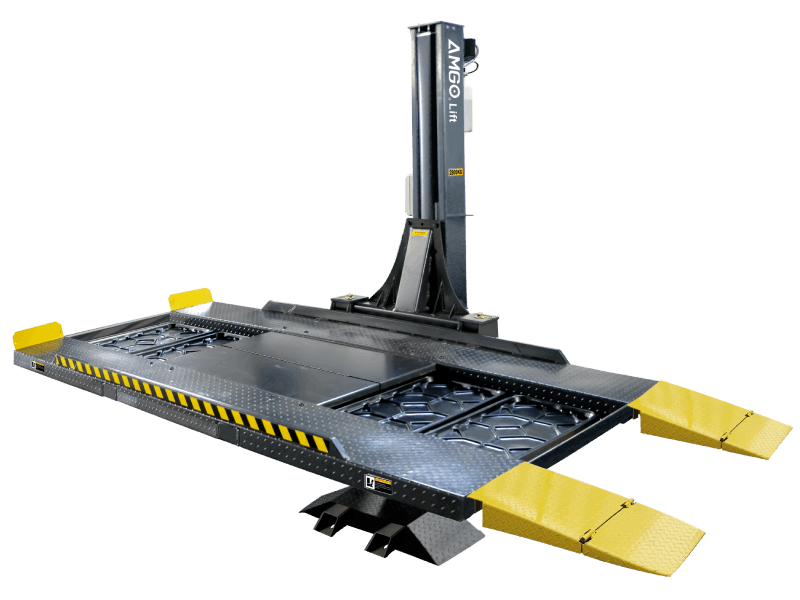

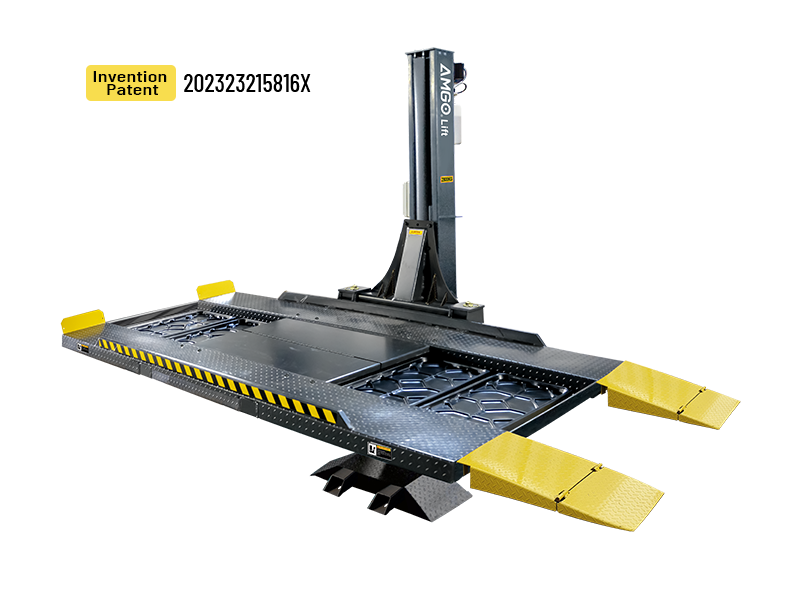

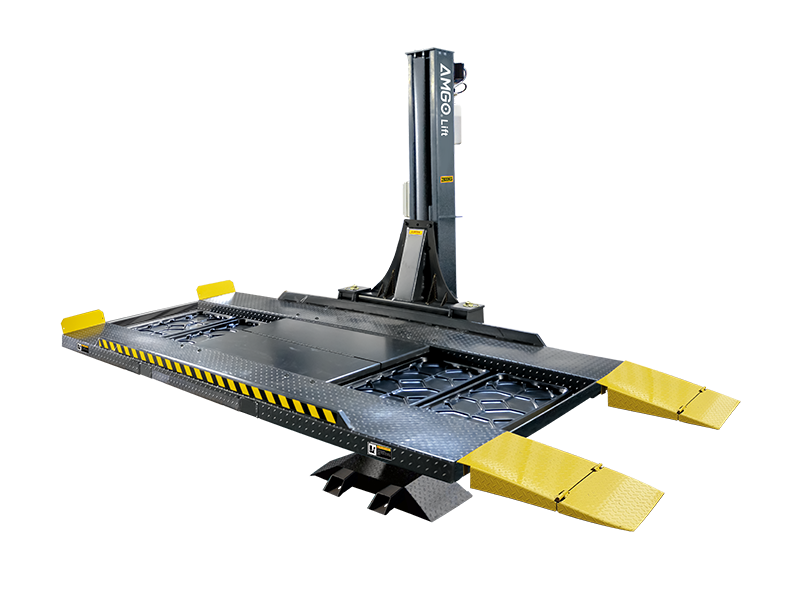

SPL-2800

SINGLE POST PARKING LIFT

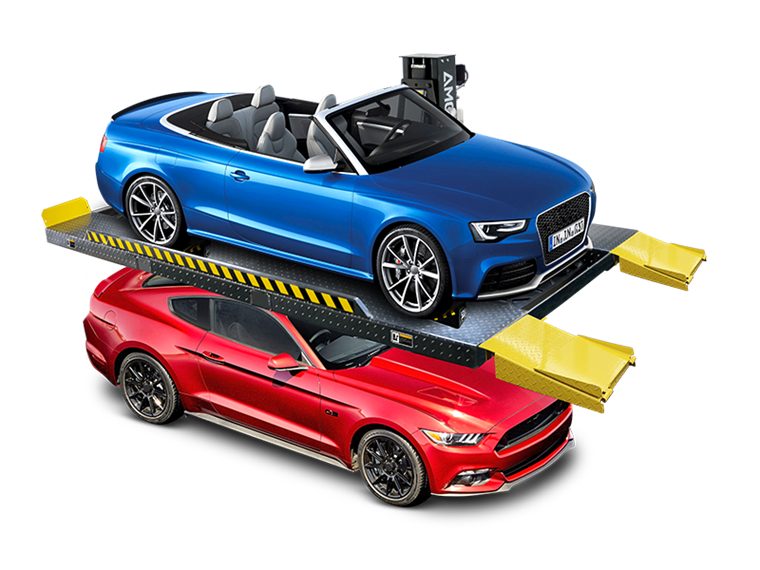

The SPL-2800 Single-Post Parking Lift represents the culmination of AMGO's extensive research into space-efficient, commercial-grade parking solutions. Engineered for durability, its robust construction supports an impressive load capacity of 2,800 kg, accommodating a wide range of vehicles—from compact cars to SUVs and pickup trucks.

Detailed Product Information

• 2800KG capacity;

• 24V safe electrical operation system;

• Space-saving design, available for garage with low ceilings;
• Dual safety devices with manual lock release, no air source required.;

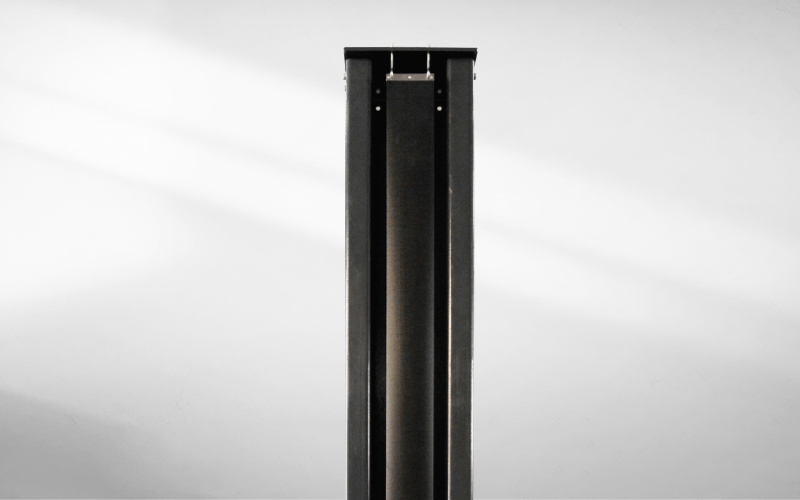

• Reinforced base, column, and H-shape platform for enhanced stability;
• Standard foldable drive-on ramps are included;
• Interchangeable drive-on ramps and tire stop plates allow for dual-directional vehicle entry;
• Guide ramps come standard to enhance the parking underneath;

Model		SPL-2800
Lifting Capacity		2800kg
Lifting Time		38s
Overall Height	A	2780mm
Max. Lifting Height	B	1880mm
Max. Lock Height to top of Runway	B	1783mm
Max. Height Underneath Runway	C	1760mm
Max. Lock Height Underneath RUnway	C	1663mm
Minimum Height	D	155mm
Overall Width	E	2820mm
Width Between Runways	F	1077mm
Overall Length	G	4880mm
Gross Weight		1380kg
Motor		3.0HP
QTY of Container		12 Units / 20'GP

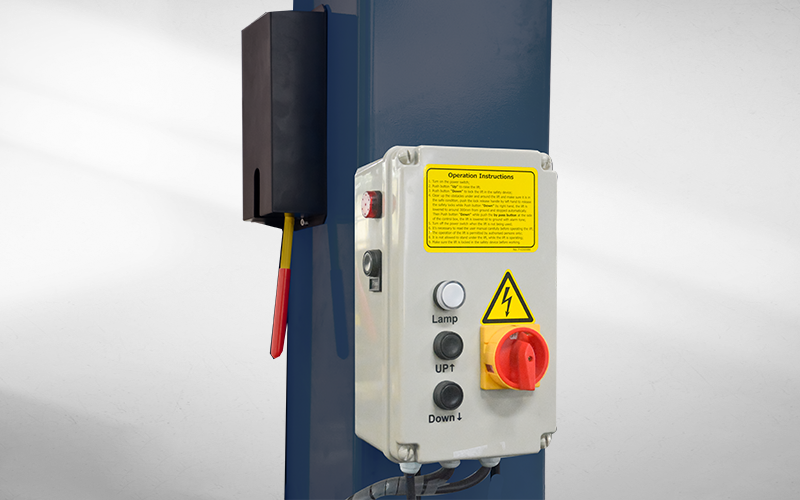

24V safe control system with dual safety devices and manual lock release mechanism.

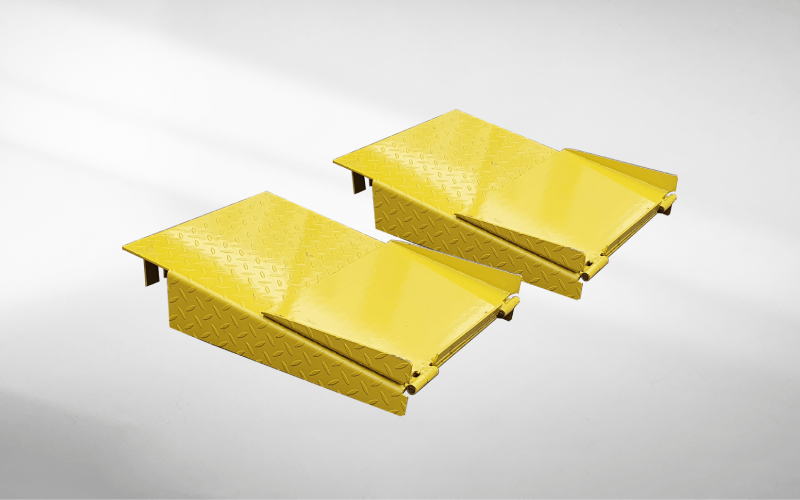

Safe and space-saving with standard foldable drive-on ramps.
Standard fabric curtain for enhanced safety.

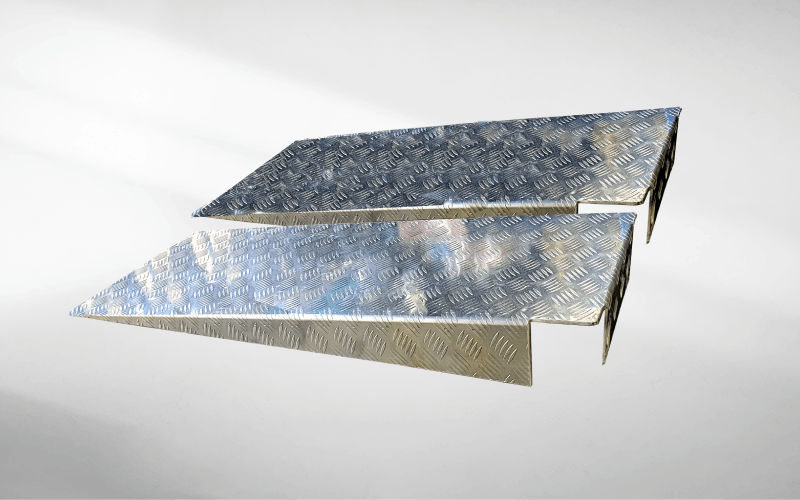

Optional aluminum drive-in ramps available, P/N: 40815 (1 piece)

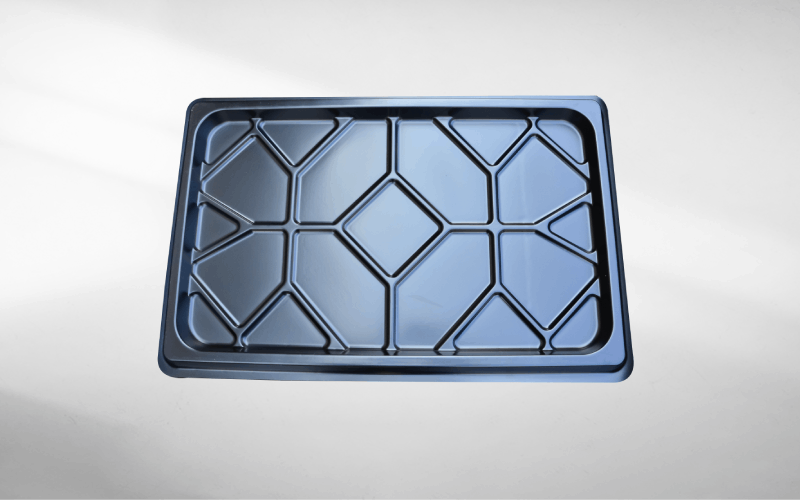

Optional plastic oil tray available (1 set = 4 pieces), kits no. 40807

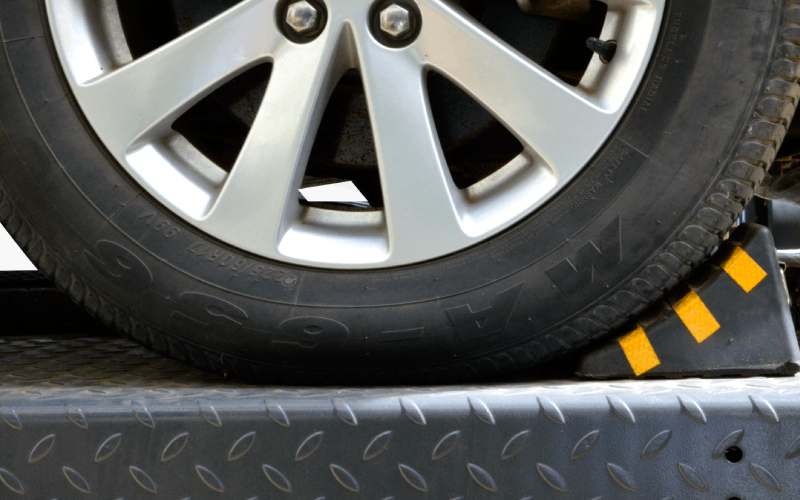

Optional rubber wheel chock availble,P/N: 40811 (1 piece)
