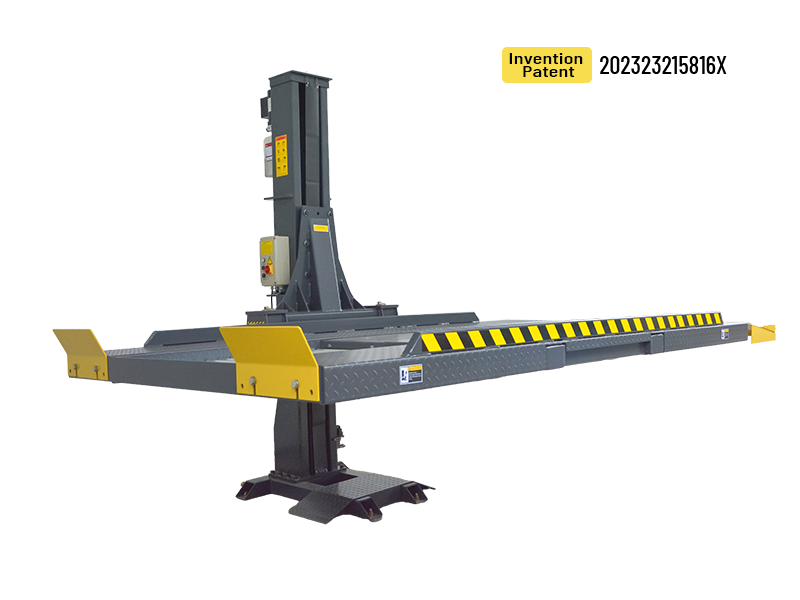

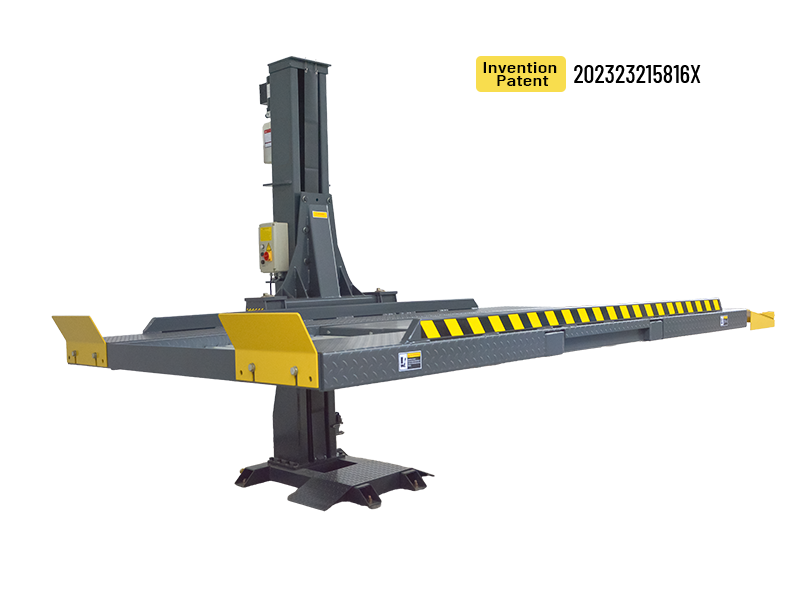

SPL-3000

SINGLE POST PARKING LIFT

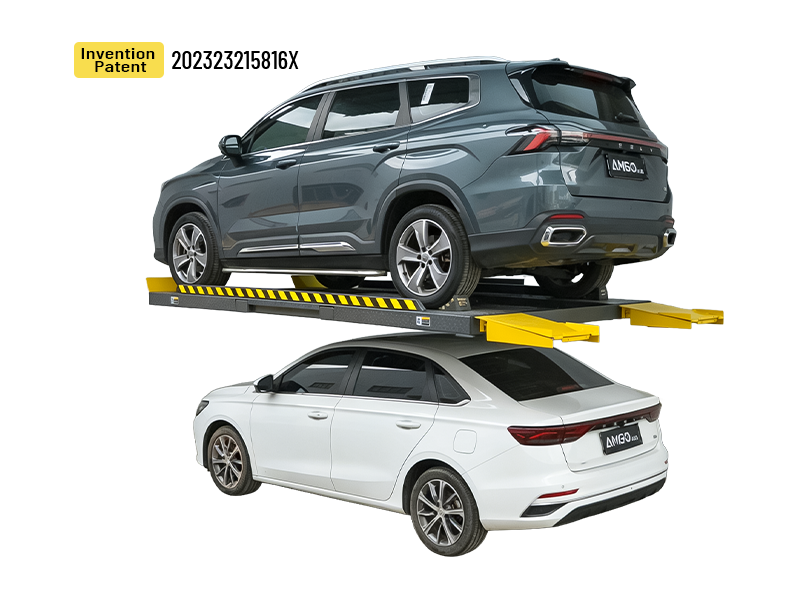

The SPL-3000 Single-Post Parking Lift represents the culmination of AMGO's extensive research into space-efficient, commercial-grade parking solutions. Engineered for durability, its robust construction supports an impressive load capacity of 3,000 kg, accommodating a wide range of vehicles—from compact cars to SUVs and pickup trucks.

Detailed Product Information

• 3000KG capacity;
• Features a 24V safe operating control system;
• Space-saving design, available for garage with low ceilings (from 2800mm);
• Dual safety devices with manual lock release, no air source required;
• Reinforced base, column, and H-shape platform for enhanced stability;
• Standard foldable drive-on ramps are included;
• Equipped with limit switches and automatic safety stop device;
• Guide ramps come standard to enhance the parking underneath.

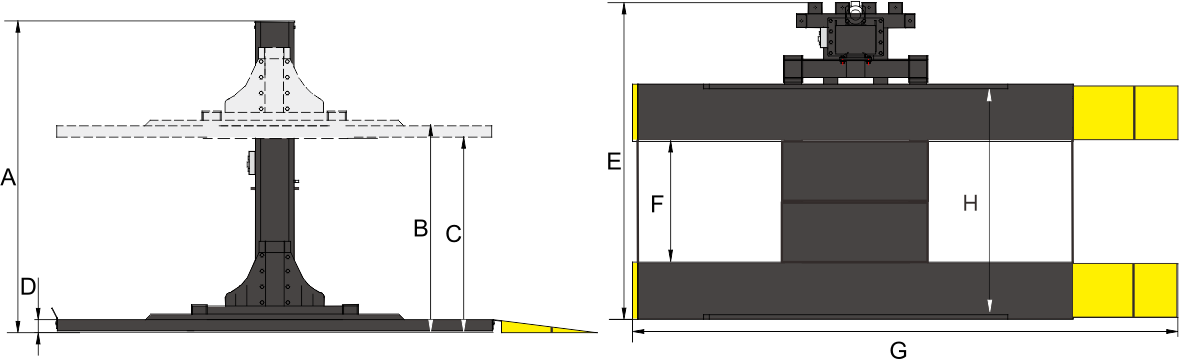

Model		SPL-3000
Lifting Capacity		3000kg
Lifting Time		38s
Overall Height	A	2780mm
Max. Lifting Height	B	1880mm
Max. Lock Height to top of Runway	B	1783mm
Max. Height Underneath Runway	C	1760mm
Max. Lock Height Underneath RUnway	C	1663mm
Minimum Height	D	155mm
Overall Width	E	2820mm
Width Between Runways	F	1077mm
Overall Length	G	4880mm
Gross Weight		1373kg
Motor		3.0HP
QTY of Container		12 Units / 20'GP

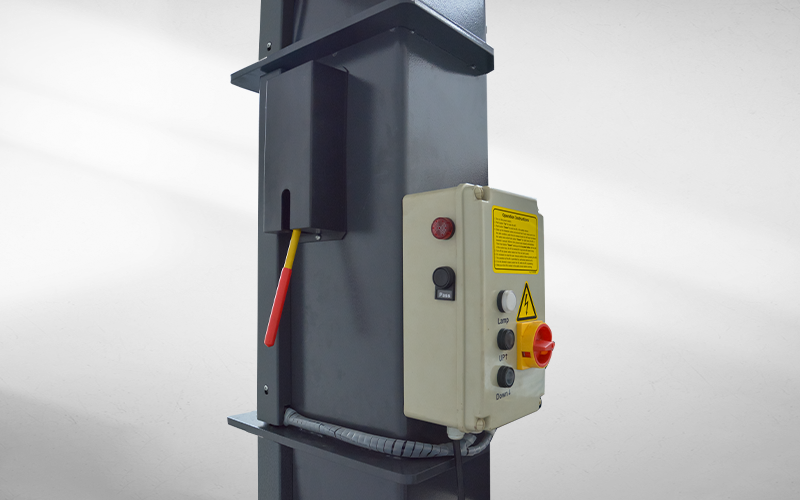

Features a 24V safey control system with a manual lock release.

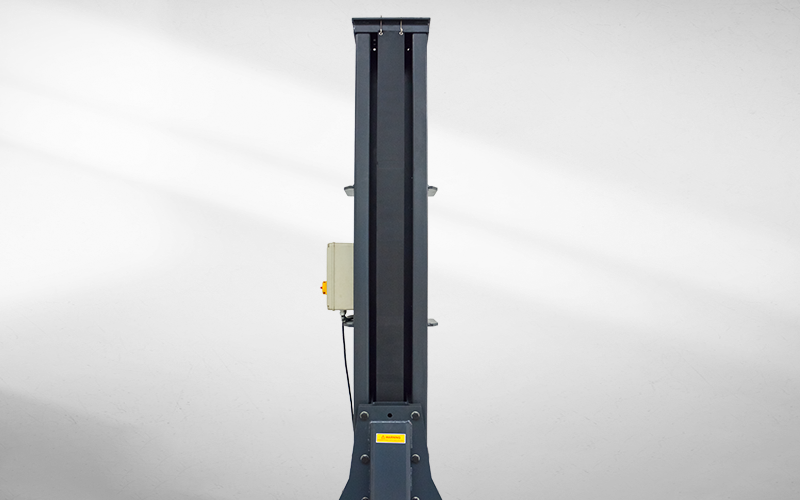

Standard fabric curtain for enhanced safety.

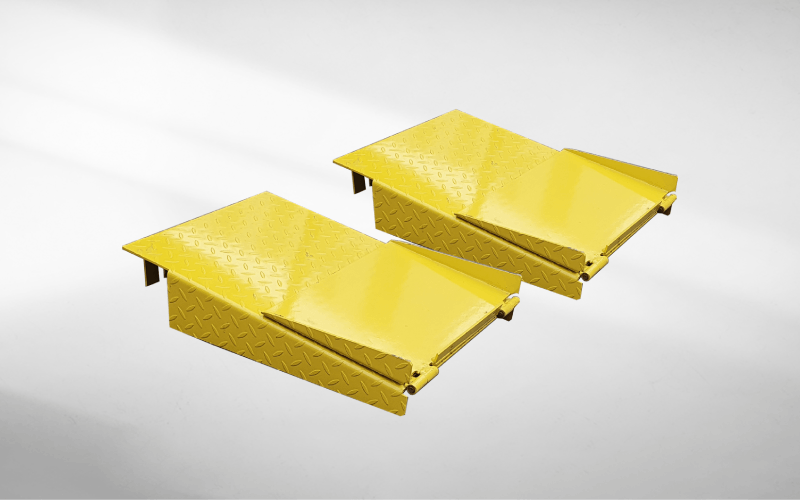

Safe and space-saving with standard foldable drive-on ramps.

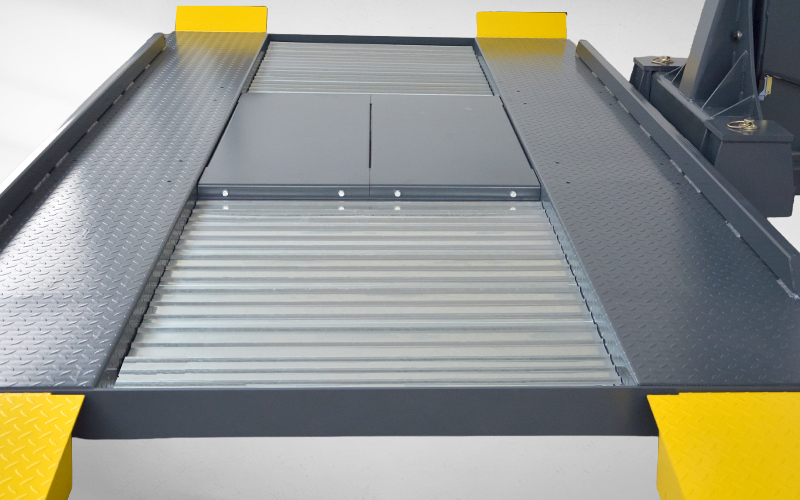

Storage wave panels come standard.

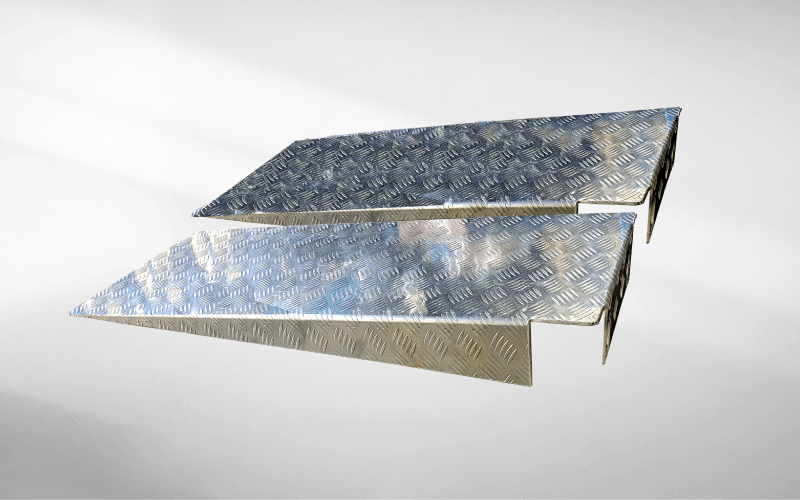

Optional aluminum drive-in ramps available, P/N: 40815 (1 piece)

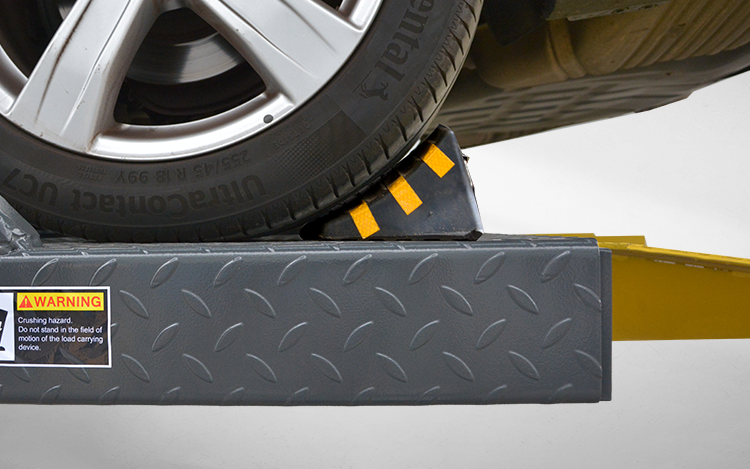

Optional rubber wheel chock availble,P/N: 40811 (1 piece)
