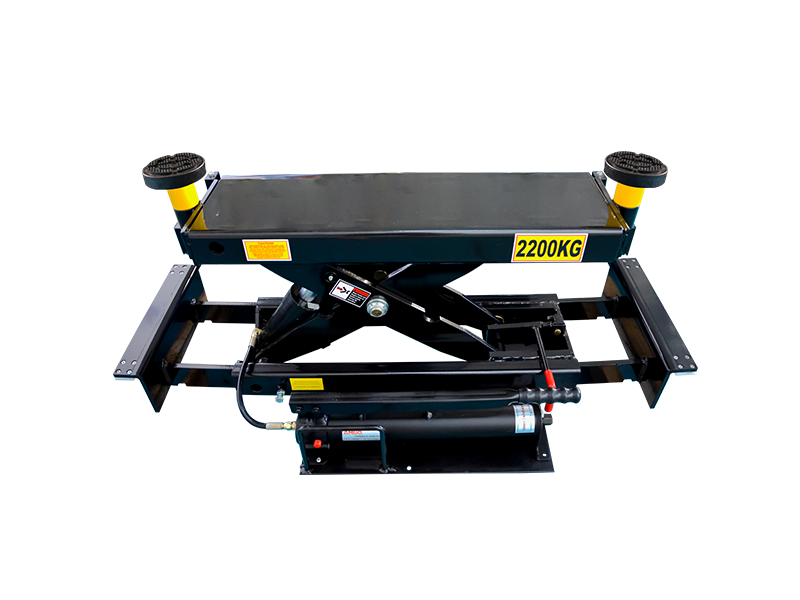

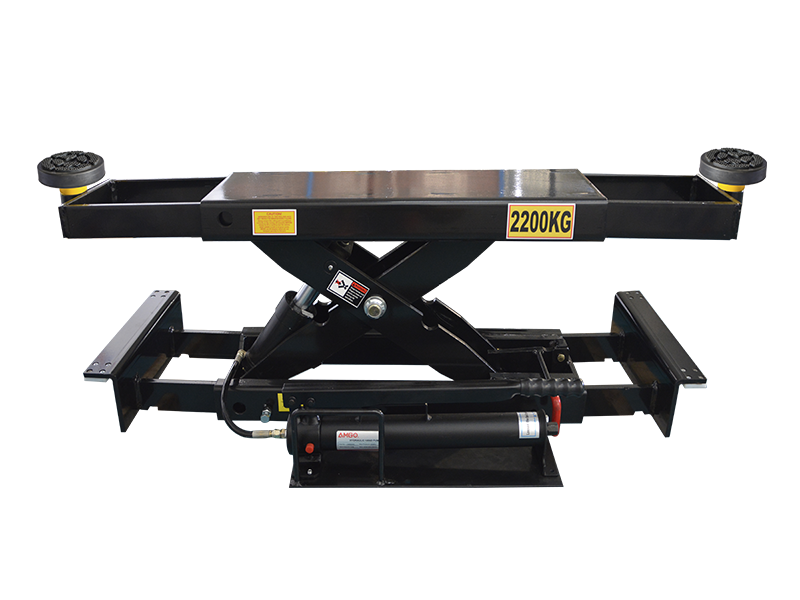

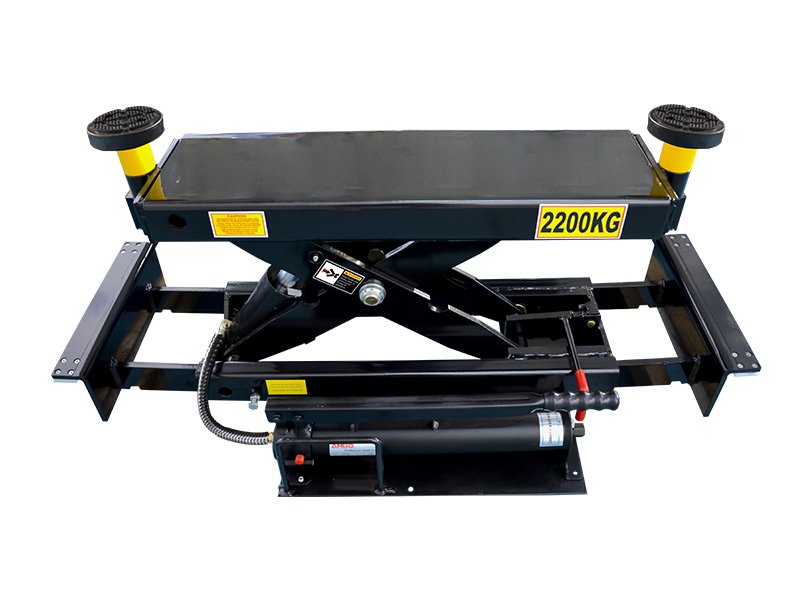

J5H

ROLLING JACK

Engineered for rail-free runways, the J5H delivers exceptional compatibility with most four post and scissor lifts on the market. Its smooth glide mechanism ensures effortless manoeuvrability along runways, while its 2,200kg lifting capacity enhances operational efficiency for day-to-day workshop demands. It is also an ideal companion for AMGO parking lifts.

Detailed Product Information

Equipped with commercial-grade hand pump to maximize convenient for operating.
Extendable lower sliding Assy match with plastic slider provides moving smoothly along the runsways.
Use the 2.5'' stackable adapters can meet your requirements for reach to the various vehicles chassis height.
Come standard with sturdy rubber pads assembly
It features arms with adjustability for easy positioning to the recommended supporting point.
Extendable lower sliding Assy. fitting for width between runways from 905mm to 1,275mm.
Ergonomic guardrail can be regarded as a booster handle for gliding the jack. rolling jacks

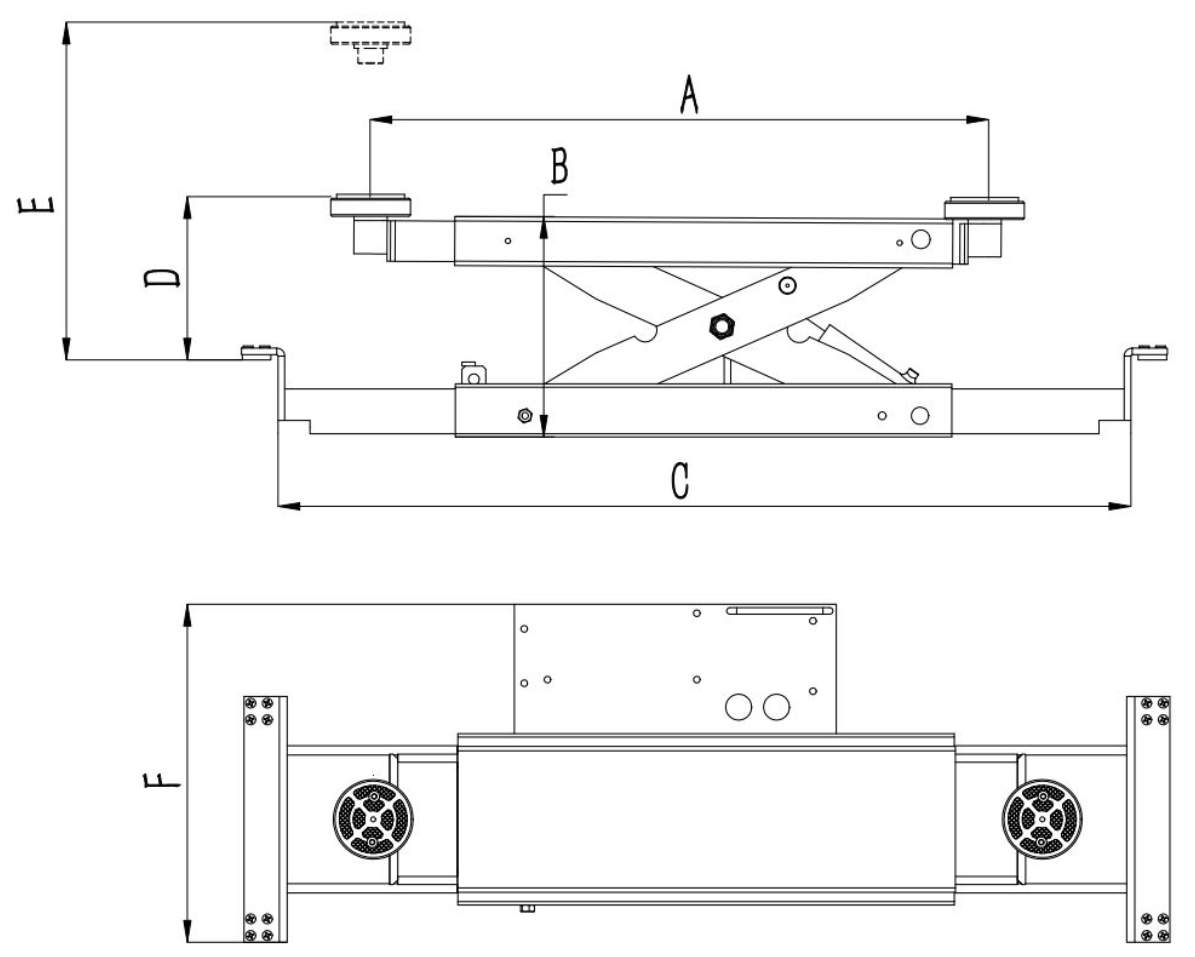

Model		J5H
Lifting Capacity		2200kg
Lifting Time		50s
Arm Pads Reach	A	842-1357mm
Min. Height	B	220mm
Support Base Width	C	905-1357mm
Min. Rubber Pad Height	D	134mm
Max. Lifting Height(Without adapters)	E	361mm
Max. Lifting Height(With adapters)	E	425kg
Overall Width	F	510mm
Gross Weight		113KG
Pump		Manual Pump

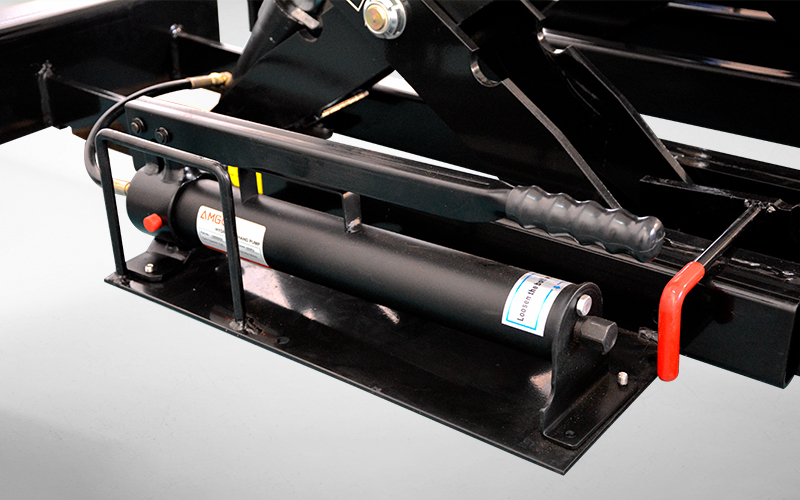

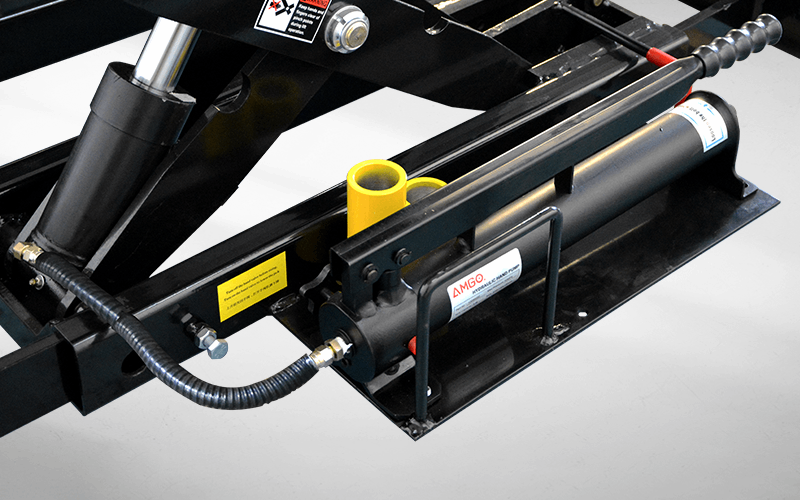

Commercial hand pump is convenient to active work without any air source.

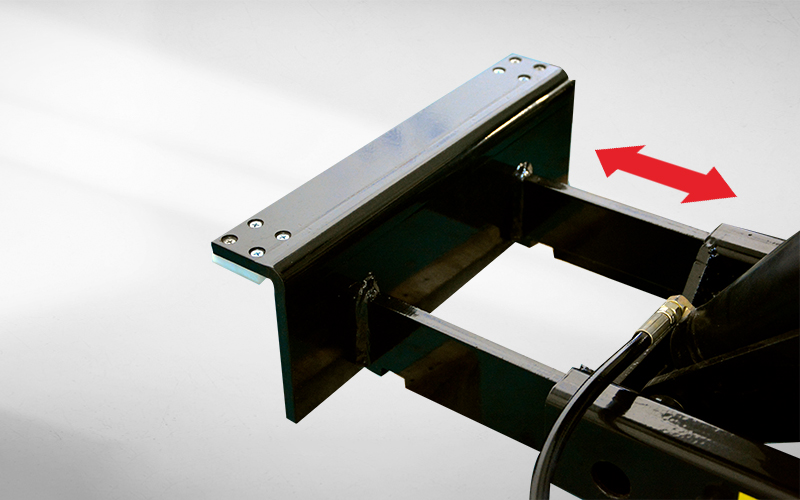

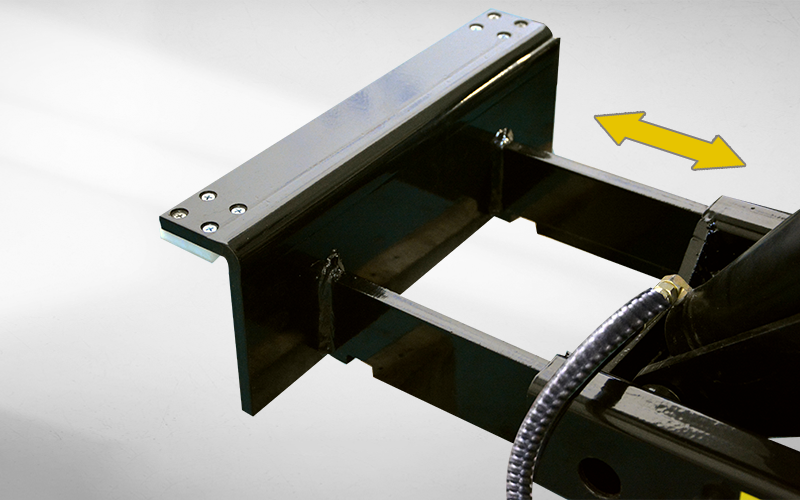

Extendable lower sliding assy. Equipped with plastic slider are good to the jack moved smoothly and easily on the runway.

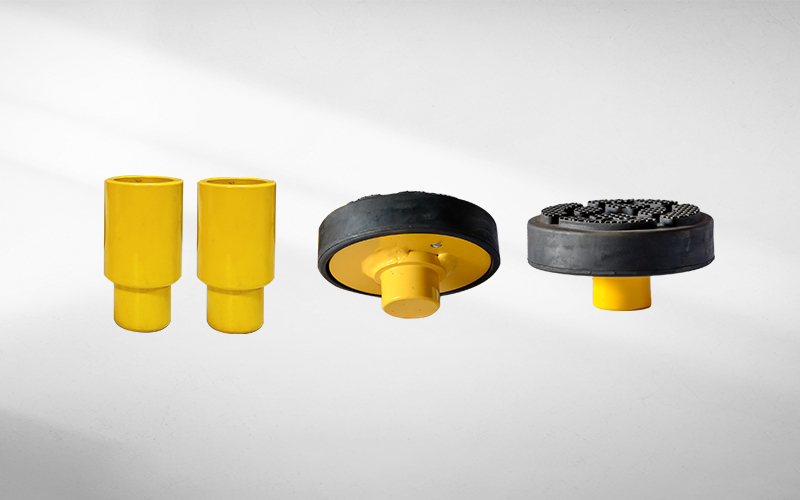

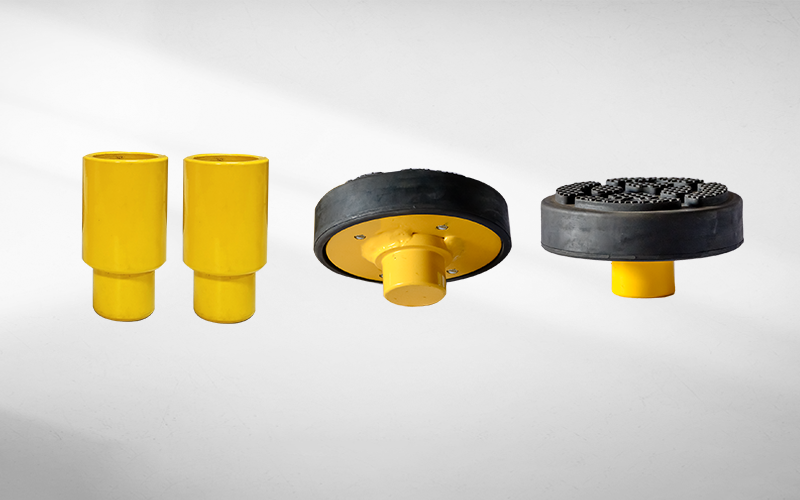

Drop in rubber pads with 2.5" extension adapters.

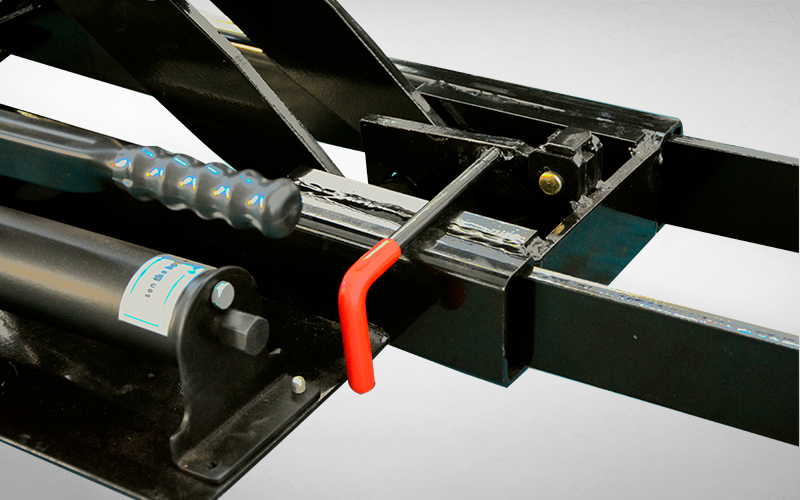

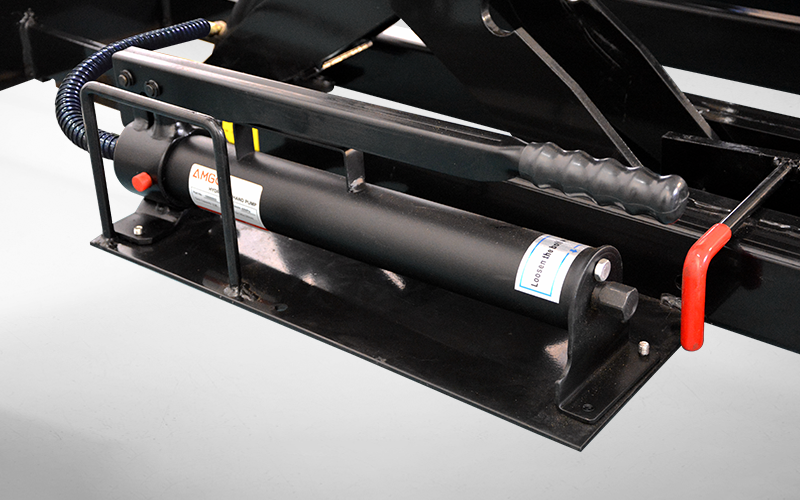

Handy operate manual safety lock help you work in comfort height.

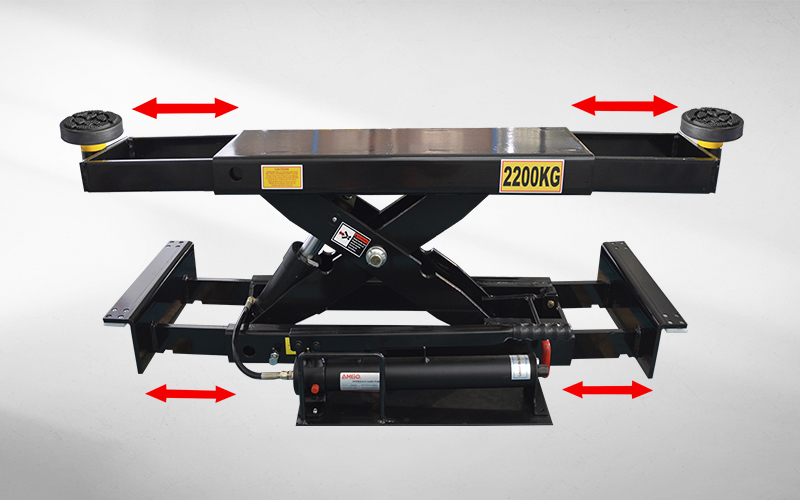

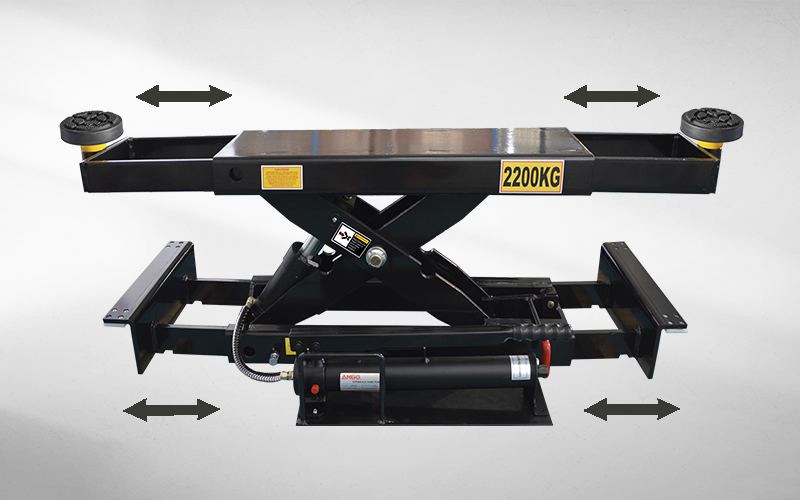

The Longer-reach Arm and Lower Sliding Assy. can be adjusted to appropriate width for accommodating virtually 4-post lifts & scissor lifts.

Ergonomic guardrail can assist to move the Jack easily.
