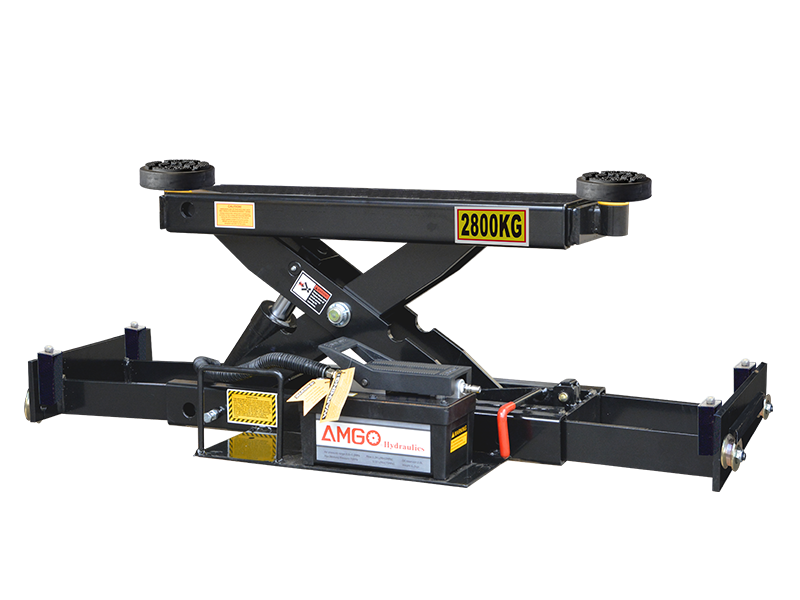

J6A

ROLLING JACK

With a capacity of 2,800kg, the J6A low-profile rolling jack is a portable lifting solution, designed to serve as an ideal complement to four post and scissors lifts with capacities below 5,500 kg. Incorporating our patented floating technology, it ensures smooth, effortless movement along the lift rails while maintaining secure positioning within the groove during lifting. The pneumatic pump is equipped to enhance the productivity while also ensuring stability and precision during operation.

rolling jacks

Detailed Product Information

Equipped with pneumatic hydraulic pump.
Come standard with 2.5" extension adapters & durable Rubber Pads Assy.
Adjustable arms for easy position and adjust to the desired supporting point.
Manual safety lock provides two lock positions that convenient you to find the comfortable work height.
Extendable lower sliding Assy. fitting for width between runways from 848mm to 1,330mm.
Ergonomically guardrail help to protect oil hose as well as for easily moving the Jack.

Model		J6A
Lifting Capacity		2800kg
Lifting Time		50s

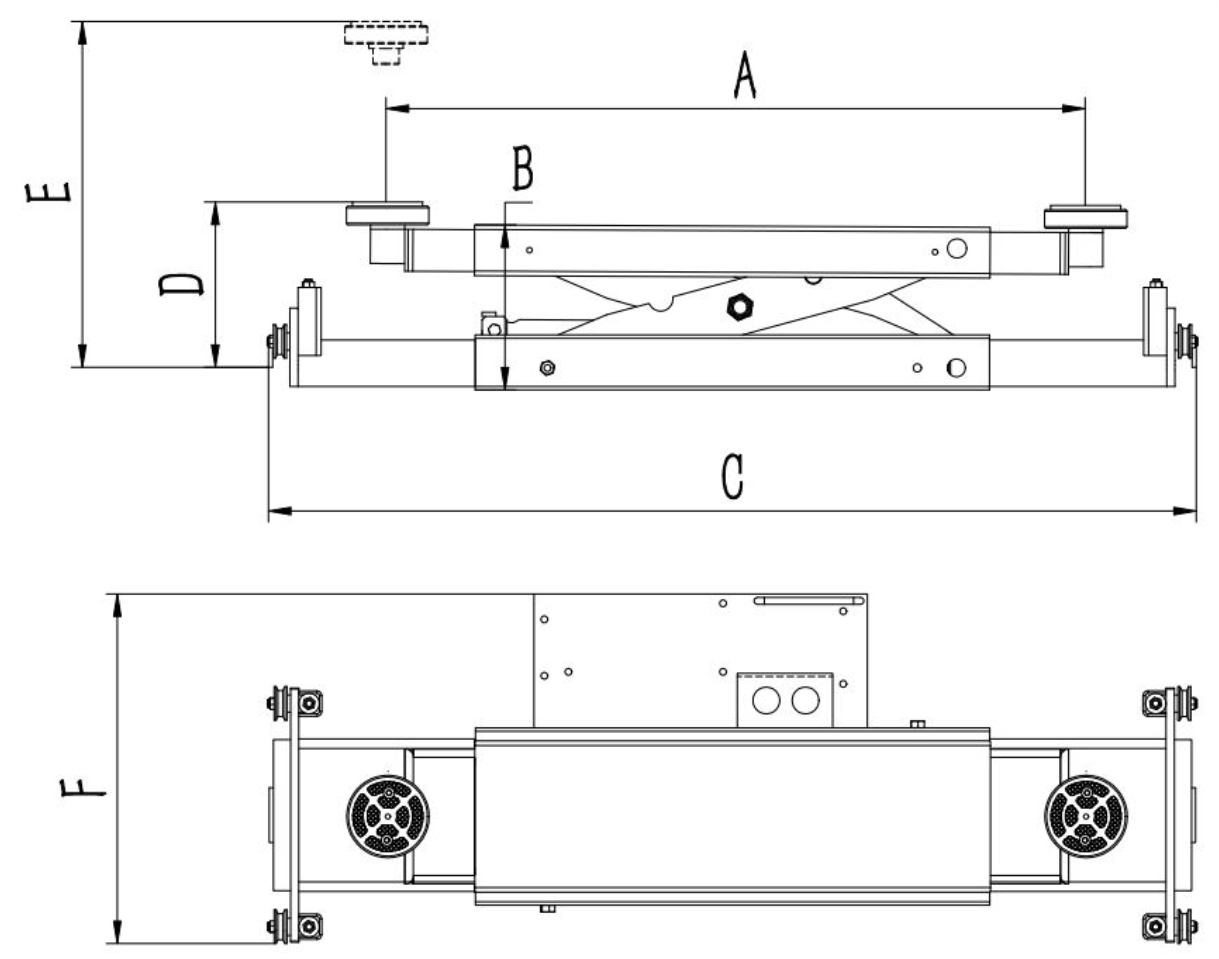

Arm Pads Reach	A	843-1357mm
Min. Height	B	215mm
Support Base Width	C	848-1330mm
Min. Rubber Pad Height	D	219mm
Max. Lifting Height(Without adapters)	E	451mm
Max. Lifting Height(With adapters)	E	515mm
Overall Width	F	510mm
Gross Weight		127KG
Air Pressure		0.8MPa
Pump		Pneumatic Pump

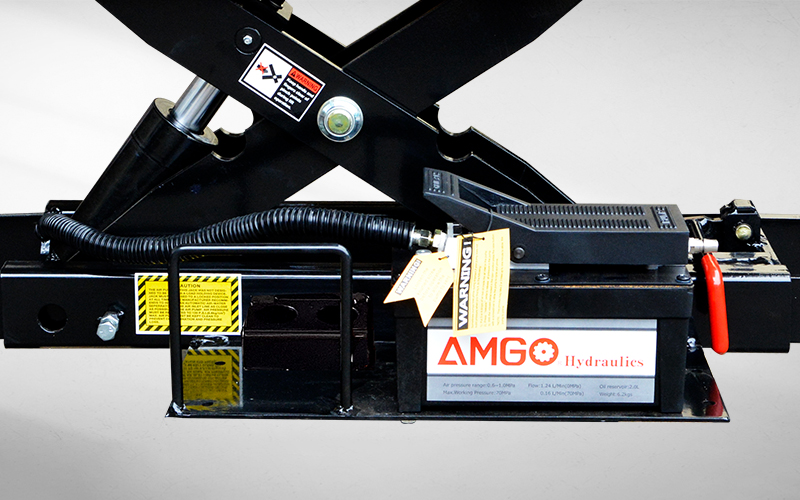

High quality pneumatic hydraulic pump with high pressure and longevity hose.

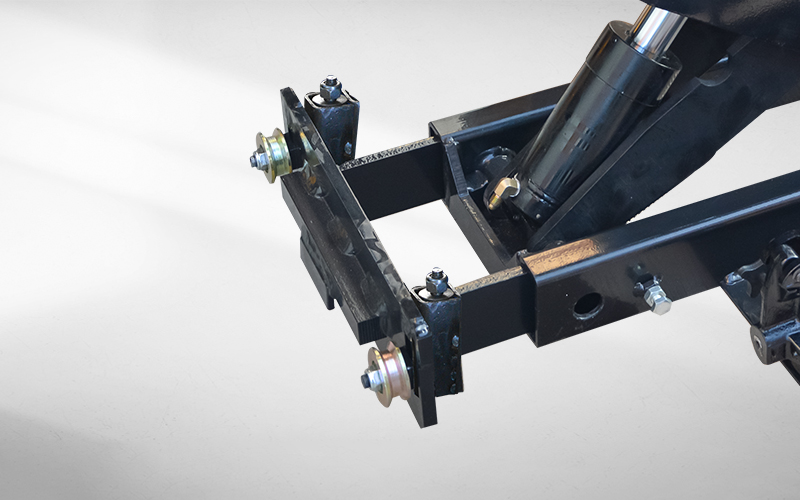

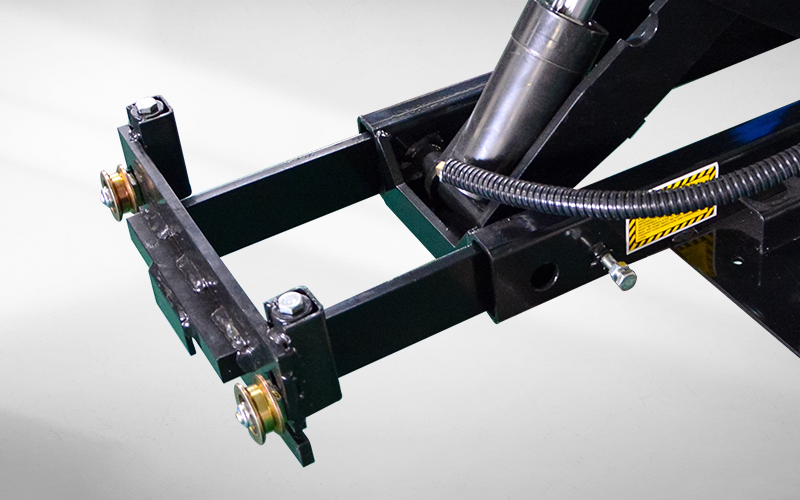

Patent float rolling device make the Jack smoothly moved in the rail and sitting in the groove stably when lifting a vehicle.

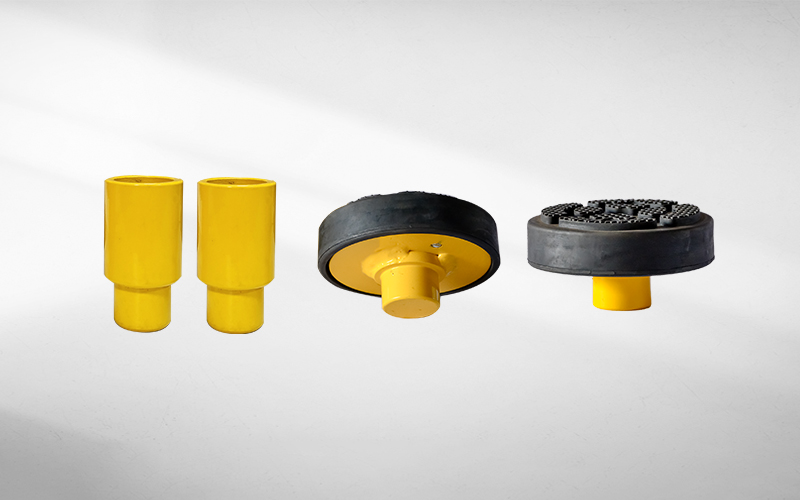

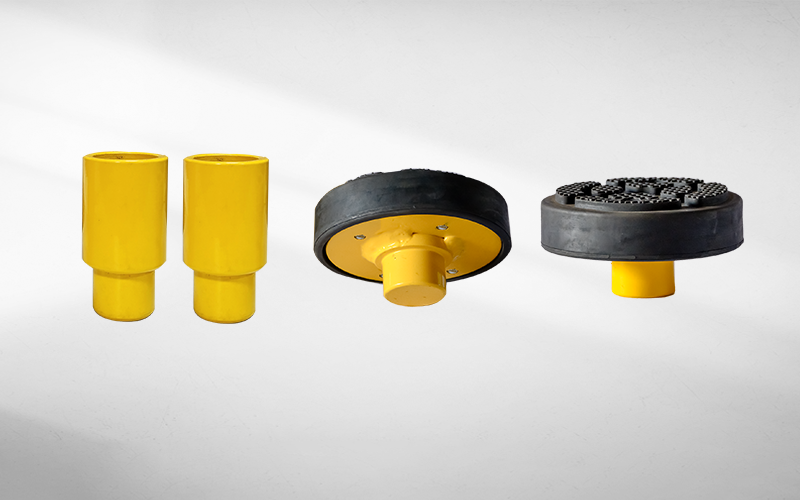

Drop in rubber pads with 2.5" extension adapters.

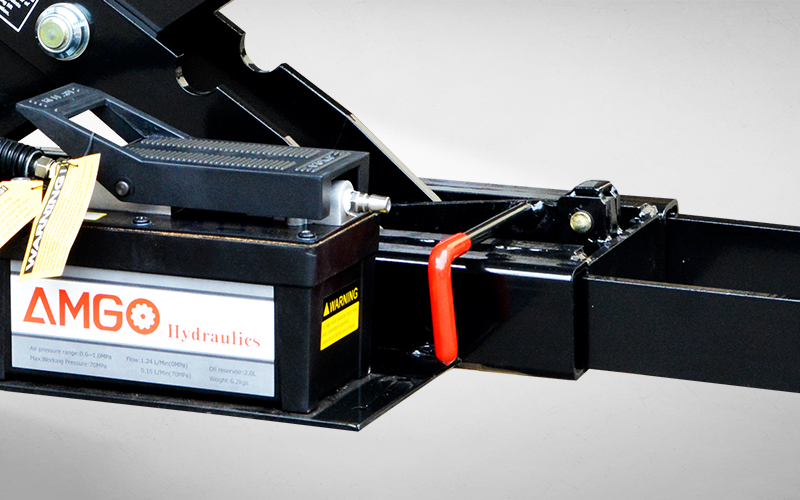

Easily control manual safety lock.

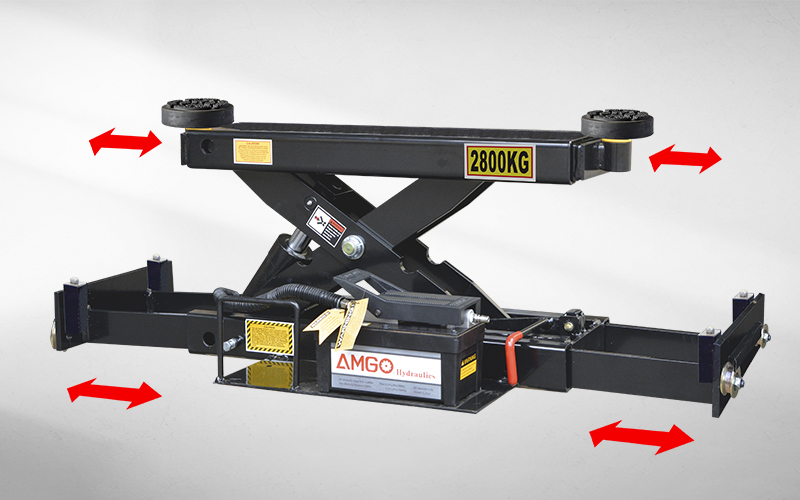

Width adjustable,suit for almost all the four post & scissors lifts.
Ergonomically guardrail protecting oil hose as well as easy to move the Jack.
