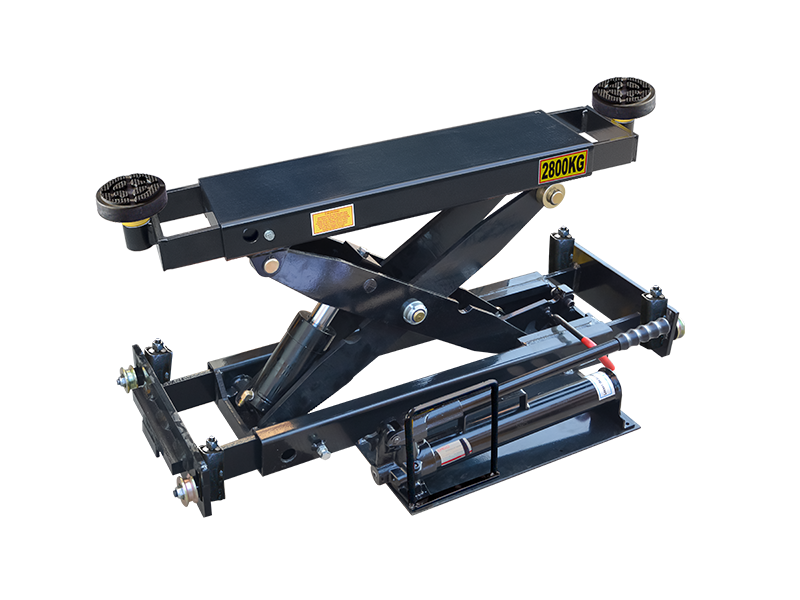

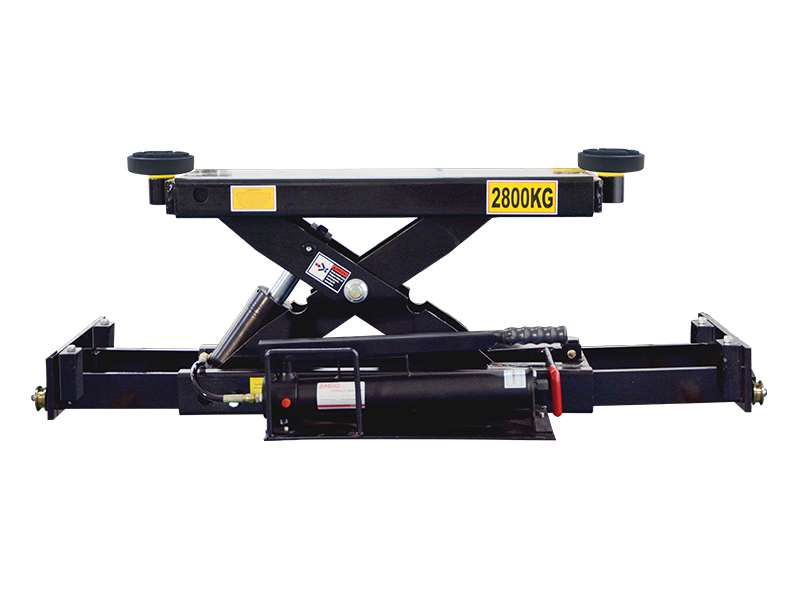

J6H

ROLLING JACK

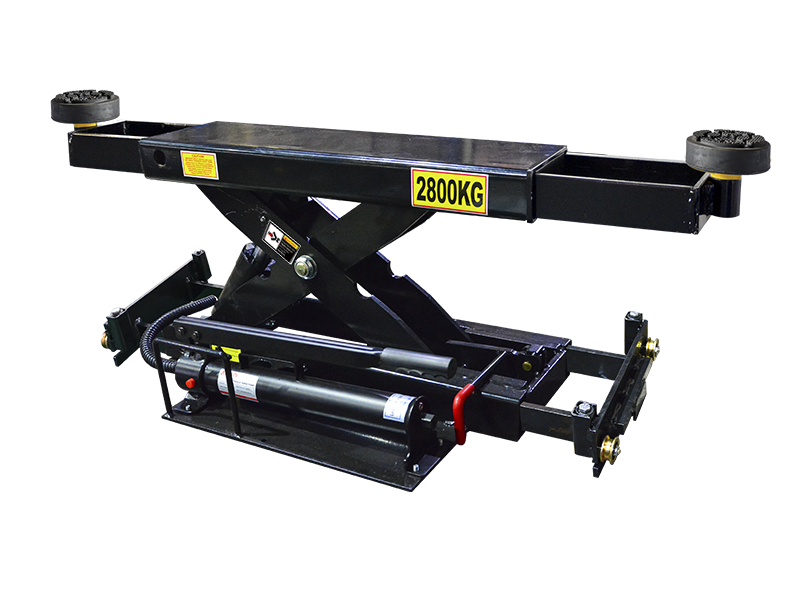

The AMGO J6H boasts an impressive load capacity of 2,800kg, incorporating our patented floating technology alongside a streamlined low-profile construction. The unit features an ergonomic hand pump for effortless operation and avoids the need for an additional air source, ensuring both lifting convenience and enhanced productivity, whether deployed on a lift or ground level.

rolling jacks

Detailed Product Information

Equipped with hand pump.
Come standard with 2.5" extension adapters & durable Rubber Pads Assy.

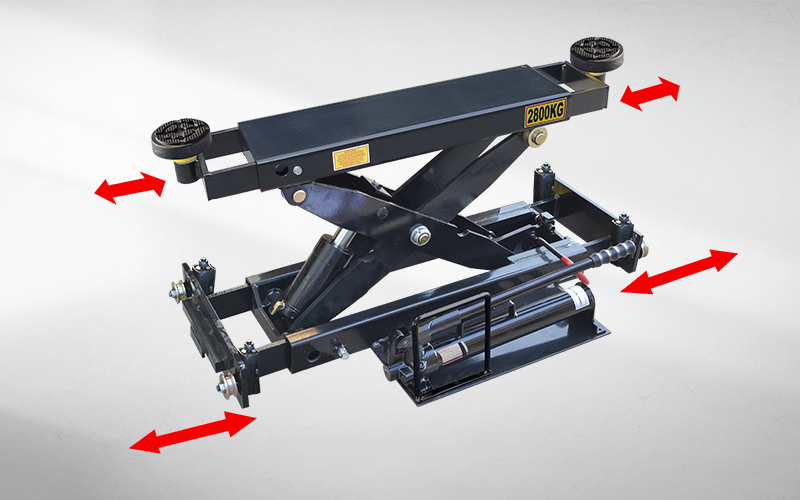

Adjustable arms for easy position and adjust to the desired supporting point.
Manual safety lock provides two lock positions that convenient you to find the comfortable work height.
Extendable lower sliding Assy. fitting for width between runways from 848mm to 1,330mm.
Ergonomically guardrail protecting the hand pump as well as easy to move the Jack.

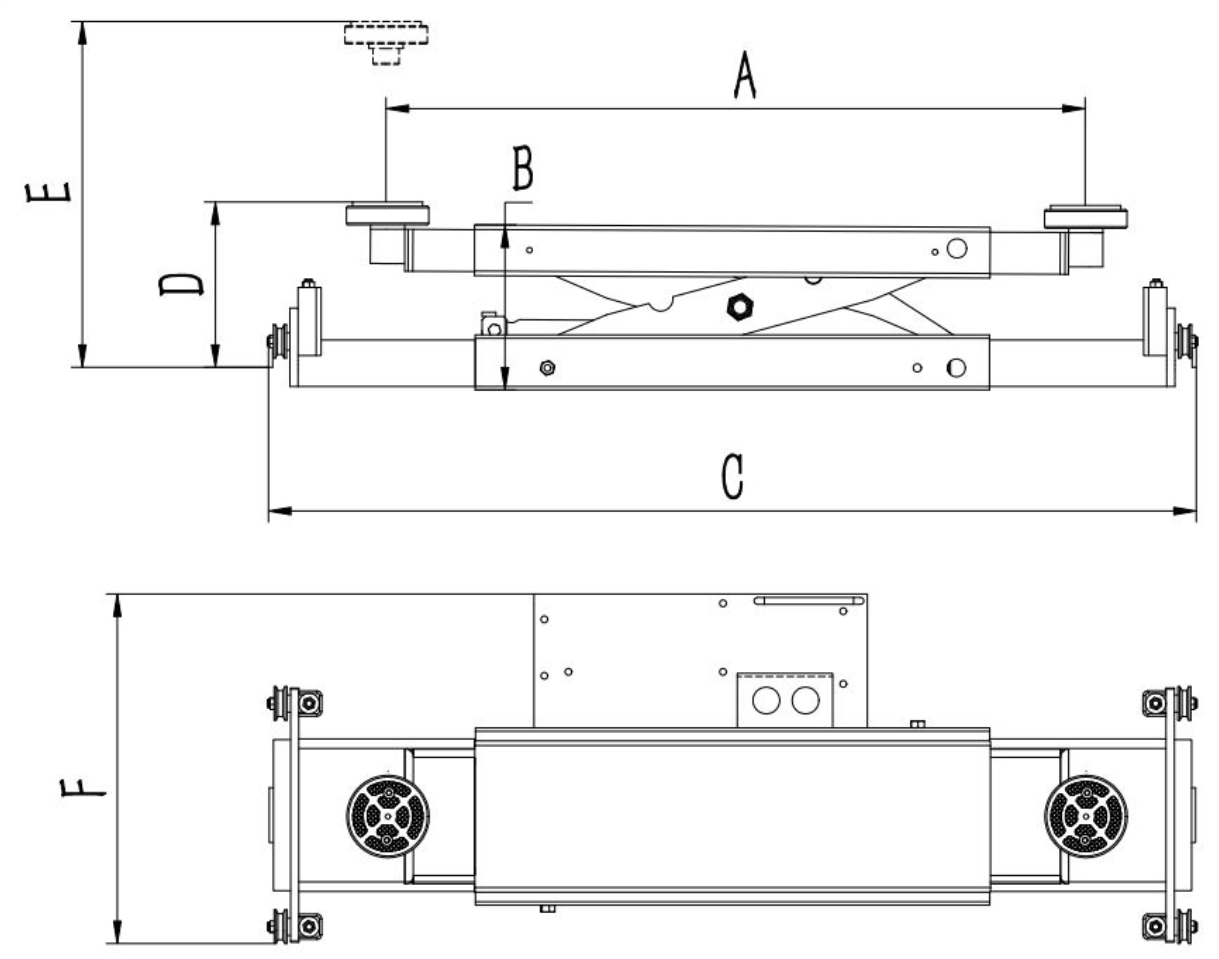

Model		J6H
Lifting Capacity		2800kg
Lifting Time		50s
Arm Pads Reach	A	843-1357mm
Min. Height	B	215mm
Support Base Width	C	848-1330mm
Min. Rubber Pad Height	D	219mm
Max. Lifting Height(Without adapters)	E	451mm
Max. Lifting Height(With adapters)	E	515mm
Overall Width	F	510mm
Gross Weight		127KG
Pump		Manual Pump

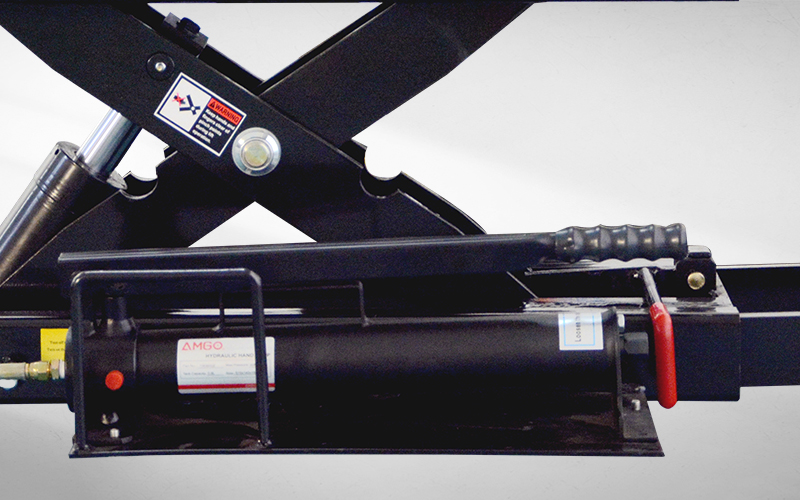

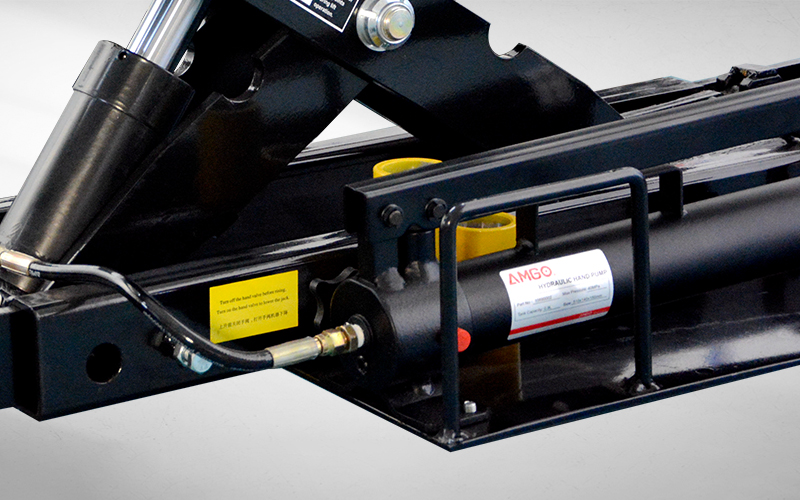

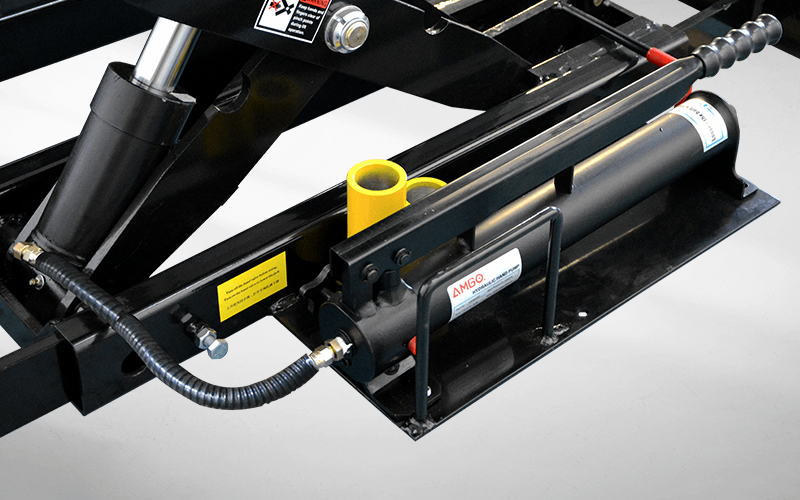

The Hand Pump is convenient and quick to operate.

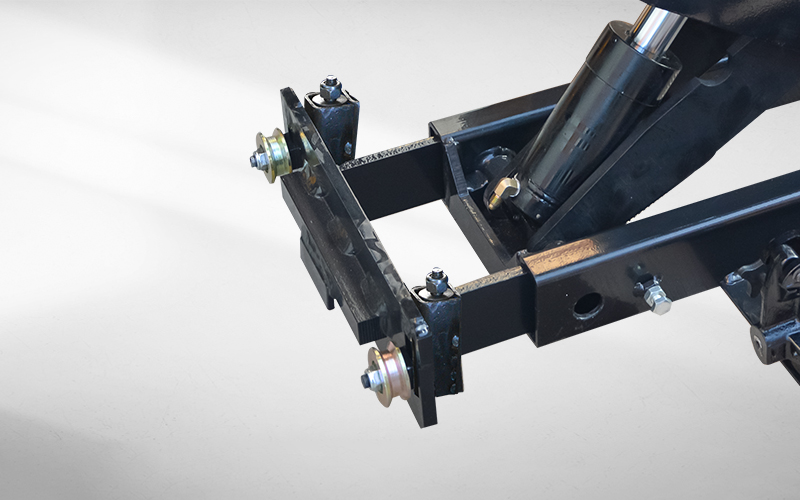

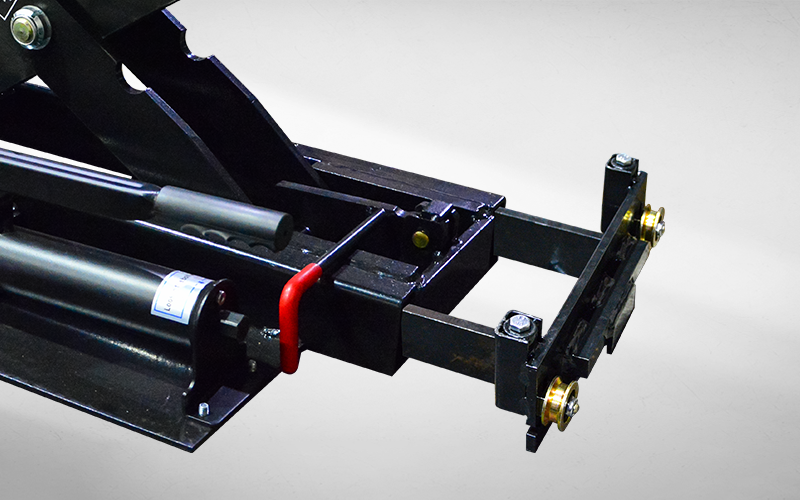

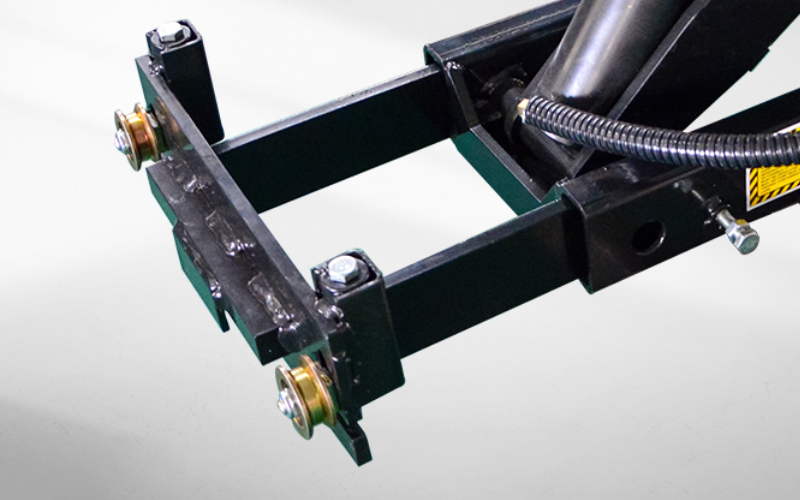

Patent float rolling device make the Jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.

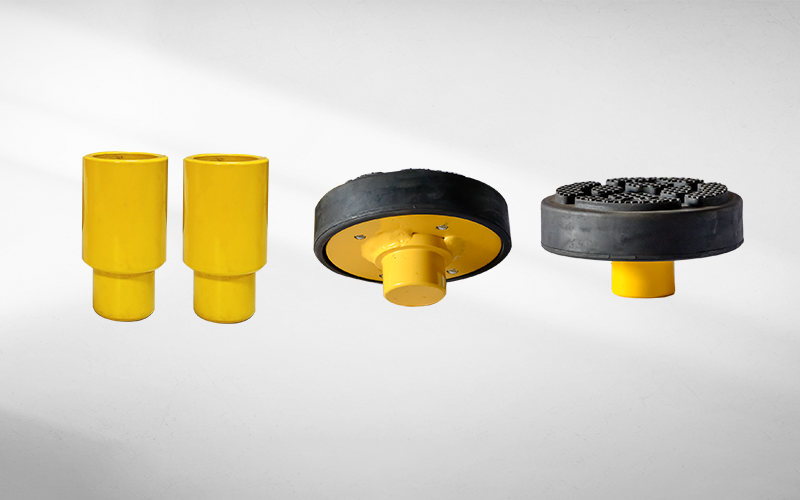

Drop in rubber pads with 2.5" extension adapters.

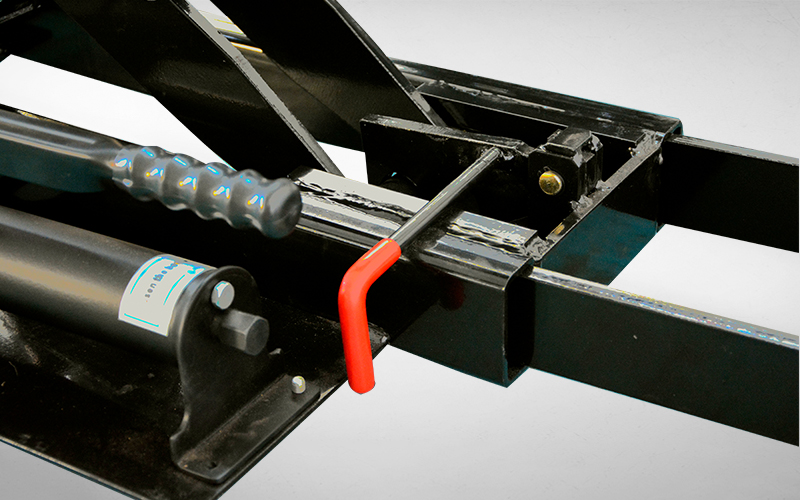

Easily control manual safety lock.

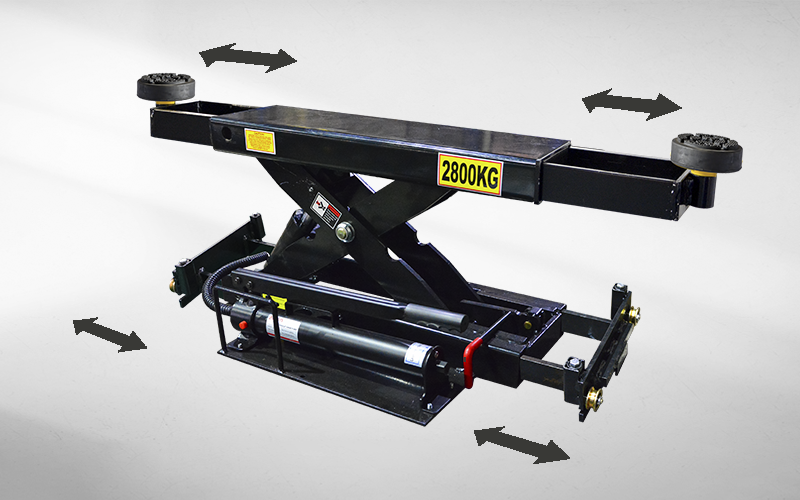

Width adjustable,suit for almost all the four post & scissors lifts.
Ergonomic guardrail help to easily moving the jack.

The Hand Pump is convenient and quick to operate.

Patent float rolling device make the Jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.

Drop in rubber pads with 2.5" extension adapters.

Easily control manual safety lock.

Width adjustable,suit for almost all the four post & scissors lifts.

Ergonomic guardrail help to easily moving the jack.
