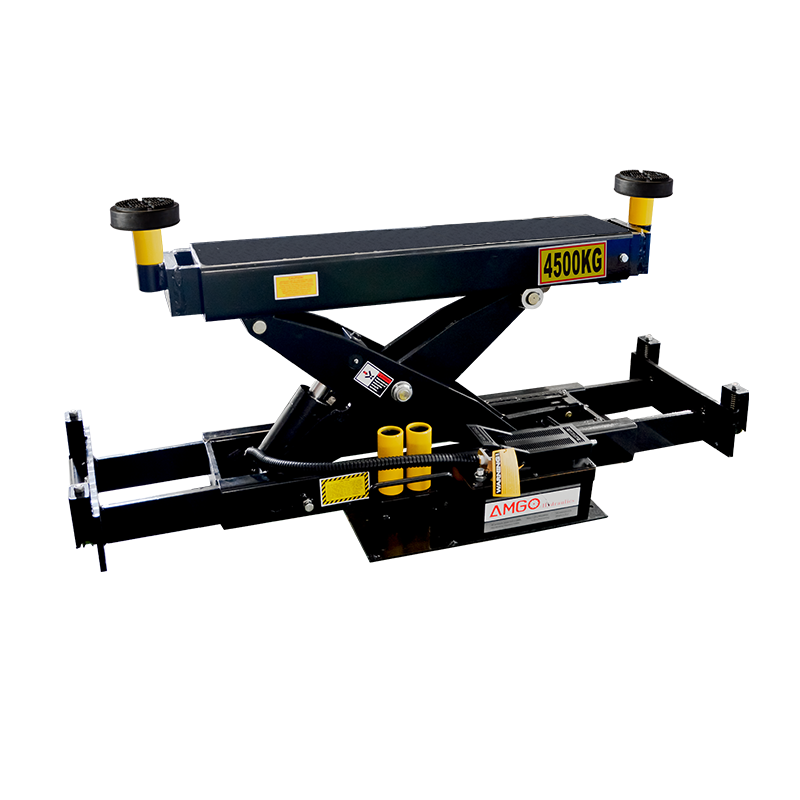

RJ-10A

ROLLING JACK

The Heavy-Duty RJ-10A is the premier industrial solution for servicing a wide range of vehicles, particularly heavy-duty lorries and commercial vehicles with a gross weight of under 20 tonnes. Its highly adaptable design ensures seamless compatibility with the majority of four-post and scissor lifts available on the market. Engineered with a robust, patented structure, the RJ10A delivers exceptional efficiency and unwavering stability, making it the ideal choice for demanding workshop environments.

rolling jacks

Detailed Product Information

Equipped with pneumatic hydraulic pump.
Strengthened solid steel-frame scissor ensures the Jack is strongest so that perform service work more stable.
Offer whole set of 2.5'',5'' extension adapters and super-durable Rubber Pads Assy.
Extendable arms for easy positioning and adjustability which have maximum arm reach of 1685mm and minimum 975mm.
Designed manual safety lock with two locking position which make operators access to work more convenient and comfortable.

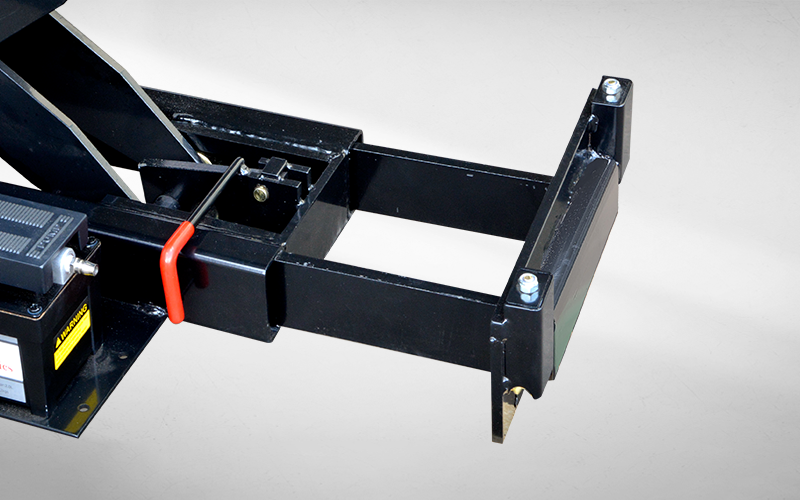

Adjustable lower sliding Assy. fitting for width between runways from 1005mm to 1435mm.
Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.

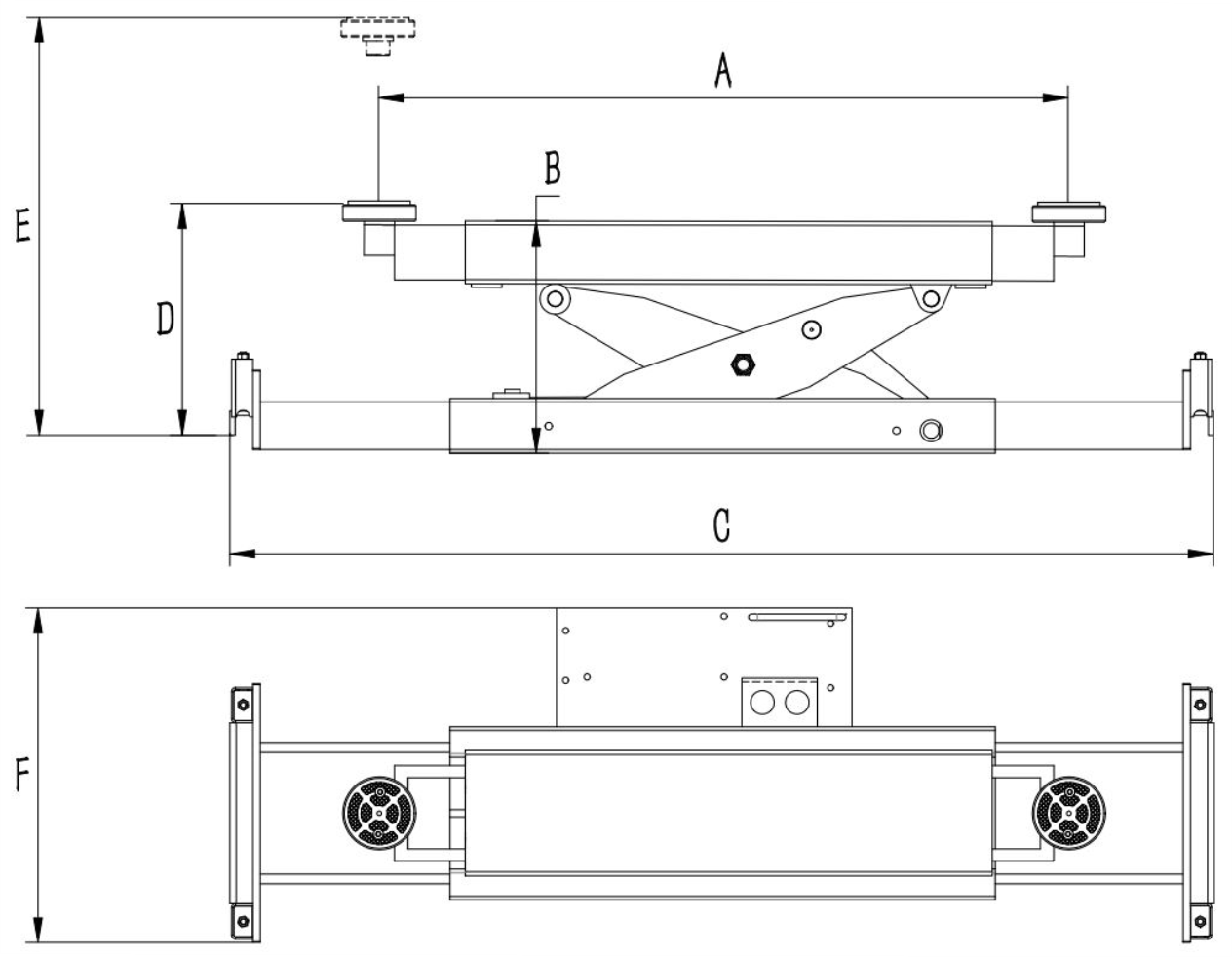

Model		RJ-10A
Lifting Capacity		4500kg
Lifting Time		50s
Arm Pads Reach	A	975-1680mm
Min. Height	B	280mm
Support Base Width	C	1010-1435mm
Min. Rubber Pad Height	D	289mm
Max. Lifting Height(Without adapters)	E	556mm
Max. Lifting Height(With adapters)		747mm
Overall Width	F	555mm
Air Pressure		0.8Mpa
Pump		Pneumatic Pump

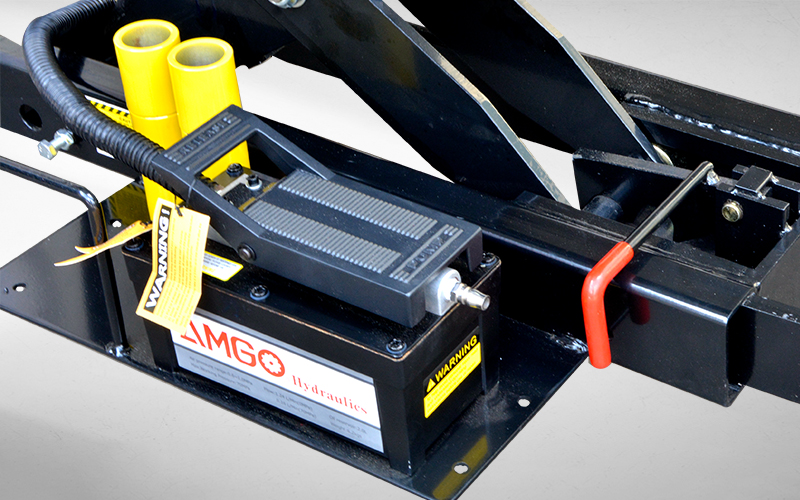

Excellent quality pneumatic hydraulic pump match with high working pressure oil hose.Customized a spceial bracket for storage adapters.

Patented floating roller system design match with the protective box that ensures the jack to moved smoothly, sitting in the groove stably when lifting a vehicle.

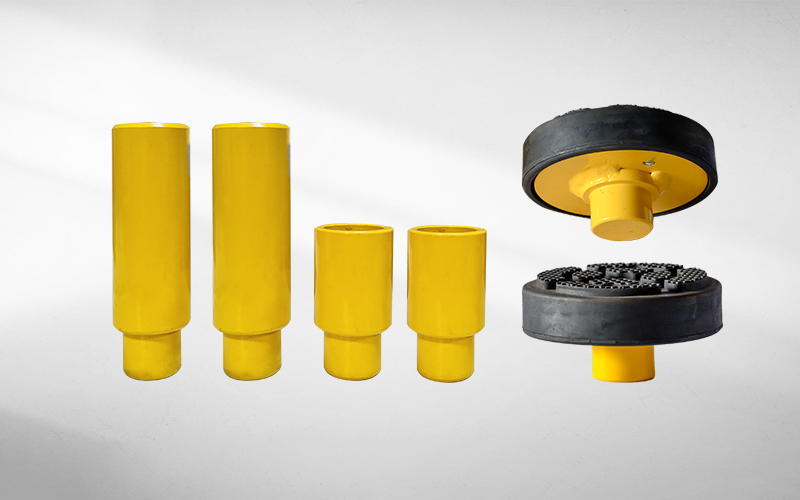

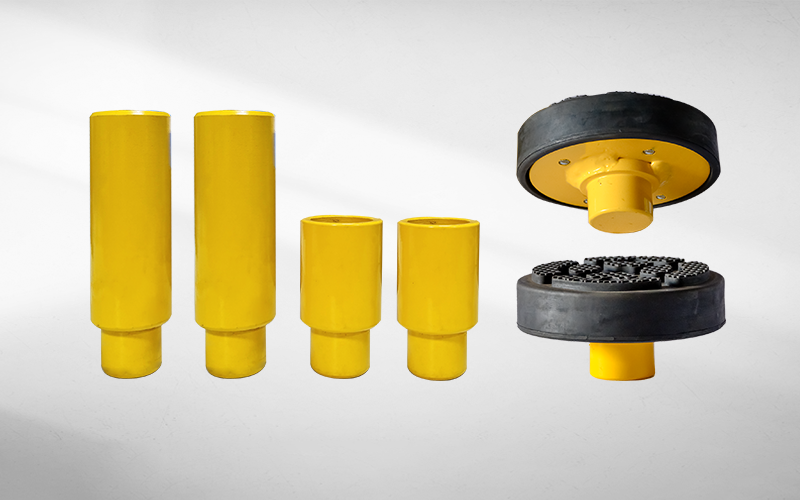

Drop in rubber pads with 2.5" and 5" extension adapters.

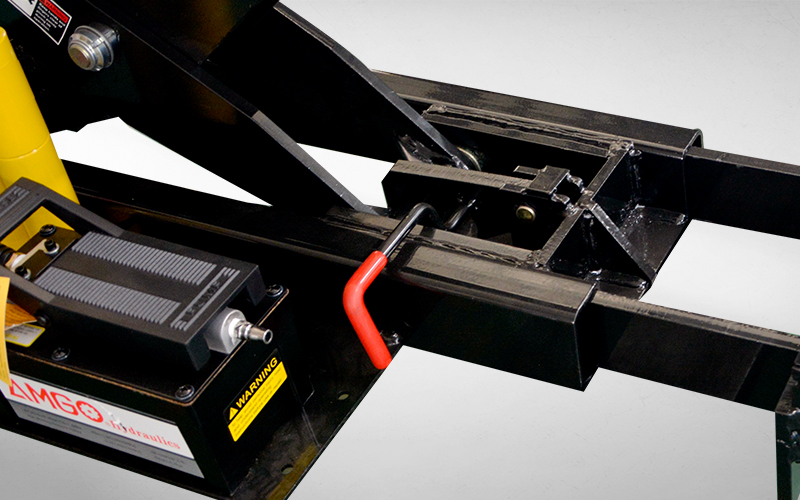

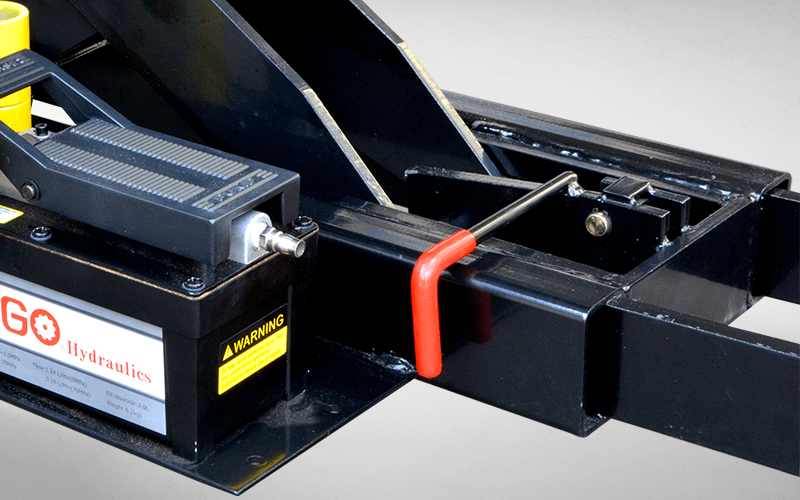

Simply sperate manual safety lock allows access to multiple safety lock positions for comfortable working height.

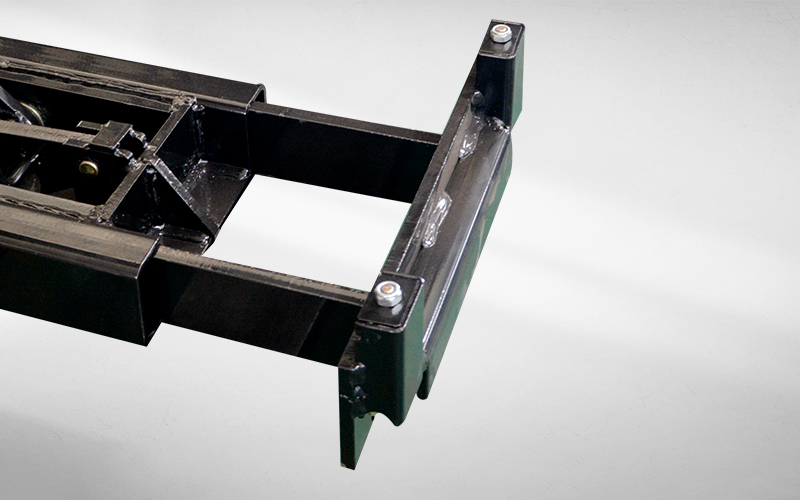

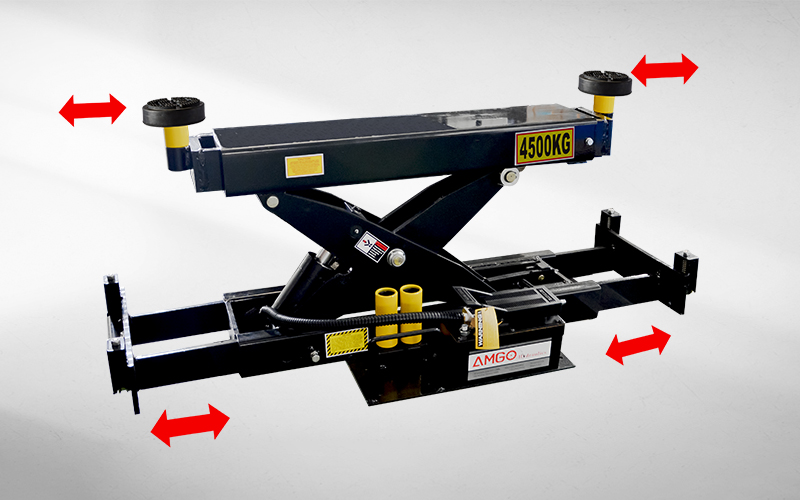

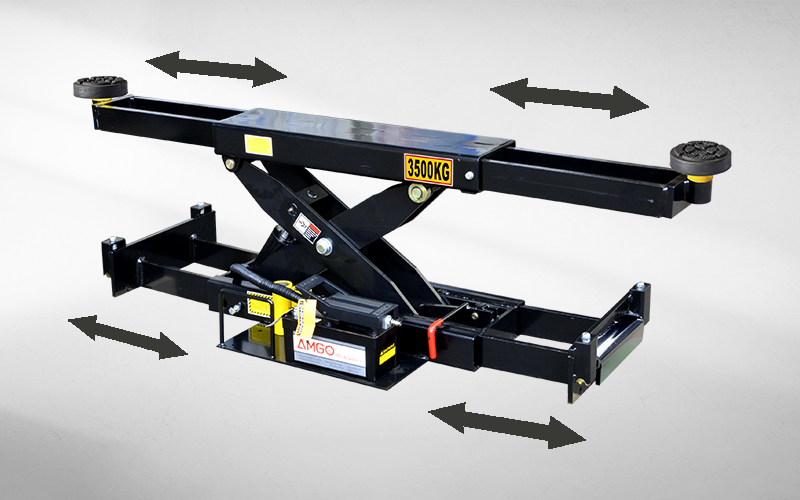

Telescoping arms which are adjusted to work for different chassis vehicles & adjustable lower sliding assy.fit for almost all the four-post & scissor lifts.

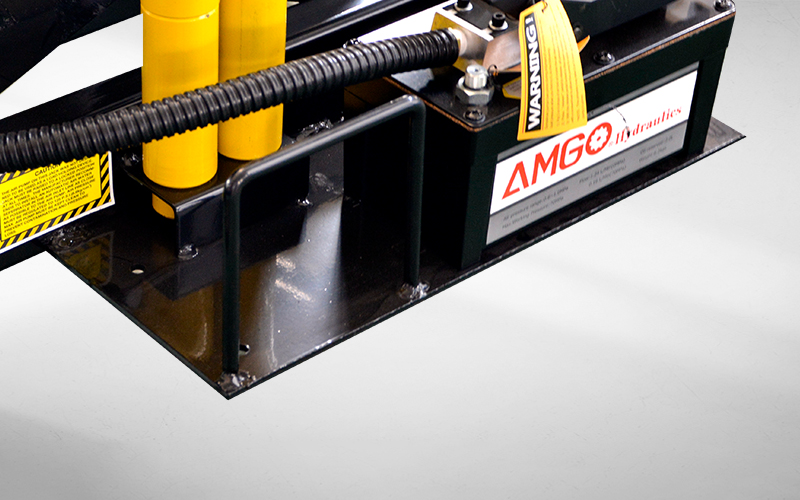

Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
