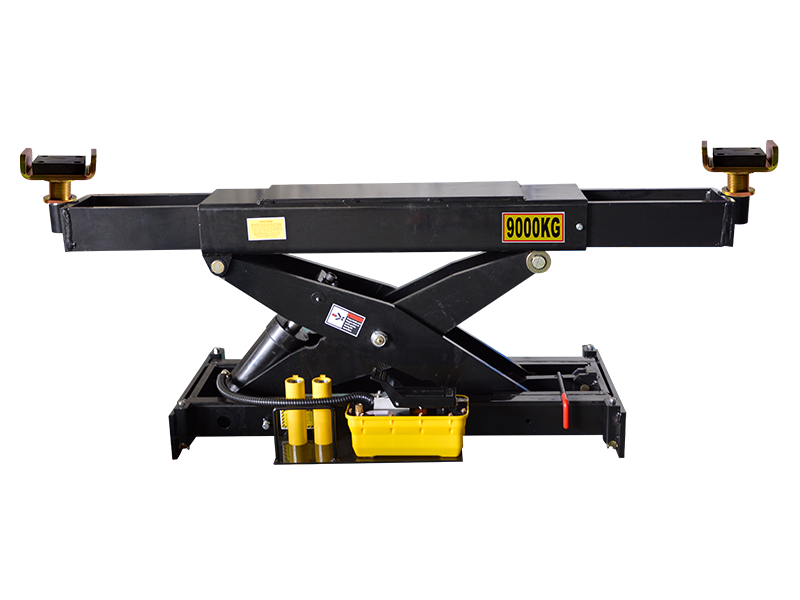

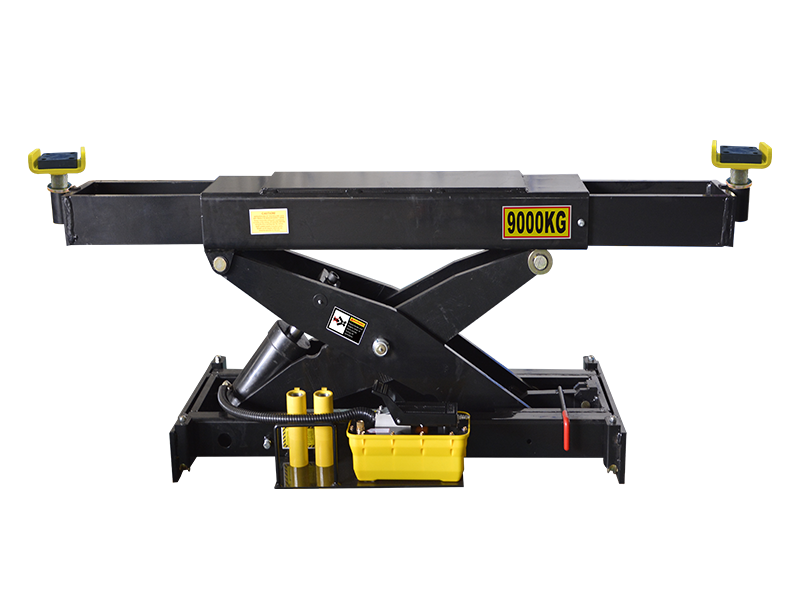

RJ-20A

 ROLLING JACK


The RJ-20A represents the pinnacle of robustness in its category, offering an unparalleled lifting capacity of 9,000 kg,making it the premier choice for heavy-duty trucks and large-scale bus applications. Constructed with a reinforced, high-strength design, it ensures exceptional durability & uncompromising performance under extreme loads. Engineered to prioritize both operator safety and comfort, the RJ-20A delivers efficient, dependable wheel servicing even in the most demanding operational environments.

rolling jacks

Detailed Product Information

  • Powerful pneumatic hydraulic pump with excellent performance.
  • Double-screwing Frame Saddle Pad Assy.provides more suitable chassis engagement and ensures more secure support when lifting a extremely heavy-duty vehicle or full-sized truck.
  • 3" & 6" extension adapters that are included as standard accessories are used for increasing height.
  • Used the patent floating design rollers are made of hardened stainless-steel and zinc plated to increase durability.
  • Reinforced scissor structure helps to provide most stable lifting work.
  • Extendable lower sliding assy.are strangthen and thickened which holding the jack steadily between the runways.
  • The strongest adjustable arms are good to handle heavy-duty work and positioning lift point easily.
  • Equipped with larger size hydraulic oil cylinder.
  • Ergonomically guradrail works as a booster handle for moving the Jack easily and protecting oil hose.

Model



RJ-20A

Lifting Capacity



9000kg

Lifting Time



50s

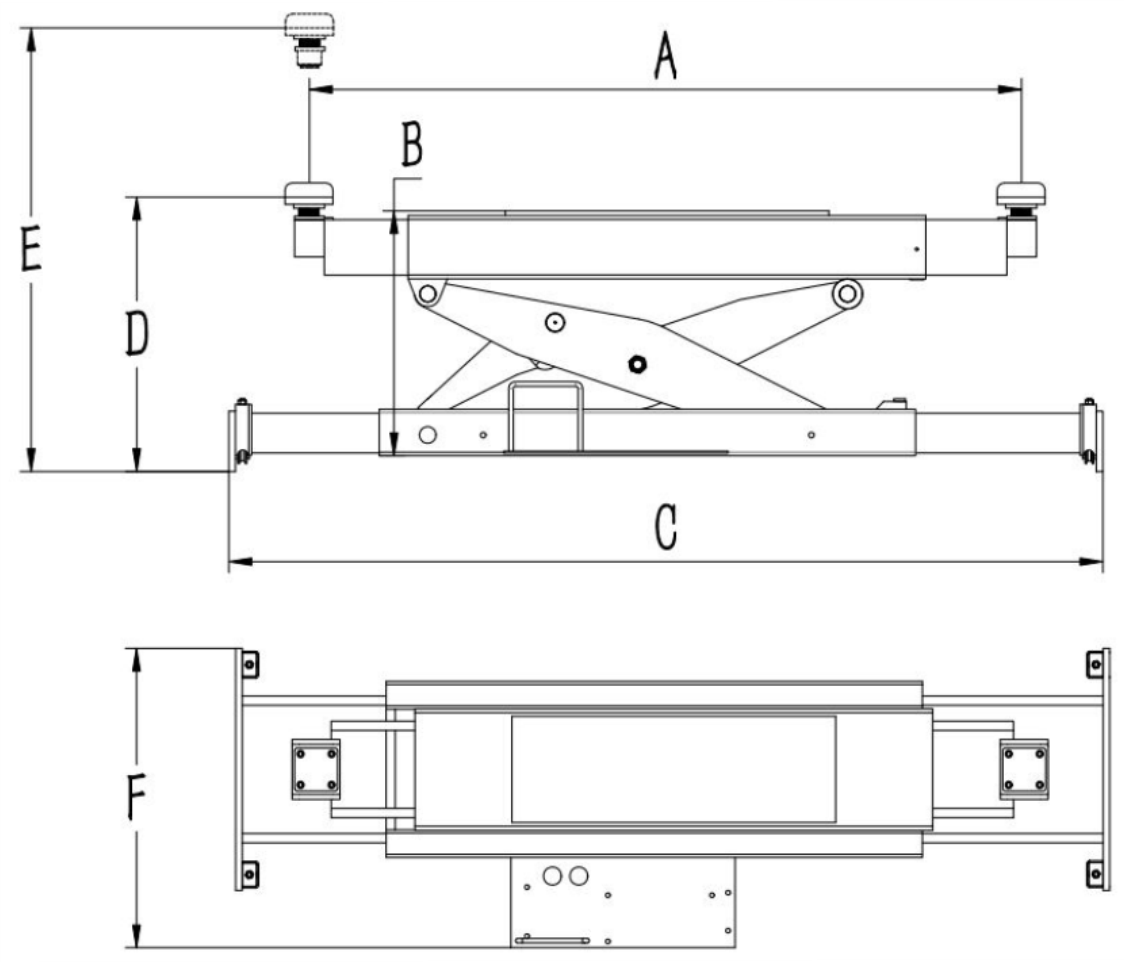

Arm Pads Reach

A

1150-1680mm

Min. Height

B

360mm

Support Base Width

C

1147-1480mm

Min. Rubber Pad Height

D

421-455mm

Max. Lifting Height(Without adapters)

E

787-821mm

Max. Lifting Height(With adapters)

1016-1050mm

Overall Width

F

647mm

Air Pressure



0.8Mpa

Gross Weight



376kg

Pump



Pneumatic Pump







  •

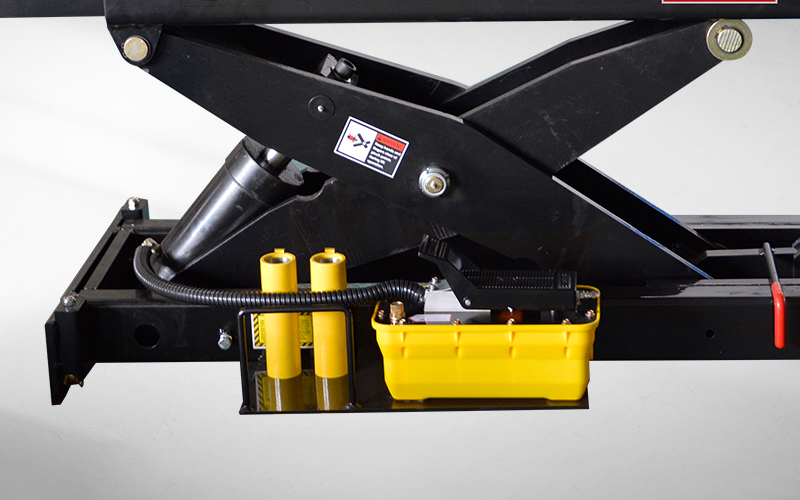

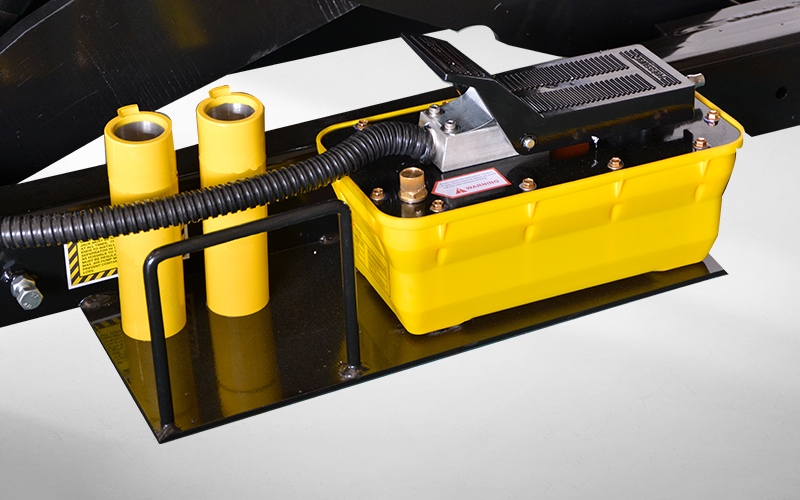

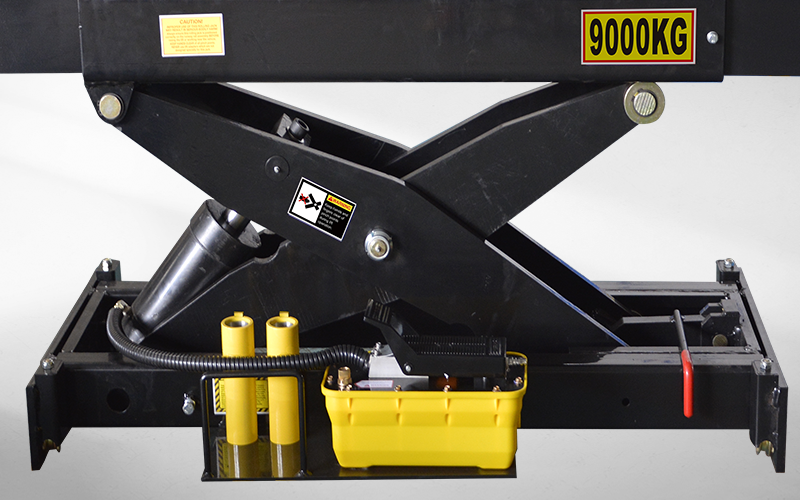

    Special high pressure pneumatic hydraulic pump connected and longevity hose maintains high performance.

  •

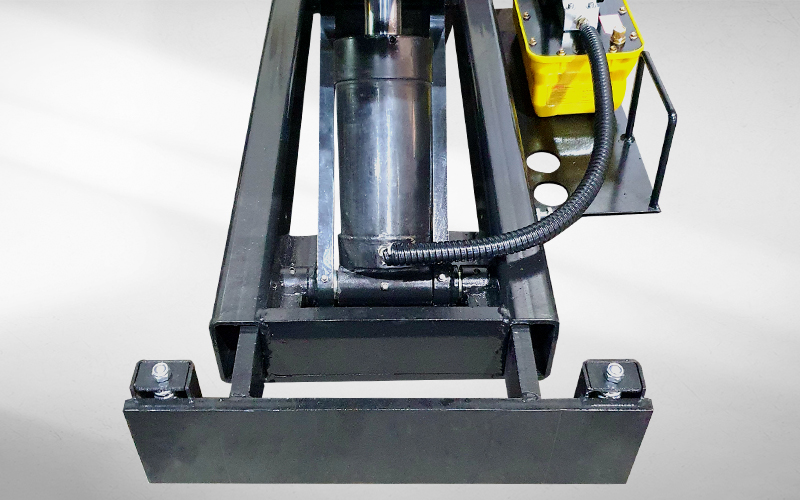

    A larger version and more powerful hydraulic oil cylinder.

  •

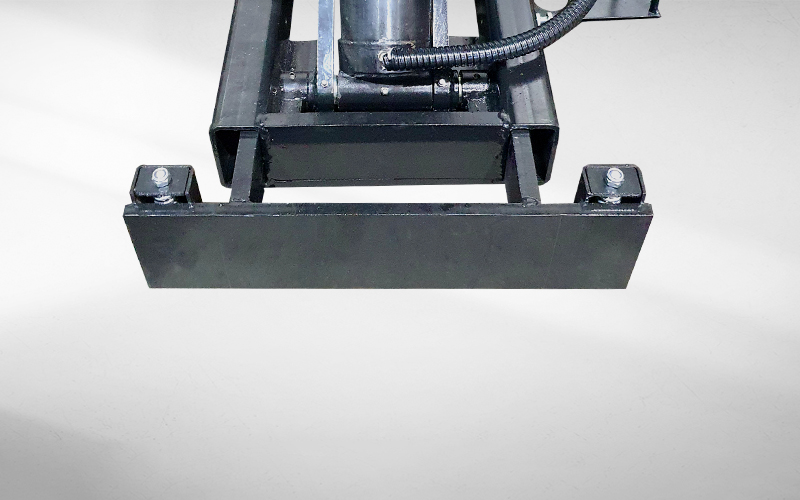

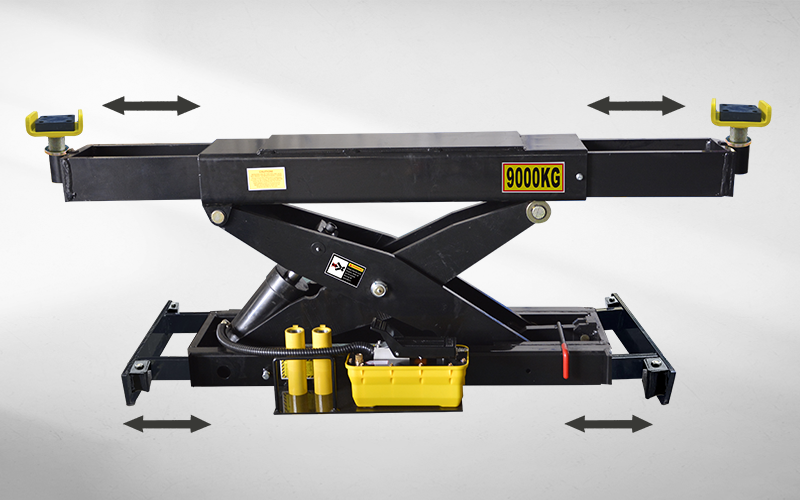

    Thickened extendable lower sliding assy.which equipped with Zinc made rollers of the patent floating design.

  •

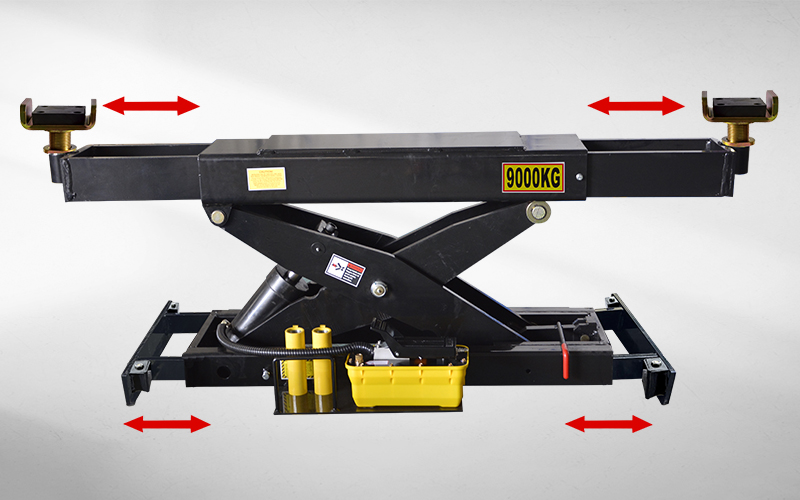

    Strengthen Upper Support Assy.and adjustable arms are crafted to withstand extremely heavy loading.

  •

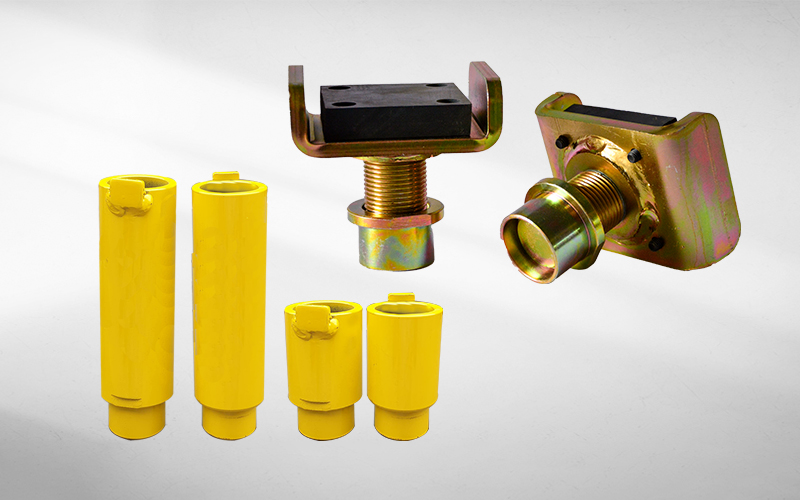

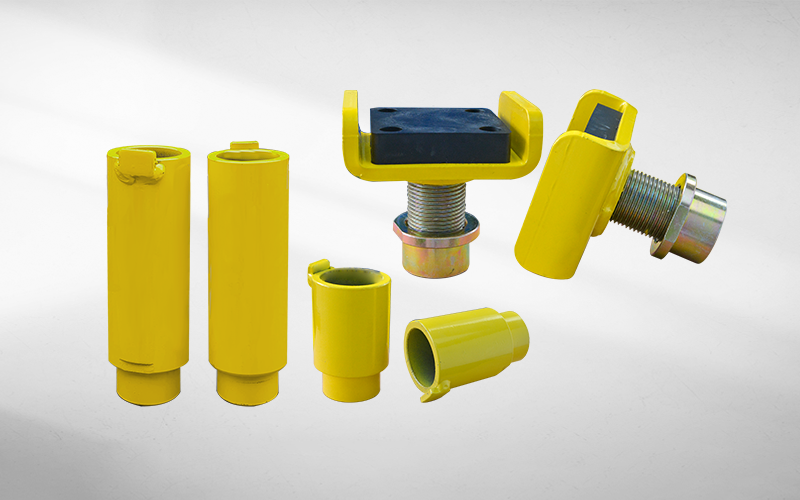

    Rugged construction double-screw frame saddle pads package with 3" & 6" extension adapters.

  •

    Ergonomically guardrail protecting oil hose as well as easy to move the Jack as a booster.
