RJ-8A

ROLLING JACK

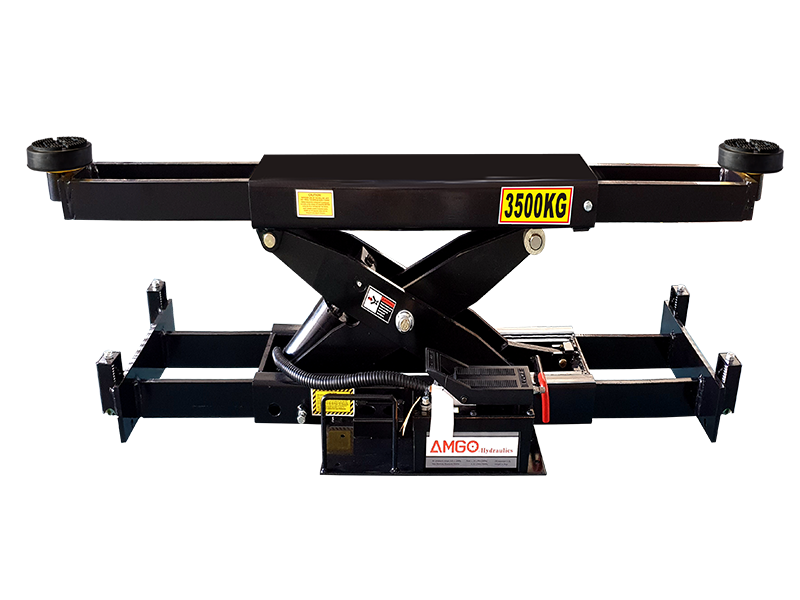

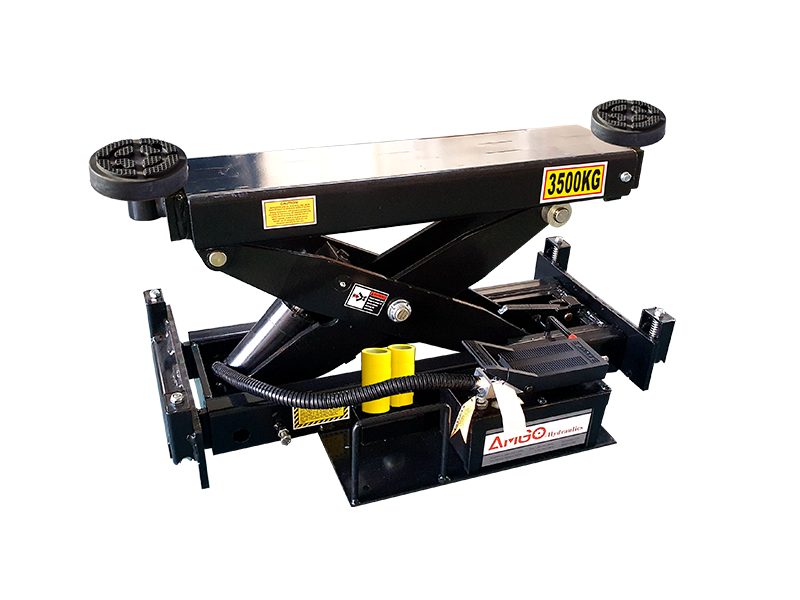

The RJ-8A boasts an impressive 3,500 kg capacity, delivering exceptional versatility for commercial workshops and service bays. Equipped with patented floating technology and a high-efficiency pneumatic pump, this robust lift ensures superior performance and broad compatibility across both four-post and scissor lift applications. Whether servicing compact cars or heavy-duty pickup trucks, the RJ-8A stands as the ideal solution for garages seeking reliability and adaptability.

rolling jacks

Detailed Product Information

Equipped with pneumatic hydraulic pump
Whole set of 2.5'',5'' adapters & Rubber Pad Assy,which increase the lifting height so that service for most Pickups and seat high passenger cars.
The unique patent floating roller system with protective box that ensures the jack to glide smoothly on the rail.
Telescoping arms can be extended and positioned to the correct lifting points at any time.
Enhance solid Scissor provides running stability
Adjustbale lower sliding Assy, which adjust to fit many different brands of four post or scissor lifts.
As well as fitting for width between runways from 915mm to 1435mm.
The jack features two solid locking positions that are used when the jack raised to comfort work height.
Convenient guradrail works as a booster handle for moving the Jack easily and protecting oil hose.

Model		RJ-8A
Lifting Capacity		3500kg
Lifting Time		50s

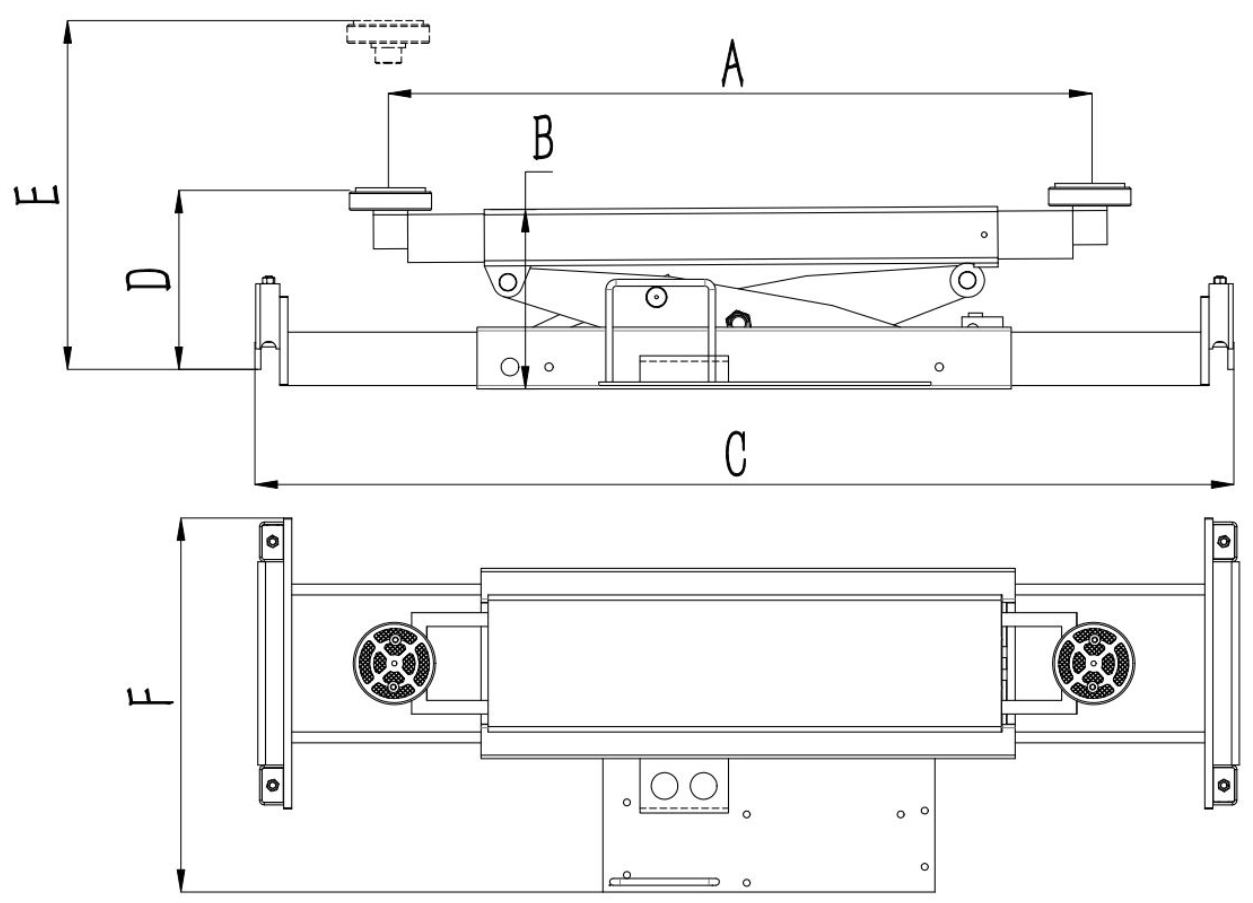

Arm Pads Reach	A	875-1680mm
Min. Height	B	260mm
Support Base Width	C	915-1435mm
Min. Rubber Pad Height	D	269mm
Max. Lifting Height(Without adapters)	E	531mm
Max. Lifting Height(With adapters)		722mm
Overall Width	F	552mm
Air Pressure		0.8Mpa
Pump		Pneumatic Pump

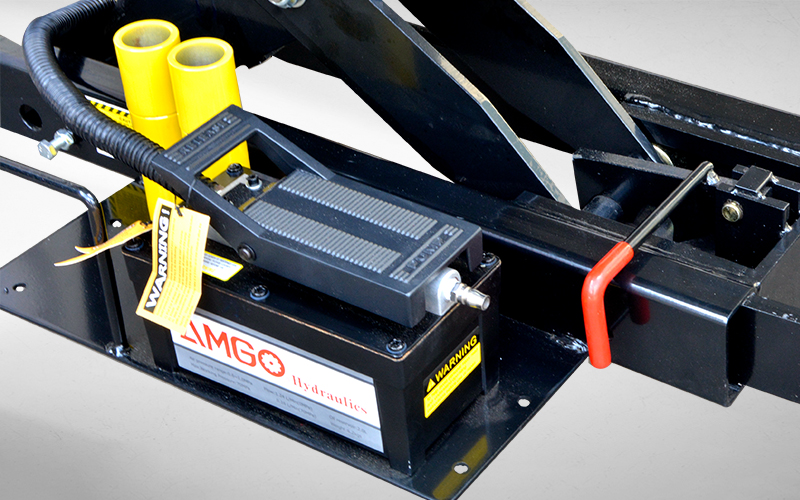

Excellent quality pneumatic hydraulic pump match with high working pressure oil hose.Customized a spceial bracket for storage adapters.

Patented floating roller system design match with the protective box that ensures the jack to moved smoothly,sitting in the groove stably when lifting a vehicle.

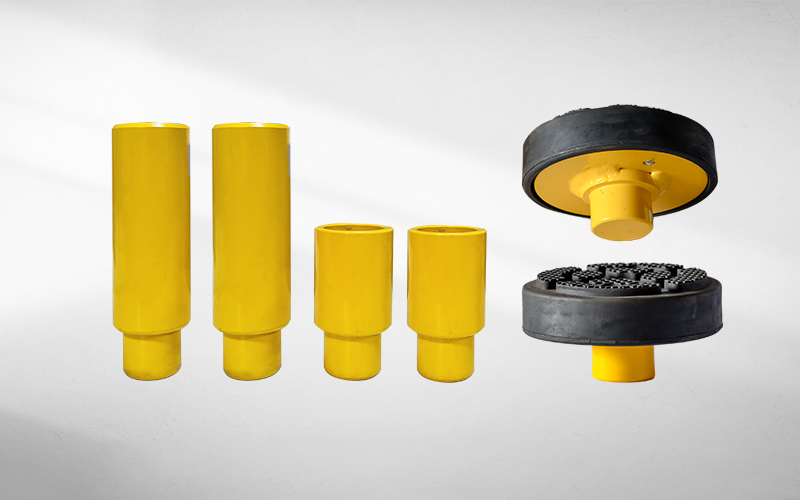

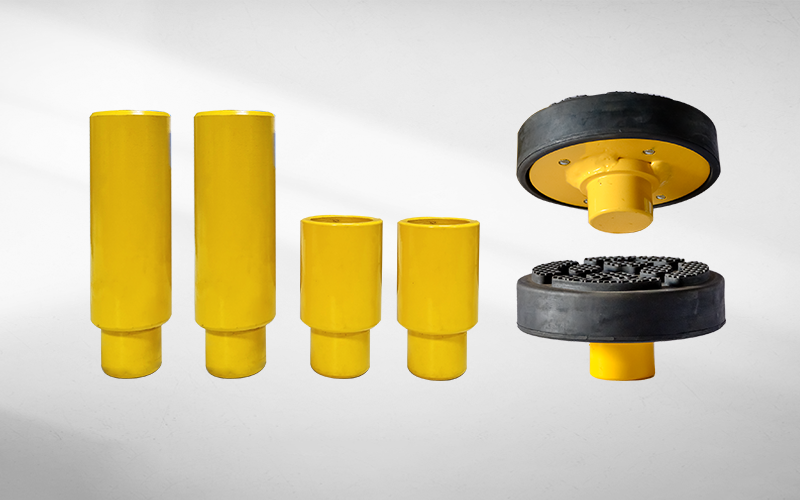

Drop in rubber pads with 2.5" and 5" extension adapters.

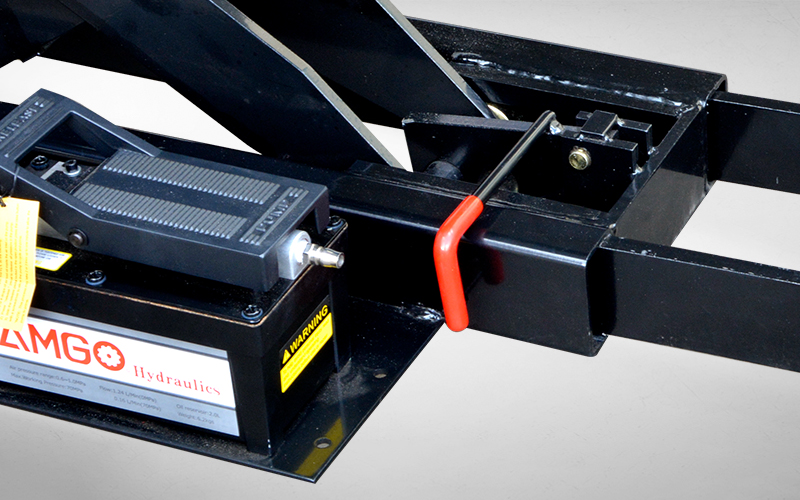

Simply sperate manual safety lock allows access to multiple safety lock positions for comfortable working height.

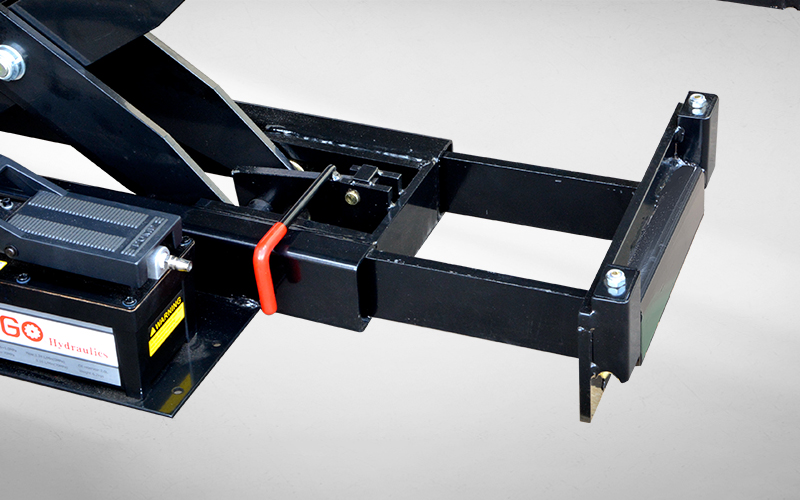

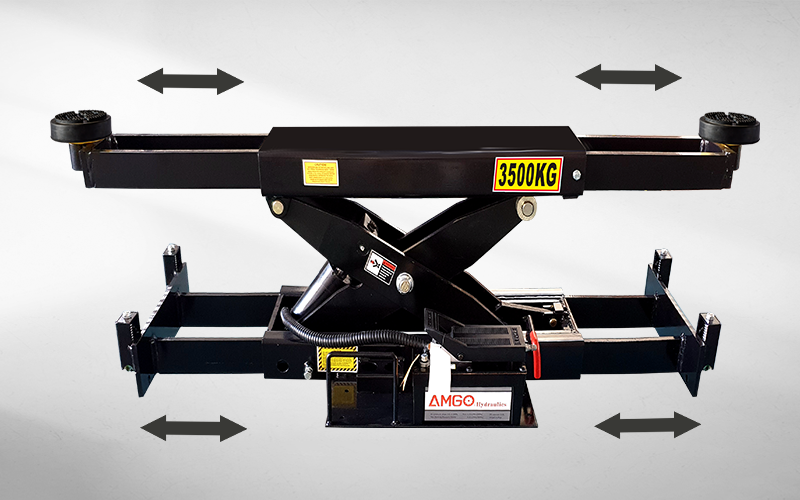

Telescoping arms which are adjusted to work for different chassis vehicles & adjustable lower sliding assy.fit for almost all the four-post & scissor lifts.

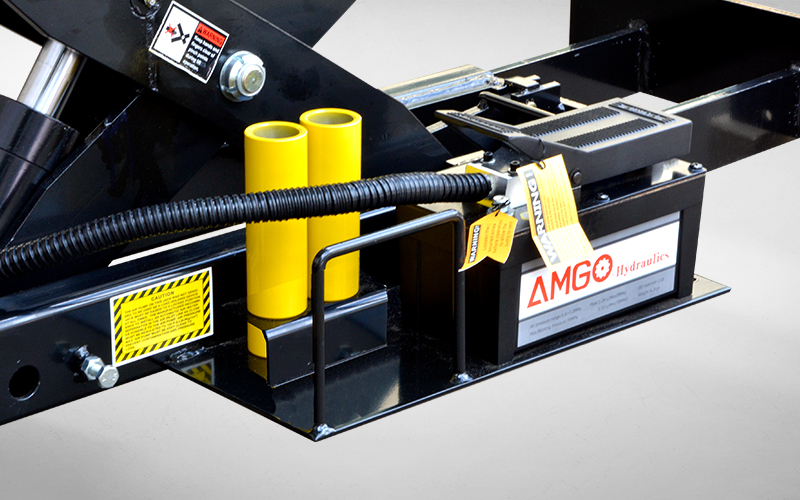

Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
