MRL-3000

PORTABLE MID-RISE SCISSOR LIFT

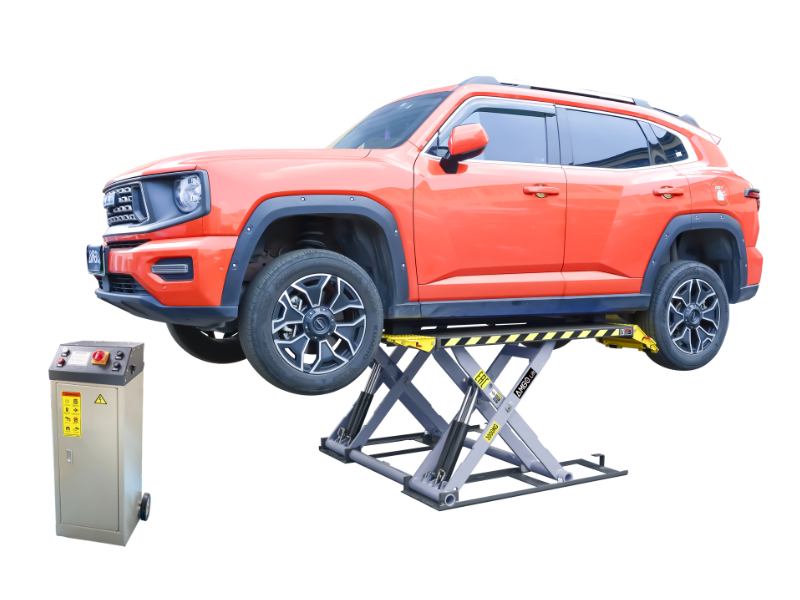

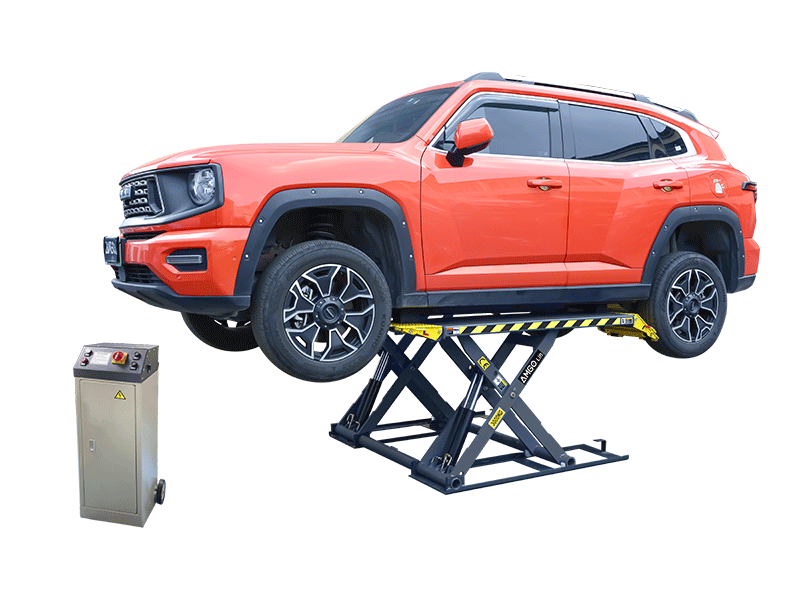

Delivering premium performance and portability, this low-profile mid-rise MRL-3000 lift offers quick service for vehicles weighing up to 3000KG, including low-clearance vehicles, with ease.  It is equipped with four hydraulic cylinders and AMGO's proprietary hydraulic-lock technology, making it a profitable investment for workshops seeking both efficiency and versatility.

scissors lifts

Detailed Product Information

  • 3000KG capacity;
  • 24V safe electrical operation system;
  • Minimum 115mm height low profile design;
  • Flexible drive-in ramps also function as extension platforms.;
  • Dual oil circuit control system with 4 cylinders;
  • Dual torsion bars guarantee platform synchronization;
  • Auto-activating hydraulic lock negates the need for an external air source;
  • Portable electrical control system with a mobile control cabinet;
  • Automatic safety stop at 300mm from the ground during descent;
  • Easily move to any work place with portable kit.

Model

MRL-3000

Lifting Capacity

3000kg

Lifting Time

23s

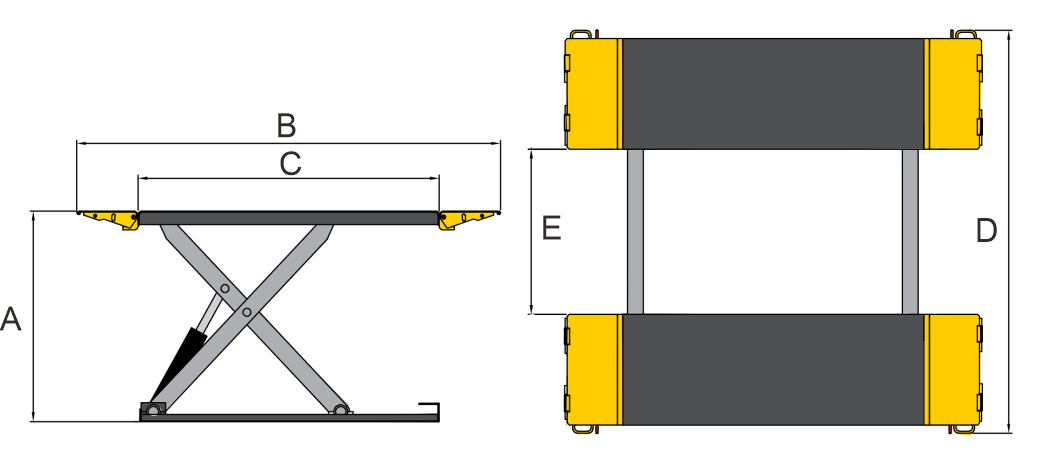

A1:Max. Lifting Height

1070mm

A2: Minimum Height

115mm

B: Overall Length(Inc Ramps)

2045mm

C: Runway Length

1460mm

D: Overall Width

1952mm

E: Width Between Runways

800mm

Gross Weight

572kg

Motor

3.0HP

QTY of Container

24 Units / 20' GP









  •

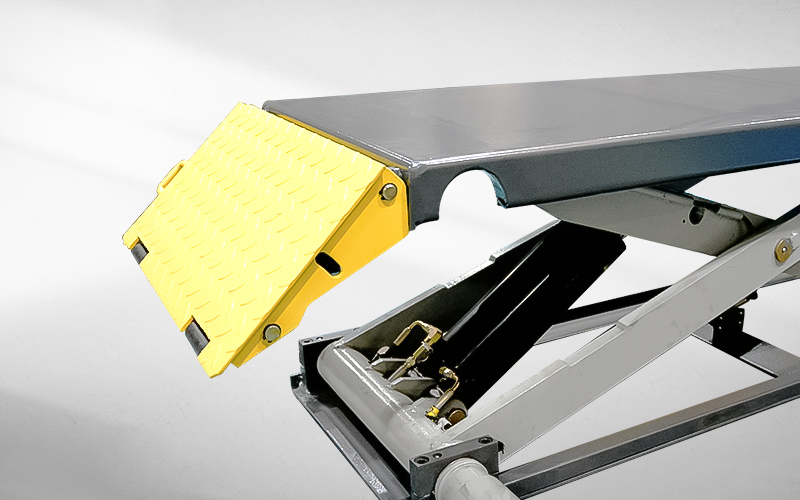

    Movable drive-in ramps,and extendable platform.

  •

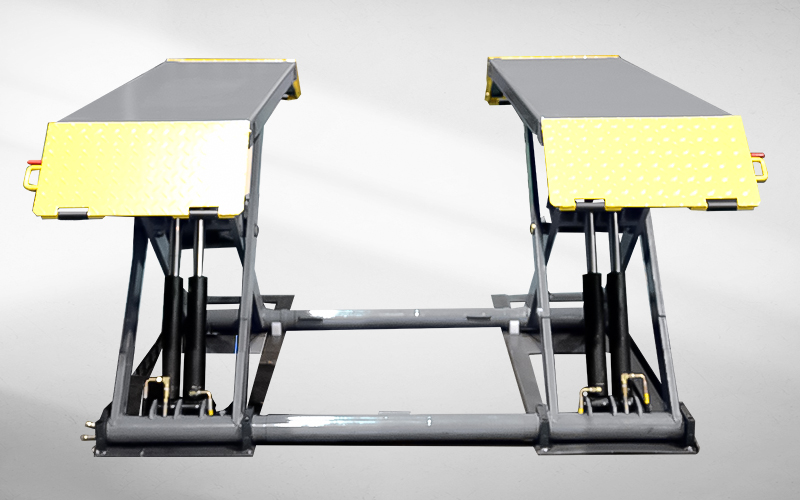

    Hydrualic lock system & torsion barconnecting for synchronization.

  •

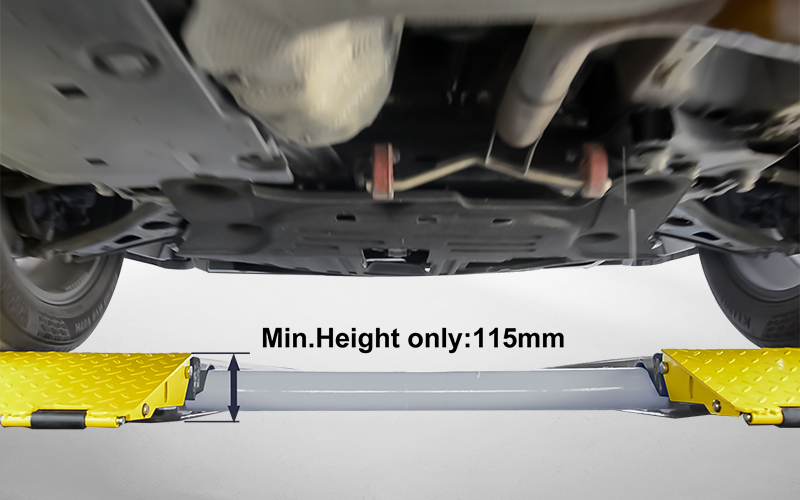

    Minimum height only 115mm.

  •

    Max lifting height 1070mm.

  •

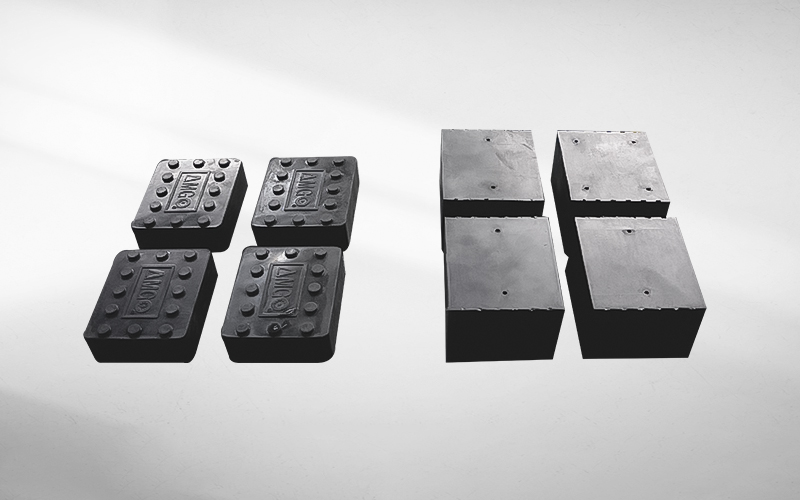

    Both 38mm and 70mm rubber pads included as standard supply.

  •

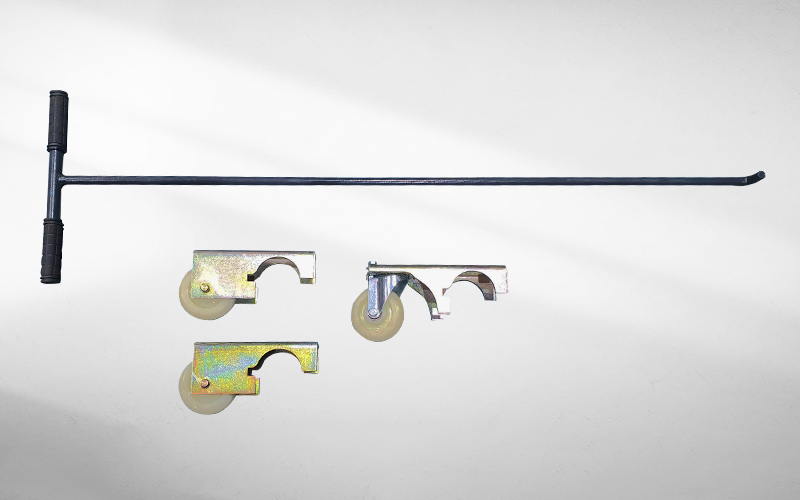

    Standard with portable kits, include mobile bracket wheel and pulling bar.

  •

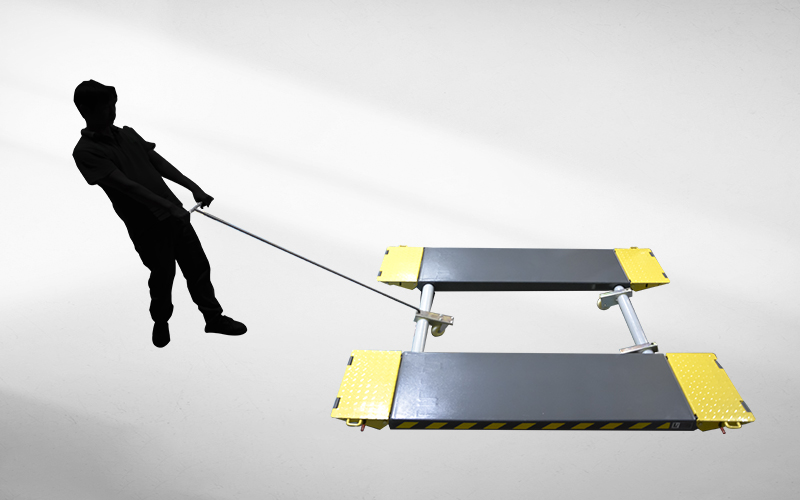

    Portable design, mobile easily.

  •

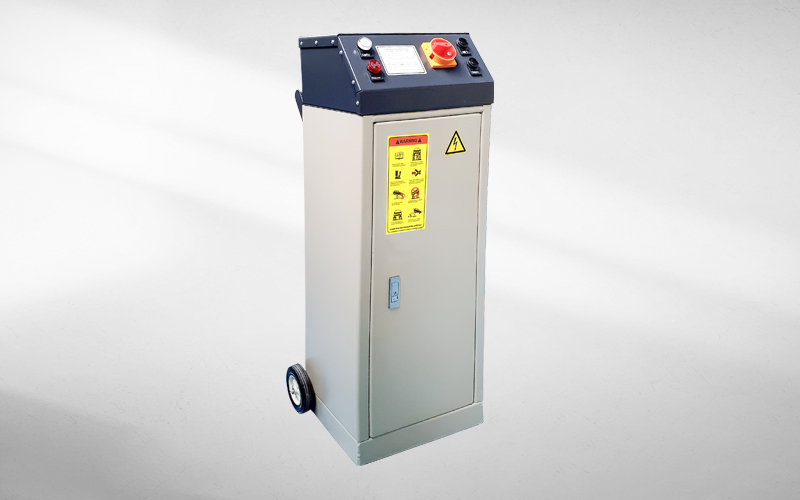

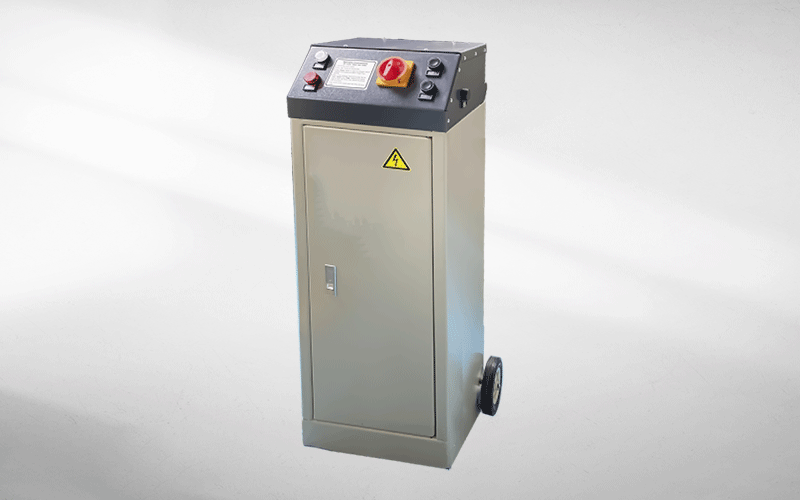

    Portable control cabinet, 24v safety control.
