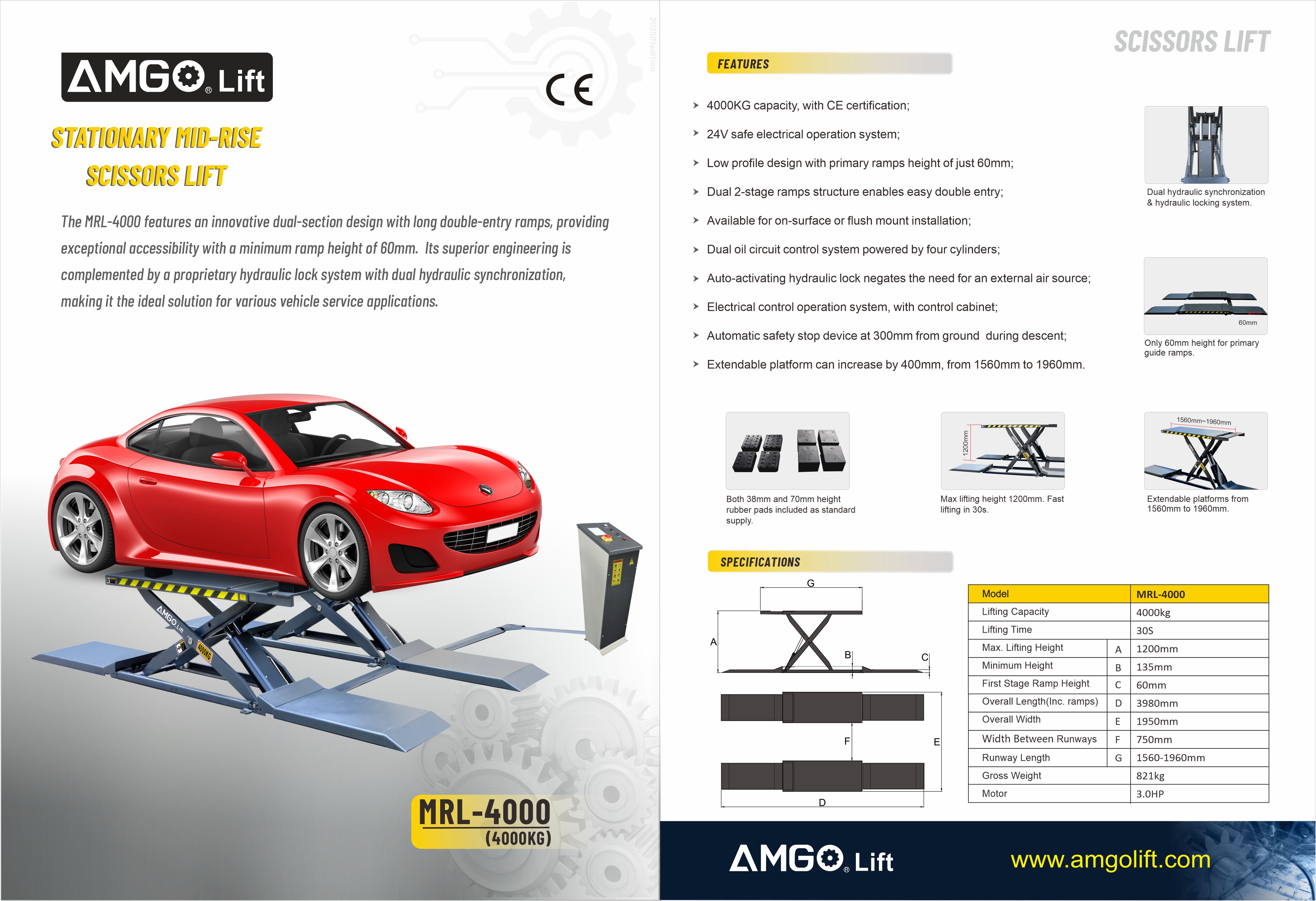

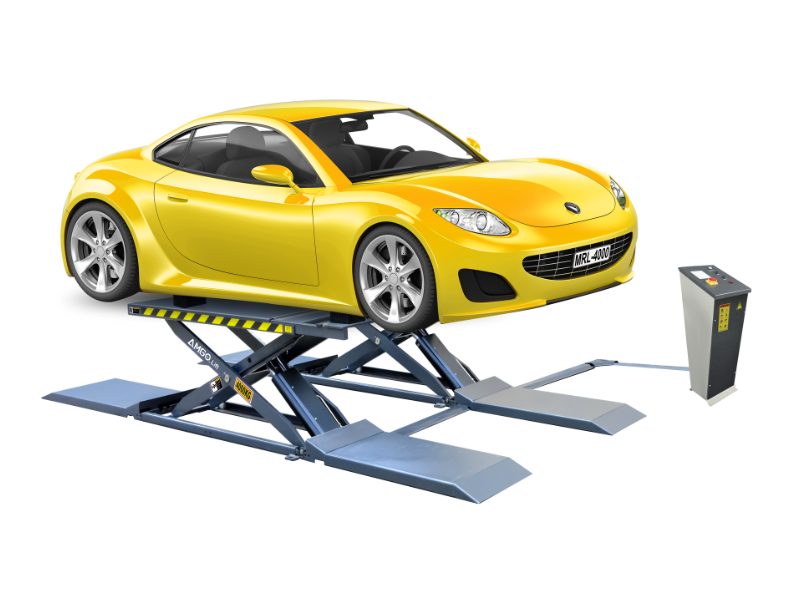

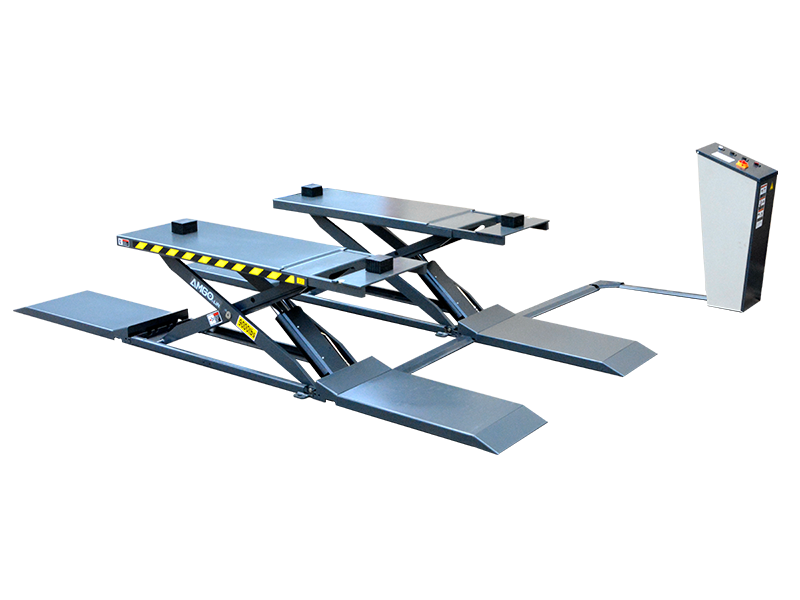

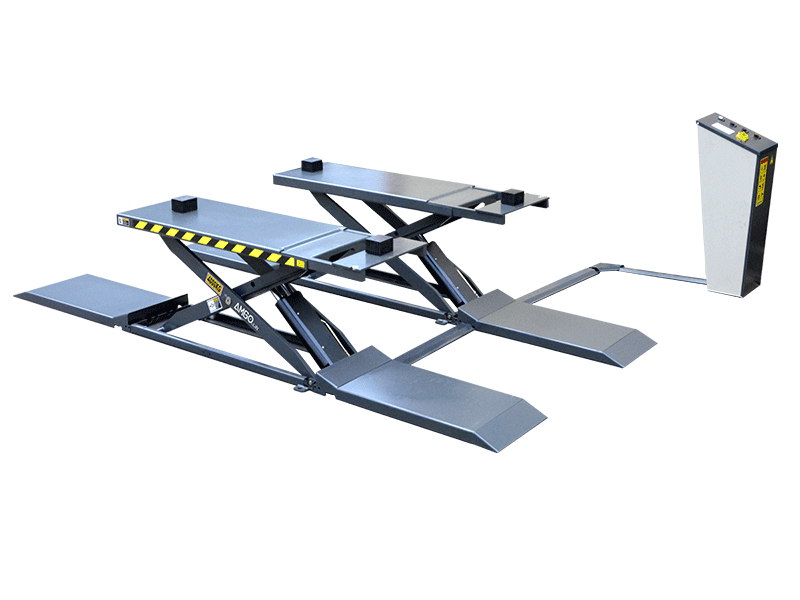

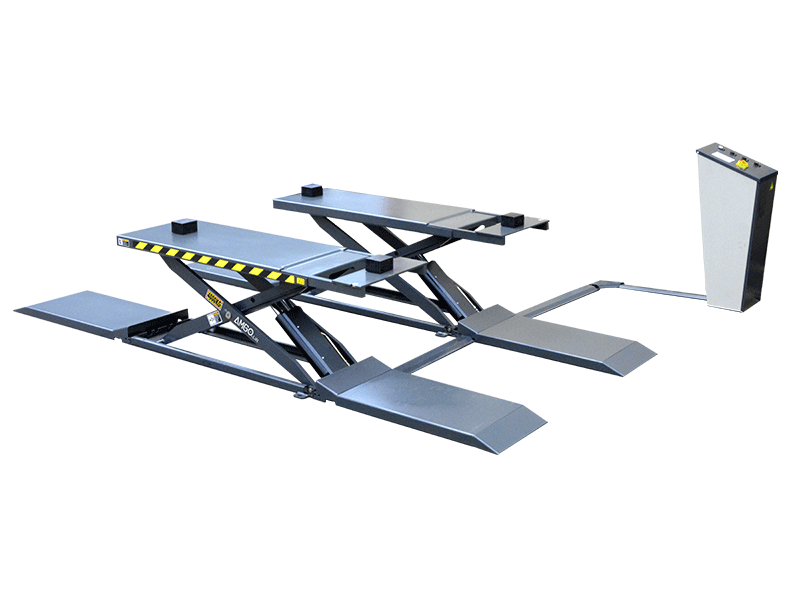

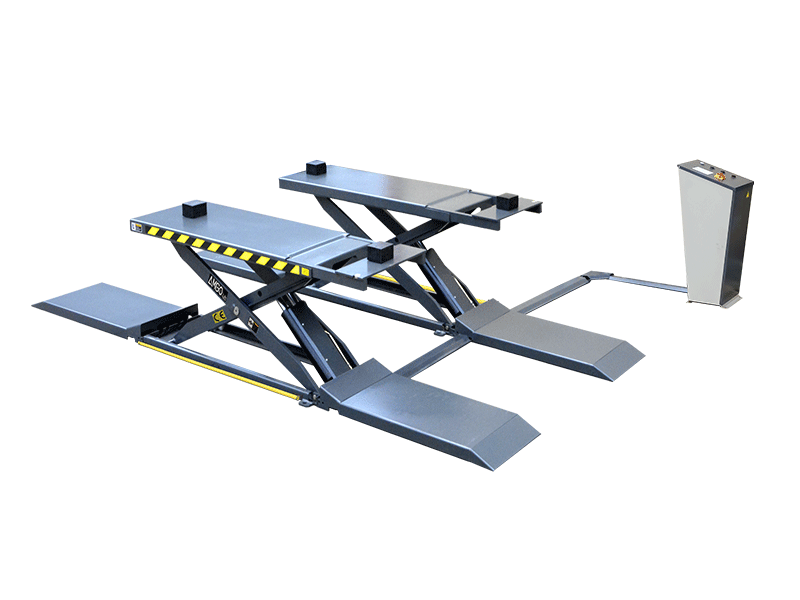

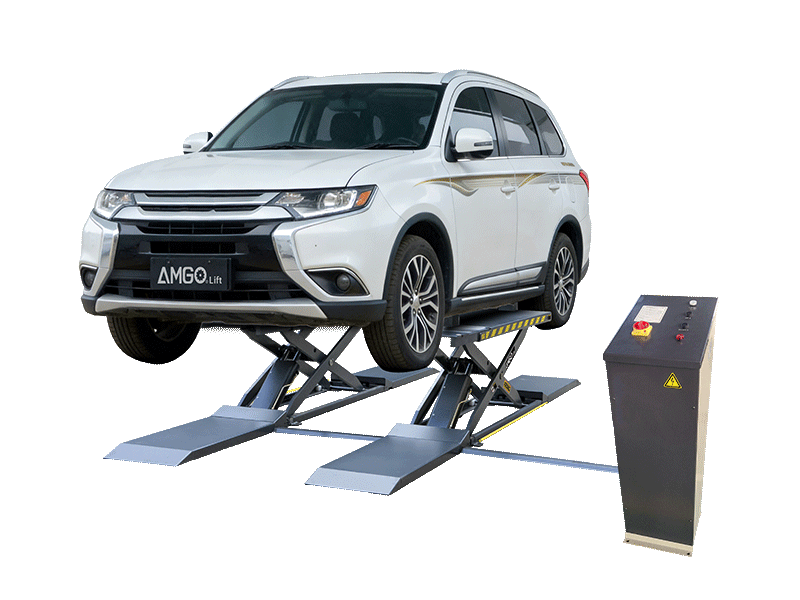

MRL-4000

STATIONARY SCISSOR LIFT

The MRL-4000 features an innovative dual-section design with long double-entry ramps, providing exceptional accessibility with a minimum ramp height of 60mm. Its superior engineering is complemented by a proprietary hydraulic lock system with dual hydraulic synchronization, making it the ideal solution for various vehicle service applications.

scissors lifts

Detailed Product Information

4000KG capacity;
24V safe electrical operation system;
Low profile design with primary ramps height of just 60mm;
Dual 2-stage ramps structure enables easy double entry;
Available for on-surface or flush mount installation;
Dual oil circuit control system powered by four cylinders;
Auto-activating hydraulic lock negates the need for an external air source;
Electrical control operation system, with control cabinet;
Automatic safety stop device at 300mm from ground during descent;

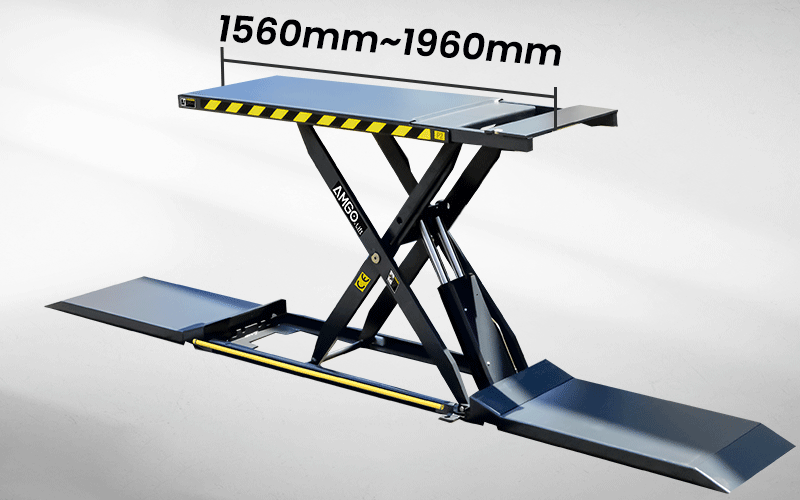

Extendable platform can increase by 400mm, from 1560mm to 1960mm.

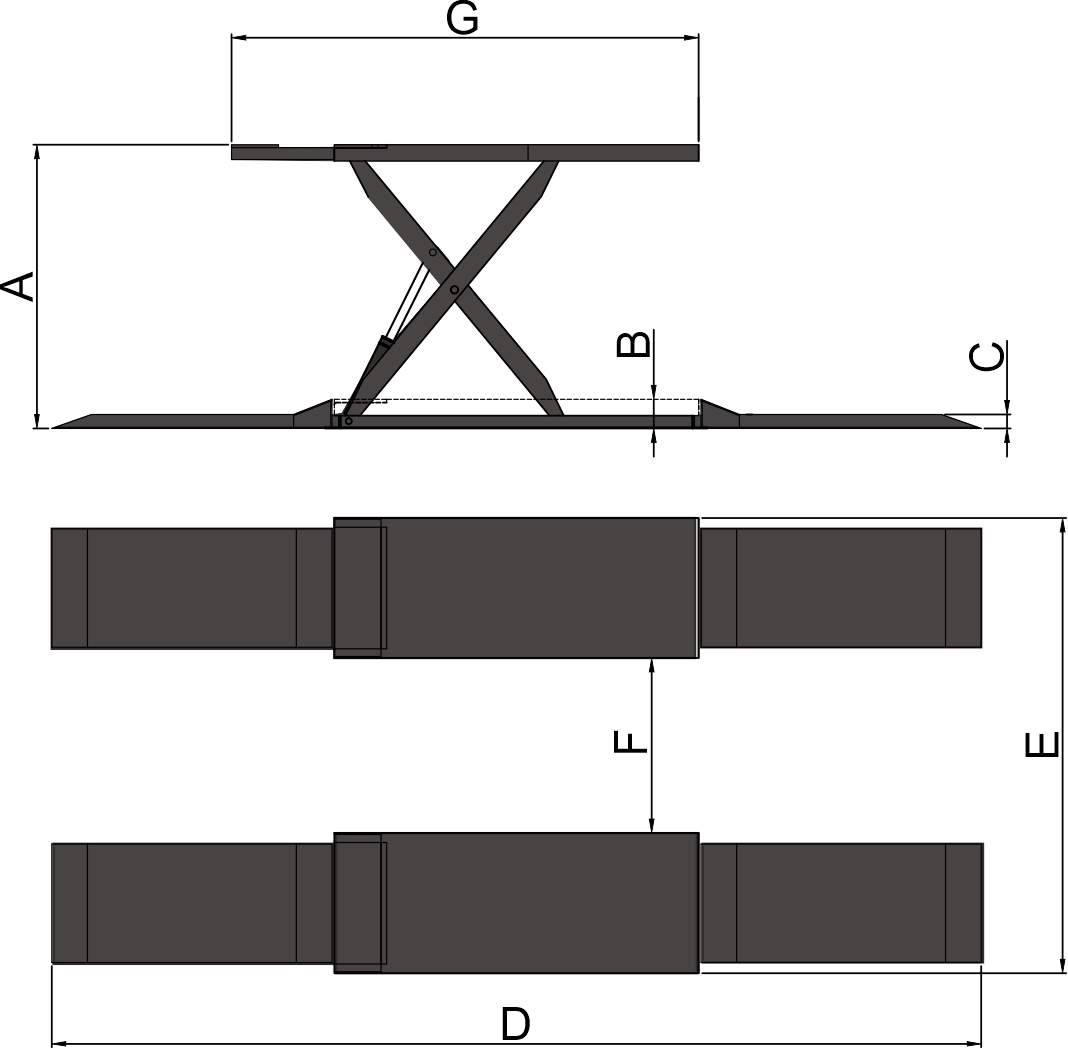

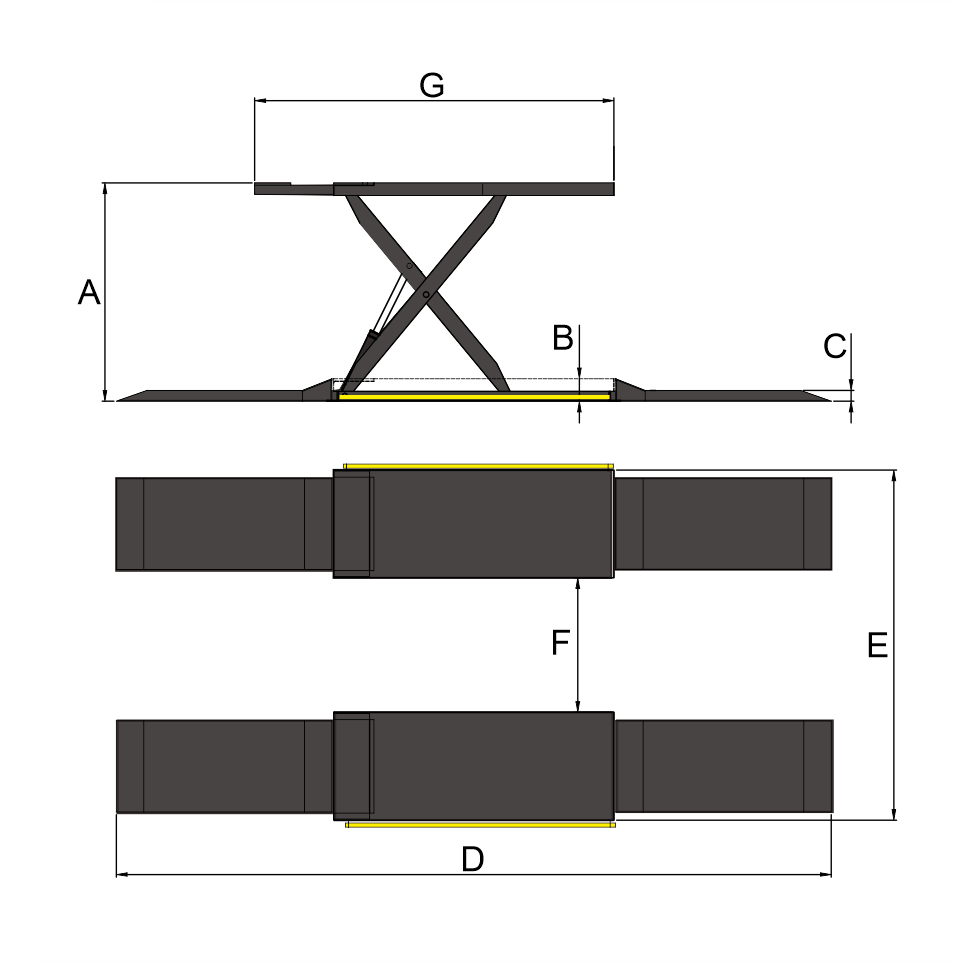

Model	MRL-4000
Lifting Capacity	4000kg
Lifting Time	30s
A:Max. Lifting Height	1200mm
B:Minimum Height	135mm
C: Ramp Height	60mm
D:Overall Length(Inc. Ramps)	3980mm
E:Overall Width	1950mm
F:Width Between Runways	750mm
G:Runway Length	1560-1960mm
Gross Weight	826kg
Motor	3.0HP
QTY of Container	24 Units / 20'GP

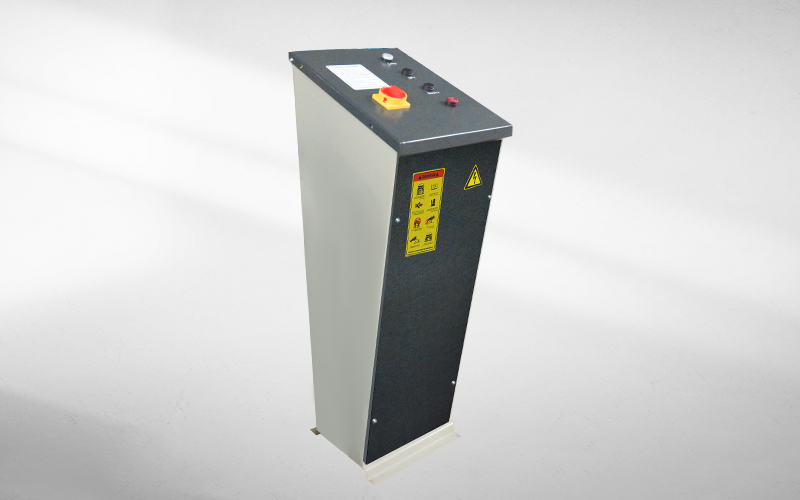

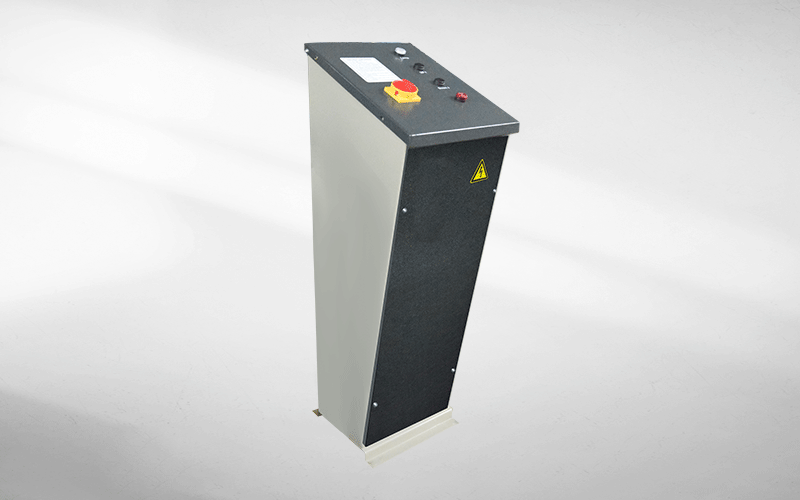

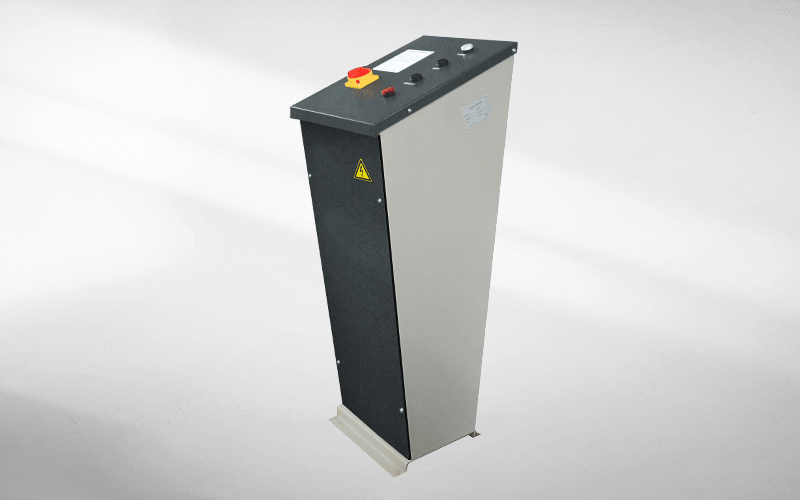

24V safety power control cabinet.

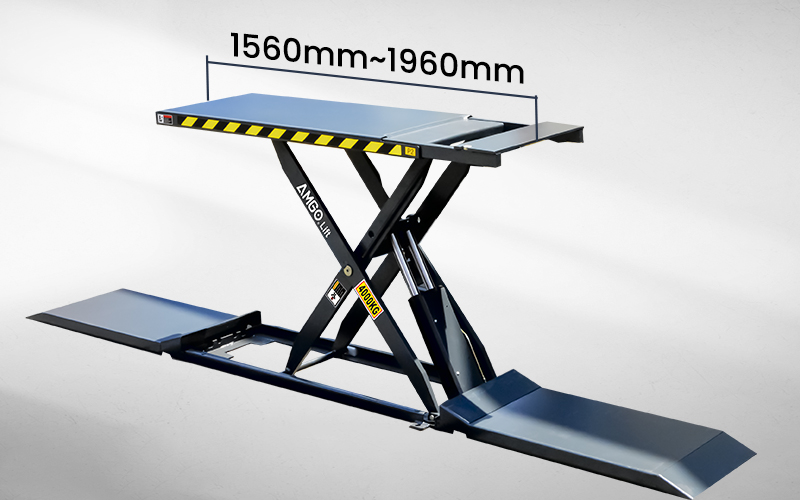

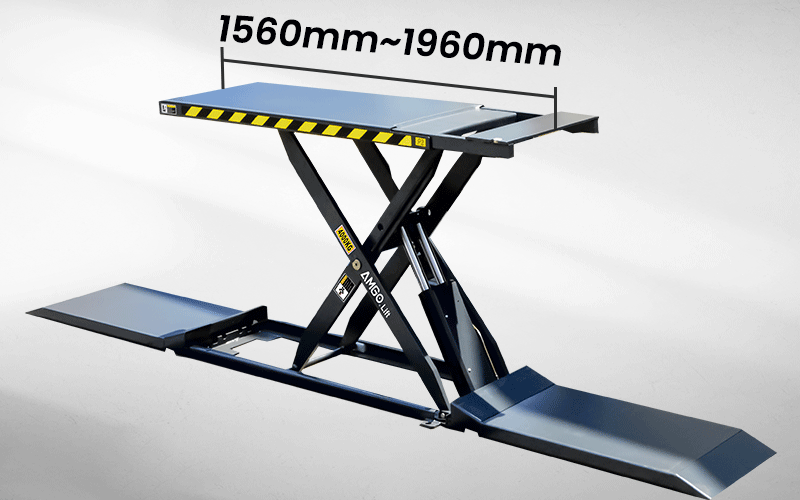

Extendable platforms. Can be extended from 1560mm to 1960mm.

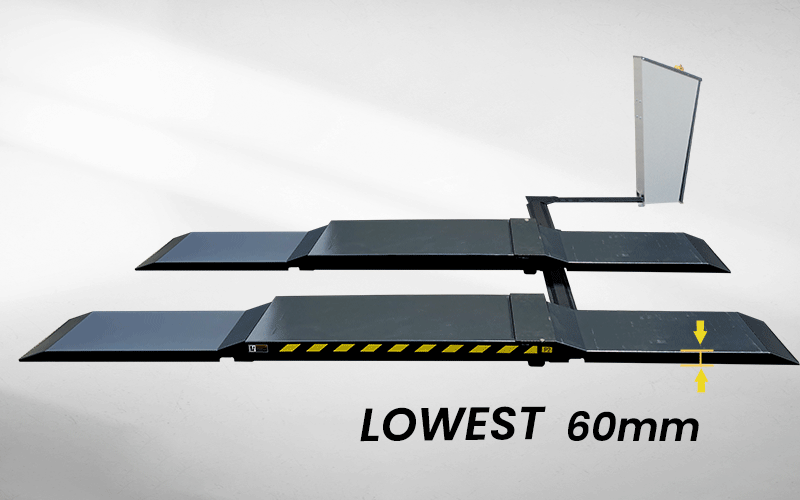

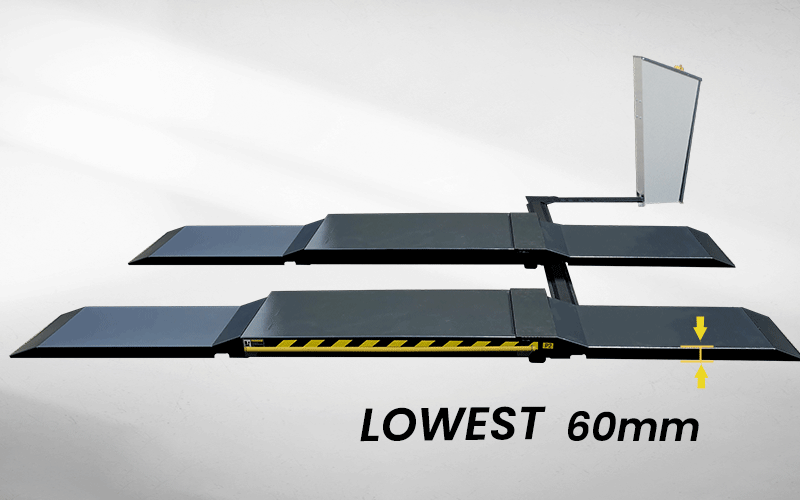

A lowest ramp height at only 60mm.

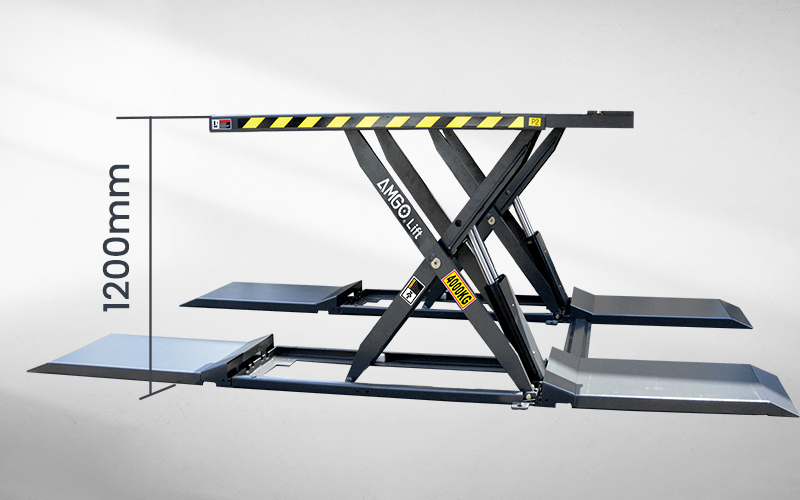

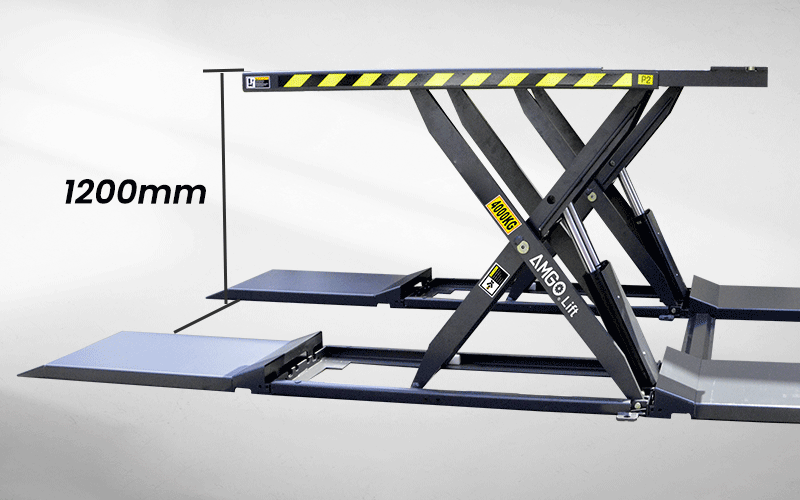

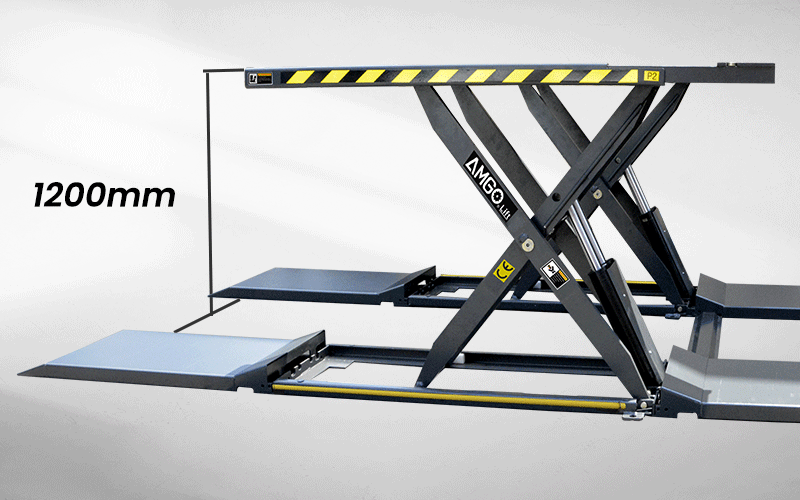

Max lifting height 1200mm. Excellent for body works, brake service, tire service.

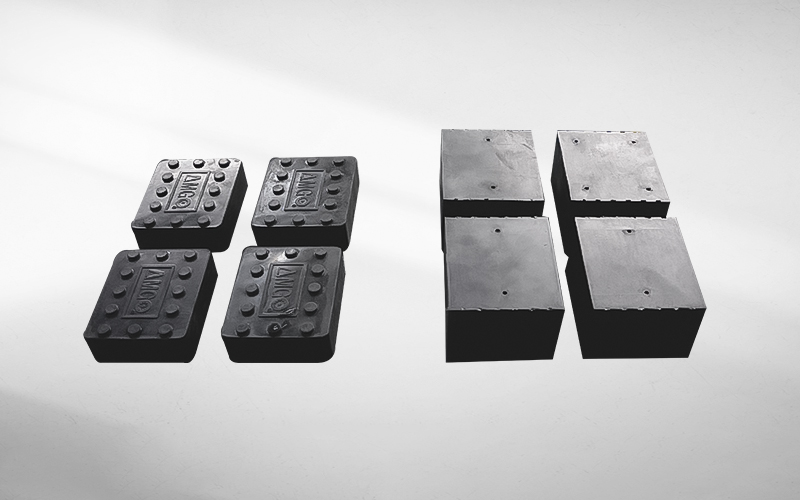

Both 38mm and 70mm height rubber pads are included as standard supply.

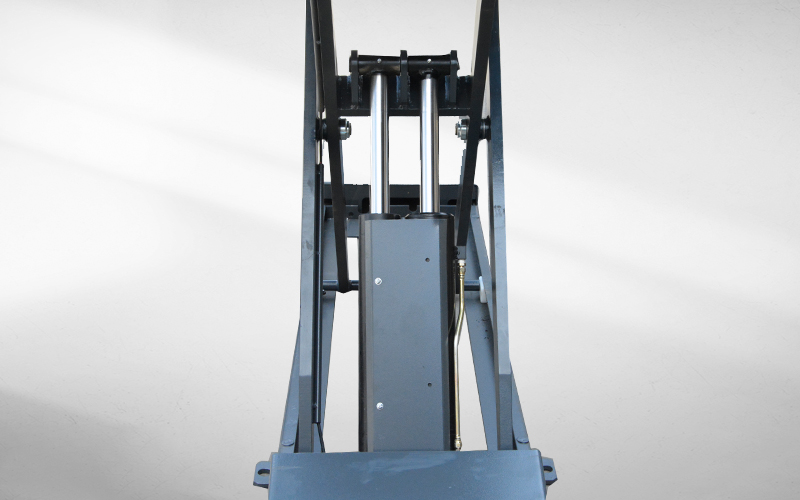

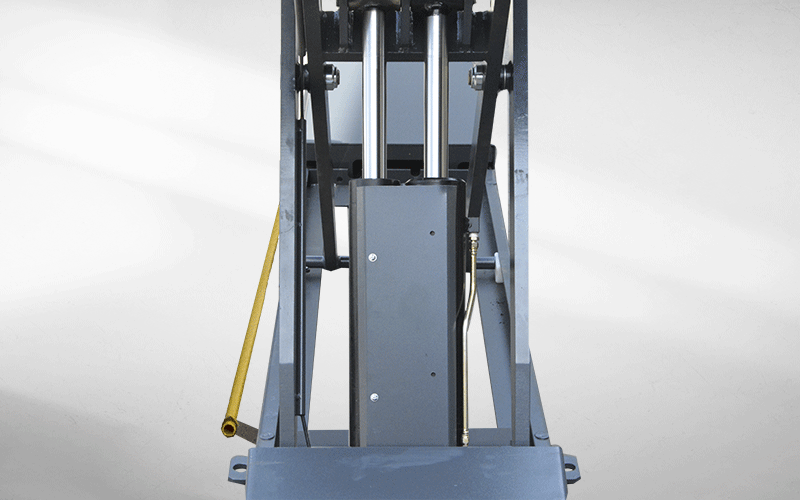

Dual hydraulic synchronization & hydraulic locking system.

24V safety power control cabinet.

Extendable platforms. Can be extended from 1560mm to 1960mm.

A lowest ramp height at only 60mm.

Max lifting height 1200mm. Excellent for body works, brake service, tire service.

Both 38mm and 70mm height rubber pads are included as standard supply.

Dual hydraulic synchronization & hydraulic locking system.
