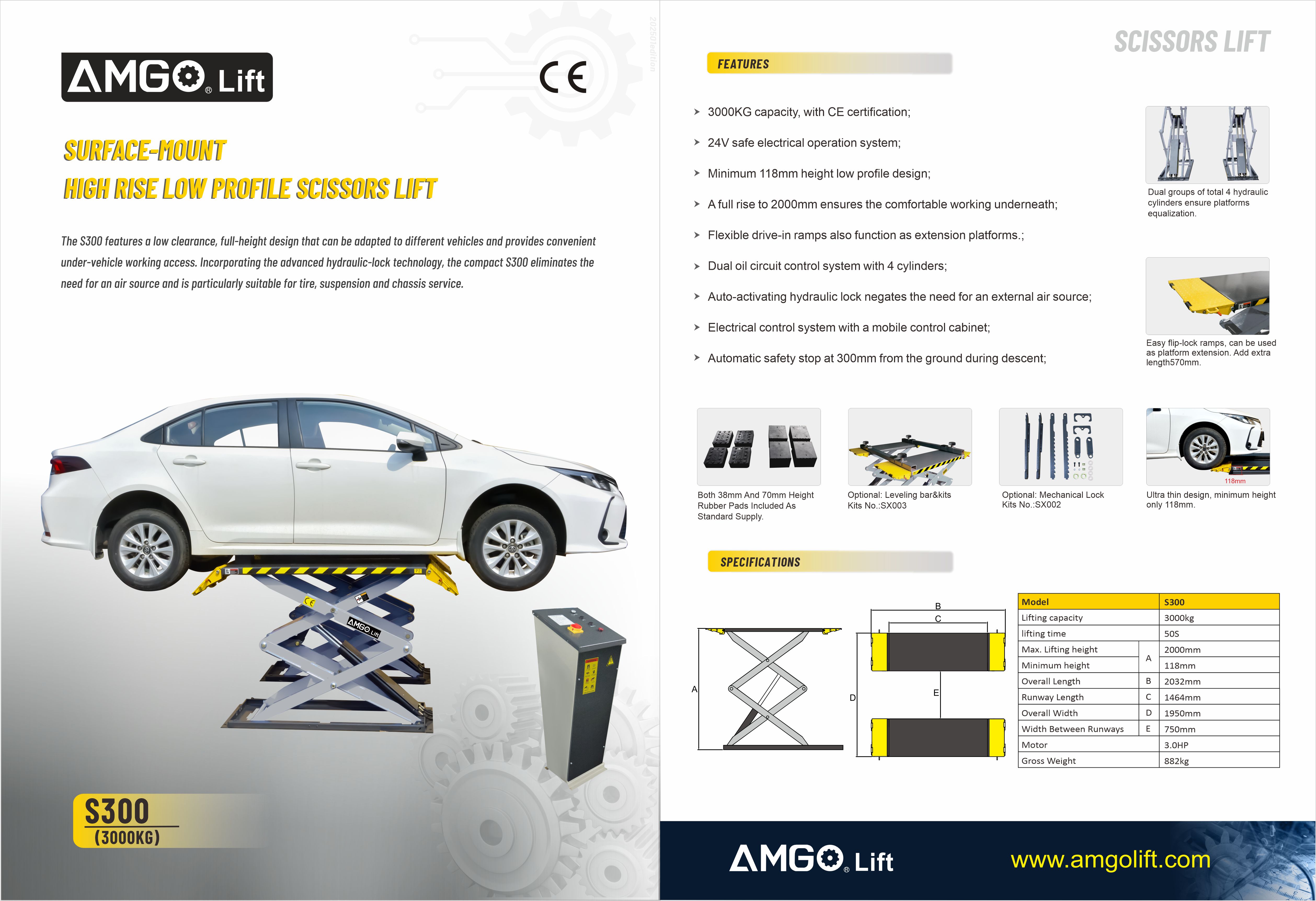

S300

SURFACE-MOUNT LOW PROFILE SCISSORS LIFT

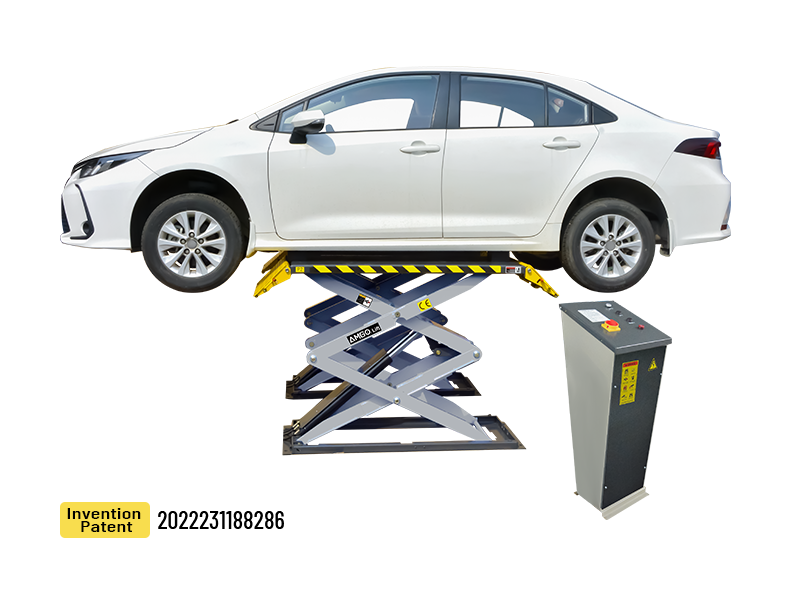

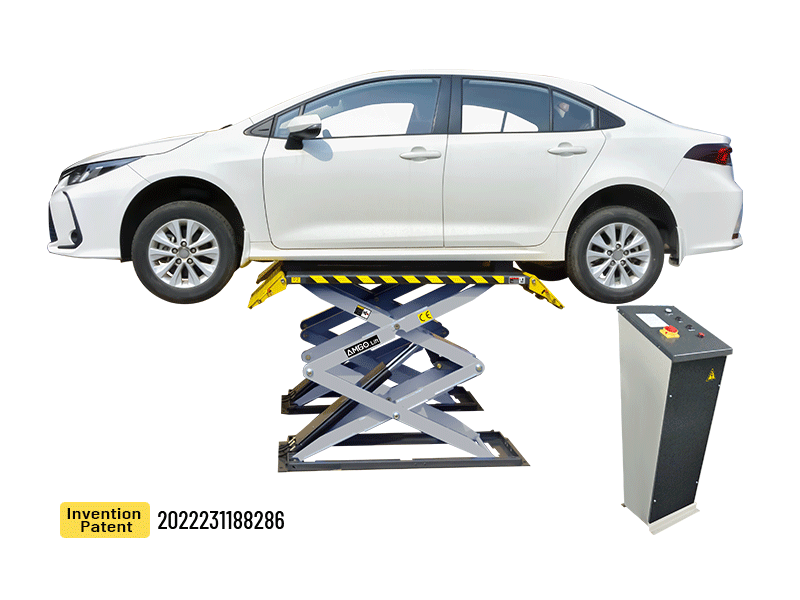

The S300 features a low clearance, full-height design that can be adapted to different vehicles and provides convenient under-vehicle working access. Incorporating the advanced hydraulic-lock technology, the compact S300 eliminates the need for an air source and is particularly suitable for tire, suspension and chassis service.

Detailed Product Information

3000KG capacity;
24V safe electrical operation system;

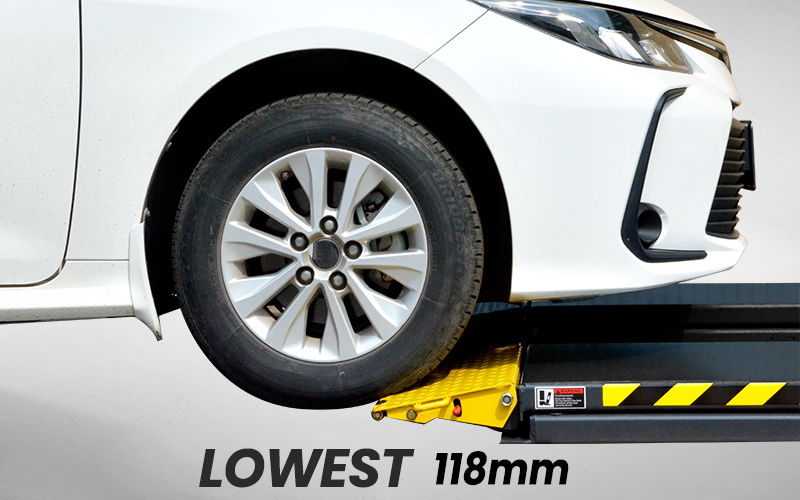

Minimum 118mm height low profile design;

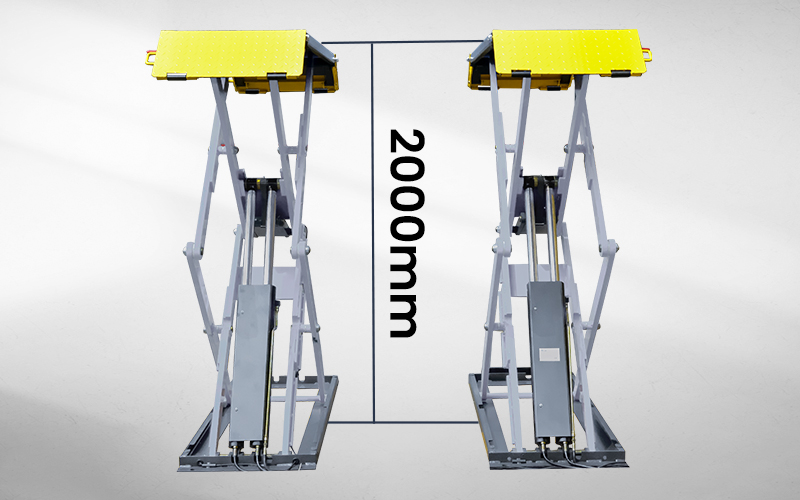

A full rise to 2000mm ensures the comfortable working underneath;

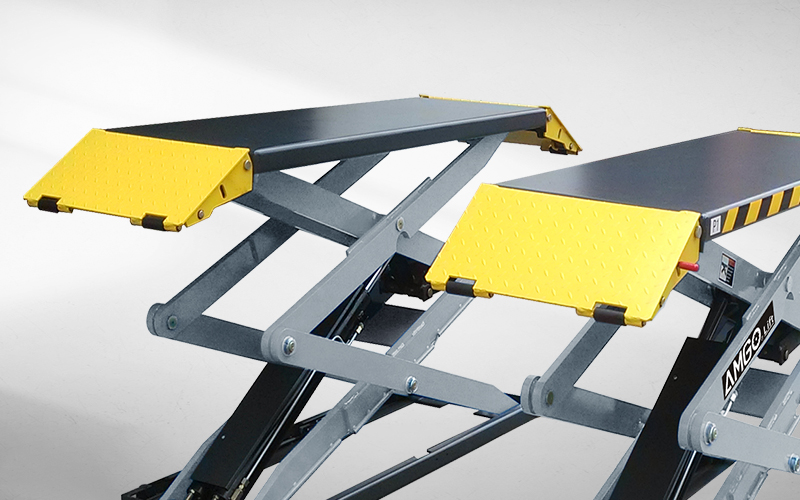

Flexible drive-in ramps also function as extension platforms.;

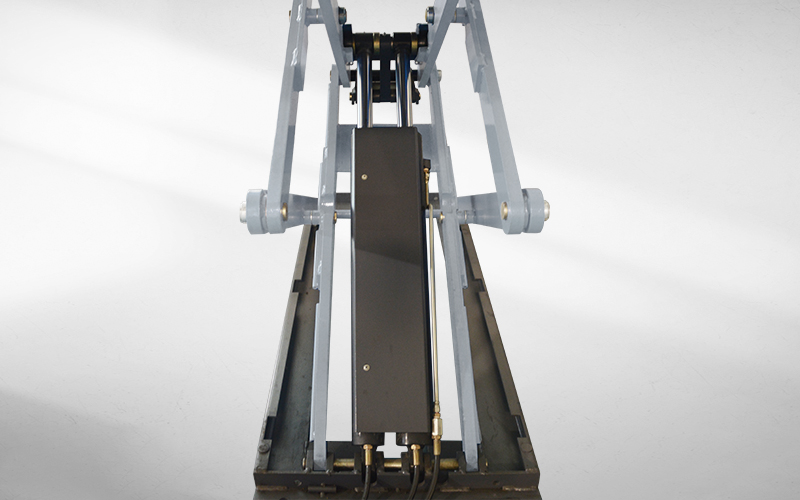

Dual oil circuit control system with 4 cylinders;
Auto-activating hydraulic lock negates the need for an external air source;

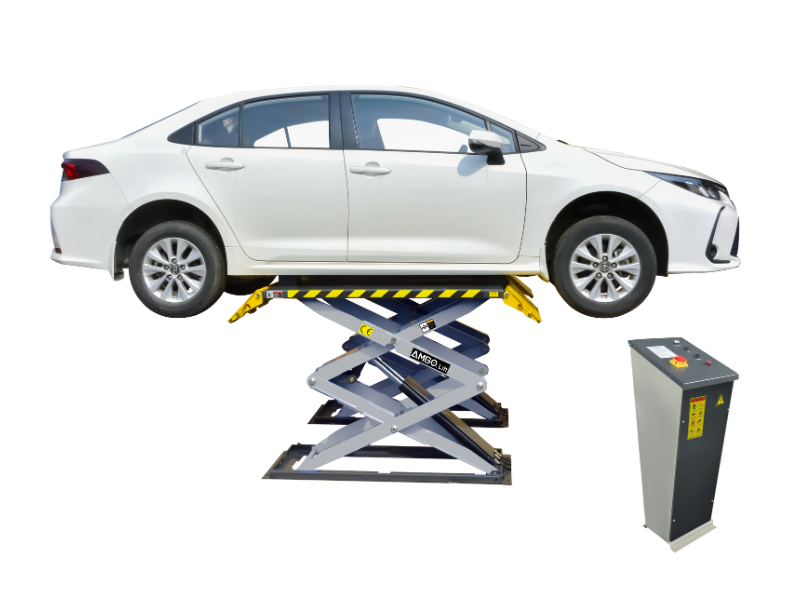

Electrical control system with a mobile control cabinet;
Automatic safety stop at 300mm from the ground during descent;

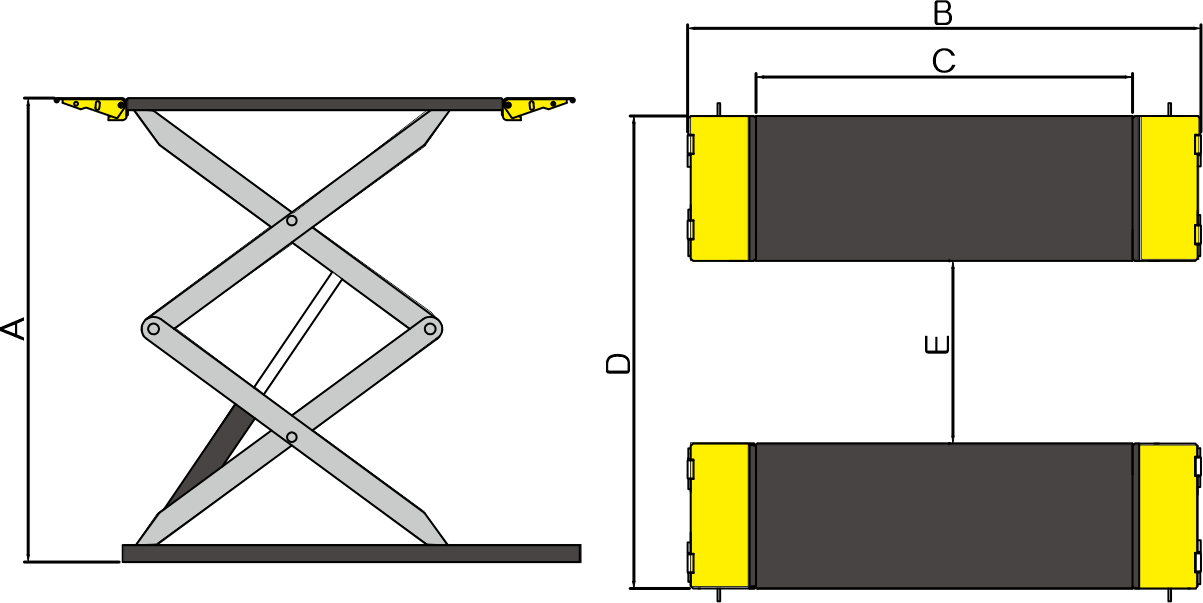

Model	S300
Lifting Capacity	3000kg
Lifting Time	50s
A1:Max. Lifting Height	2000mm
A2:Minimum Height	118mm

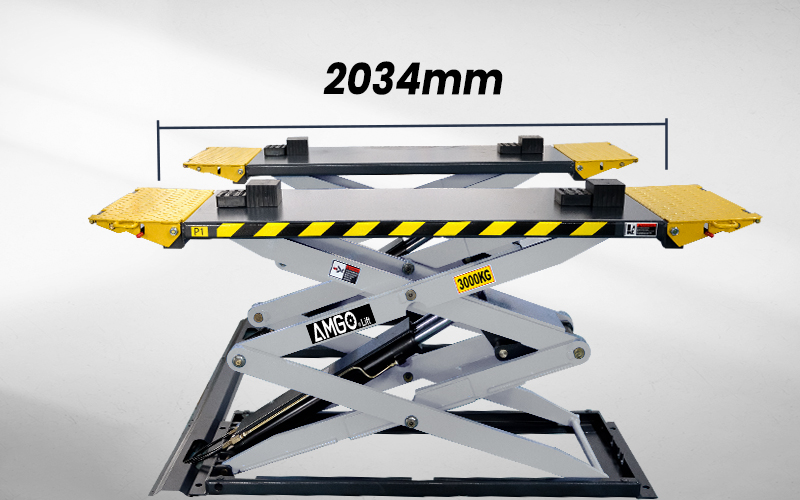

B:Overall Length	2032mm
C:Runway Length	1464mm
D:Overall Width	1950mm
E:Width Between Runways	750mm
Gross Weight	886kg
Motor	3.0HP
QTY of Container	24 Units /20' GP
