S400F

IN-GROUND FULL RISE SCISSOR LIFT

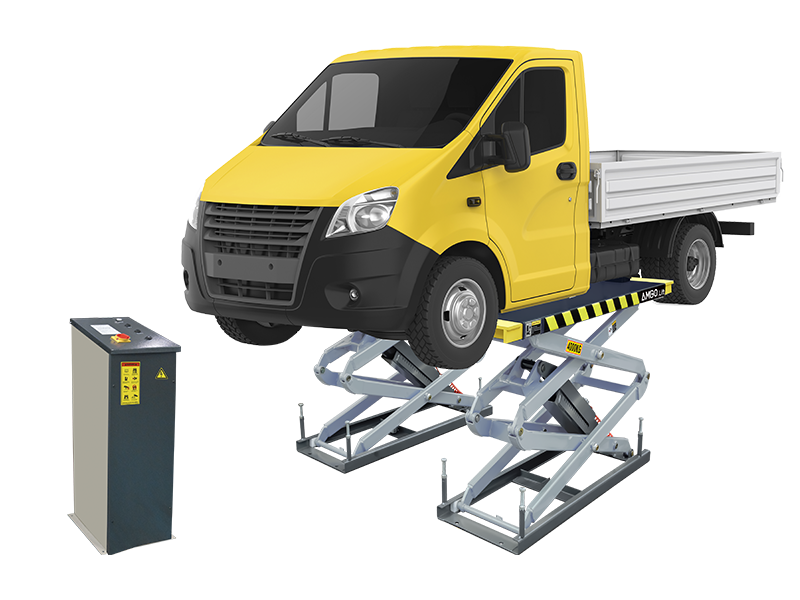

This robust flush-mounted full-rise lift boats a heavy-duty construction engineered to withstand the rigorous demands of daily workshop operations. It optimizes your workshop floor space ensuring a clutter-free working environment and unimpeded access for comprehensive under-vehicle maintenance. Featuring length-adjustable platforms at both front and rear sections, it accommodates an extensive range of wheelbases from passenger vehicles to light commercial pick-ups, with an impressive 4-tonne lifting capacity.

scissors lifts

Detailed Product Information

4000KG capacity, heavy duty structure;
24V safe electrical operation system;
Flush mount design enables unobstructed ground access;
Access freely from either side;

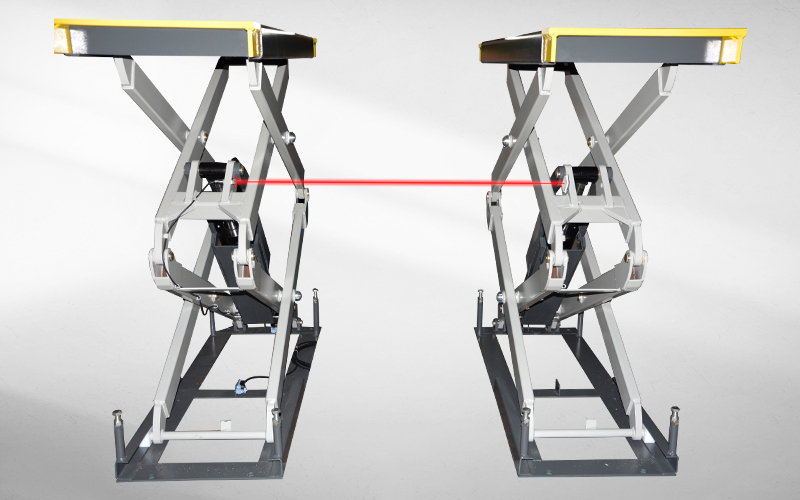

Configured with Photo cell device;

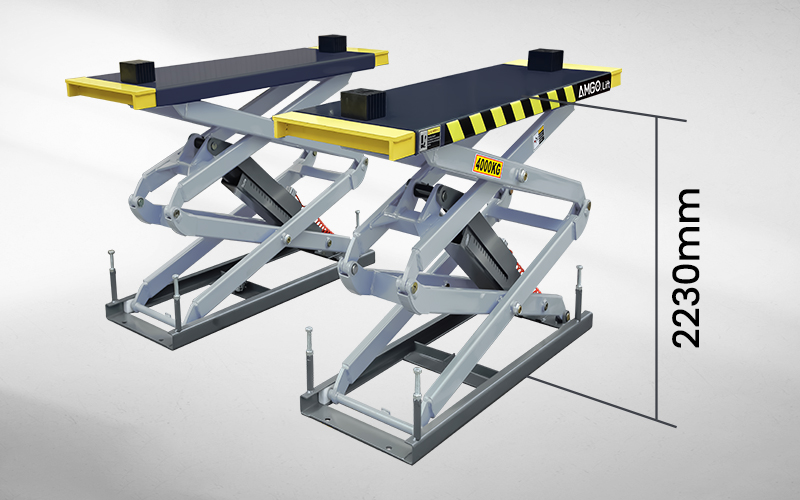

Full rise design with a max lifting height of 2230mm;
Dual auto-activating mechanical safety devices with air-operated lock release;

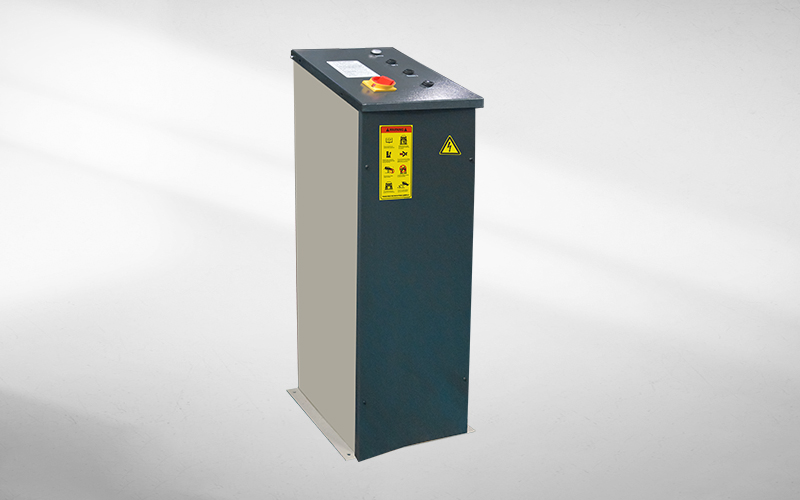

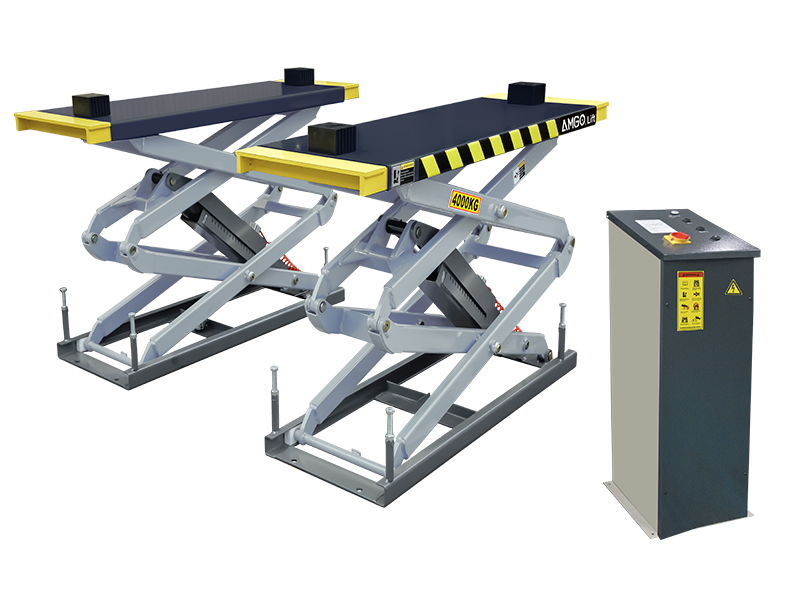

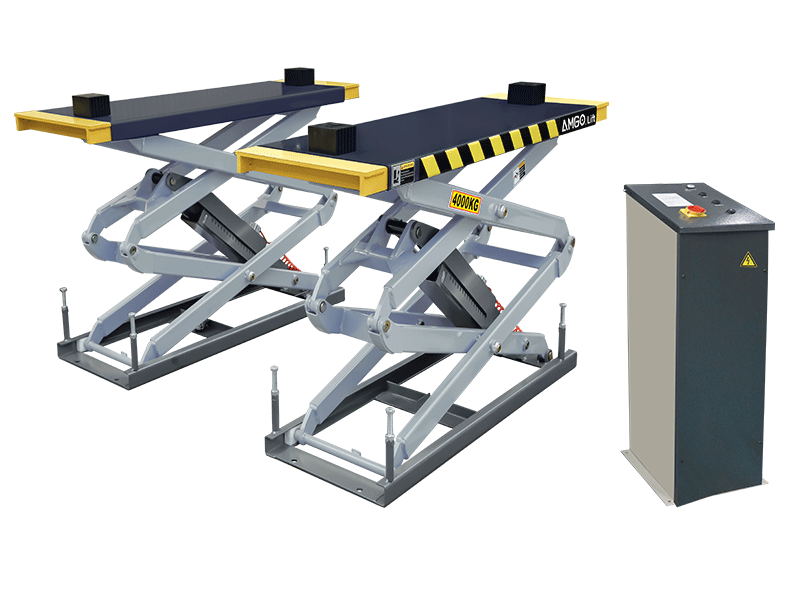

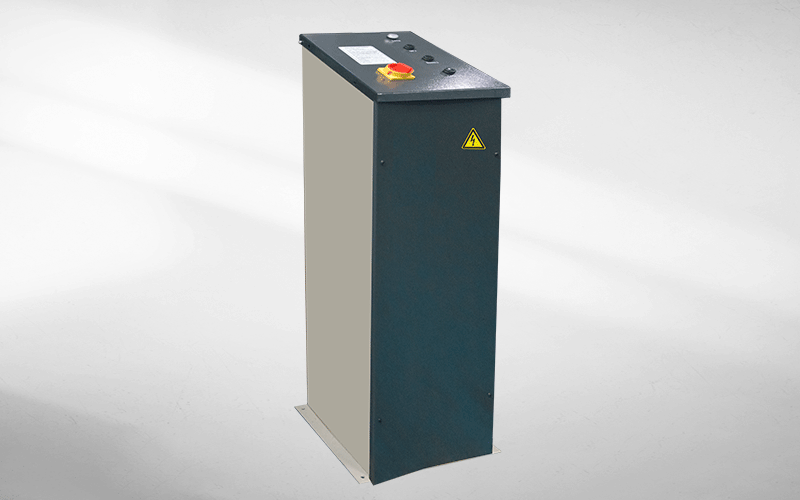

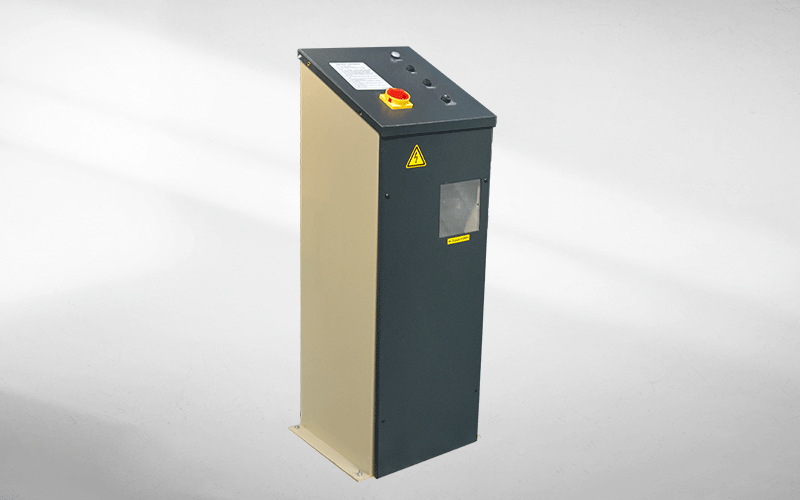

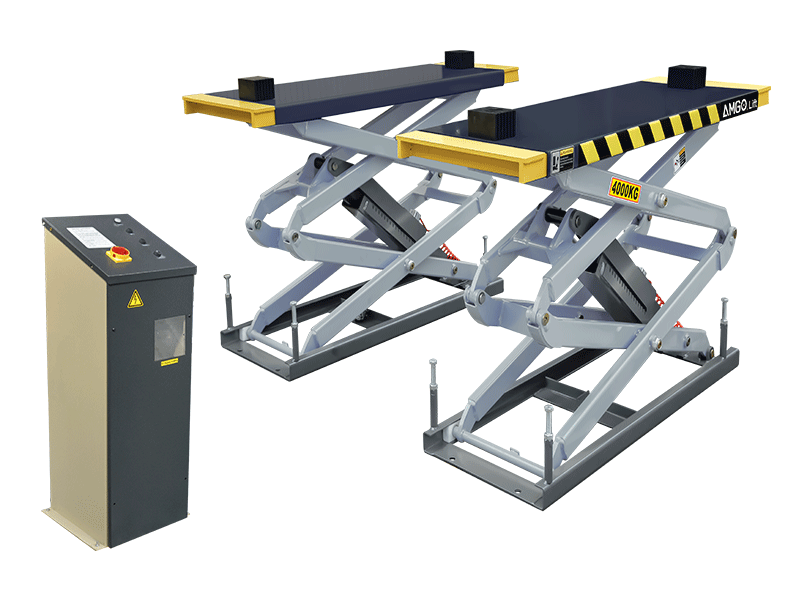

Electrical control operation system, with control cabinet;

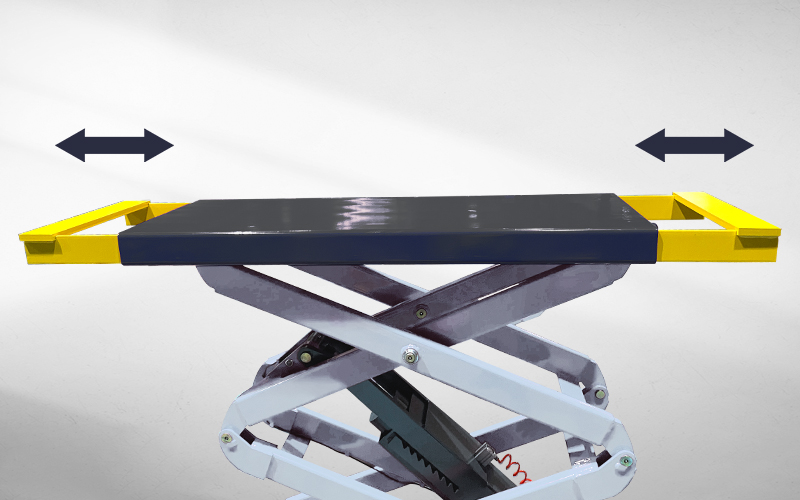

Double-extendable platforms on both sides, adding an extra 400mm in length;
Automatic safety stop device at 300mm from ground when lowering;
3” rubber pads come standard.

Model	S400F
Lifting Capacity	4000kg
Lifting Time	49s

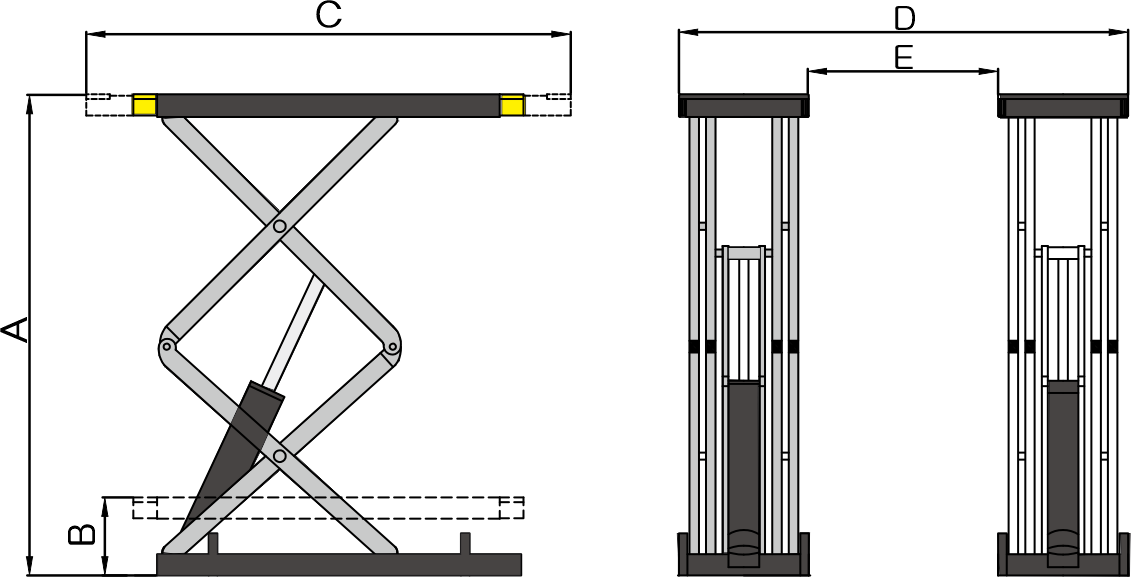

A:Max. Lifting Height	2230mm

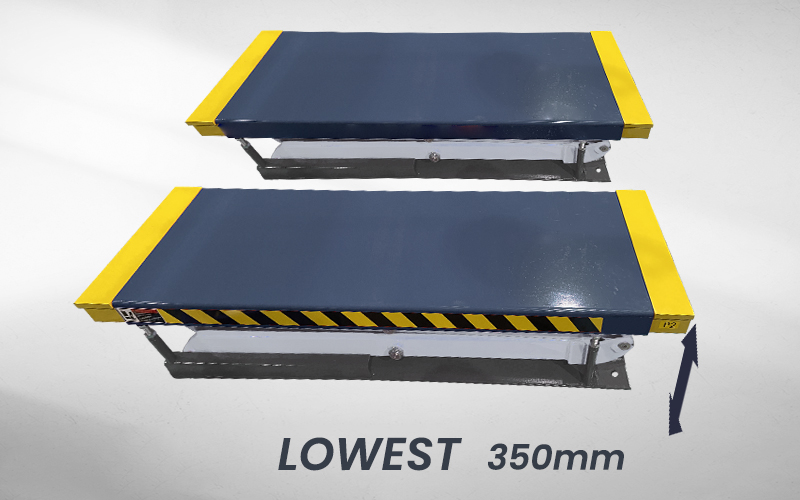

B:Minimum Height	350mm
C:Runway Length	1654-2054mm
D:Overall Width	1900mm
E:Width Between Runways	800mm
Gross Weight	863kg
Motor	3.0HP

24V safe electrical operation system;

Full rise design with a max lifting height of 2230mm;

Automatic safety stop device at 350mm from ground when lowering;

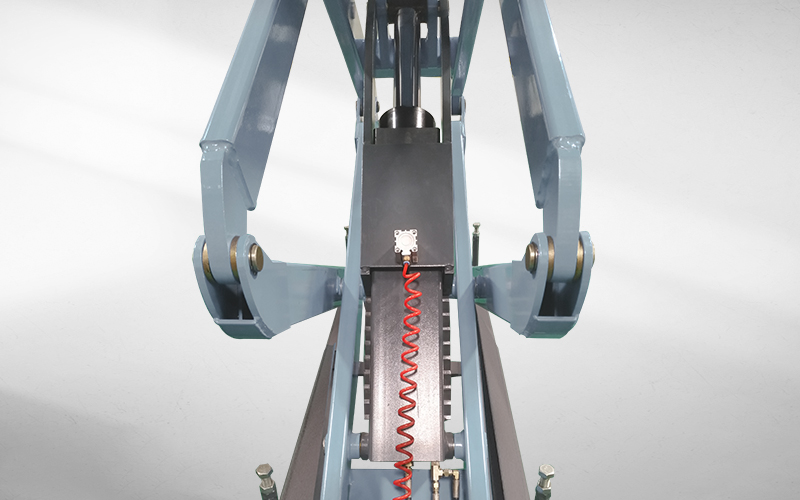

Dual auto-activating mechanical safety devices with air-operated lock release;

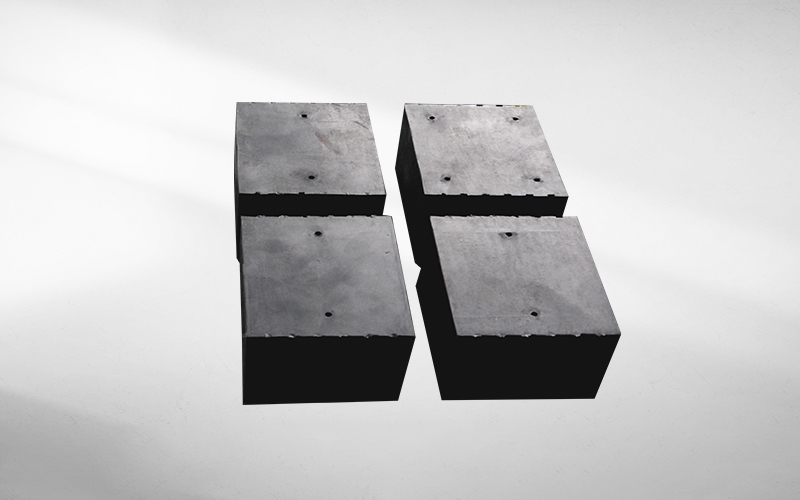

70mm rubber pads come standard.

Configured with Photo cell device;

Double-extendable platforms on both sides, adding an extra 400mm in length.
