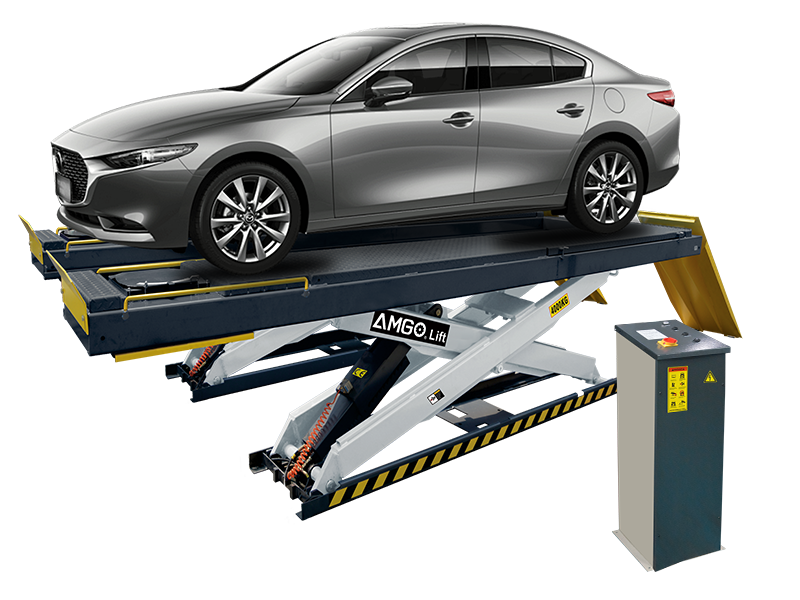

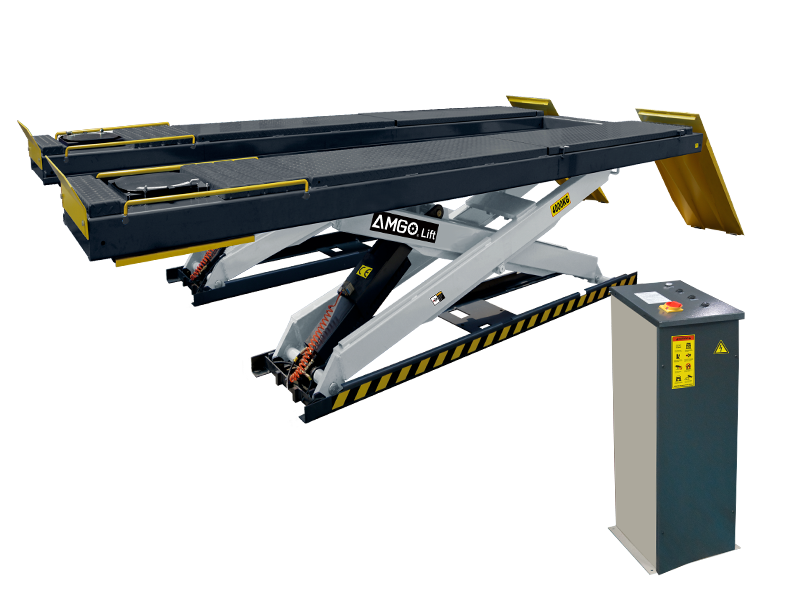

X440A

ALIGNMENT SCISSORS LIFT

Building upon the proven strength of the X400, the X400A introduces advanced wheel alignment functionality while maintaining its heavy-duty X-scissor construction for superior stability.Featuring adjustable turntables and rear slip plates, it accommodates varied wheelbases with precision,ideal for passenger cars to light commercial vehicles.

Detailed Product Information

4000KG capacity, alignment model;
24V safe electrical operation system;

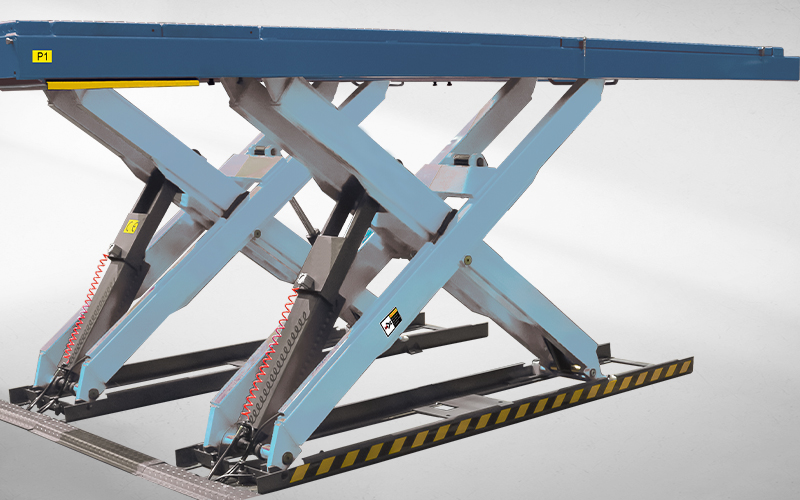

X scissors heavy duty structure for enhanced durability;
Electrical control operation system with a control cabinet;

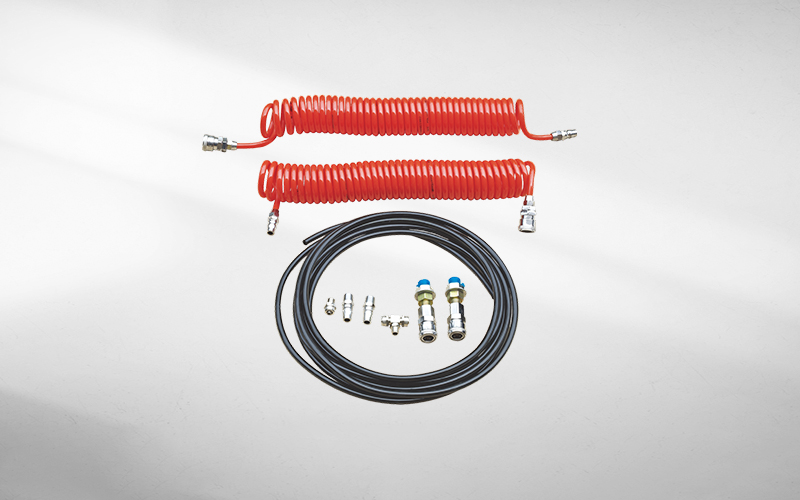

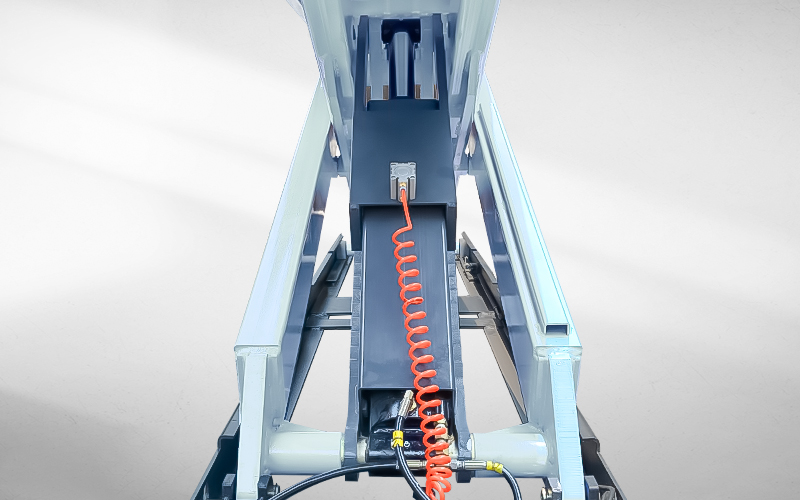

Auto-activating air-operated mechanical safety lock;

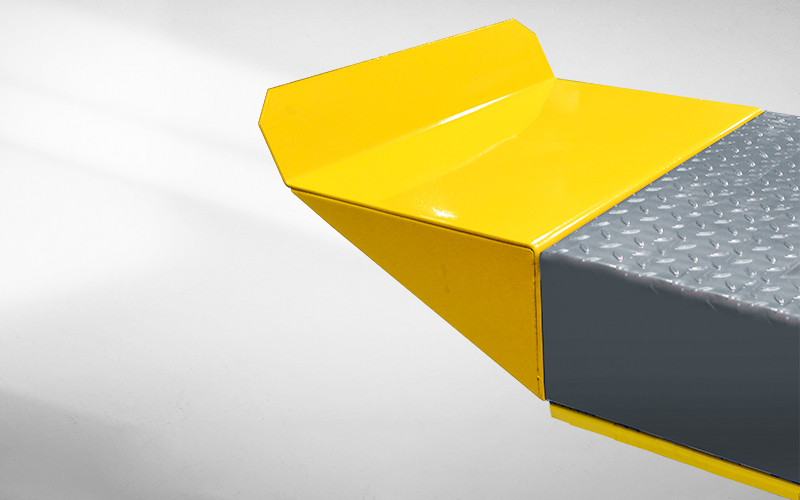

Large non-skid diamond platforms fit various vehicles;
Configured with Photo cell device;
Automatic safety stop at 600mm from the ground during decent;
Standard pull-out tool shelf included;

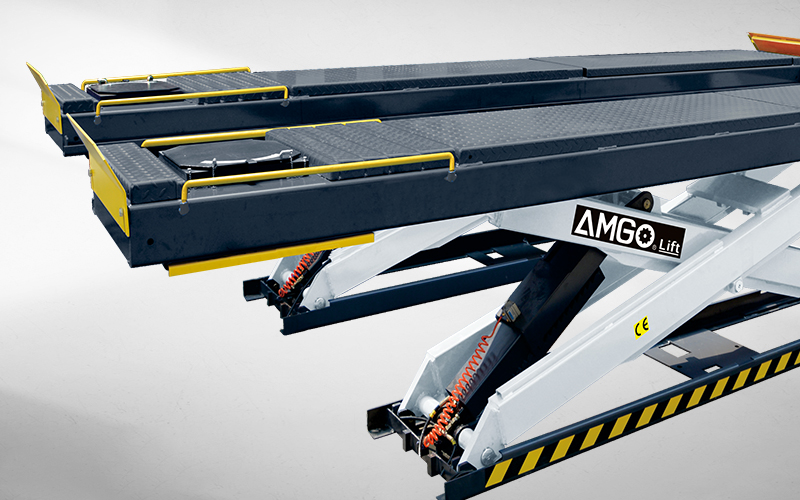

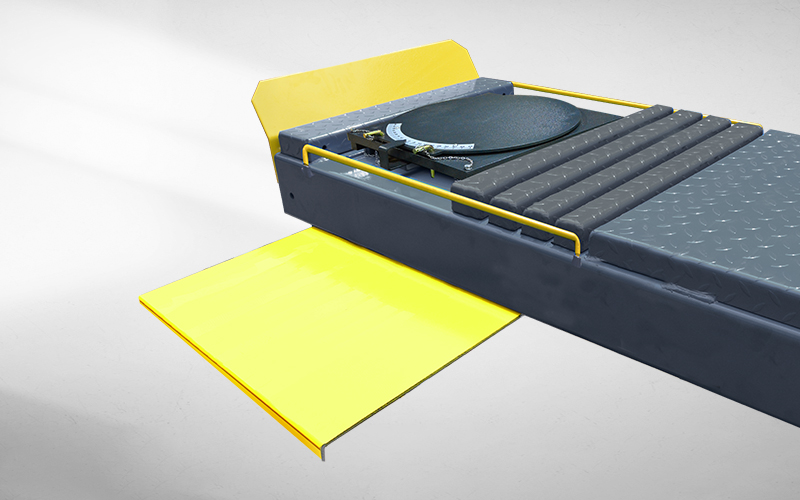

Adjustable turnplate positions accommodate various vehicles with differing wheelbases.

Model	X440A
Lifting Capacity	4000kg
Lifting Time	55s

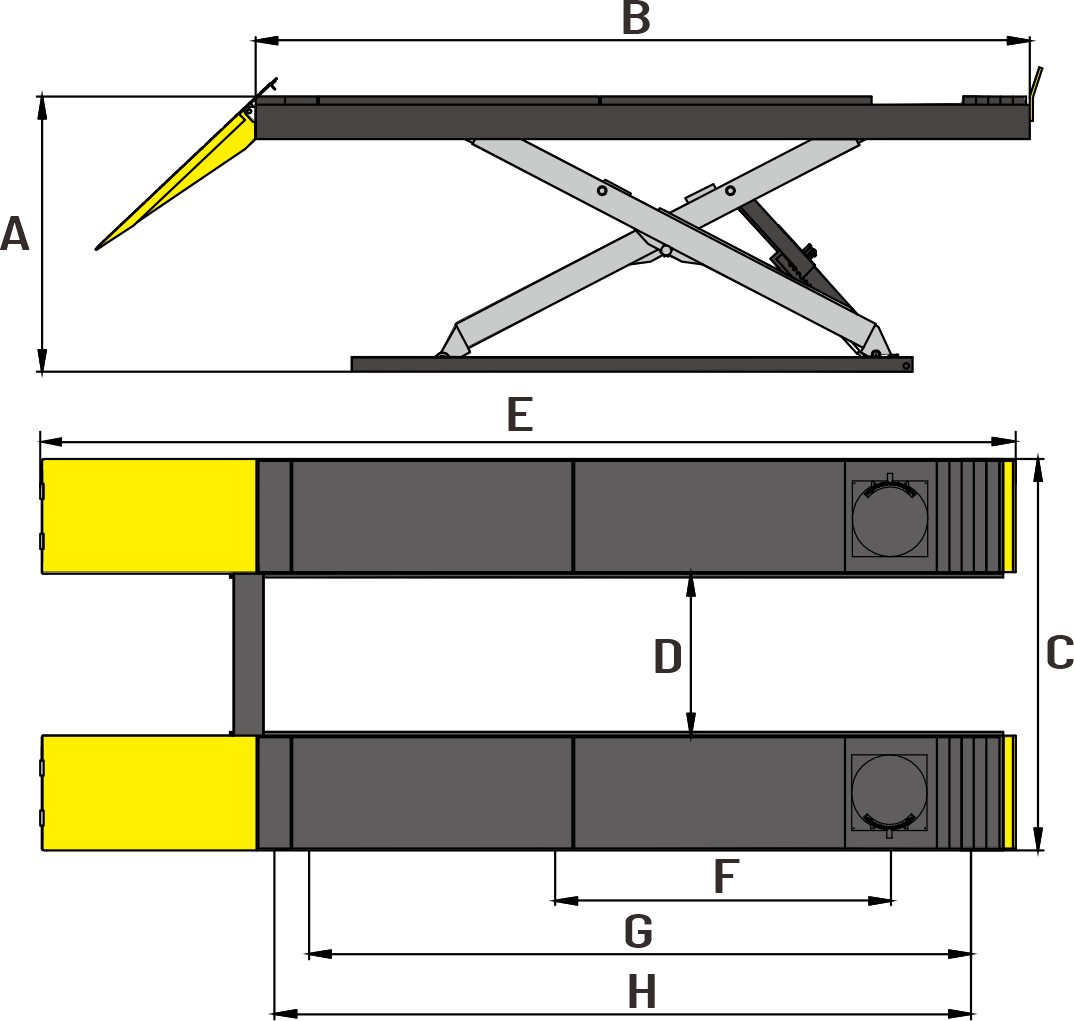

A1:Max. Lifting Height	1850mm
A2:Minimum Height	300mm
B:Runway Length	4828mm
C:Overall Width	2190mm
D:Width Between Runways	940mm
E:Overall Length(Inc. Ramps)	6364mm
F: Min. Four Wheel Align	2080mm
G: Max. Four Wheel Align	4070mm
H: Max. Two Wheel Align	4230mm
Gross Weight	2175kg
Motor	3.0HP
