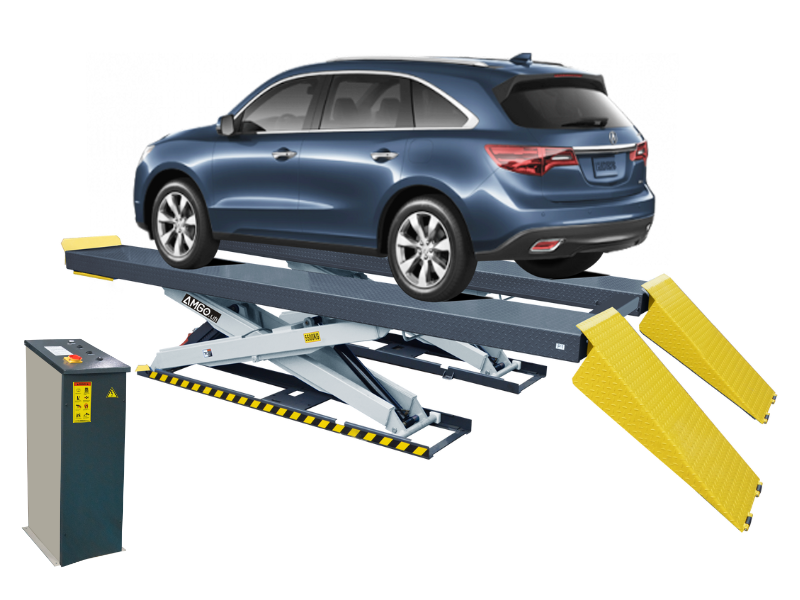

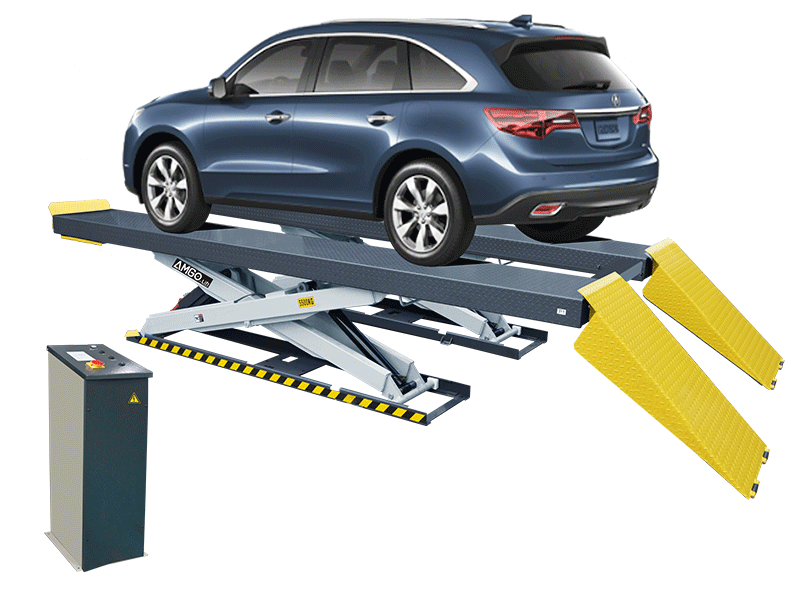

X550

GENERAL SERVICE SCISSORS LIFT

With an impressive load capacity of 5,500KG, AMGO X550 employs a robust heavy-duty design to ensure exceptional durability, operational efficiency, and unwavering stability. The system integrates four hydraulic cylinders in two synchronized groups, features both hydraulic lock and mechanical lock, setting it apart as one of the safest lifts in the industry.

Detailed Product Information

5500KG capacity, general service model;
General service model;
24V safe electrical operation system;

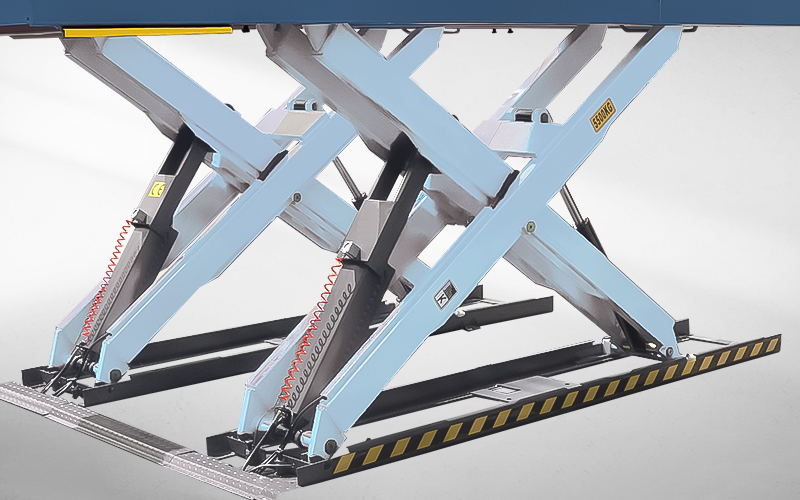

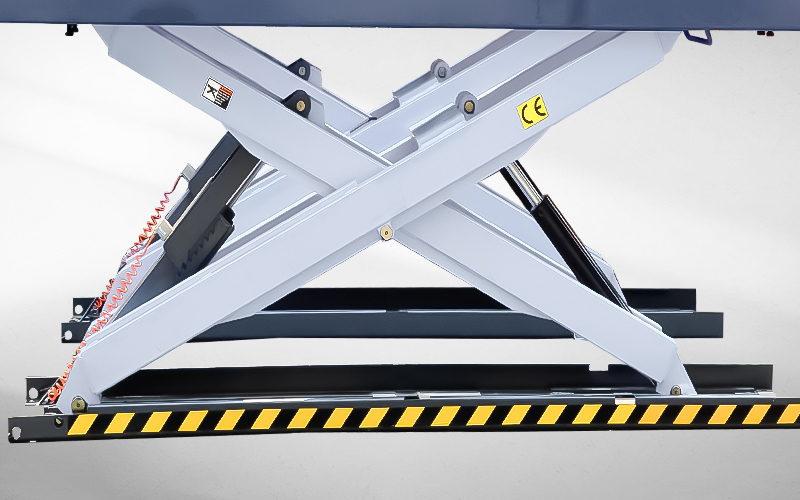

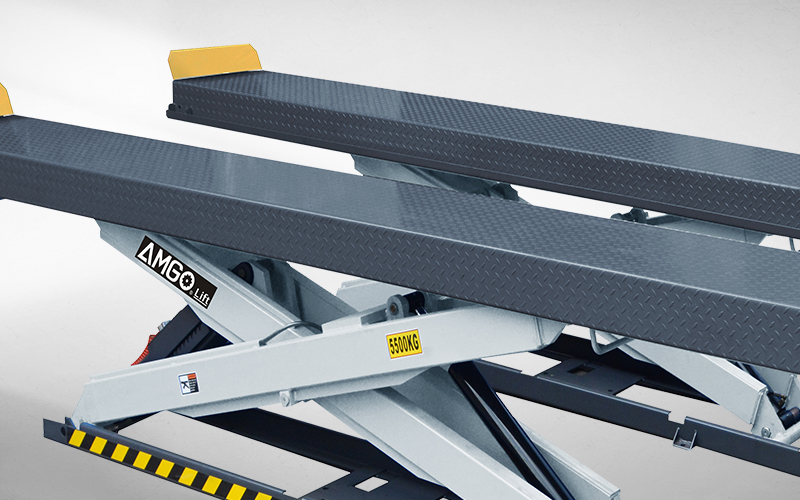

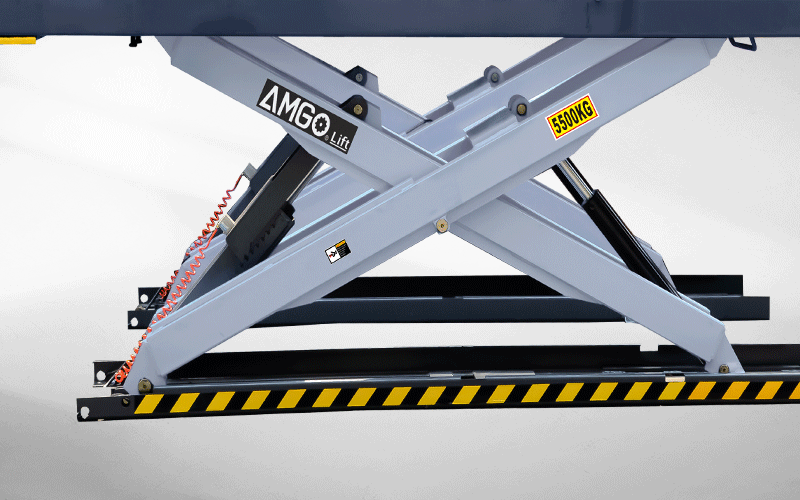

X scissors heavy duty structure for enhanced durability;

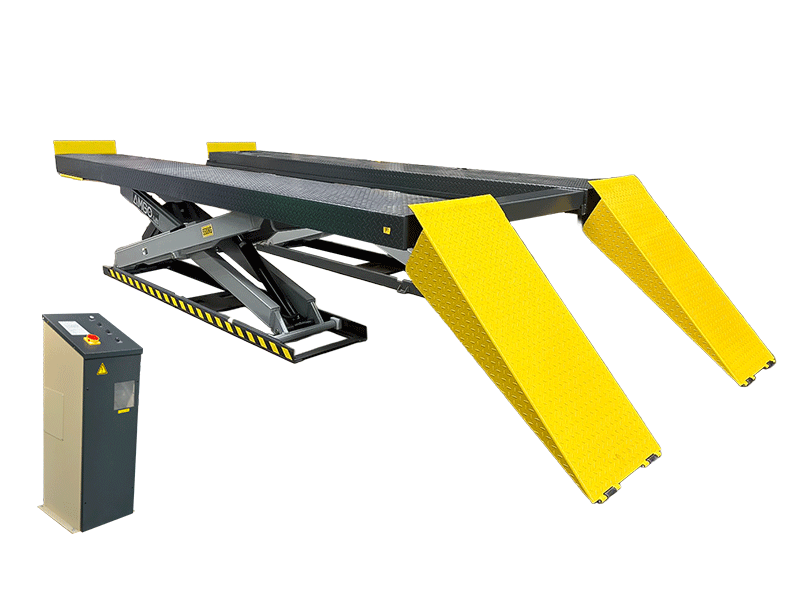

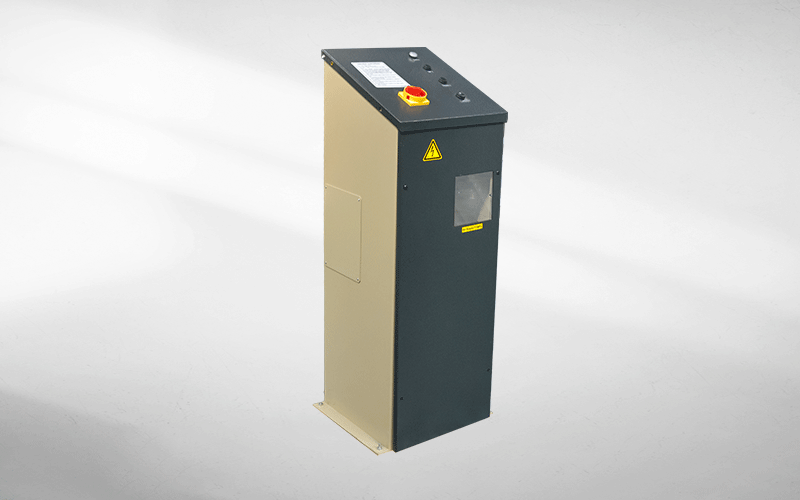

Electrical control operation system with a control cabinet;

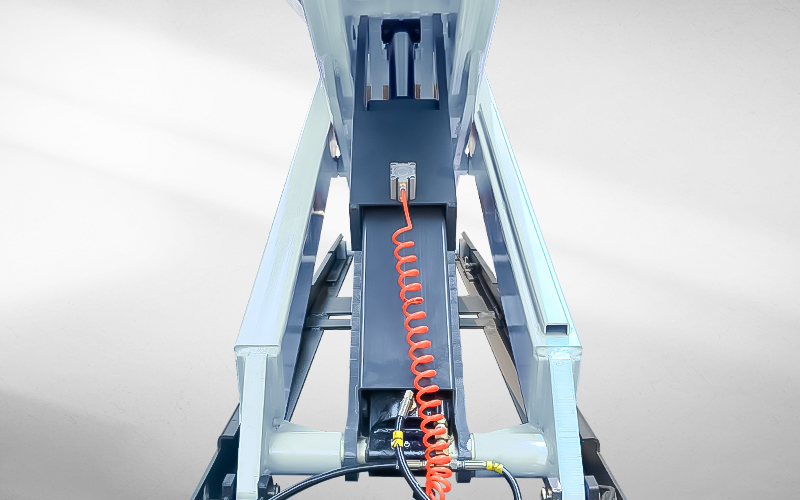

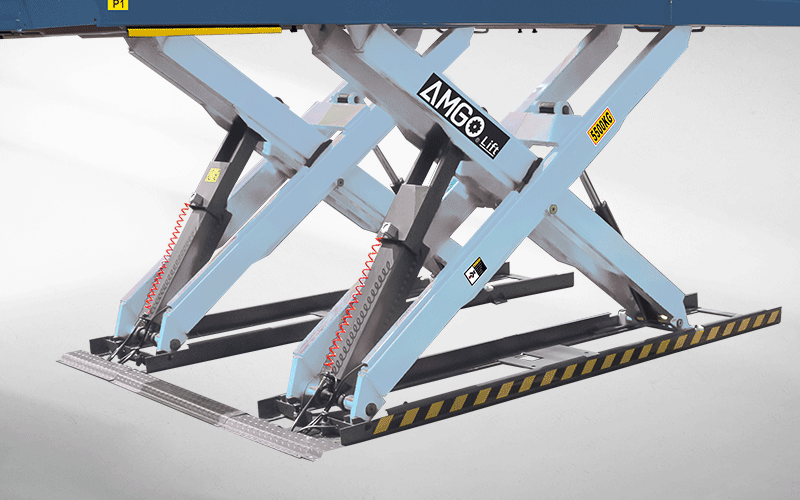

Dual groups of four cylinders ensure platform synchronization;

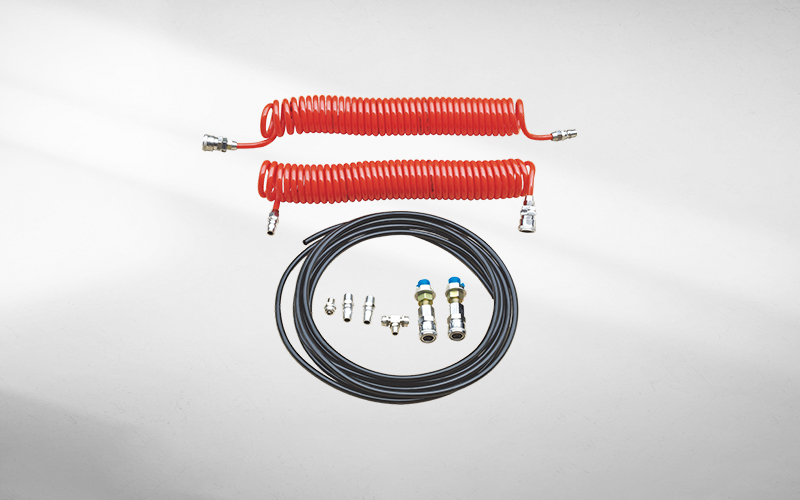

Include both hydraulic lock and air-drive mechanical locks;

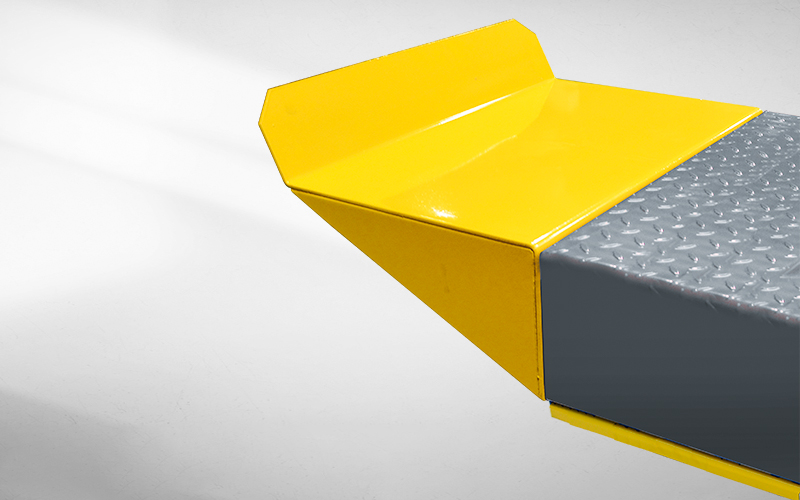

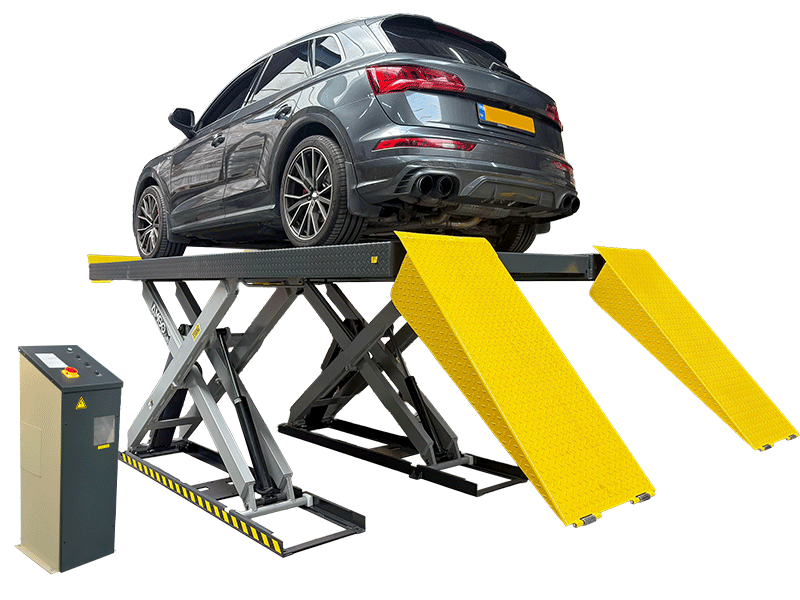

Large non-skid diamond platforms fit various vehicles;
Automatic safety stop at 600mm from the ground during decent;

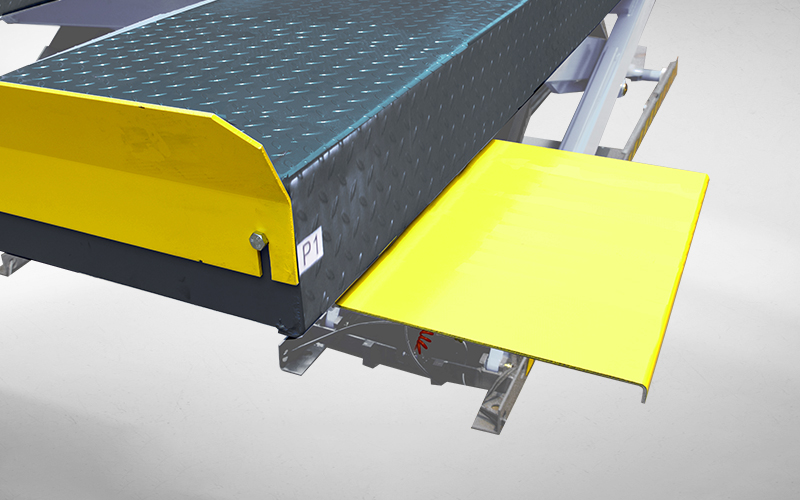

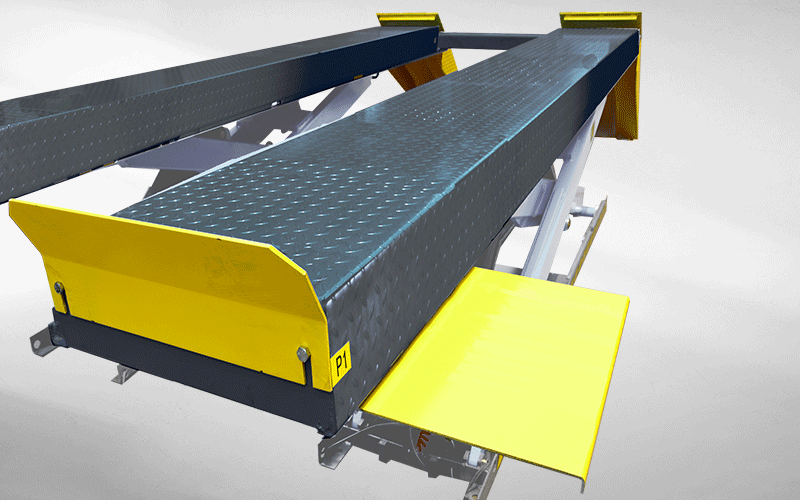

Standard pull-out tool shelf included.

Model	X550
Lifting Capacity	5500kg
Lifting Time	75s

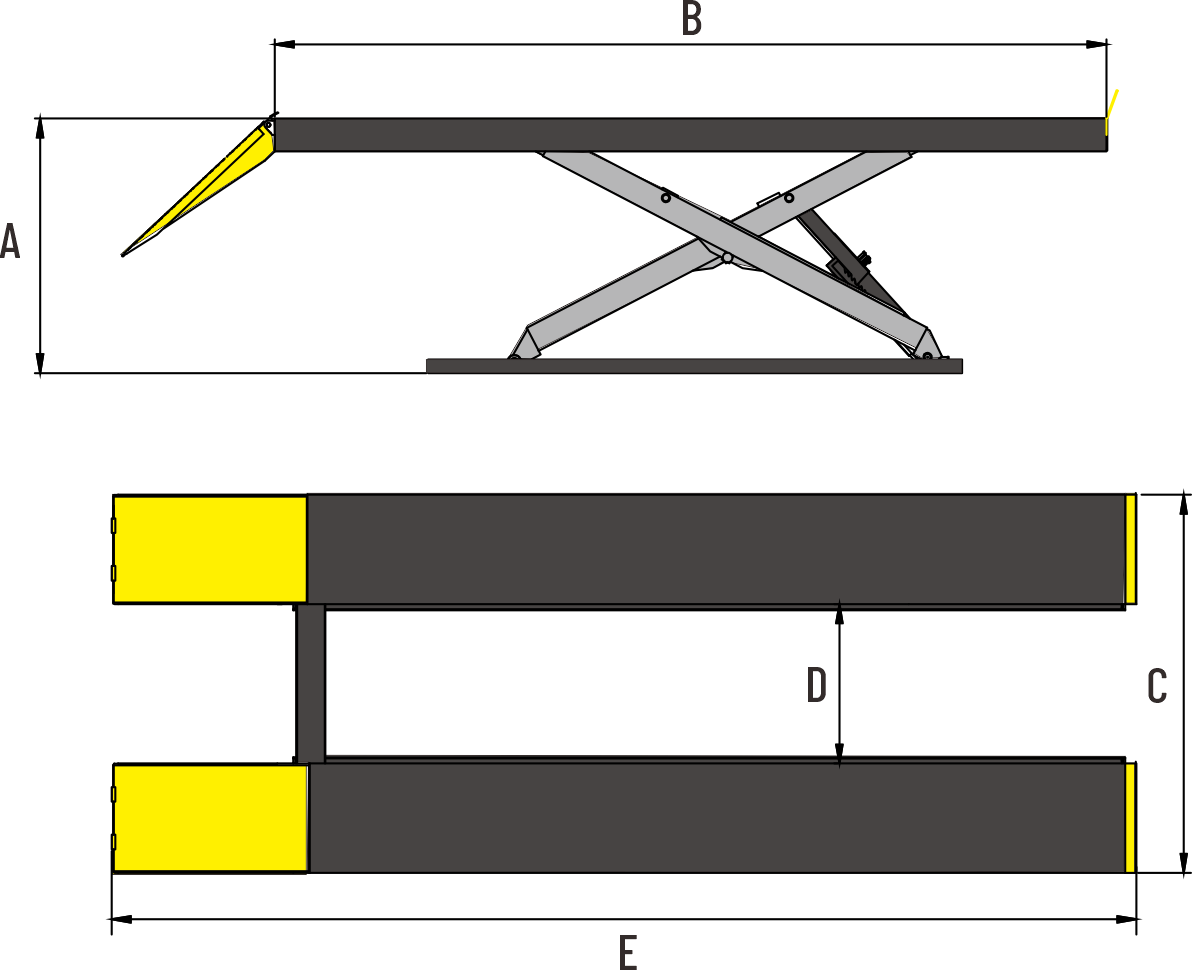

A1:Max. Lifting Height	1850mm
A2:Minimum Height	305mm
B:Runway Length	5018mm
C:Overall Width	2290mm
D:Width Between Runway	1040mm
E:Overall Length(Inc. Ramps)	6784mm
Gross Weight	2337kg
Motor	4.0HP
