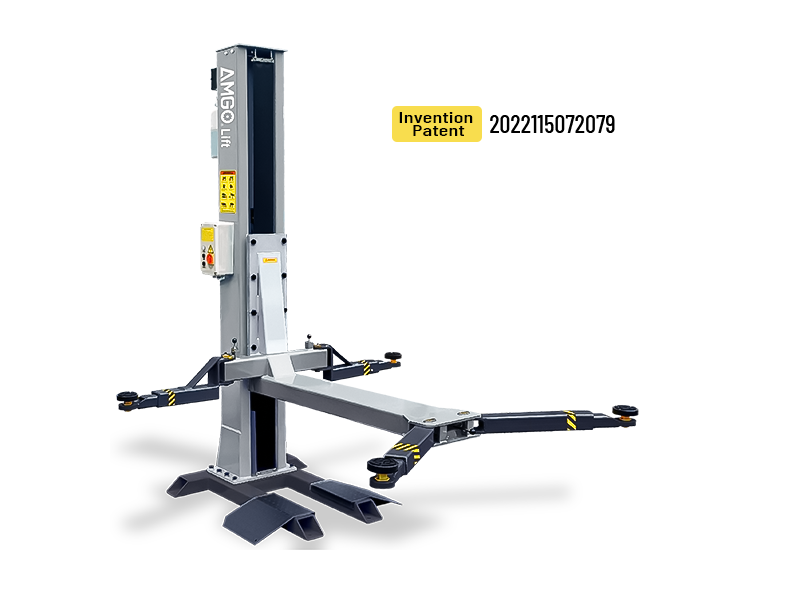

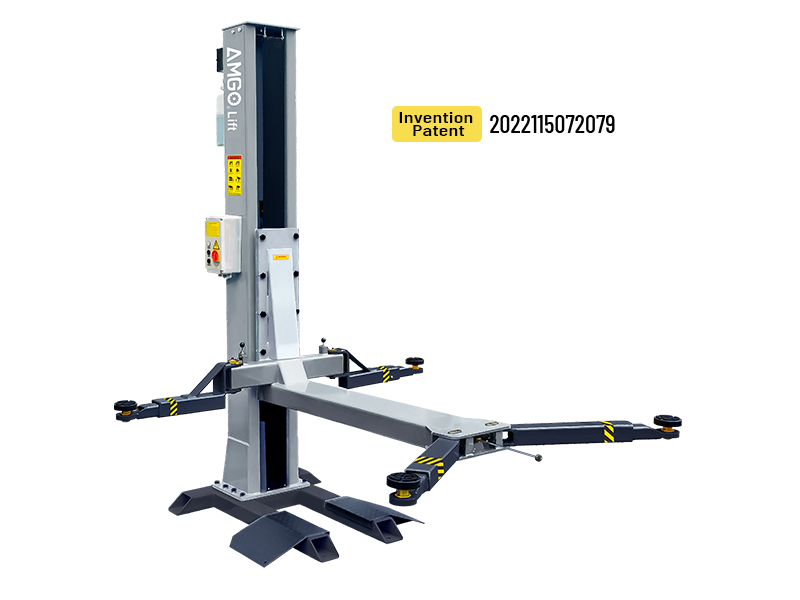

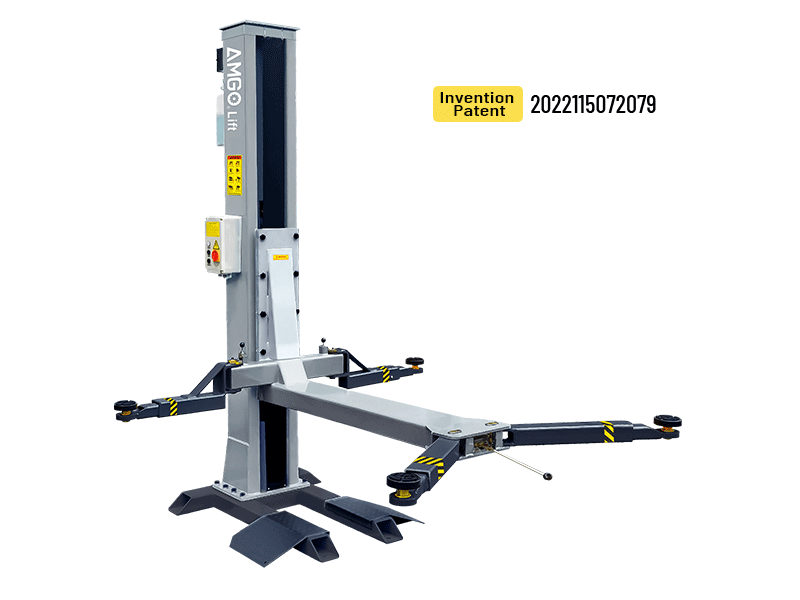

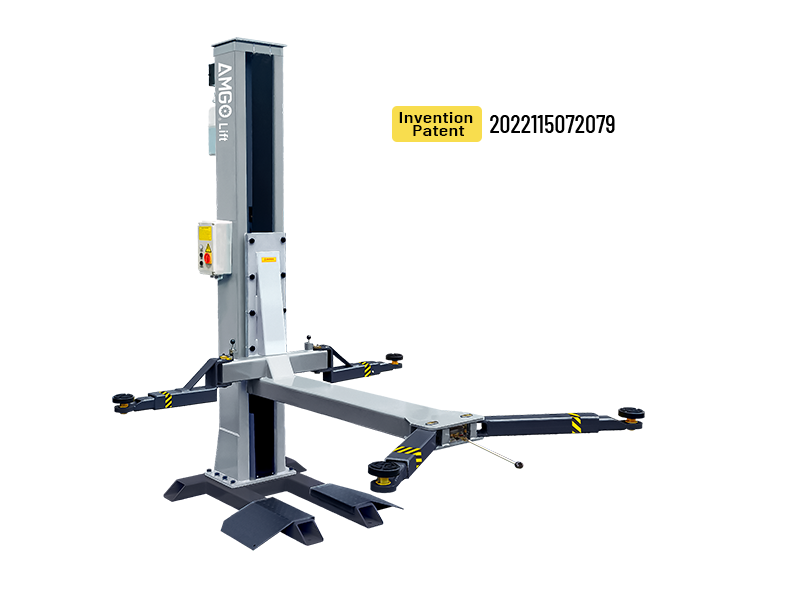

SL-3000

SINGLE POST LIFT

Fixed for Performance and Space Efficiency, SL-3000 is engineered to optimize space without compromising strength. Delivering a robust 3000kg capacity, SL-3000 is ideally suited for commercial workshops, private garages, and confined working environments. Its ultra-low 84mm minimum height and advanced engineering ensure exceptional versatility across a wide range of vehicle servicing applications. The dual-lock safety system alongside a patented single-handle arm lock release mechanism, enhance both operational security and convenience.

Detailed Product Information

3000KG capacity;
24V safe electrical operation system;
Compact design with a minimal footprint;
Exclusive auto-activating double lock system;
Auto-engaged arm lock with AMGO exclusive arm lock control device; auto-activating double lock system;
Manual lock release;
Low profile space-saving ramps;
Fabric curtain cover comes standard;
Double-screw rubber pads with 3” extension adapters.

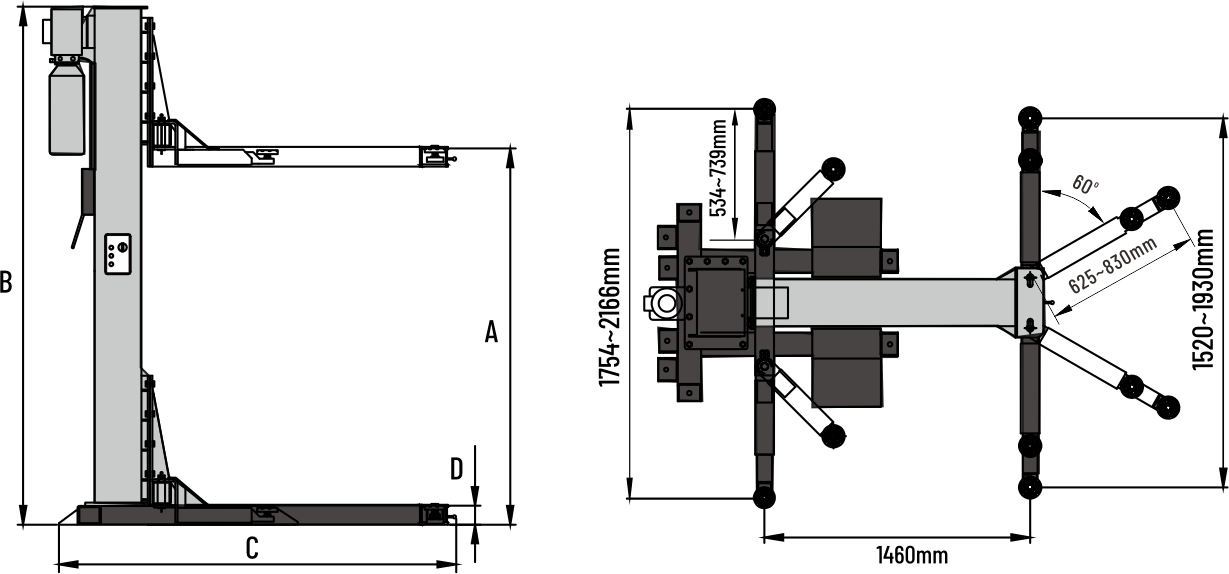

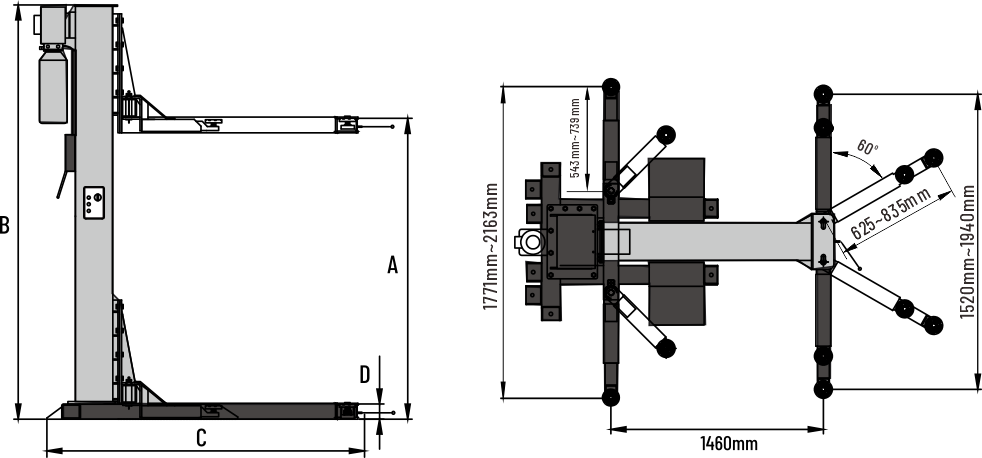

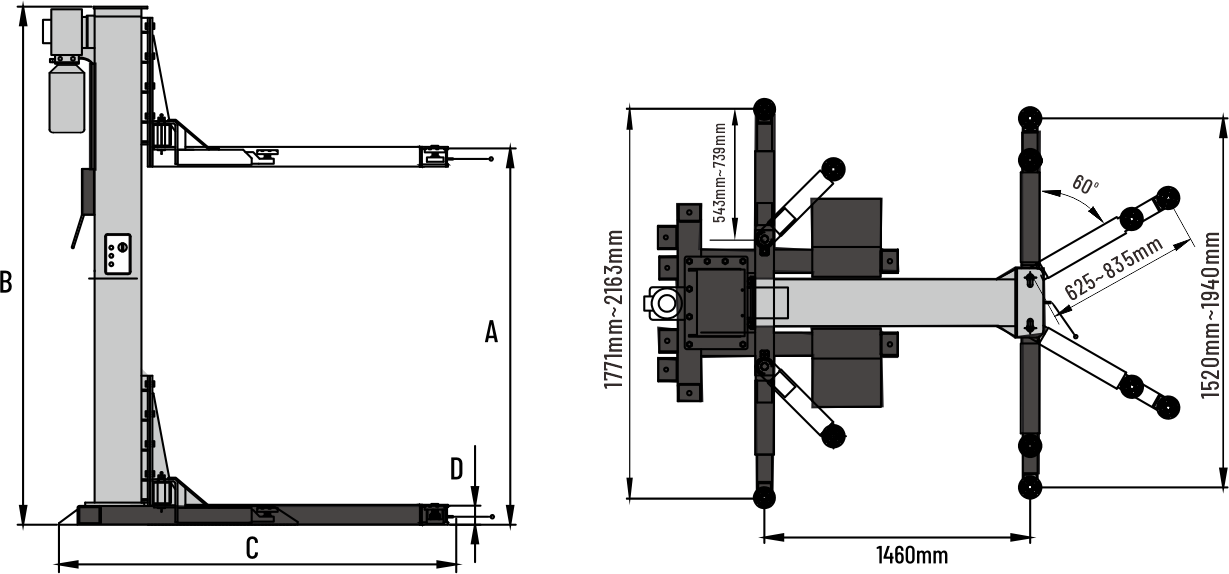

Model		SL-3000
Lifting Capacity		3000kg
Lifting Time		38s
Max. Lifting Height: (w/o extension adapter)	A	1798 ~ 1847mm
Max. Lifting Height: (w/ extension adapter)		1874 ~ 1923mm
Max. Lock Height: (w/o extension adapter)		1713 ~ 1762mm
Max. Lock Height: (w/ extension adapter)		1789 ~ 1838mm
Overall Height	B	2780mm
Overall Width	C	2146mm
Minimum Pad Height	D	84mm
Gross Height		682kg
Motor		3.0 HP
QTY of Container		12 Units / 20'GP

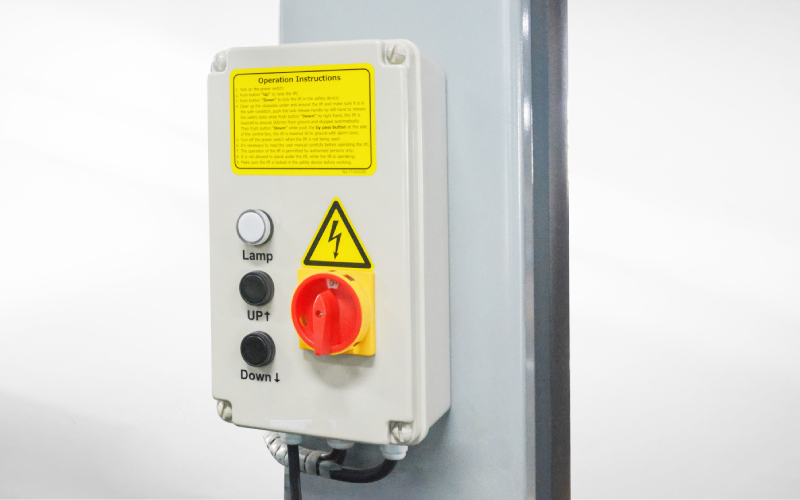

24V safe operating control system.

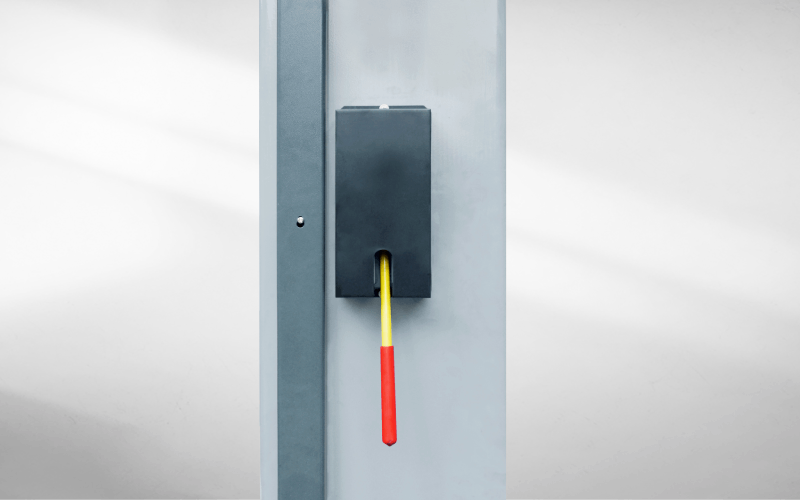

Durable manual lock release provides convenient operation.

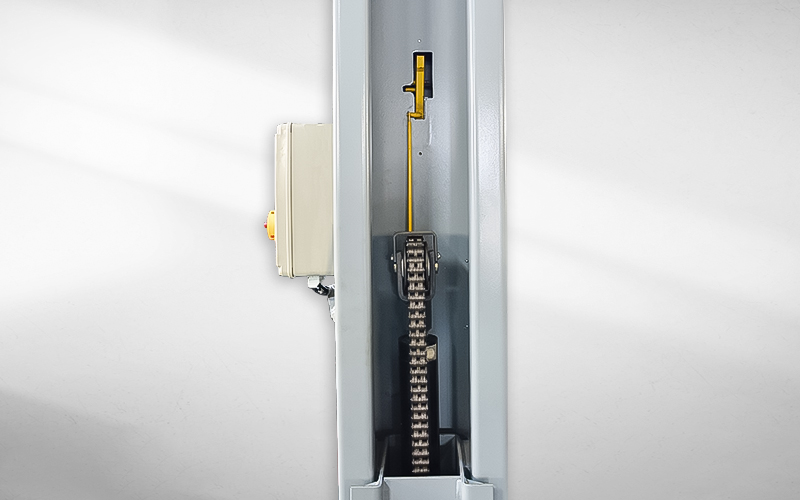

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.

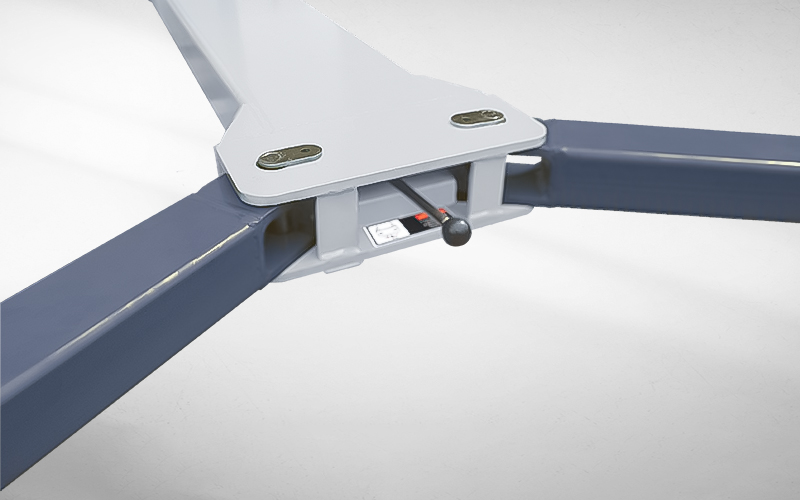

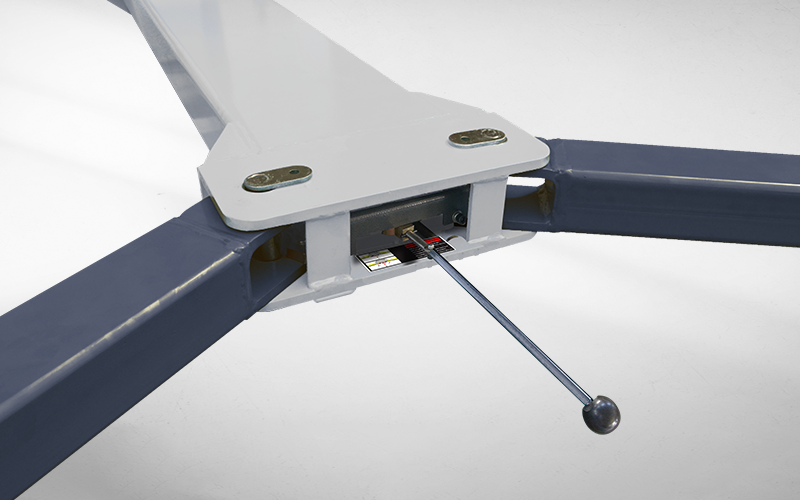

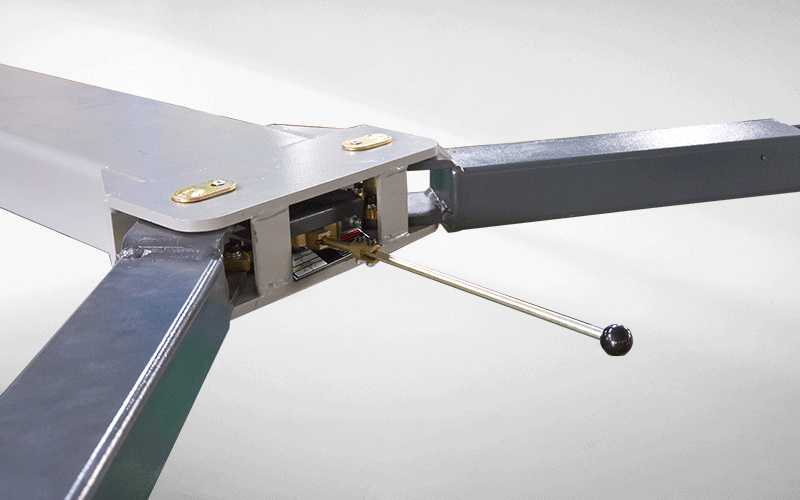

Auto-engaged arm lock with AMGO exclusive arm lock control device.

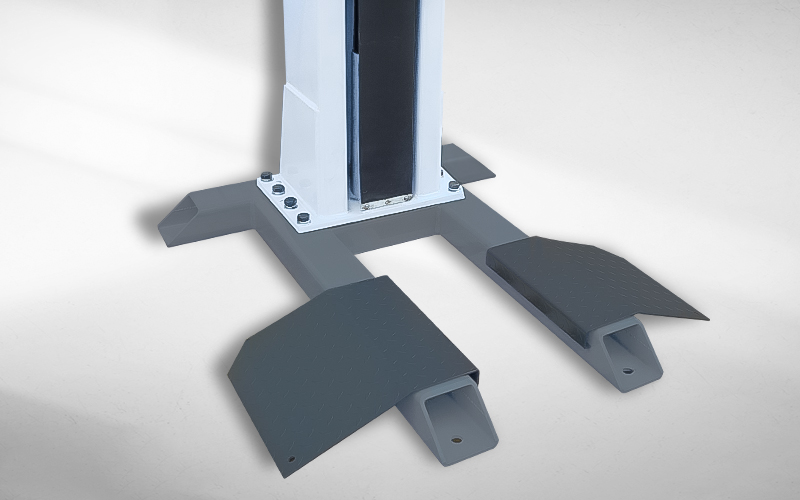

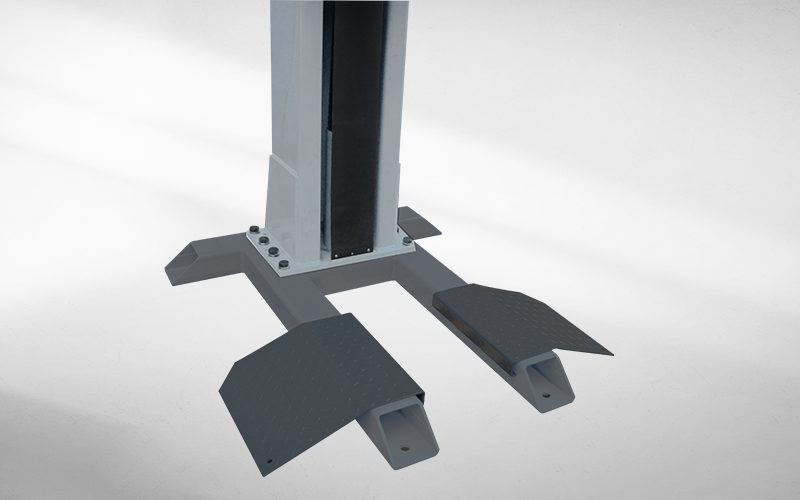

Low profile space-saving ramps are easy to install,easy to drive in.

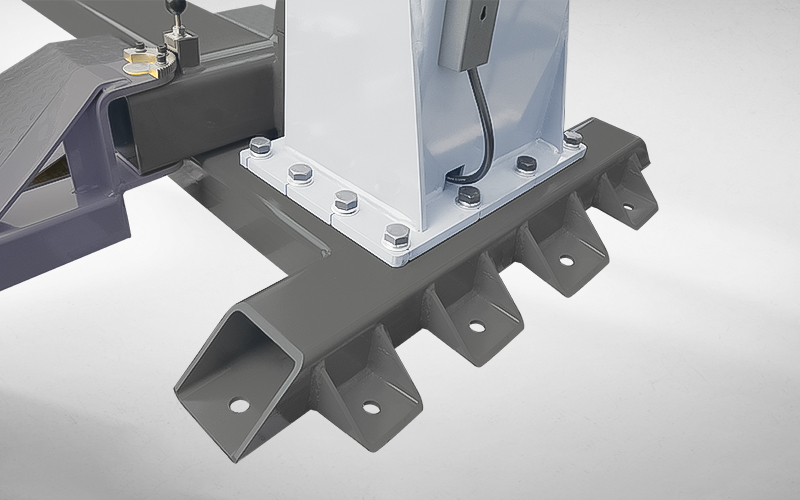

Thickened steel structure ensures more safety and stability.

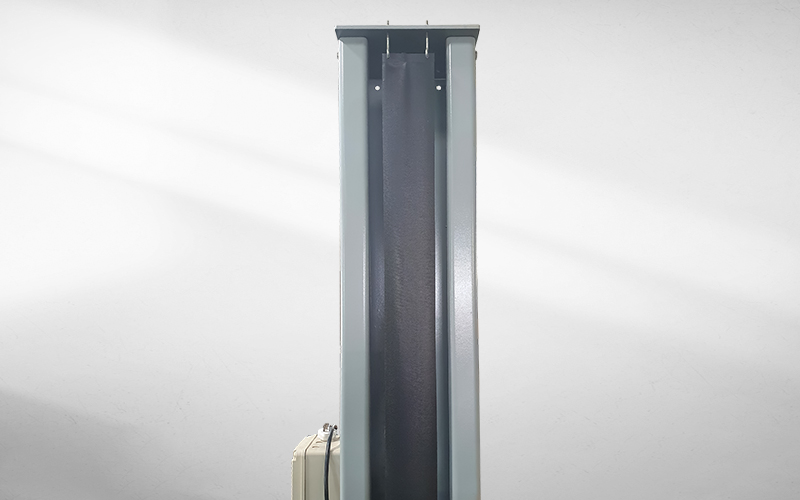

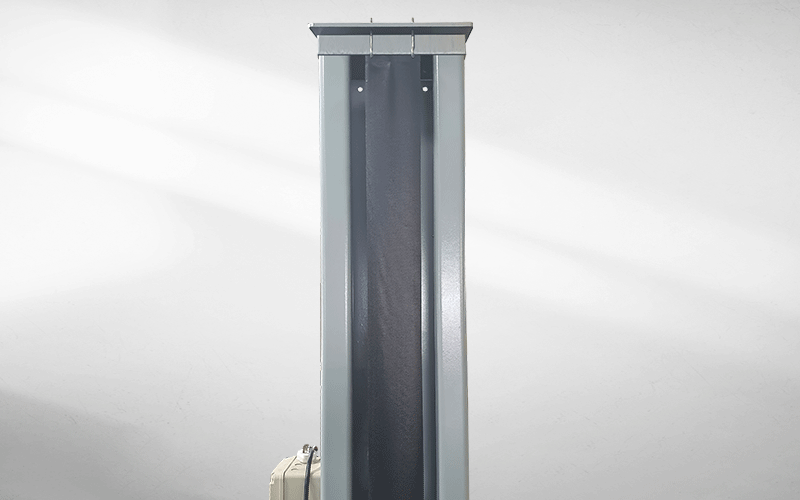

Fabric chain cover protects the cylinder and makes lift in good appearance.

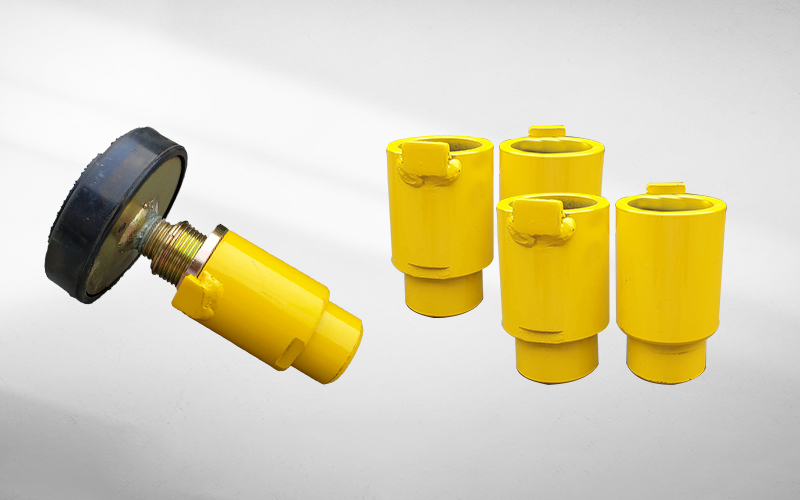

Sturdy arm comes standard with both screw and insert rubber pad and 3" extension adapter.

24V safe operating control system.

Durable manual lock release provides convenient operation.

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.

Auto-engaged arm lock with AMGO exclusive arm lock control device.

Low profile space-saving ramps are easy to install,easy to drive in.

Thickened steel structure ensures more safety and stability.

Fabric chain cover protects the cylinder and makes lift in good appearance.

Sturdy arm comes standard with both screw and insert rubber pad and 3" extension adapter.
