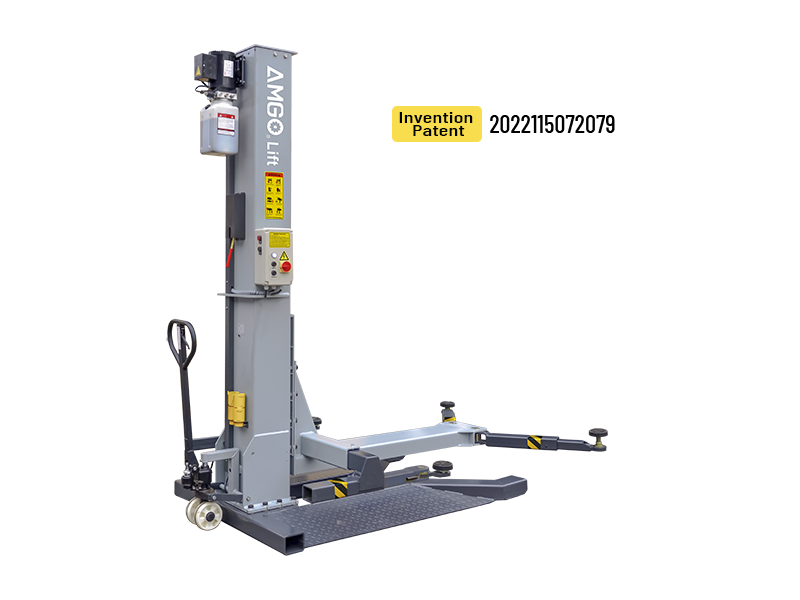

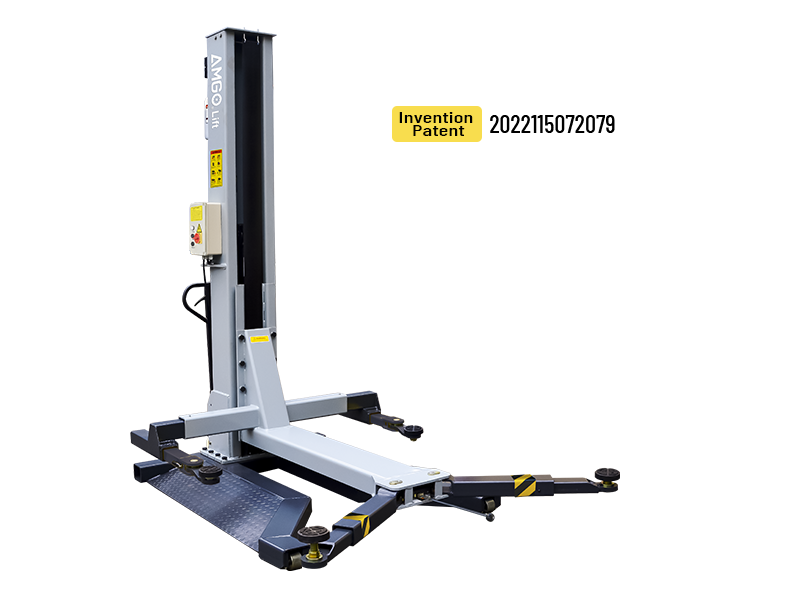

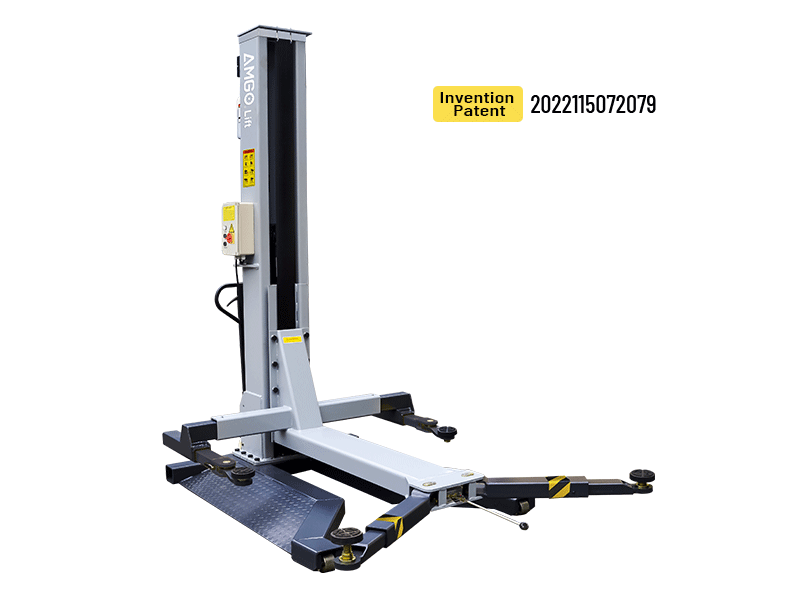

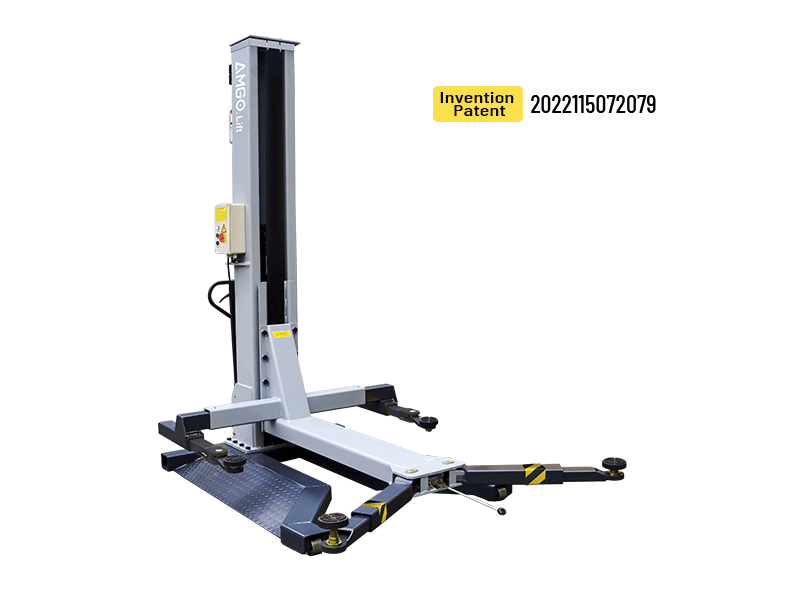

SML-3000

PORTABLE SINGLE POST LIFT

The SML-3000 is equipped with advanced bionic arms, offering an extended reach for enhanced adaptability across a diverse range of vehicles. Featuring the world's lowest pad height, it incorporates AMGO's proprietary technologies of dual-lock system and patented single-handle arm lock release mechanism ensuring unparalleled operational efficiency. Engineered for rapid deployment, it stands as the premier quick-response solution for both indoor and outdoor applications.

Detailed Product Information

3000KG capacity;
24V safe electrical operation system;
Compact design with a minimal footprint;
Portable design, can easily move to any workplace;
Exclusive auto-activating double lock system;
Auto-engaged arm lock with AMGO exclusive arm lock control device; auto-activating double lock system;
Manual lock release;
Low profile space-saving ramps;
Fabric curtain cover comes standard;
Double-joints arm kits provides easy access and comfortable positioning;
Double-screw rubber pads with 3” extension adapters.

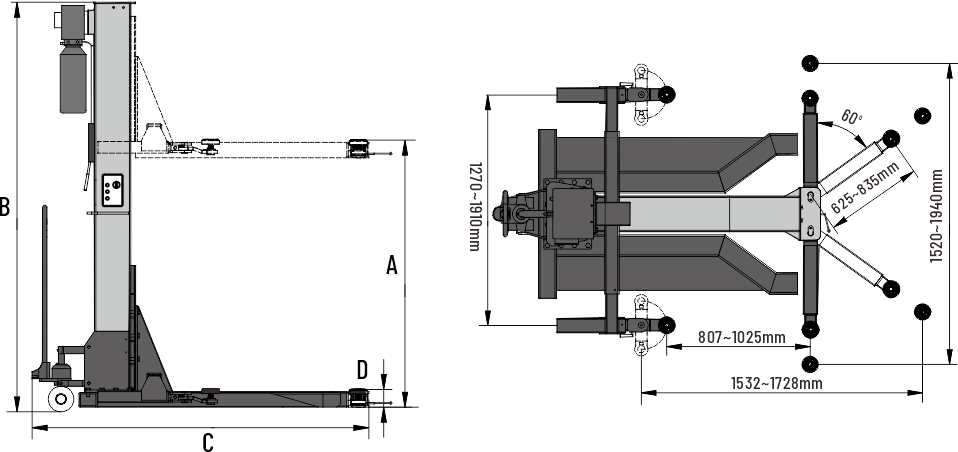

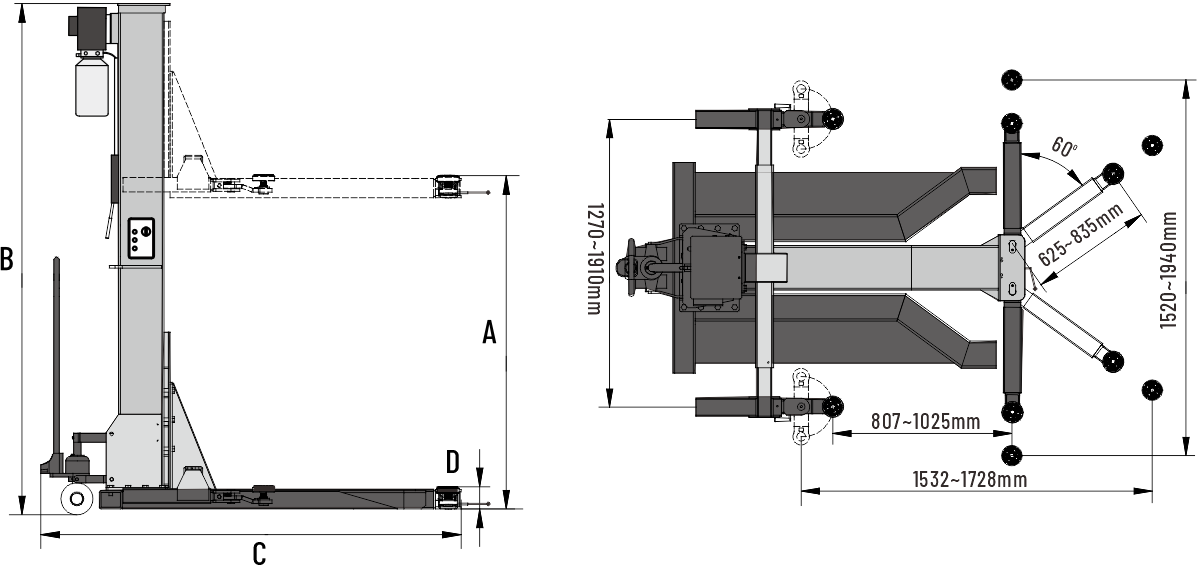

Model		SML-3000
Lifting Capacity		3000kg
Lifting Time		38s

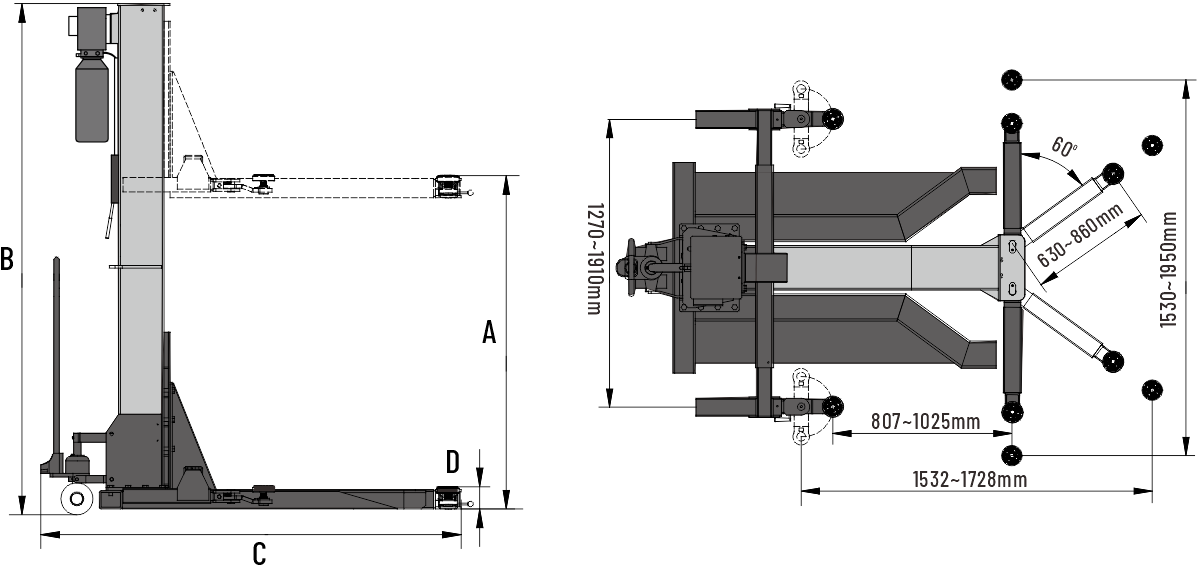

Max. Lifting Height: (w/o extension adapter)	A	1798 ~ 1847mm
Max. Lifting Height: (w/ extension adapter)		1874 ~ 1923mm
Max. Lock Height: (w/o extension adapter)		1713 ~ 1762mm
Max. Lock Height: (w/ extension adapter)		1789 ~ 1838mm
Overall Height	B	2780mm
Overall Width	C	2295mm
Minimum Pad Height	D	84mm
Gross Height		889kg
Motor		3.0HP
QTY of Container		12 Units / 20' GP

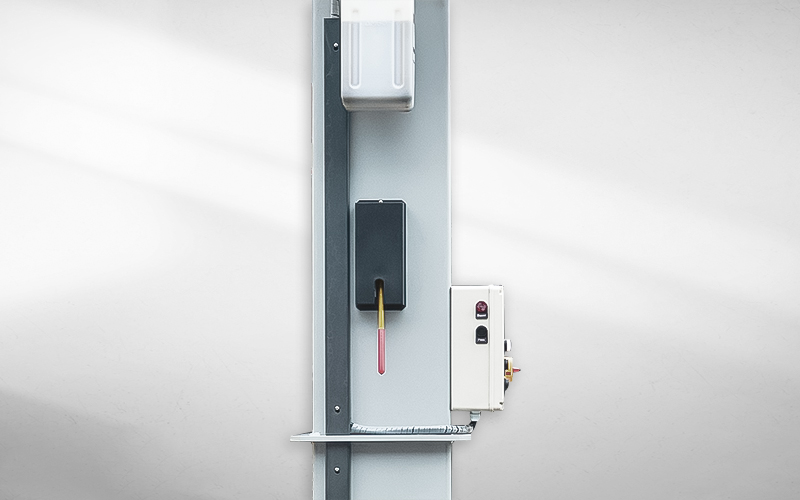

Durable manual lock release provides convenient operation.

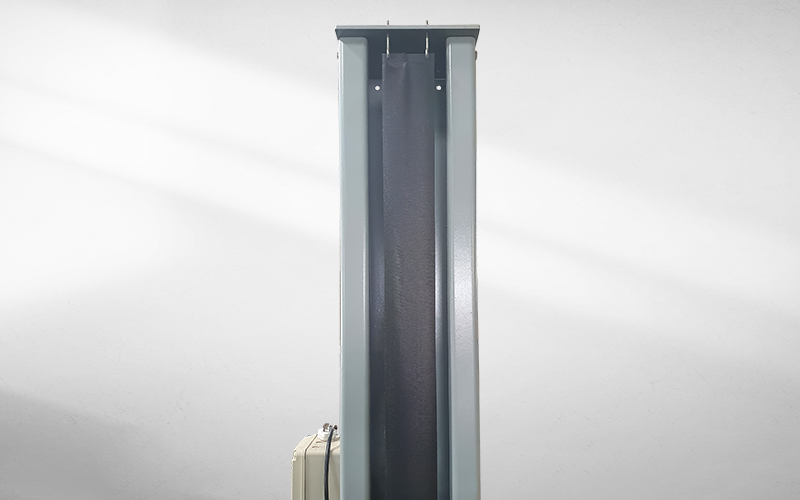

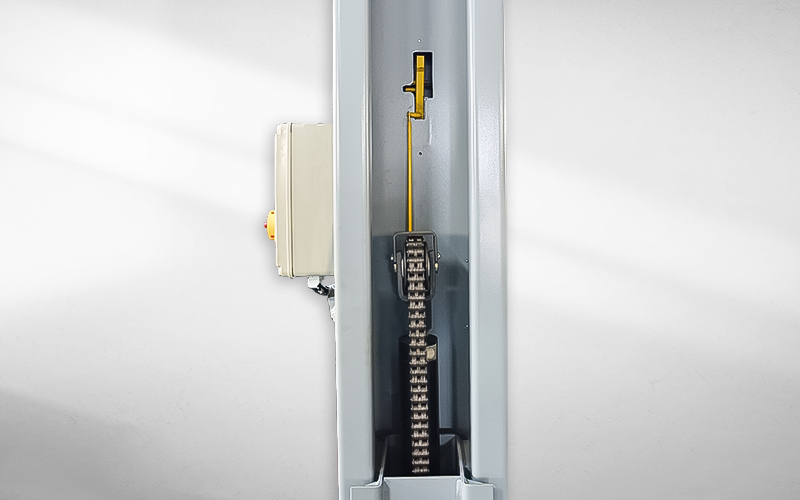

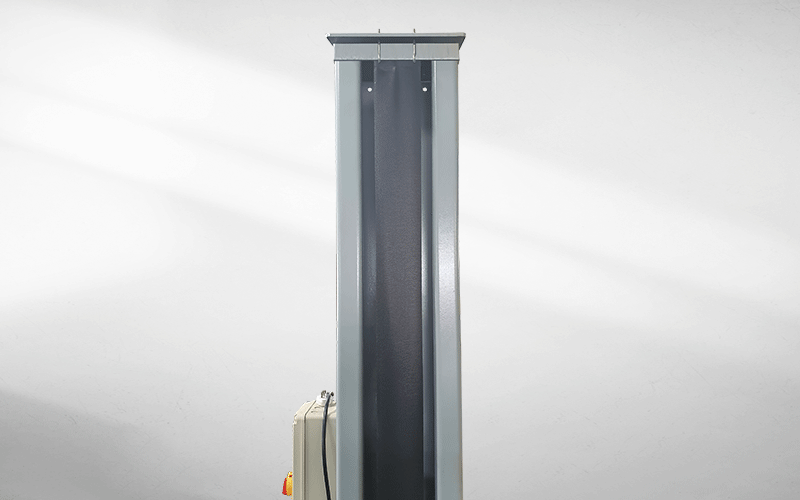

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.

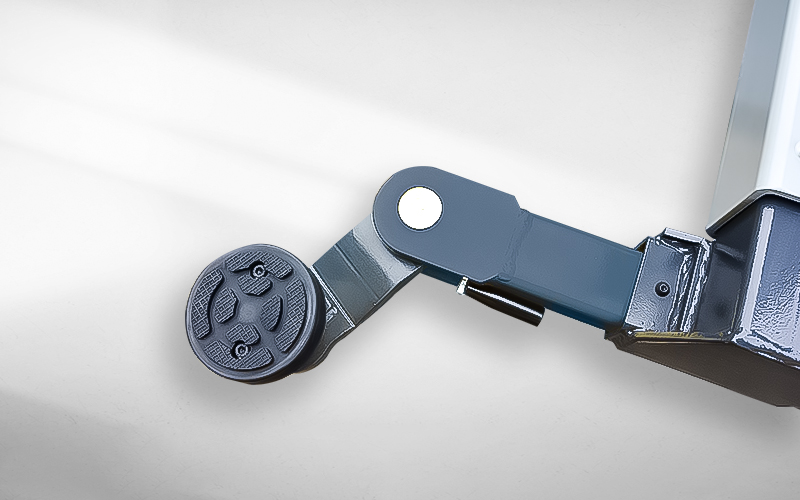

New bionic arms offer broader range of stretching and can flexibly swing in 180°.

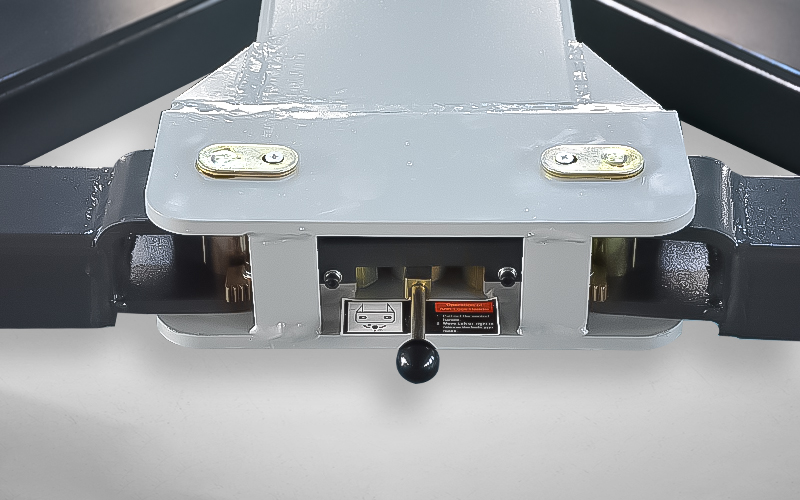

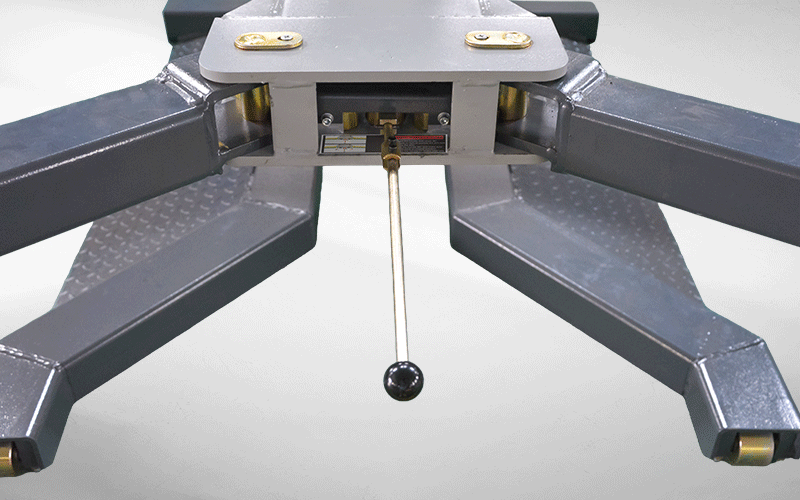

Auto-engaged arm lock with AMGO exclusive arm lock control device.

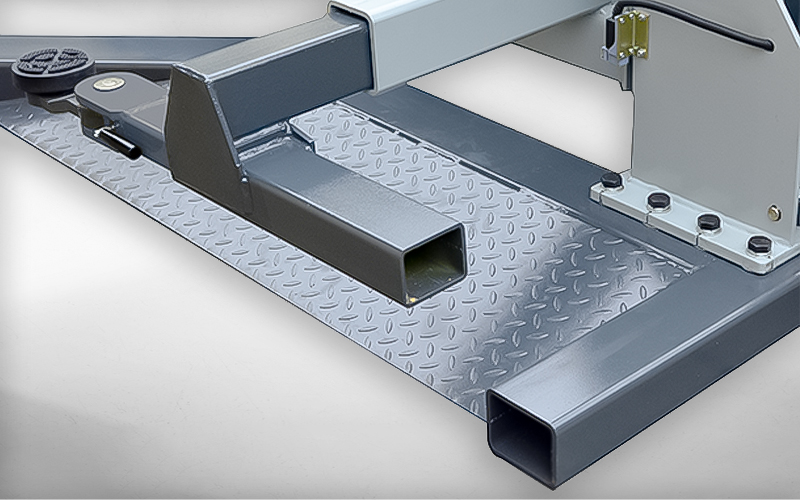

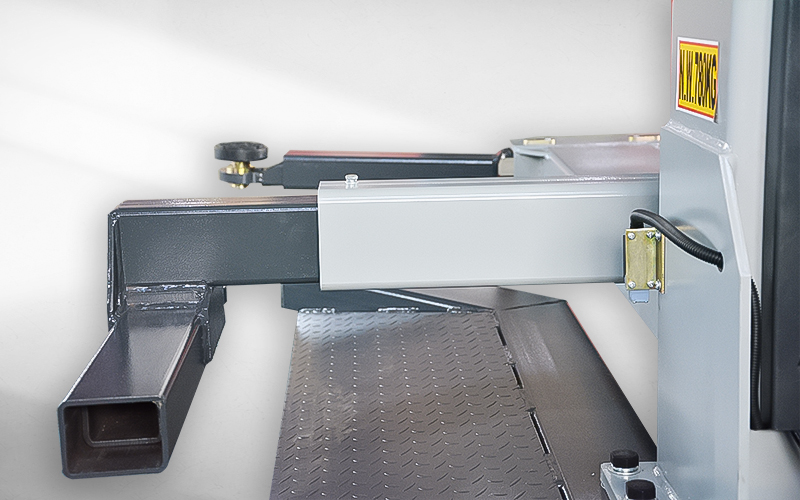

Low profile space-saving ramps are easy to install,easy to drive in.
The safety stop device at the height of 300mm with tone alarm for safety.
The safety stop device at the height of 300mm with tone alarm for safety.

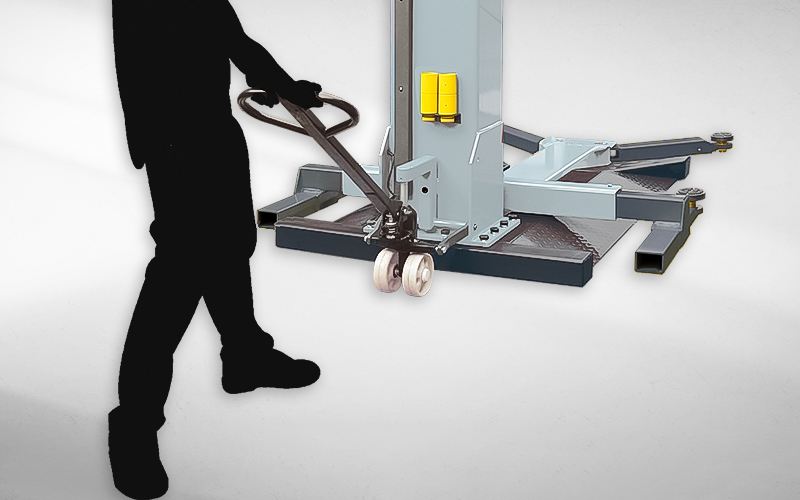

Portable wheels make it easy to move the lift.

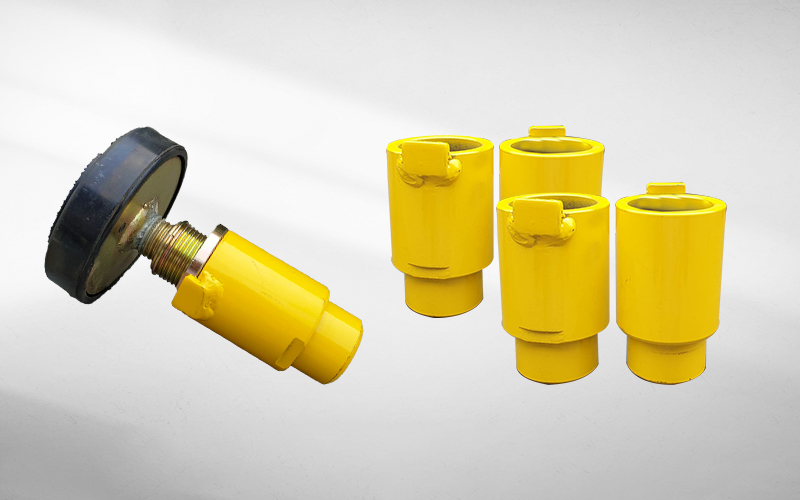

Sturdy arm comes standard with both screw and insert rubber pad and 3" extension adapter.
