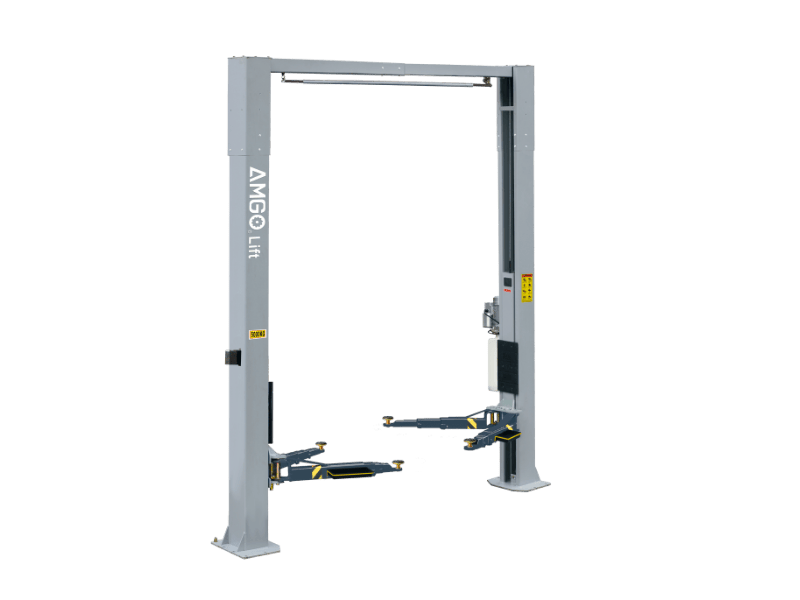

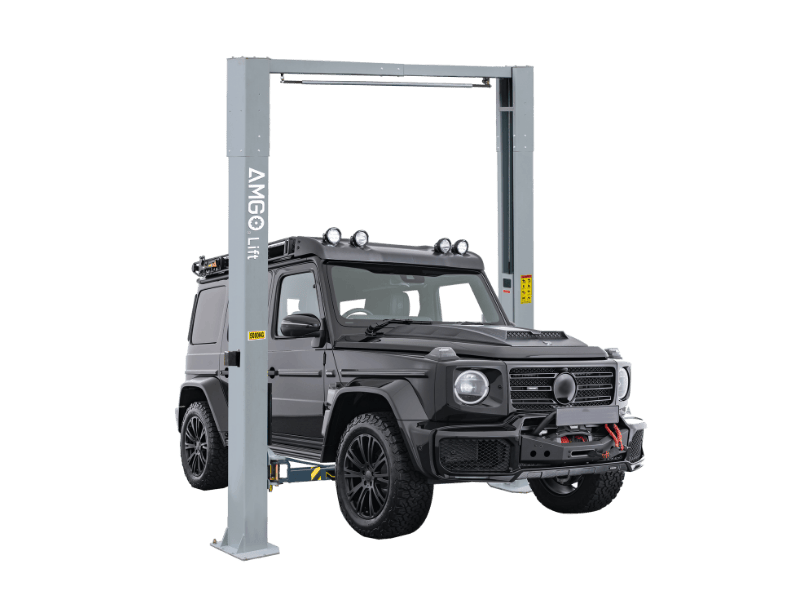

E250CX

CLEAR FLOOR DIRECT-DRIVED TWO POST LIFT

The extraordinary configurations have set E250CX the unparalleled convenience and versatility in its class. As a extremely high lifting model, it features extra-long carriages for superior stability and extra-long three-stage arms to handle diverse wheelbases, including the Benz Sprinter. It also supports two height settings.

Detailed Product Information

Lifting capacity:5000KG;
Clear-floor design, enables an unobstructed floor use;
24V safe electrical control system, with high limit switch device;
Overhead safety shut-off device prevents vehicle damage;
Equipped with automatic electromagnet safety release;
Extra-long four 3-stage arms are suitable for more vehicle;
Extremely long carriages enhance the stability and durability;
Super high design with adjustable 2-height settings;
Maximum lifting height over 2000mm without extension adapters;
Super wide design with a width between columns at 3000mm ;

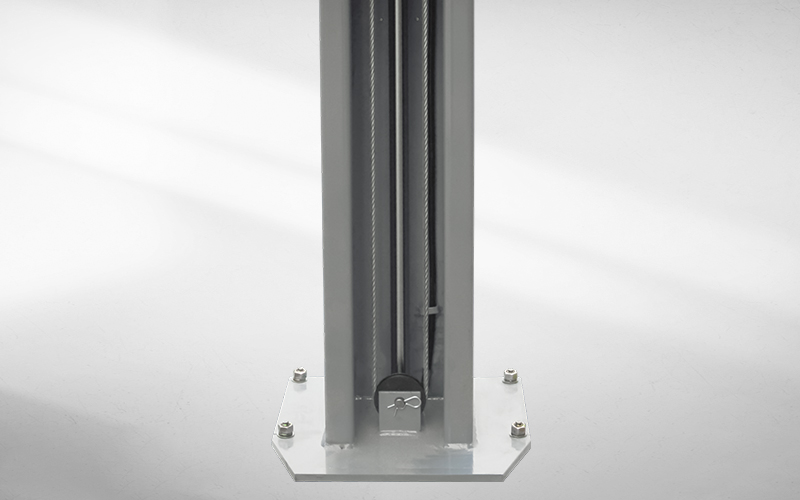

Aero cables are used for synchronization;
Self-lubricating UHMW polyethylene sliders;
Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Sturdy single-screw rubber pad with pin dia. 50mm, comes with 3" and 6" extension adapters;
Automatic arms restraints;
Detachable foot guards and tool trays come standard.

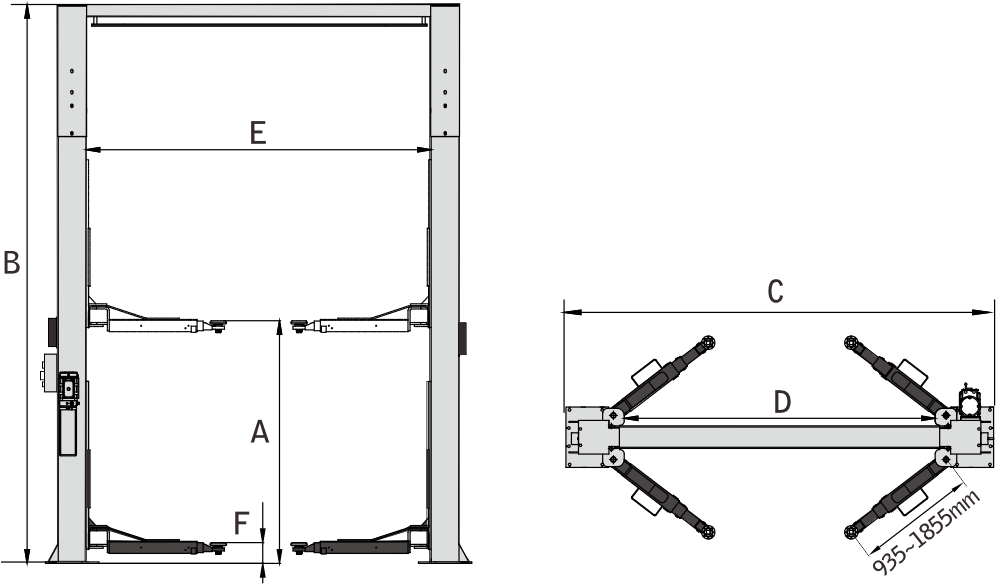

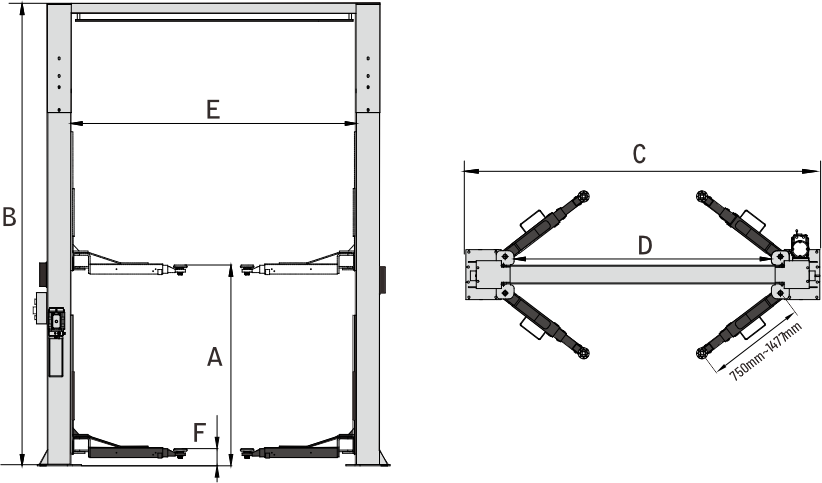

Model E250CX		Clear Floor Two Post Lift
Lifting Capacity		5000kg
Lifting Time		64s
Max. Lifting Height:(w/o extension adapter)	A	2020~2054mm
Max. Lifting Height:(w/ extension adapter)		2249~2283mm
Max. Lock Height:(w/o extension adapter)		1980~2014mm
Max. Lock Height:(w/ extension adapter)		2209~2243mm
Overall Height	B	4224/4502mm
Overall Width	C	3666mm
Drive-Thru Clearance	D	2710mm
Width Between Columns	E	3000mm
Minimum Pad Height	F	115mm
Gross Weight		871kg
Motor		3.0HP
QTY of Container		12 Units/20'GP 30 Units/40'GP
Packing Dimension		3920 x 510 x 820mm

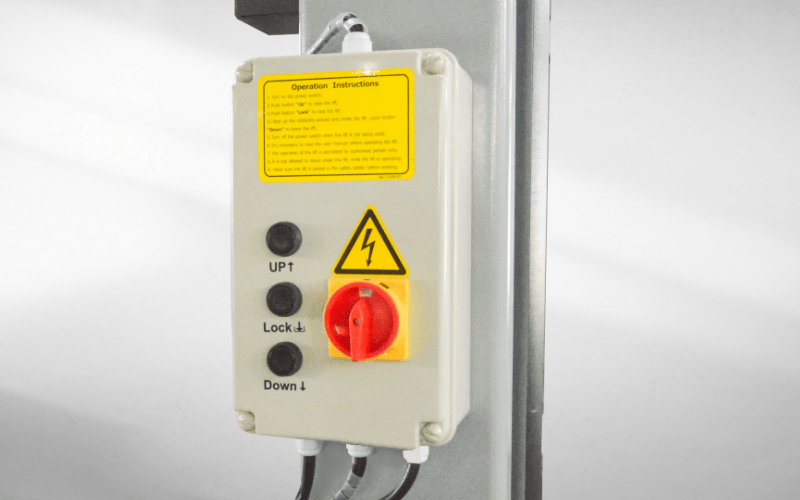

24V safety electric control system, more convenient to use.

Eletromagnetic safety release.

Hydraulic direct-drived cylinders.

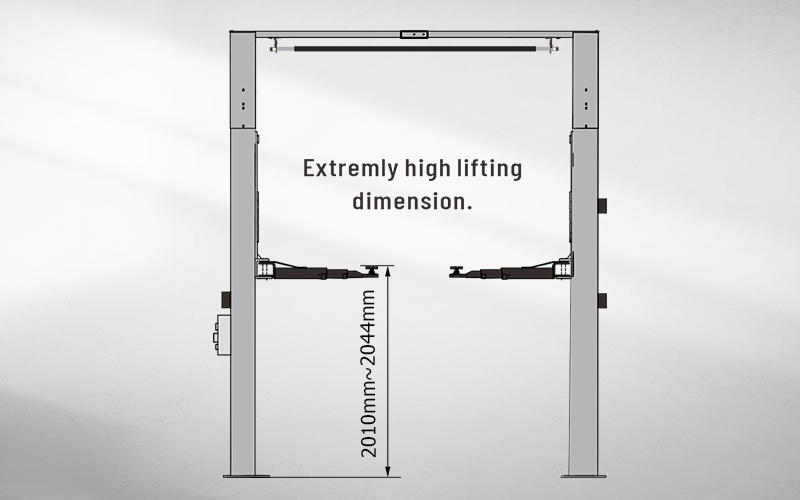

Maximum lifting height over 2000mm without extension adapters.

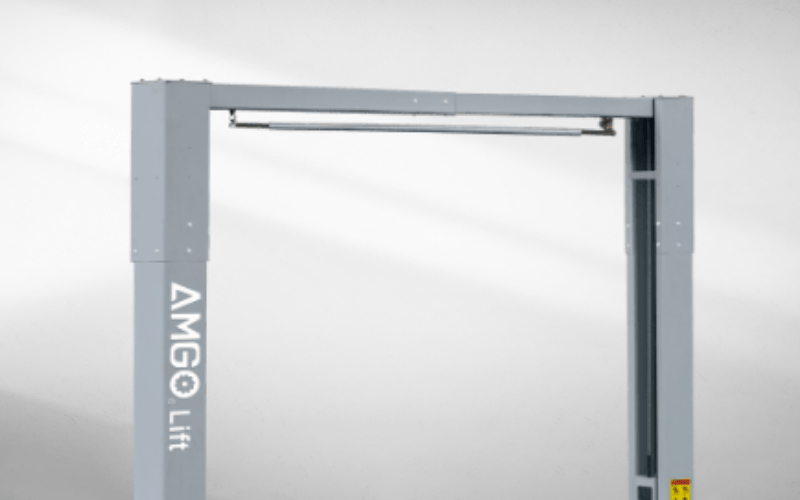

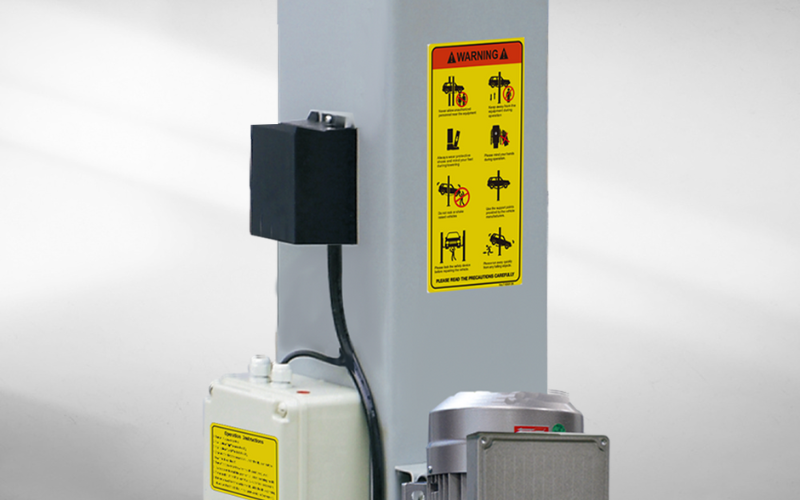

Overhead safety shut-off device prevents vehicle damages.

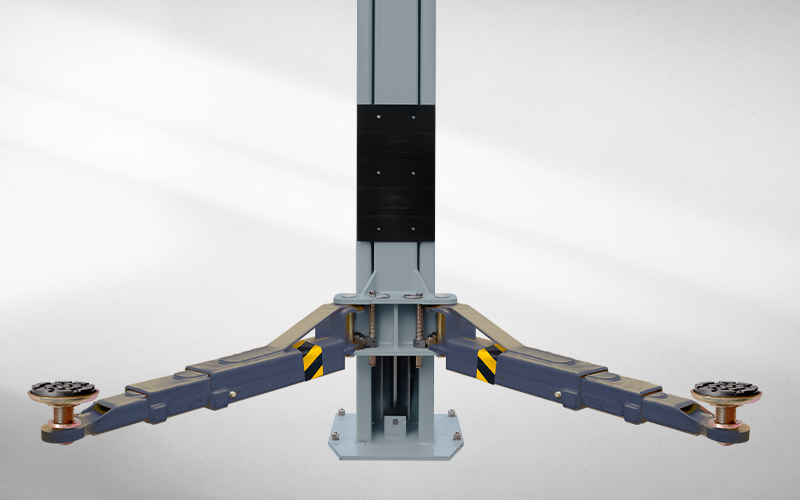

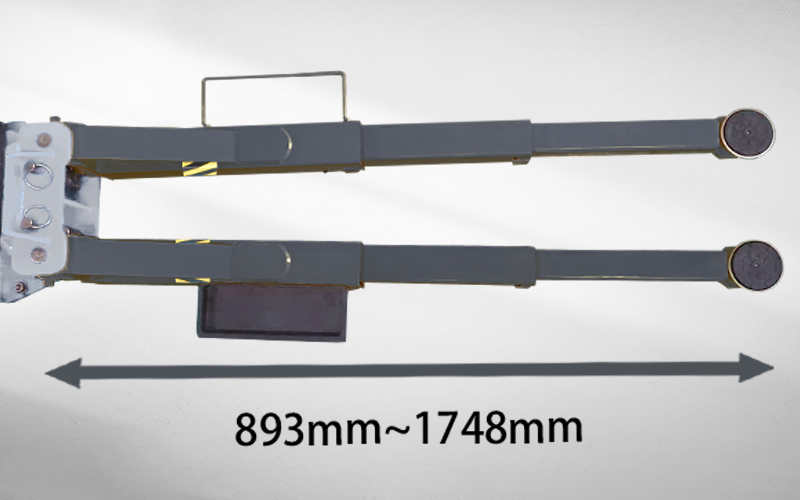

Exclusive feature: four extremely longer 3- stange arms accommodate a range of wheelbase vehicles, from passenger cars, sprinter vans to light trucks.

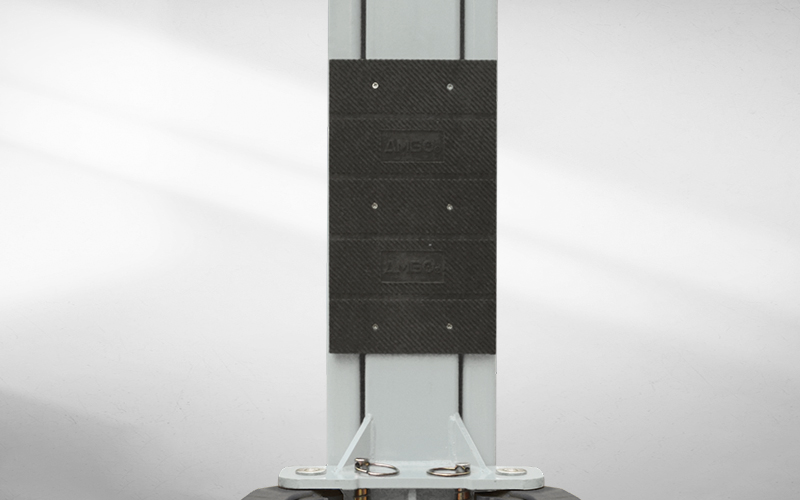

Large rubber mat protects the vehicle door from hitting the column directly.

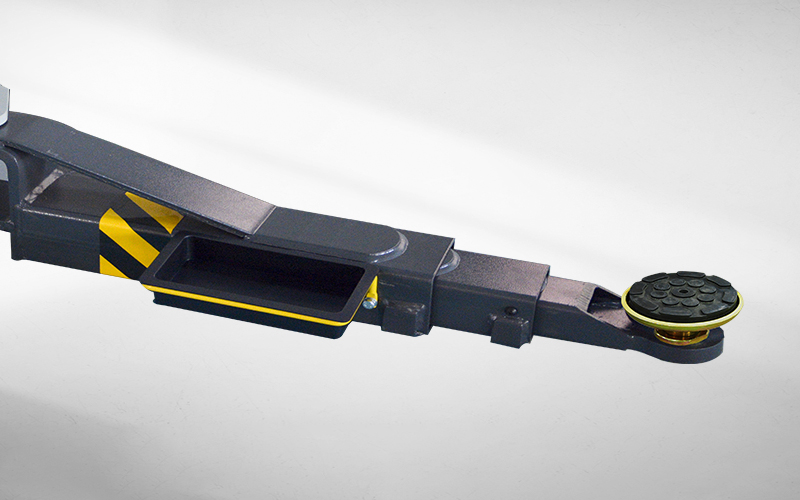

Detachable foot guards and tool trays come standard.

Automatic arm restraints.

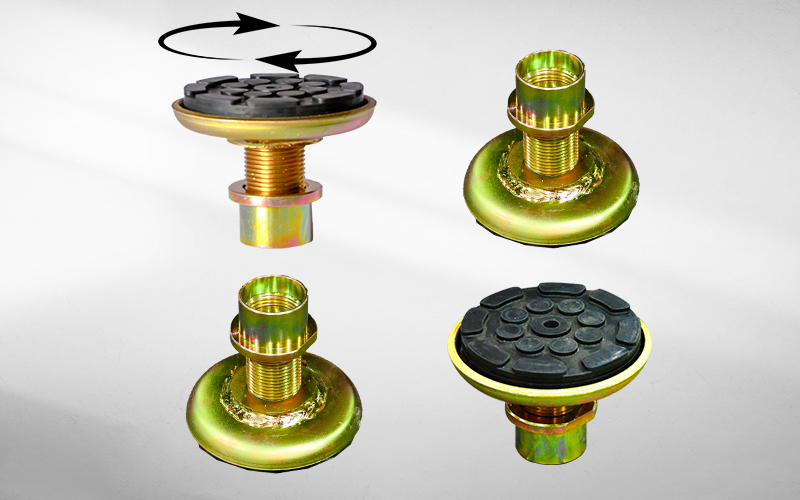

Sturdy single-screw rubber pad with pin dia. 50mm.

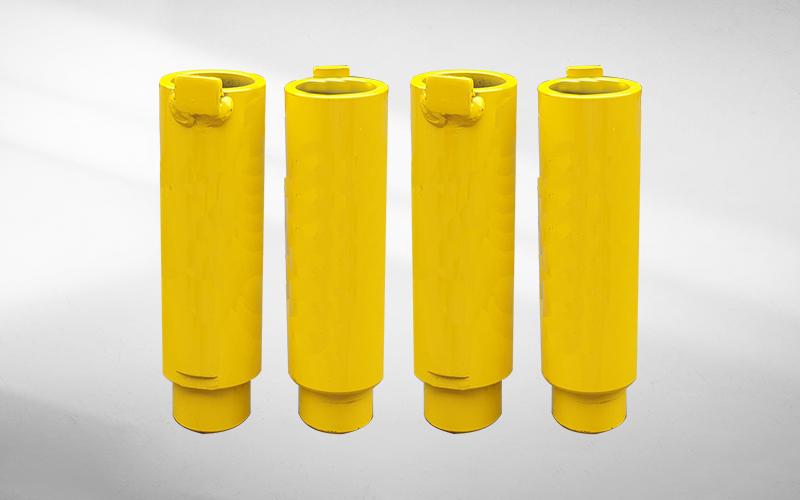

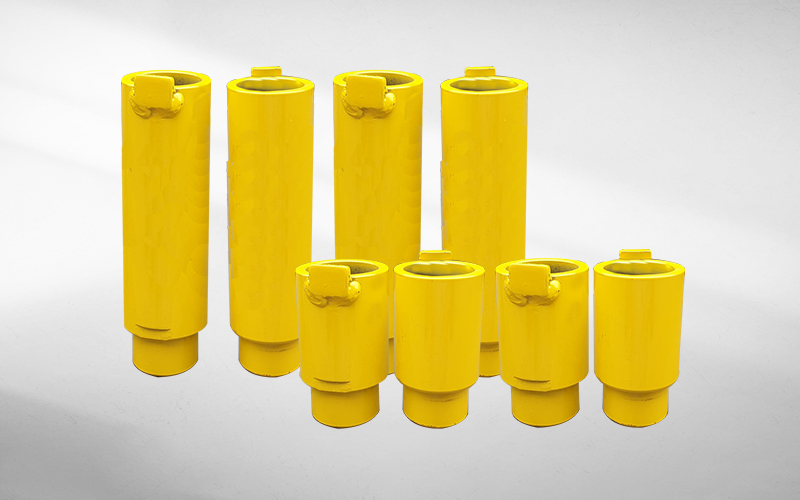

Both 3" and 6" extension adapters come as standard.

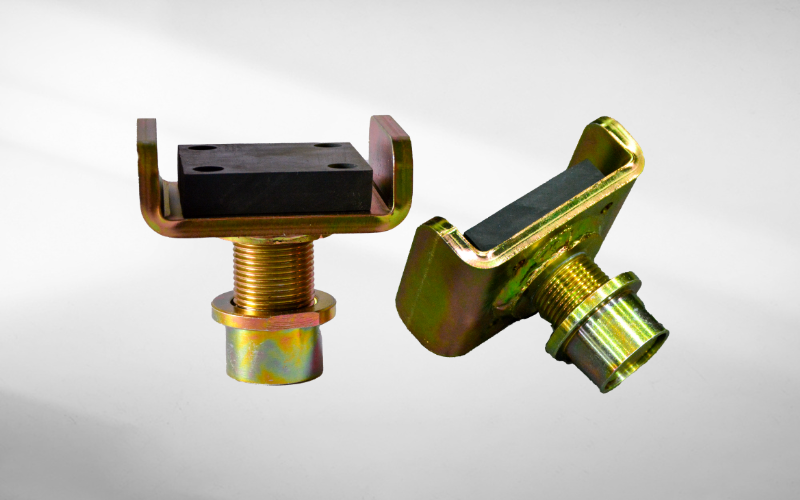

The optional saddle adapter. Kits No.: 1102185006C
