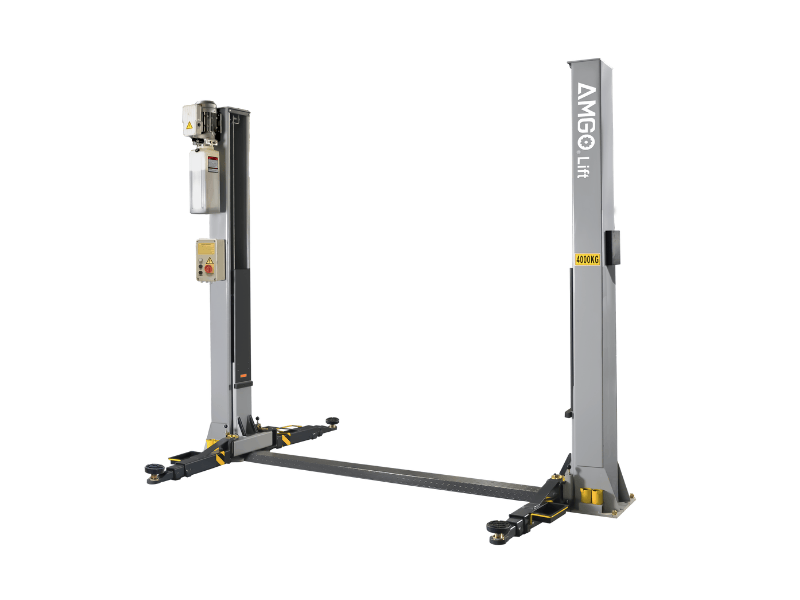

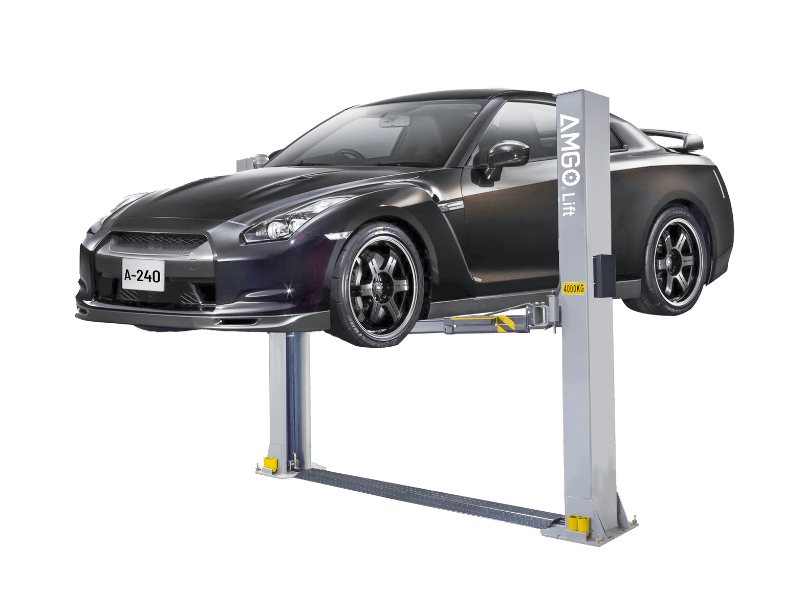

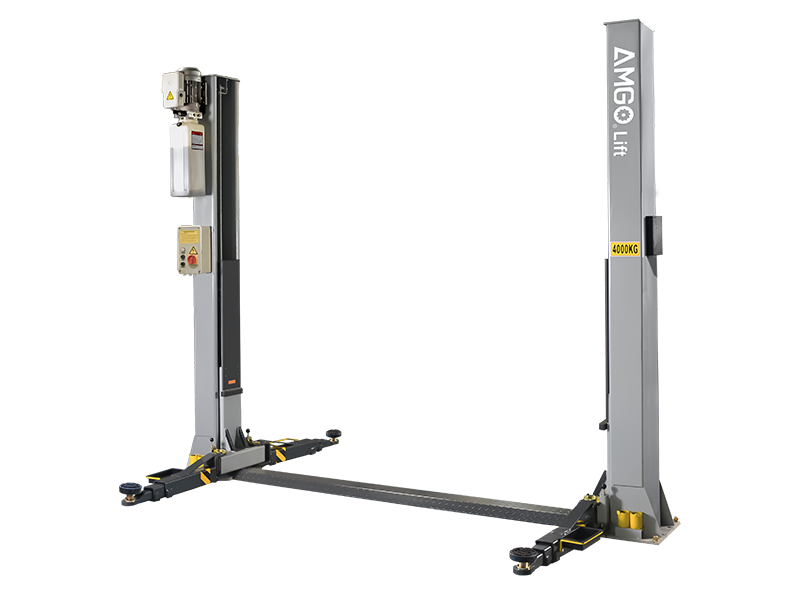

A240

FLOOR PLATE CHAIN-DRIVED TWO POST LIFT

AMGO introduces a revolutionary double locking system installed in both columns, which is automatically activated when the lift is raised. The A240's base plate design also features 4 three-stage arms, making it the ideal model for low ceiling garages to efficiently service a wide range of vehicles.

Detailed Product Information

Lifting capacity: 4000KG;
The floor plate's open top design allows it to lift various vehicles in low ceiling garages;
24V safe electrical control system, with high limit switch device;
Revolutionary auto-activating double lock system;
Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;
Four 3-stage arms are suitable for more vehicle;
Aero cables are used for synchronization;
Self-lubricating UHMW polyethylene sliders;
Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
Automatic arms restraints;
Detachable foot guards and tool trays come standard.

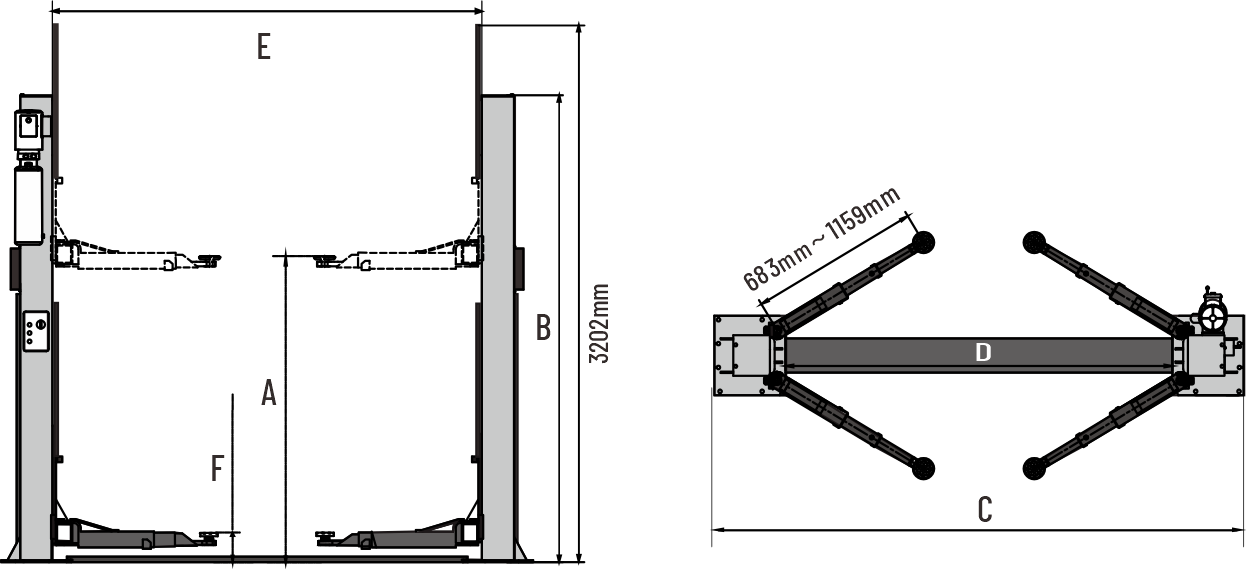

Model		A240
Lifting Capacity		4000kg
Lifting Time		37s
Max. Lifting Height: (w/o extension adapter)	A	1809 ~ 1841mm
Max. Lifting Height: (w/ extension adapter)		1885 ~ 1917mm
Max. Lock Height: (w/o extension adapter)		1769 ~ 1801mm
Max. Lock Height: (w/ extension adapter)		1845 ~ 1877mm
Overall Height	B	3202mm
Overall Width	C	3350mm
Drive-Thru Clearance	D	2513mm
Width Between Columns	E	2780mm
Minimum Pad Height	F	84mm
Gross Weight		611kg
Motor		3.0HP
QTY of Container		25 Units / 20'GP

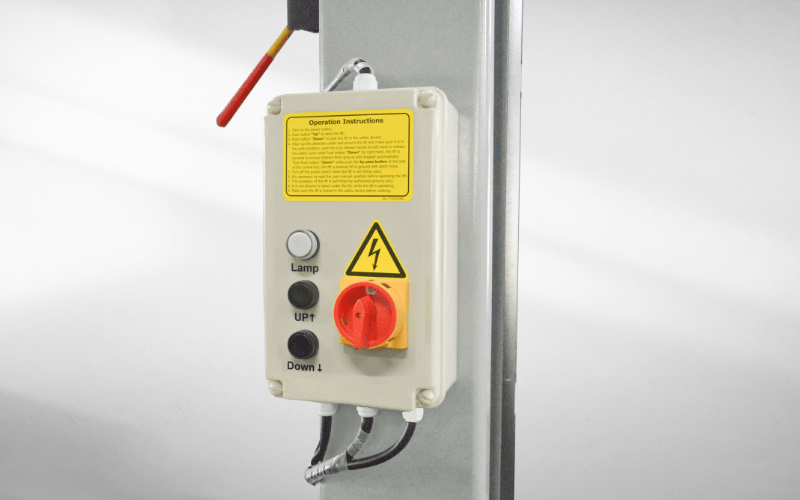

24V safe electrical control system, with high limit switch device.

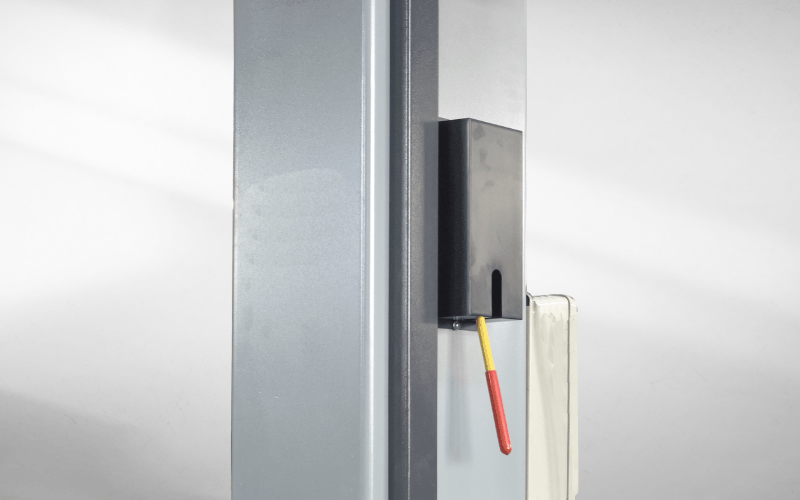

Single-point manual safety lock device for simultaneous unlocking of both columns.

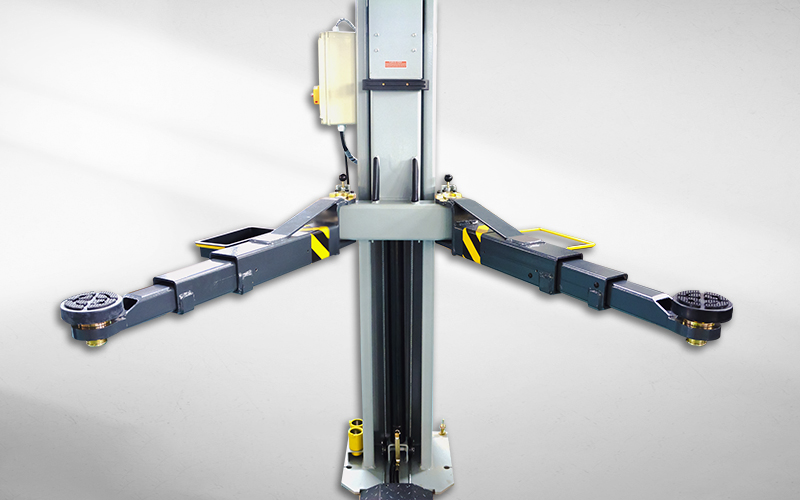

Four pieces three-stages arms, lift vehicles in an asymmetric or symmetric configuration.

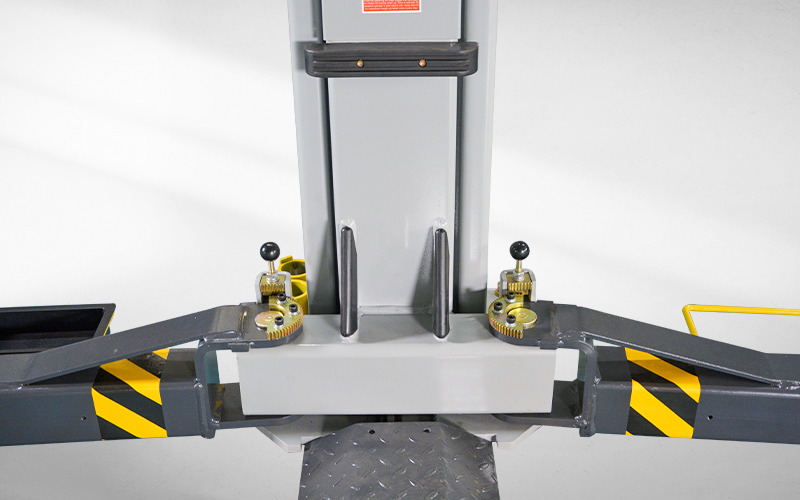

Automatic arms restraints.

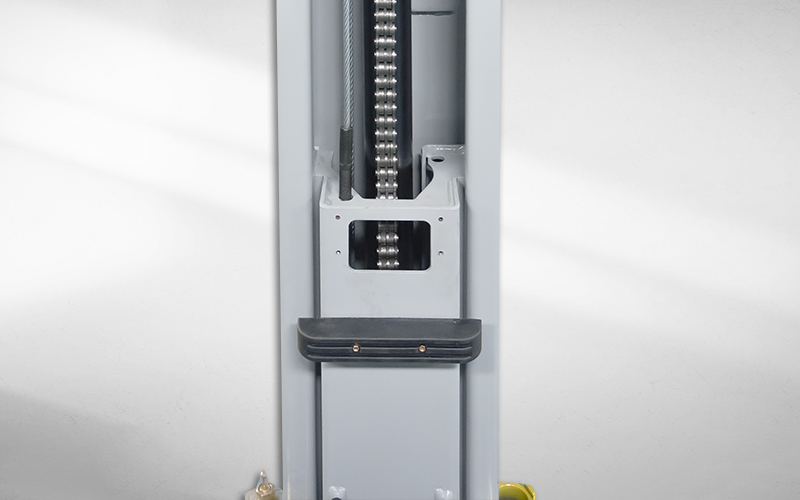

Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals.
The door anti-collision protection rubber gasket.

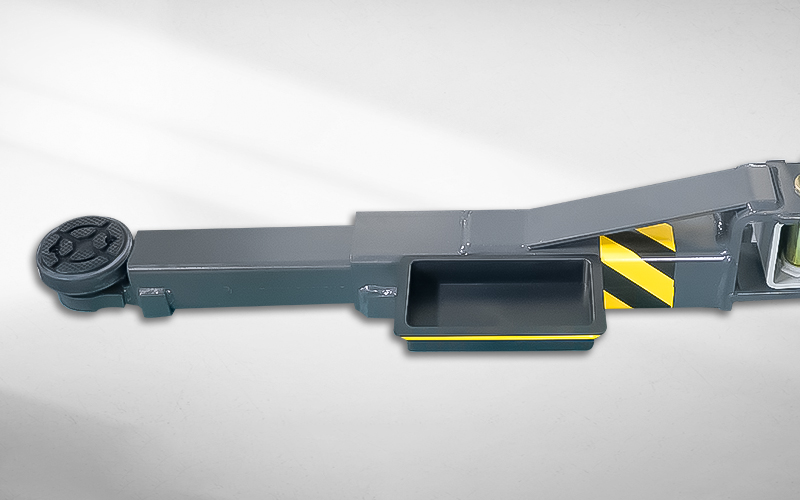

Detachable foot guards and tool trays come standard.

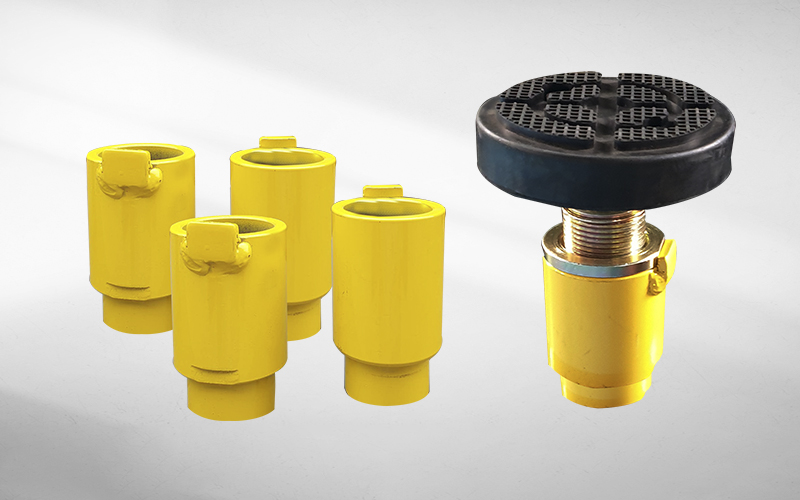

Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter.
