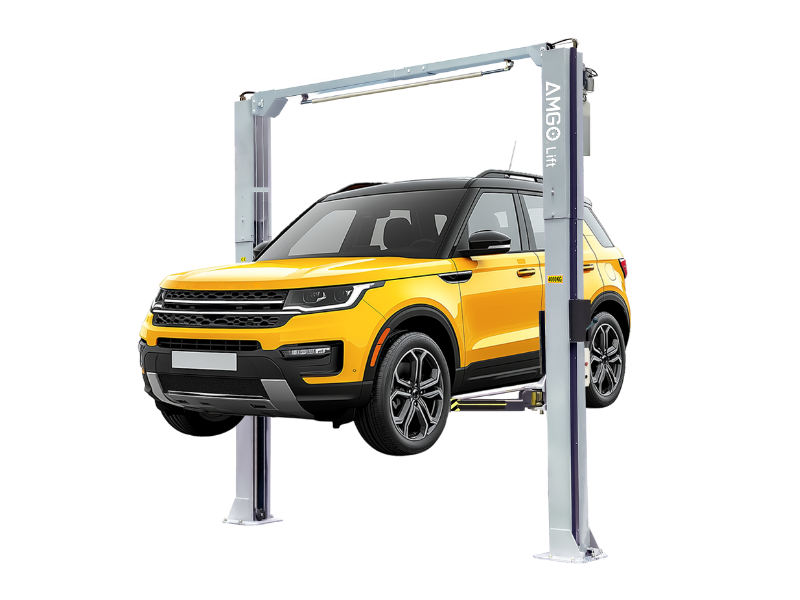

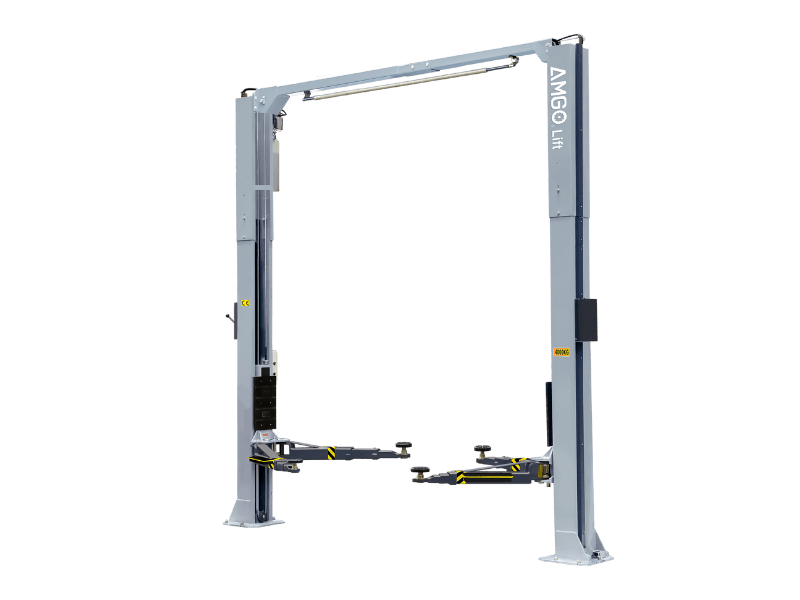

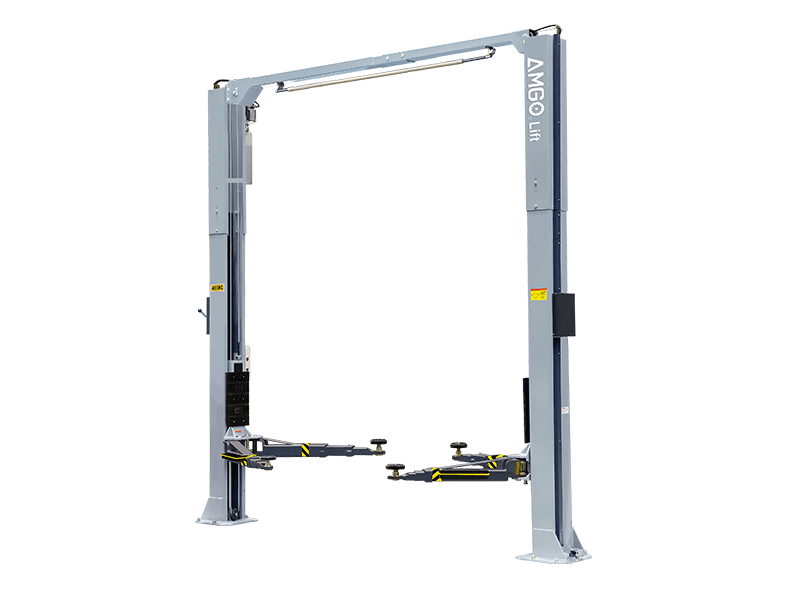

A240C

CLEAR FLOOR DIRECT-DRIVED TWO POST LIFT


The A240C has been designed to meet a wide range of requirements, offering versatility and efficiency. With a load capacity of 4000 kg, it offers two standard height settings and expandable width/height options (with optional kits) to adapt to any work area. The standard three-stage arms and single-point manual lock release facilitate efficient servicing of a wide range of vehicles.

Detailed Product Information

  • Lifting capacity: 4000KG;
  • Clear-floor design, enables an unobstructed floor use;
  • 24V safe electrical control system, with high limit switch device;
  • Overhead safety shut-off device prevents vehicle damage;
  • Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;
  • Includes adjustable two-height settings to accommodate different ceiling heights;
  • Four 3-stage arms are suitable for more vehicle;
  • Aero cables are used for synchronization;
  • Self-lubricating UHMW polyethylene sliders;
  • Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
  • Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
  • Automatic arms restraints;
  • Detachable foot guards and tool trays come standard.

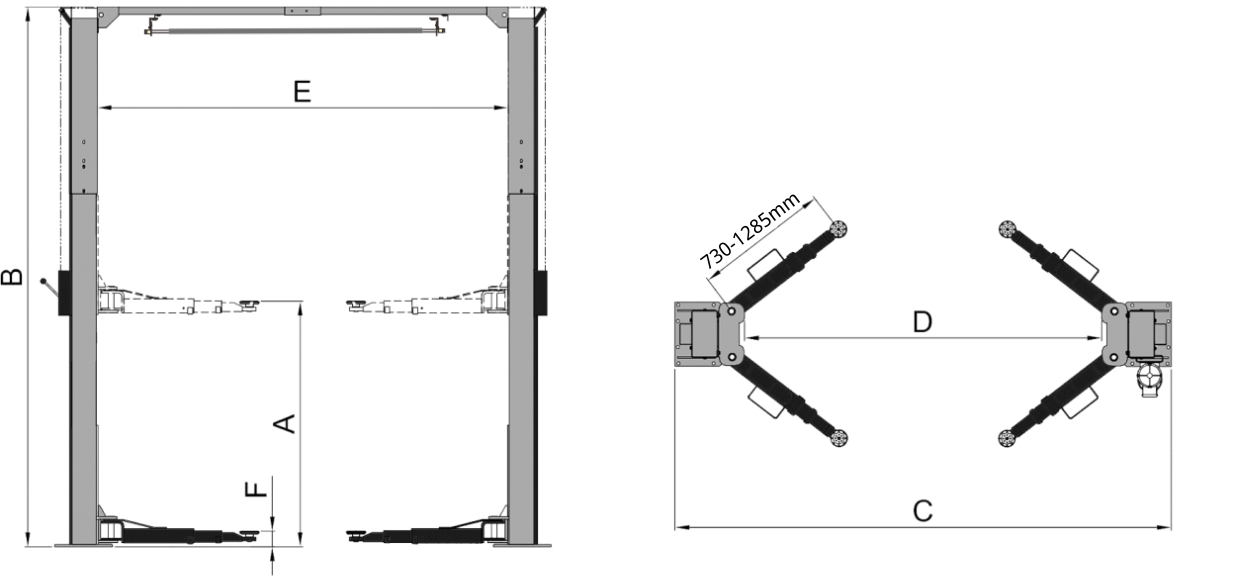

Model A240C



Clear floor two post lift

Lifting Capacity



4000kg

Lifting Time



57s

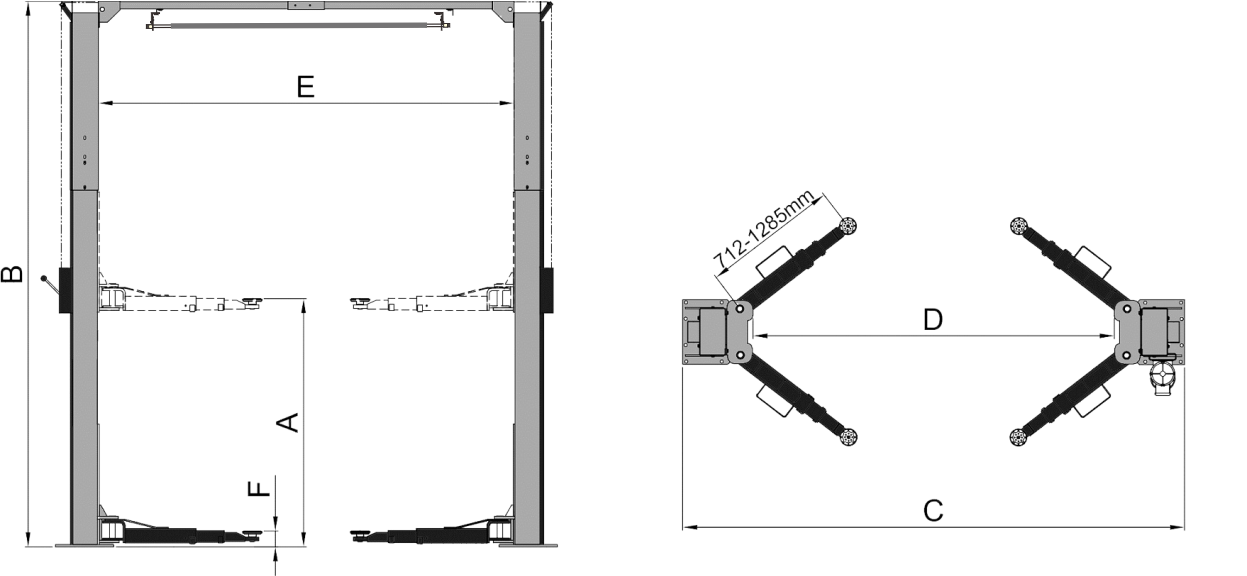

Max. Lifting Height:(w/o extension adapter)

A

1820~1868mm

Max. Lifting Height:(w/ extension adapter)

1896~1944mm

Max. Lock Height:(w/o extension adapter)

1773~1821mm

Max. Lock Height:(w/ extension adapter)

1849~1897mm

Overall Height

B

3635mm

3835mm

Overall Width

C

3428mm

Drive-Thru Clearance

D

2528mm

Width Between Columns

E

2850mm

Minimum Pad Height

F

95mm

Gross Weight



691kg

Motor



3.0HP

QTY of Container



25 Units/20'GP

50 Units/40'GP

Packing Dimension



2800 x 450 x 825 mm











140x140

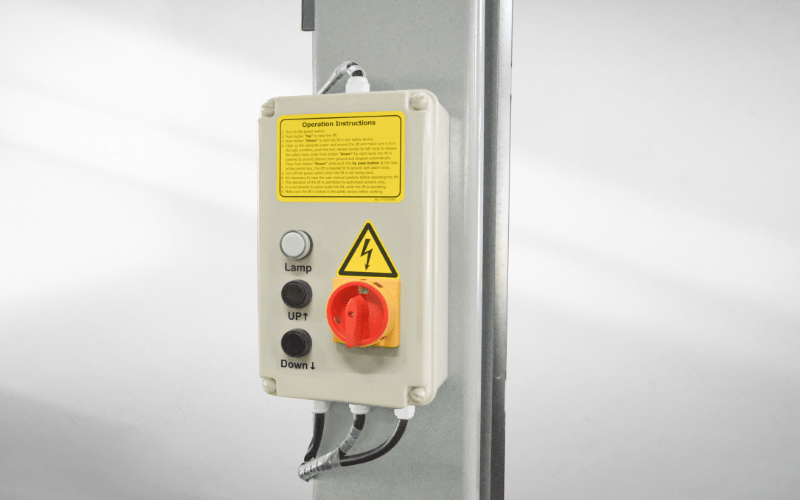

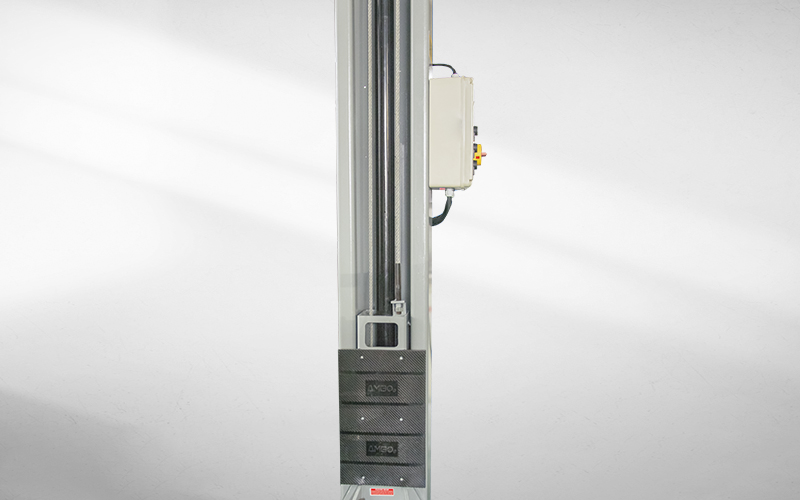

24V safe electrical control system, with high limit switch device.

140x140

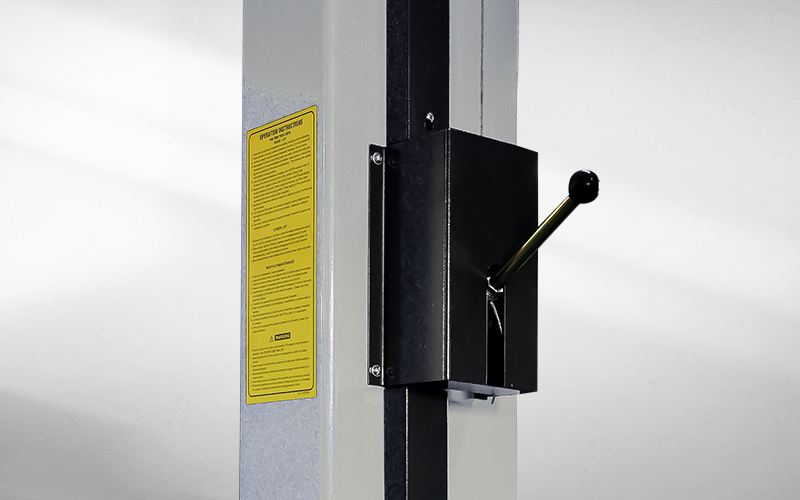

Single-point manual safety lock device for simultaneous unlocking of both columns.

140x140

The rubber mat protection against loading door,the door don't have to worry about.

140x140

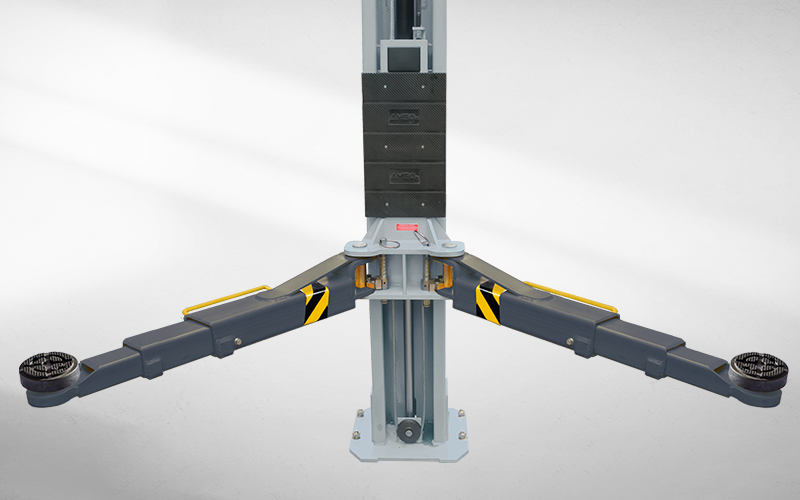

Four 3-stage arms are suitable for more vehicle.



140x140

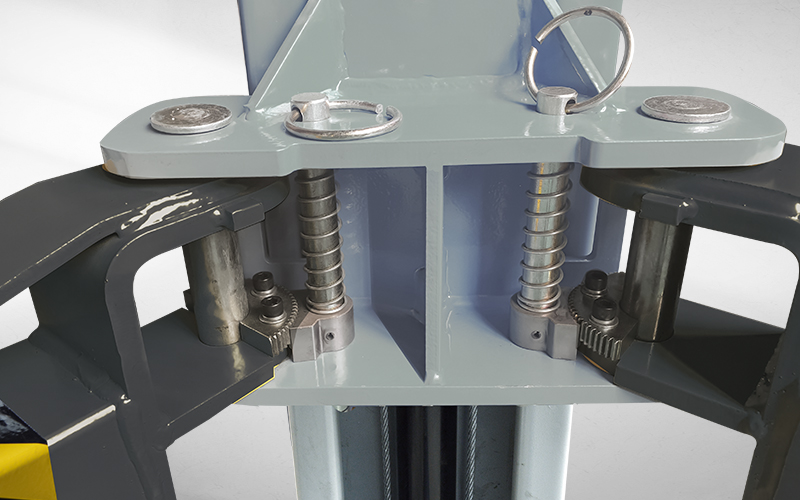

Automatic arms restraints.

140x140

Dual direct-drive hydraulic cylinders.

140x140

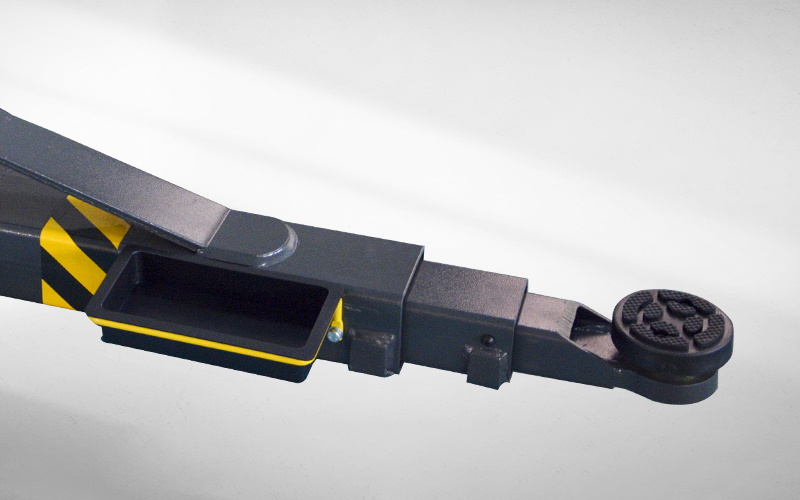

Detachable foot guards and tool trays come standard.

140x140

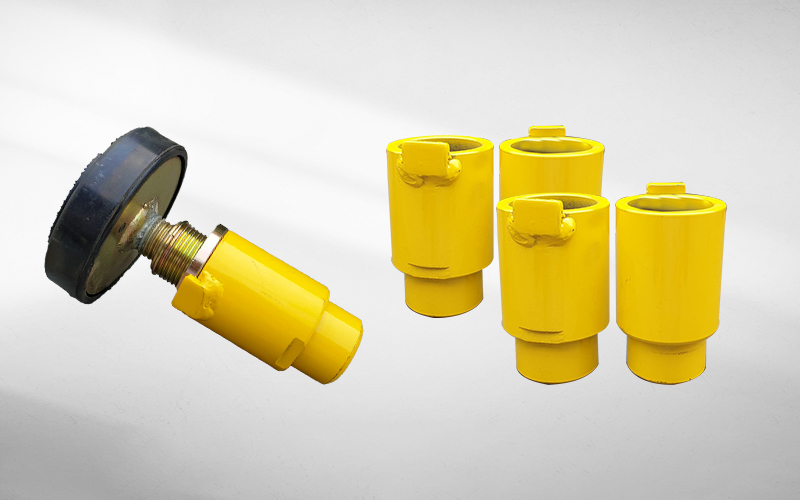

Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter.



140x140

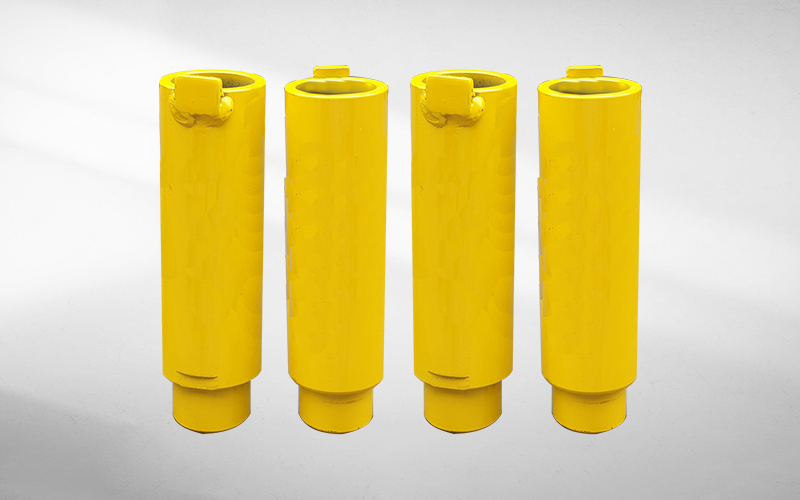

6" extension adapter comes as optional. P/N: 1102504001

140x140

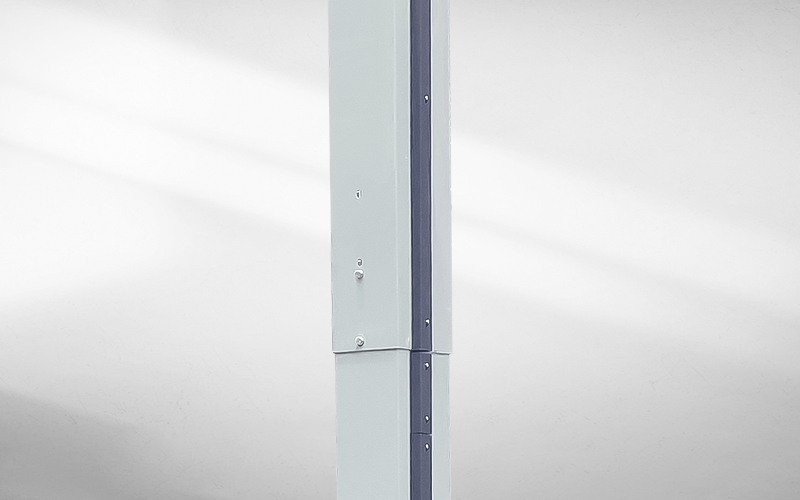

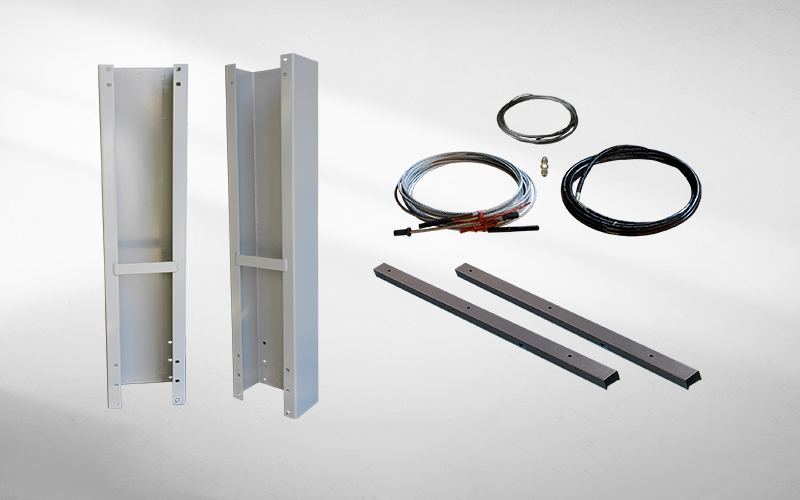

Optional Height Extension Kits.With these kits the overall height is adjusted from 3821mm to 4431mm.Kits No.: 20902

140x140

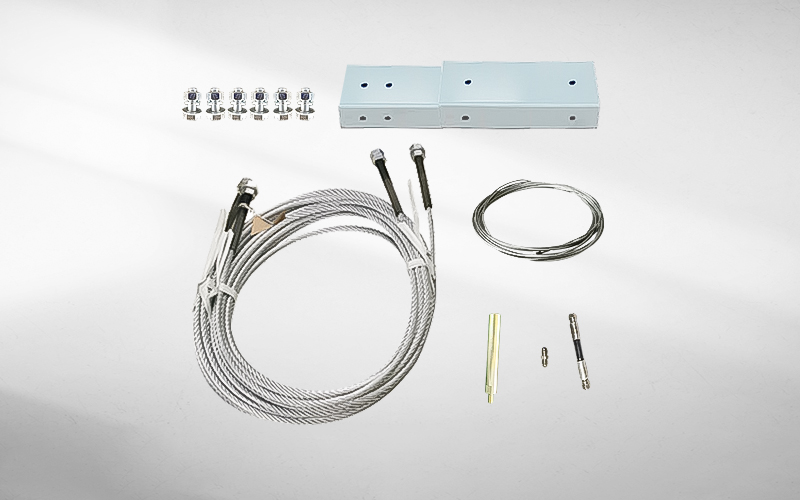

Optional Width Extension Kits. With these kits the width between posts can be adjusted from 2850 to 3000mm. Kits No.: 20906
