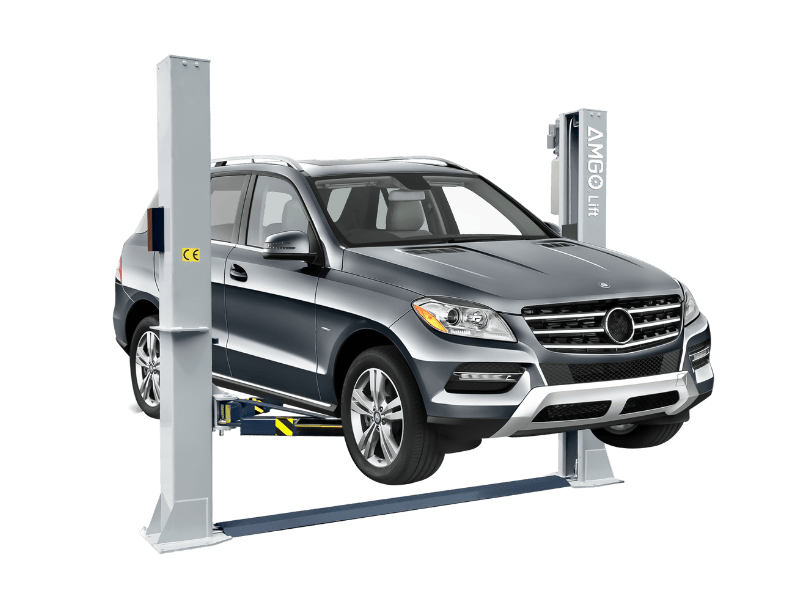

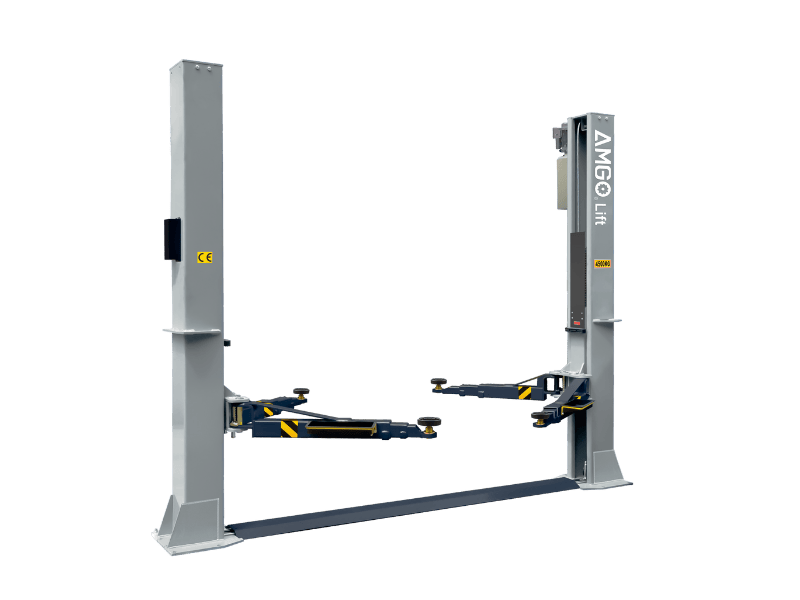

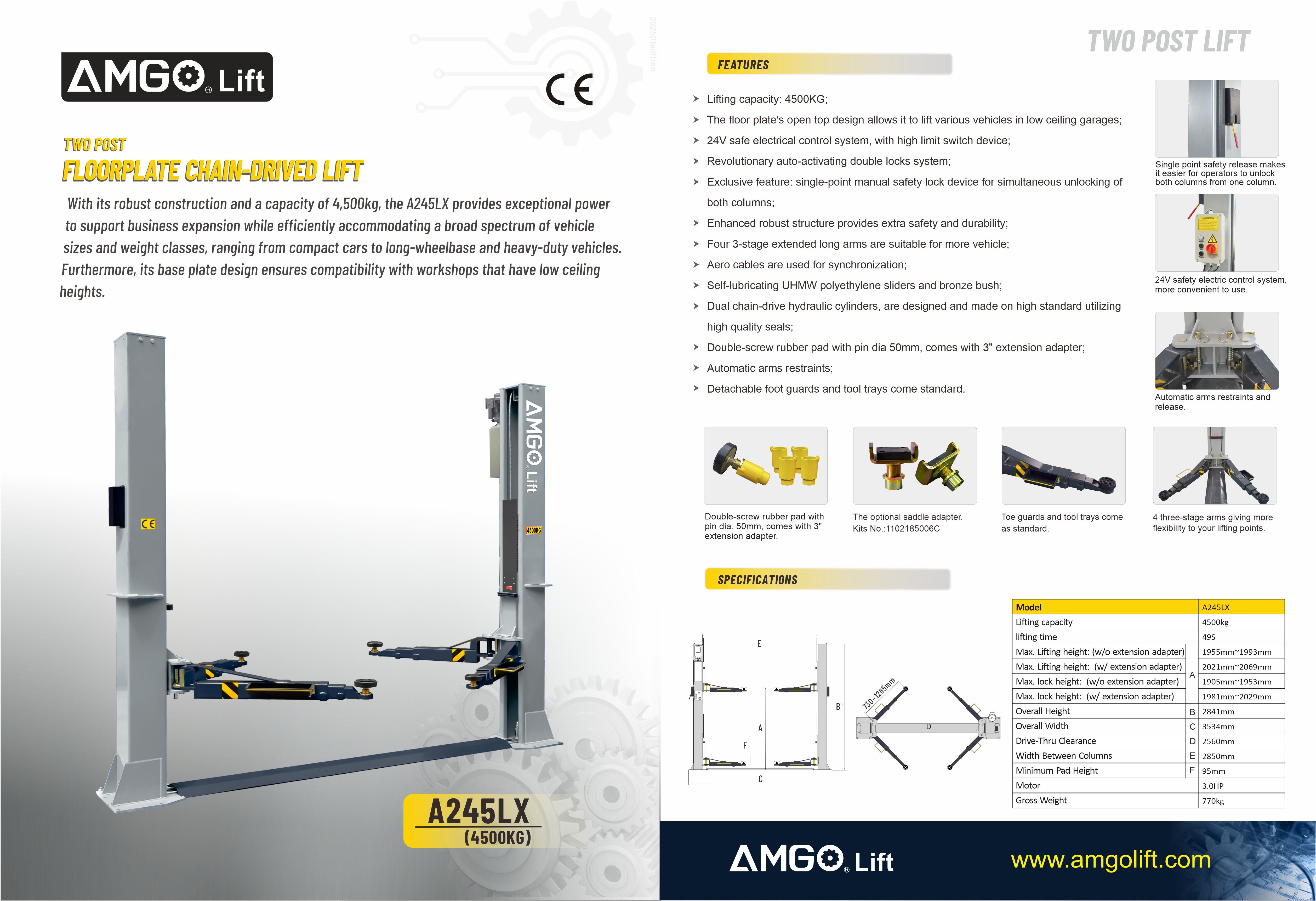

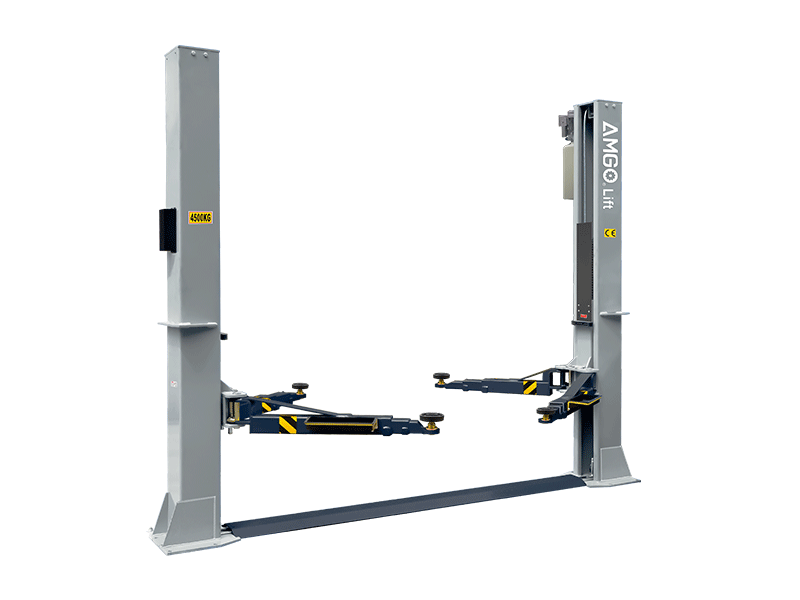

A245LX

FLOOR PLATE CHAIN-DRIVED TWO POST LIFT

With its robust construction and a capacity of 4,500 kg, the A245LX provides exceptional power to support business expansion while efficiently accommodating a broad spectrum of vehicle sizes and weight classes, ranging from compact cars to long-wheelbase and heavy-duty vehicles. Furthermore, its base plate design ensures compatibility with workshops that have low ceiling heights.

Detailed Product Information

Lifting capacity: 4500KG;
The floor plate's open top design allows it to lift various vehicles in low ceiling garages;
24V safe electrical control system, with high limit switch device;
Revolutionary auto-activating double lock system;
Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;
Enhanced robust structure provides extra safety and durability;
Four 3-stage extended long arms are suitable for more vehicle;

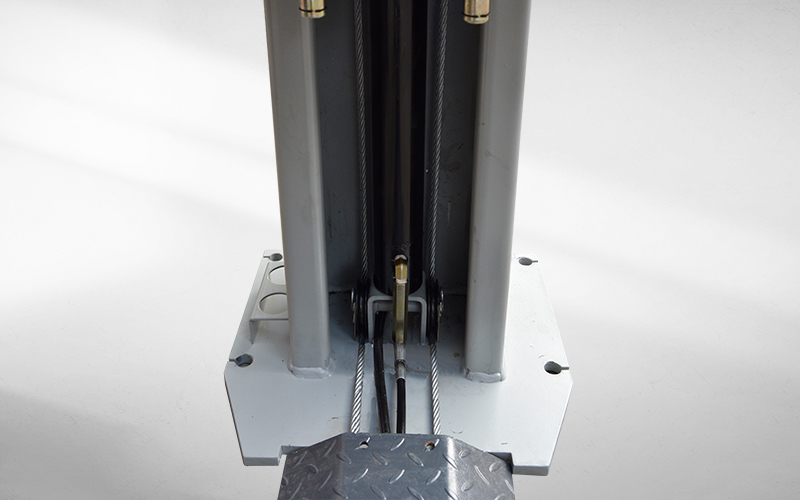

Aero cables are used for synchronization;
Self-lubricating UHMW polyethylene sliders;
Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;

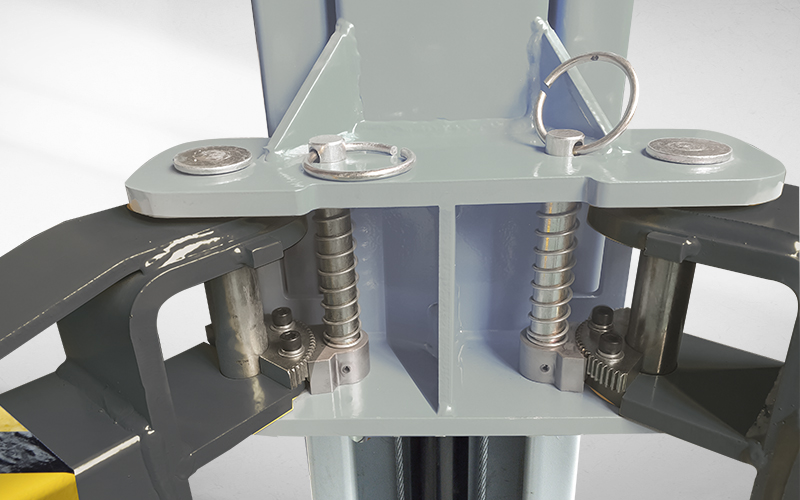

Automatic arms restraints;
Detachable foot guards and tool trays come standard.

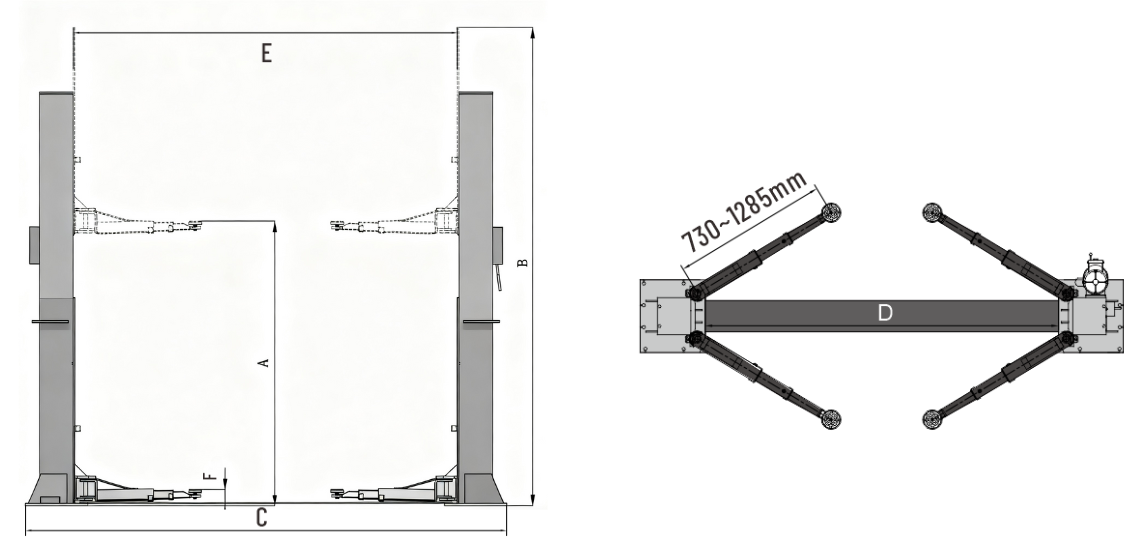

Model		A245LX
Lifting Capacity		4500kg
Lifting Time		62s
Max. Lifting Height: (w/o extension adapter)	A	1940 ~ 1988mm
Max. Lifting Height: (w/ extension adapter)		2016 ~ 2064mm
Max. Lock Height: (w/o extension adapter)		1900 ~ 1948mm
Max. Lock Height: (w/ extension adapter)		1976 ~ 2024mm
Overall Height	B	2841mm
Overall Width	C	3534mm
Drive-Thru Clearance	D	2560mm

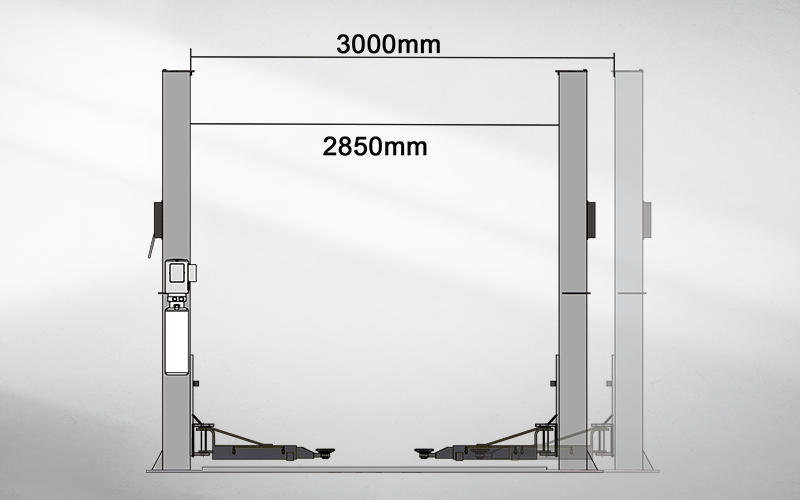

Width Between Columns	E	2850mm
Minimum Pad Height	F	90mm
Gross Weight		762kg
Motor		3.0HP
QTY of Container		16 Units / 20'GP

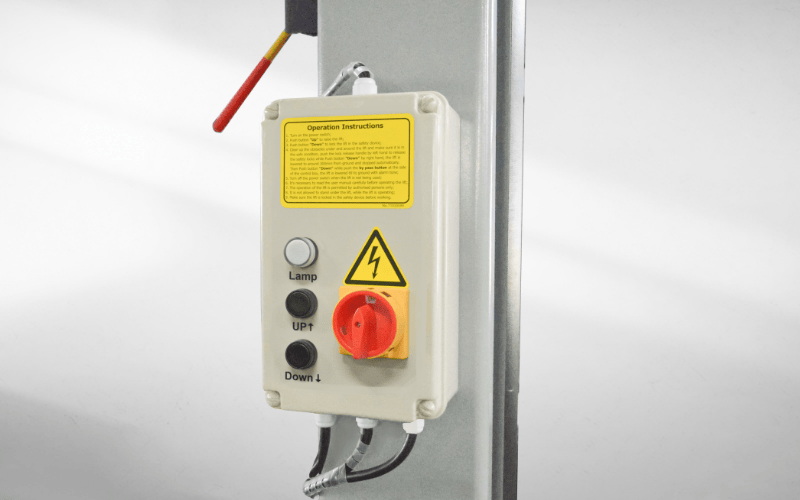

24V safe electrical control system, with high limit switch device.

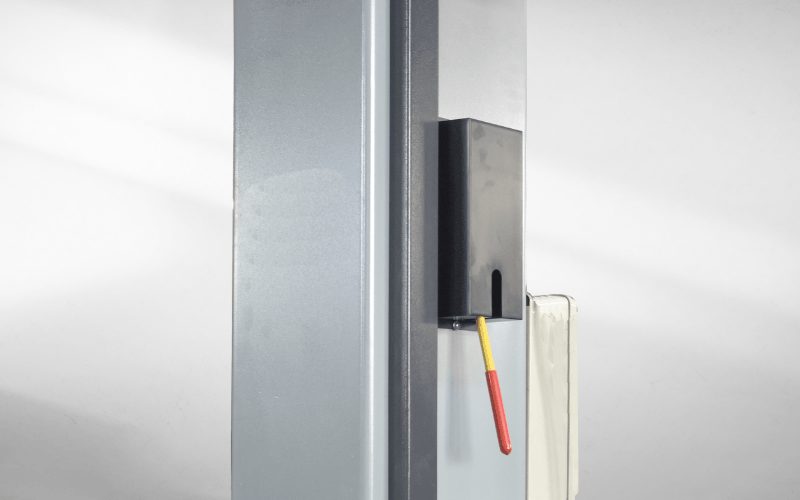

Single-point manual safety lock device for simultaneous unlocking of both columns.

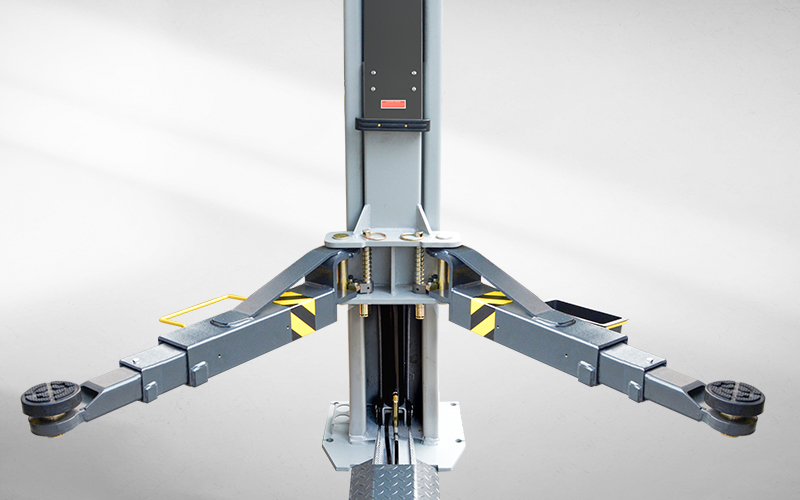

Four 3-stage extended long arms are suitable for more vehicle.
Automatic arms restraints;
Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals.

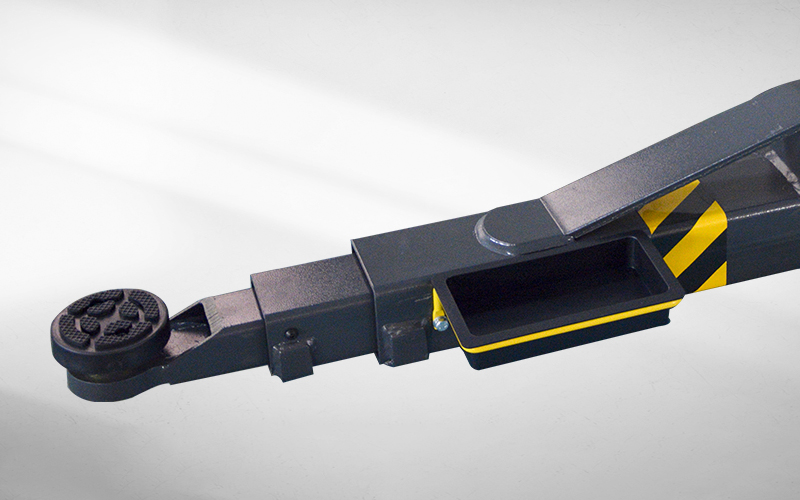

Detachable foot guards and tool trays come standard.

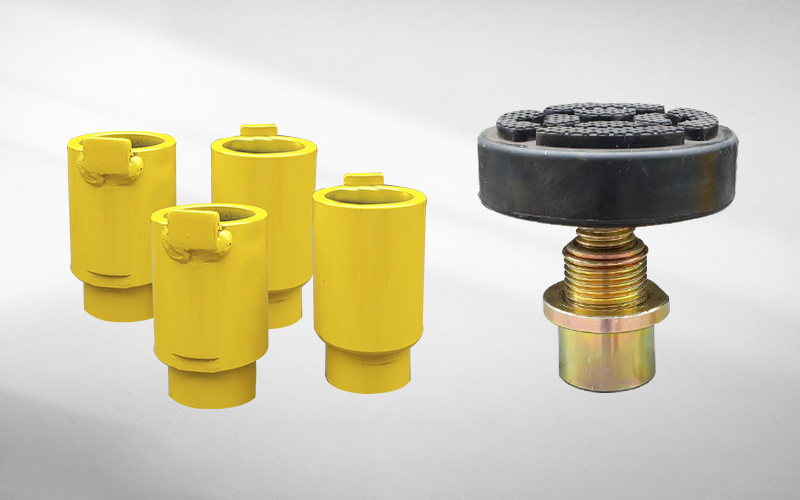

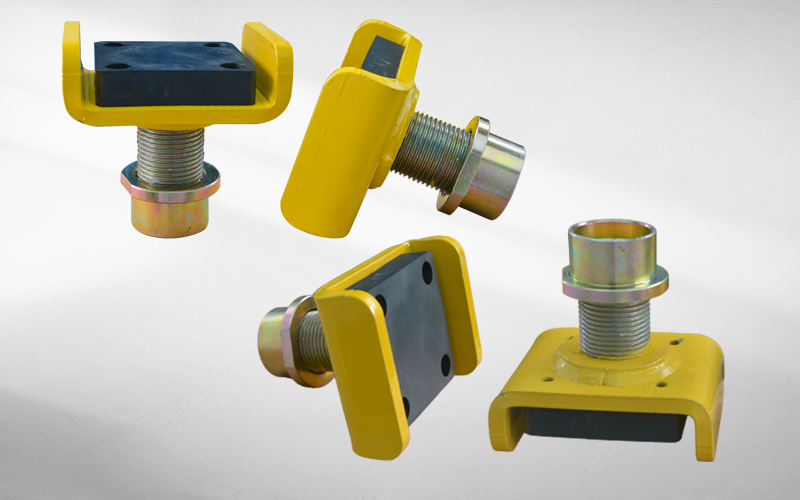

Double-screw rubber pad with pin dia50mm, comes with 3" extension adapter.

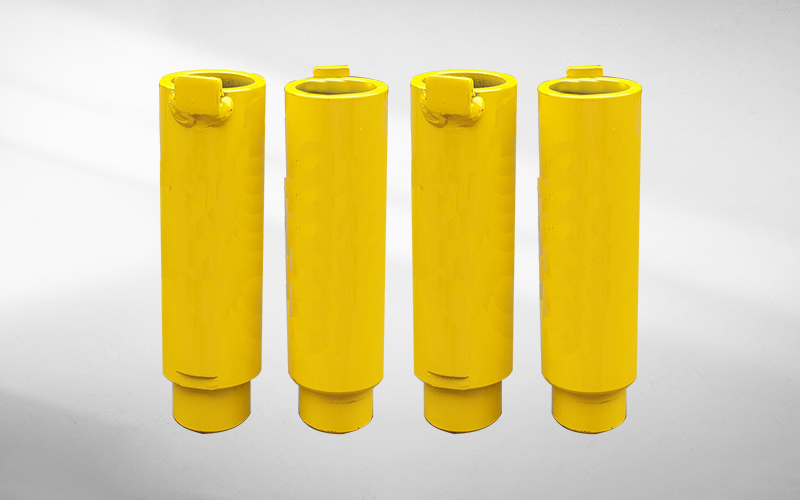

6" extension adapter comes as optional.
P/N:1102504001-01

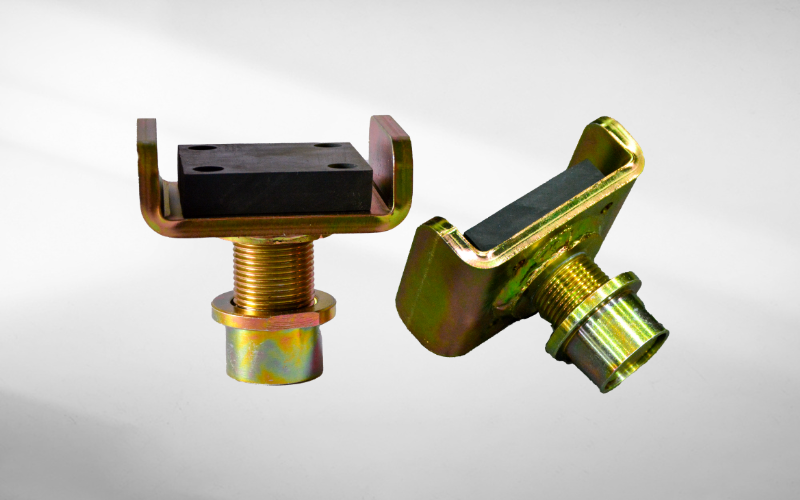

The optional saddle adapter.
Kits No.: 1102185006C
