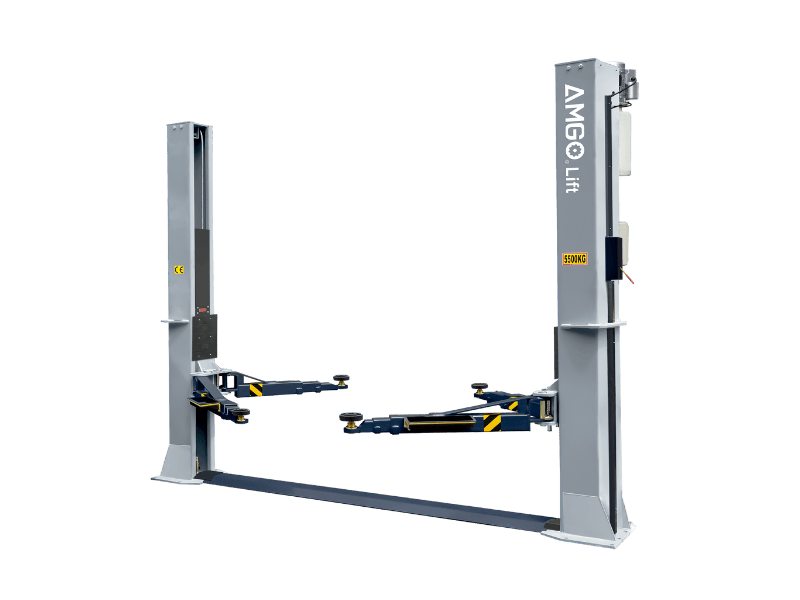

A255

FLOOR PLATE CHAIN-DRIVED TWO POST LIFT

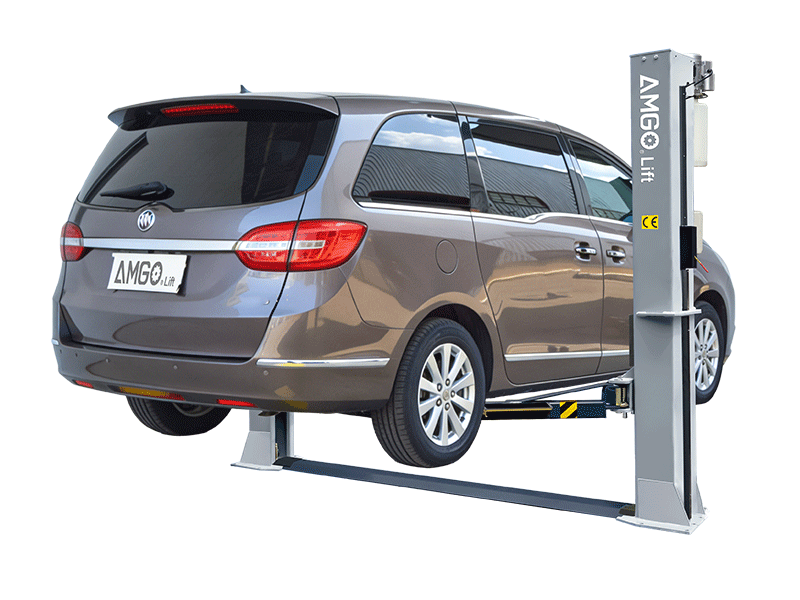

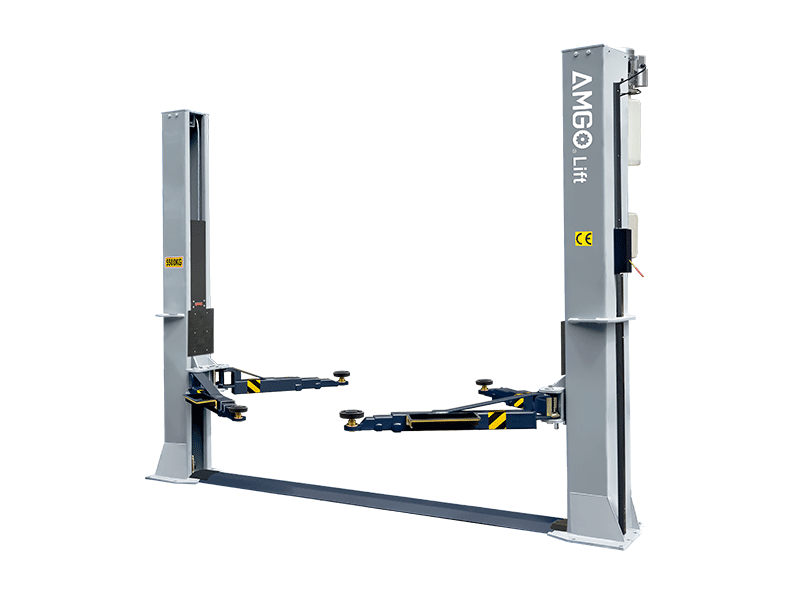

The AMGO A255 stands out from the competition thanks to its two standard width settings, which can be set up flexibly. With a large capacity of 5,500 kg and a reinforced construction, the A255 can handle your daily tasks with ease, lifting everything from cars to trucks. As a base plate lift, it can be easily installed in garages with low ceilings.

Detailed Product Information

Heavy duty design, lifting capacity: 5,500kg;
The floor plate's open top design allows it to lift various vehicles in low ceiling garages;
24V safe electrical control system, with high limit switch device;
Revolutionary auto-activating double lock system;
Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;

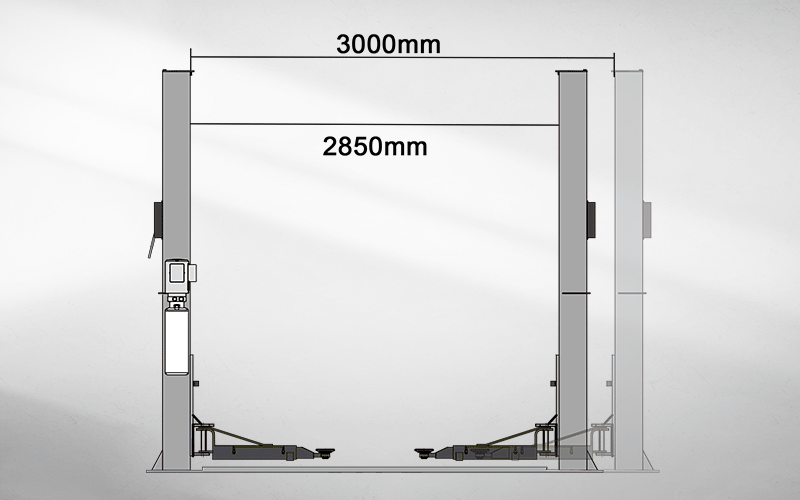

Exclusive feature: Comes standard with 2 adjustable width settings;
Four 3-stage arms can fit more vehicles ;
Extra-long 3-stage arms come optional ;
Aero cables are used for synchronization;
Self-lubricating UHMW polyethylene sliders and bronze bush;
Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Exclusive feature: Both single-screw rubber pads and saddle adapters are equipped as standard;
Both 3”and 6”extension adapters are equipped as standard;
Automatic arms restraints;
Detachable foot guards and tool trays come standard.

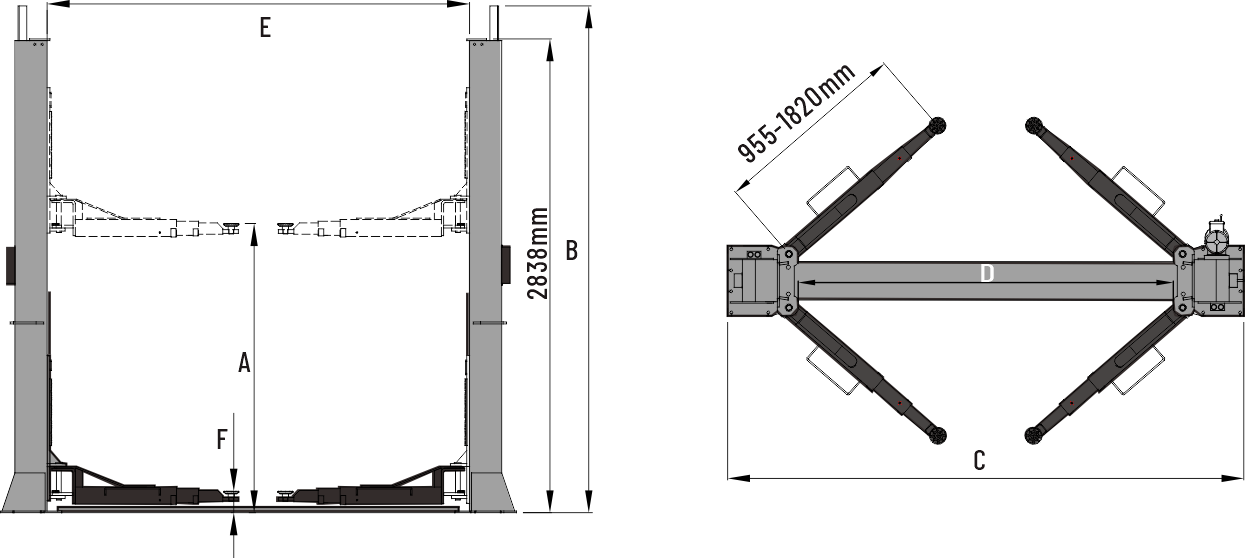

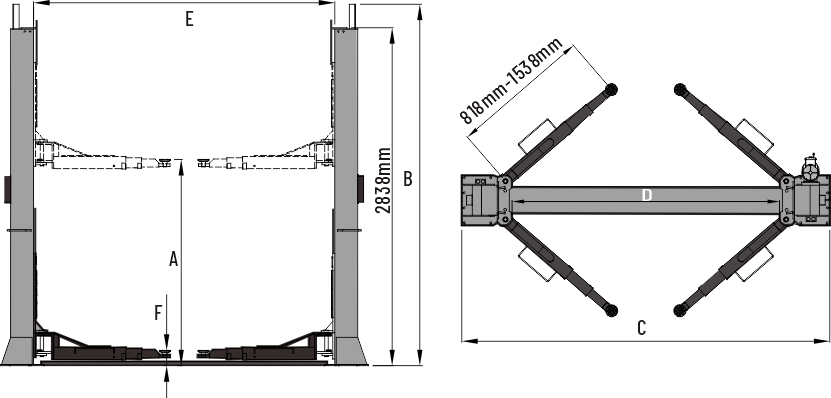

Model		A255
Lifting Capacity		5500kg
Lifting Time		65s
Max. Lifting Height: (w/o extension adapter)	A	1842 ~ 1876mm
Max. Lifting Height: (w/ extension adapter)		2071 ~ 2105mm
Max. Lock Height: (w/o extension adapter)		1792 ~ 1826mm
Max. Lock Height: (w/ extension adapter)		2021 ~ 2055mm
Overall Height	B	3110mm
Overall Width	C	3692 / 3829mm
Drive-Thru Clearance	D	2653 / 2790mm
Width Between Columns	E	3000 / 3137mm
Minimum Pad Height	F	115mm
Gross Weight		1020kg
Motor		3.0HP
QTY of Container		16 Units / 20'GP

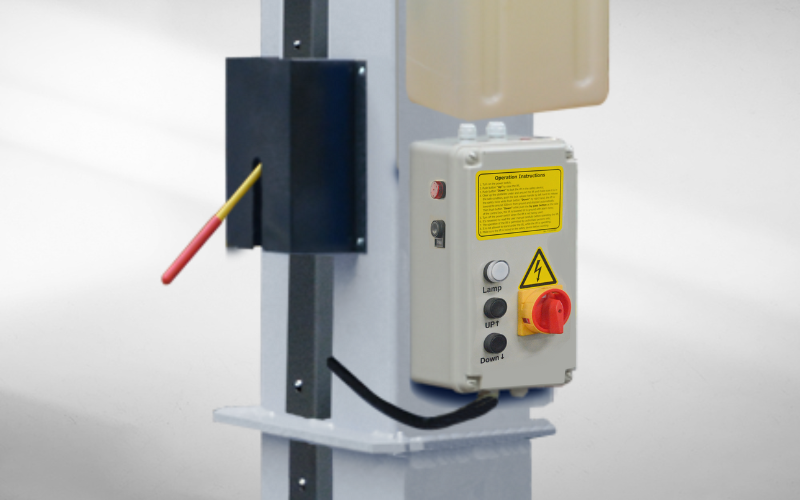

24V safe electrical control system, with high limit switch device.
Single-point manual safety lock device for simultaneous unlocking of both columns.
Automatic arms restraints.

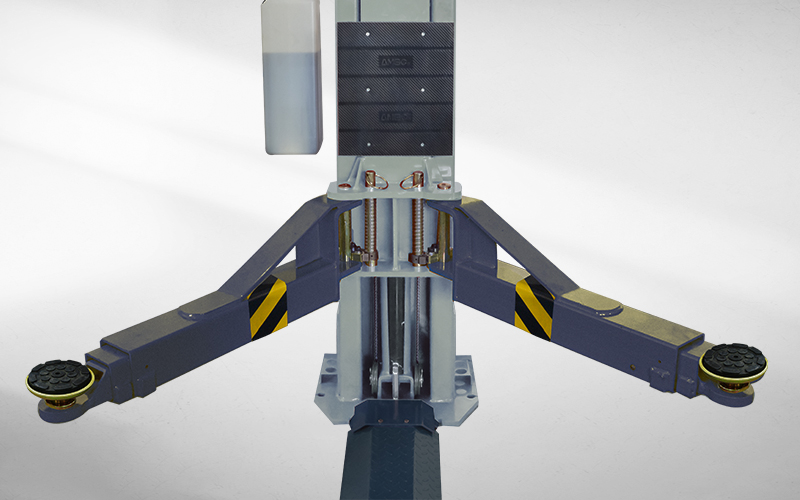

Four 3-stage symmetric arms fit for more vehicles.
Dual chain-drive hydraulic cylinders.
Detachable foot guards and tool trays come standard.

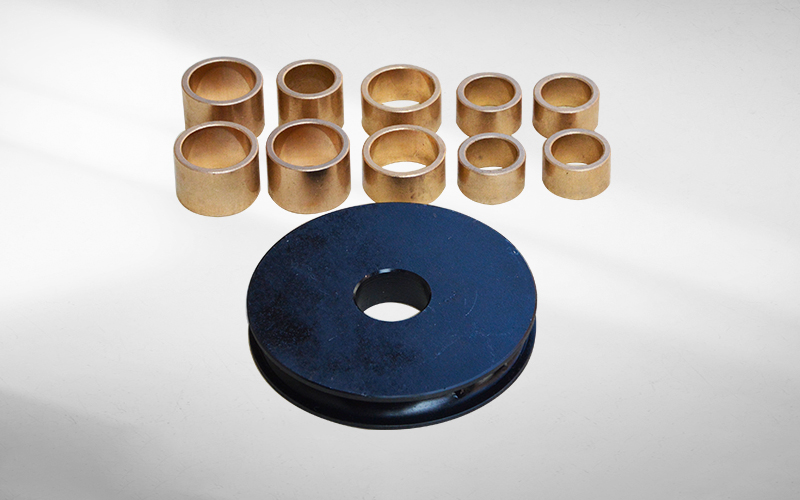

Self-lubricating bronze bush,no need frequently change.

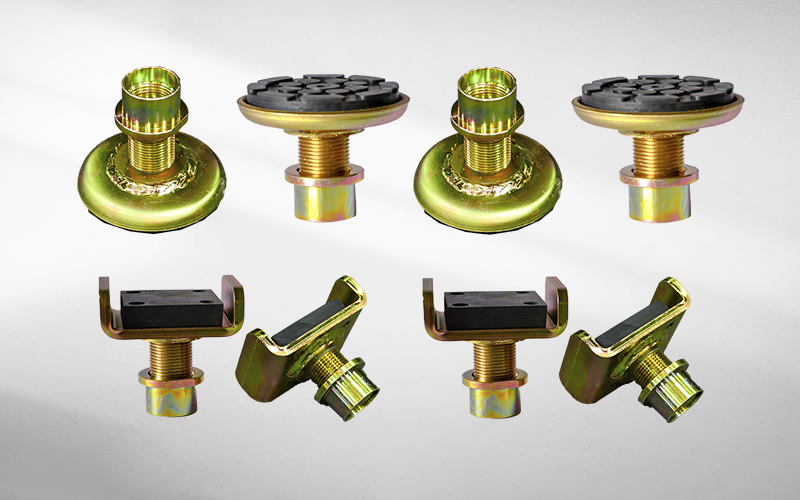

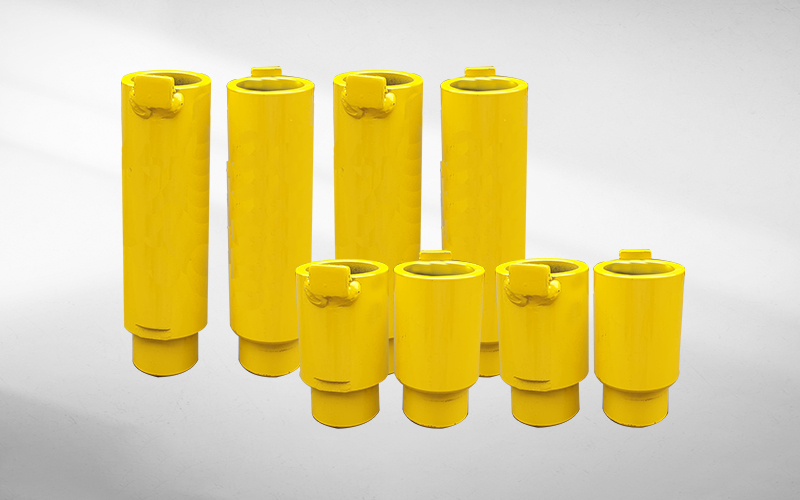

Both 3" and 6" extension adapters are equipped as standard.

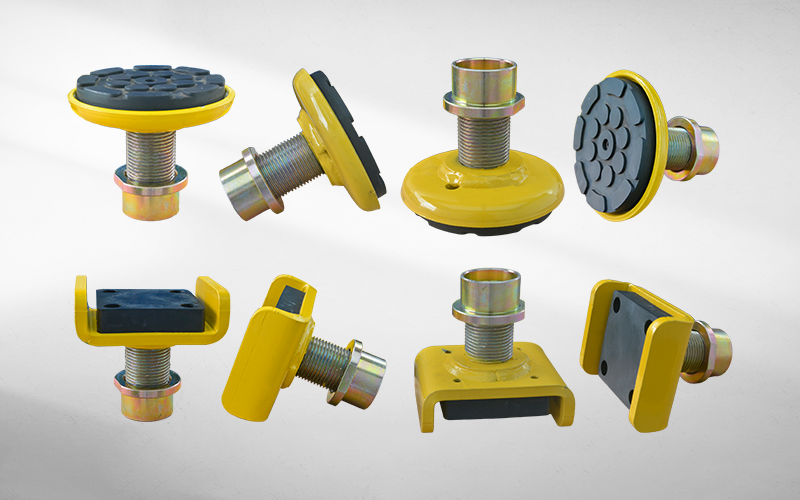

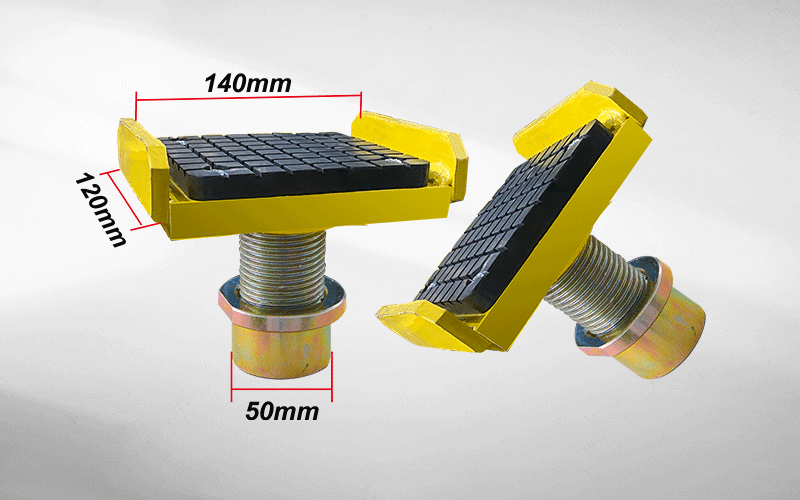

Both heavy duty single-screw rubber pads and saddle adapters come as standard.

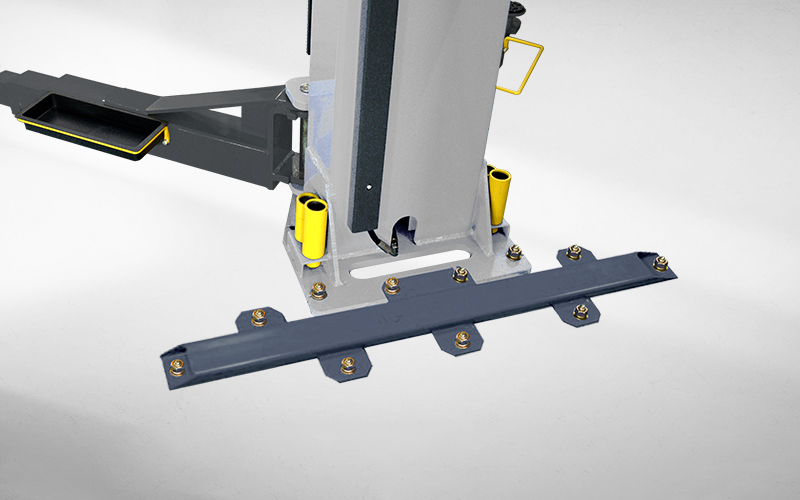

Optional Base Plate Kits No.: 21501, including extension frames, and 14pcs of standard anchor bolts.
Optional extra-long 3-stages arms are available for extra-long wheelbases.
Kits No.: 10207063-02

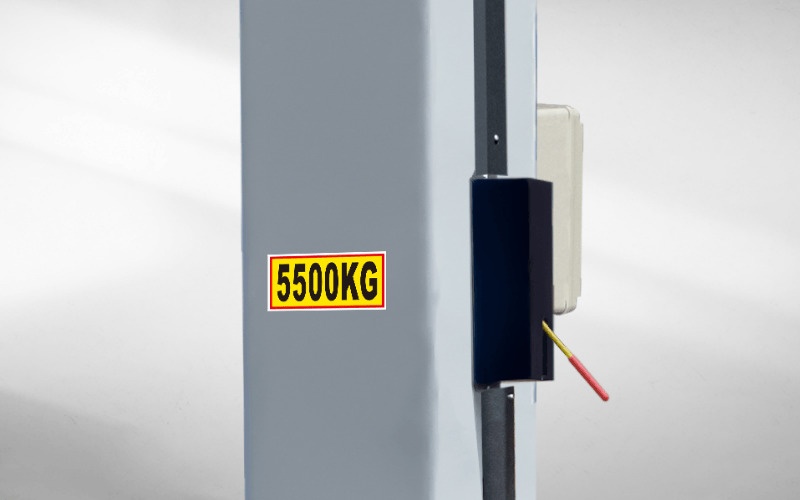

24V safe electrical control system, with high limit switch device.

Single-point manual safety lock device for simultaneous unlocking of both columns.

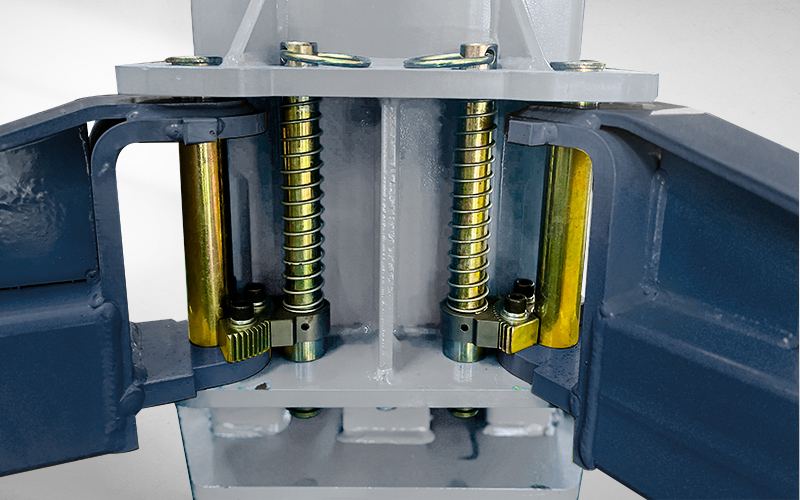

Automatic arms restraints.

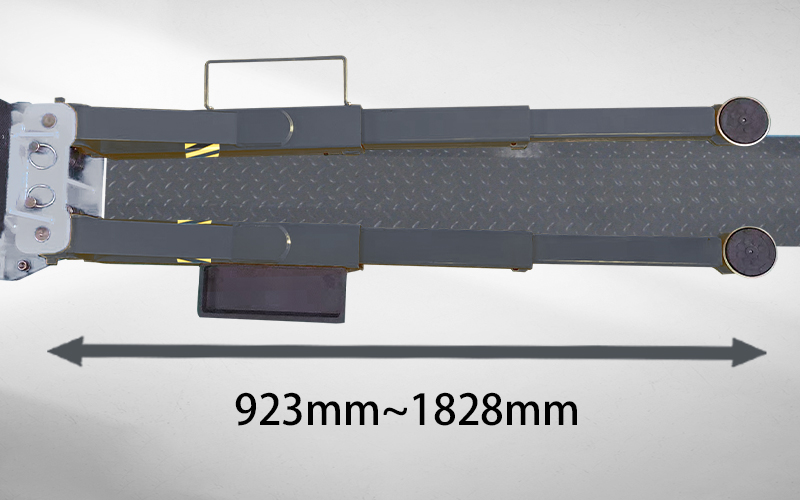

Four 3-stage symmetric arms fit for more vehicles.

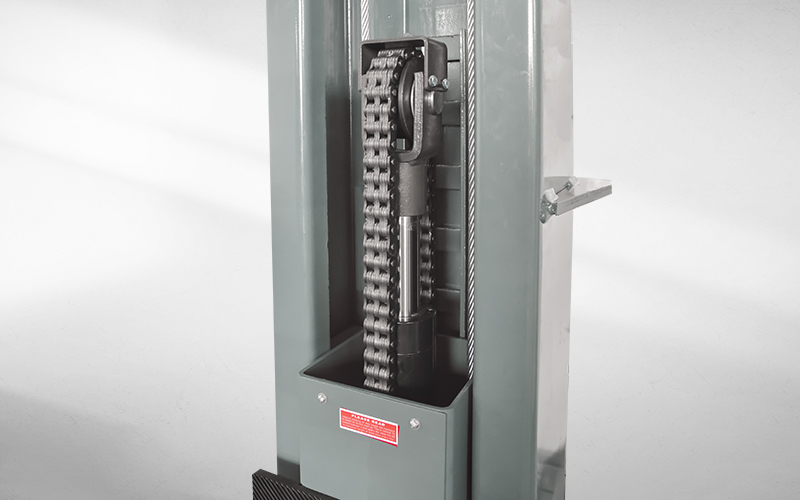

Dual chain-drive hydraulic cylinders.

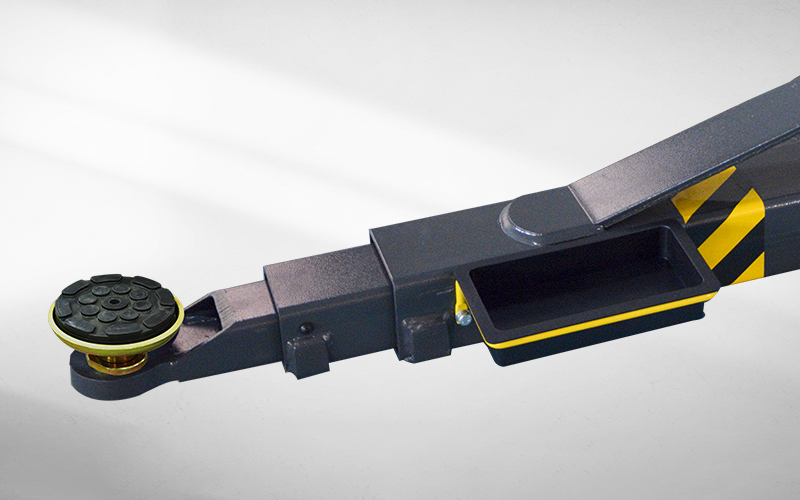

Detachable foot guards and tool trays come standard.

Self-lubricating bronze bush,no need frequently change.

Both 3" and 6" extension adapters are equipped as standard.

Both heavy duty single-screw rubber pads and saddle adapters come as standard.

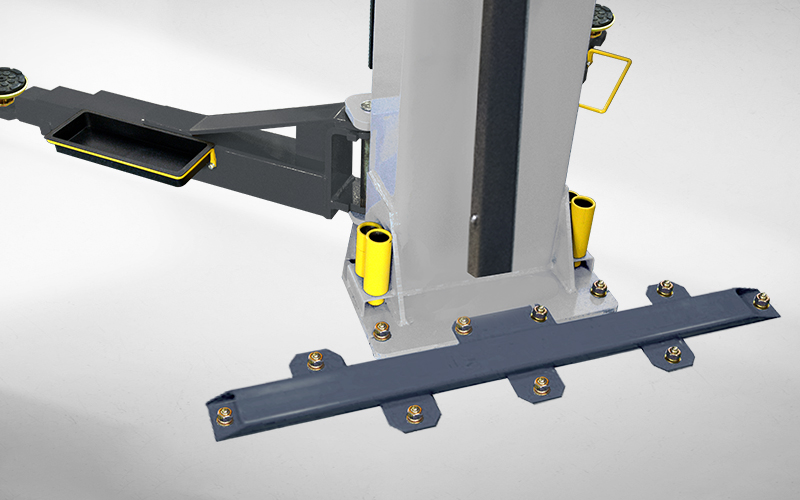

Optional Base Plate Kits No.: 21501, including extension frames, and 14pcs of standard anchor bolts.

Optional extra-long 3-stages arms are available for extra-long wheelbases. Kits No.: 10207063-02
