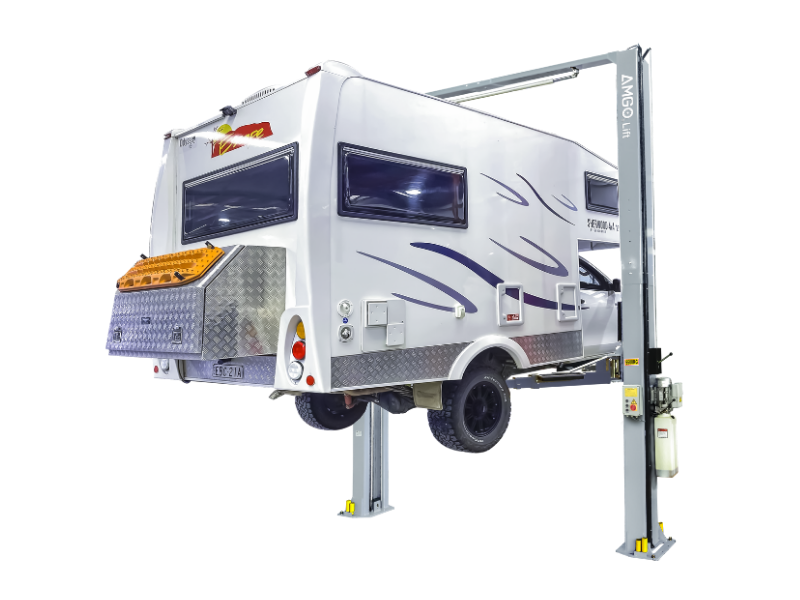

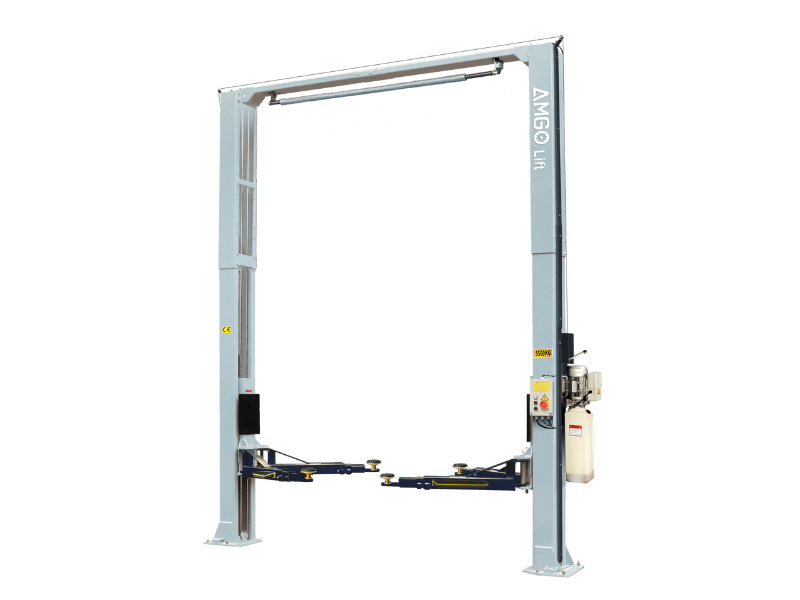

A255C

CLEAR FLOOR DIRECT-DRIVED TWO POST LIFT

With a vigorous structure designed for heavy duty purpose, it's a cinch for A255C to lift up a heavy duty vehicle or trucks. It offers three extreme height settings to accommodate various ceiling heights, also, it comes with rubber pads and saddle adapters as standard for flexible fitting to various vehicles.

Detailed Product Information

Heavy duty design, lifting capacity: 5500KG;
Clear-floor design, enables an unobstructed floor use;
24V safe electrical control system, with high limit switch device;
Overhead safety shut-off device prevents vehicle damage;
Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;
Super high design with adjustable three-height settings;
Super wide design with a width between columns over 3100mm;
Four 3-stage arms are suitable for more vehicle;
Extra long 3-stage arms are available as optional;
3in1 areo synchronization cables are used for three heights setting;
Self-lubricating UHMW polyethylene sliders
Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Both single-screw rubber pads and saddle adapters are equipped as standard;
Both 3" and 6" extension adapters are equipped as standard;
Automatic arms restraints;
Detachable foot guards and tool trays come standard.

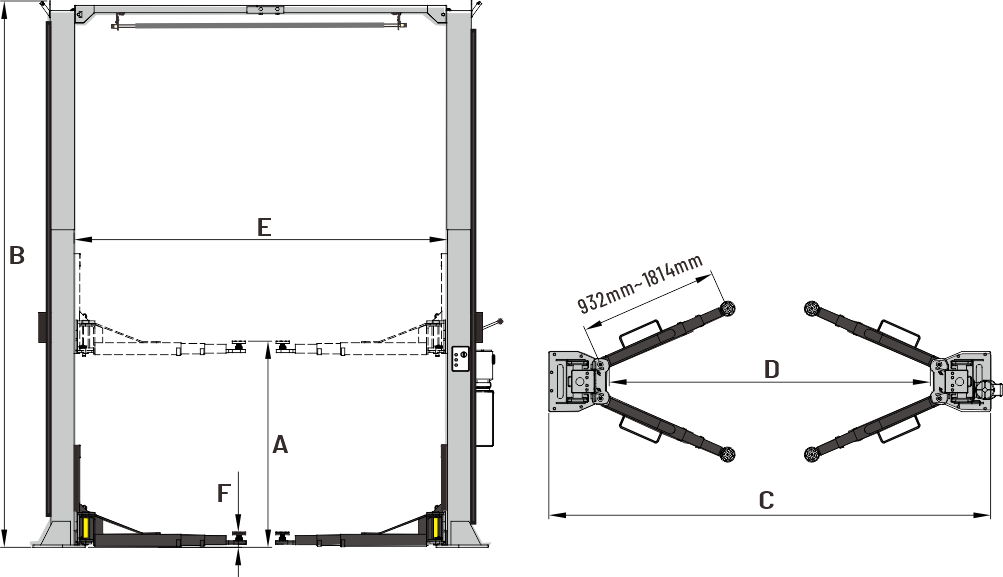

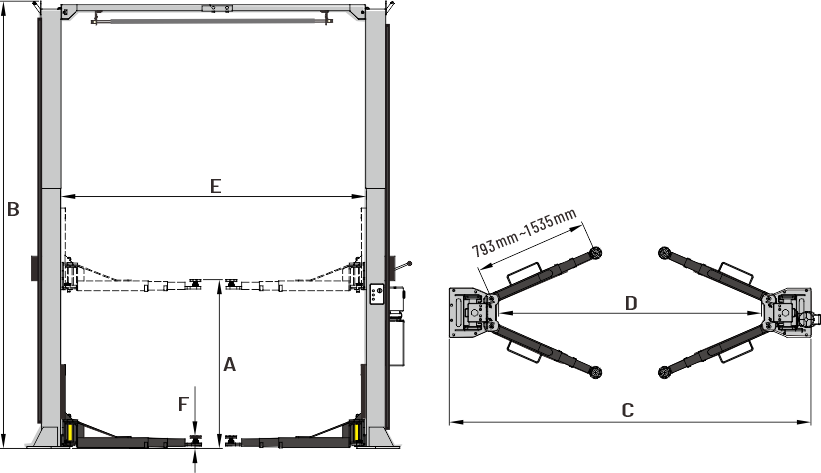

Model			A255C
Lifting Capacity			5500kg
Lifting Time			69s
	Max. Lifting Height: (w/o extension adapter)	A	1842 ~ 1876mm
	Max. Lifting Height: (w/ extension adapter)		2071 ~ 2105mm
	Max. Lock Height: (w/o extension adapter)		1792 ~ 1826mm
	Max. Lock Height: (w/ extension adapter)		2021 ~ 2055mm
Overall Height: (Low setting)		B	4420mm
Overall Height: (Medium setting)			4725mm
Overall Height: (High setting)			5030mm
Overall Width		C	3829mm
Drive-Thru Clearance		D	2787mm
Width Between Columns		E	3137mm
Minimum Pad Height		F	115mm
Gross Weight			1091kg
Motor			3.0HP
QTY of Container			14 Units / 20' GP

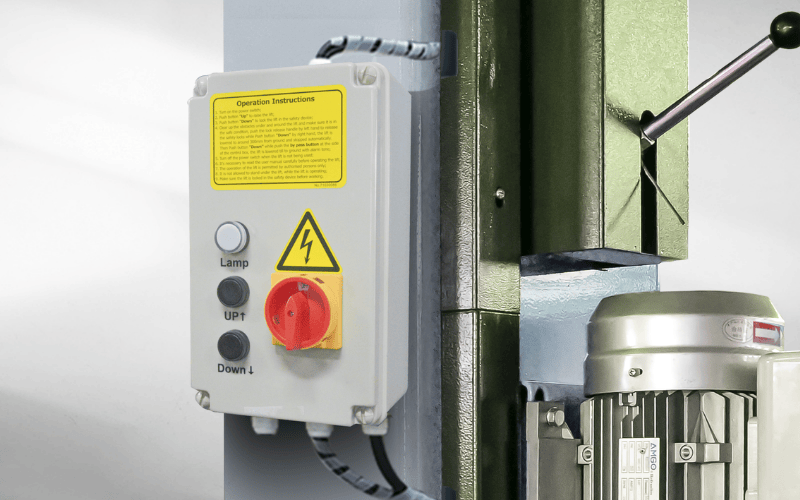

24V safe electrical control system, with high limit switch device.

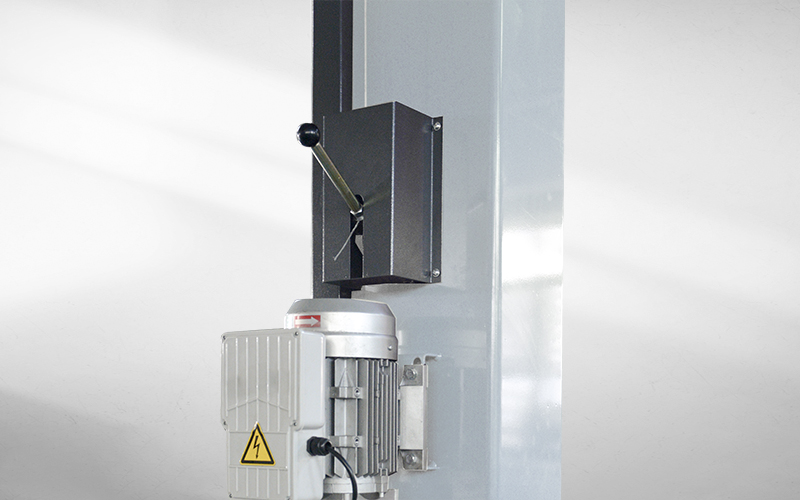

Single-point manual safety lock device for simultaneous unlocking of both columns.

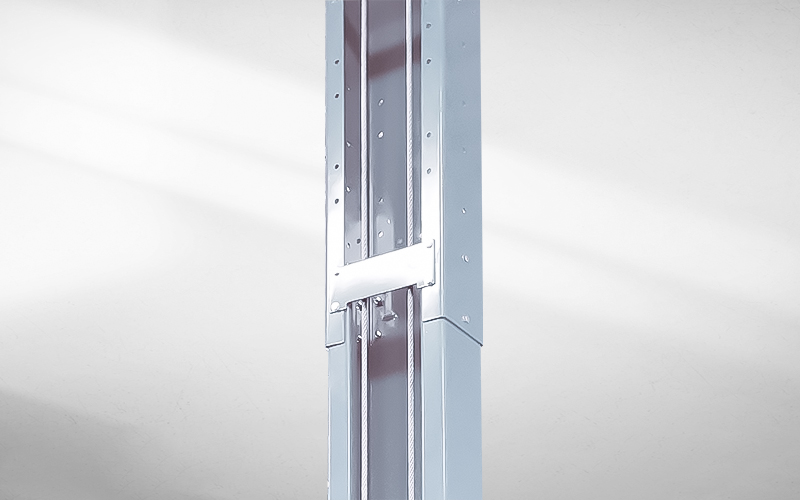

Super high design with adjustable three-height settings.

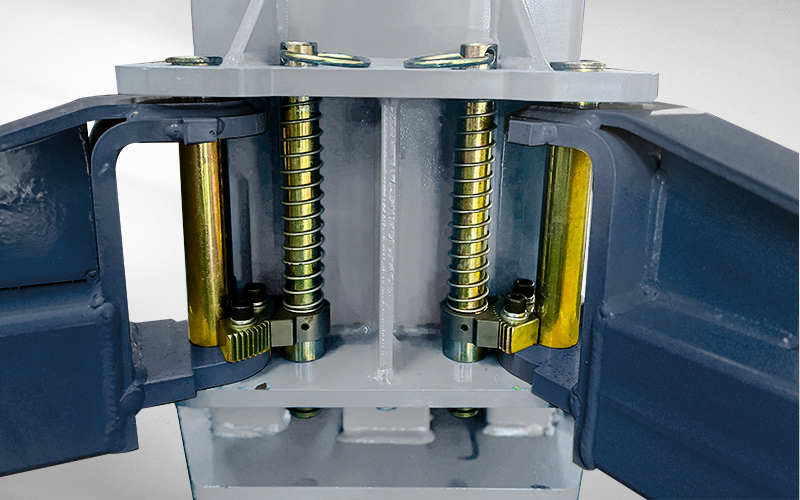

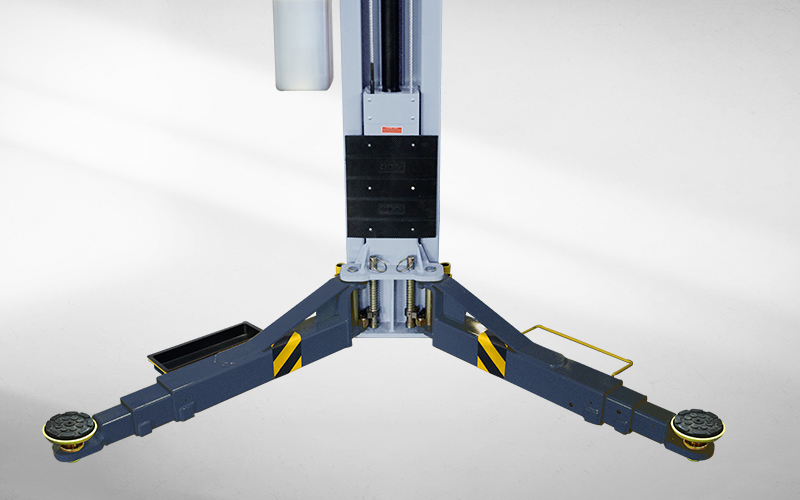

Automatic arms restraints.

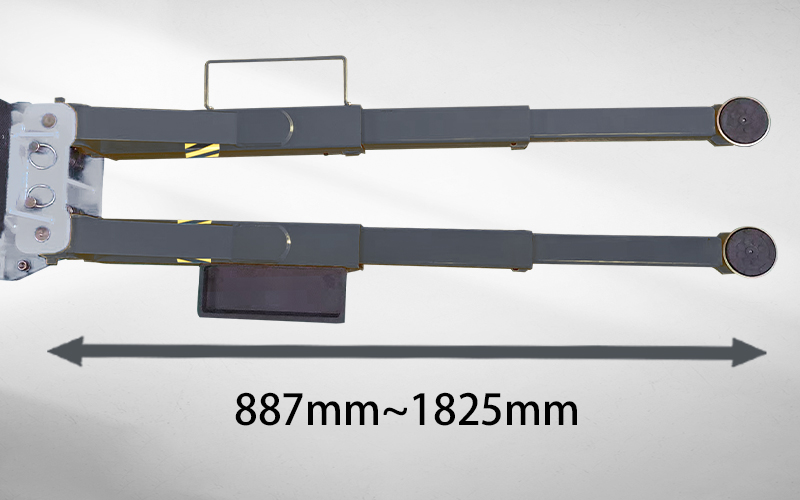

Four 3-stage arms are suitable for more vehicle.

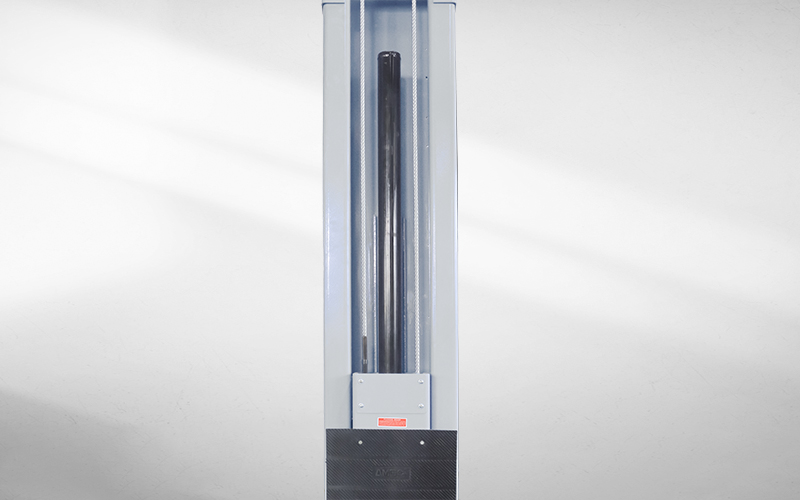

Dual direct-drived hydraulic cylinder.

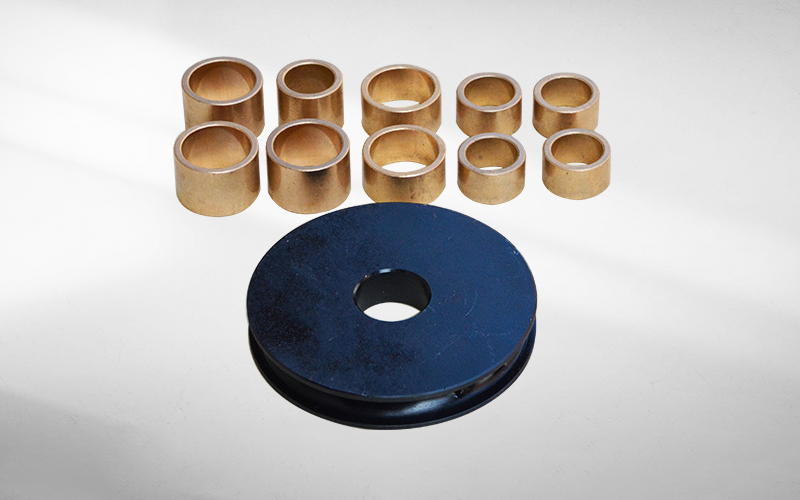

Self-lubricating bronze bush,no need for extra lubrication.

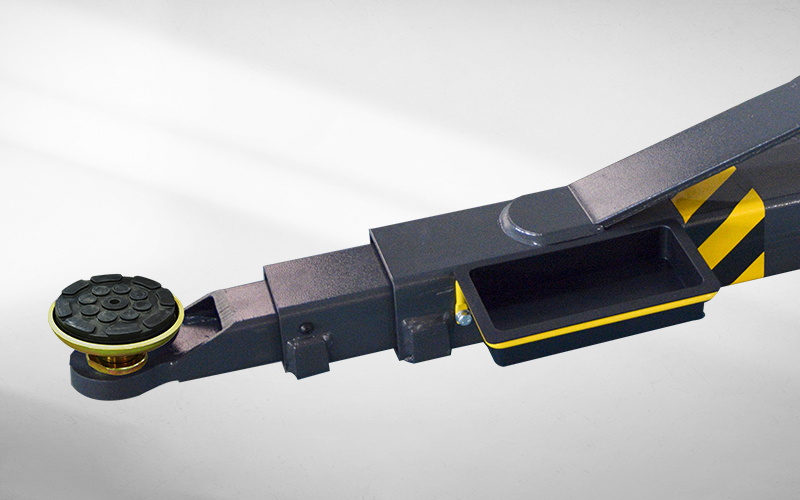

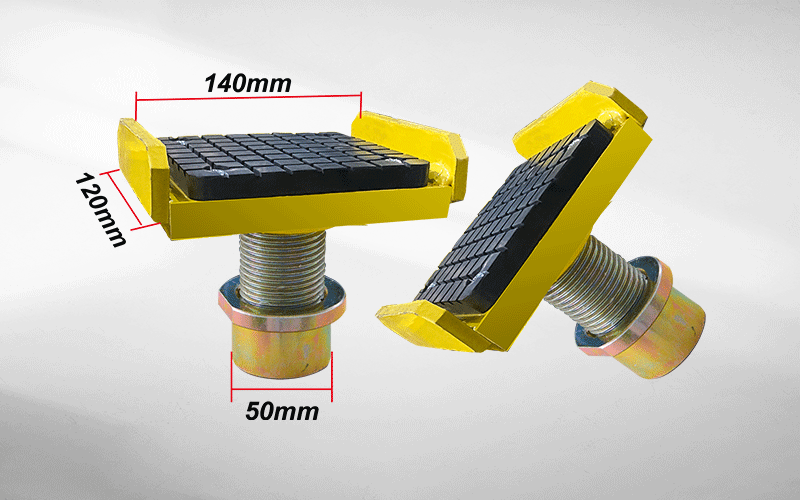

Both single-screw rubber pads and saddle adapters are equipped as standard.

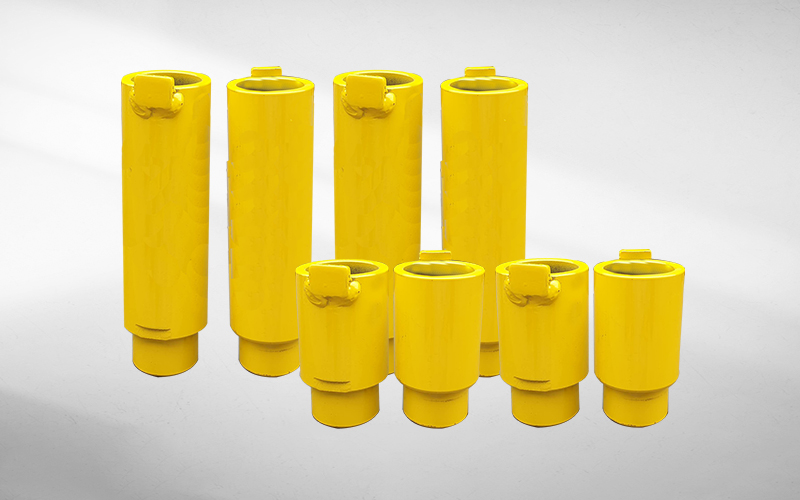

Both 3" and 6" extension adapters are equipped as standard.
Extra long 3-stage arms are available as optional.
Kits No.10217328-04

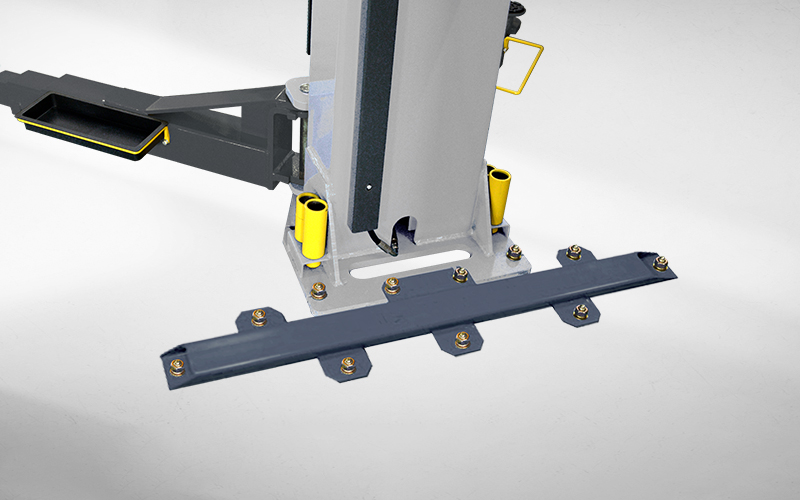

Optional Base Plate Kits No.21501,including extension frames,and 14pcs of our standard Anchor Bolts.
