A268C

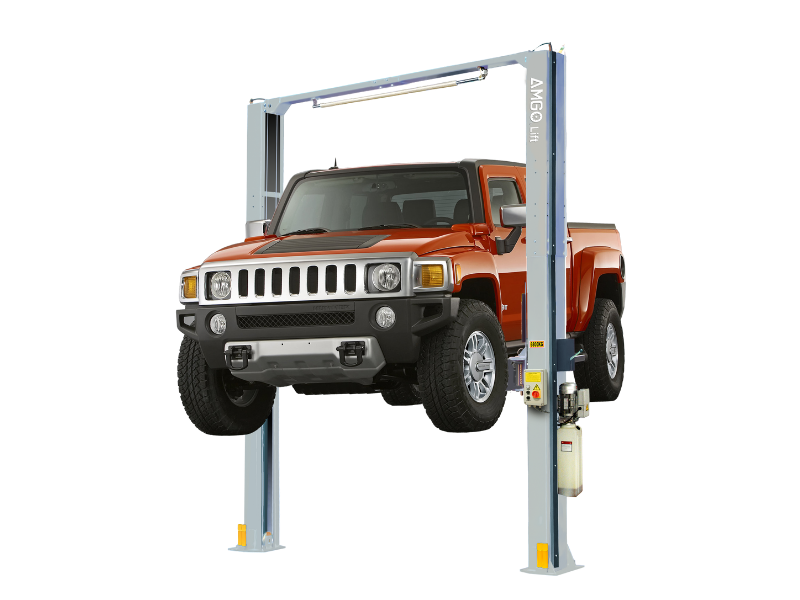

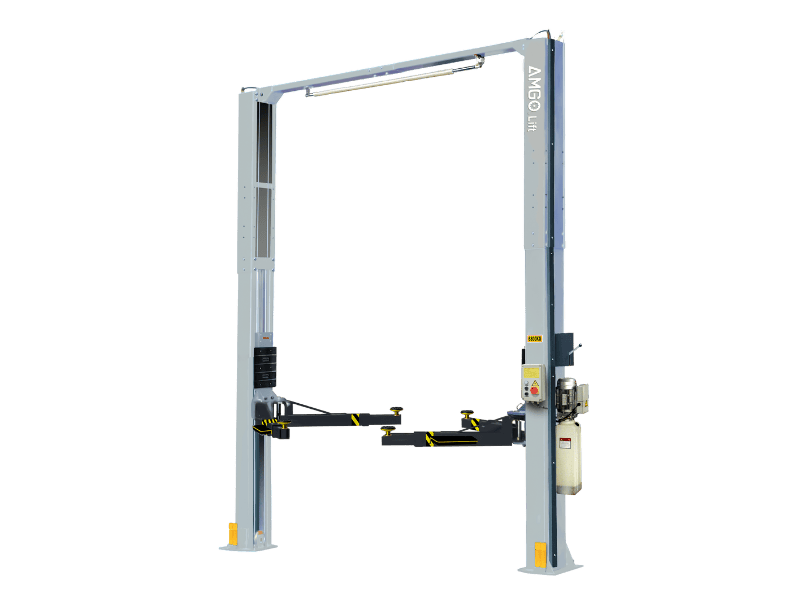

CLEAR FLOOR DIRECT-DRIVE TWO POST LIFT


Boasting a capacity of 6800KG, The A268C is a robust and versatile piece of equipment, capable of lifting loads ranging from vans to heavy-duty trucks with ease. It comes equipped with rubber pads and saddle adapters as standard, and offers three extreme height settings to accommodate different scenarios.

Detailed Product Information

  • Heavy duty design, lifting capacity: 6800KG;
  • Clear-floor design, enables an unobstructed floor use;
  • 24V safe electrical control system, with high limit switch device;
  • Overhead safety shut-off device prevents vehicle damage;
  • Exclusive feature: Single-point manual safety lock device for simultaneous unlocking of both columns;
  • Exclusive feature: Super high design with adjustable three-height settings;
  • Super wide design with a width between columns over 3100mm;
  • Four 2-stage rugged arms offer ample stability to lift various heavy vehicles;
  • Exclusive feature:  3 in1 Aero cables are used for synchronization;
  • Self-lubricating UHMW polyethylene sliders;
  • Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
  • Exclusive feature: Both single-screw rubber pads and saddle adapters are equipped as standard;
  • Both 3”and 6" extension adapters are equipped as standard;
  • Automatic arms restraints;
  • Detachable foot guards and tool trays come standard.

Model A268C



Clearfloor Direct-drived

Lifting Capacity



6800kg

Lifting Time



84s

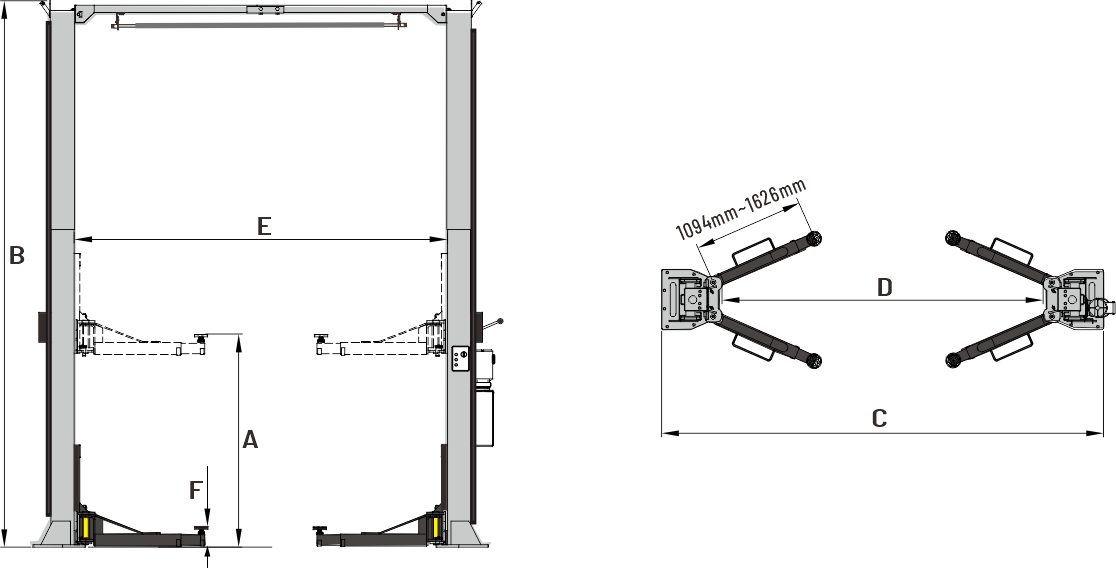

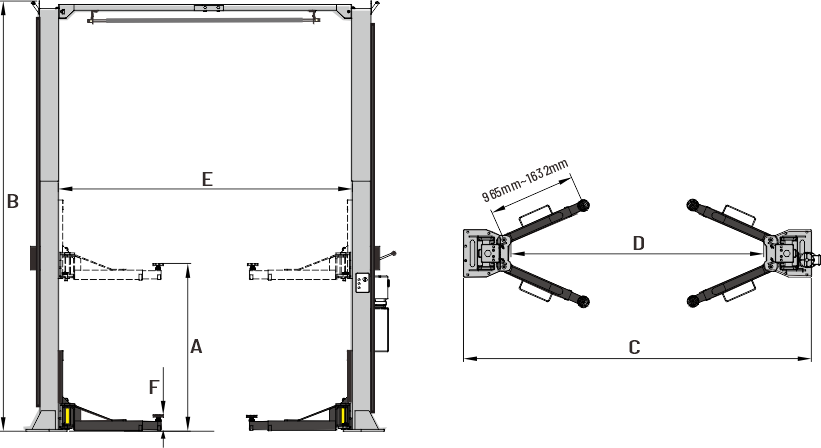

Max. Lifting Height:(w/o extension adapter)

A

1902~1936mm

Max. Lifting Height:(w/ extension adapter)

2131~2165mm

Max. Lock Height:(w/o extension adapter)

1852~1886mm

Max. Lock Height:(w/ extension adapter)

2081~2115mm

Overall Height:(Low setting)

B

4420mm

Overall Height:(Medium setting)

4725mm

Overall Height:(High setting)

5030mm

Overall Width

C

3829mm

Drive-Thru Clearance

D

2787mm

Width Between Columns

E

3137mm

Minimum Pad Height

F

175mm

Gross Weight



1086kg

Motor



3.0HP









140x140

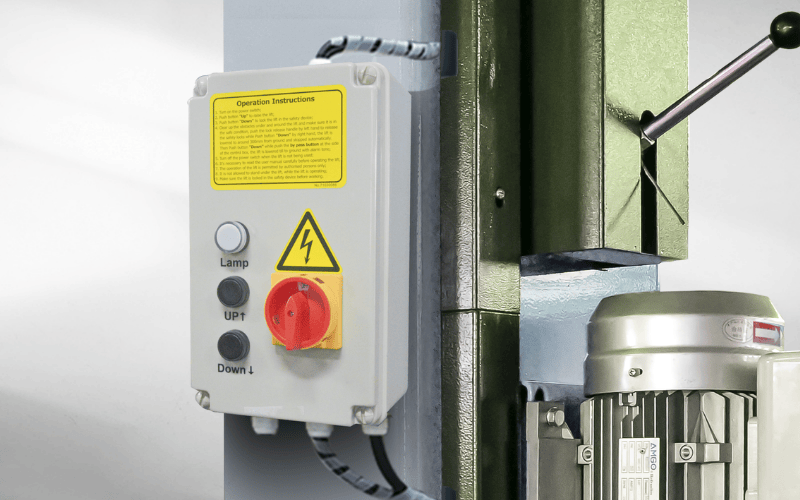

24V safe electrical control system, with high limit switch device.

140x140

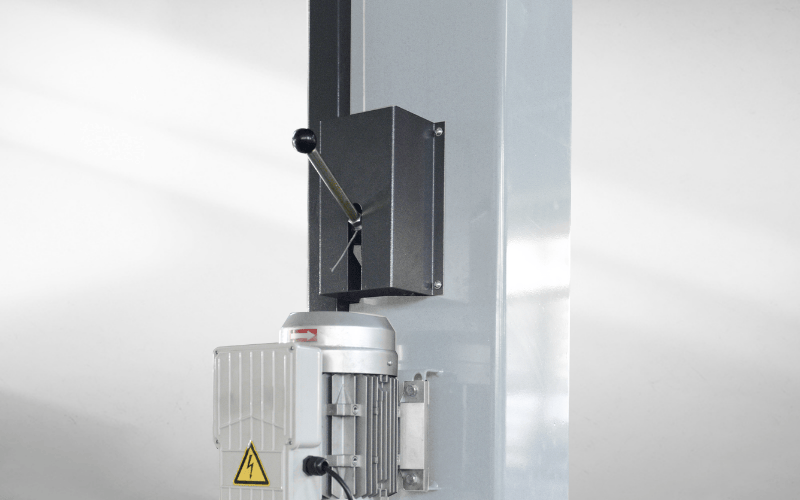

Single-point manual safety lock device for simultaneous unlocking of both columns.



140x140

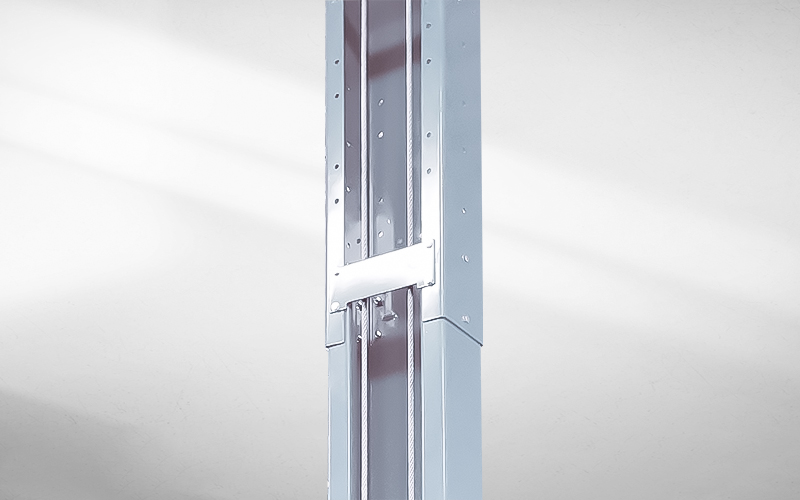

Super high design with adjustable three-height settings.

140x140

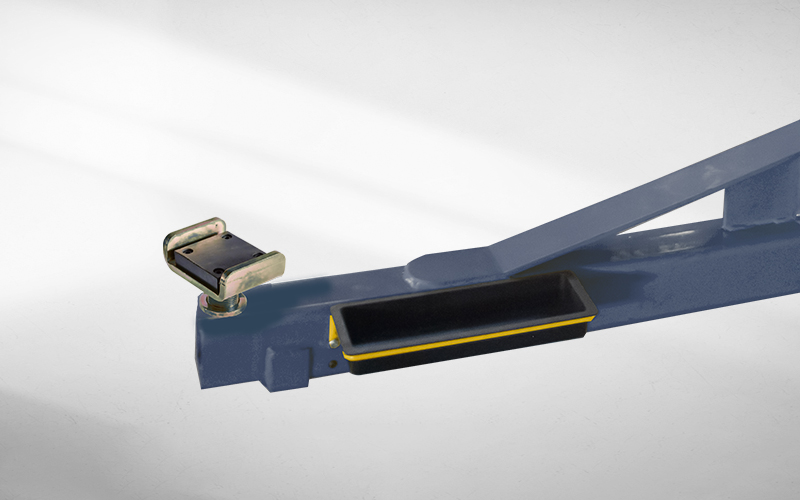

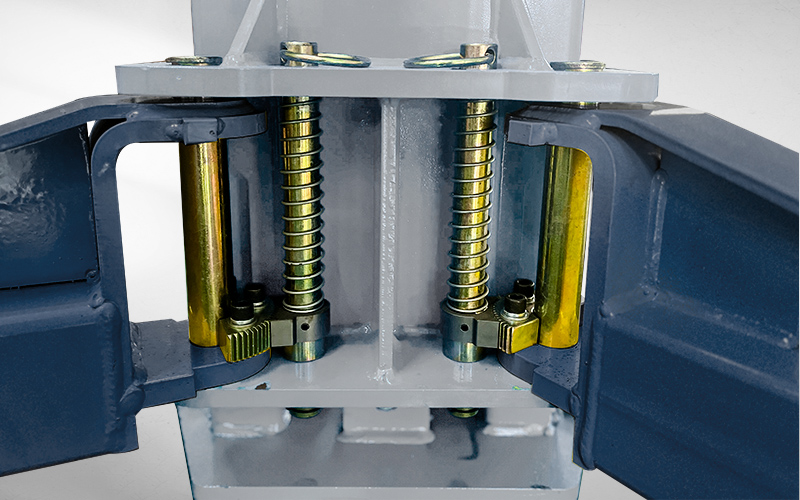

Automatic arms restraints.

140x140

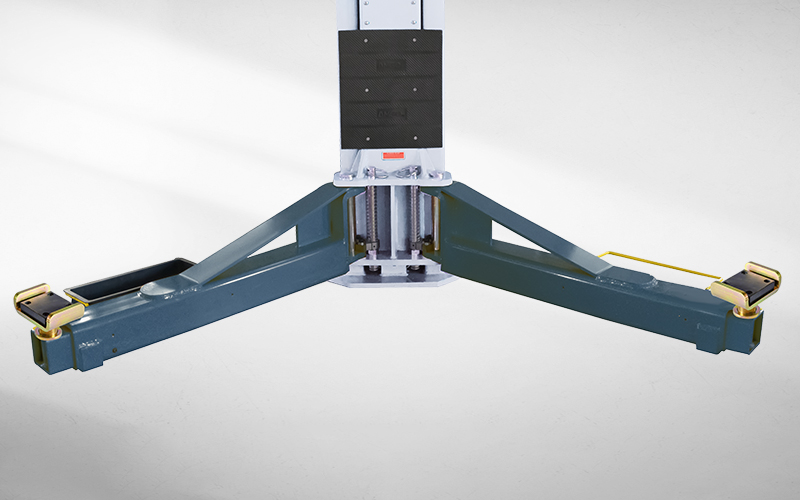

Four 2-stage rugged arms offer ample stability to lift various heavy vehicles.



140x140

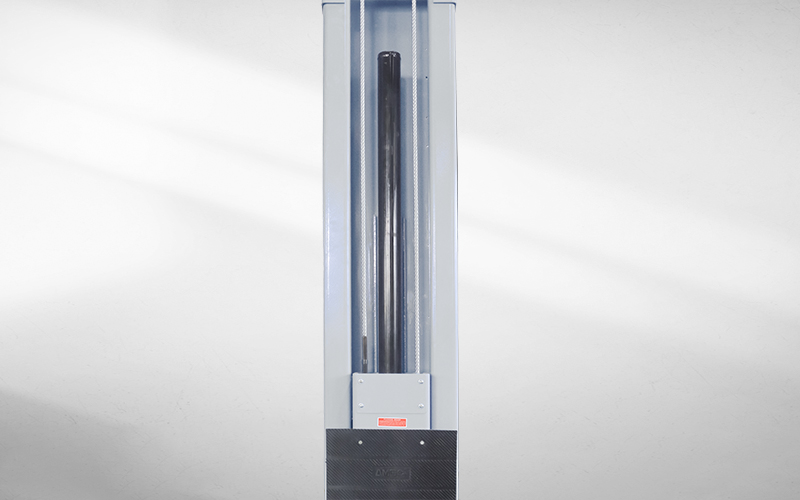

Dual direct-drive hydraulic cylinders.

140x140

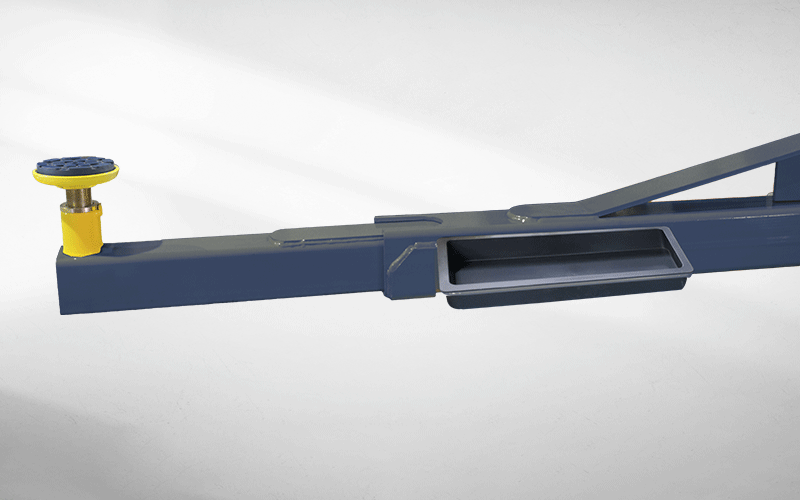

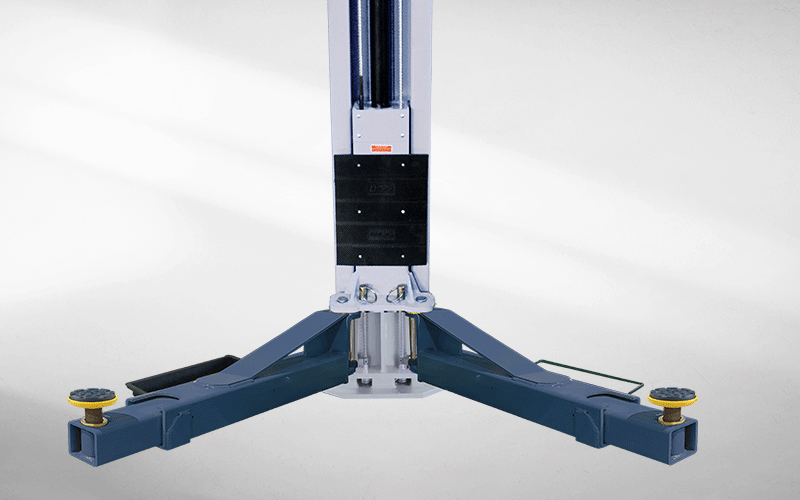

Detachable foot guards and tool trays come standard.

140x140

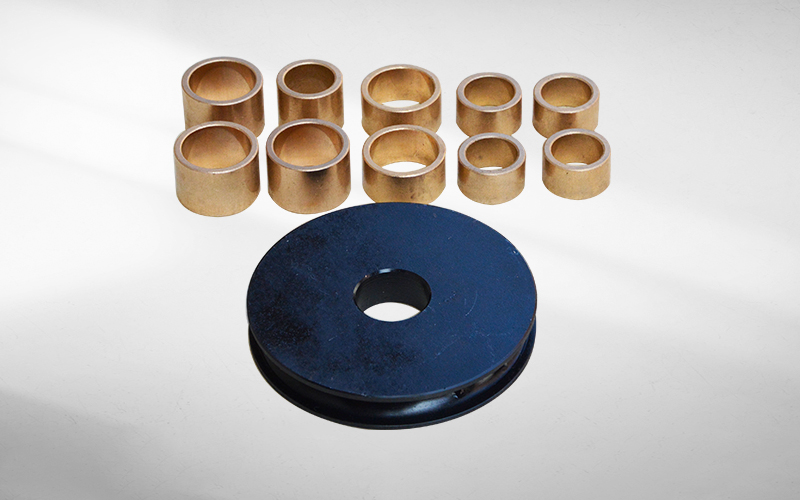

Self-lubricating bronze bush,no need for extra lubrication.

140x140

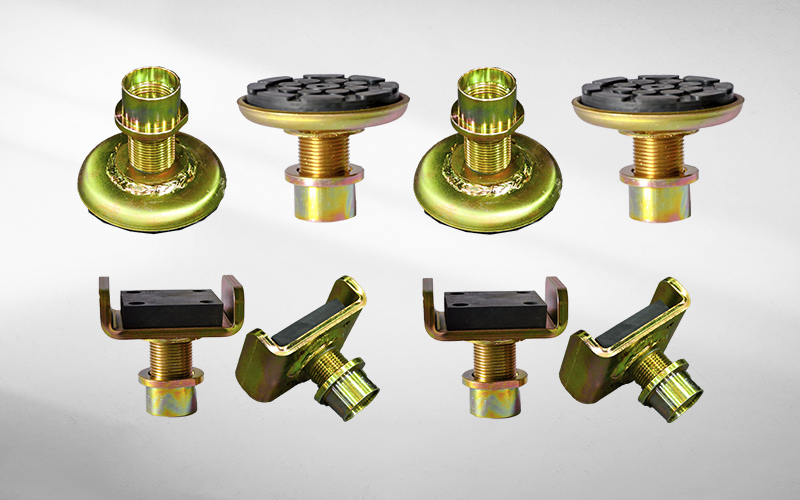

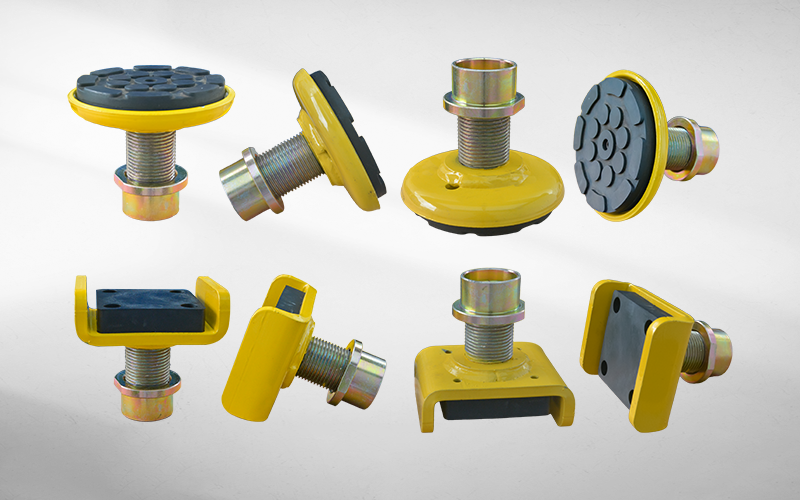

Both single-screw rubber pads and saddle adapters are equipped as standard.



140x140

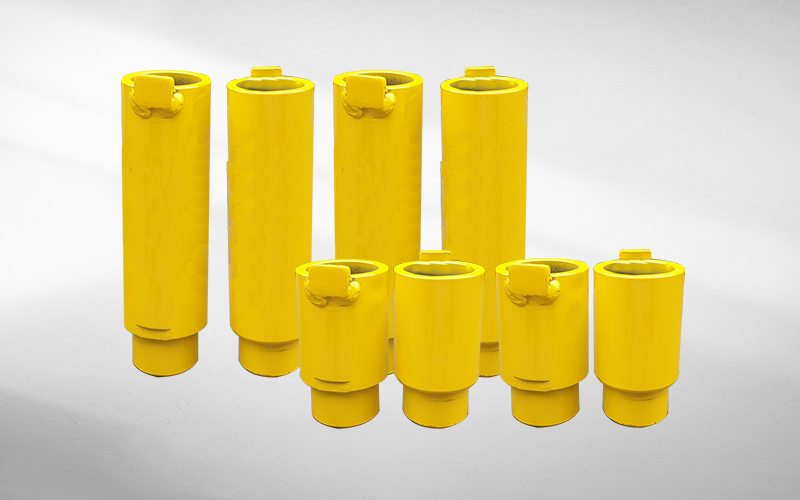

Both 3" and 6" extension adapters are equipped as standard.

140x140

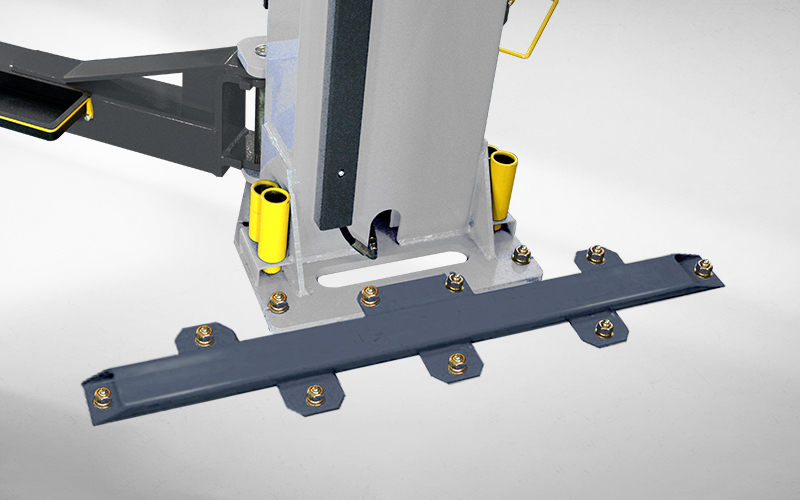

Optional Base Plate Kits No.21501,including extension frames,and 14pcs of our standard Anchor Bolts.
