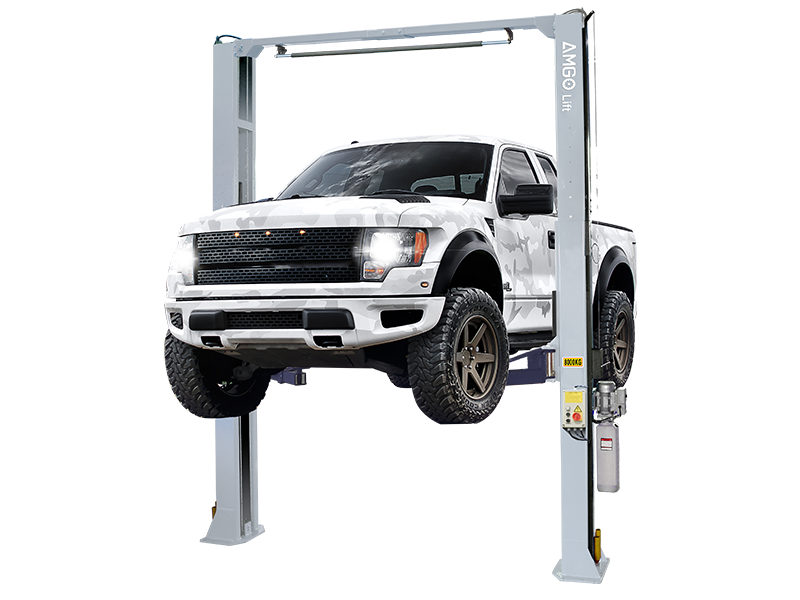

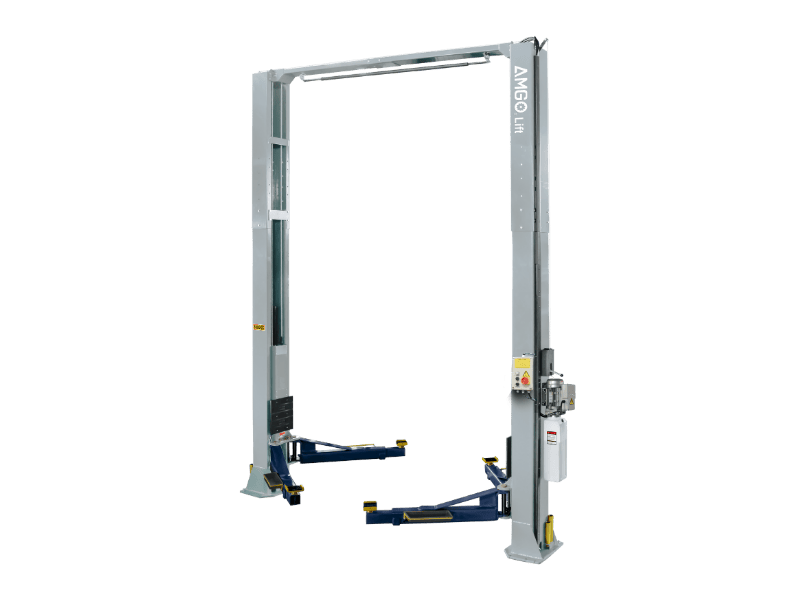

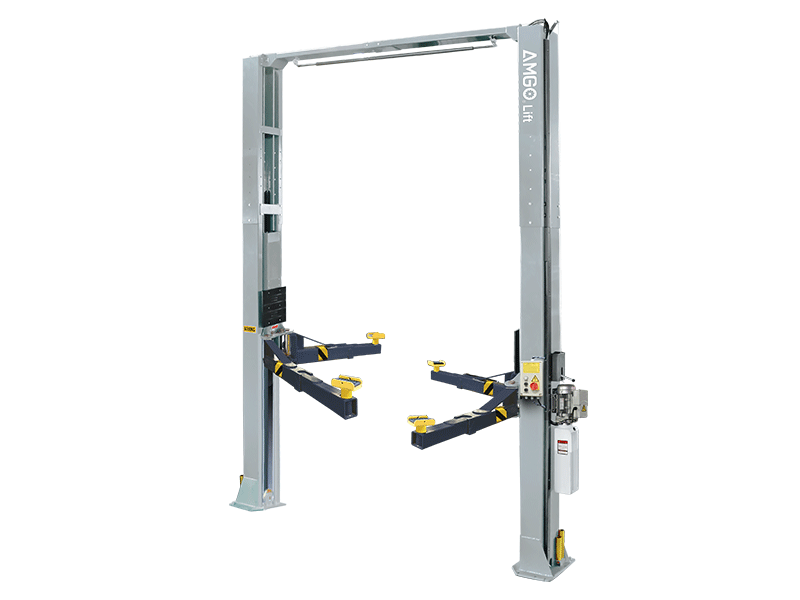

A280C

CLEAR FLOOR DIRECT-DRIVED TWO POST LIFT

The AMGO A280C is characterized by its robust construction and extreme long carriages, which contribute to enhanced stability. With a load capacity of 8000 kg, it is engineered to meet the most challenging demands of heavy-duty lifting. Standard inclusions such as rubber pads and saddle adapters ensure compatibility with a wide range of vehicles, while three extreme high settings cater to varied needs.

Detailed Product Information

Heavy duty design, lifting capacity: 8000KG;
Clear-floor design, enables an unobstructed floor use;
24V safe electrical control system, with high limit switch device;
Overhead safety shut-off device prevents vehicle damage;
Exclusive feature: single-point manual safety lock device for simultaneous unlocking of both columns;
Exclusive feature: Super high design with adjustable three-height settings;
Super wide design with a width between columns over 3100mm;
Exclusive feature: Extremely long carriages ensure the stability and durability;
Four 2-stage rugged arms offer ample stability to lift various heavy vehicles;
3in1 areo synchronization cables are used for three heights setting;
Self-lubricating UHMW polyethylene sliders;
Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Exclusive feature: Both single-screw rubber pads and saddle adapters are equipped as standard;
Both 3" and 6" extension adapters are equipped as standard;
Automatic arms restraints;
Detachable foot guards and tool trays come standard.

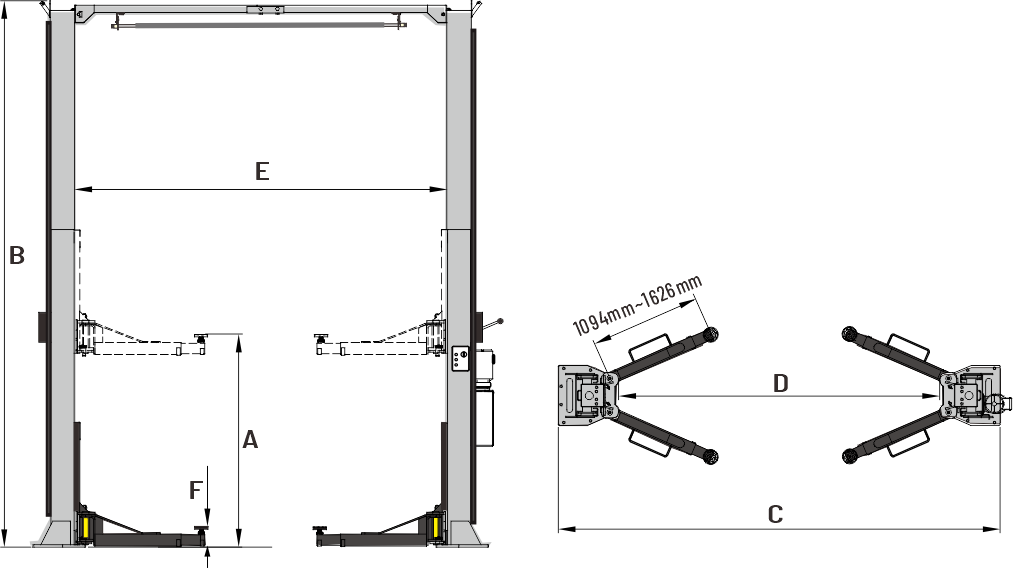

Model		A280C
Lifting Capacity		8000kg
Lifting Time		84s
Max. Lifting Height: (w/o extension adapter)	A	1902 ~ 1936mm
Max. Lifting Height: (w/ extension adapter)		2131 ~ 2165mm
Max. Lock Height: (w/o extension adapter)		1852 ~ 1886mm
Max. Lock Height: (w/ extension adapter)		2081 ~ 2115mm
Overall Height: (Low setting)	B	4420mm
Overall Height: (Medium setting)		4725mm
Overall Height: (High setting)		5030mm
Overall Width	C	3859mm
Drive-Thru Clearance	D	2805mm
Width Between Columns	E	3137mm
Minimum Pad Height	F	175mm
Gross Weight		1327kg
Motor		3.0HP
QTY of Container		8 Units/ 20' GP

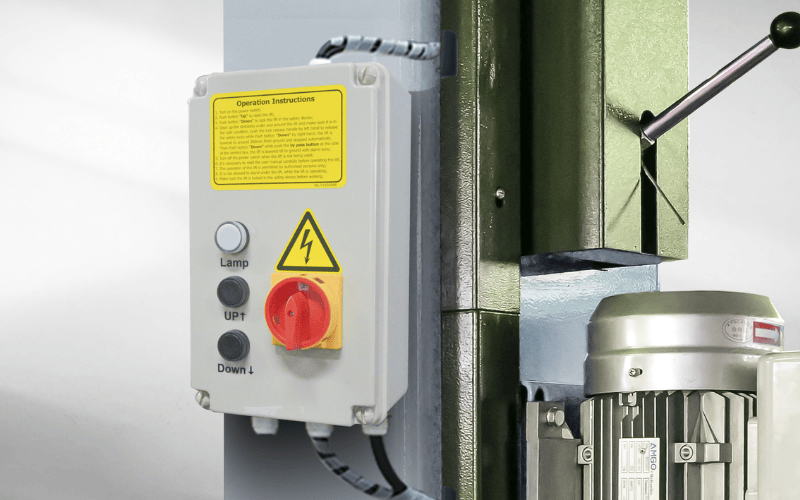

24V safe electrical control system, with high limit switch device.

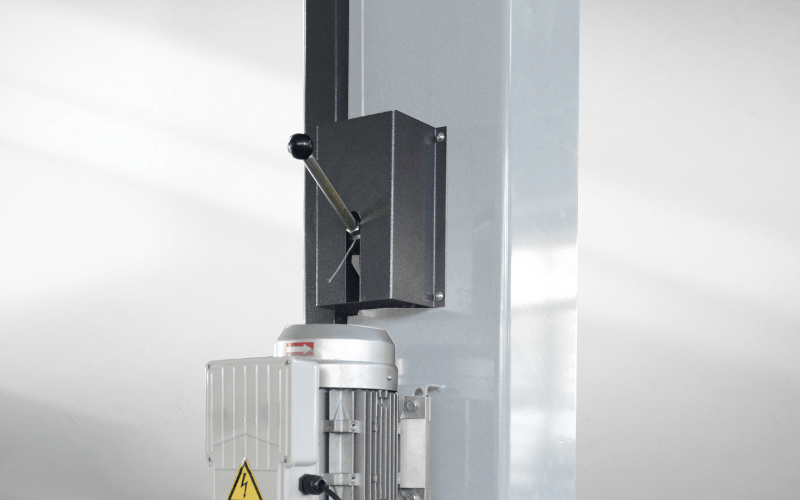

Single-point manual safety lock device for simultaneous unlocking of both columns.

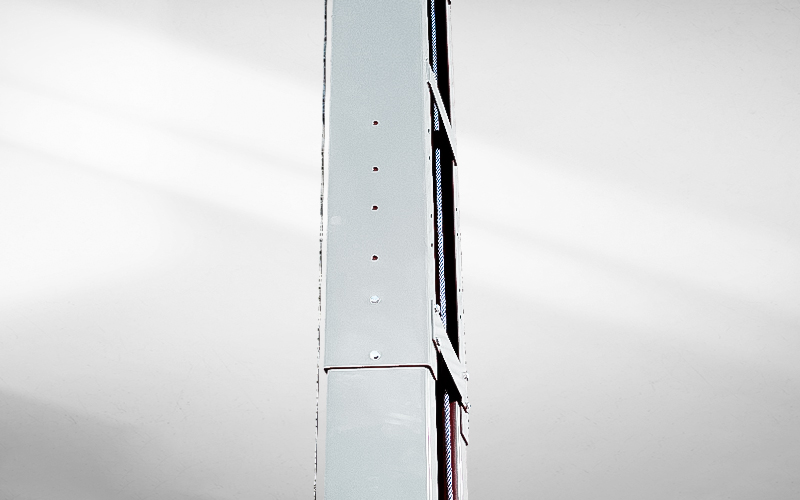

Super high design with adjustable three-height settings.

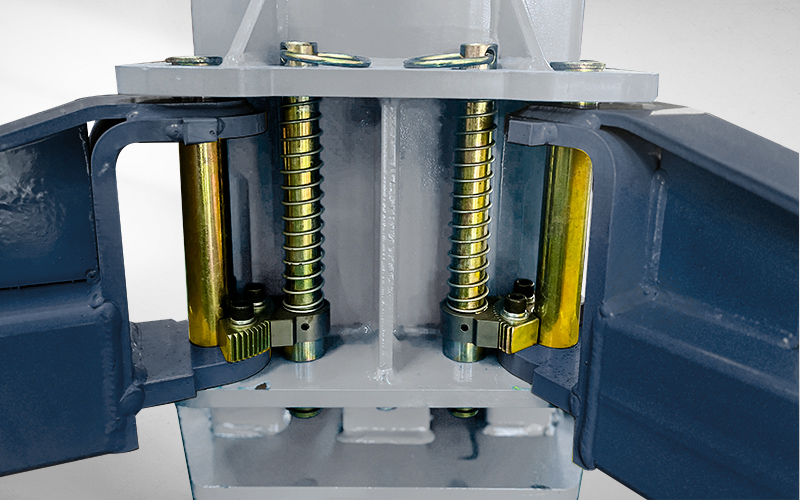

Automatic arms restraints.

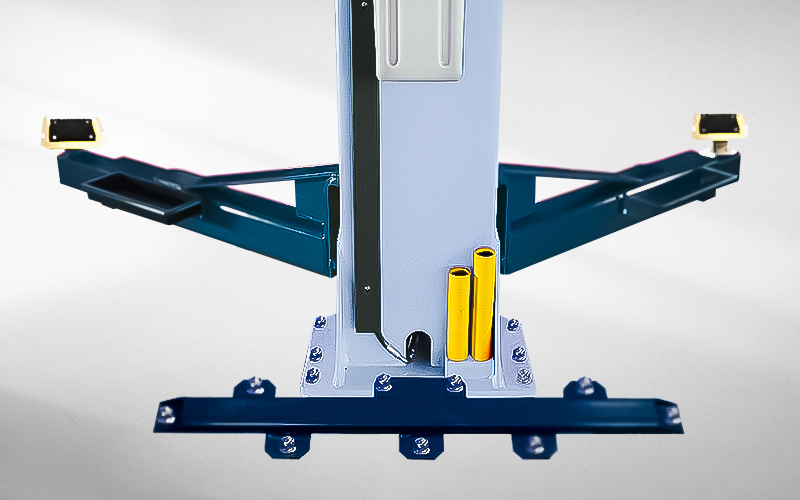

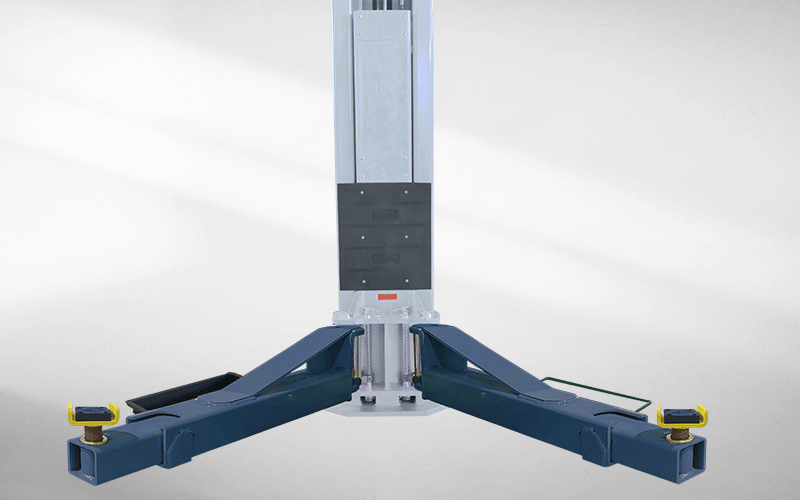

Four 2-stage rugged arms offer ample stability to lift various heavy vehicles.

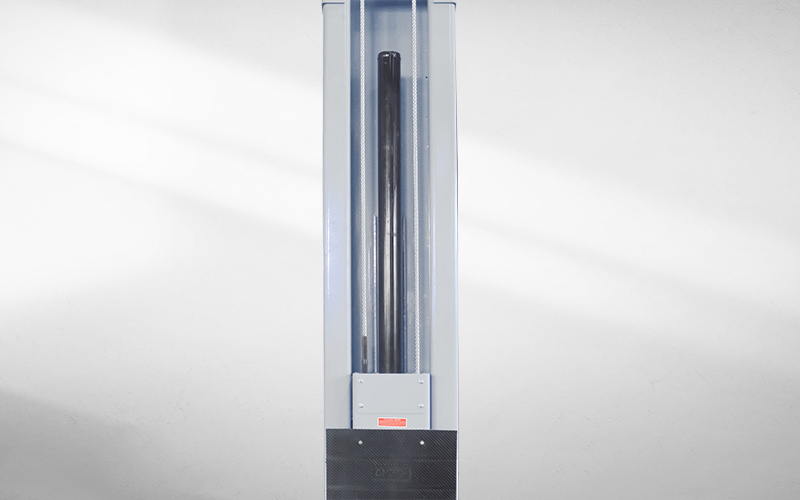

Dual direct-drive hydraulic cylinders.

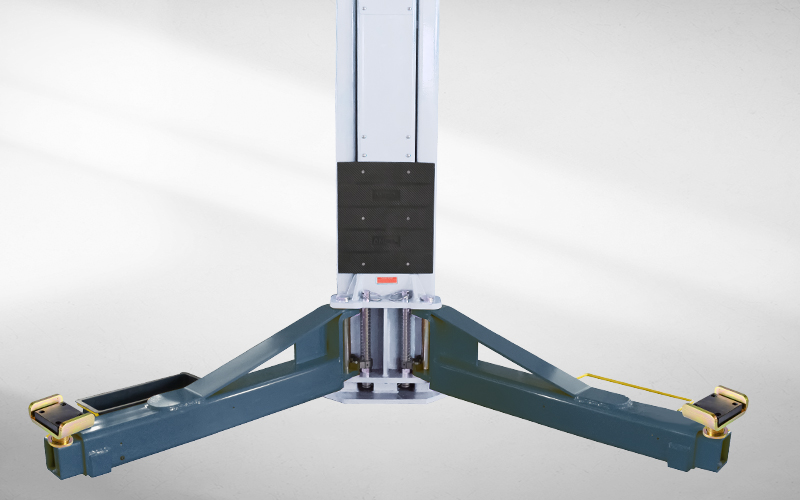

Extremely long carriages ensure the stability and durability.

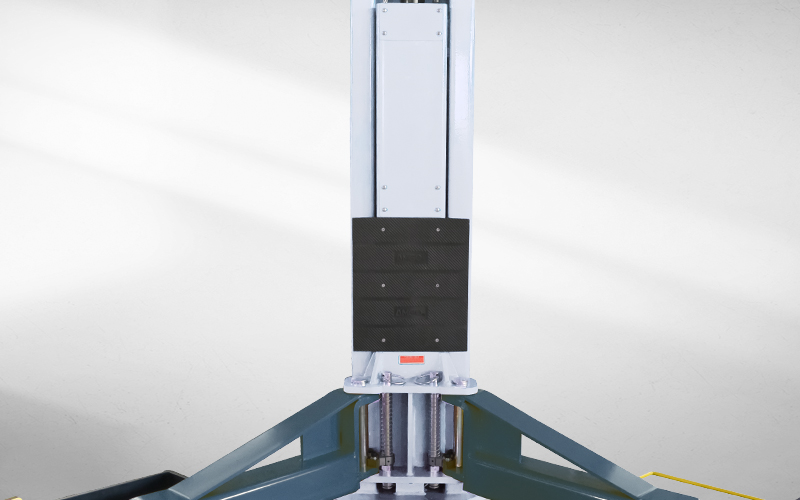

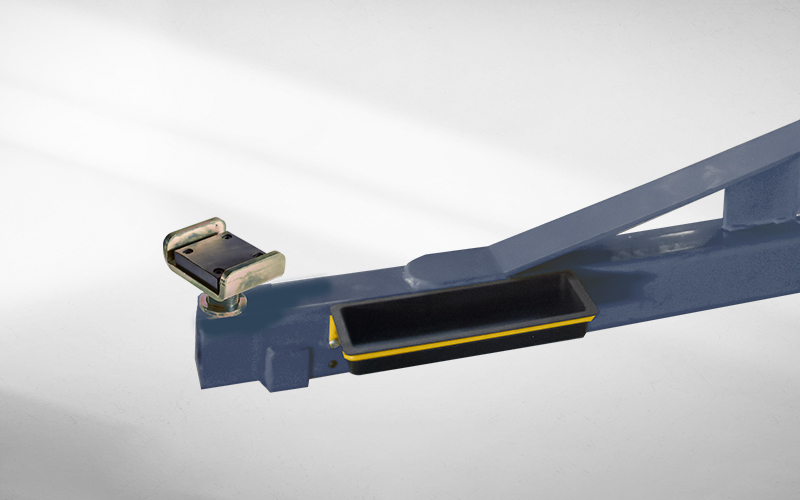

Detachable foot guards and tool trays come standard.

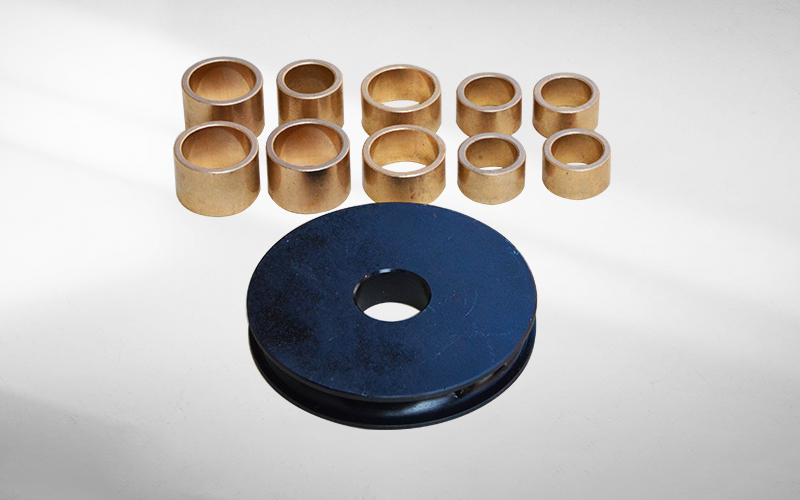

Self-lubricating bronze bush,no need for extra lubrication.

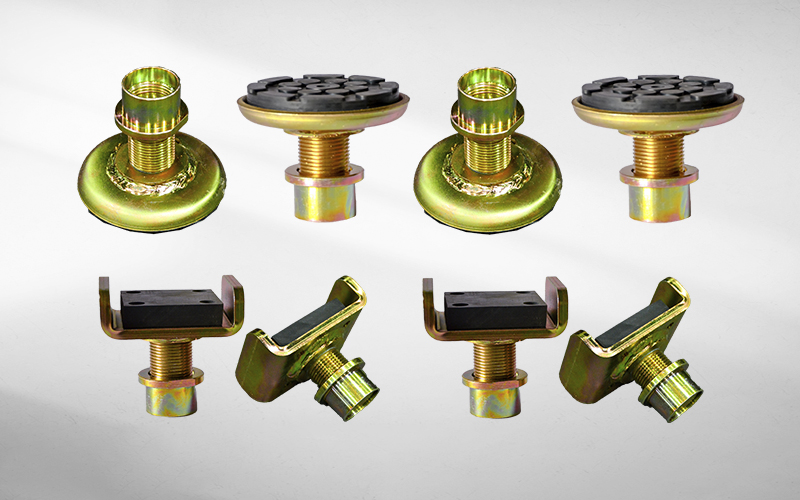

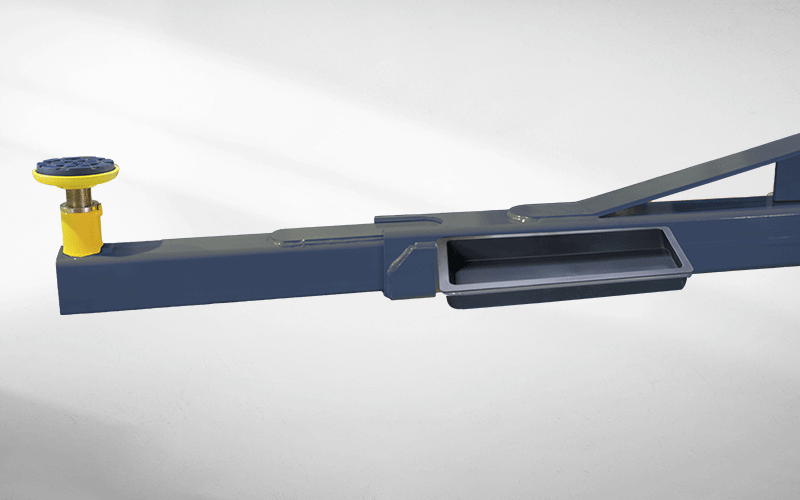

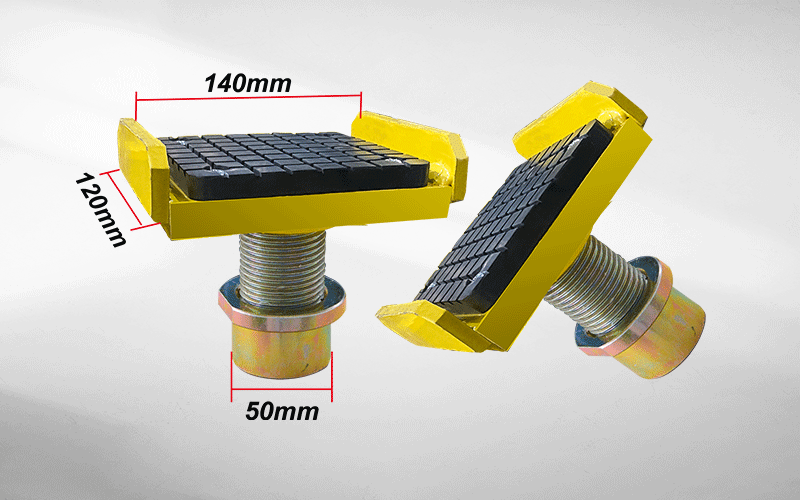

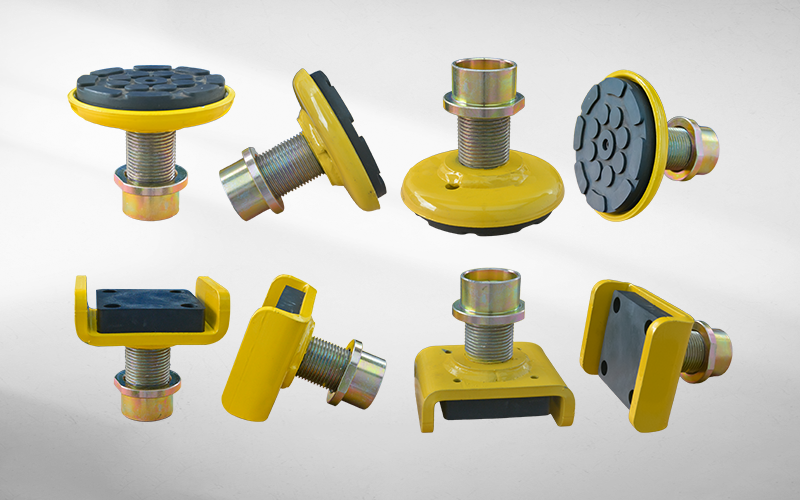

Both single-screw rubber pads and saddle adapters are equipped as standard.

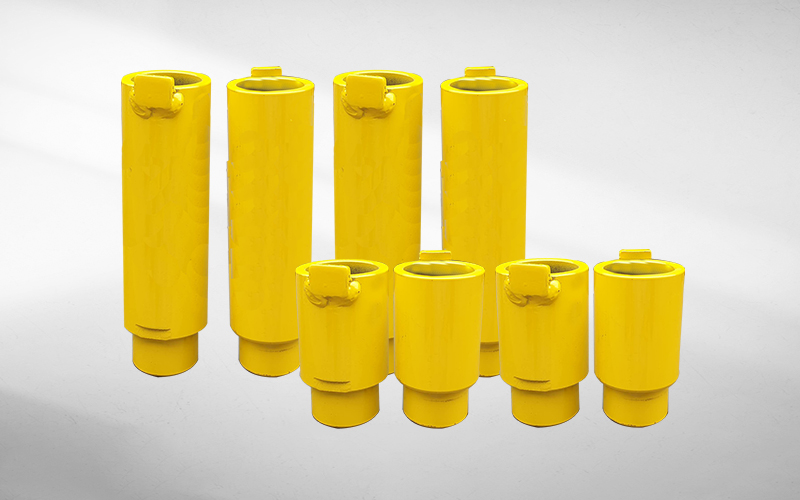

Both 3" and 6" extension adapters are equipped as standard.
Optional Base Plate Kits No. 21501,including extension frames,and 14pcs of our standard Anchor Bolts.
