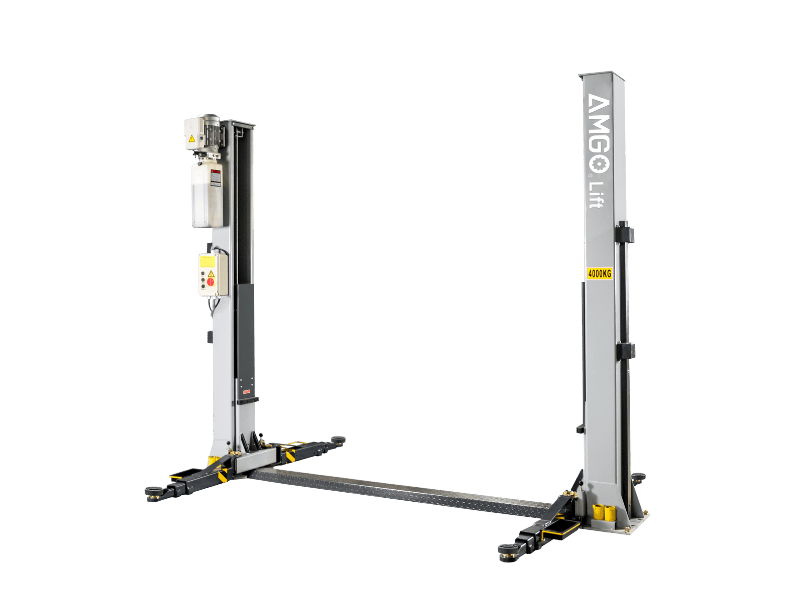

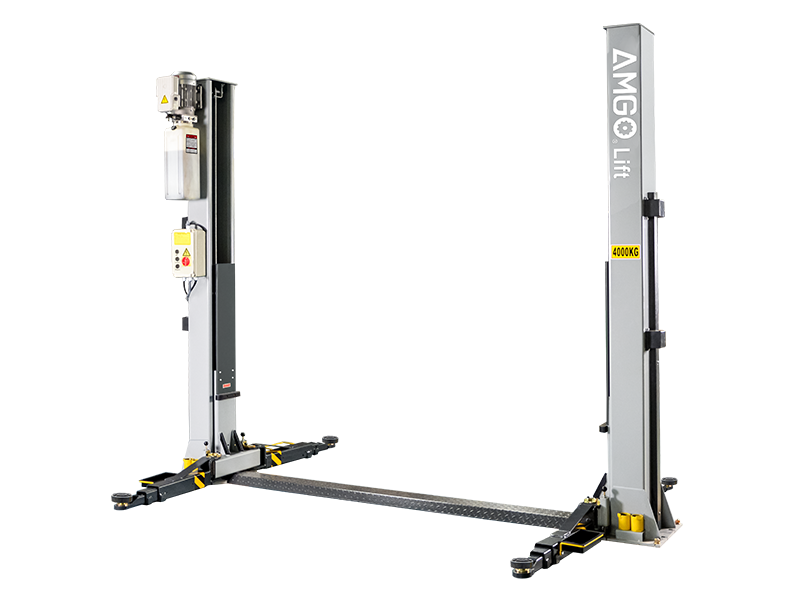

E240

FLOOR PLATE CHAIN-DRIVED TWO POST LIFT

Equipped with a dual-lock mechanism and an automatic electromagnet lock release system, the E240 substantially enhances both safety and operational convenience by eliminating the requirement for an external air source. Additionally, it incorporates standard three-stage telescoping arms, which are fitted with tool trays and toe guards for enhanced functionality and user protection.

Detailed Product Information

Lifting capacity: 4000KG;
The floor plate's open top design allows it to lift various vehicles in low ceiling garages;
24V safe electrical control system, with high limit switch device;
Revolutionary auto-activating double lock system;
Equipped with automatic electromagnet safety release;
Four 3-stage arms are suitable for more vehicle;
Aero cables are used for synchronization;
Self-lubricating UHMW polyethylene sliders and bronze bush;
Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;

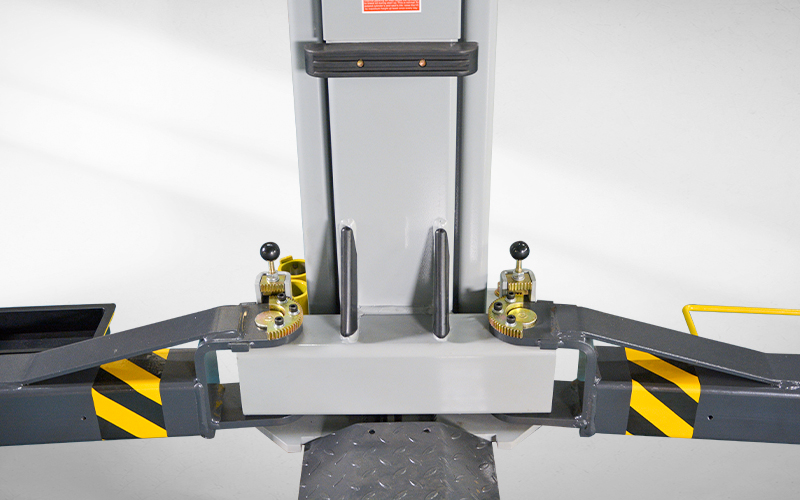

Automatic arms restraints;
Detachable foot guards and tool trays come standard.

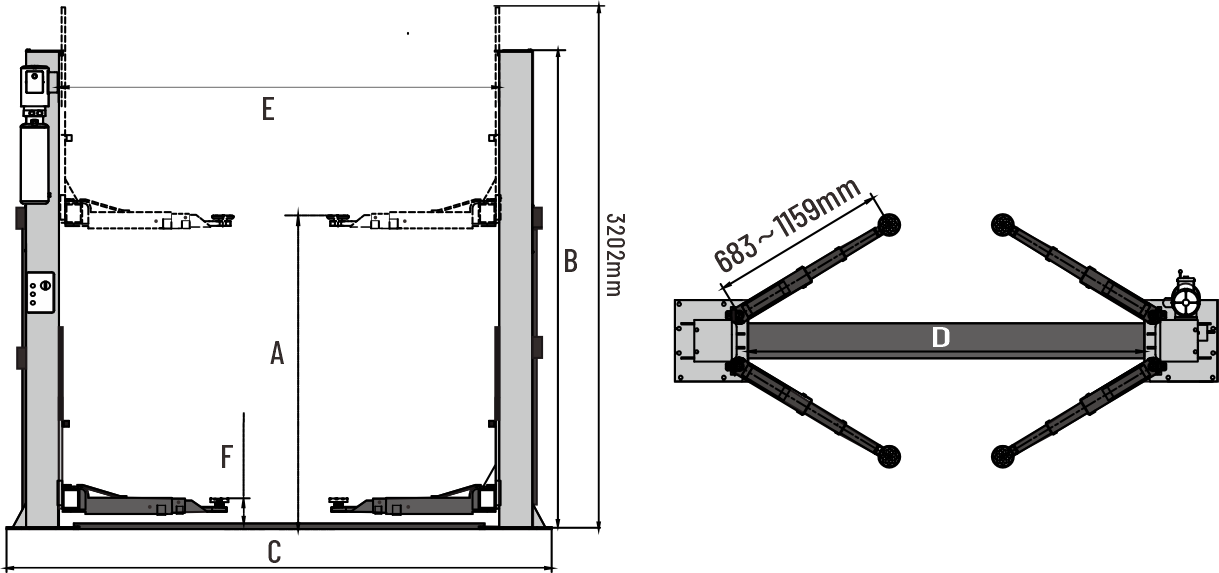

Model		E240
Lifting Capacity		4000kg
Lifting Time		37s
Max. Lifting Height: (w/o extension adapter)	A	1809 ~ 1841mm
Max. Lifting Height: (w/ extension adapter)		1885 ~ 1917mm
Max. Lock Height: (w/o extension adapter)		1769 ~ 1801mm
Max. Lock Height: (w/ extension adapter)		1845 ~ 1877mm
Overall Height	B	3202mm
Overall Width	C	3350mm
Drive-Thru Clearance	D	2513mm
Width Between Columns	E	2780mm
Minimum Pad Height	F	84mm
Gross Weight		615kg
Motor		3.0HP
QTY of Container		25 Units / 20'GP

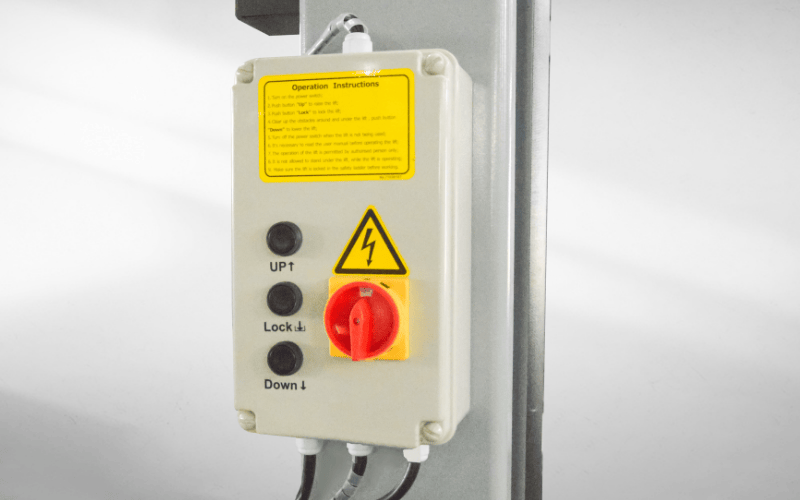

24V safe electrical control system, with high limit switch device.
Revolutionary auto-activating double lock system.

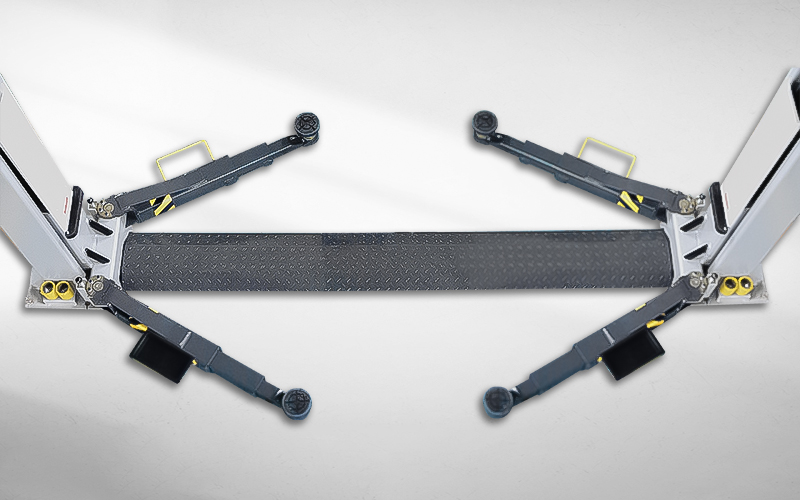

Four 3-stage arms are suitable for more vehicle.

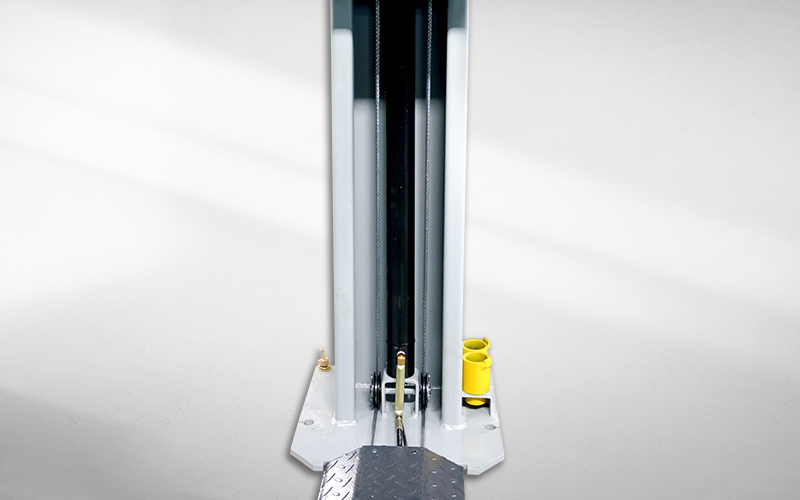

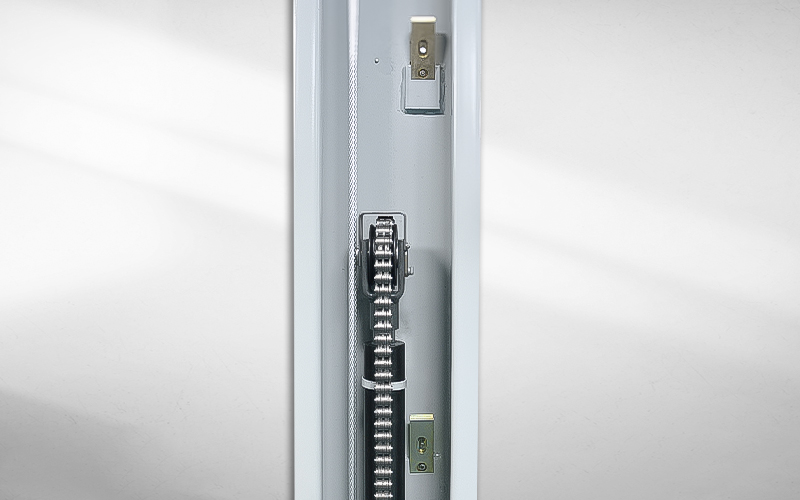

Chain anti-drop protection device.

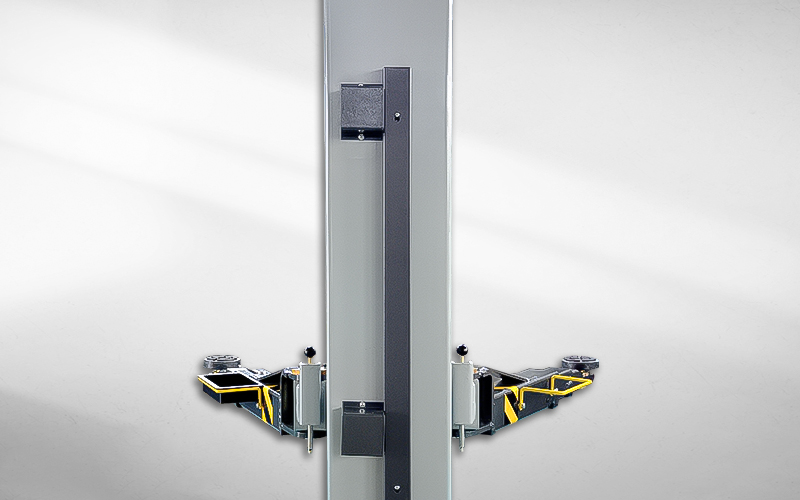

Automatic arms restraints.

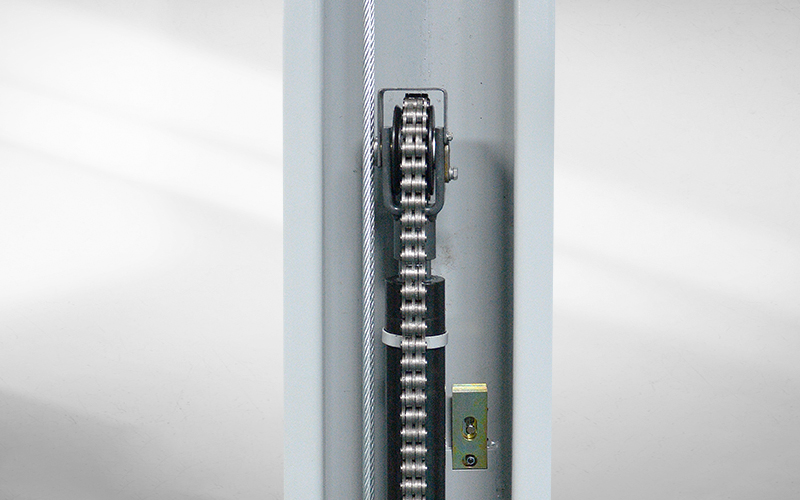

Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals.
AMGO's exclusive dual safety lock mechanism.

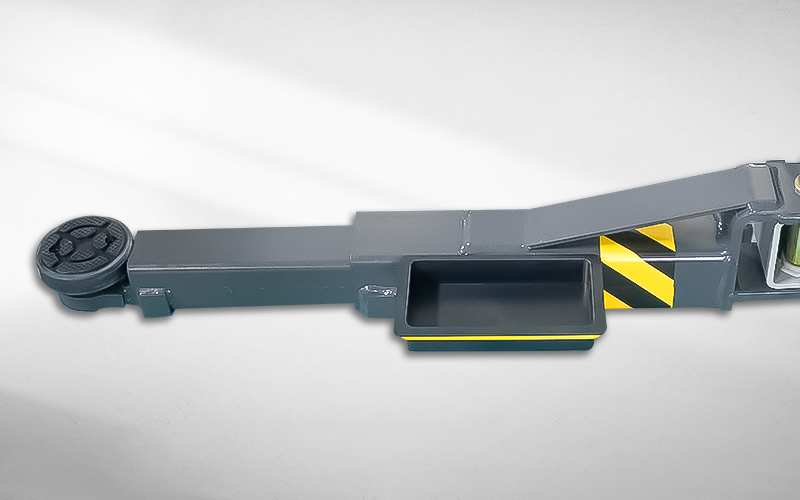

Detachable foot guards and tool trays come standard.

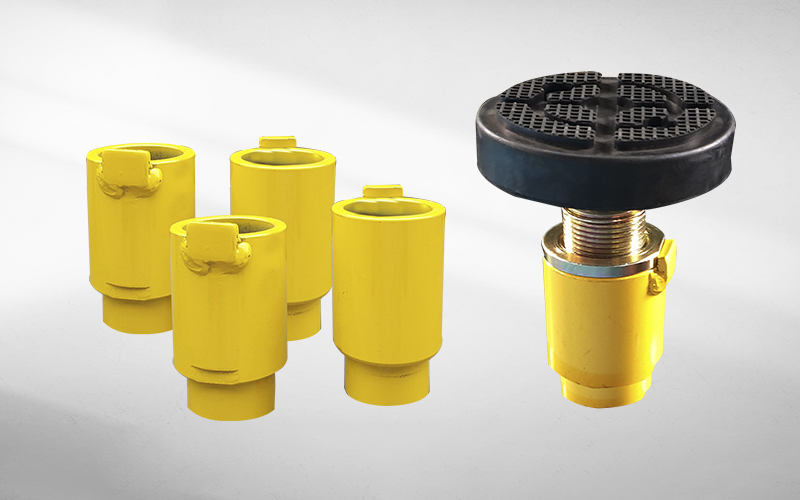

Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter.
