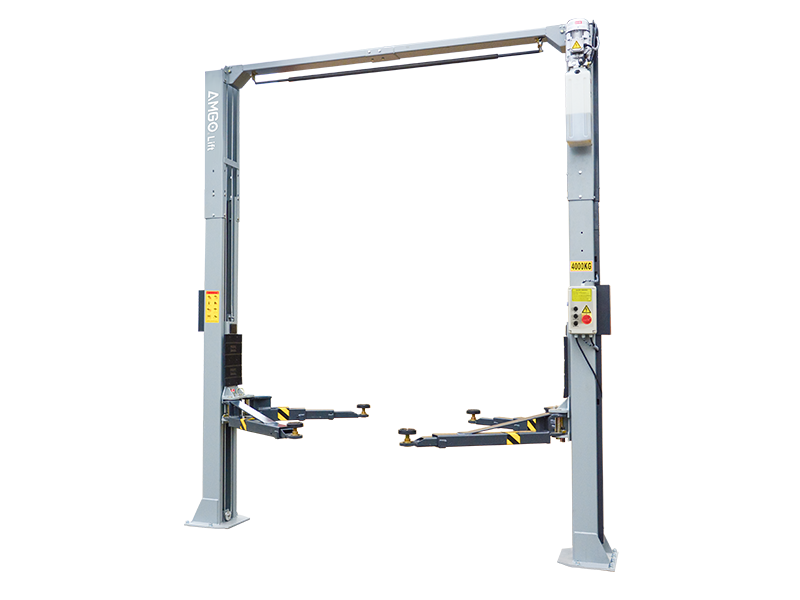

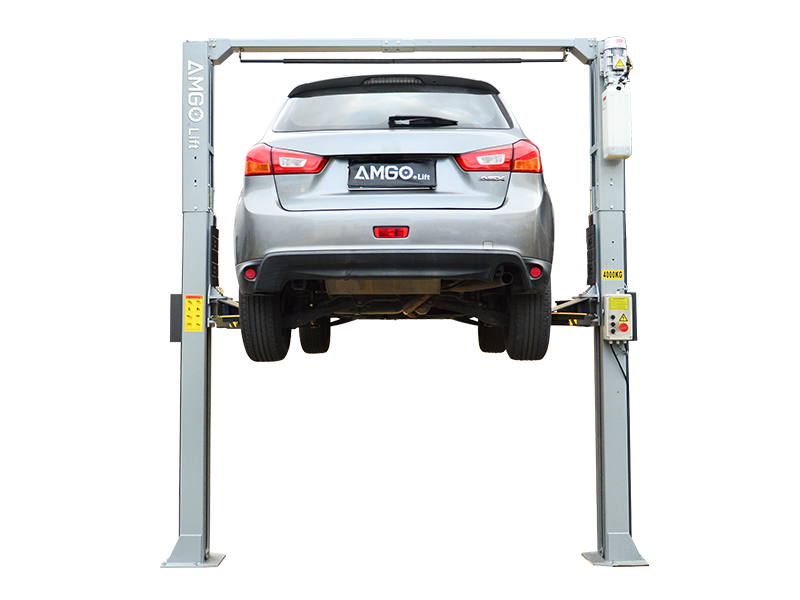

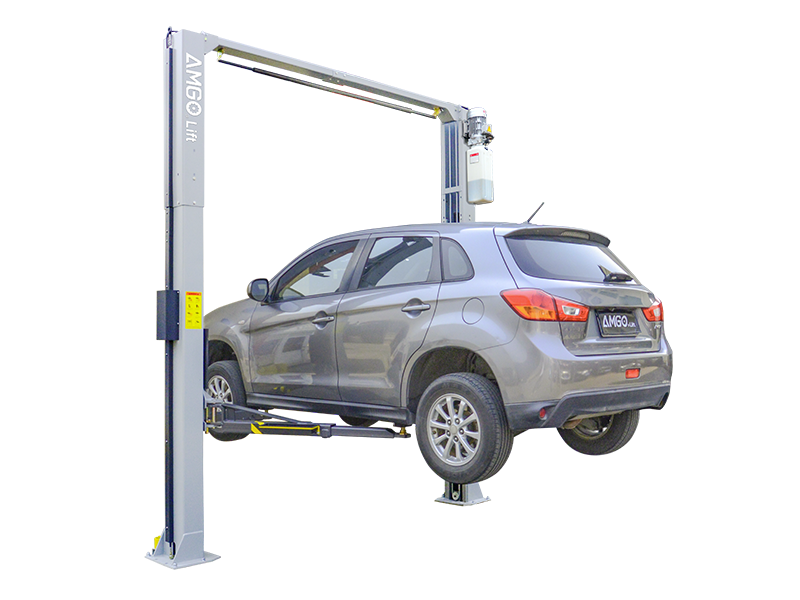

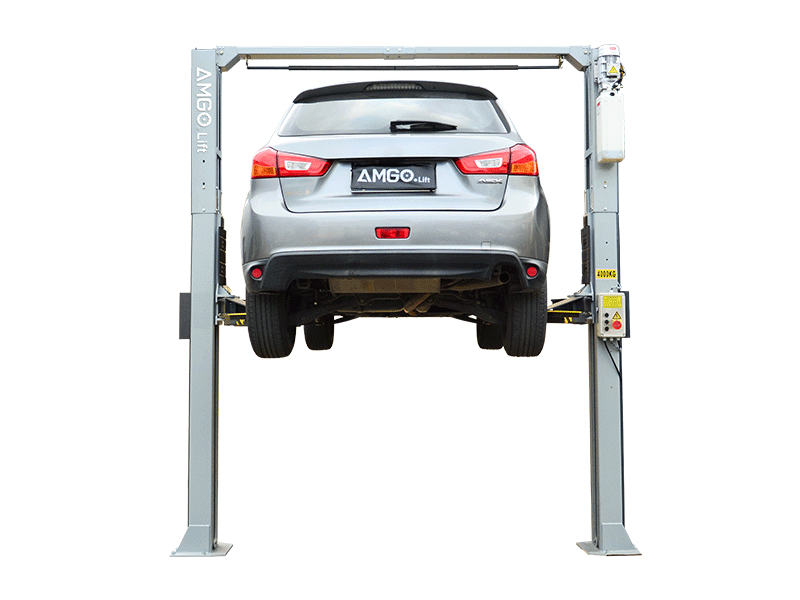

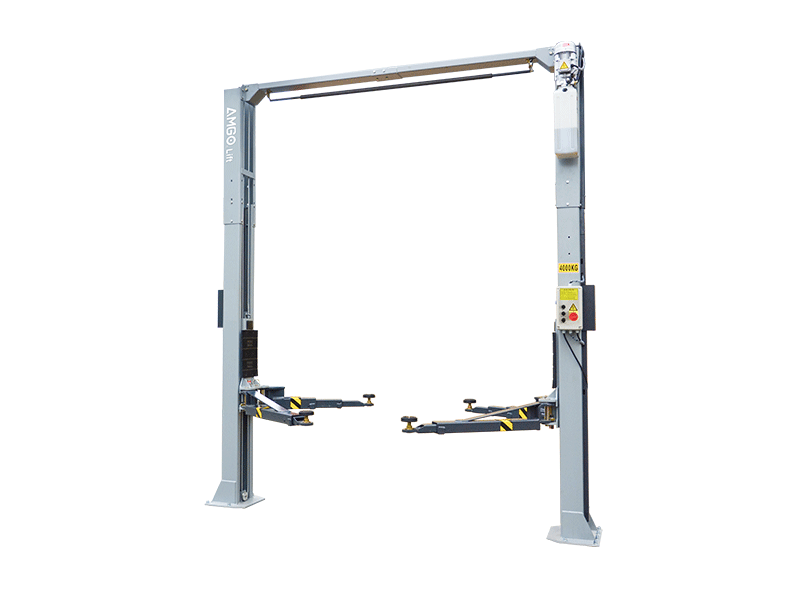

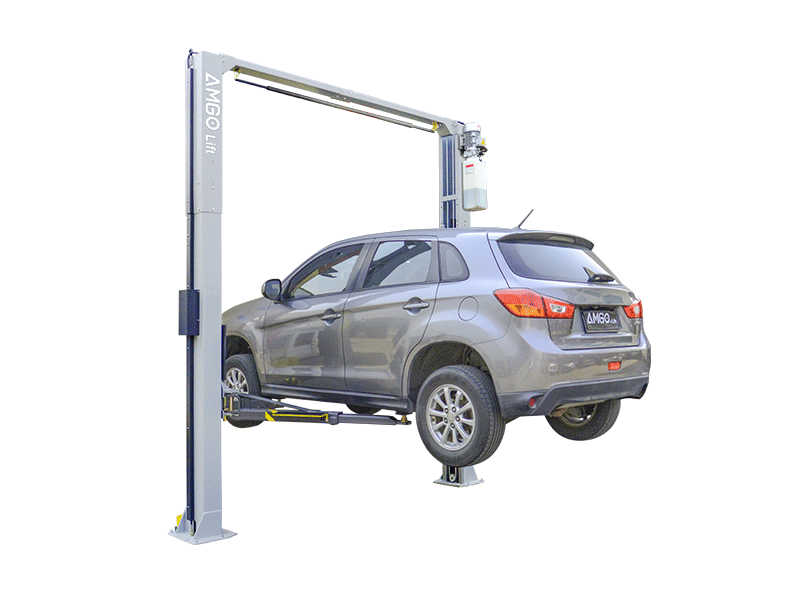

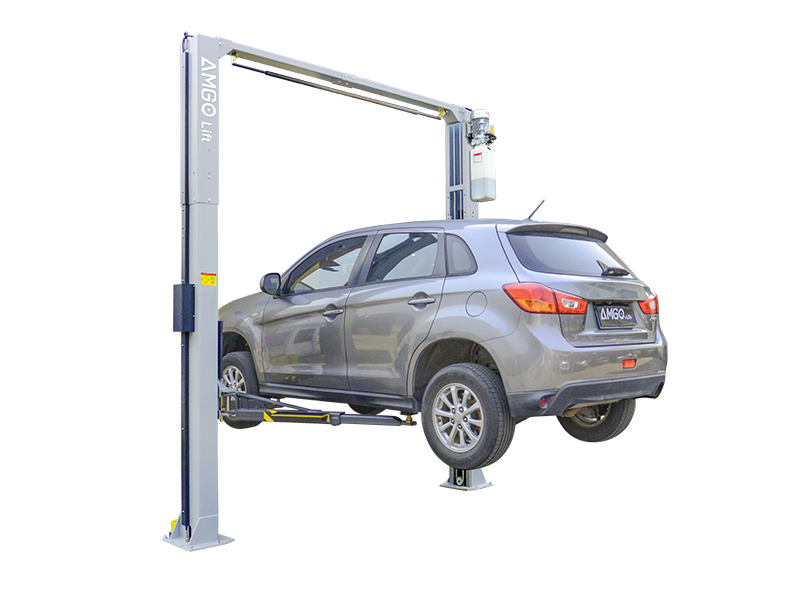

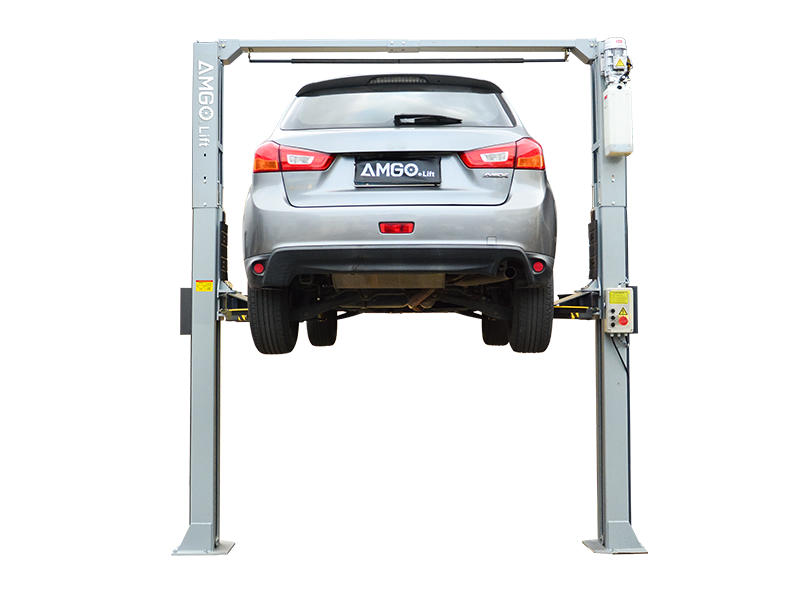

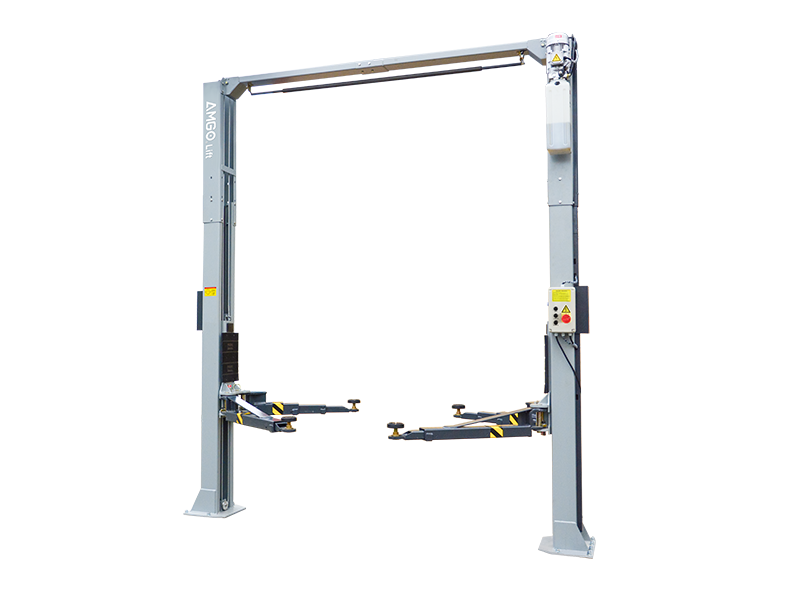

E240SAC

CLEAR FLOOR DIRECT-DRIVED TWO POST LIFT

The E240SAC is equipped with Super Asymmetric Technology, offering the flexibility to load a vehicle in both symmetric and asymmetric configurations. This ensures adequate door-open clearance, improving operational efficiency. It also comes equipped with an automatic electromagnet lock release device, improving operational convenience, and shares all other identical features of the A240C.

Detailed Product Information

• Lifting capacity: 4000KG;

• Clear-floor design, enables an unobstructed floor use;

• 24V safe electrical control system, with high limit switch device;

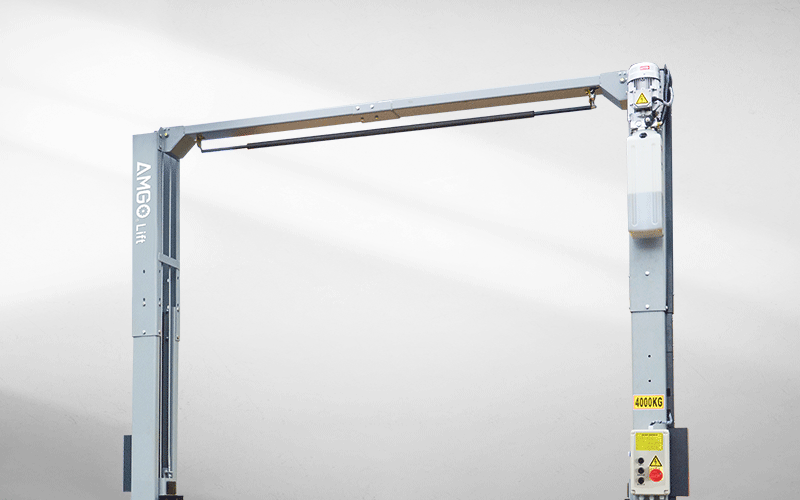

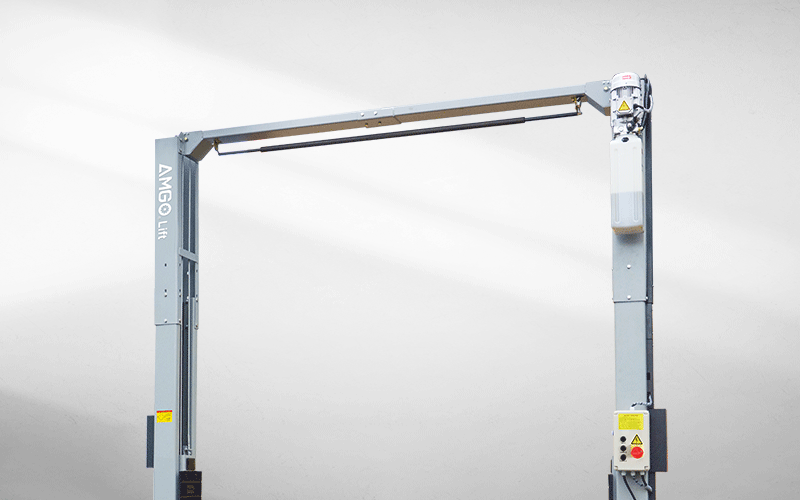

• Overhead safety shut-off device prevents vehicle damage;

• Equipped with automatic electromagnet safety release;

• Includes adjustable two-height settings to accommodate different ceiling heights;

• arms allow to load different vehicles in an asymmetric or symmetric configuration;

• Aero cables are used for synchronization;

• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;

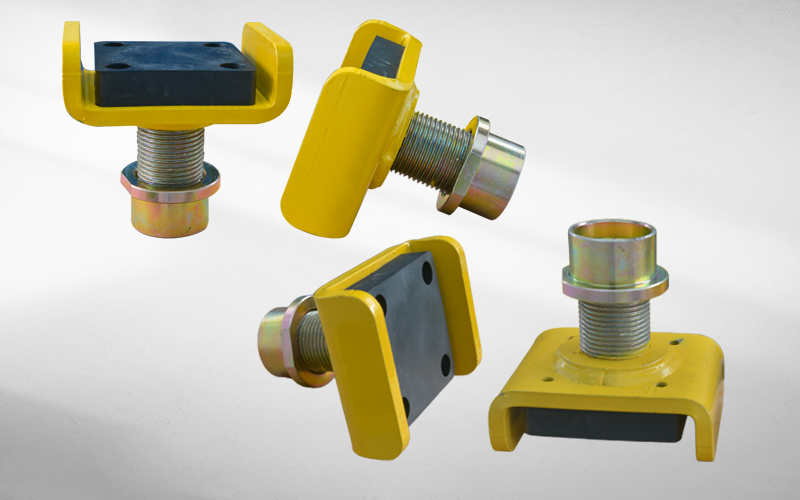

• Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;

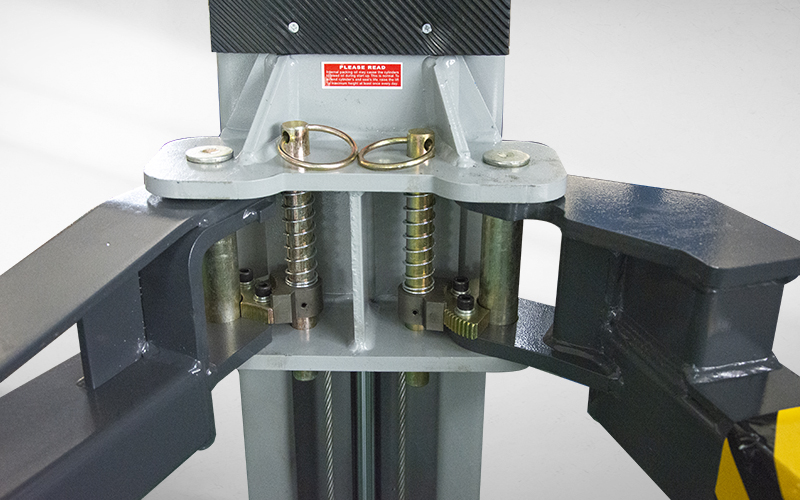

• Automatic arms restraints;

• Detachable foot guards and tool trays come standard.

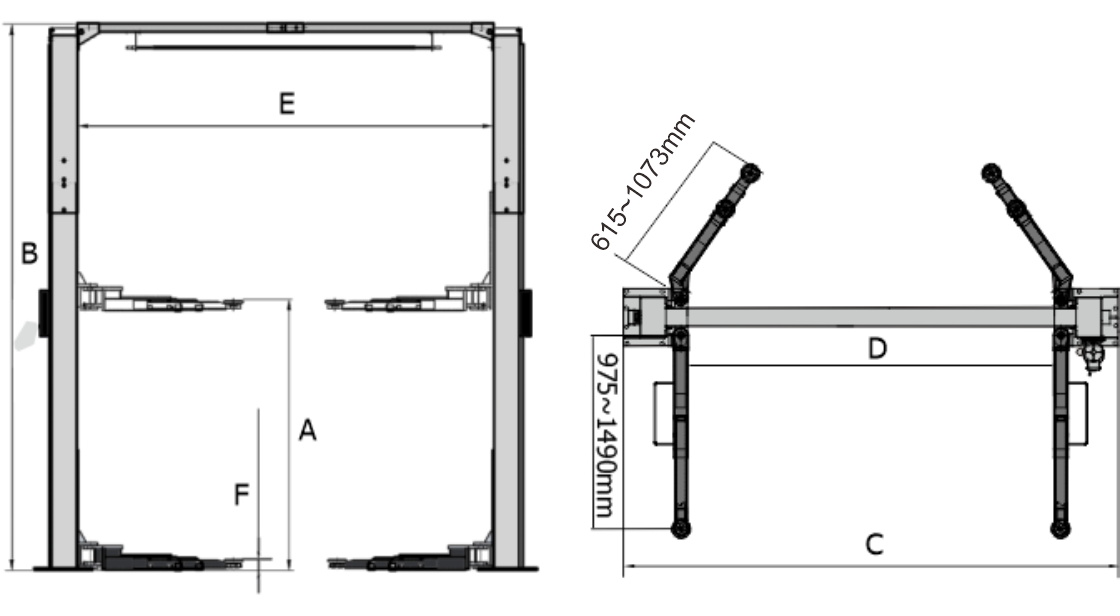

Model		E240SAC
Lifting Capacity		4000kg
Lifting Time		57s
Max. Lifting Height: (w/o extension adapter)	A	1815 ~ 1863mm
Max. Lifting Height: (w/ extension adapter)		1891 ~ 1939mm
Max. Lock Height: (w/o extension adapter)		1768 ~ 1816mm
Max. Lock Height: (w/ extension adapter)		1844 ~ 1892mm
Overall Height	B	3635mm 3835mm
Overall Width	C	3428mm
Drive-Thru Clearance	D	2528mm
Width Between Columns	E	2850mm
Minimum Pad Height	F	90mm
Gross Weight		685kg
Motor		3.0HP
QTY of Container		25 Units / 20'GP

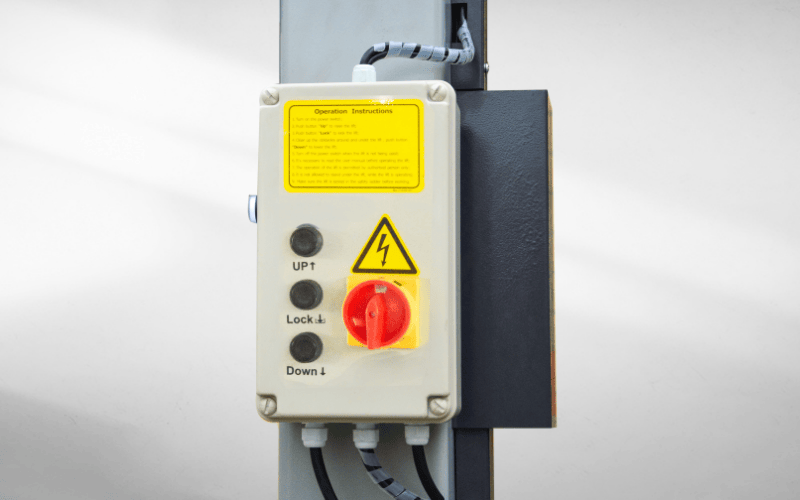

24V safety electric control system, more convenient to use.

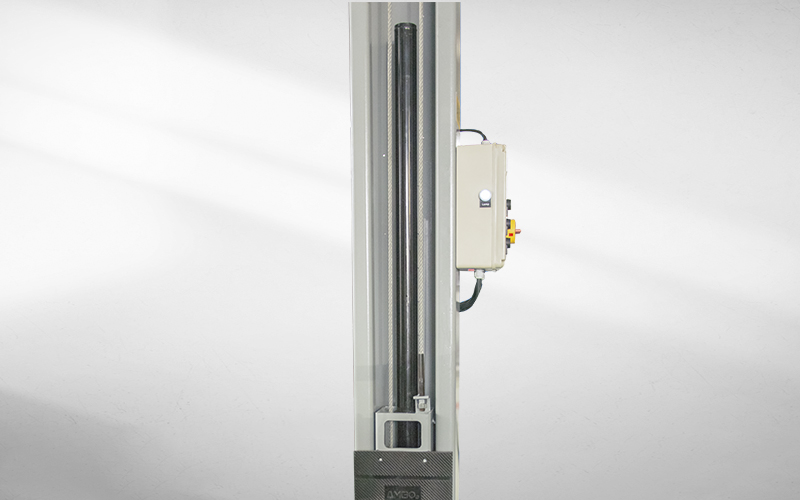

Hydraulic direct-drived cylinders.

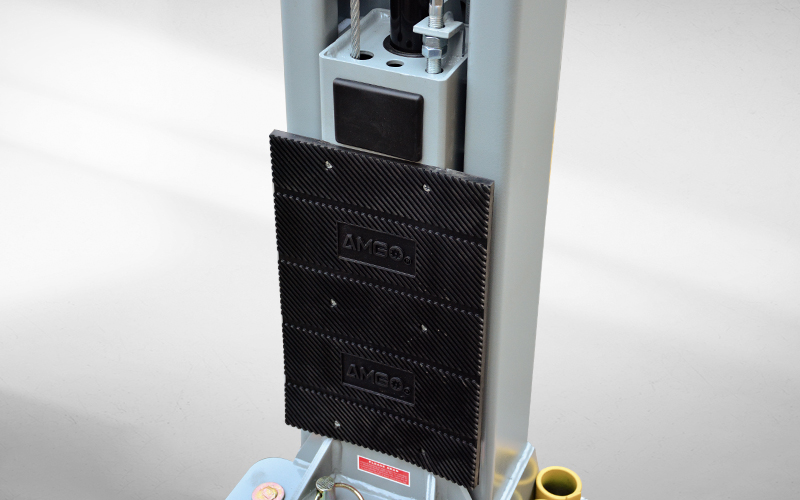

The large rubber mat provides the vehicle with the utmost protection from scratches.

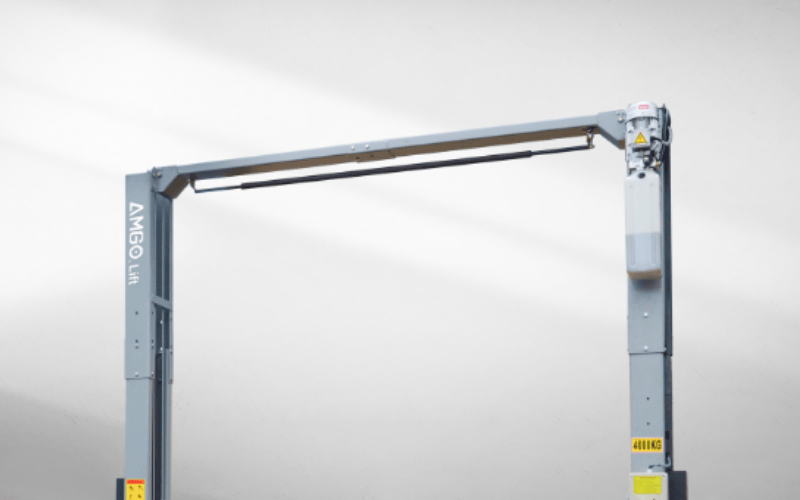

Overhead safety shut-off device prevents vehicle damages.

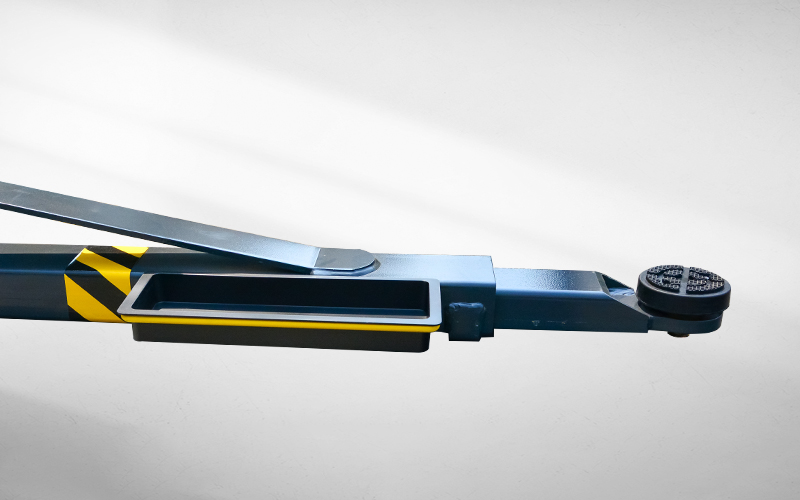

arms allow to load different vehicles in an asymmetric or symmetric configuration.

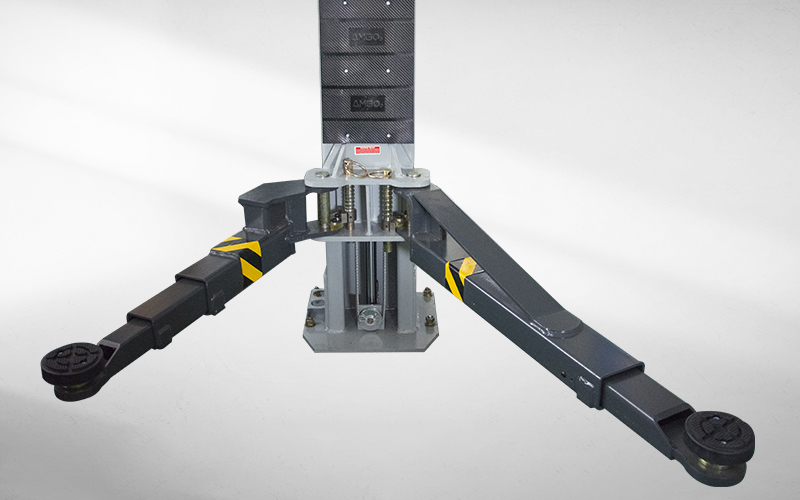

Automatic arm restraints.
Detachable foot guards and tool trays come standard.

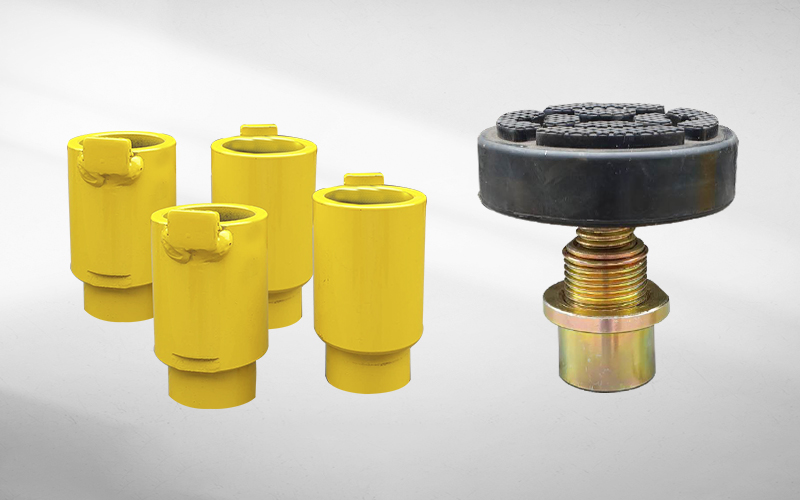

Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter.
The optional saddle adapter. Kits No.:1102185006C

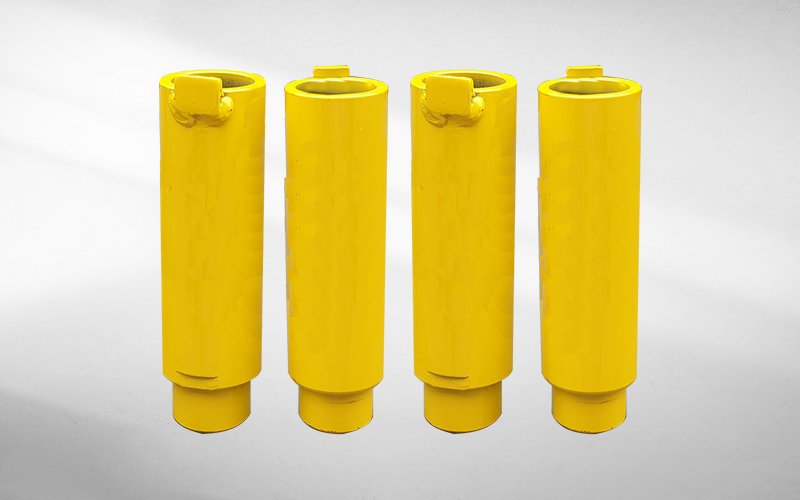

6" extension adapter comes as optional. P/N:1102504001-01

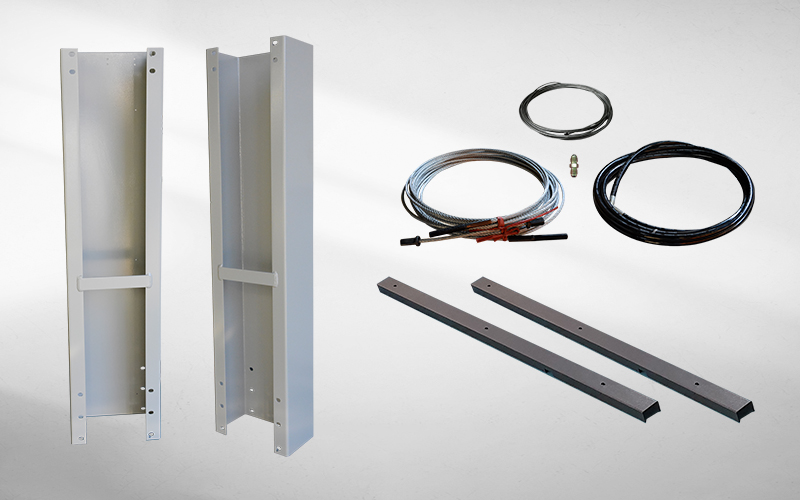

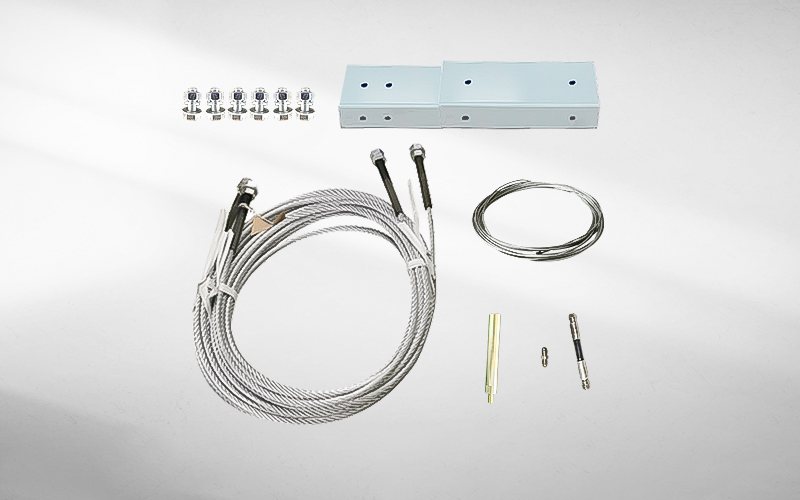

Optional Width Extension Kits
With these kits the width between posts can be adjusted from 2850 to 3000mm.No.20906
Optional Height Extension Kits
With these kits the overall height is adjusted from 3821mm to 4431mm.Kits No.:20902
