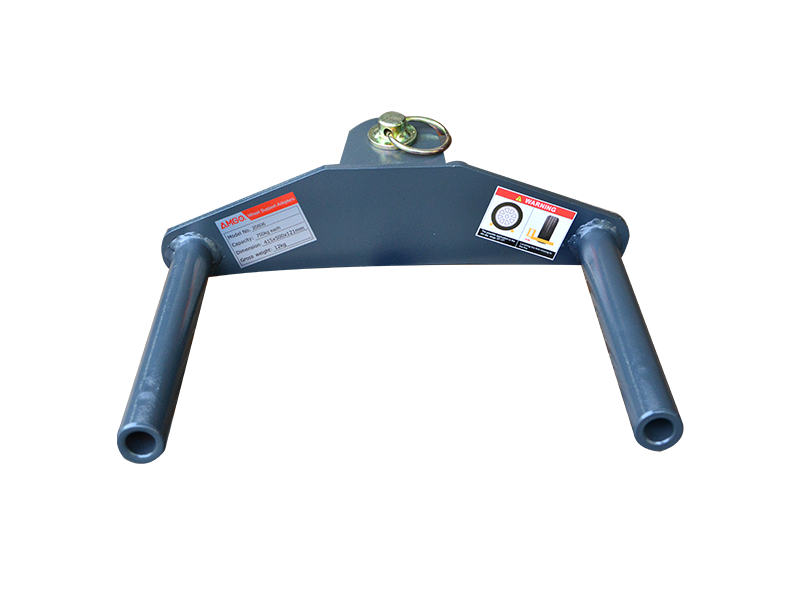

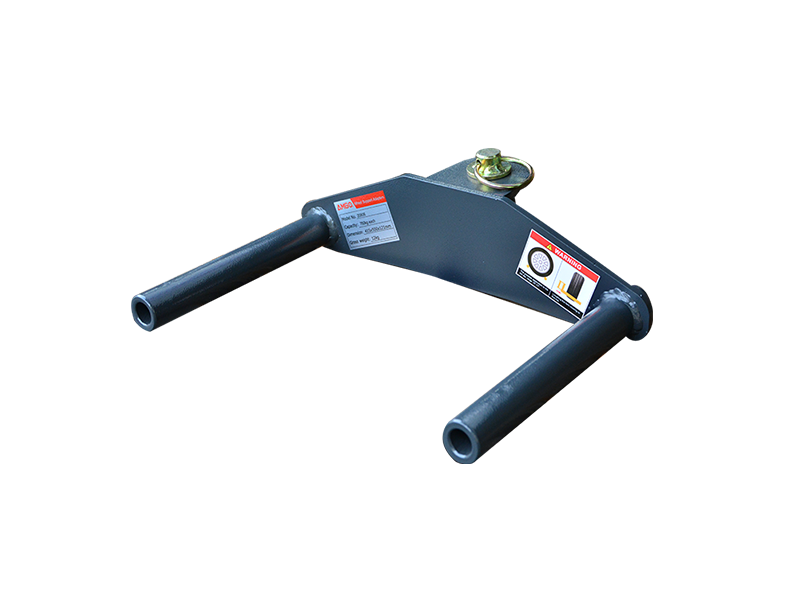

Wheel support adapters
 Wheel support adapters

20806

FOR 2 POST LIFT


Wheel Support Adapter are suitable for most of 2 post lifts in the market, changing the 2 post lifts from chassis-support to wheel-support. It is also available for low-chassis or electric vehicles maintenance & battery replacement.

Detailed Product Information

  • Capacity: 750kg each;
  • Optional accessories changing the lift from chassis-support to wheel-support;
  • Install on 2-post lift arms, with smart design, easy to fix or remove; suitable for all 2-post lifts of PEAK/AMGO and most of the 2-post lifts in the market;
  • The best application to tire Rim Dia. range 15"-17";
  • Suitable for the arm of 1 1/2'' or 2'' diameter hole
  • Highly recommend for extremely low-chassis or electric vehicles maintenance & battery replacement;
  • G.W. 12 KG each.
Model No.

20806

Capacity 750kg each
Dimension 415x500x121mm
Gross Weight 12kg each





140x140

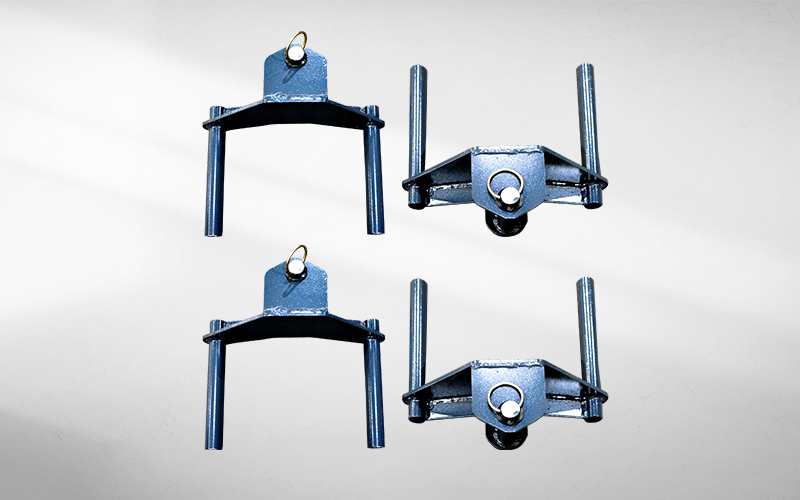

4 sets wheel support adapters.

140x140

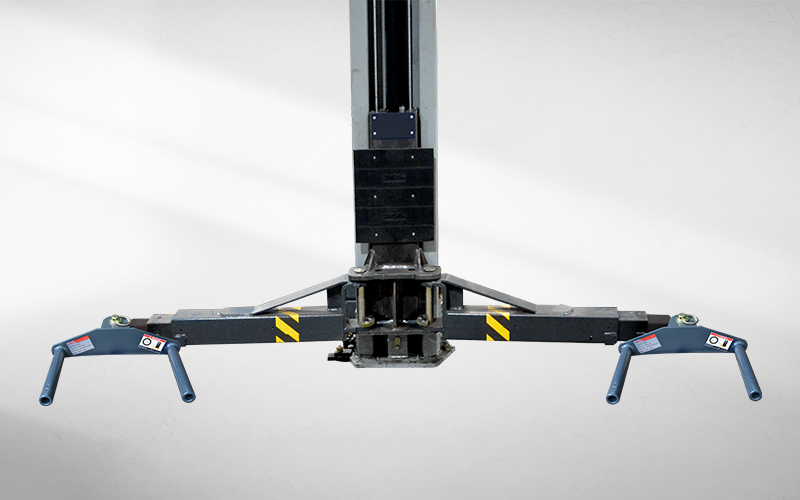

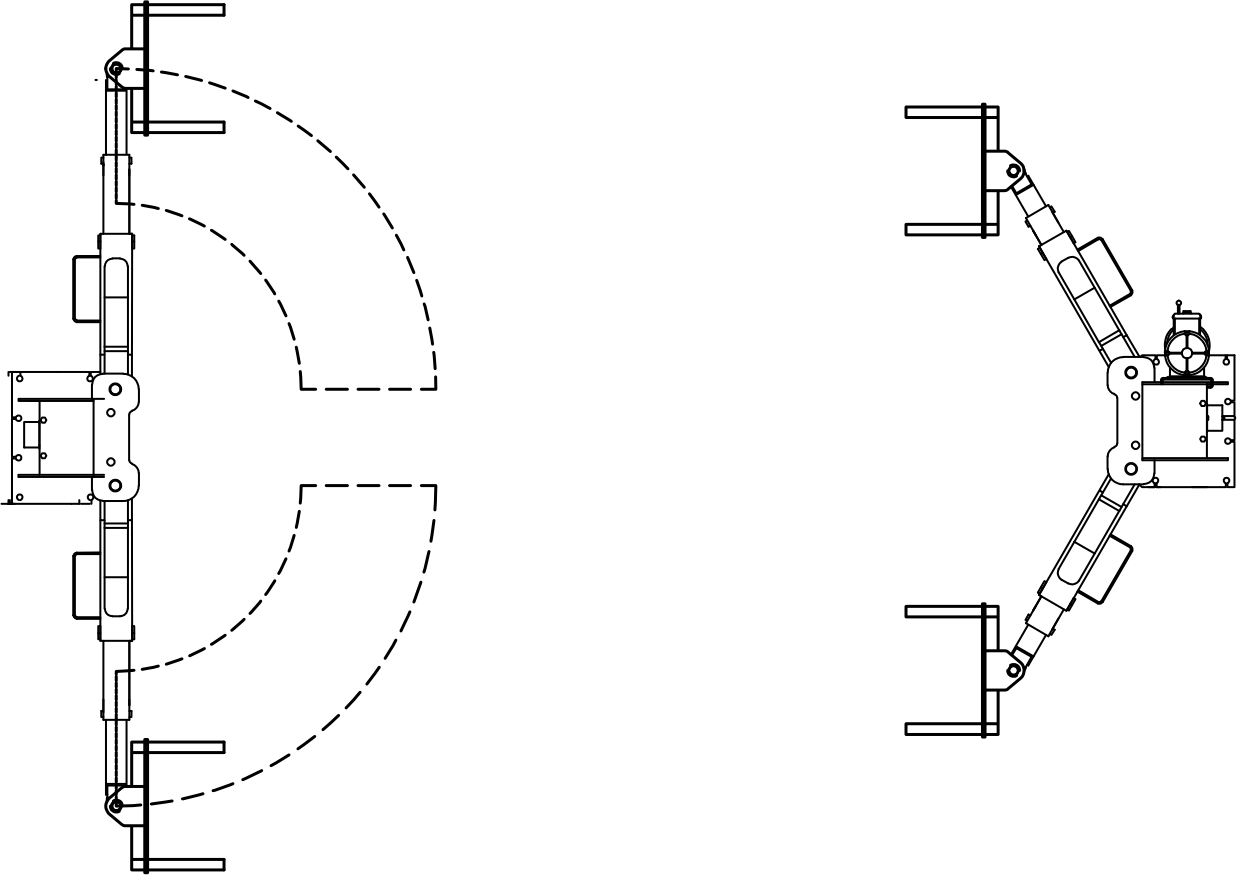

Symmetric installed on each 2-post lift arm.

140x140

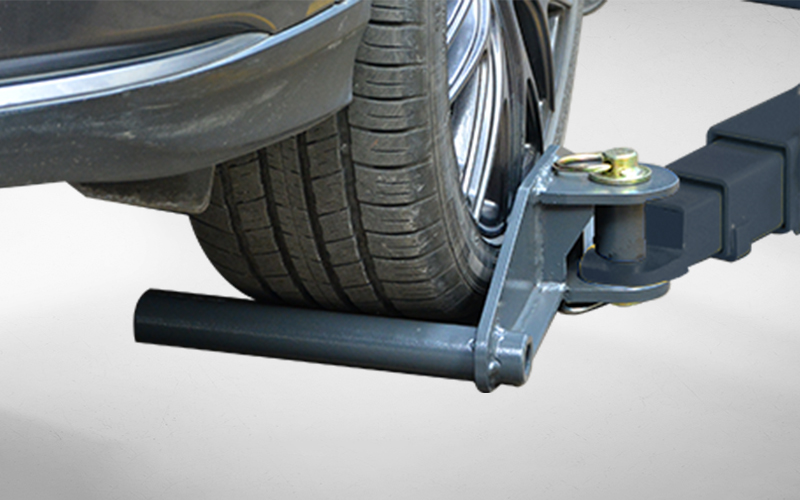

Very well lifted by supporting tire.Fit for Rim Dia range 15"-17" tire.
